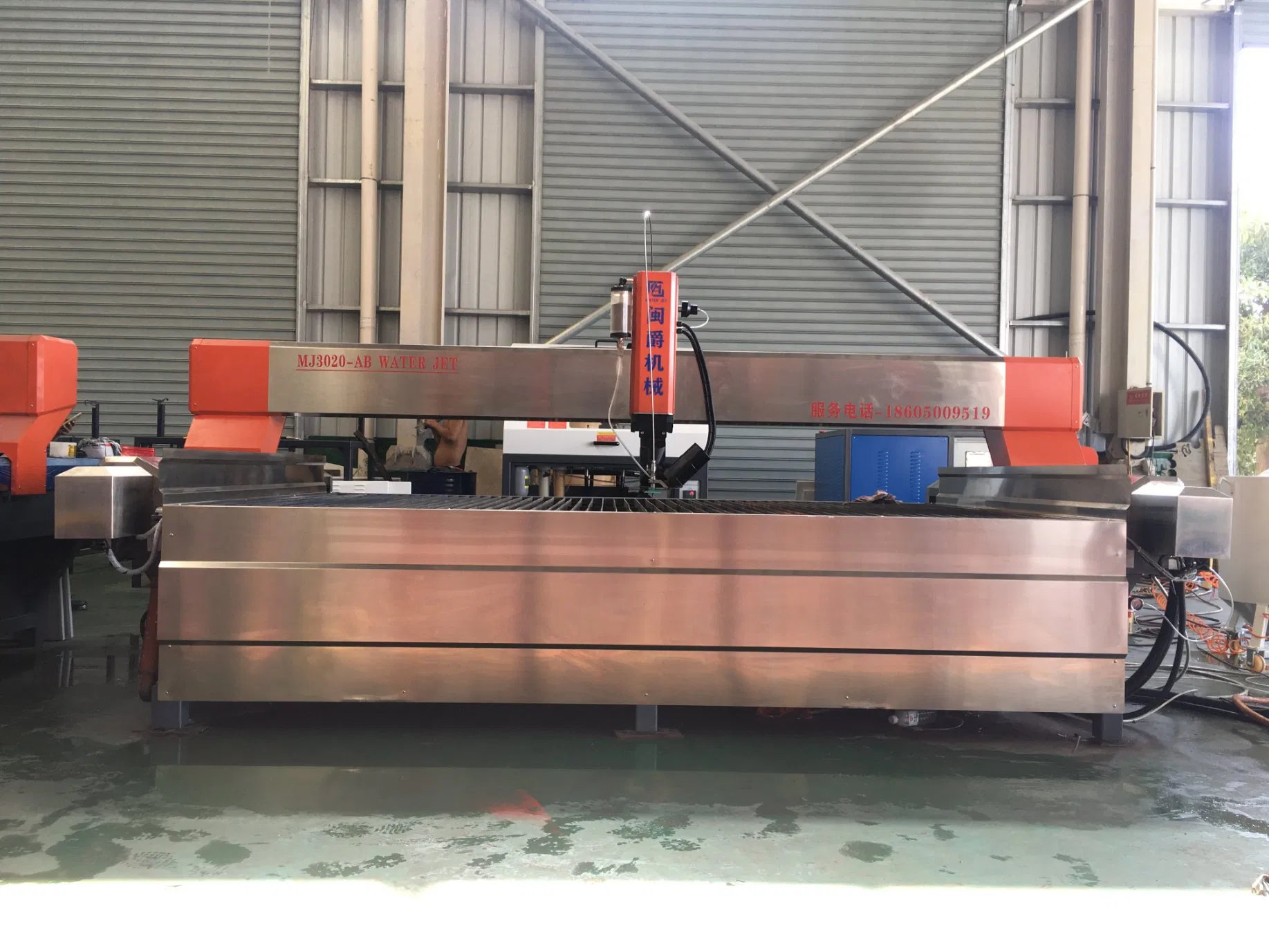

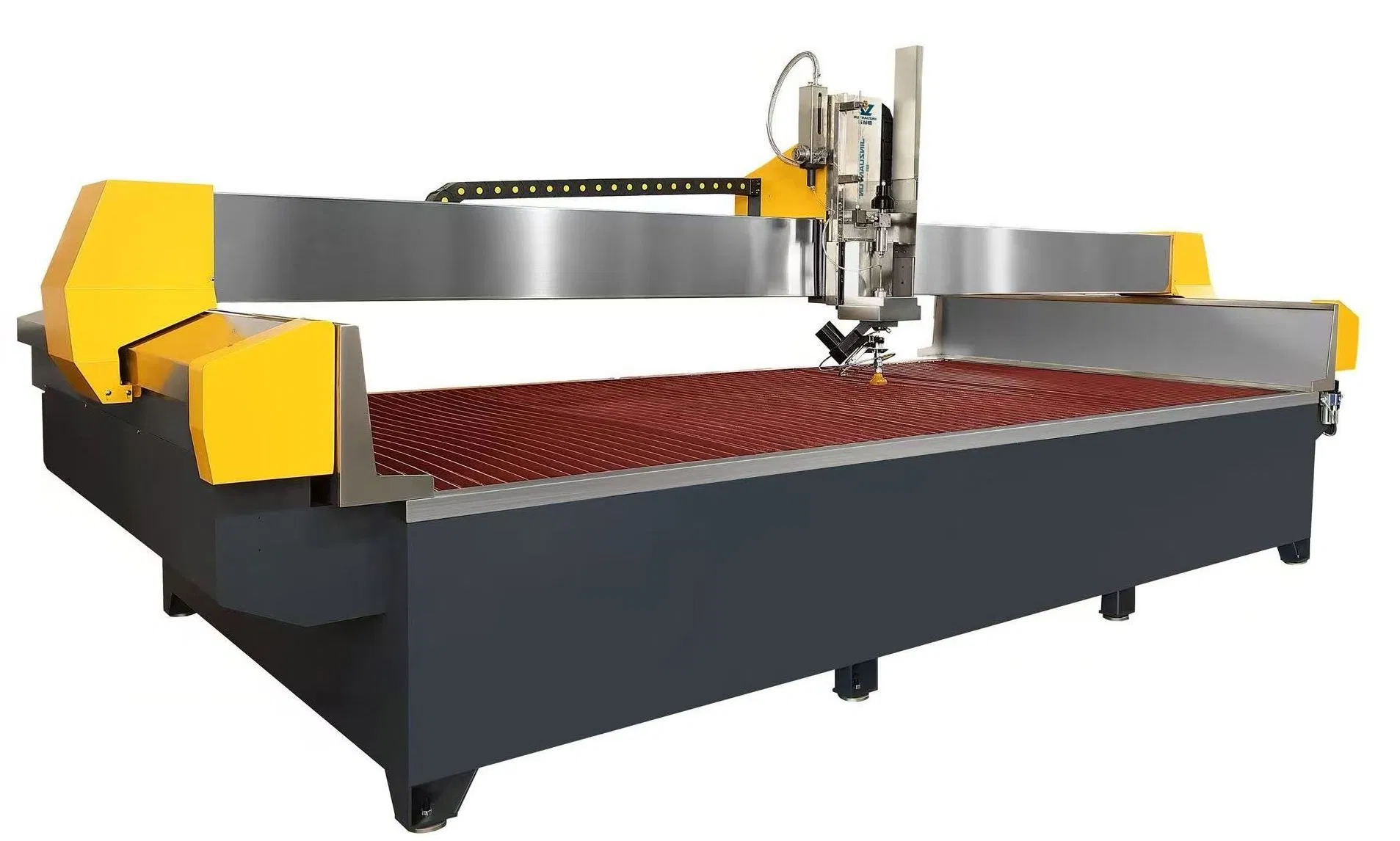

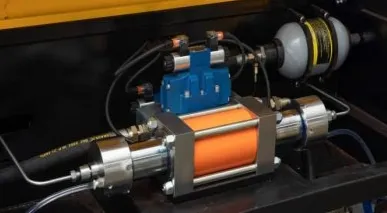

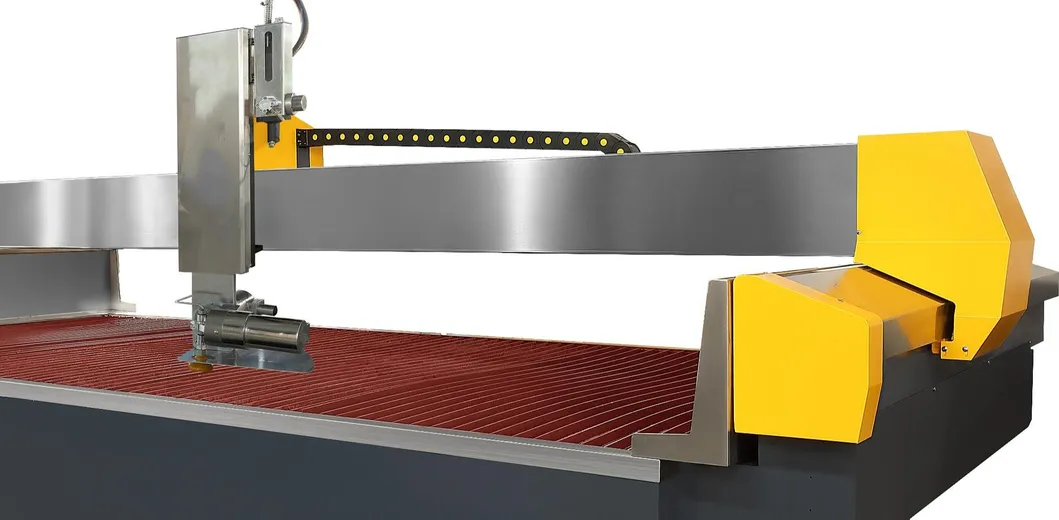

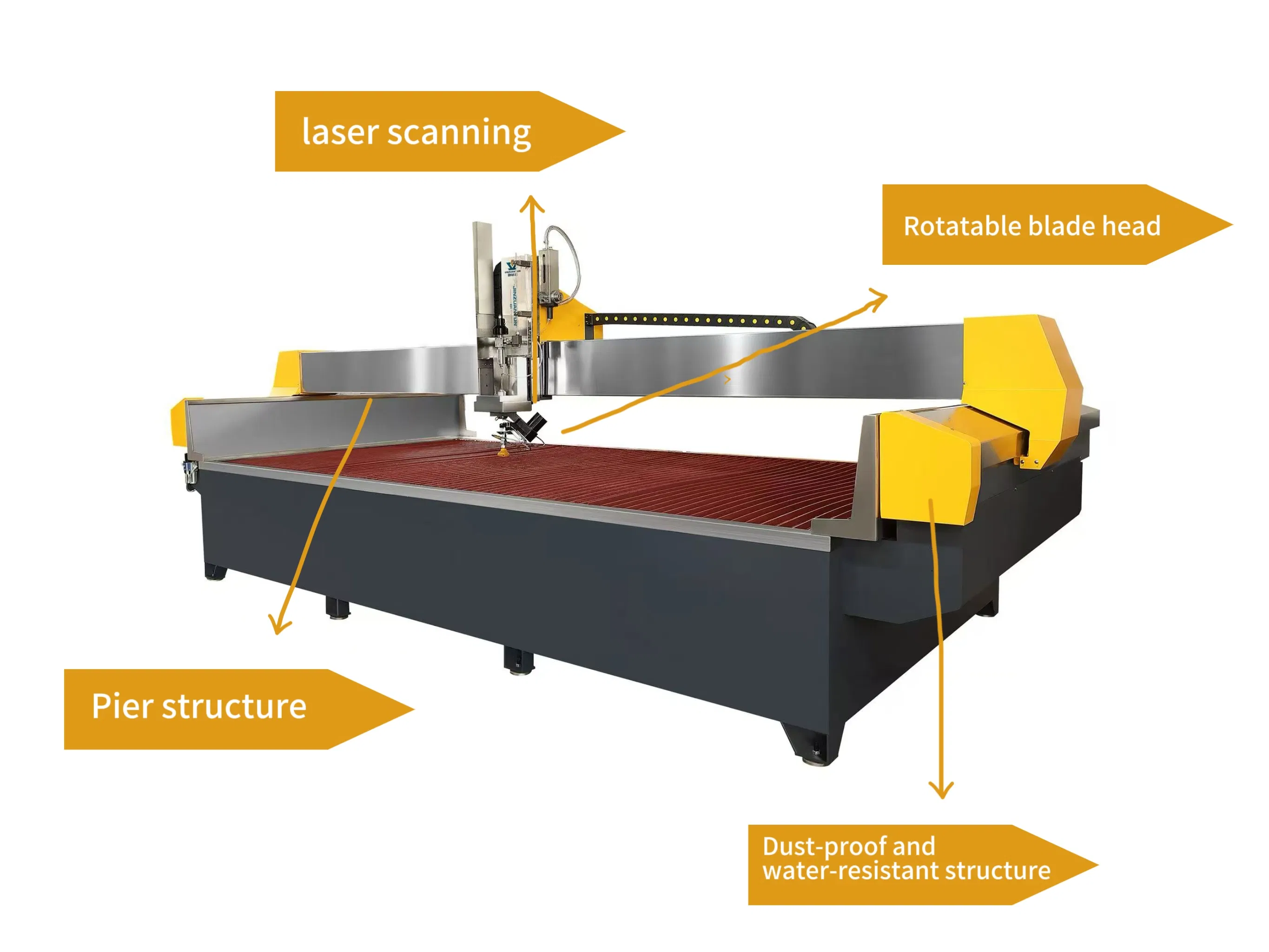

This advanced waterjet cutting system integrates ultra-high-pressure technology (350-400 MPa) for fast cutting speeds, achieving 10-20% higher efficiency than conventional systems through energy-saving intensifiers. It consumes 17-22 kWh/hour, reducing electricity costs by 30,000-45,000 CNY annually.

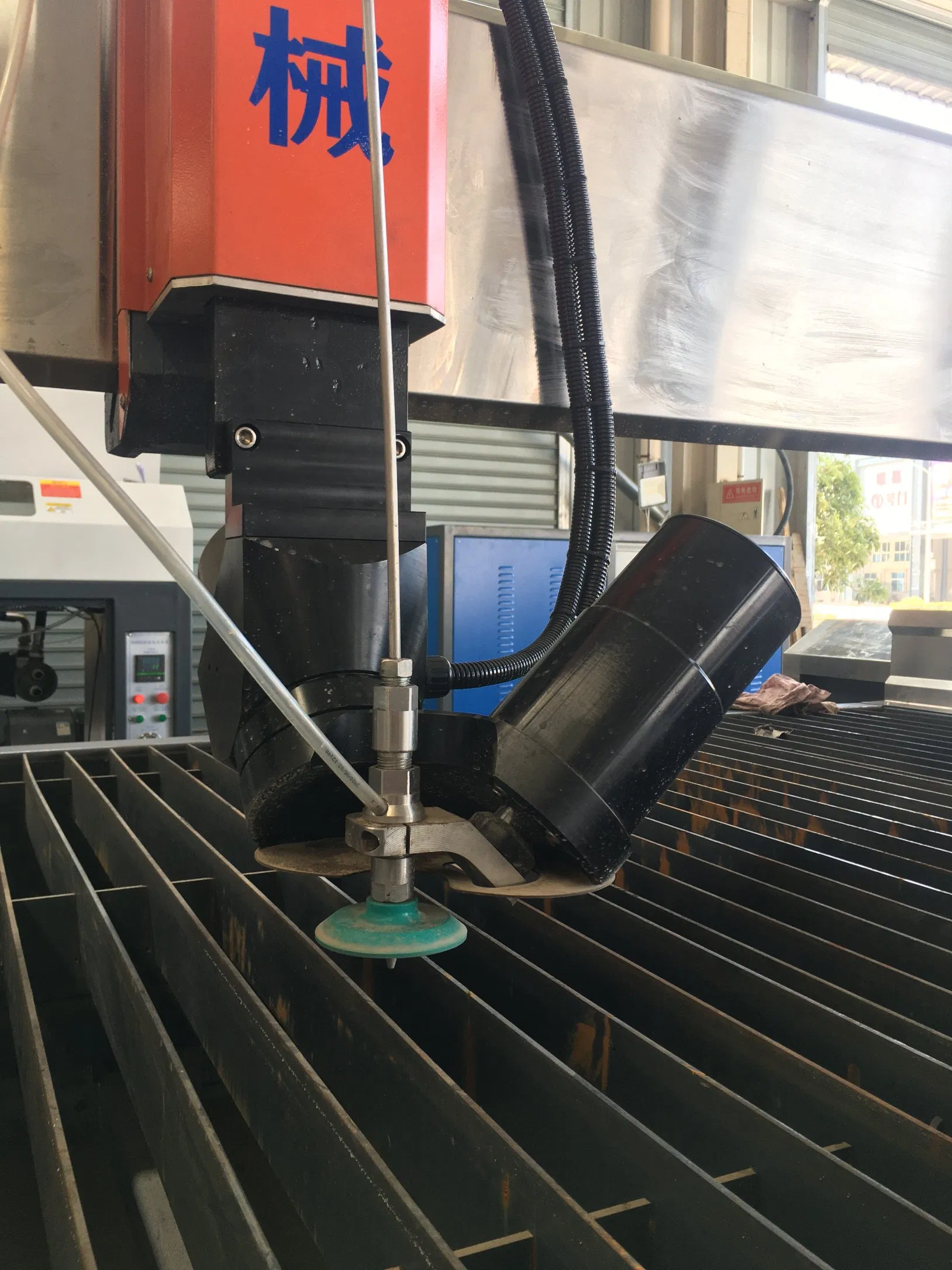

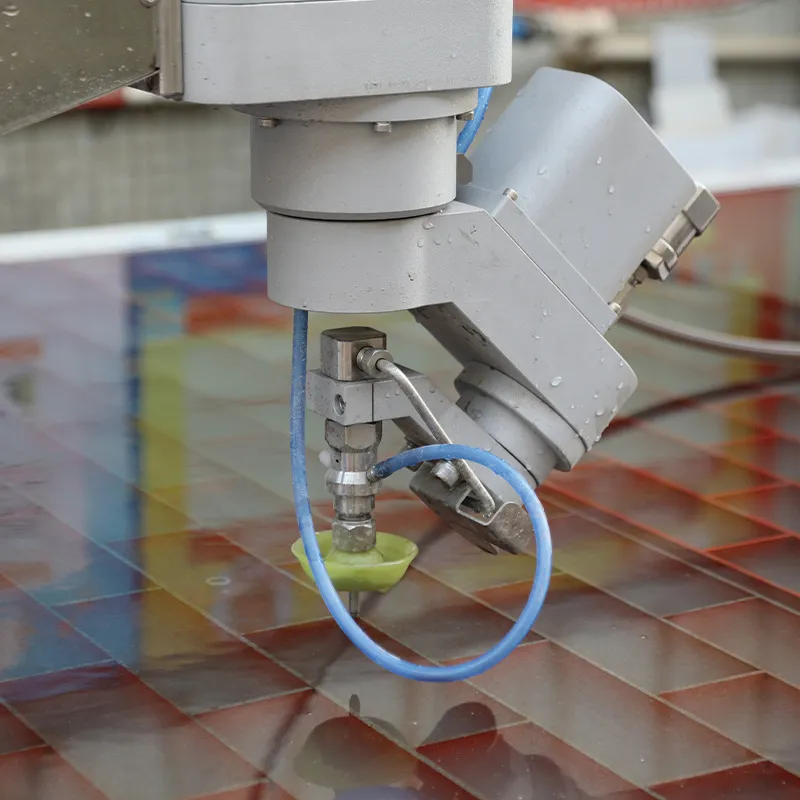

Featuring precision sand-control, it saves 2-3 bags of garnet abrasives (25kg/bag) every 10 hours, lowering material expenses by 20,000-40,000 CNY yearly. Equipped with 0.33mm gemstone nozzles and intelligent CNC controls, it delivers cold-cutting performance for metals, composites, and ceramics without thermal deformation, ideal for industrial surface treatments and complex 5-axis applications.
| Cutting Dimensions | 2500*1500mm |
| Feed Height | 110mm |
| Rotation Range (AB Head) | ±10° |
| Cutting Accuracy | ±0.1mm |
| Processing Speed | 0.5 - 3.5 M/min |
| Positioning Repeatability | 0.05mm |

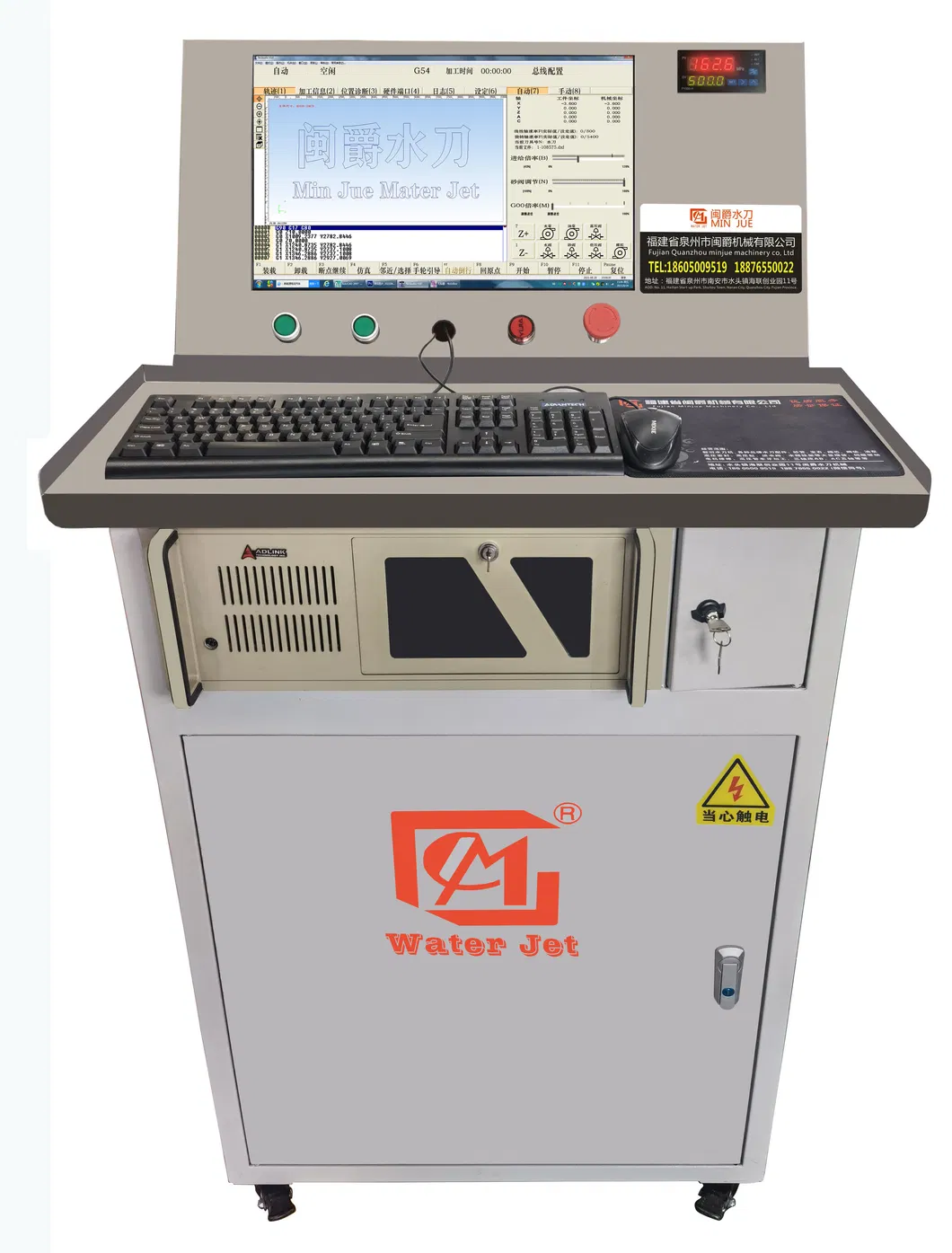

| Control System | Weihong Bus |
| Operating Voltage | AC220V/50Hz or AC380V/50Hz |
The system supports function customization based on specific processing requirements. Ideal for high-precision tasks across multiple industries.

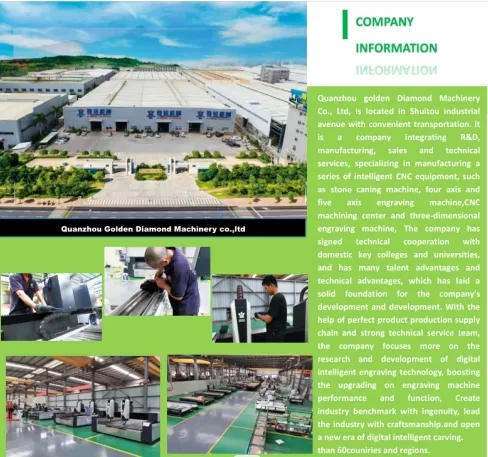

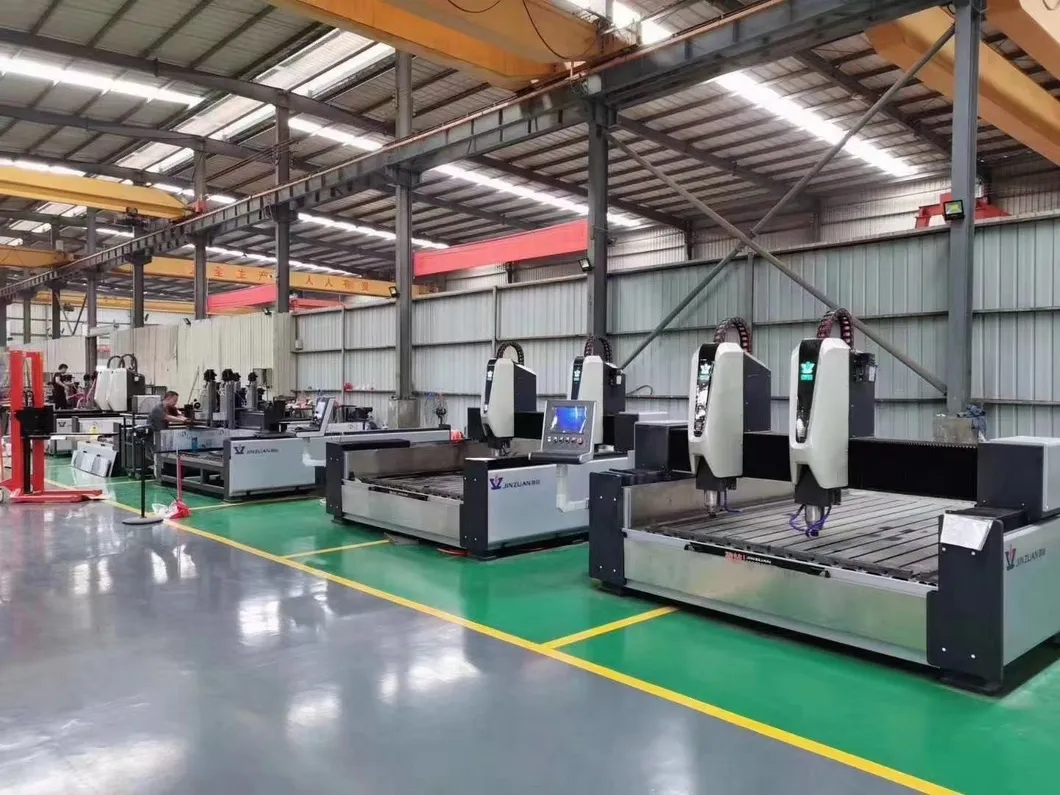

Focusing on R&D, manufacturing, and technical services for 10 years. Our equipment holds ISO9001, CE, ROHS, and BV certifications.
Packaging: Rust-proof, moisture-proof, and impact-resistant boxing ensures non-damaged arrival at the site.
