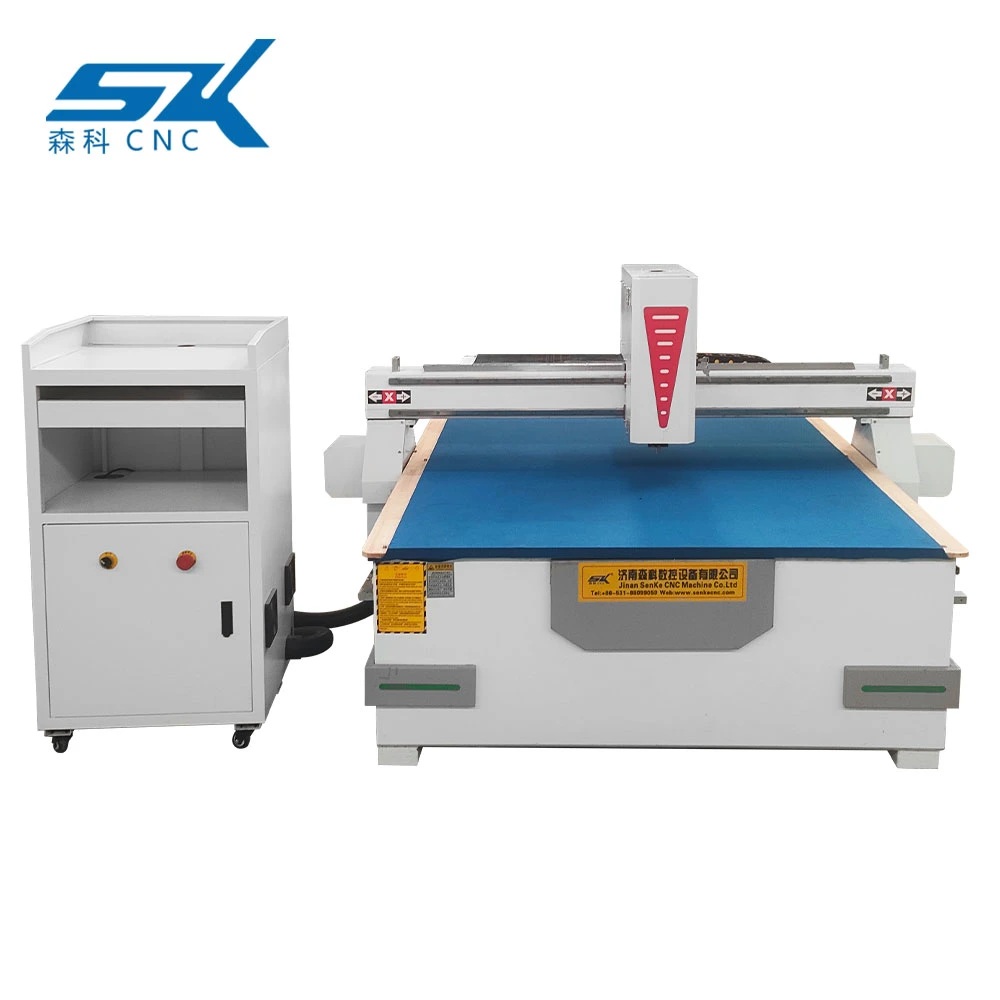

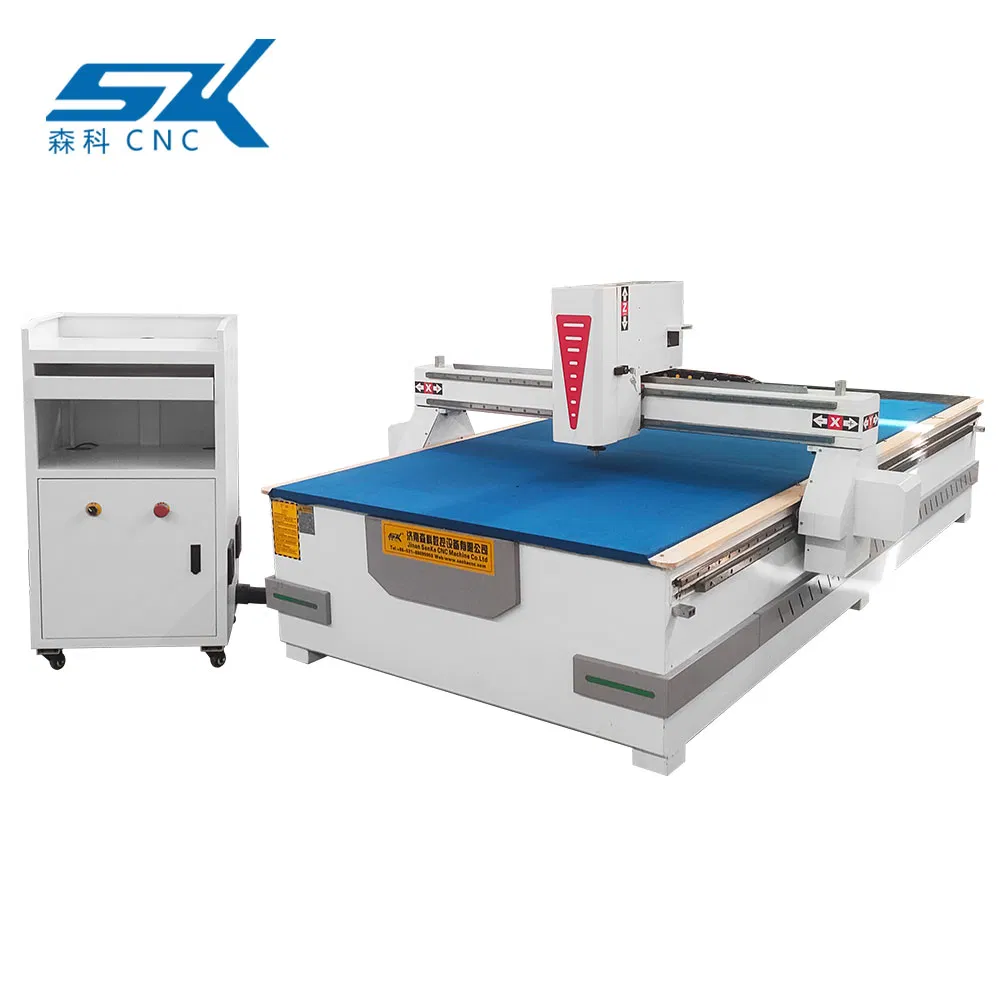

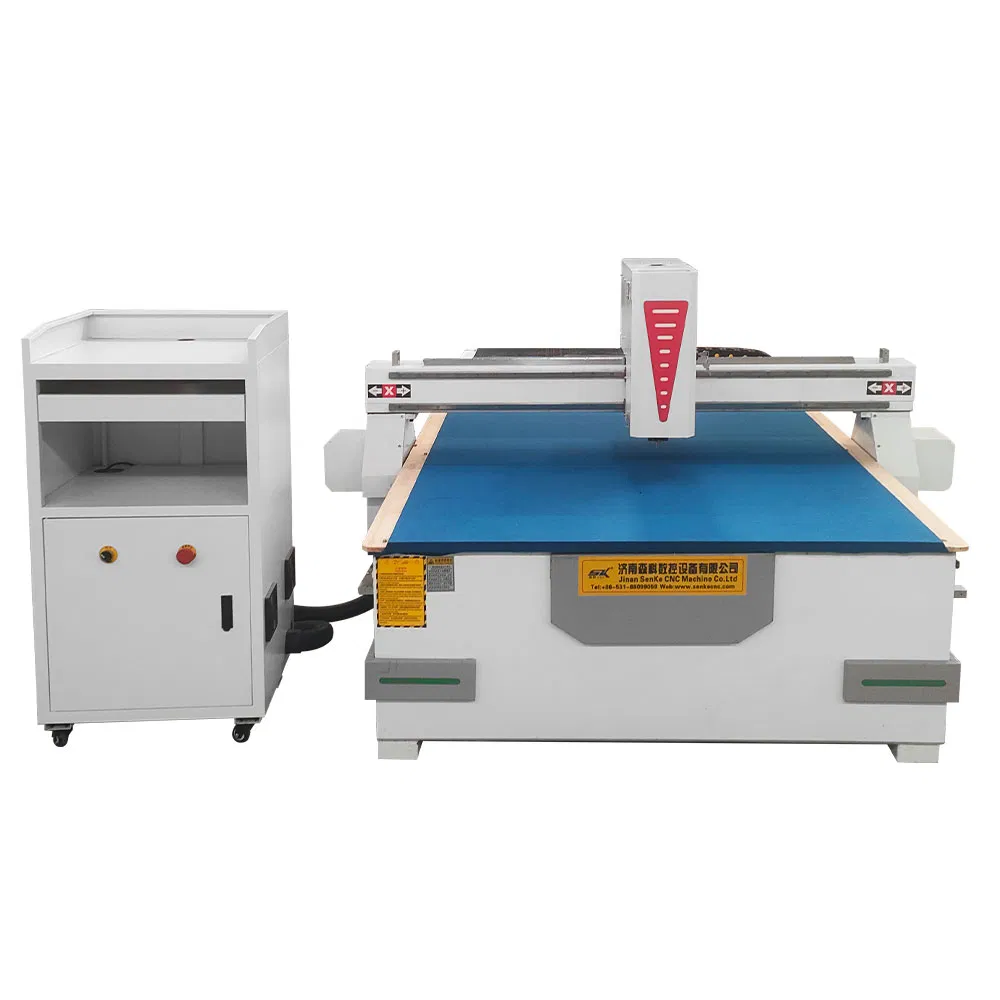

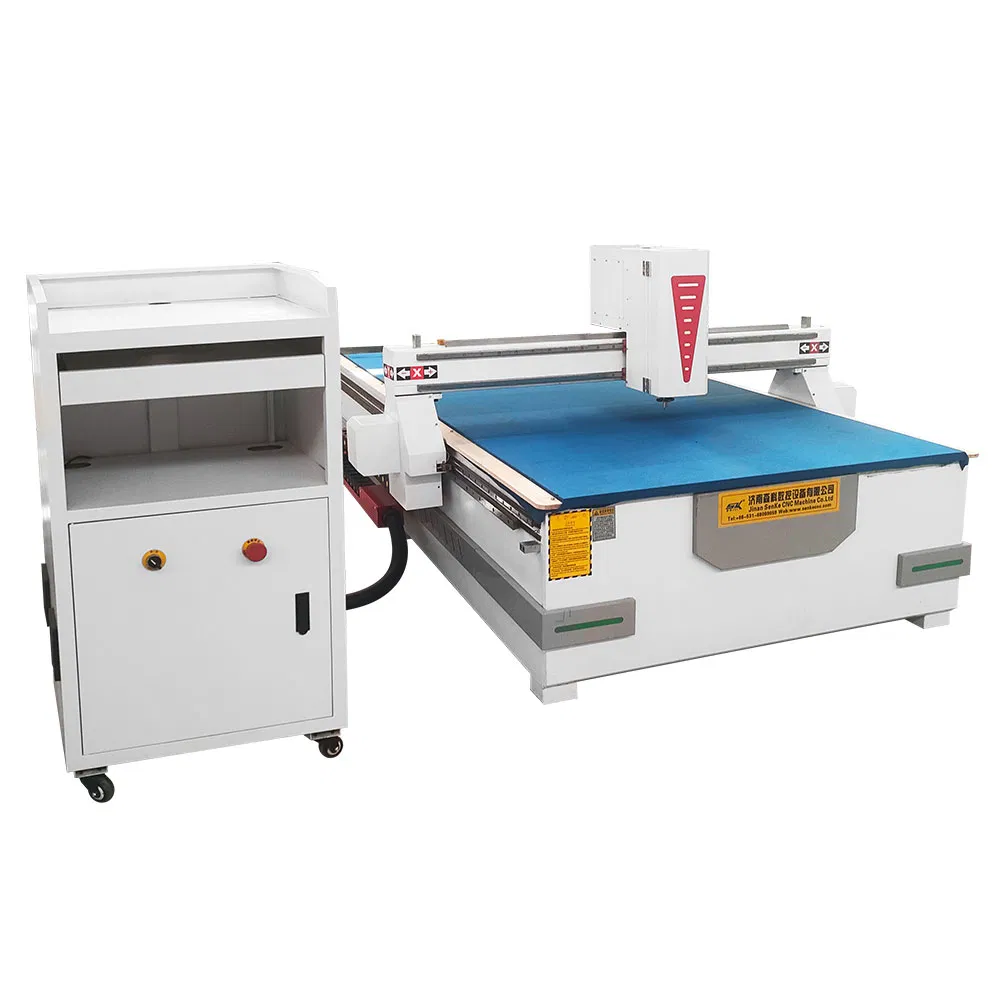

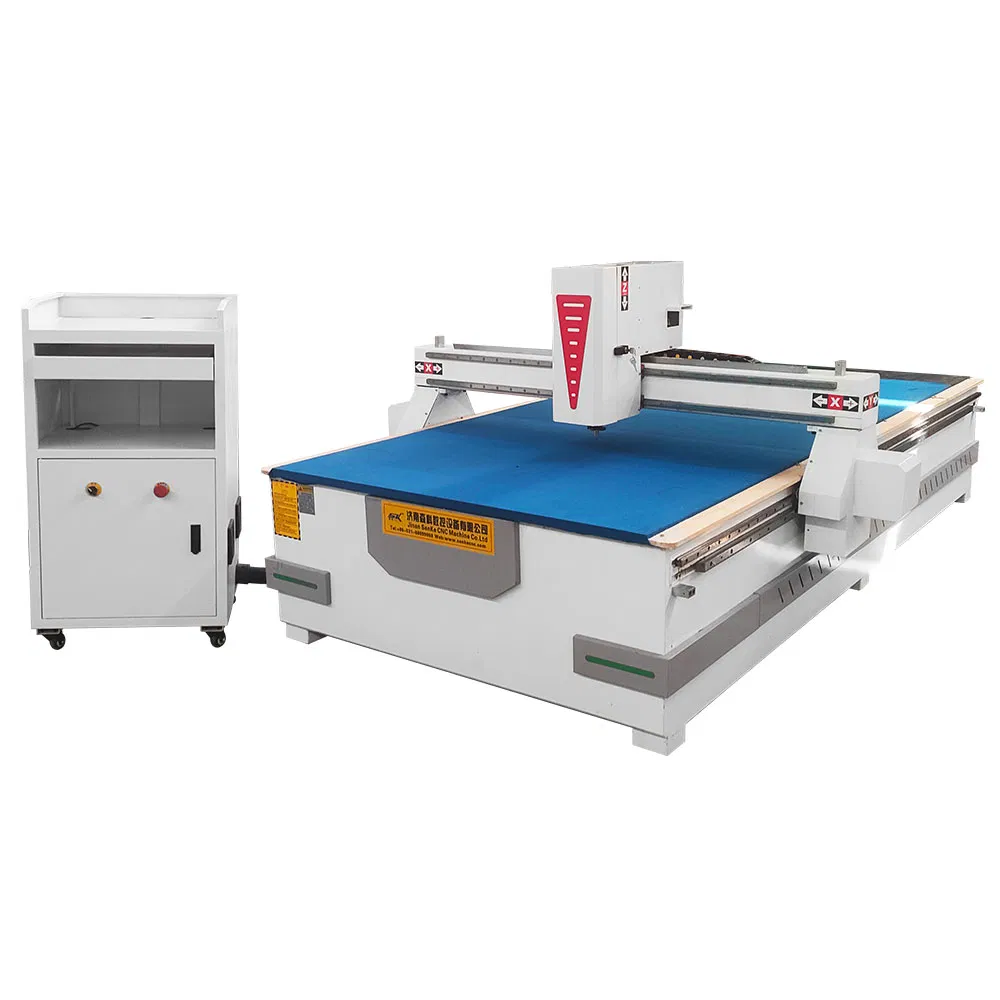

High Precision Watch Mirror Glass Cutting Machine CNC Glass Cutting Machine Price

1 / 5

High Precision Watch Mirror Glass Cutting Machine CNC Glass Cutting Machine Price

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

CNC Glass Cutting Cutter with Automatic Glass Cutting Machine for Cutting Round Mirror Industrial Glass

Basic Information

Model NO.SKQ-1313

UsageGlass Cuting

Min Glass Size100*100mm

OperationAutomatic Control

Key WordsCNC Glass Cutter

Processable GlassNormal Glass

MotorStepper Motors

Max Moving Speed40000mm/Min

Max Cutting Speed20000mm/Min

Body StructureThicken Steel Made Lathe

RailsTaiwan Hiwin Square Rails

TransmissionTaiwan Tbi Ball Screw

Working Area800*800mm/ as Needed

TypeGlass Cutting Machine

ConditionNew

Production Capacity200sets/Month

Technical Parameters

Machine Specifications
Model	SKQ-4545/6090/8080
Working area	450450mm/600900mm/800*800mm
Body Structure	Thicken Steel Made Lathe
Rail	Taiwan HIWIN Square Rails
Transmission Type	Taiwan TBI Ball Screw
Max Moving Speed	40000mm/min
Max Cutting Speed	20000mm/min
Interface	USB
Voltage	220V/single phase or customized
Drive Type	Stepper Motor & Leadshine Drivers
Operating System	NC-studio Control System
Software	Artcam 8.1
Oil Lubricator	Included
Wire Protect	Included

Main Features

⚙️

Welded with seamless steel structure, high temperature annealing and vibrating stress relief for permanent stability.

📏

Three axises adopt Taiwan brand linear guide rails with high precision.

🔩

Z axis adopts imported Germany or Taiwan made ball screw for high precision and long life time.

⚡

X and Y axis transmitted by helical rack and pinion for faster work and larger cutting force.

💻

Excellent compatibility with CAD/CAM software like Type3, Castmate, Wentai, Artcam, etc.

🔄

Resume carving function after break point or power failure with processing time estimation.

🛢️

Manual/automatic oil-injection system for easier machine maintenance.

Product Gallery

Frequently Asked Questions

What types of glass can this machine cut?

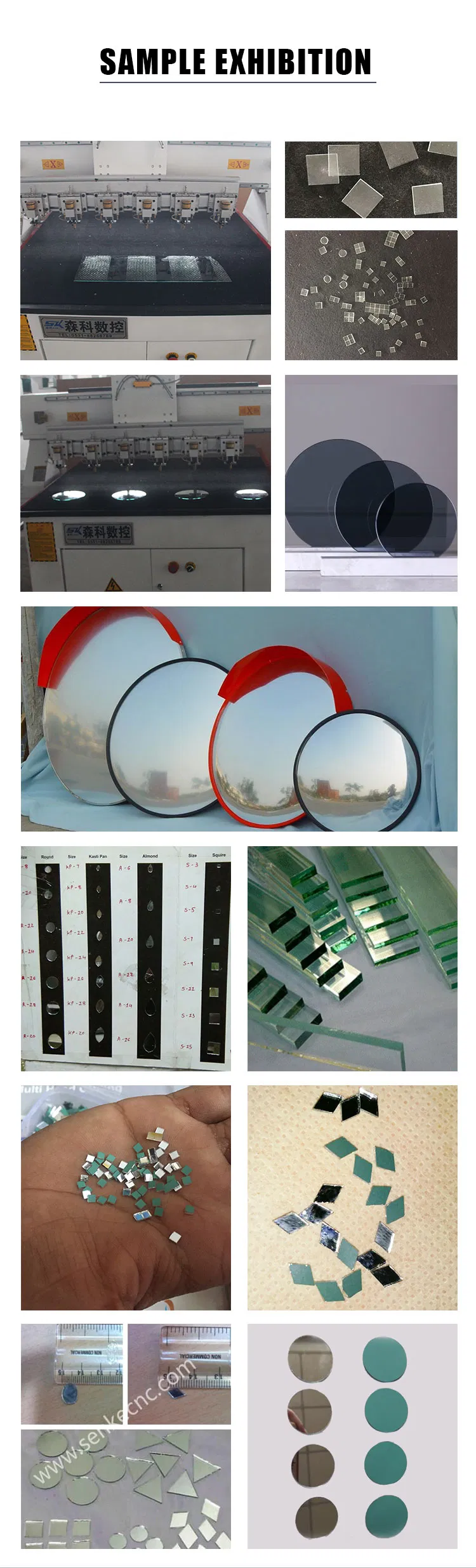

The machine is designed for cutting normal glass, mirrors, car mirrors, make-up mirrors, and various industrial glass types.

What is the maximum cutting speed of the CNC glass cutter?

The machine offers a maximum moving speed of 40,000 mm/min and a maximum cutting speed of 20,000 mm/min.

Which control system does the machine use?

It utilizes the professional NC-studio control system, which provides stable and precise automatic control.

Is the machine body durable enough for industrial use?

Yes, the machine features a thicken steel seamless welded structure with high-temperature annealing to ensure it remains stable and deformation-free.

What software is compatible with this CNC machine?

It is compatible with various CAD/CAM design software, including Artcam, Type3, Castmate, and Wentai. Artcam 8.1 is provided as standard.

How is the machine maintained in terms of lubrication?

The machine includes a manual/automatic oil-injection system, which makes maintenance much easier and ensures smooth operation of the rails and screws.
