| Model NO. | WMT40120-AL | Certification | CE |
|---|---|---|---|
| Condition | New | Control | Automatic |
| Application | Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric | Power Source | Electric |
| Style | Gantry | Type | Three-Axis |
| Weight | 6500 Kg | Table Travel (Y) | 12000 mm |
| Maximum Pressure | 420 MPa | Dimension(L*W*H) | 4200*12200*1000mm |
| Repeatability | 0.005 mm | Cutting Accuracy | 0.1 mm |

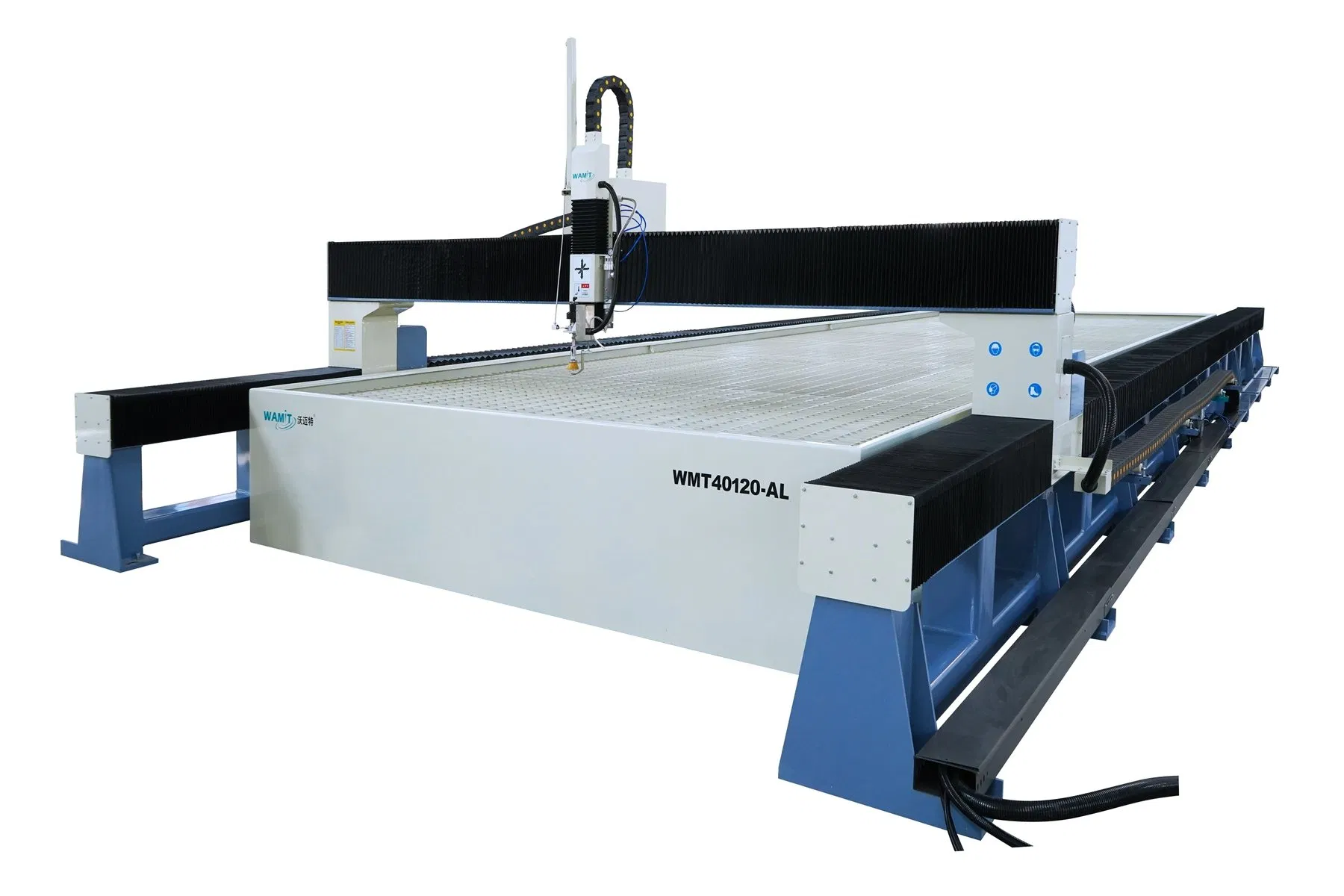

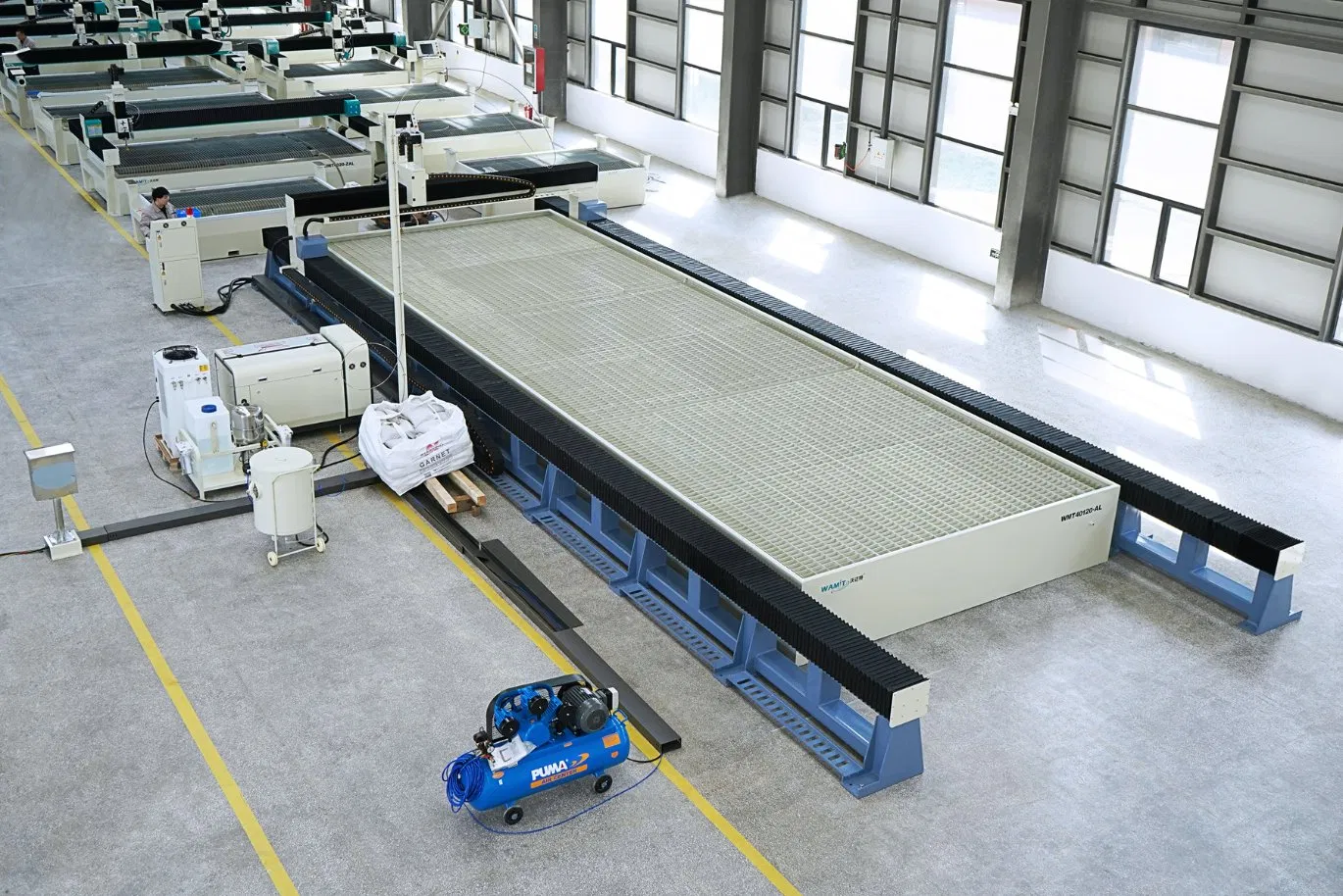

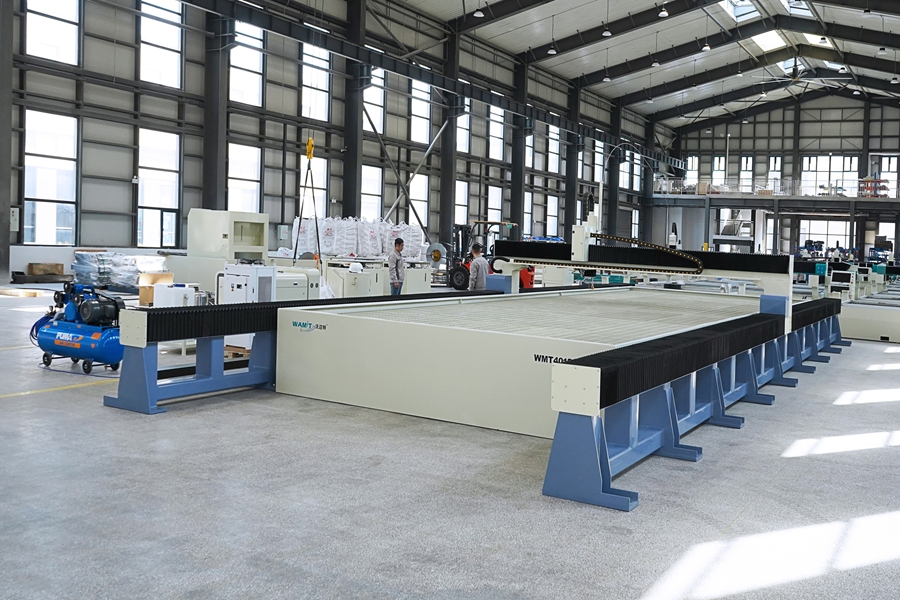

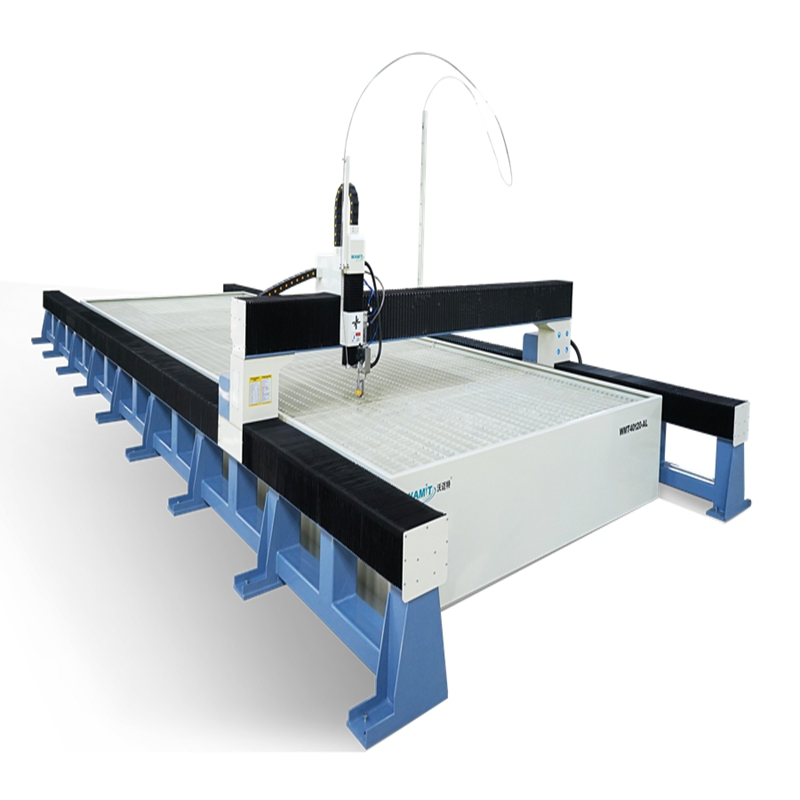

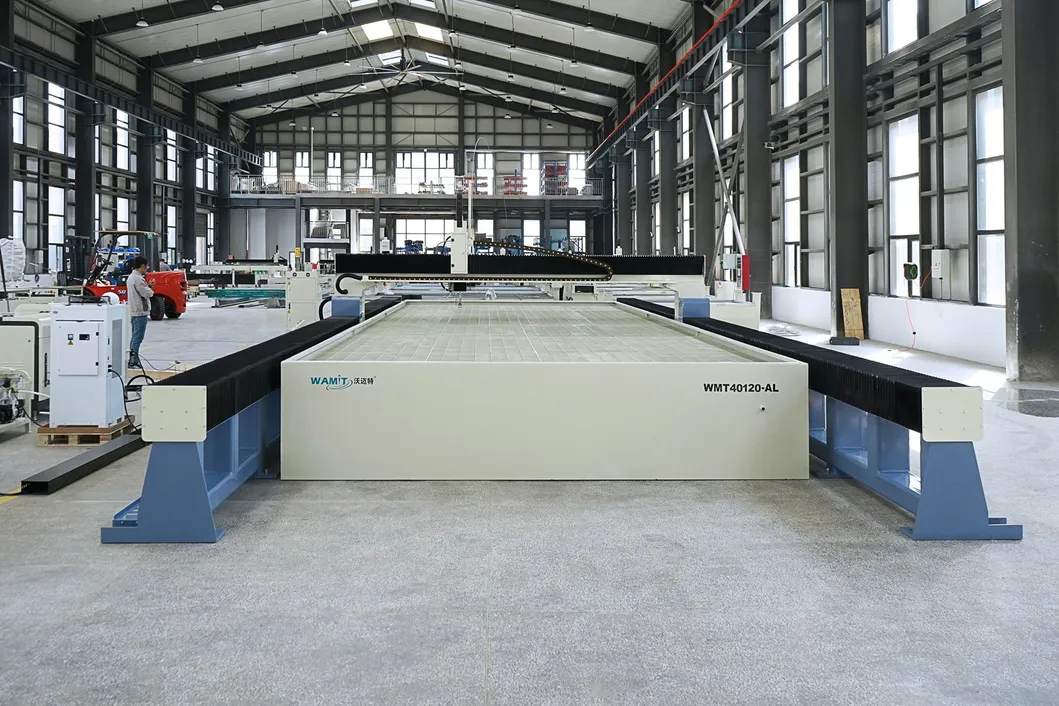

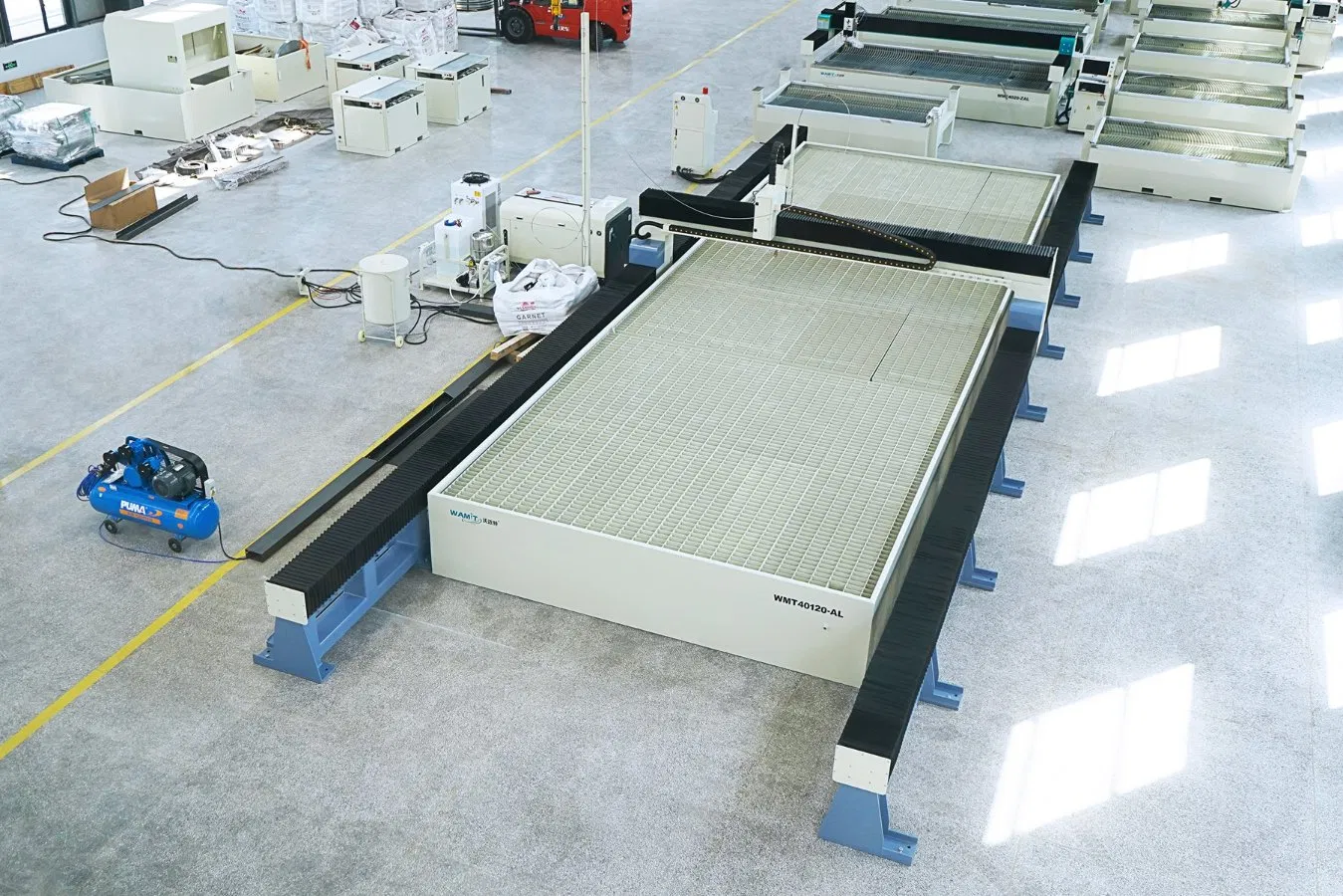

Big size High Precision 3 axis / 5 axis Water Jet Cutter
CNC Waterjet Cutting Machine designed for Marble, Glass, Tile, and Metal. Our direct drive pump can save 60%-70% on electricity costs!

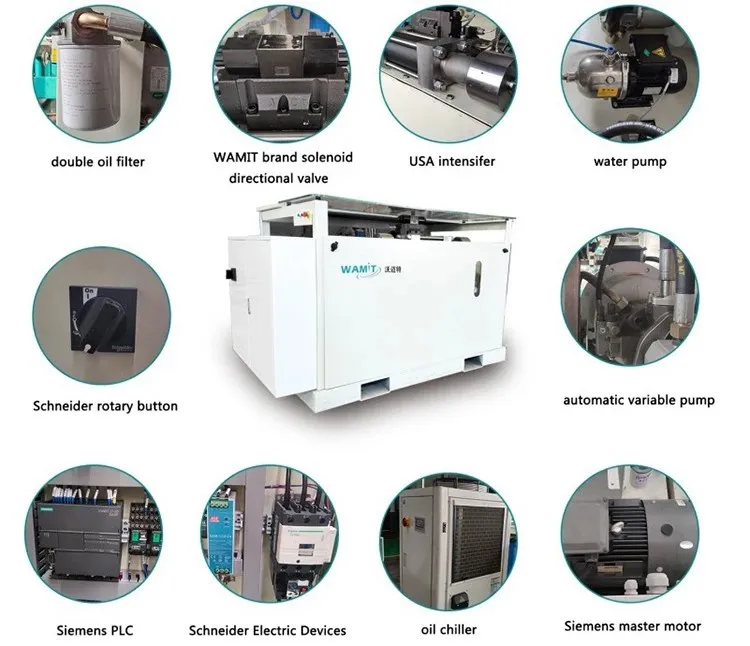

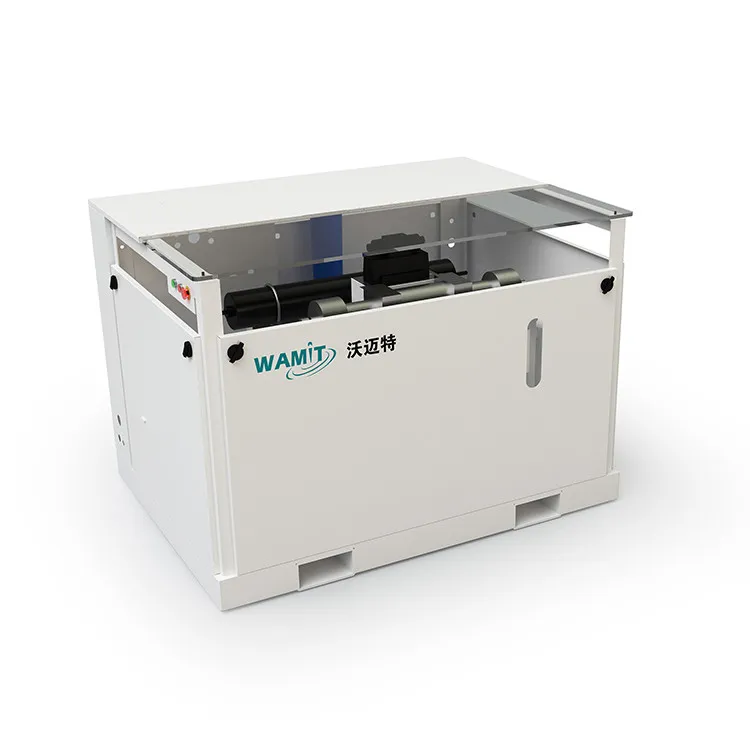

| 60000psi (420mpa) Intensifier Pump Features | |
|---|---|
| Max. Water Discharge | 3.8L/min |
| Max. Diameter of Orifice | 0.33mm |
| Operating Pressure | 350-380MPa (Continuous) |
| Power Requirement | 37KW, 3 Phase (380V/220V/415V) |
| Control Components | Siemens PLC & Schneider Electric |
CNC Controller: Equipped with a 17-inch LCD and specialized NCStudio water jet software. Features autosave for continuous operations and Siemens PLC stability.

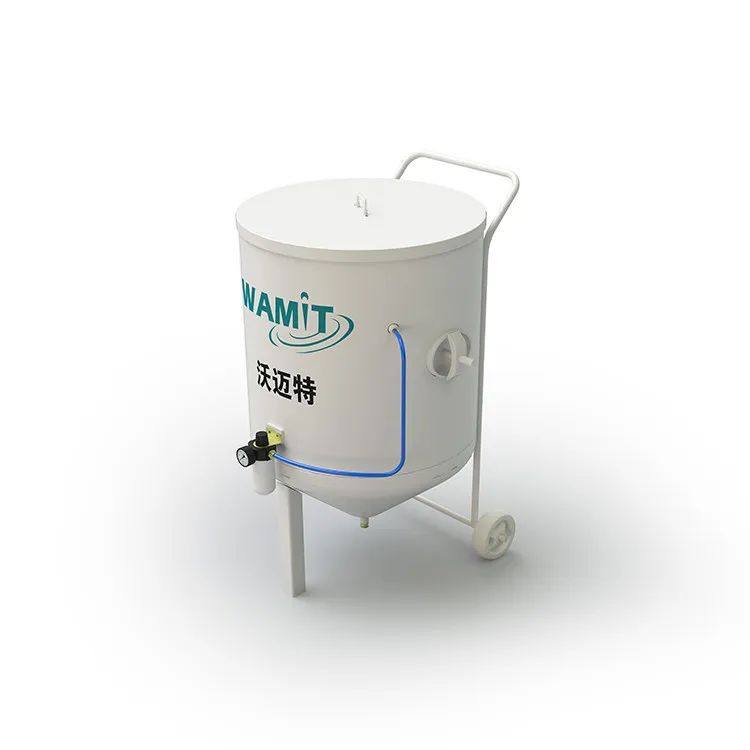

Abrasive Sand Feeding: Simple, reliable, and maintenance-free operation. 220KG capacity allows for 8-10 hours of continuous work.
| Material | Thickness (mm) | Direct Drive Speed (mm/min) | Intensifier Speed (mm/min) |
|---|---|---|---|
| Carbon Steel | 10mm | 330 | 270 |
| Aluminum | 12mm | 800 | 600 |
| Glass | 10mm | 1500 | 1100 |
| Ceramic Tile | 12mm | 2000 | 1500 |
| Marble | 25mm | 1000 | 800 |
Equipment is securely packed in soft packing for shipment via 20' FCL containers to ensure safe international delivery.

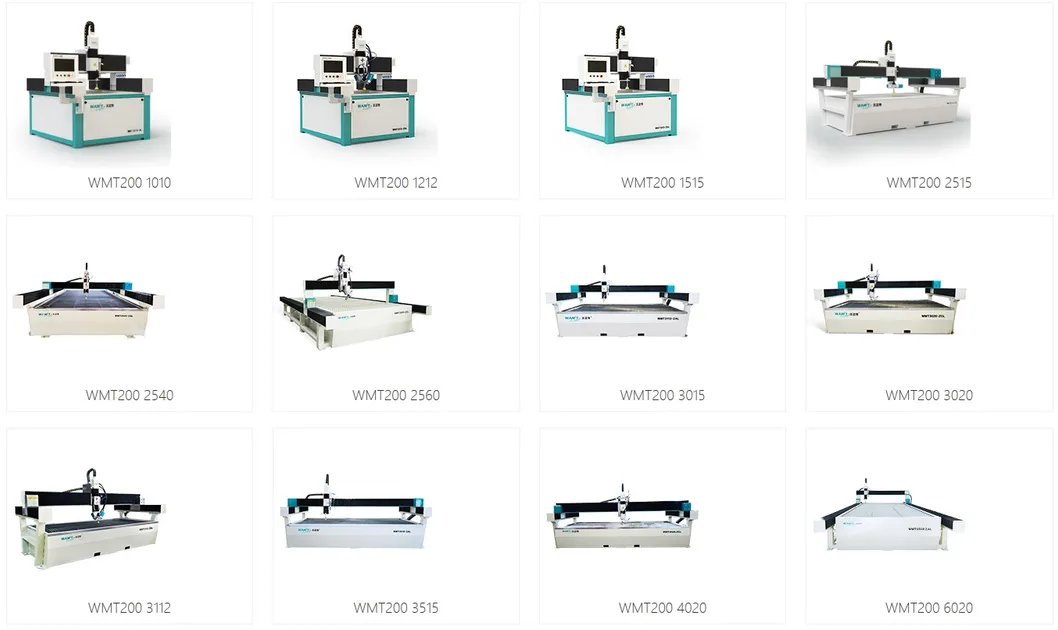

As a professional supplier of water jet cutting machines and spare parts, we provide a wide range of solutions including 420Mpa intensifier pumps, 60KPSI direct drive pumps, and 3-axis/5-axis cutting heads. Our machines are designed for efficiency, accuracy, and low maintenance costs.
