Product Description

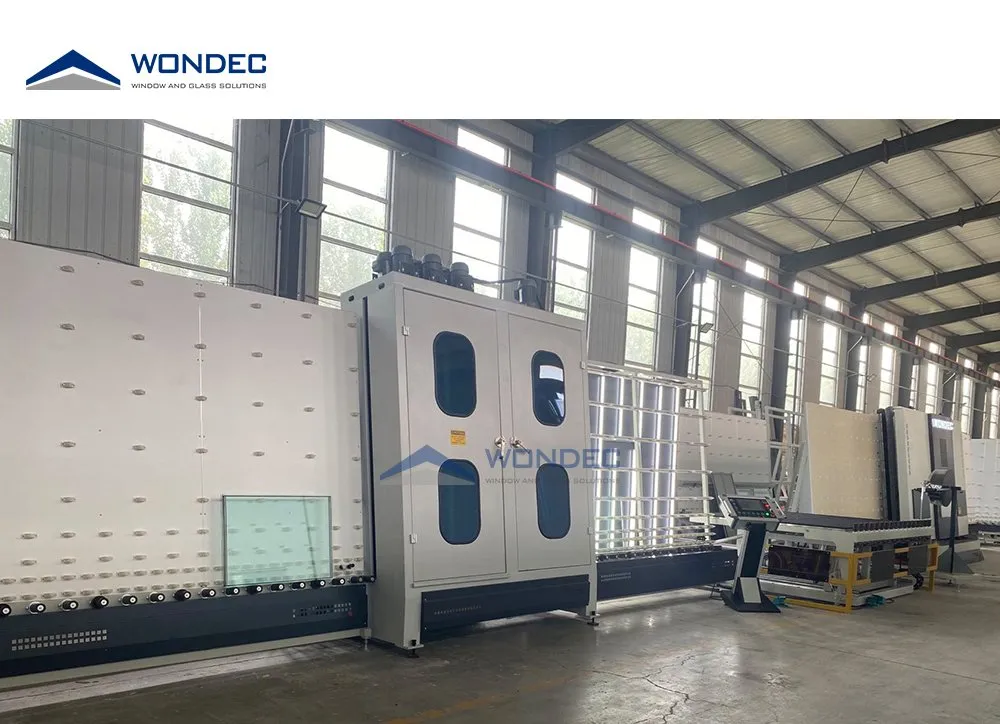

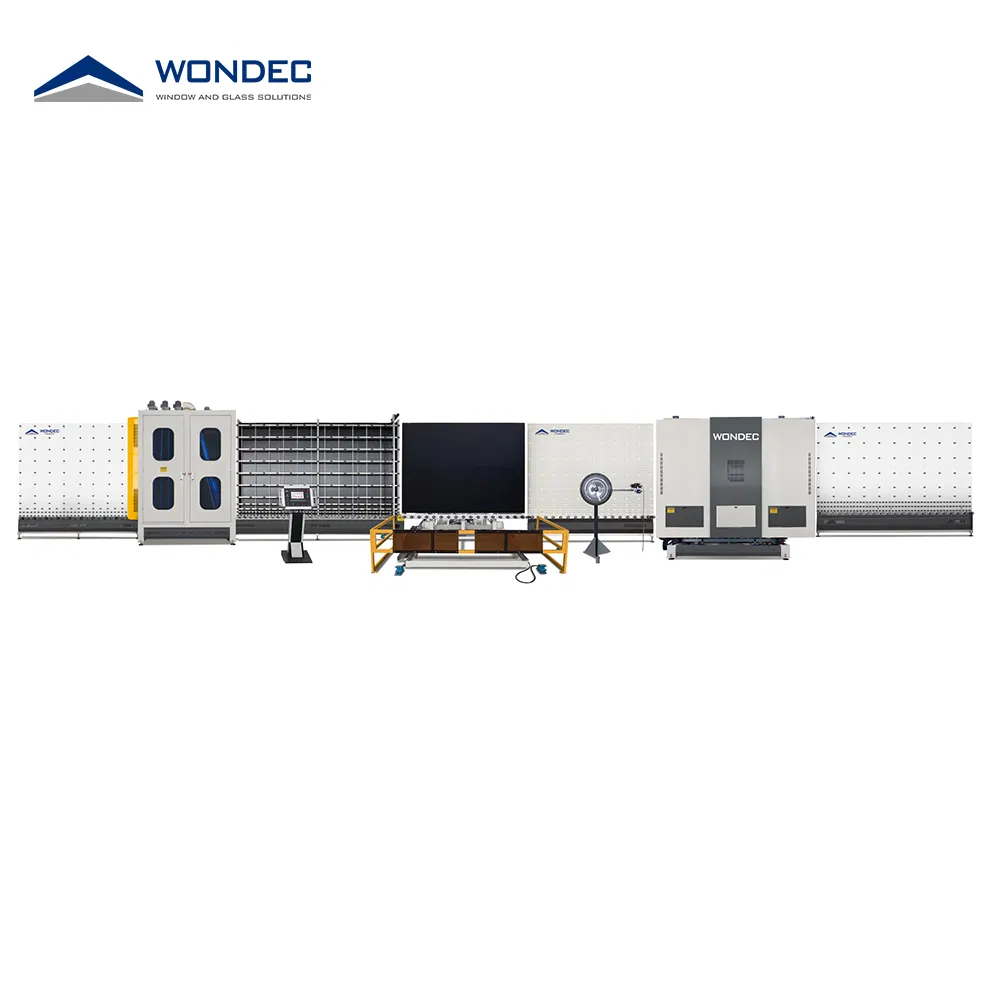

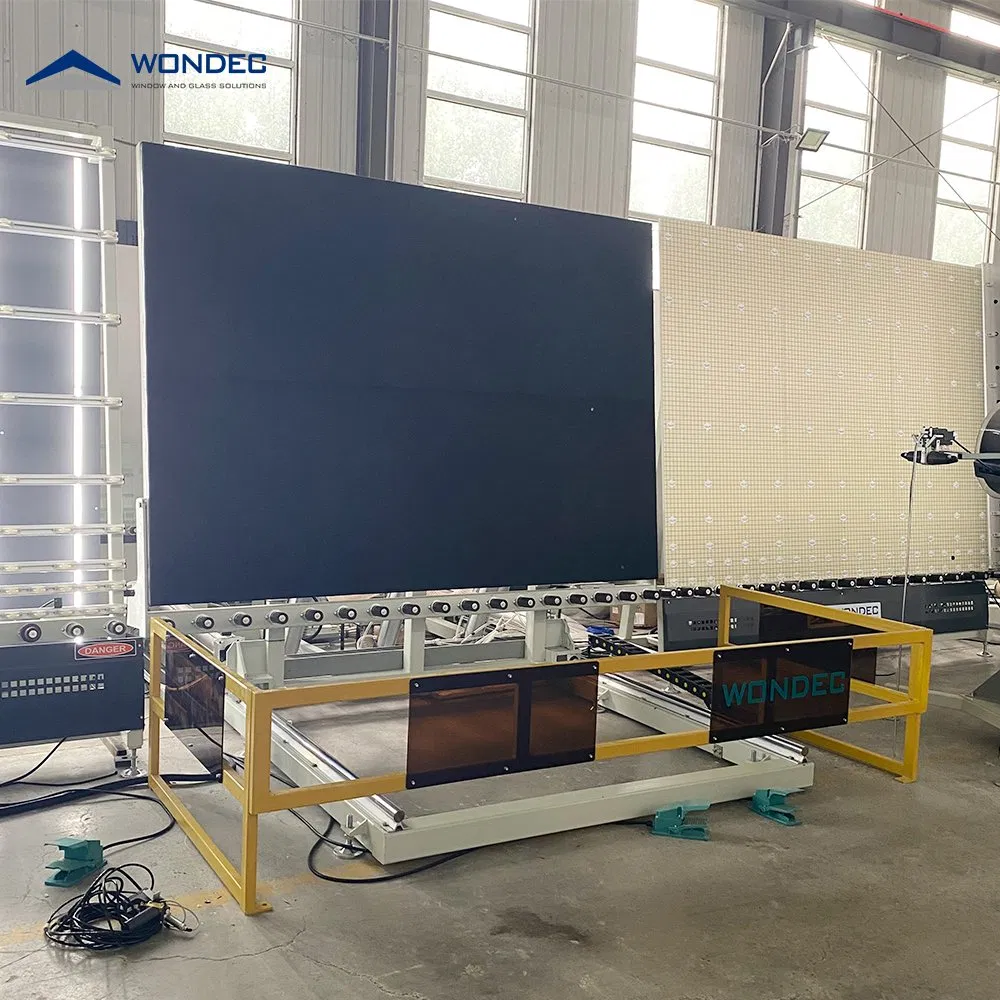

Automatic Vertical Warm Edge Super Spacer Insulating Glass Production Line Machine
This line is designed for high-volume production of both ordinary and Low-E insulating glass. It features a high degree of automation, exceptional efficiency, and is engineered for ease of operation and maintenance.
Section 01: Input Conveyor
Transmits glass into the washing and drying section. Equipped with carbon fiber conductive brushes for coating glass and Low-E detection.

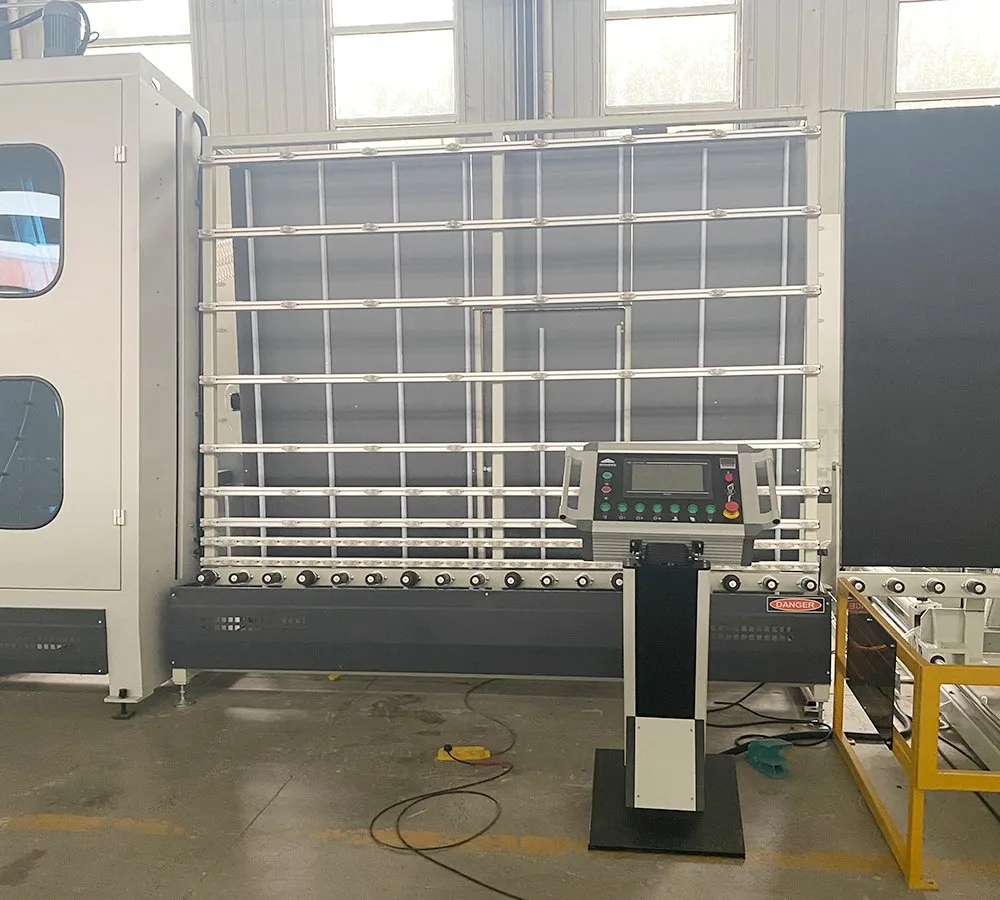

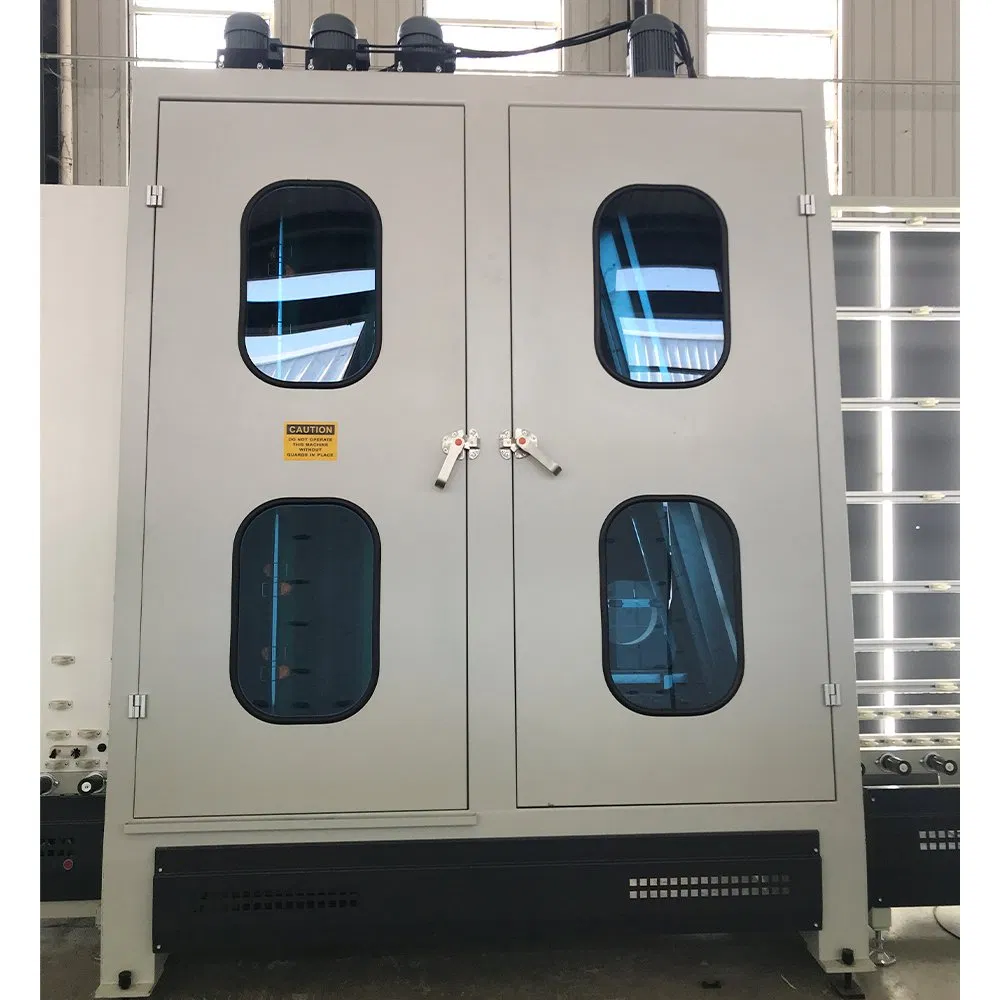

Section 02: Washing and Drying
- 1All washing areas, water tanks, and waterway systems are built with stainless steel and corrosion-resistant materials.
- 26 independent motors drive 6 brushes, ensuring continued operation even if one motor requires maintenance.
- 3Direct coupling connection between motor and brush prevents slip or idling.
- 4Combination of 0.1mm soft brushes (for Low-E glass) and 0.2mm hard brushes (for ordinary glass).

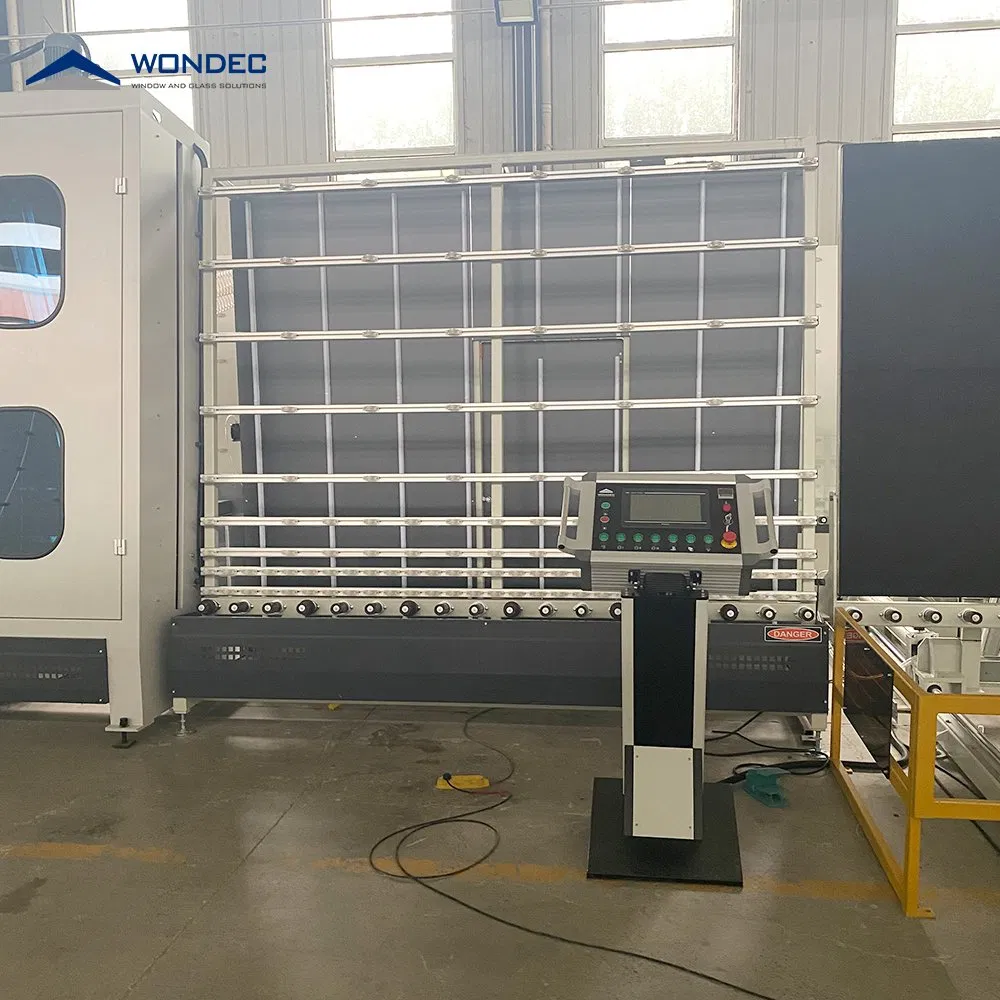

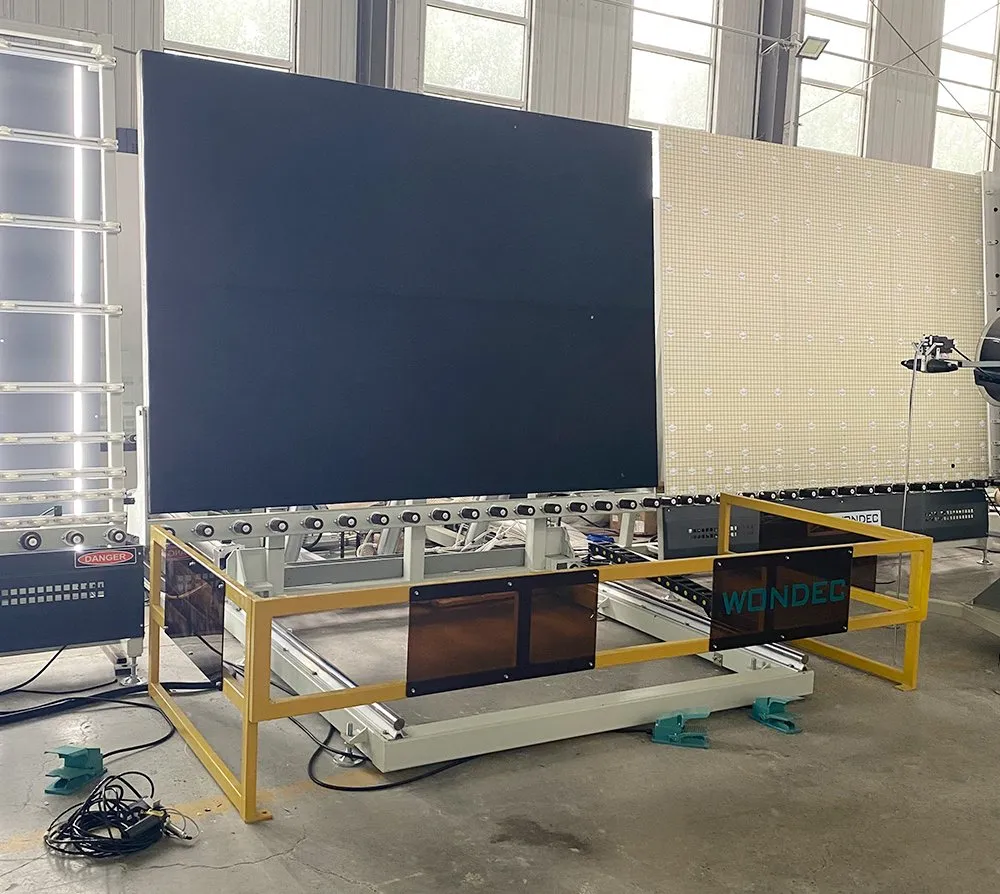

Section 03: Inspection Conveyor
Features an openable door at the rear for easy access and maintenance.

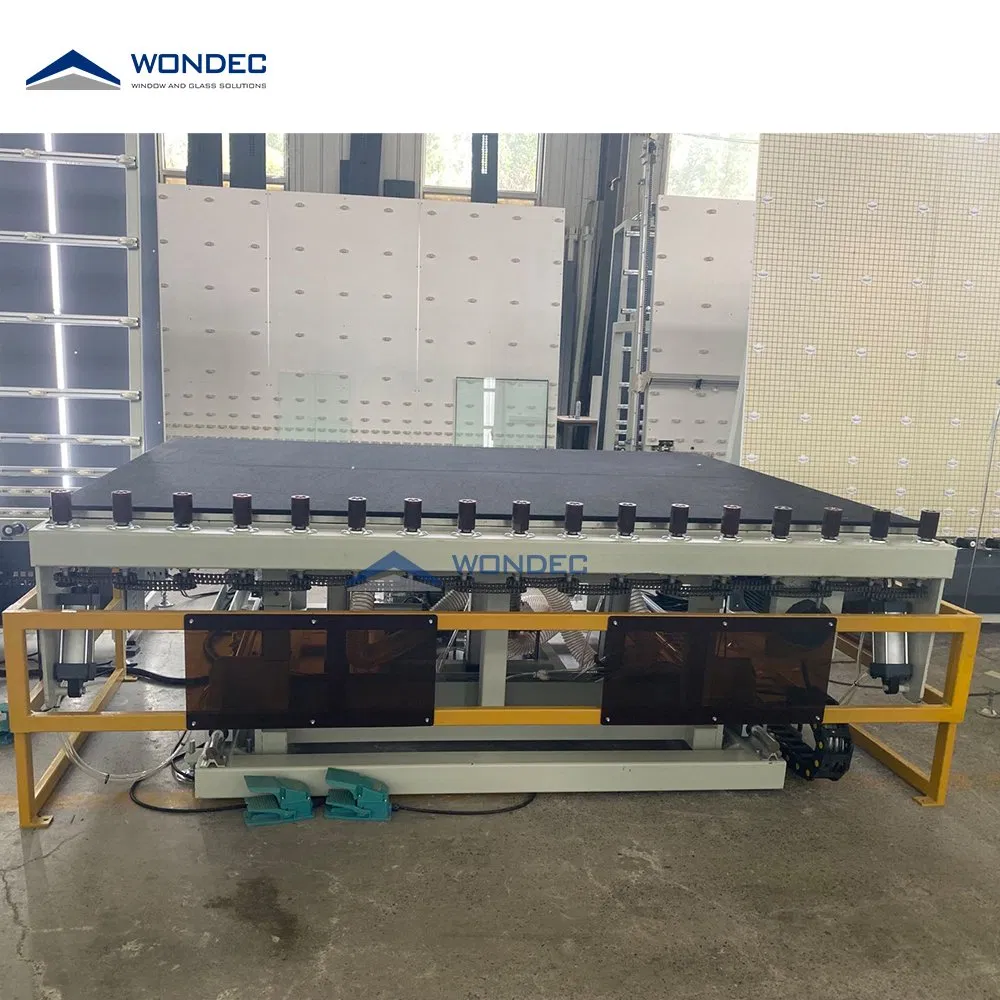

Section 04 & 05: Application Tables

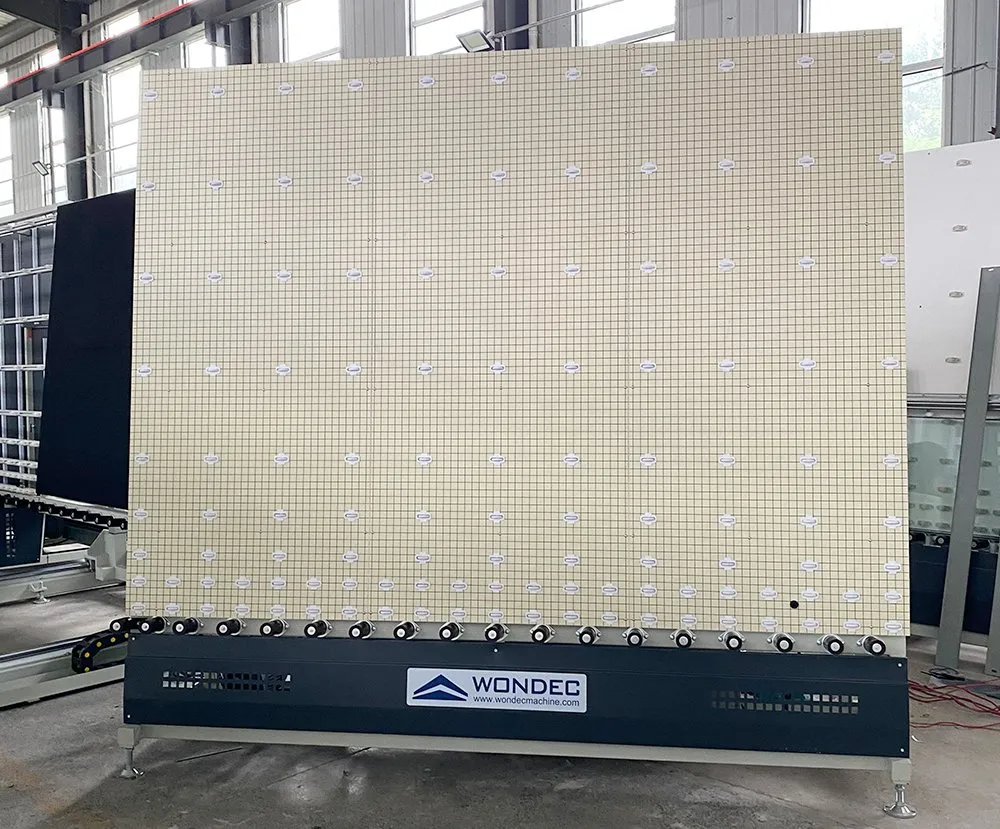

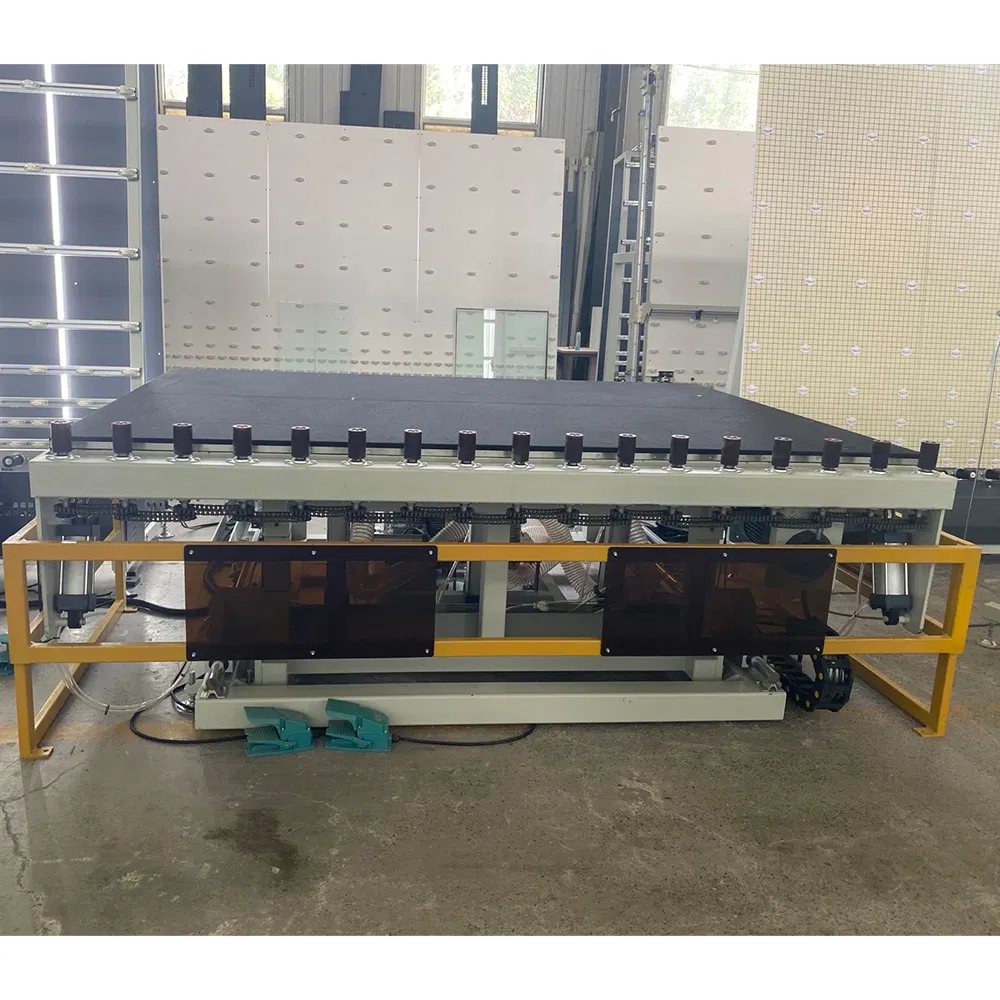

Tilting table for Super Spacer manual application and specialized section for Georgian bars application.

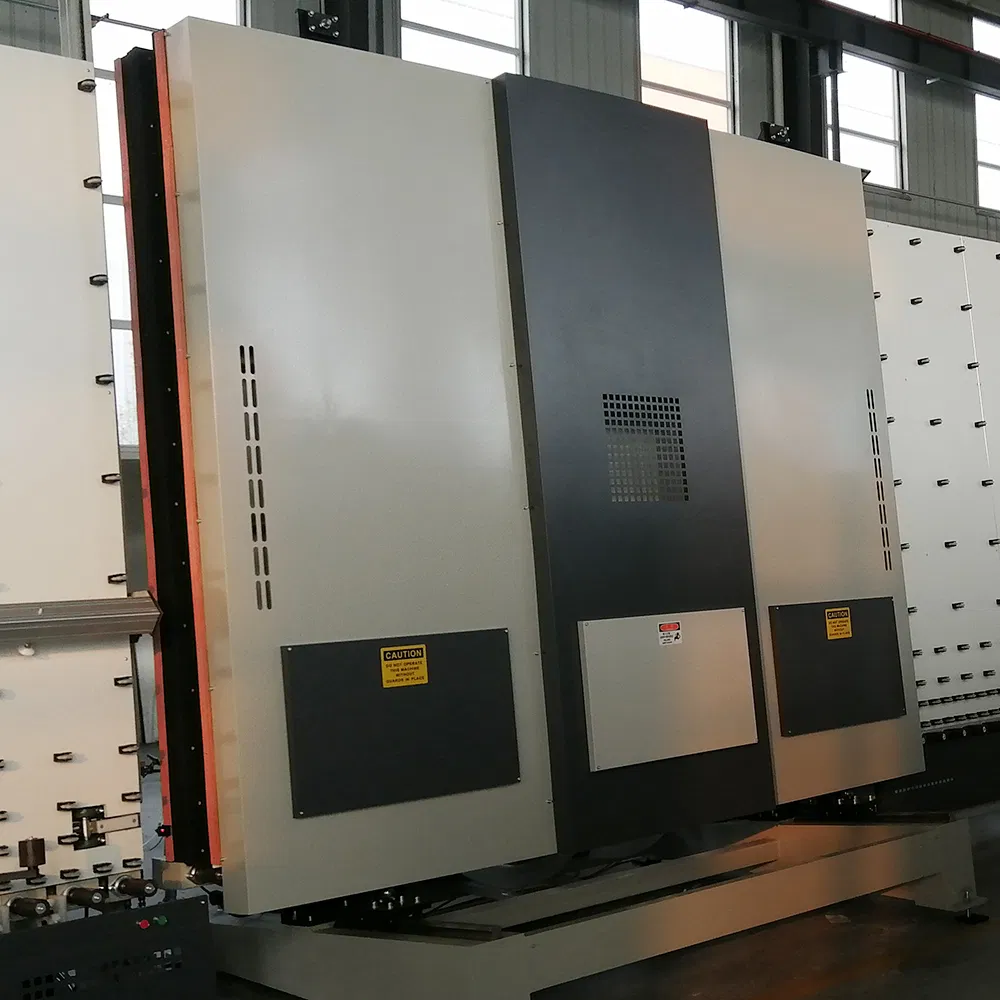

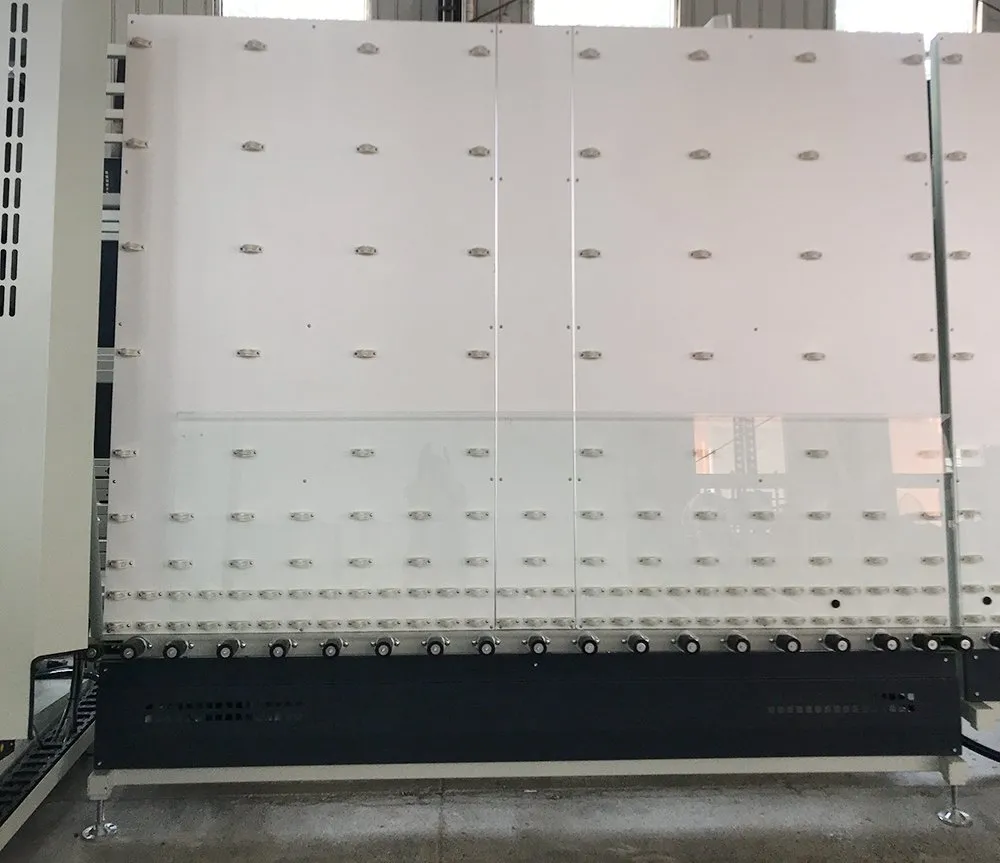

Section 06: Assembly & Panel Press
- 1Denser steel frame for superior machine body strength.
- 2Panel press precisely controlled by a Servo motor.
- 3Dual-layer front pressing plate ensures long-term flatness.
- 4Suction cups with separate logic valves, partitioned by glass size.
- 5Automatic online argon gas filling from the bottom for double and triple IGU.
Technical Parameters
| Max. Glass Size | 2000*2500mm |
| Min. Glass Size | 500*300mm |
| Pane Glass Thickness | 3-12mm |
| Max. IGU Thickness | 12-80mm |
| Glass Washing Speed | 3-12m/min |
| Working Speed | 2-48m/min |
| Air Pressure | 0.8m³/min |
| Water Conductivity | ≤40µS/cm |
| Overall Dimension | 18760*3500*2850mm |
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer with more than 10 years of experience in the glass processing machinery industry.
Can the machine be customized to our local voltage?
Yes, we can customize the electrical components of our machines to match your local industrial voltage requirements.
What is the process after payment?
Once the deposit is confirmed, we begin production. After assembly and testing, we provide a performance video for your approval. Following confirmation, we pack the machine and prepare for shipment.
Can you assist with shipping arrangements?
Yes, we work with reliable shipping partners who provide fast delivery and competitive pricing. We can manage the entire logistics process based on your requirements.
How is the installation handled?
We provide comprehensive manuals and step-by-step installation videos. Additionally, we set up dedicated technical support groups via messaging apps to provide real-time assistance.
What types of glass can this production line process?
This automated line is capable of producing both standard insulating glass and high-performance Low-E insulating glass units.
