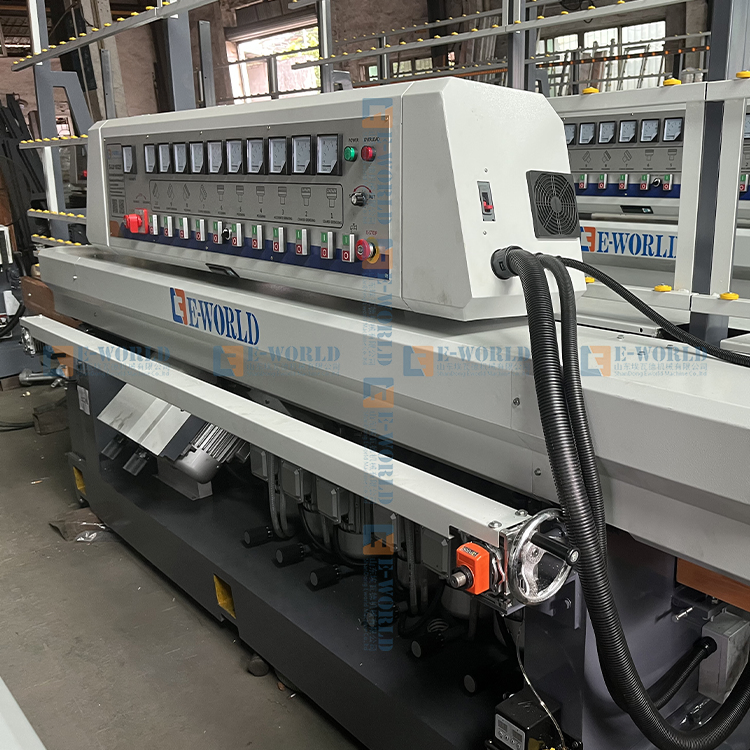

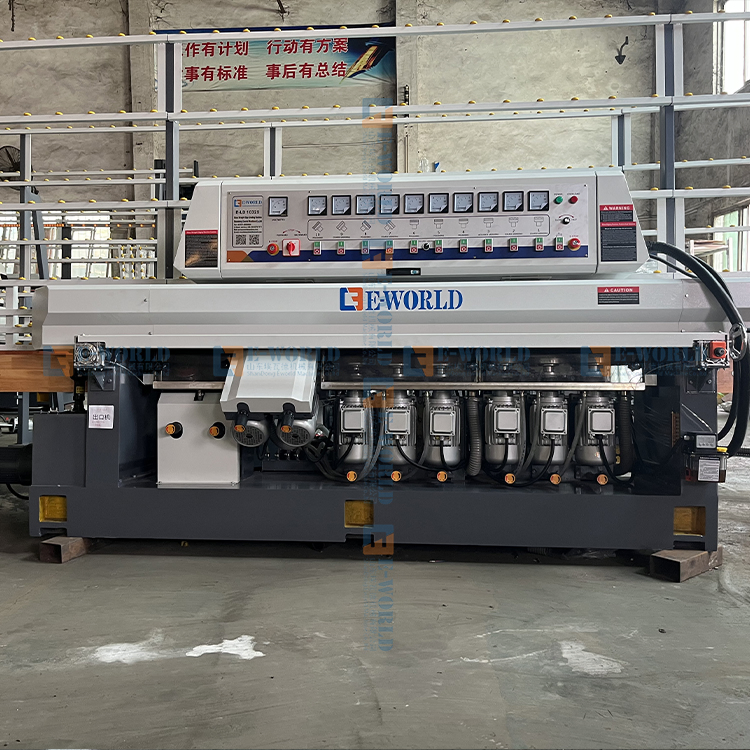

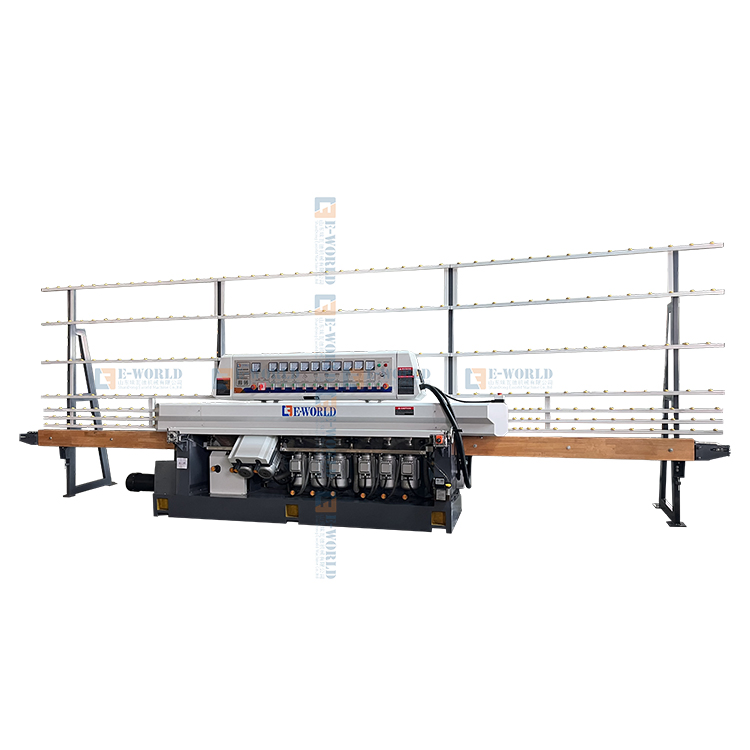

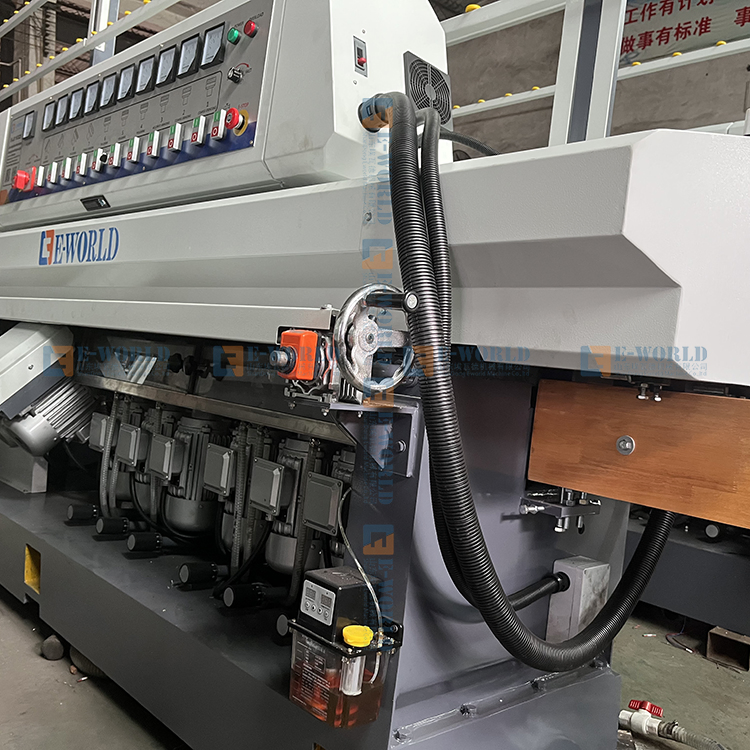

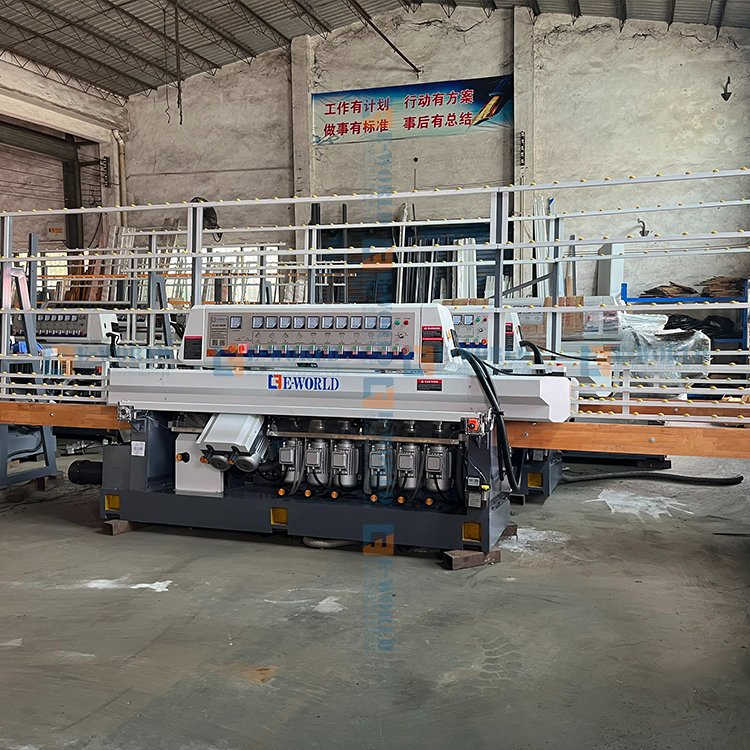

High-End 9 Motors Glass Bevelling and Polishing Machine Window Edging Machine

1 / 5

High-End 9 Motors Glass Bevelling and Polishing Machine Window Edging Machine

Customization:	Available
Certification:	CE, ISO
Voltage:	Customed

Send Inquiry

Product Description

📋

Overview & Basic Info

Model NO.

E-LD261S

Warranty

1 Year

Total Weight

2800kg

Thickness of Glass

3~19mm

Total Power

17kw

Max Glass Size

2400*3600mm

Type

Glass Edging Machine

Structure

Vertical

Control System

Industrial Computer

Grinding Head

Condition

New

Origin

China

⚙️

Product Description

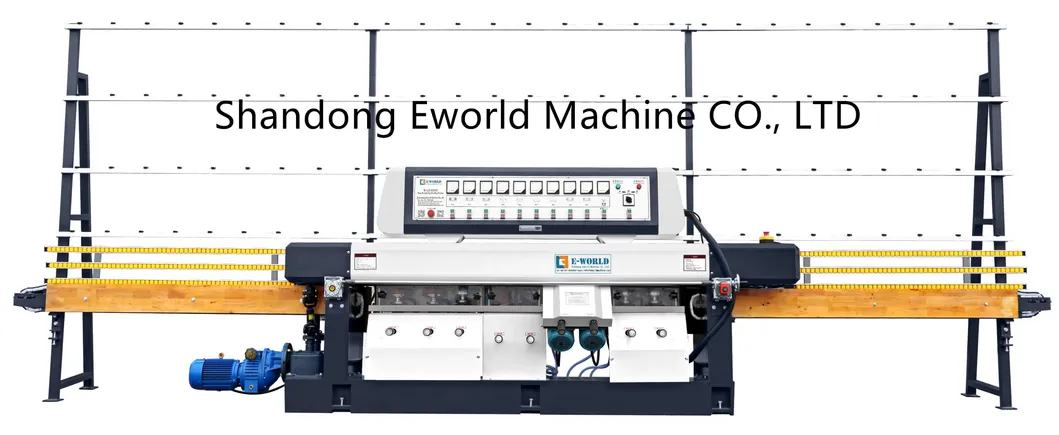

Glass Beveling and Polishing Machine

Adopts the design of 2-wheel grinding, 3-wheel accurate grinding, 3-wheel polishing and 1-wheel hemline repair.
CVT adjusts the processing speed.
PLC controller available if needed.
Input and output conveyors adopt timing belt to improve the stability of transmission.
The finished edge will be as bright and clear as the glass itself.
Easy to operate and maintain.
All items strictly according to CE standard.

Technical Parameter:

Motors Quantity

9 sets

Min Size

50 mm x 50 mm

Thickness

3mm - 12mm

Grinding Speed

0.4 - 5m/min

Beveling Degree

0-30°

Beveling Width

1.5mm-40mm

Power

21kw

Weight

3500 kg

Machine Characters:

Cast steel machine base
Single chip control system
9 wheels, 1 felt polishing wheel with cerium oxide, pneumatic polishing assistant
Glass thickness and angle adjustment on control panel
High speed inducing motor (2480rppm/min)
Stainless steel water tank

📸

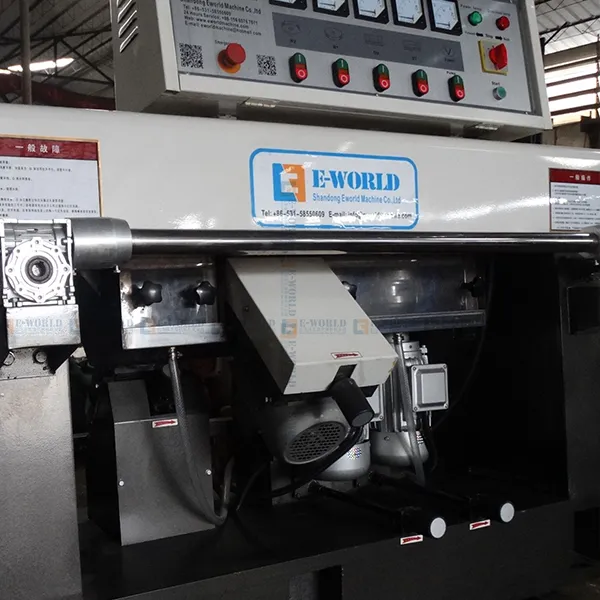

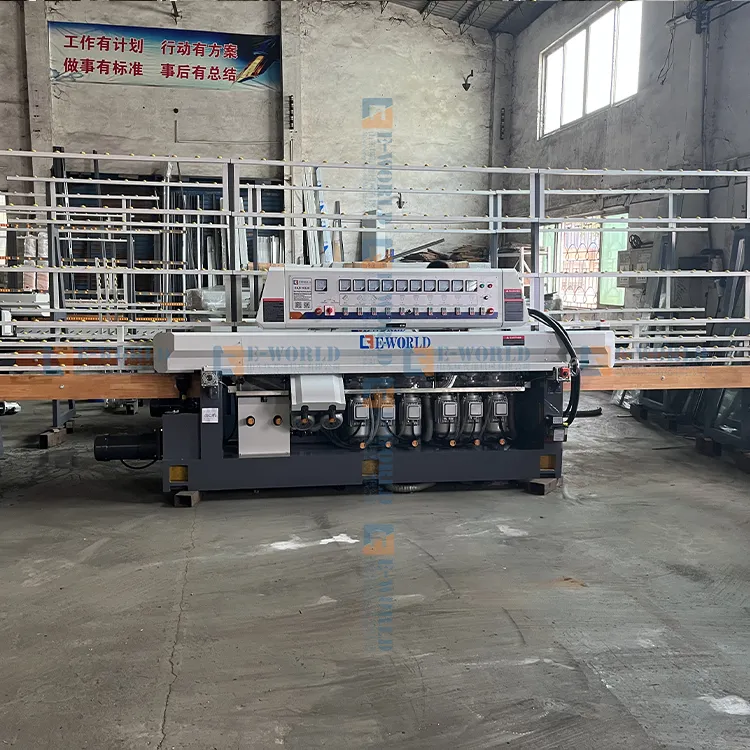

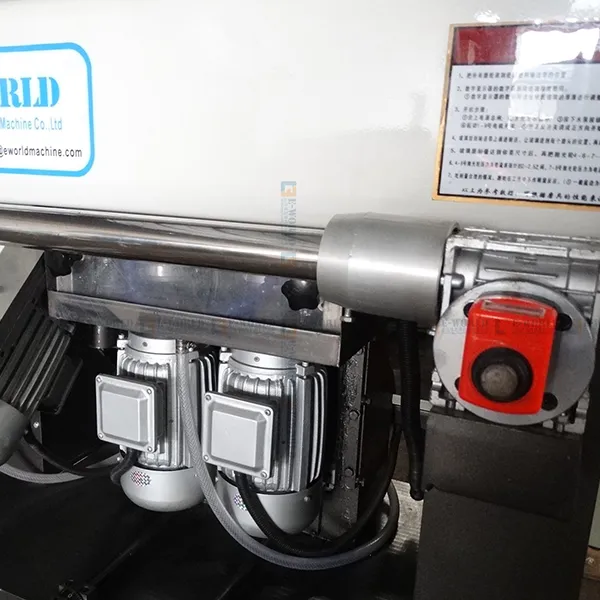

Detailed Photos

📊

Product Parameters

Item	Specification
Maximum flat edging level:	3mm
Maximum arrising width:	2.5mm
Arrise angle:	45°
Max. glass size:	2440x3660mm
Min. glass size:	60x60mm
Glass thickness:	3-25mm
Working speed	0.7-7.0m/min
Overall dimension	6000x1000x2500mm
Worktable height	750mm
Weight	1800kg
Installed power	9.85kw

🏆

Certifications & Quality

❓

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we are a professional manufacture with more than 5 specialized workshops.

2. How is your after-sales service?

We provide a 12-hour response time for inquiries, 24-hour after-sale service, and have over 12 years of experience in the machinery field with fluent English communication.

3. What kind of guarantee do you provide?

We offer a 12-month machine guarantee, 24-hour technical support, and a 2-year quality guaranty excluding consumables. Consumable parts are provided at agency prices.

4. Do you provide equipment operation training?

Yes. Professional engineers can be sent to your site for installation, adjustment, and operation training.

5. What are the available payment methods?

We accept various payment methods including L/C, T/T, D/P, Western Union, and others as per your requirement.

6. How long is the delivery time?

For standard machines, delivery is 3-15 days. For customized or non-standard machines, it typically takes 15 to 30 days.
