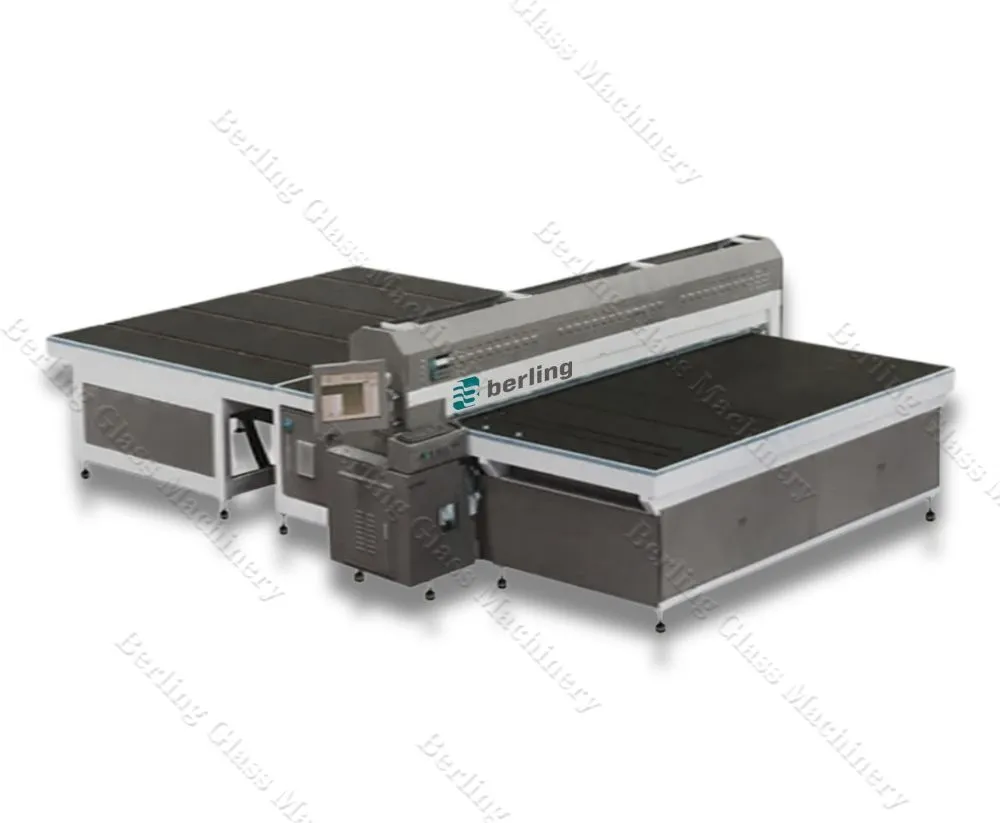

The automatic glass cutting all-in-one machine absorbs a single piece of glass through a suction cup, carries large and thick pieces of glass placed vertically on a shelf, and converts it to a horizontal state via mechanical transmission for cutting. It addresses the challenges of safety and inefficiency when handling large glass panels.
Equipped with a PLC programmable controller and a CNC numerical control operating system, the machine ensures reliable, high-automation processing with labor savings and high accuracy.
| Item | Unit | BL-L2621 | BL-L3826 | BL-L3829 |
|---|---|---|---|---|
| Size of Machine | mm | 3100*3600*1400 | 3630*4700*1400 | 3900*4700*1400 |
| Weight of Machine | kg | <3000 | 3000 | >3000 |
| Max Cutting Glass Size | mm | 2440*2000 | 3660*2440 | 3660*2800 |
| Glass Thickness | mm | 3-19 | 3-19 | 3-19 |
| Max Cutting Speed | m/min | 120 | 120 | 120 |
| Power | kw | 11.8 | 11.8 | 11.8 |
| Control System | - | PLC | PLC | PLC |
Easy operation and strong adaptability

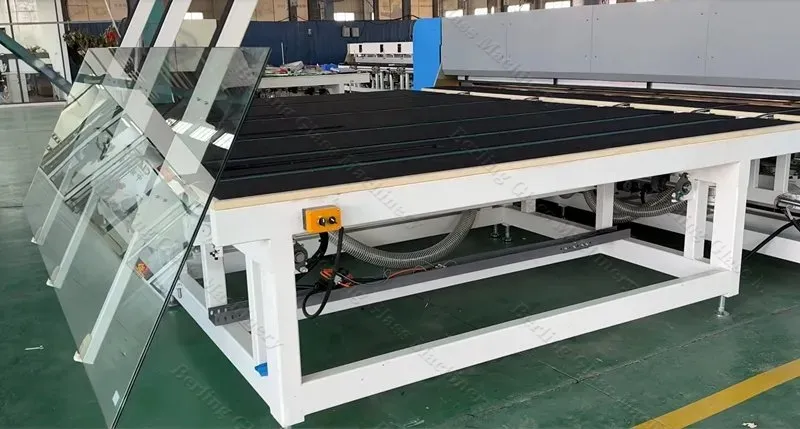

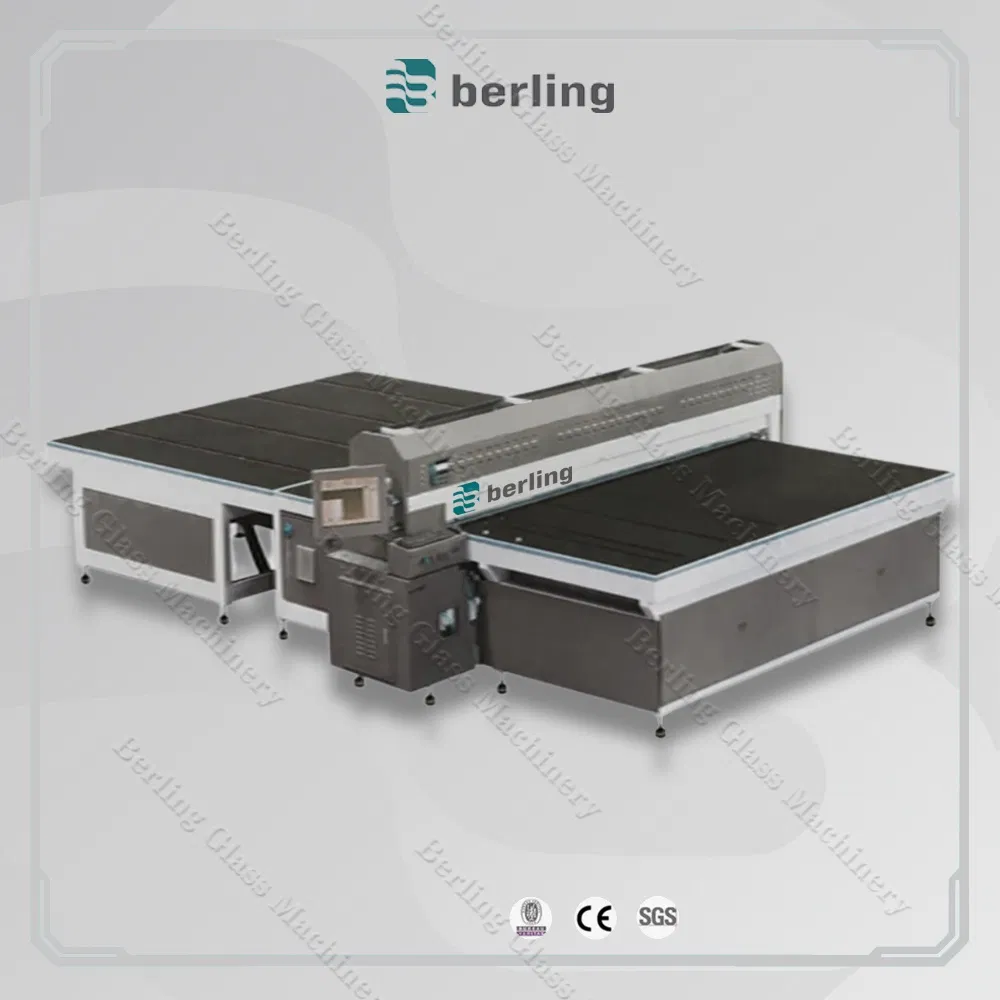

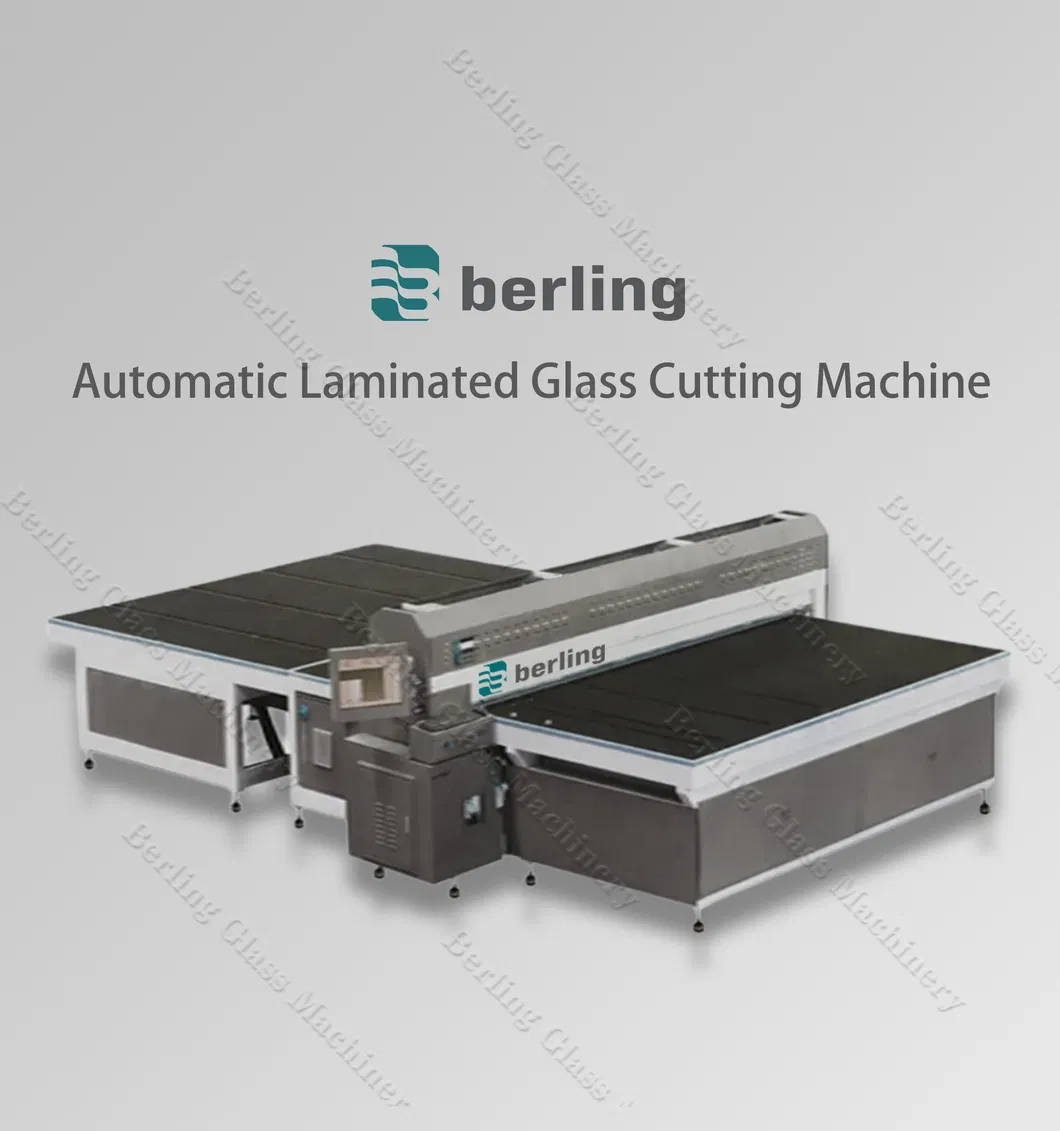

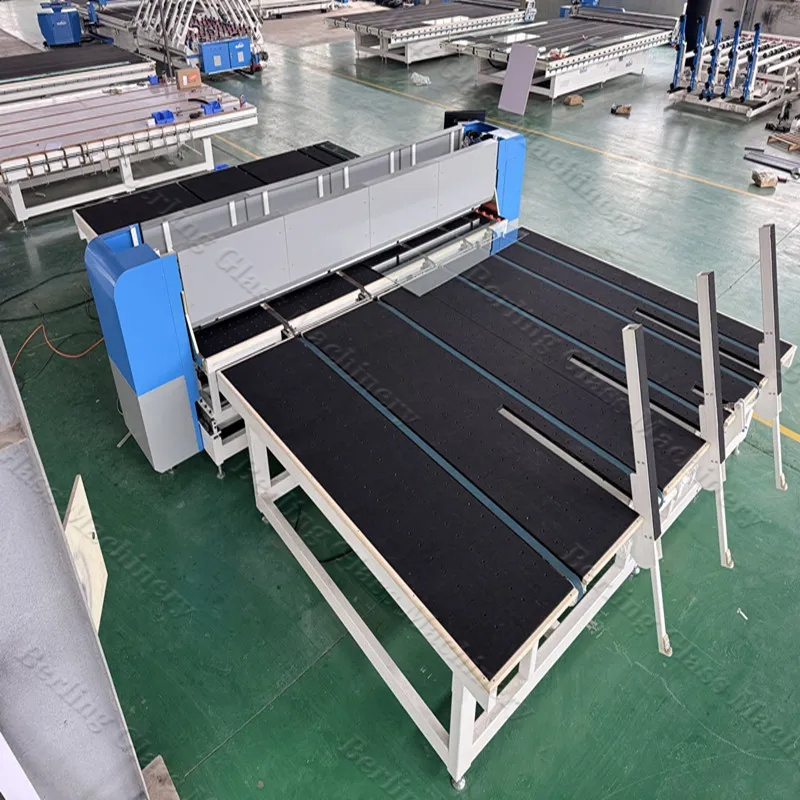

The frame is welded with international square steel tubes and box iron, with key parts annealed and gantry milled for high stability. The two-part structure includes a manual auxiliary feeding section with automated positioning and a main cutting section featuring upper/lower knife systems, heating, and film cutting.

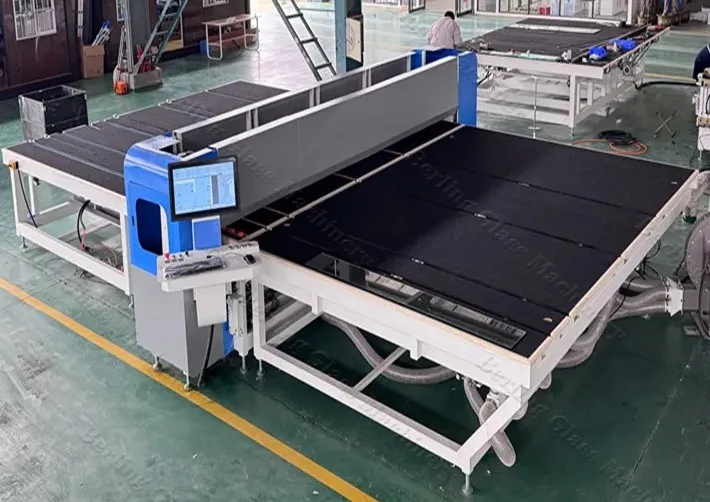

The air floating system features over one hundred evenly distributed air holes on the cutting table to ensure airflow stability, making it effortless to move the glass.
