Introduction

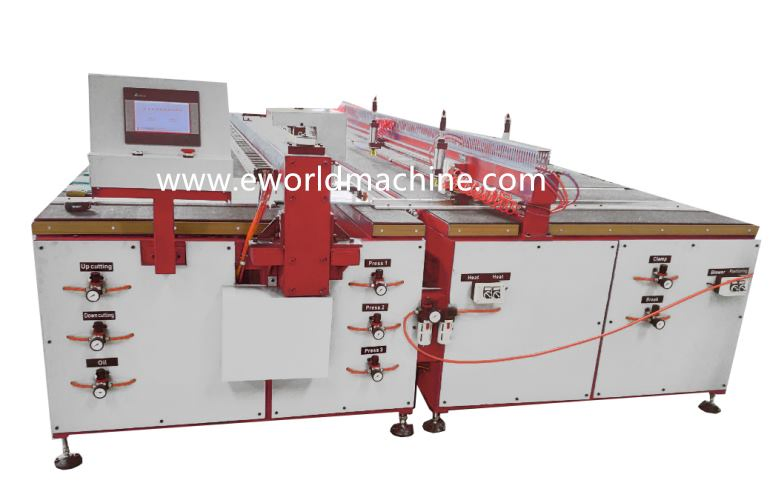

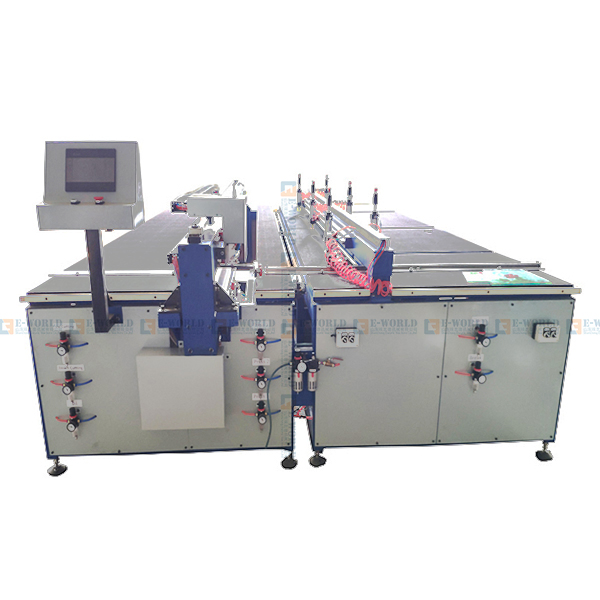

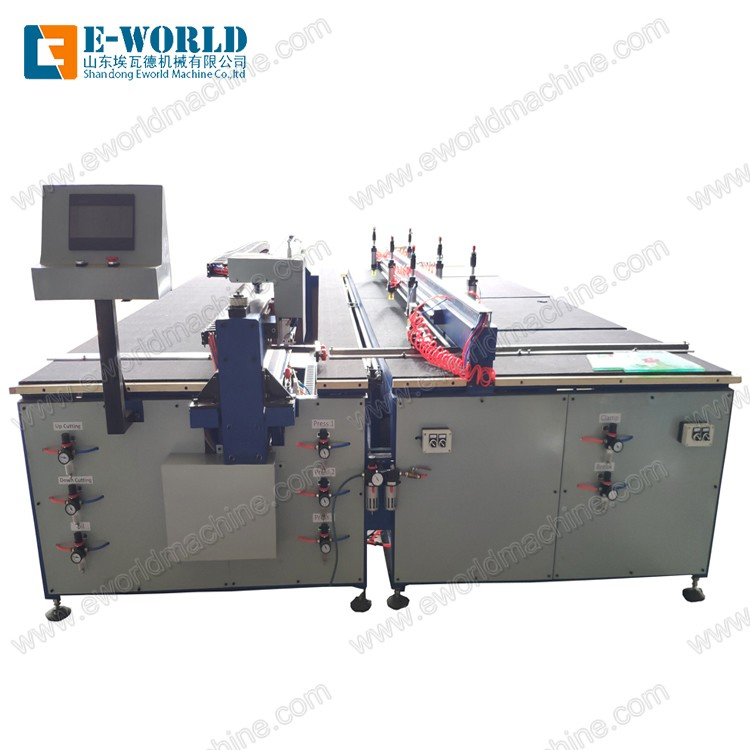

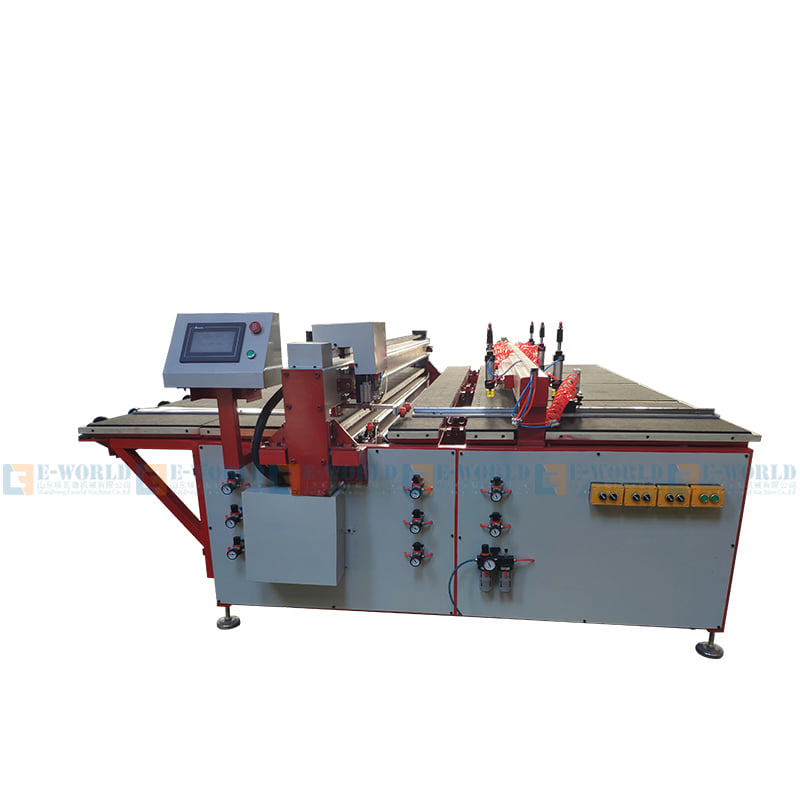

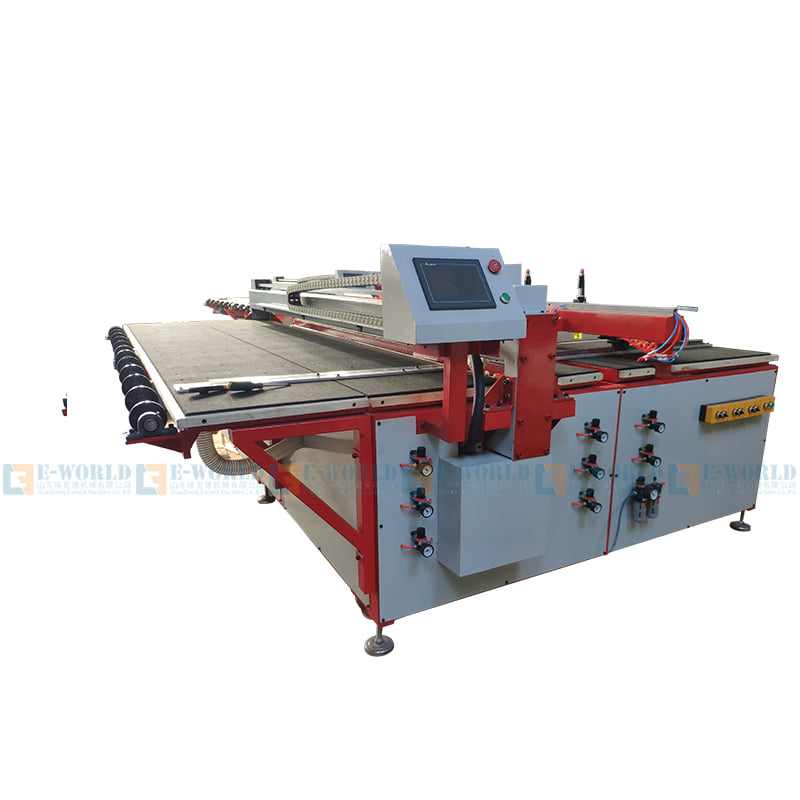

Equipped with two cutters (upper & bottom sides), SWD-2620 is designed to cut thick float glass and laminated glass. It has advantages of easy operation, stable working and high precision.
Functions

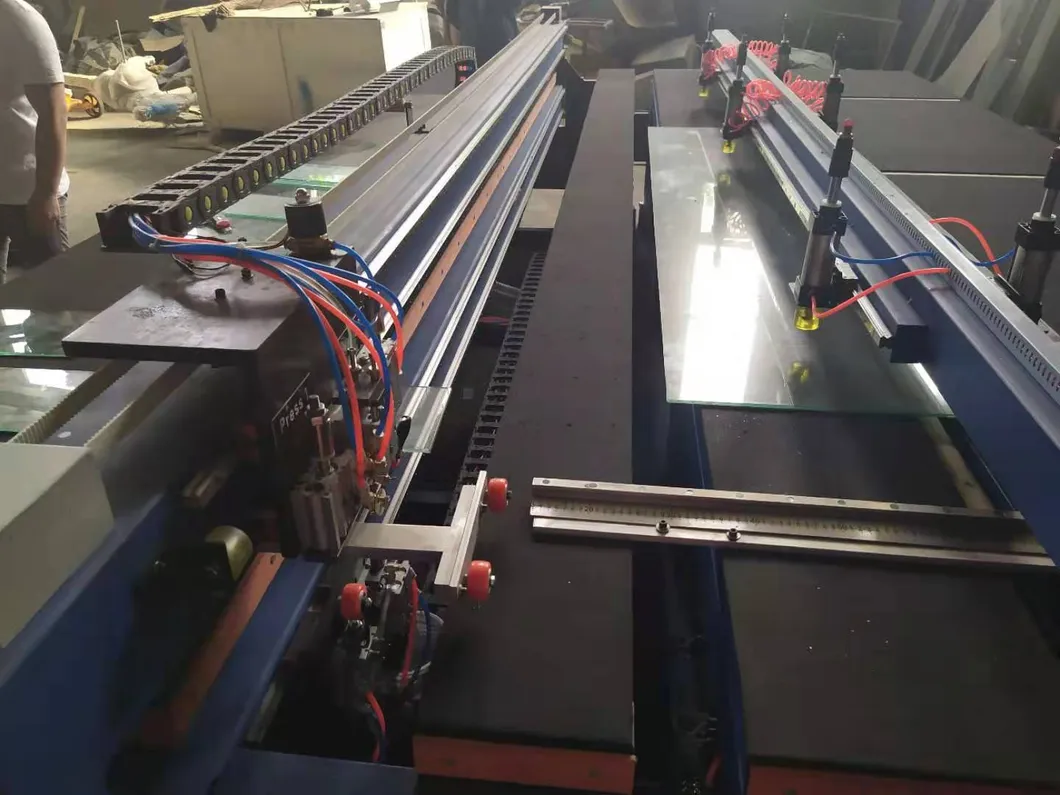

Machine body adopts welded tube which makes whole machine very stable. Application of synchronous belt convey system, PLC control system, imported electrical spare parts, stepping motor and LCD makes it much convenient and stable. Upper & bottom cutter can work at same time, which ensures high conformity and easy breaking after cutting.
| Max. glass cutting size | 2500×1900(mm) |
| Min. glass cutting size | 100×100(mm) |
| Cutting glass thickness | 3+0.38+3----10+3.04+10mm (laminated glass) |
| Cutting efficiency | 3-4 minutes/big piece |
| Cutting Error (parallel) | ≤±0.5mm |
| Diagonal Error | ≤±1mm/m |
| Cutter life | 30000-50000 meters |
| Workers | 1-2 person |
Machine body adopts welded tube which makes whole machine very stable. Application of synchronous belt convey system, PLC control system, imported electrical spare parts, stepping motor and LCD makes it much convenient and stable. Upper & bottom cutter can work at same time, which ensures high conformity and easy breaking after cutting.
🚀 Operation:

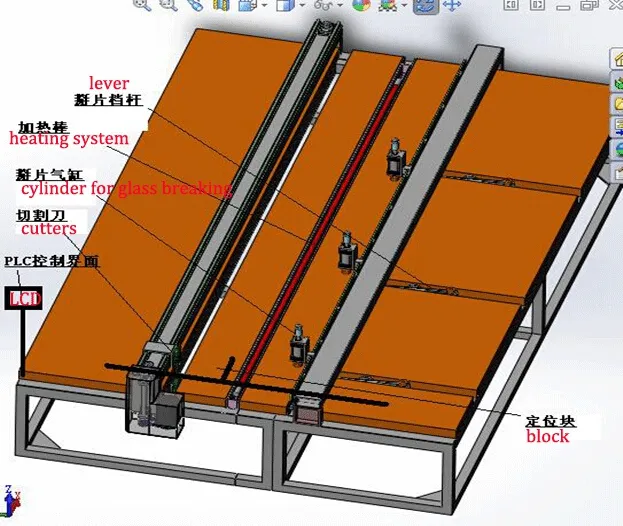

Set cutting size (move block to the location where needs to be cut, then fix it) → load glass to block location → operate cutters (press "start" button on LCD) → move glass to lever location → start cylinder to clamp glass → start lever → start lever button which is under cylinder (both sides broken) → heat glass (select temperature according to PVB thickness).

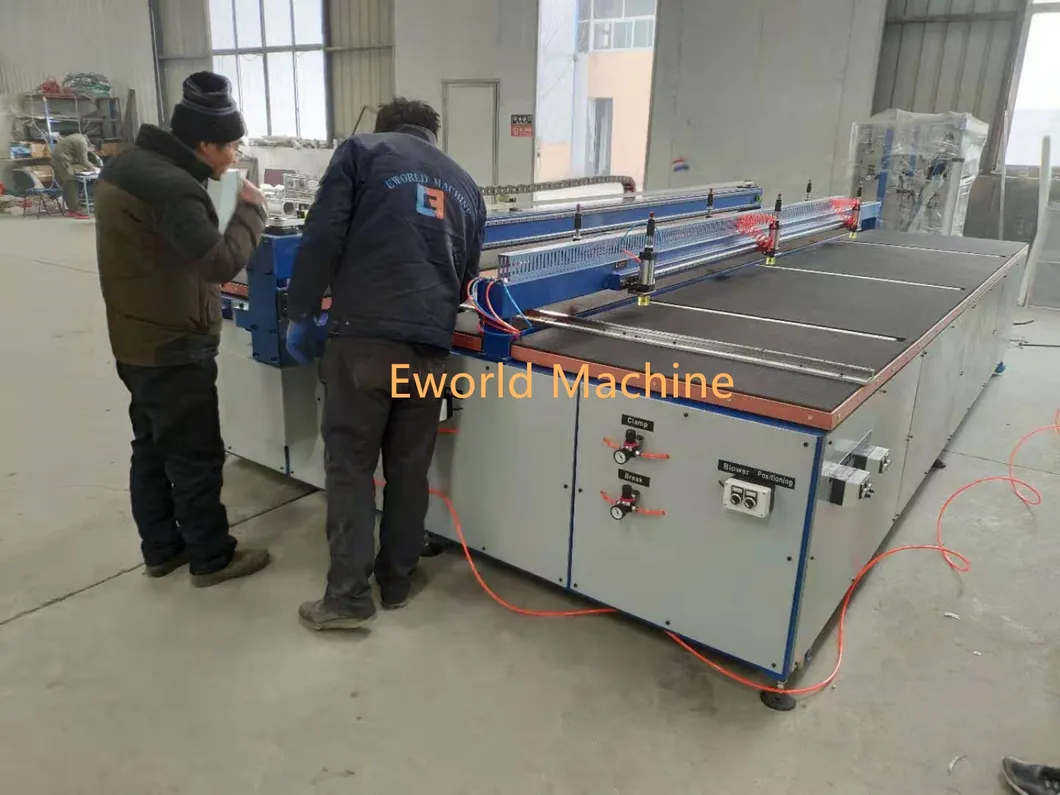

🛠️ Handling and Installation:
Handle with care, no collision! Guide rails and beams are forbidden to support during lifting. Horizontal ruler can be used to revise worktable, and table bracket can be adjusted to ensure flatness.
