High-Efficiency Glass Vertical Edging Production Line for Industrial Glass Processing

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Basic Info

Model NO.Slm2516

CertificateCE

Min Glass Size100X100mm

Max Glass Size2500X2500mm

Thickness Range3-25mm

Weight2800kgs

Leading Time40-45 Days

Warranty Time12 Month

TypeGlass Production Line

StructureVertical

Grinding Heads10

ConditionNew

Product Description

SLM2516 Automatic Efficient I Shape Glass Vertical Edging Production Line

The Glass vertical edge grinding line is automated equipment for glass processing, mainly used for glass edge grinding, chamfering, polishing and other processes. The equipment adopts an automated control system, which can operate continuously, reduce manual intervention, and improve production efficiency.

Key Features

High efficiencyIntegrates multiple processes such as edge grinding, chamfering, and polishing, reducing intermediate links and shortening processing time.

Strong stabilityStable structure and operation with reduced vibration, ensuring high processing accuracy.

Strong adaptabilityProcesses glass of various thicknesses, sizes, and shapes to meet diverse industrial needs.

Easy operationEquipped with a touch screen or CNC panel for easy parameter settings and automatic polishing wheel adjustment.

Environmental FriendlyWater circulation cooling system reduces waste and meets environmental protection requirements.

Safe and ReliableFeatures protective covers, emergency stop buttons, and fault alarm functions for quick troubleshooting.

System Details

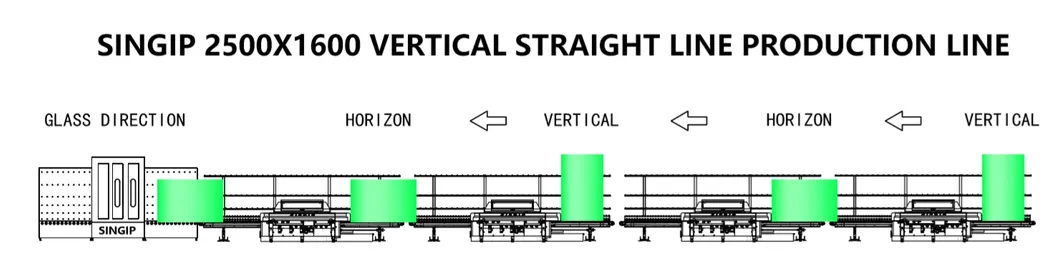

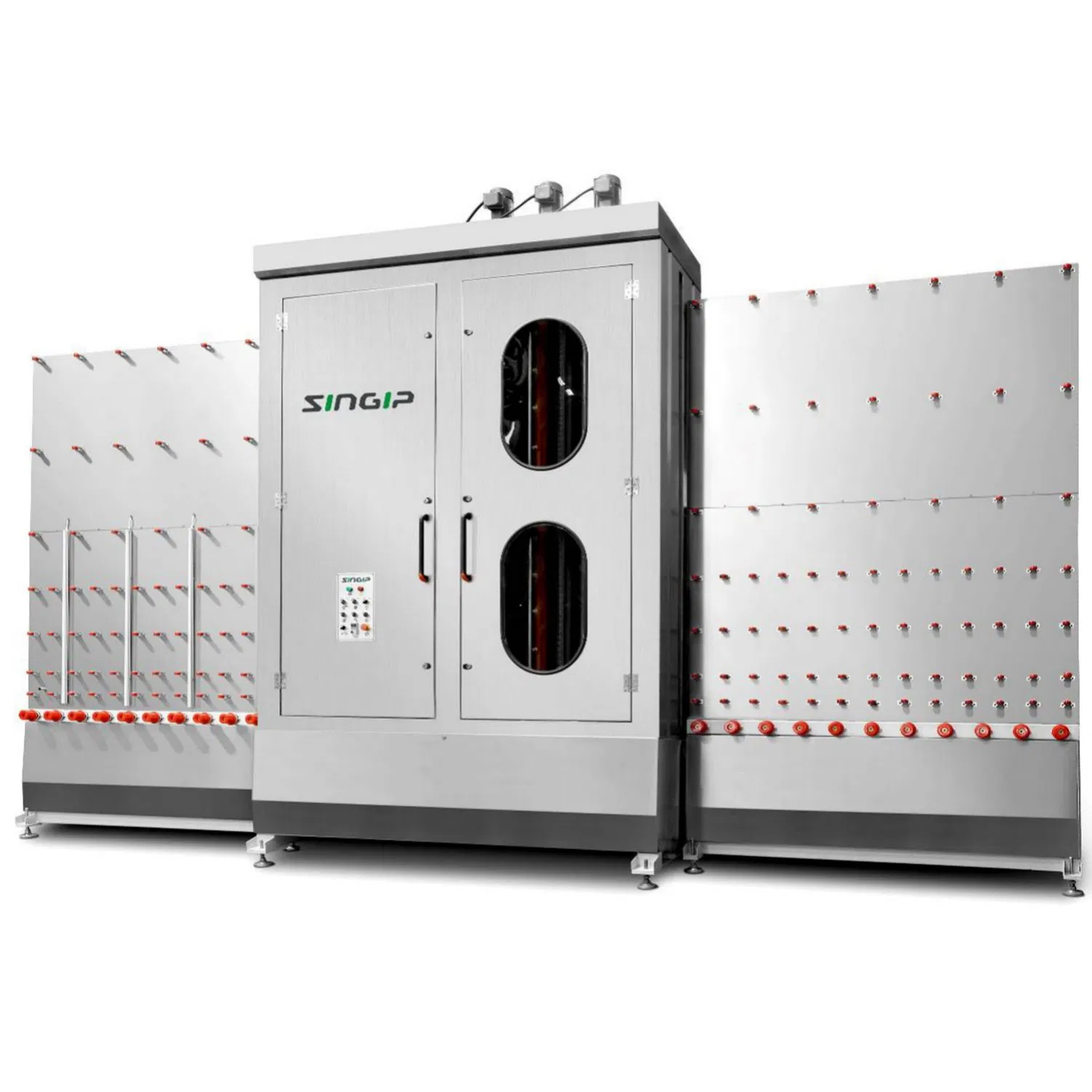

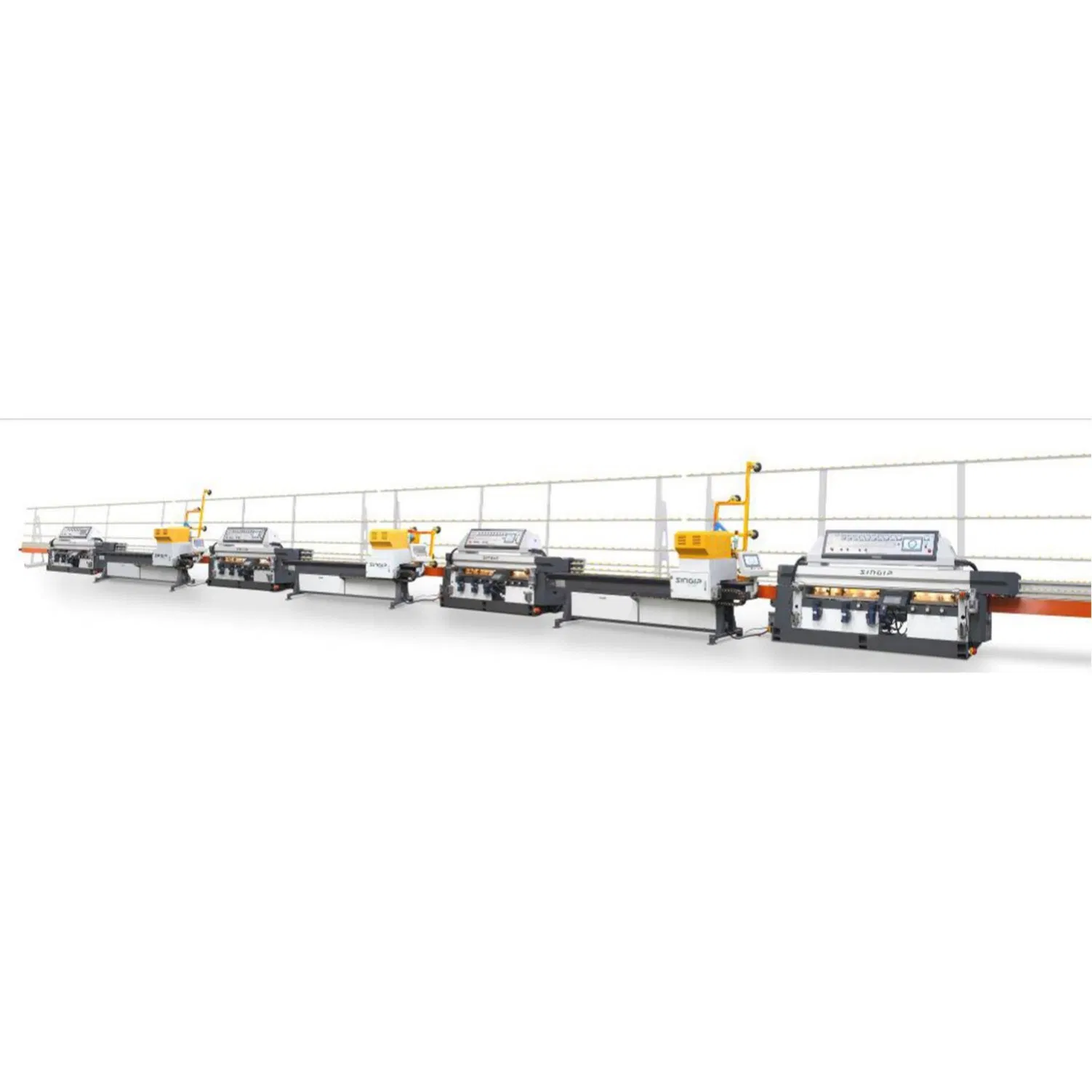

The whole line includes 4 sets of SZM-9SP intelligent polishing machines, 3 sets of SFZT2516 robot arms, and one set of SX-2500L vertical washing machine.
Line efficiency is controlled by Robotics arm SFZT2516 (3-4 pcs per min).
All edging machines adopt extended feeding and output guideways.
Glass Max size: 2500x1600mm; Glass Min size: 400x400mm.

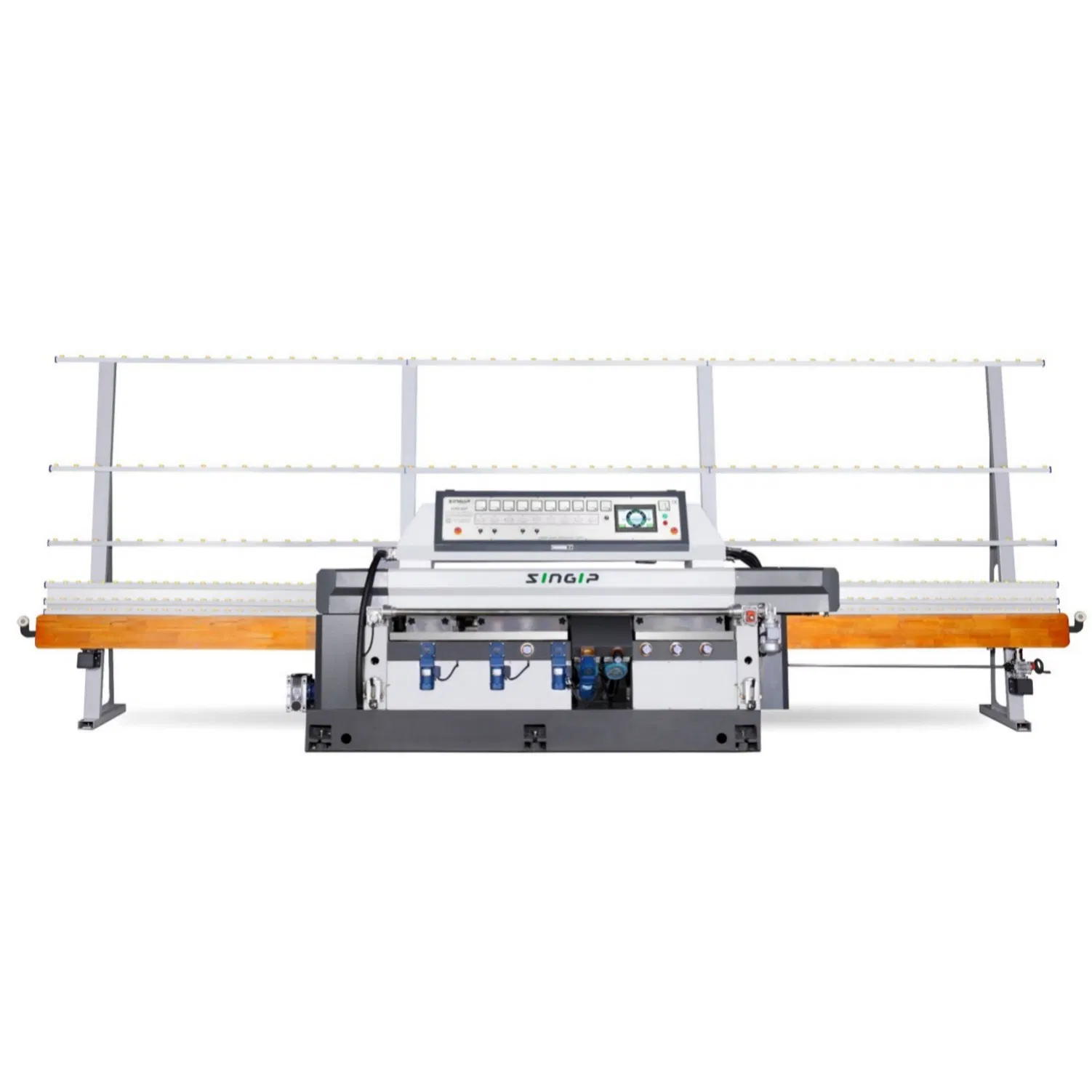

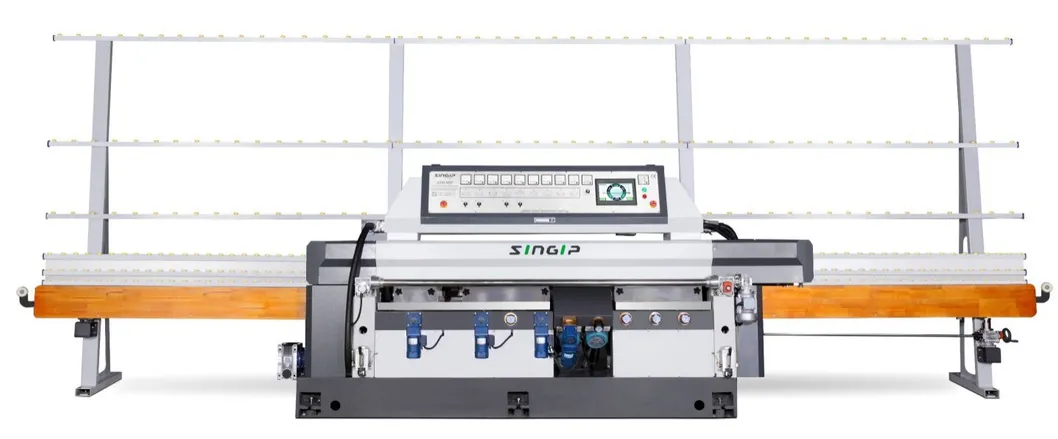

SZM-9SP Glass Straight Line Edging Machine

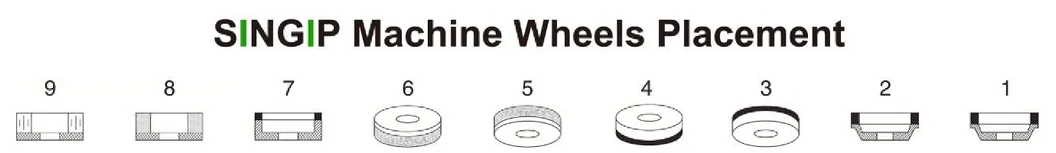

Features intelligent learning, real-time polishing compensation, and one-button start. It automatically adjusts for wheel wear to maintain consistent quality.

Model	Thickness	Loading Weight	Key Feature
SZM-9SP	3-19mm	Within 150kg	Intelligent polish system; Automatic wheel wear recovery

Technical Parameters

Model: SZM-9SP Technical Data
Thickness range	3-19mm
Min. Glass Size	100x100mm
Max. Glass Size	2500 x 2500mm
Feeding speed	0.5m/min-5m/min
Total power	20kw
Max cutting of flat edging	3mm

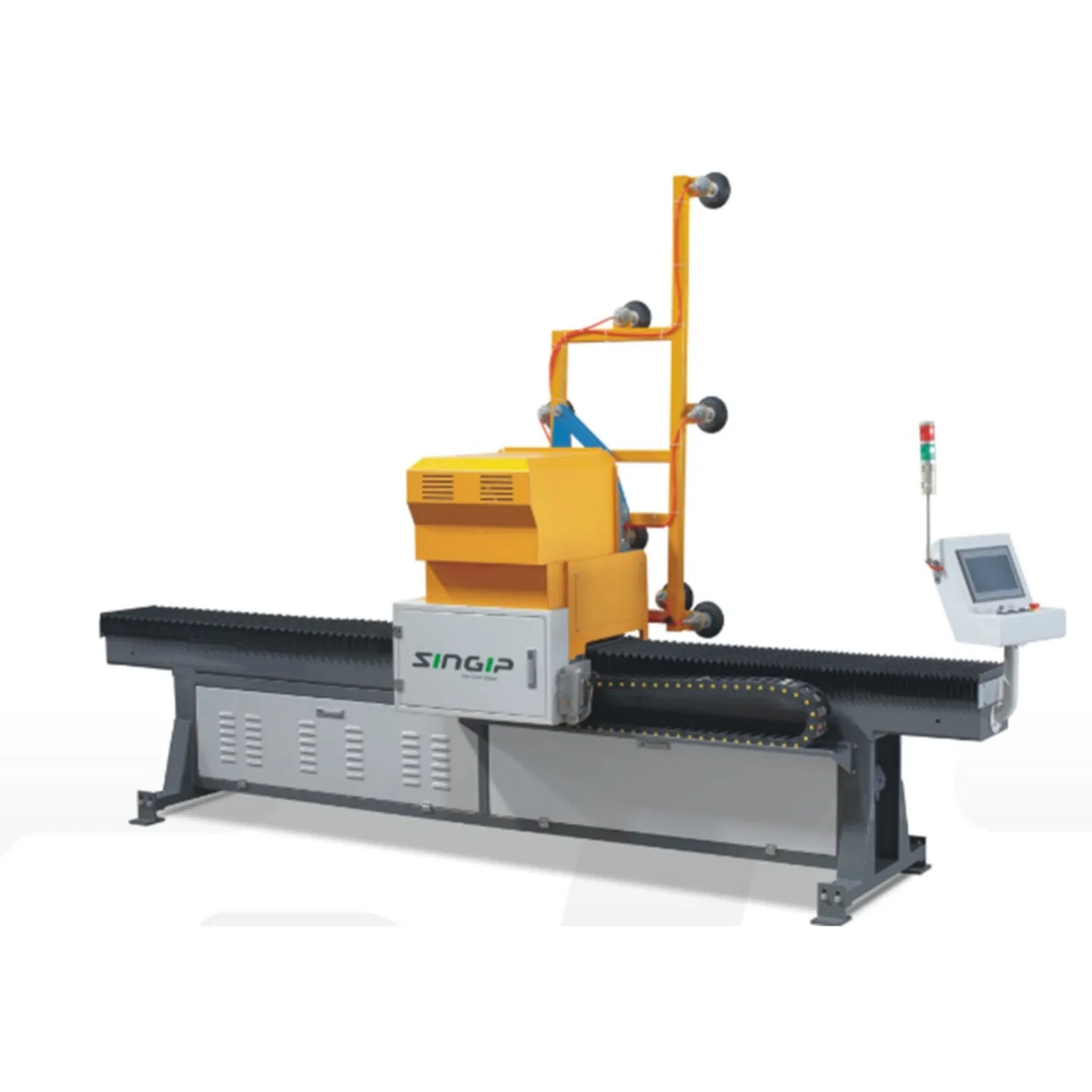

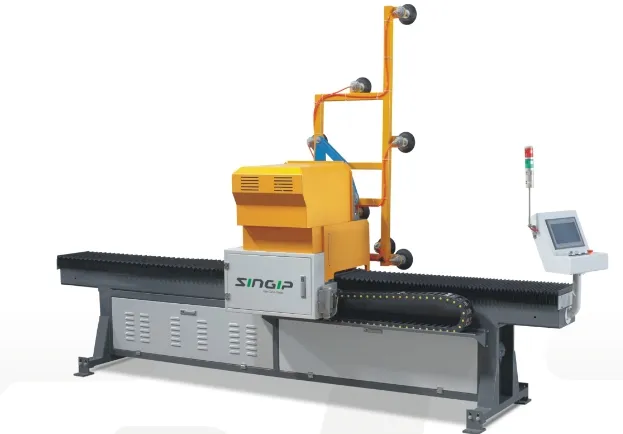

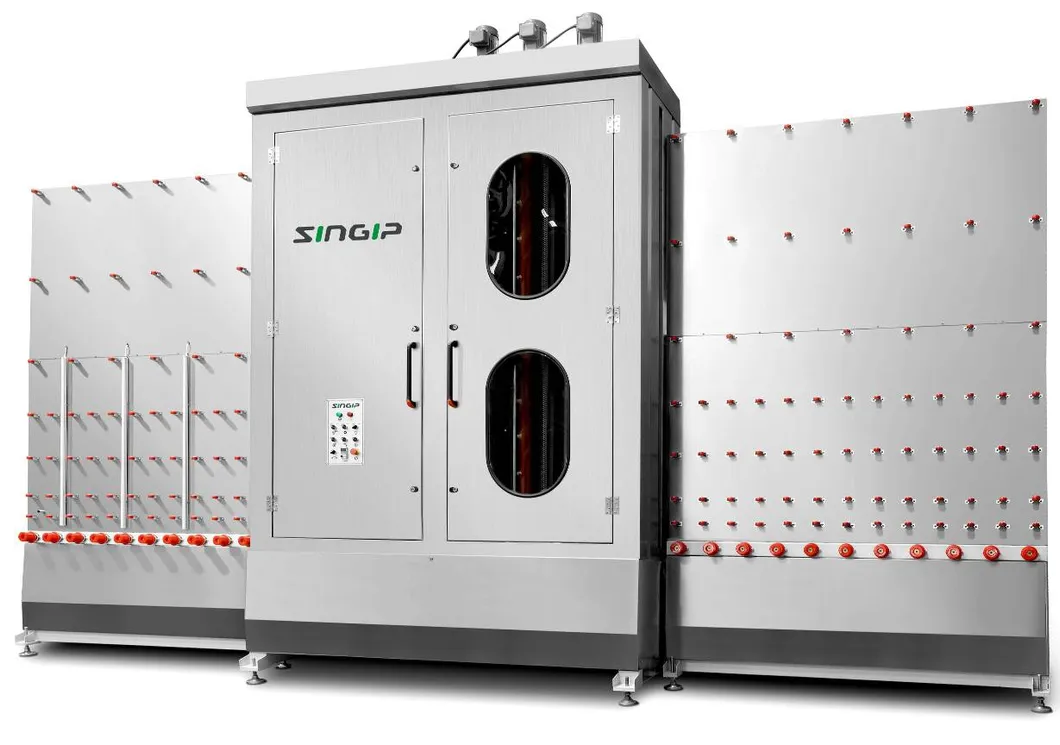

Robot Arm & Washing Unit

Feature	SFZT2516 Robot Arm	SX-2500L Washer
Max Glass Size	2500x1600mm	2500mm (Height)
Weight Capacity	Max 125kg	-
Speed/Cycle	12-15 sec / cycle	0.5 - 8 m/min
Specialty	I-shape rotation	Stainless steel body

Product Application

This production line is highly versatile. It processes glass for shower enclosures, creating smooth edges. In construction, it makes elegant glass railings. For commercial doors, it ensures a refined finish. Ideal for both residential and commercial use, it meets diverse glass-edging needs.

Production & Quality

Our workshop is equipped with diverse machinery and organized neatly. The precision parts and advanced equipment showcase our focus on quality and efficient production for glass-processing machinery. All machinery adheres to strict international standards, including CE certification for electromagnetic compatibility and low-voltage compliance.

Frequently Asked Questions

Do you provide on-site installation and training?

Yes, we offer global installation services and operator training programs to ensure your team can operate the machinery efficiently.

How are your glass machines packaged for shipping?

Machines are packed in containers suitable for long-distance ocean transportation, using shock-absorbing materials like pearl cotton and film. Wooden box packaging is available as an upgrade.

How do you ensure the stability of long-term operation?

We conduct rigorous endurance tests on all machines before they leave the factory and use high-quality components and durable materials during production.

Can I custom order machinery?

Yes, most of our machinery can be custom configured to match your specific production needs and space requirements.

Where can I get spare parts for the machinery?

We maintain a full array of spare parts in stock for all our machinery to ensure minimal downtime for our customers.

How long is the warranty period?

The standard warranty period is 12 months, excluding wear and tear parts.
