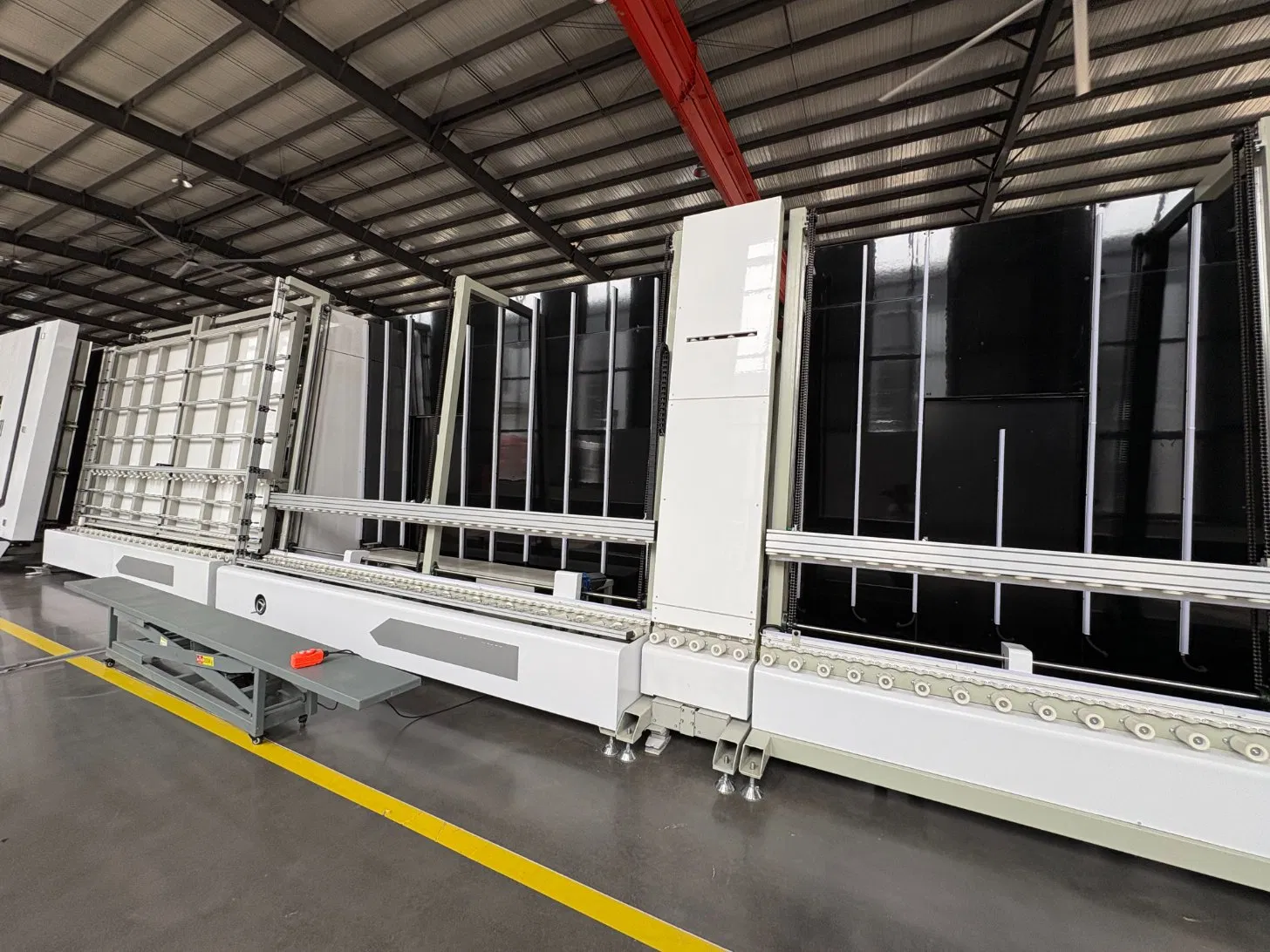

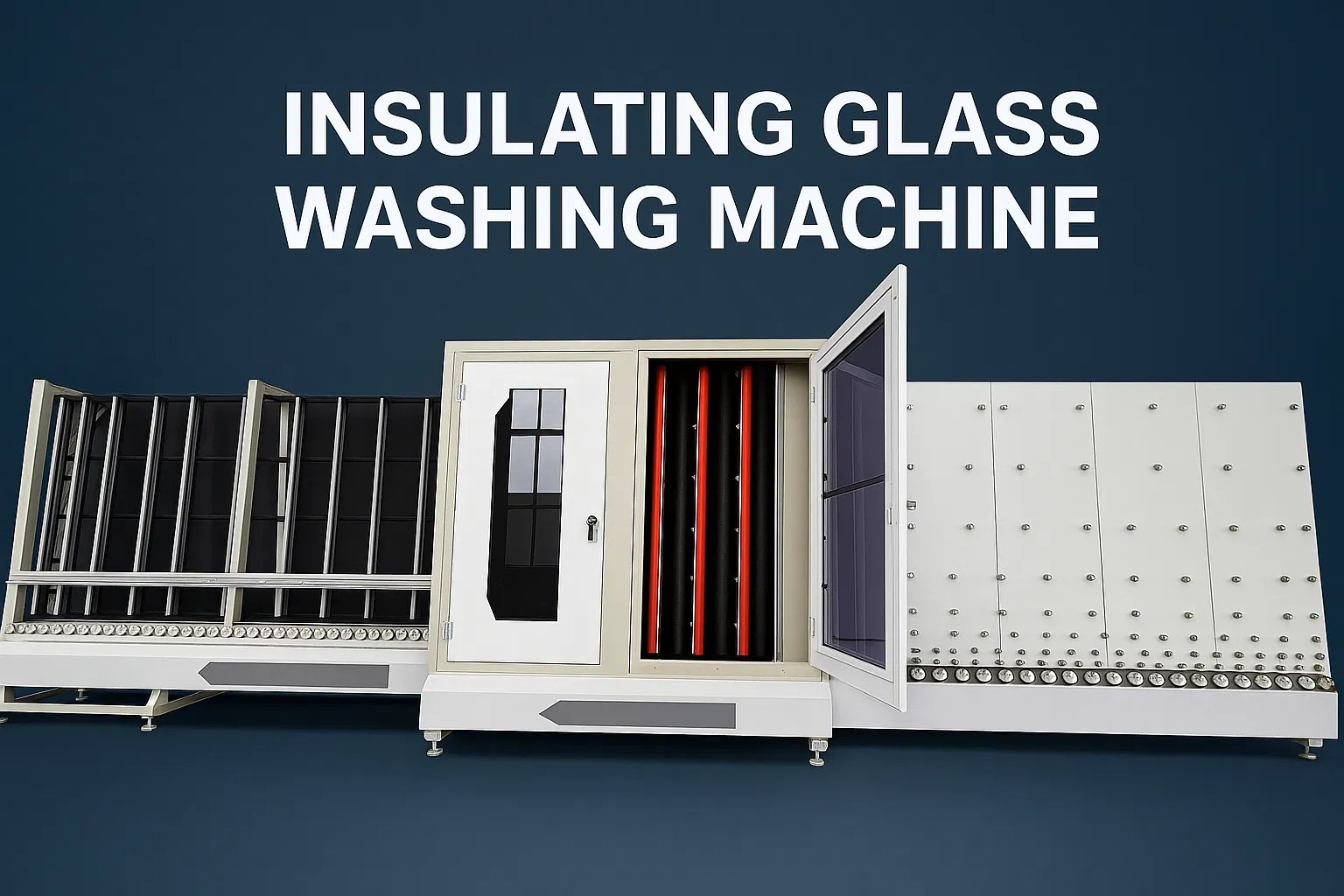

Vertical Insulating Glass Processing Line (IGU/DGU) Machine
Glass Washing, Drying, Pressing, and Gas Filling Function
| Item | Specification |
|---|---|
| Model NO. | SMT-QXJ-2535 |
| Power Supply | 380V/50Hz 3P (Customizable) |
| Total Power | 12KW |
| Max Glass Sheet | 2000 × 2500 mm |
| Min Glass Sheet | 300 × 400 mm |
| Glass Thickness | 3 ~ 18 mm |
| Washing Speed | 8 m/min |

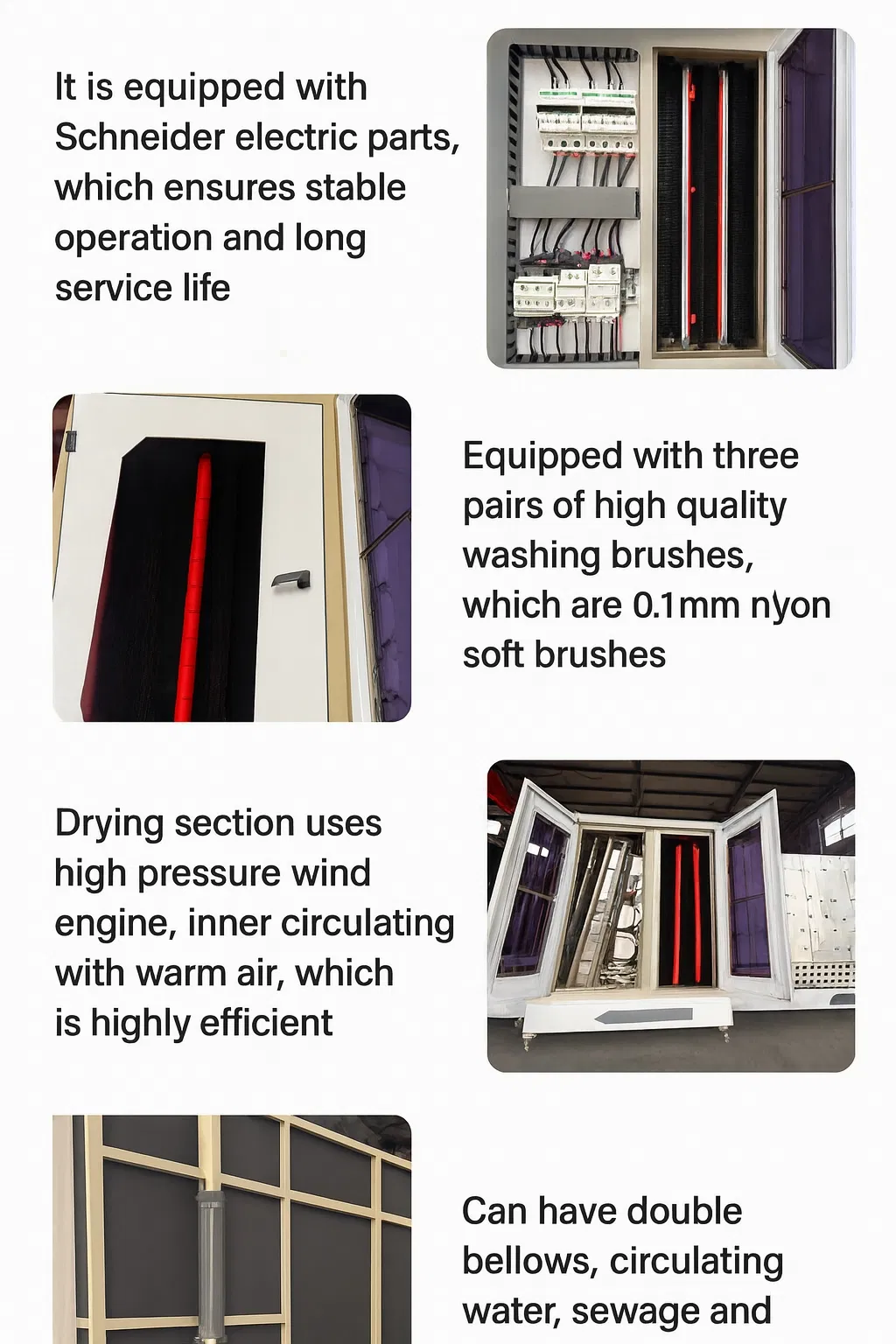

| Brushes | 3 Pairs Soft Brushes (610 Food-grade Nylon) |
| Dimension | 5000X2500X2380mm |
| Weight | 2000 Kg |
| Part Name | Brand | Origin |
|---|---|---|

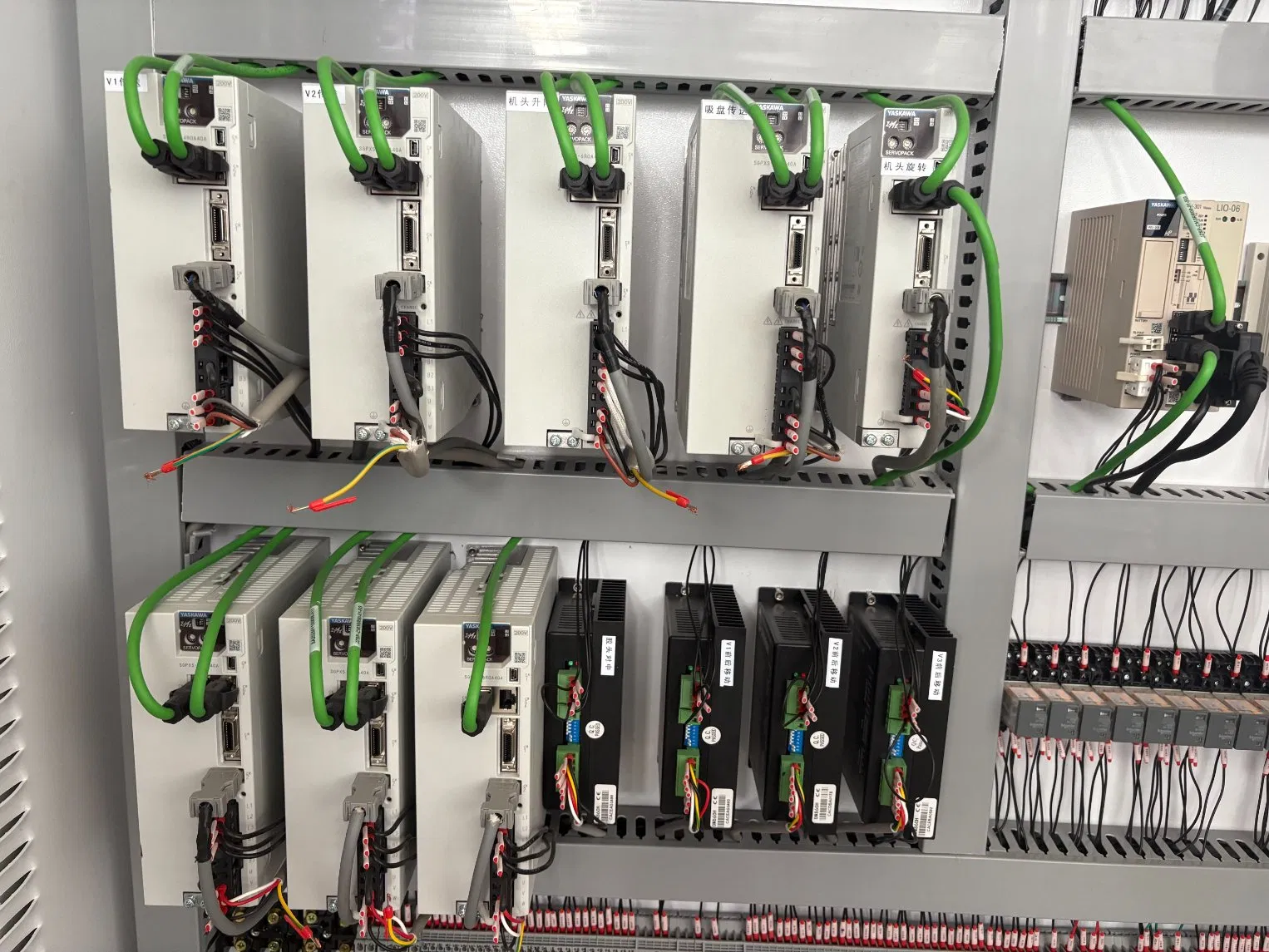

| Servo Motors (Rotating/Nozzle/Up-Down/Sucker) | YASKAWA | Japan |
| PLC Controller | YASKAWA | Japan |
| IO Module | MAYSTEM | Japan |
| Sensors | Autonics | South Korea |
| Low Voltage Appliances | Schneider | France |
| Cylinder | Airtac | Taiwan |
| Belt Position Sensor | Novotechnik | Germany |

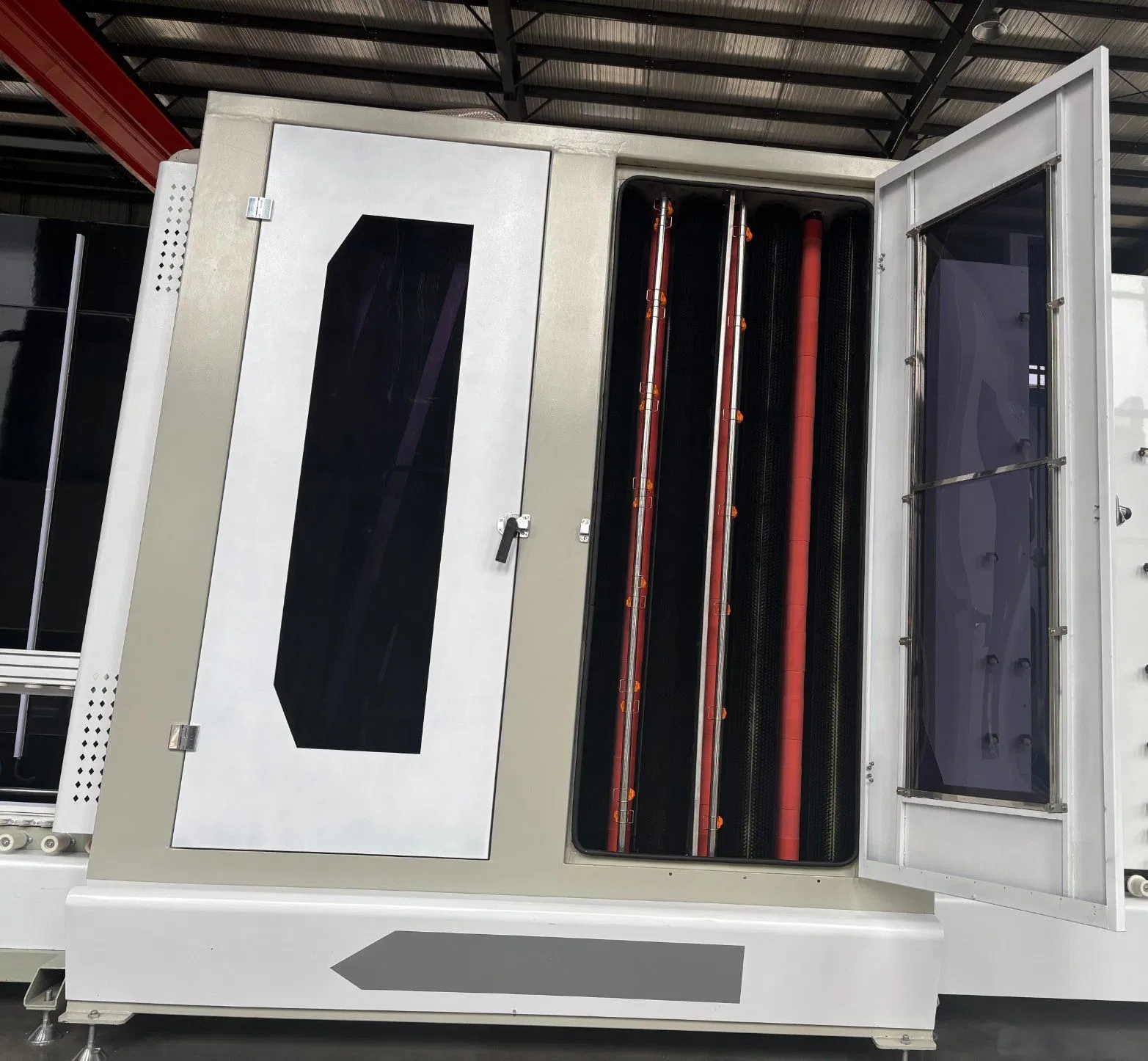

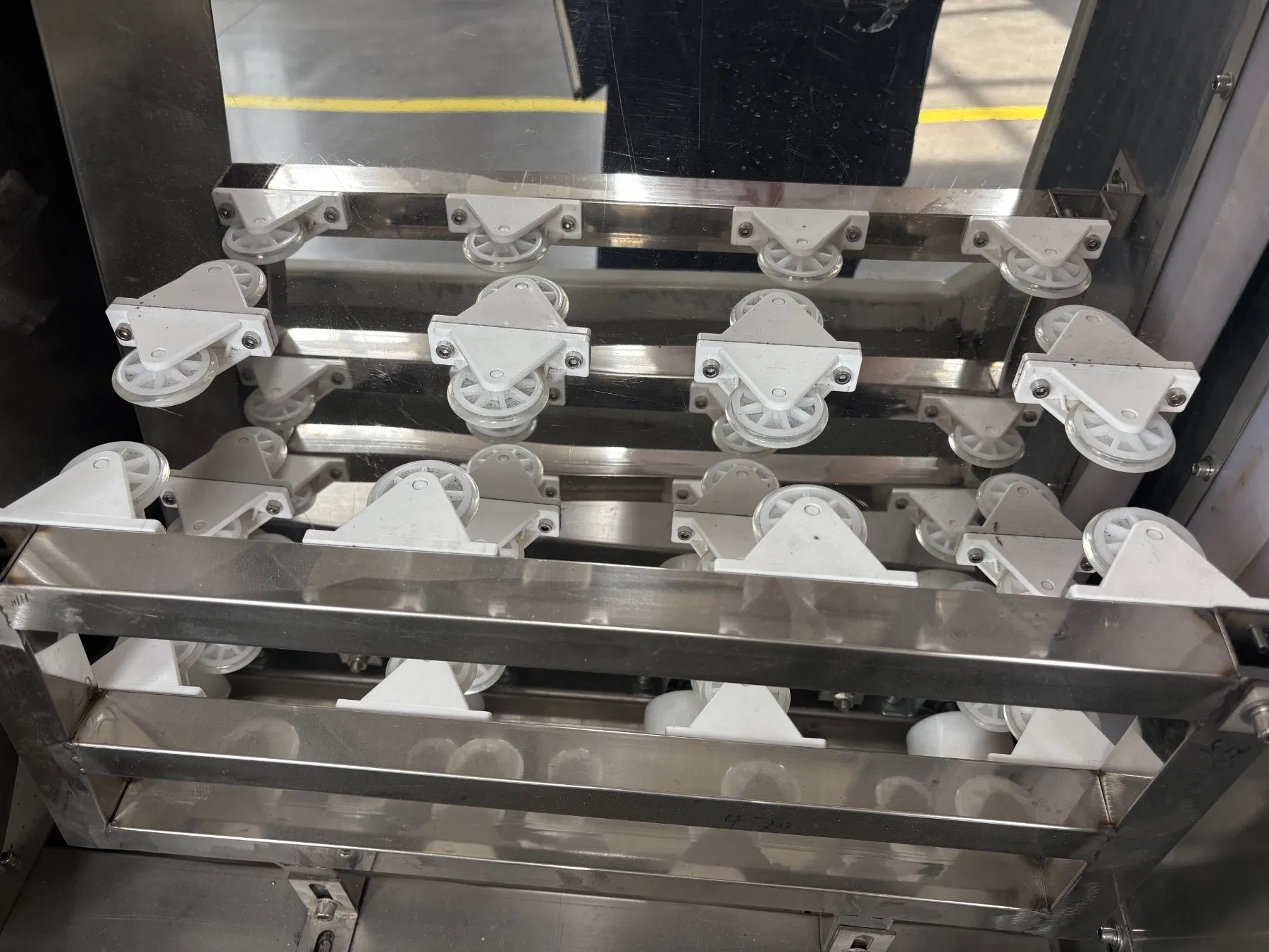

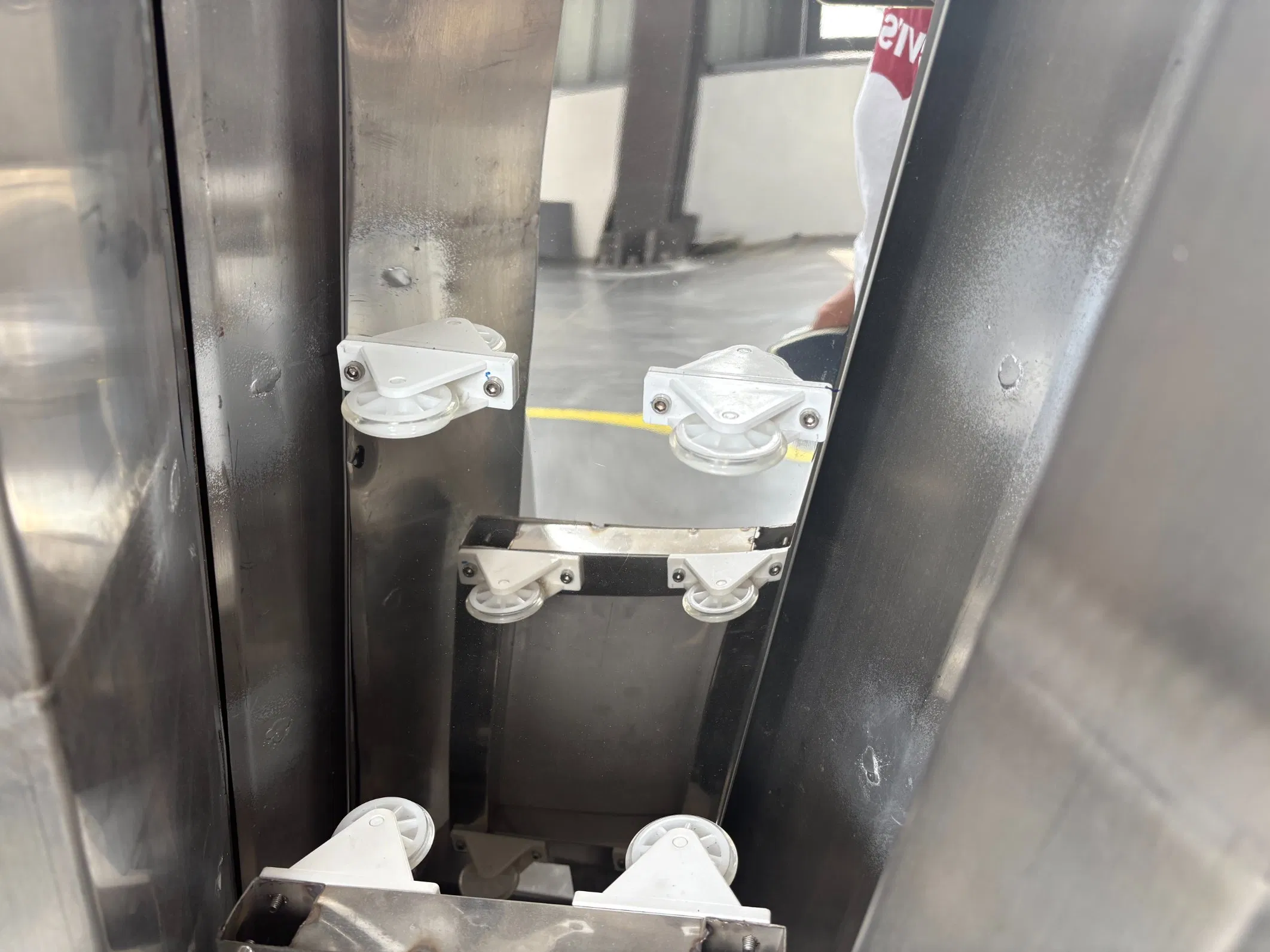

1. Cleaning Section: High-pressure fan-shaped nozzles and 610 food-grade nylon brushes ensure spotless glass. The air knife system is scientifically designed for efficient drying using specific airflow and pressure data.
2. External Clamping: Features a Time Control Function to prevent misalignment. Unlike traditional switches, this handles various glass types (Low-E, frosted) accurately. Includes a buffer function to stop glass smoothly without inertia collisions.
3. Inflatable Panel Press: High precision via ball screws and bidirectional linear guides. Features a bottom-filling mode for uniform inflation and a rear panel blower to reduce glass friction.
Our company is a recognized leader in the design, manufacturing, and distribution of intelligent door, window, and glass processing machinery. We focus on technical support and customized solution designs for insulating glass production lines.
Quality is at the heart of our operations. Beyond supplying complete systems, our professional engineers offer tailored configurations based on specific production needs and investment plans.
