💎 Overview & Basic Info
| Model NO. | FGD-AD SZ080-3 |
| Glass Thickness | 3-30mm |
| Power Supply | 380V/50Hz |
| The Overall Dimension | 2380*2200*1700mm |
| The Height of Table | 900±50mm |
| The Drilling Depth of Y Axis | 1250mm |
| The Max. Glass Size | 2400*3500mm |
| The Min. Glass Size | 300*300mm |
| Hole Diameter | Dia.4 - 80mm |
| The Max. Feeding Distance of Z Axis | 40mm |
| Watt | 2.45 Kw |
| Air Pressure Connection | Dia.8mm Air Pipe |
| Air Pressure Pressure | 0.6 MPa |
| Water Source Connection | Dia. 10mm Water Pipe |
| Environment Temperature | 6-40 ℃ |
| Origin | China |
| HS Code | 8464901900 |

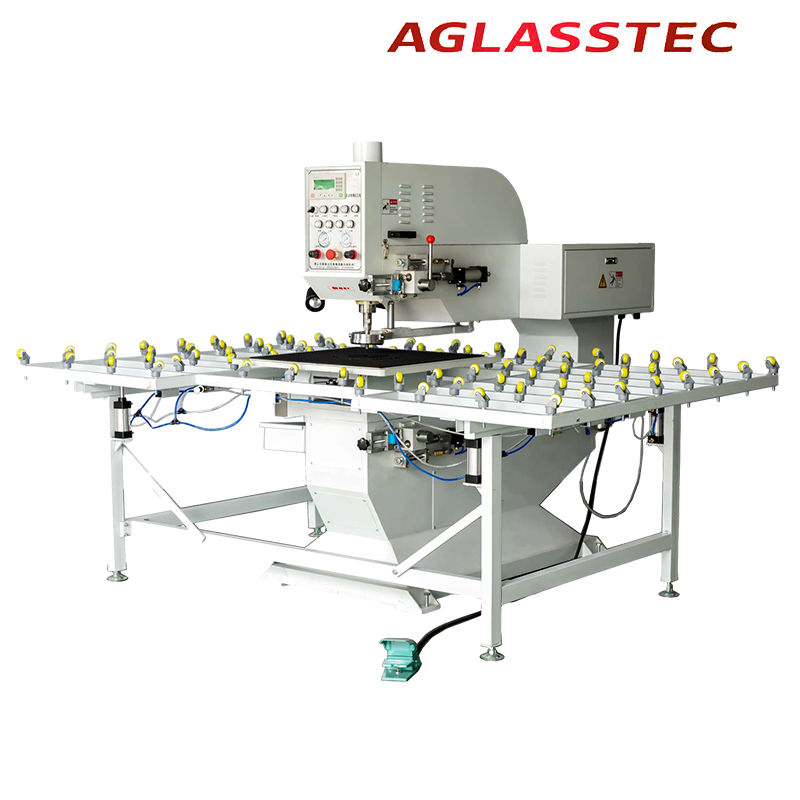

⚙️ Product Description
✅
The Z axis feeding adopts oil pressure buffer technology, ensuring stable drilling quality.
✅
All welding parts are processed after annealing treatment; the outer sliding sleeve is made of durable ductile iron.
✅
The inner sliding sleeve is plated with hard chromium for high precision and long service life.
✅

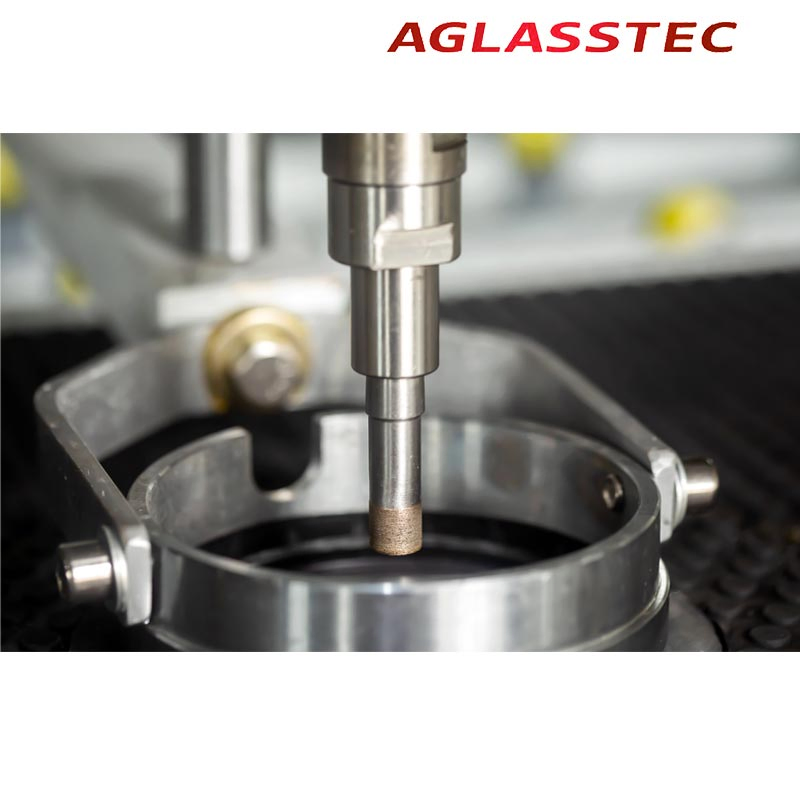

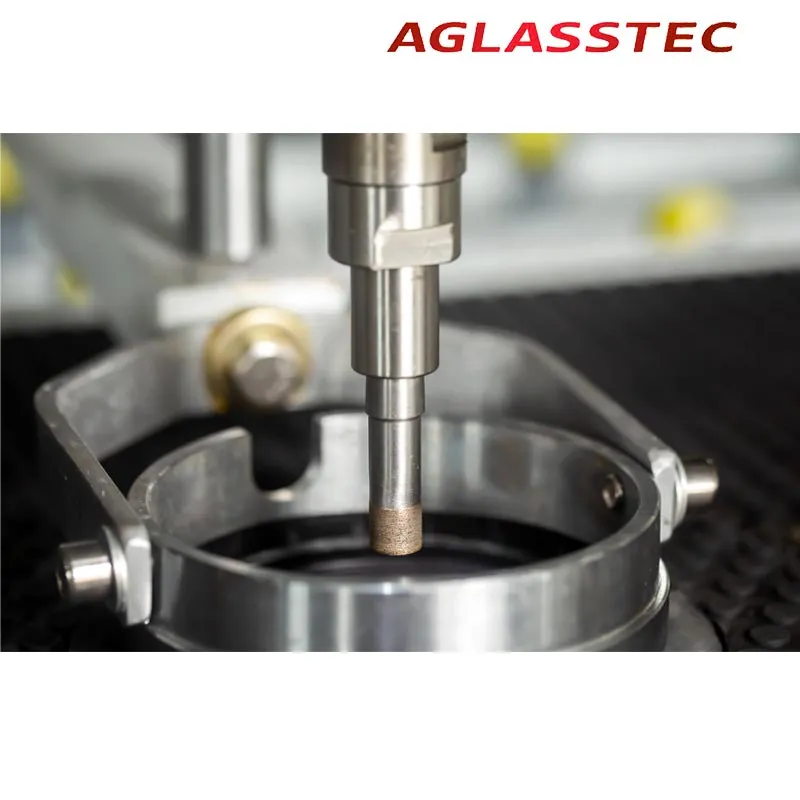

Dual Operation: Lower drill bit works automatically; upper drill bit features both auto and manual modes.
✅

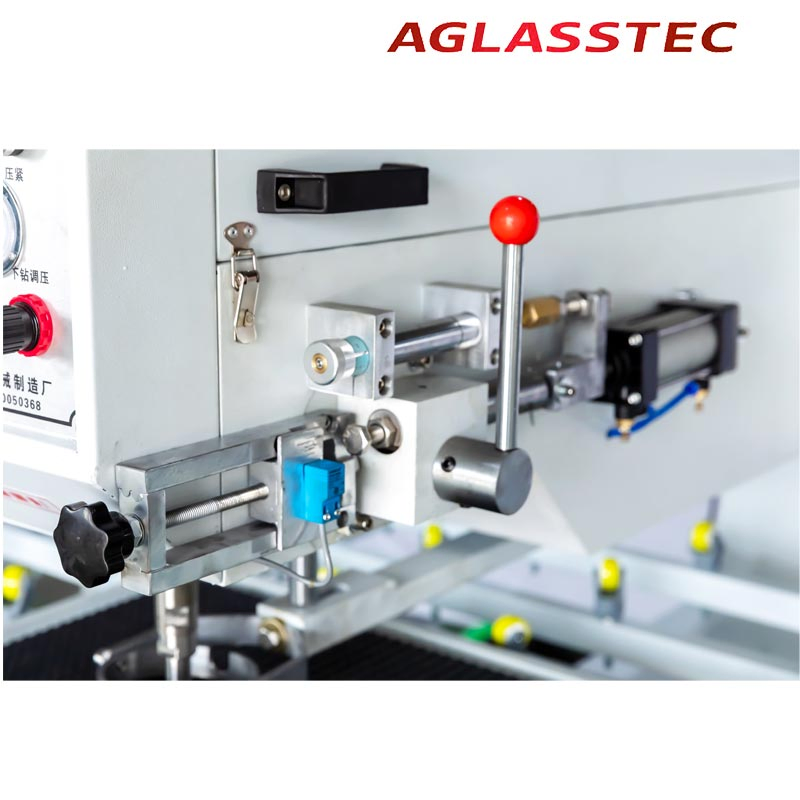

Versatile Positioning: Supports manual, infrared, and mechanical positioning for batch production.
✅

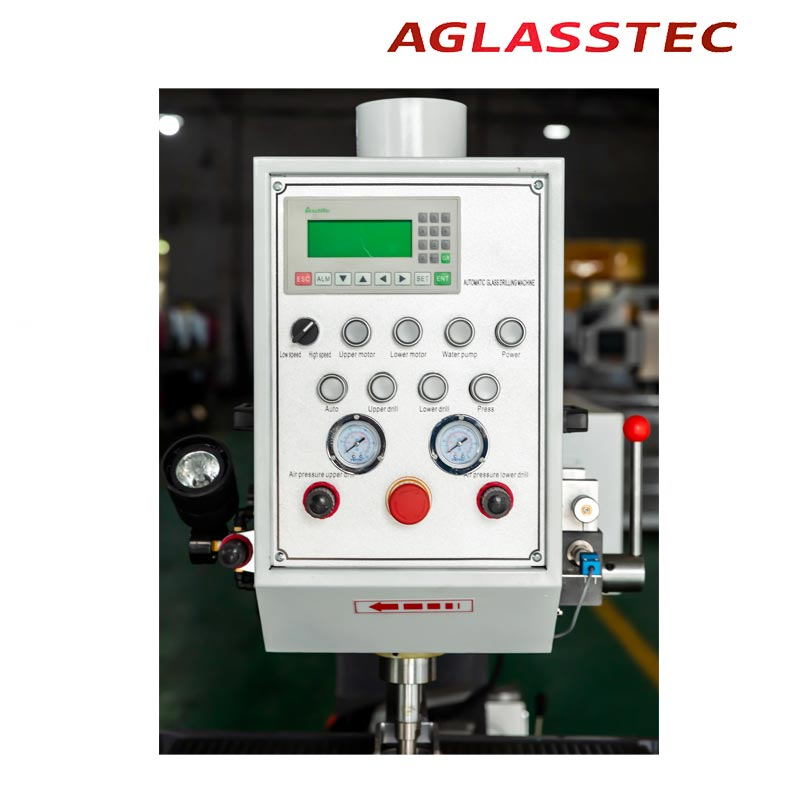

PLC Control: Provides single and continuous cycle working modes to improve factory efficiency.
✅
Ergonomic Design: Foot switch operation frees hands for large glass handling; integrated working light for visibility.
📜 Certifications & Shipping
❓ Frequently Asked Questions
Q1: Are you a trading company or a manufactory?
We are a manufactory. We supply factory prices with high-quality equipment. You are always welcome to visit our facility.
Q2: What are the machine warranty specifications?
We provide lifelong maintenance services. For machines within the warranty period, we solve problems free of charge. Beyond the warranty, we continue to provide follow-up services with spare parts charged at cost price.
Q3: Is the glass machine easy to operate for a first-time buyer?
Yes. We provide operation manuals and videos. We can also assist via online tools or send engineers to your factory for installation and staff training.
Q4: How do I choose a suitable machine?
Please provide your workpiece material, dimensions, and required functions. Based on our 20 years of experience, we will recommend the most suitable configuration.
Q5: How can I trust the quality of your products?
The entire production procedure undergoes regular inspection and strict quality control. Every machine is tested before leaving the factory, and testing videos/pictures are shared with customers before delivery.
Q6: What if the machine has problems after ordering?
Free parts are sent during the warranty period. We offer 24-hour support via telephone or messaging apps to ensure lifelong after-sales service.
