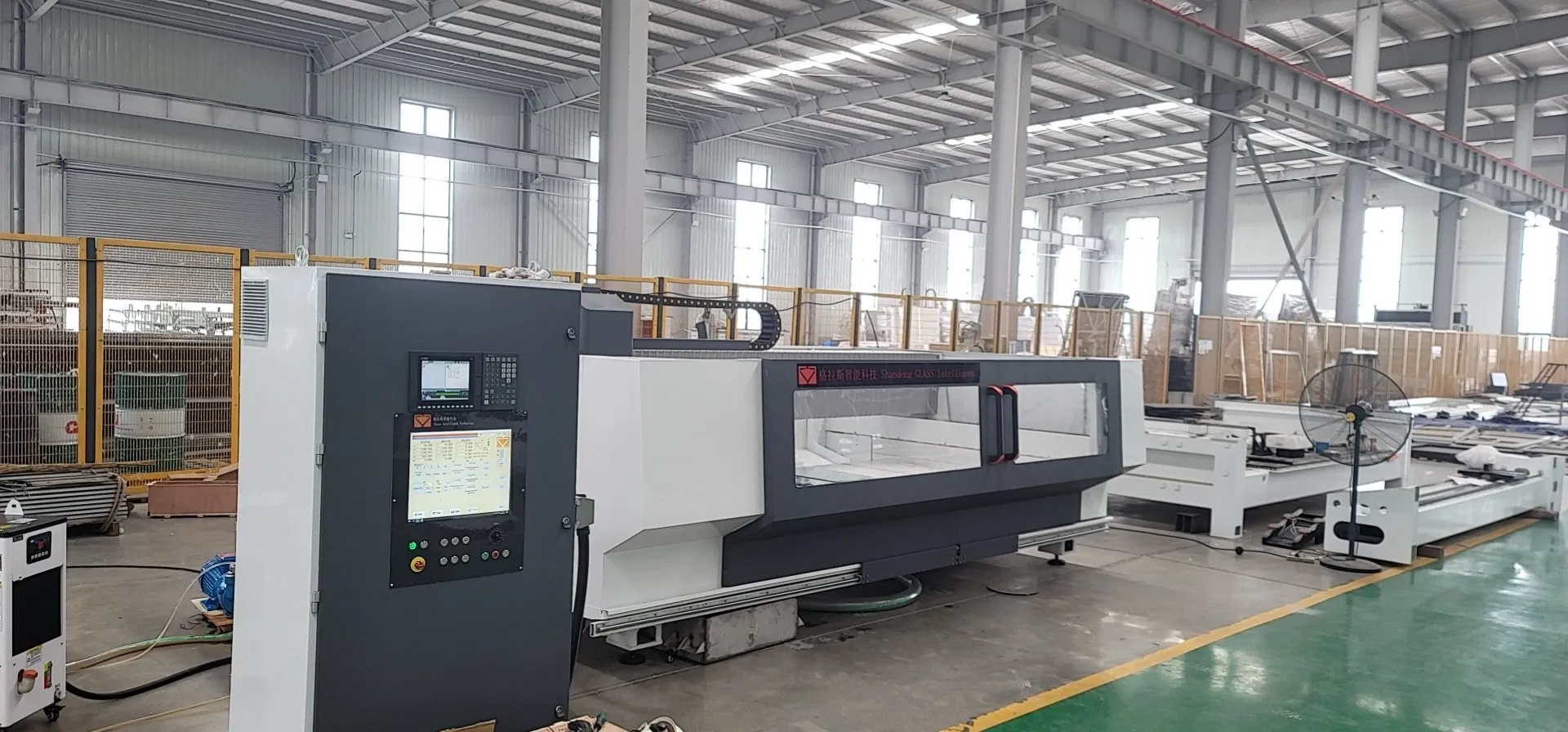

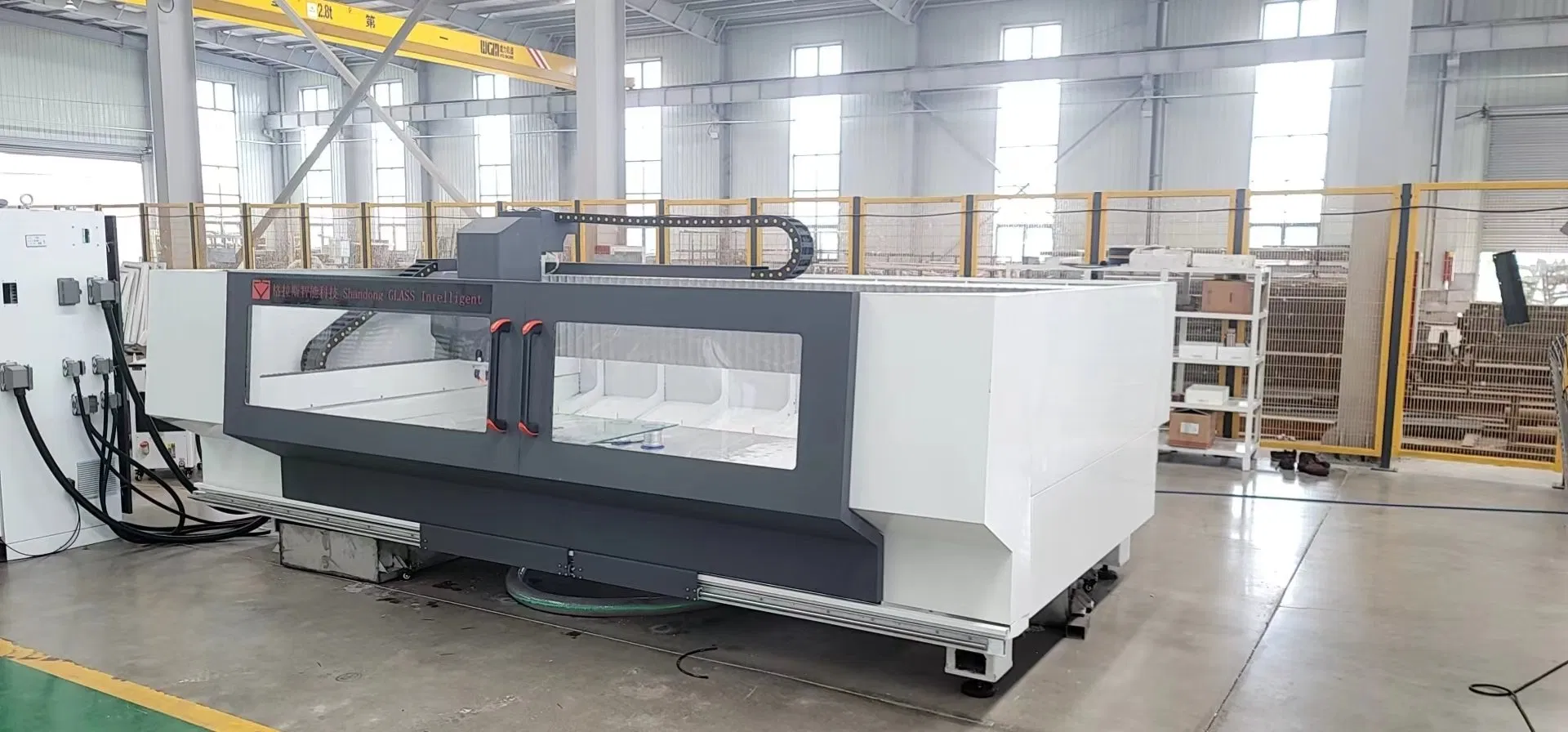

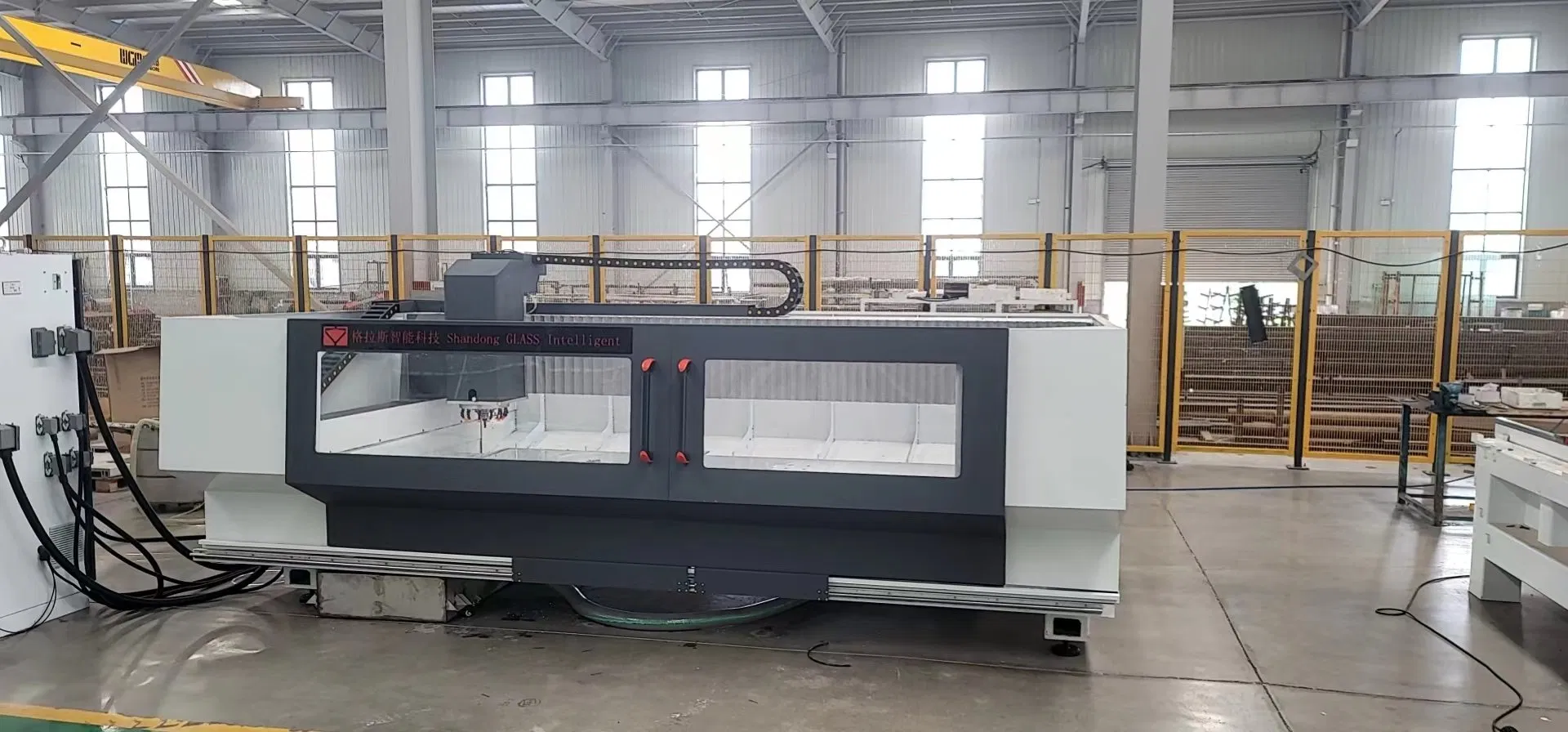

Hh Glass Horizontal CNC Milling and Drilling Center Machine 1530

Customization:	Available
Certification:	CE, ISO
Cutting Method:	Diamond Wheel Cutting

Send Inquiry

Product Description

Basic Specification

Model NO.

HHHCNC1530

Max Cutting Thickness

30 mm

Power Supply

380V 50Hz

Safety Features

Emergency Stop, Overload Protection, Safety Sensor

Transport Package

Container

Specification

1500x3000mms

Origin

China

HS Code

8475299000

Production Capacity

2000sets/Year

Product Visuals

Technical Parameters

Model Series		GC-CNC-II
Available Sizes: 12002400mm / 15003000mm / 19003000mm Min size: 250250mm Glass thickness: 4-30mm		Spindle power: 13KW Spindle speed: 0-12000r.p.m Movement speed: X.Y-axis 25m/min, Z-axis 10m/min Tool magazine: 8*1 Total power: 22KW
Function			Applicable Cutter Tools
Drilling, grinding and polishing, milling, engraving			Milling cutter, drill bit, cylindrical wheel, seal carving pen
Standard Configuration
Host	Structural welded steel, Co2 shielded, heat treated			1 set
Control System	Mitsubishi (Japan)			1 set
Servo Motor	Mitsubishi (Japan)			4 sets
Spindle Frequency Converter	Delta (Taiwan, China)			1 set
Low Voltage Electrical	Schneider (France)			1 set
Pneumatic Components	AirTAC (Taiwan, China)			1 set
Spindle	Professional glass grinding spindle (0-12000 rpm, 13KW)			1 set
Software	Glass-Easy CAD/CAM			1 set
Water Pump	Stell (Taiwan, China)			1 set
Linear Guides & Ball Screw	HIWIN (Taiwan, China)			1 set each
Cutter Tool Magazine	8-bit automatic tool changer			1 set
Working Desk	Aluminum alloy			1 set

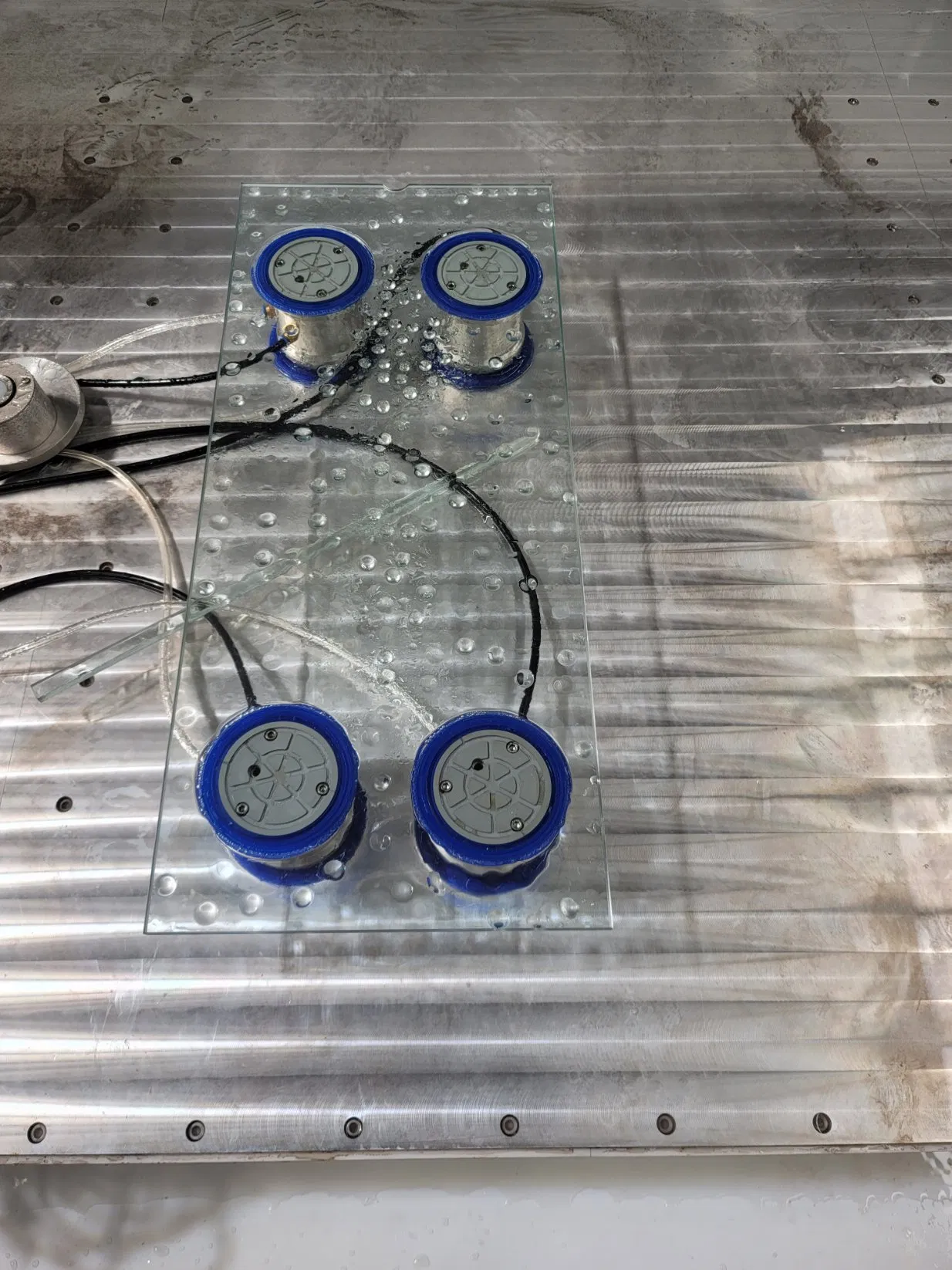

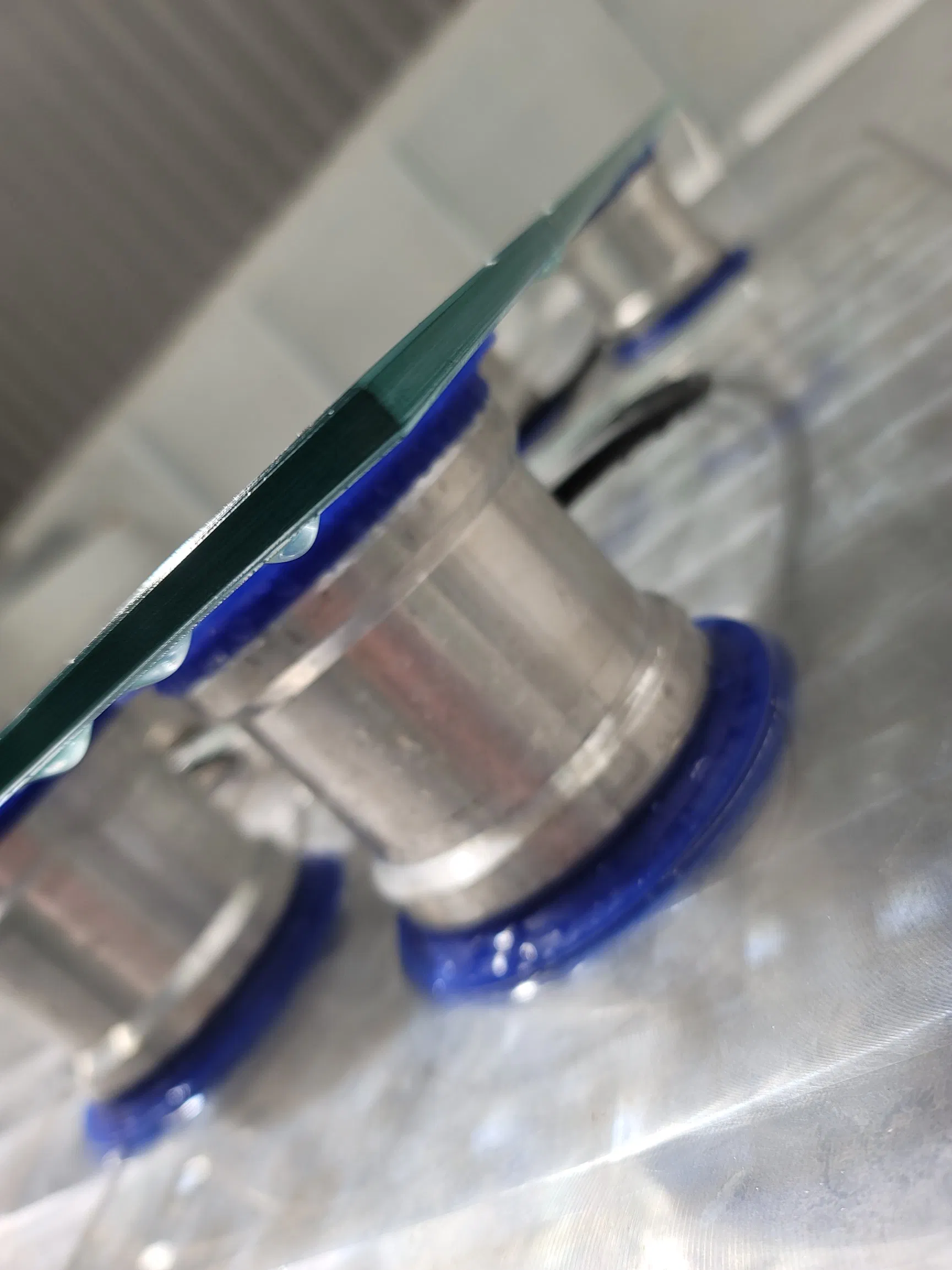

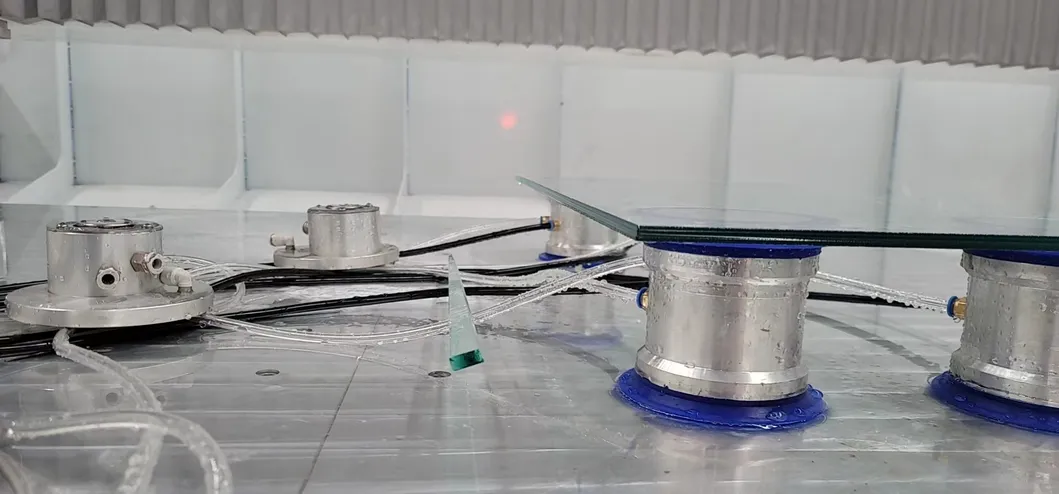

Sucker components	Φ135mm / Φ165mm			4 pieces each

Frequently Asked Questions

What is the maximum glass thickness this machine can process?

The machine is capable of processing glass with a maximum thickness of 30 mm, with a supported range starting from 4 mm.

What brand of control system and motors are used?

This CNC center is equipped with high-quality Mitsubishi (Japan) control systems and servo motors for precise operation.

What are the primary functions of the GC-CNC-II?

It is a versatile machine designed for drilling, grinding, polishing, milling, and engraving glass surfaces.

Does the machine support automatic tool changes?

Yes, it features an 8-bit automatic cutter tool magazine and an 8-piece BT40 positioning cutter holder system.

What are the safety features included?

Safety is prioritized with an Emergency Stop Button, Overload Protection, and integrated Safety Sensors.

What is the processing speed of the X, Y, and Z axes?

The movement speed for X and Y axes is 25m/min, while the Z-axis operates at 10m/min.
