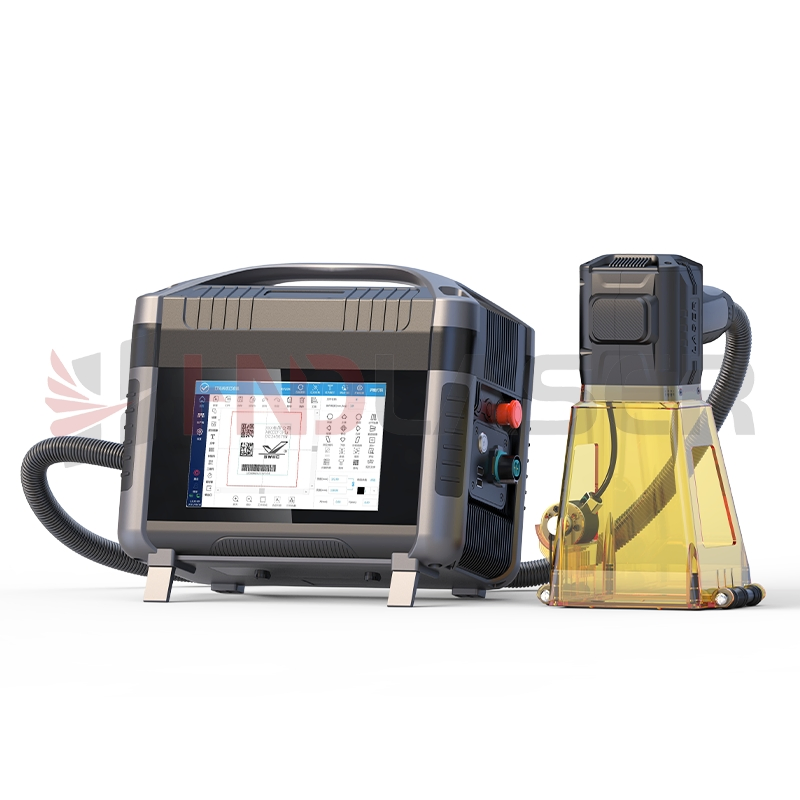

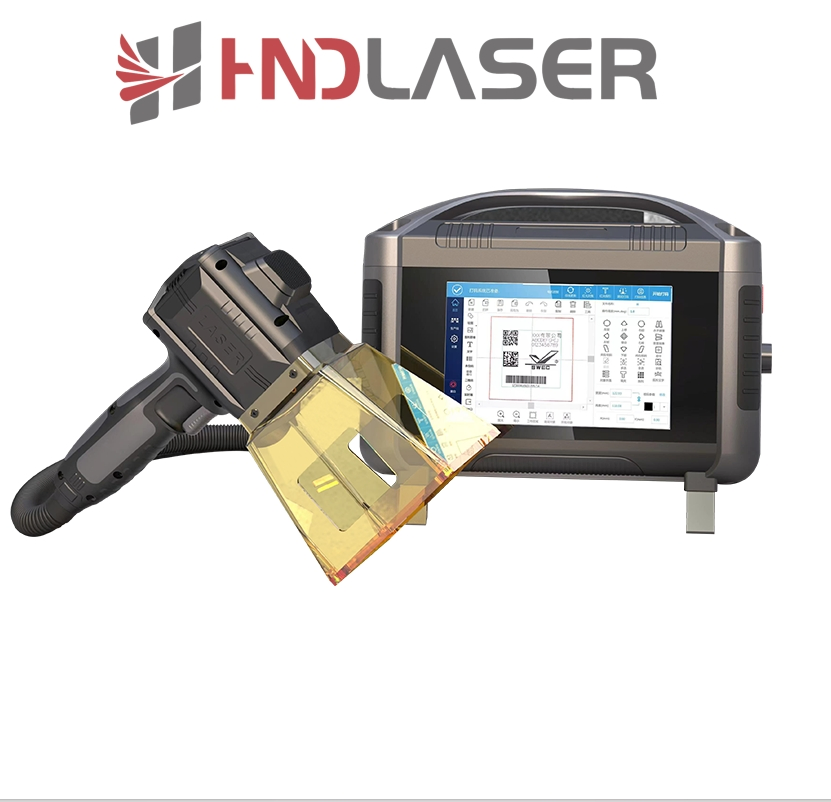

Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine
Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine
Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine
Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine
Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine
1 / 5
Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine
Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine
Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine
Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine
Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine

Handheld Portable Metal Marking Logo/Name/Text/Number Engraving Machine

Customization: Available
After-sales Service: Support Online
Warranty: 2 Years
Send Inquiry

Product Description

Basic Specifications

Model NO.
HF10XX-H
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Net Weight
7kg
Laser Source
20/30/50W
Voltage
220V
Packaging Size
90.00cm * 45.00cm * 95.00cm

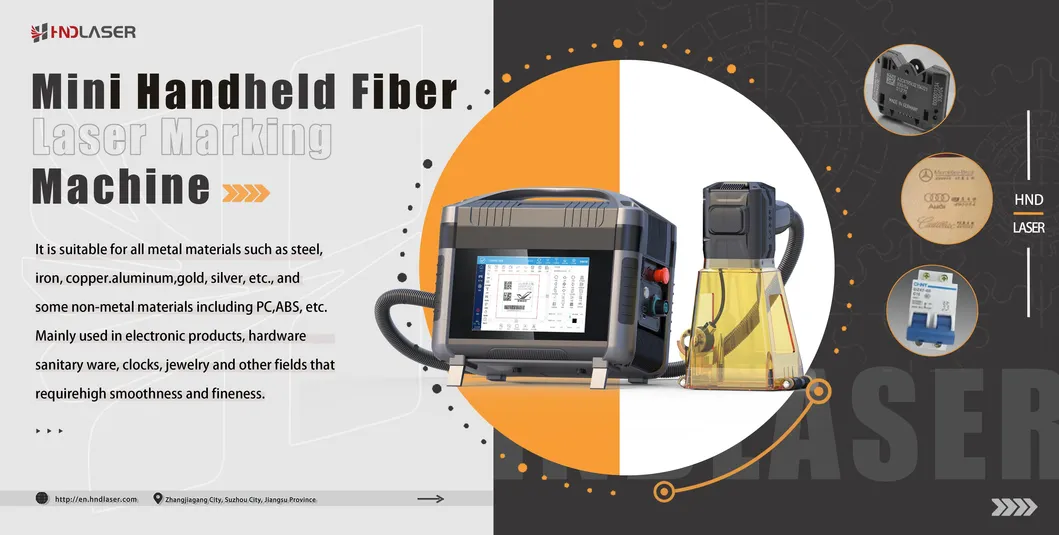

Mini Handheld Fiber Laser Marking Machine

Handheld Fiber Laser Marking Machine

The handheld laser marking machine features a large-capacity battery, long battery life, multiple marking ranges, and an 8-inch touch screen, providing high efficiency for mobile marking needs.

Equipment Features

🔋
Large-capacity Battery: Built-in battery ensures up to 8 hours of continuous operation without external power, ideal for outdoor use.
⚖️
Lightweight Design: At only 6KG, it is easy to carry and operate for long-term handheld tasks.
🖥️
8-inch Touch Screen: Intuitive interface for quick setting of marking parameters and real-time monitoring.

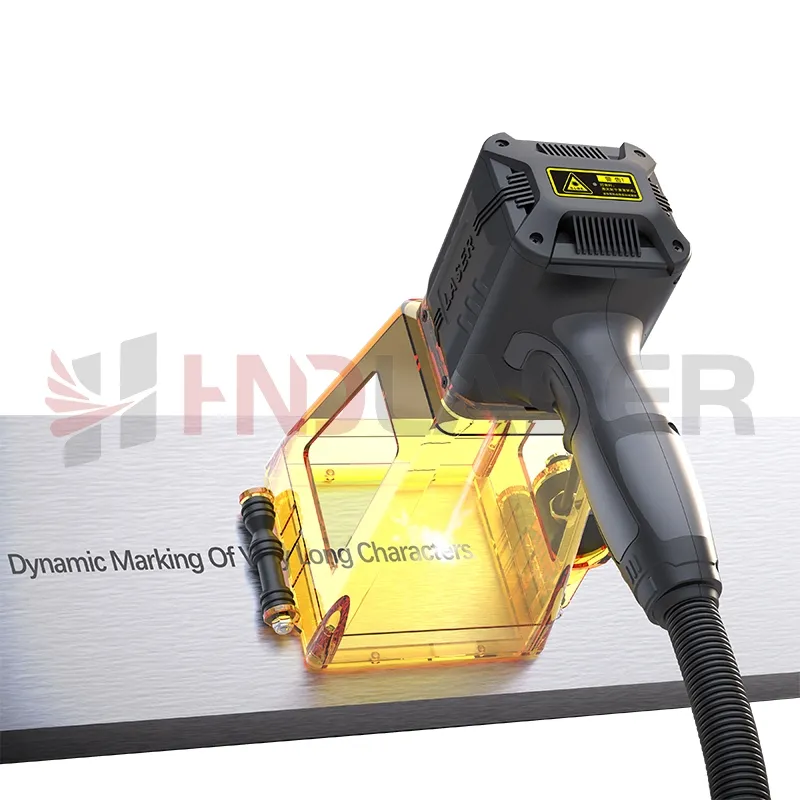

Feature View 1 Feature View 2

Wide Range of Applications

  • 📍 Offices & Studios: Perfect for small-batch custom marking tasks.
  • 📍 Startups & Innovation: Maximizes space and cost-effectiveness for rapid prototyping.
  • 📍 Research & Teaching: Facilitates lab projects and academic training.
  • 📍 Outdoor Work: Mobile solutions for field tasks from trucks and vans.

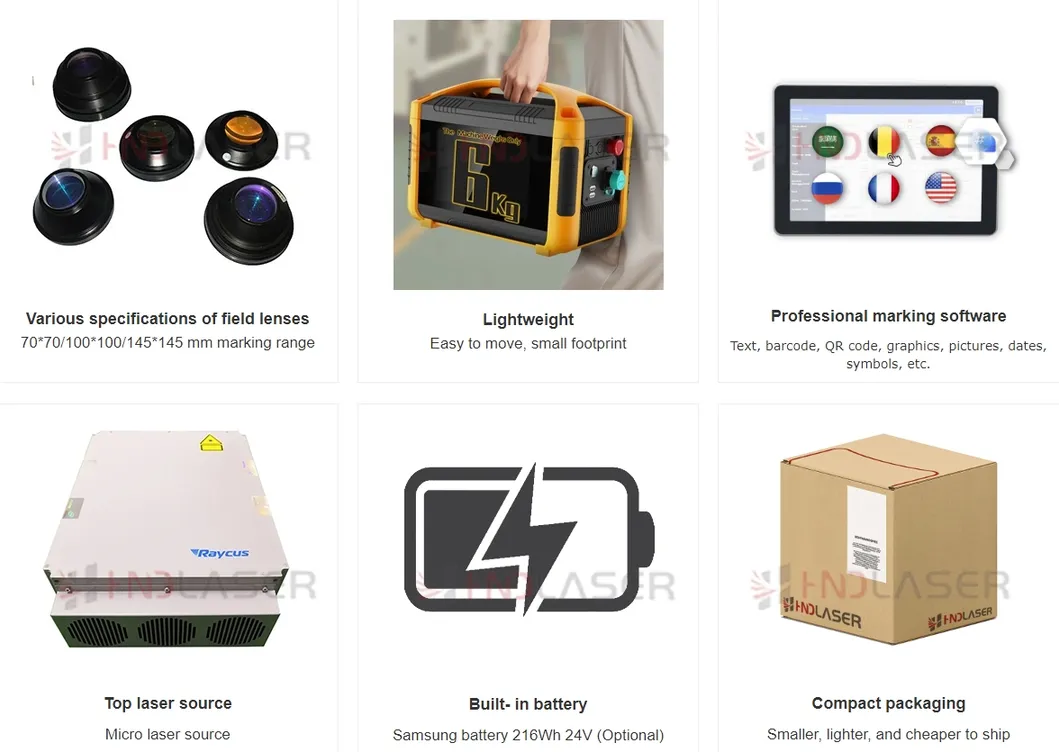

Advantages and Accessories

Technical Parameters

NO. Project Parameter
1Laser Power20W/30W/50W (Optional)
2Laser TypePulse Fiber Laser
3Wavelength1064nm
4Marking Field70*70/100*100/150*150mm
5Marking Speed≤10000mm/s
6Repeat Accuracy0.01mm
7Expected Life>100,000 hours
8BatterySamsung battery 216Wh 24V (Optional)
9Power Consumption200 W

Material Compatibility

Category Material Reaction
MetalStainless steel / Aluminum√√ (Exceptional)
Brass / Copper / Gold√ (Admirable)
Titanium / Carbon Steel√√ (Exceptional)
PlasticPE / PVC / Nylon / ABS√ (Admirable)
PP / PET / PC- (Unsatisfactory)
CeramicsElectrical & Medical Ceramic√ (Admirable)

Related Gallery

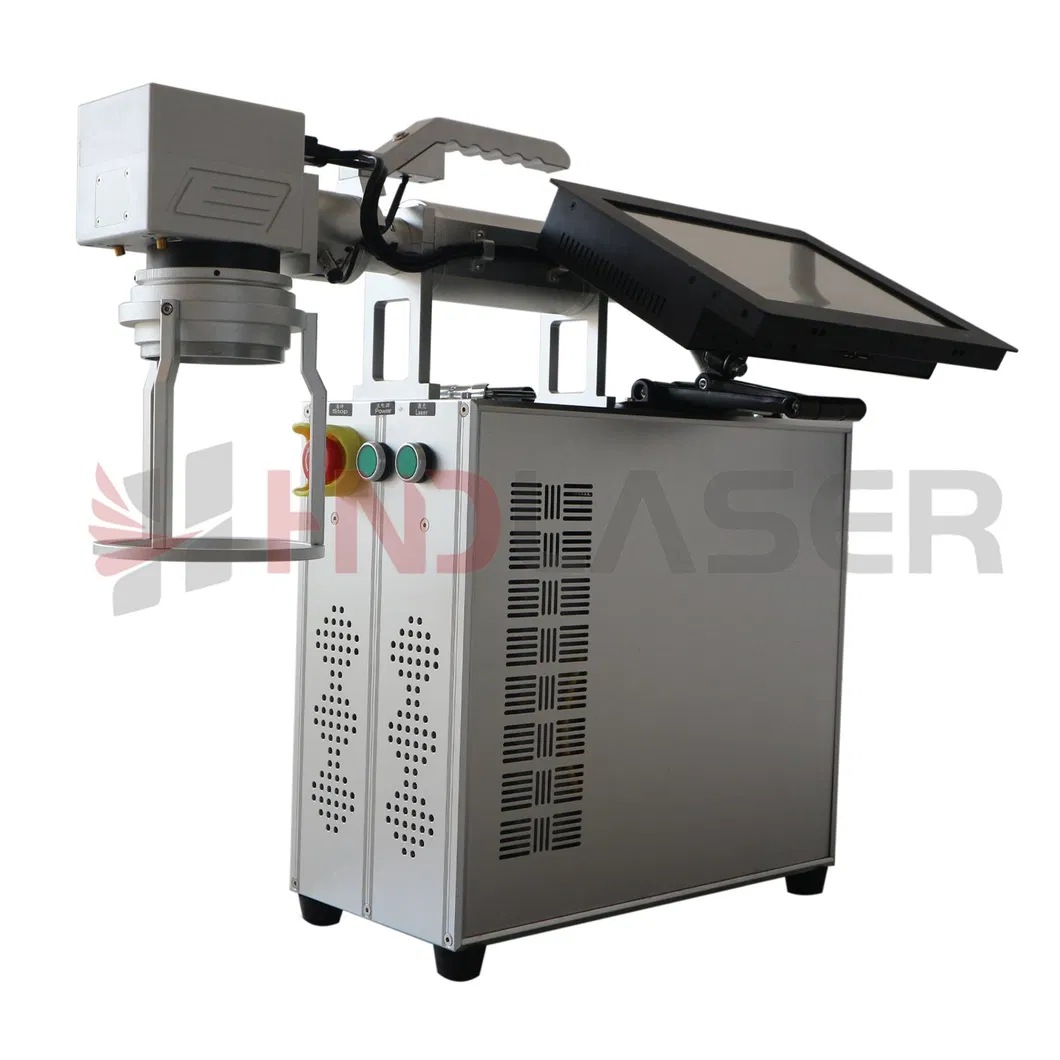

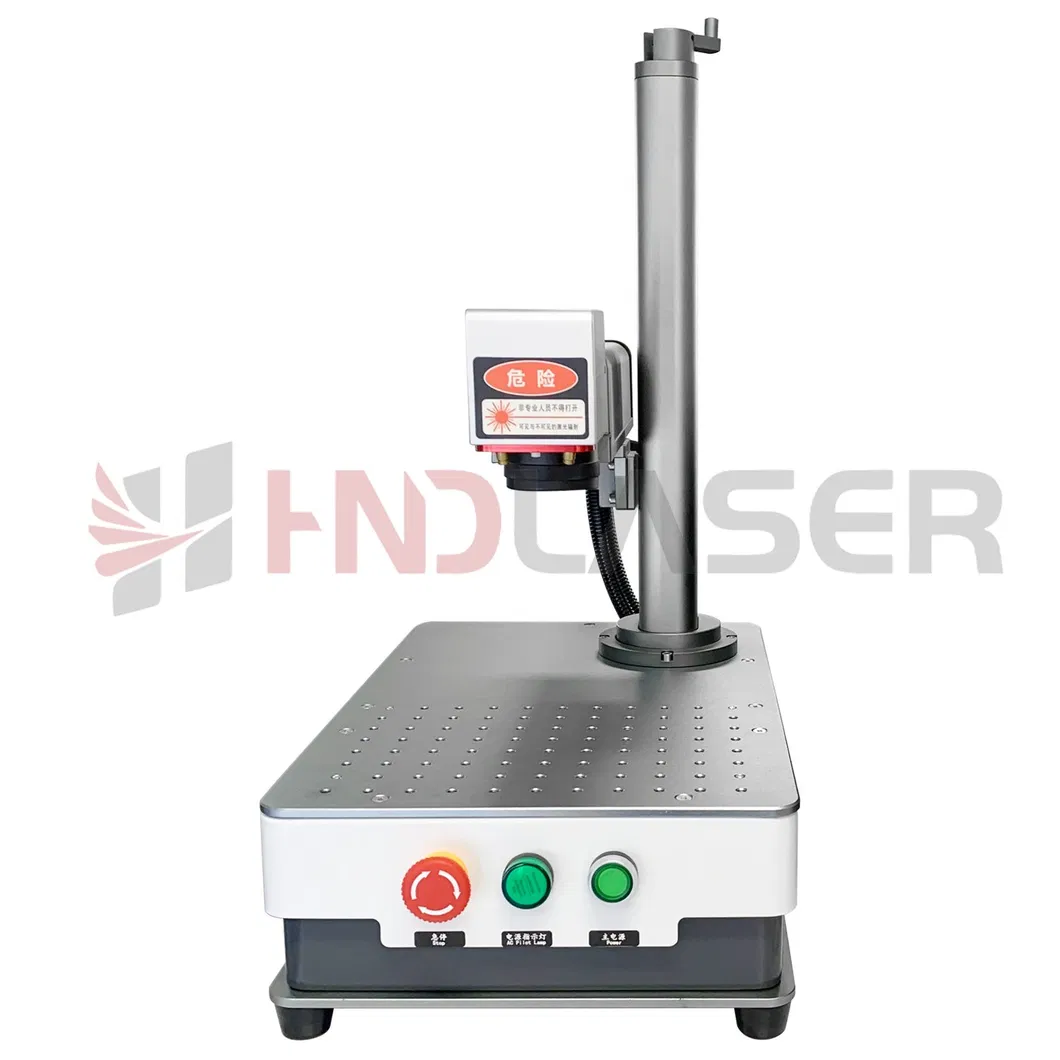

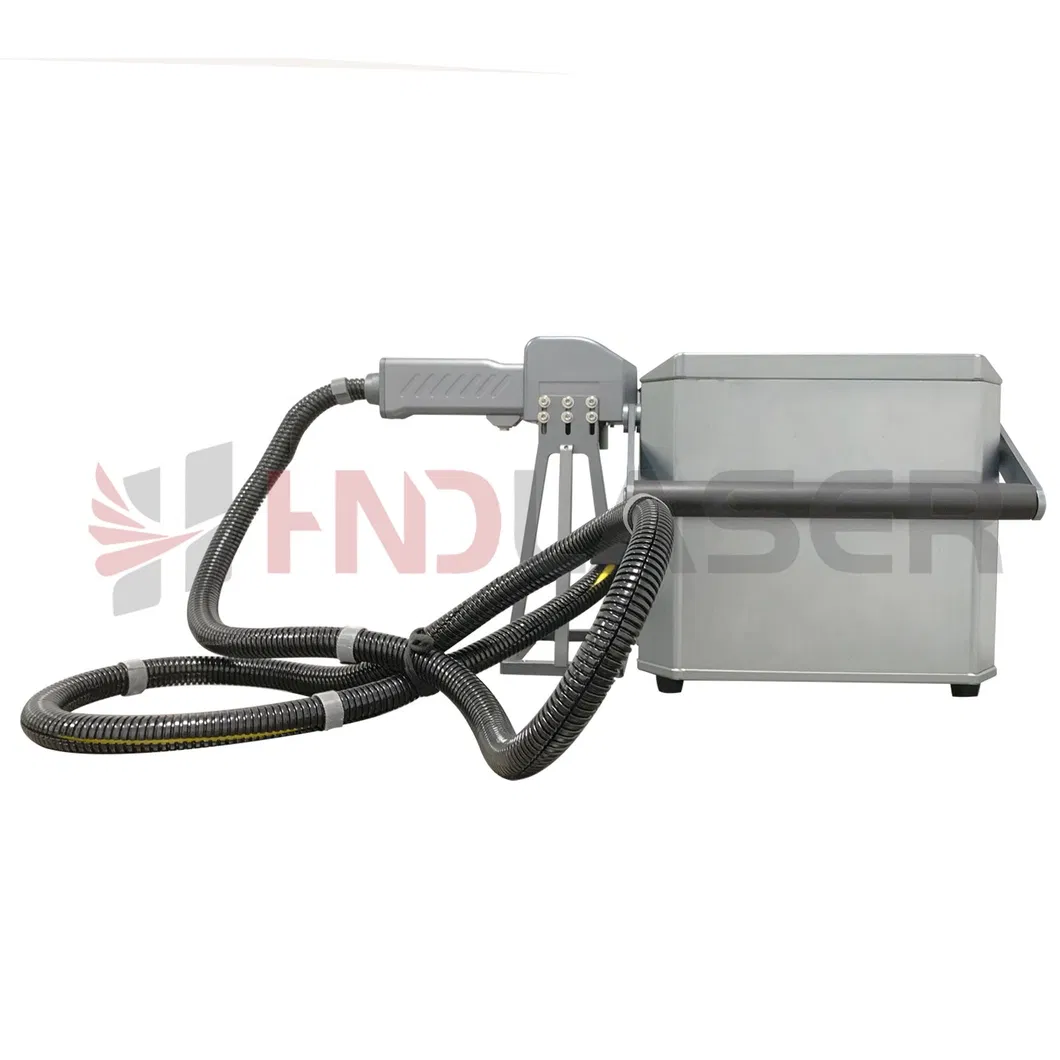

Model A Model B Model C

Focus Areas & Application

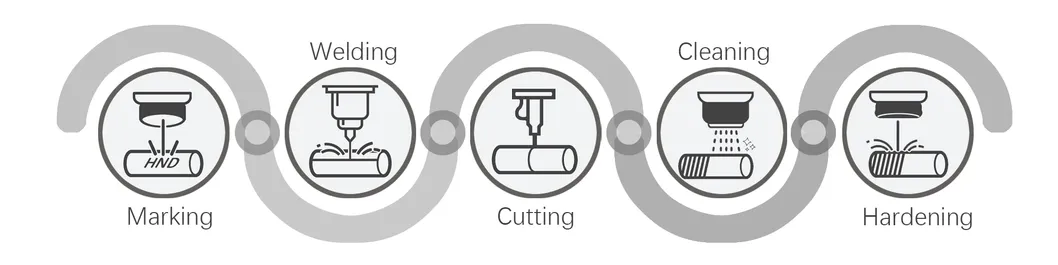

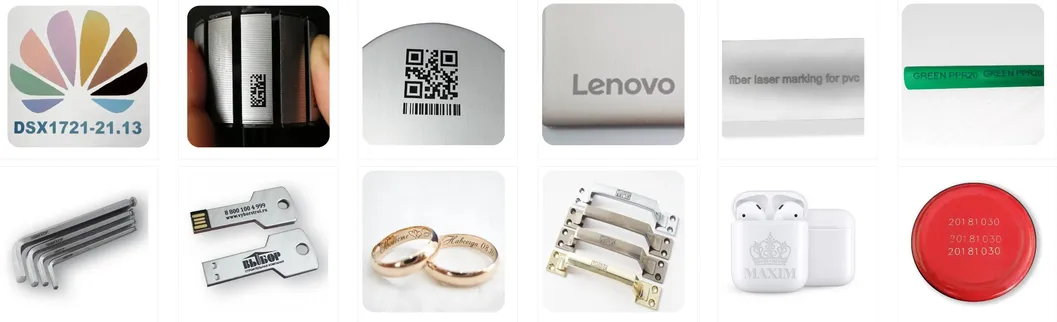

Application 1 Application 2

Certification Display

Our machines are certified by renowned third-party organizations, ensuring dependable quality and global standards.

Certifications

Frequently Asked Questions

Q1: What is the warranty period for this machine? A1: During the warranty period, if any major parts (excluding consumables) develop issues, they will be replaced or repaired at no additional cost.
Q2: What payment terms are accepted? A2: We accept various methods including TT, Western Union, Paypal, LC, and Cash.
Q3: Do you provide CE and other clearance documents? A3: Yes, we supply the original CE documents, packing list, commercial invoice, and sales contract for a smooth customs process.
Q4: How do I handle the machine if I am unfamiliar with its operation? A4: We provide a comprehensive user manual with illustrations and a USB disk for step-by-step learning, along with monthly updates.
Q5: Can I obtain a sample to verify the marking results? A5: You are welcome to send us a sample; we will test it for you at no charge to verify the performance.
Q6: How quickly will I receive a quote? A6: Our expert team typically responds to inquiries within a 12-hour window.
