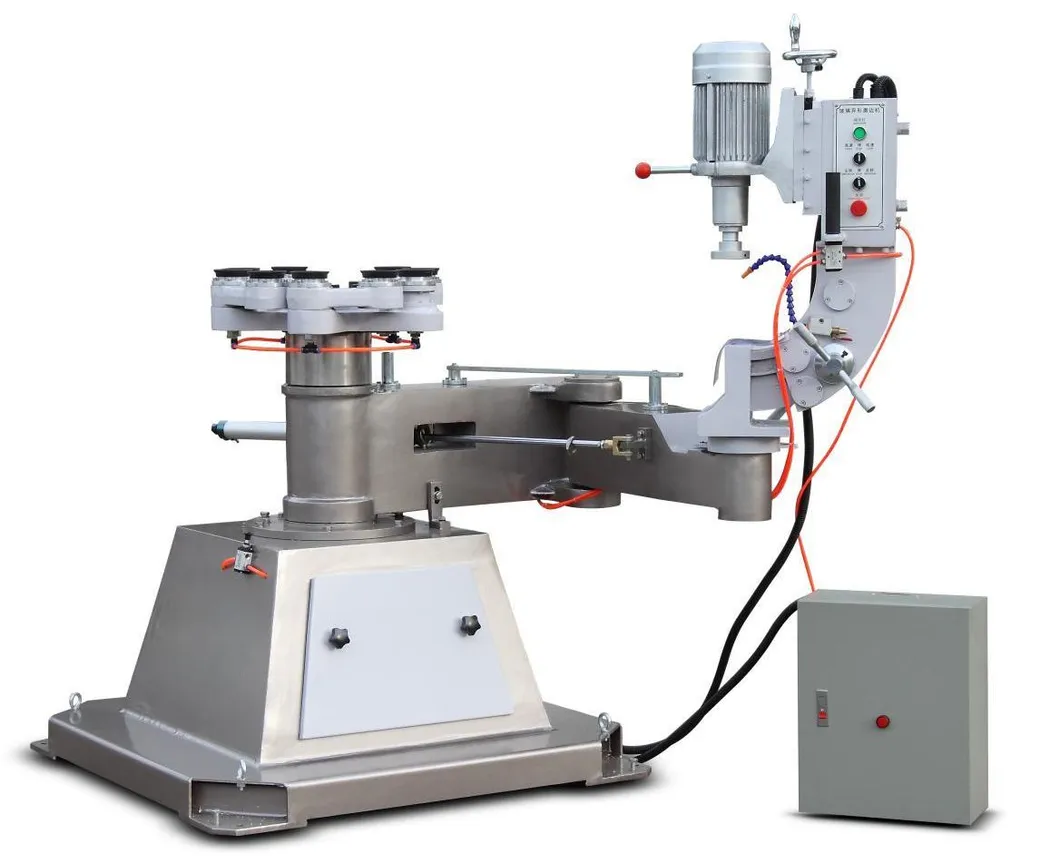

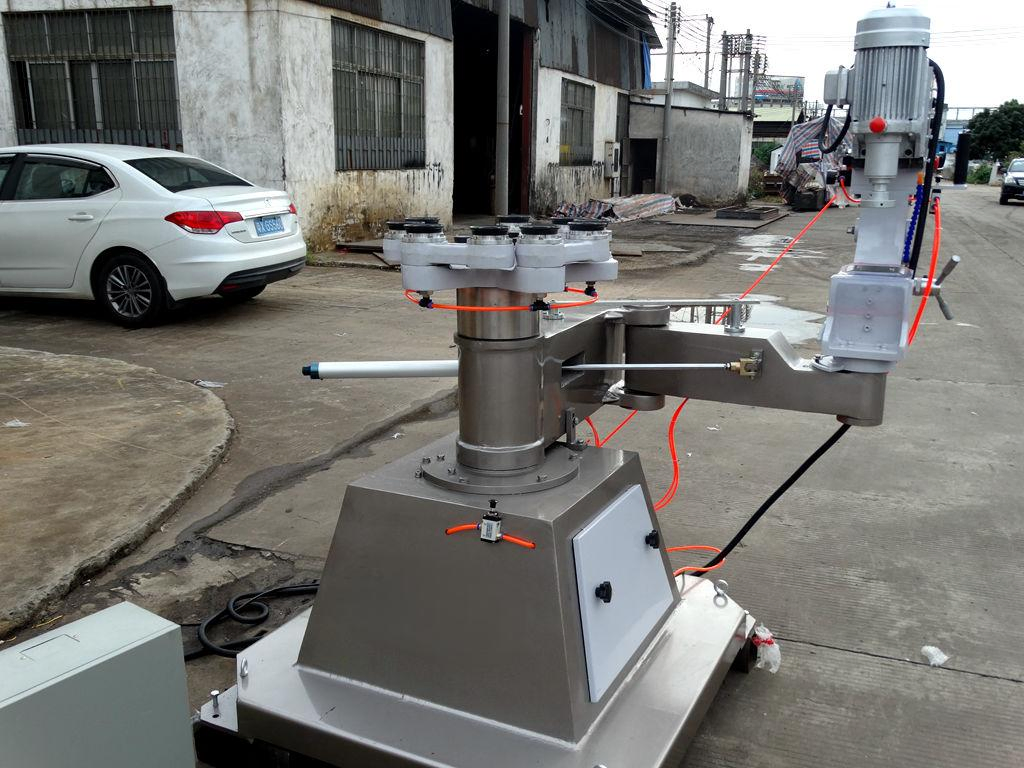

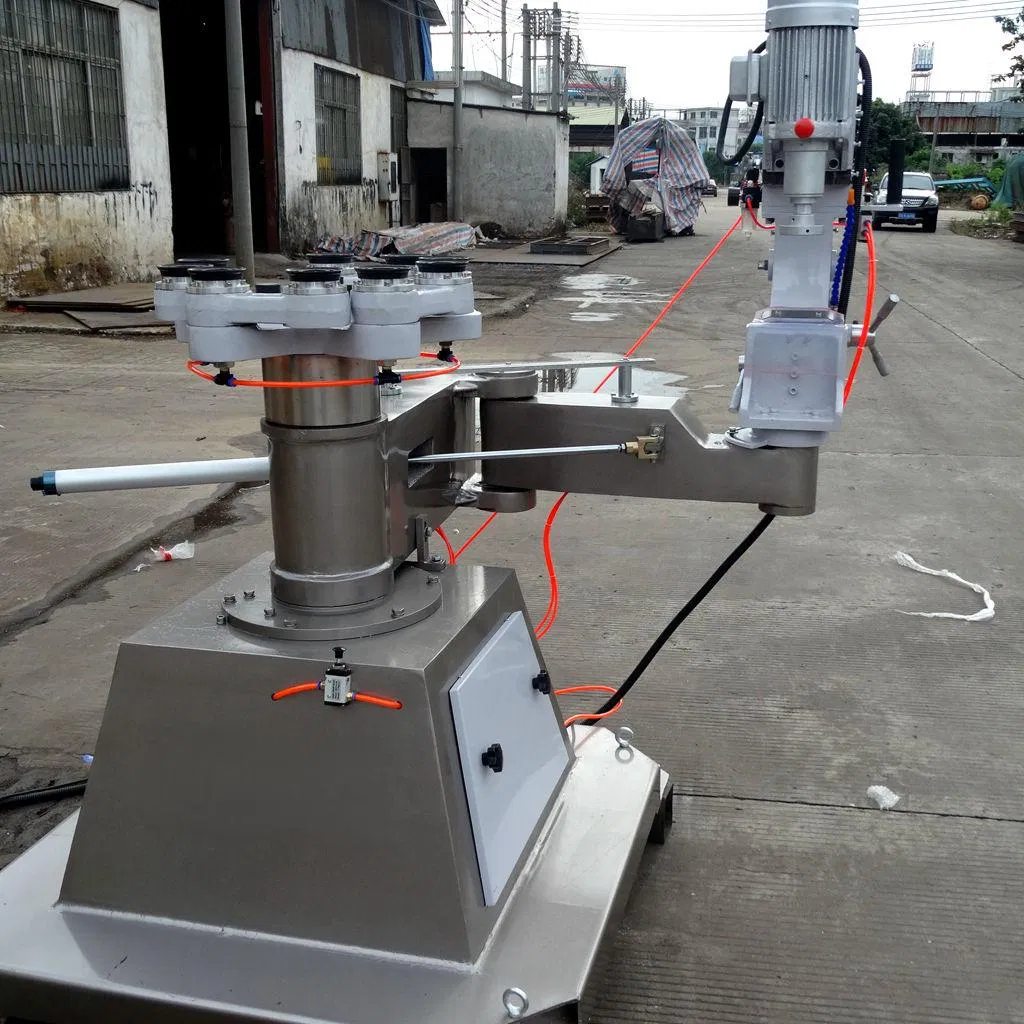

One-armed Irregular Edging Machine

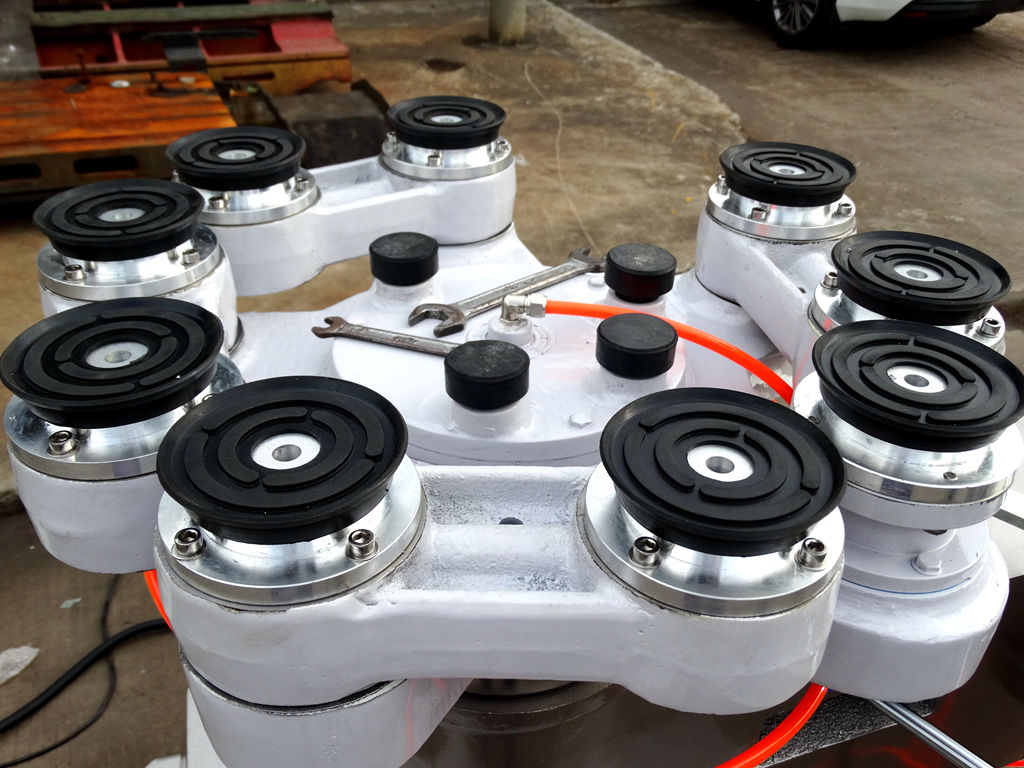

This machine is suitable for processing circular arc edges, duckbilled edges, and other shaped deformations of various flat glass types. Depending on the selected grinding wheels, semi-automatic grinding can be implemented for simple glass shapes. This updated model features improved rotary table accuracy and a specialized brake system that eliminates movement clearance. By exerting a moderate adjustable load during rotation, it ensures vibration-free operation and high efficiency for long-term use.
| Model | HHJGYM1320 | Glass Transmission Speed | 0.75-3.5m/min |
|---|---|---|---|
| Max. Glass Size | Unlimited | Glass Thickness | 3-30mm |
| Parallel Error | ±0.2mm/m | Chamfering Bevel Error | ±0.2mm/m |
| Diagonal Error | ±0.3mm/m2 | Bevel Location Error | ±0.2mm/m2 |
| Overall Size | 1770*900*1690mm | Power Supply | 380V/50Hz/3P |
| Part Name | Specifications / Materials |
|---|---|
| Electric Machine | HuNan JinLong (380V/50Hz, 1.5kw-2.2kw) |
| Conveyor Motor | GuangDong JinJiang (2.2KW Variable Frequency) |
| Main Bearing | NSK / HaErBin |
| Electric Appliance | ZhengTai / ShiNaiDe Components |
| Motor Tank | Stainless Steel |
| Worm-gear Case | GuangDong YiChuan |
| Main Frame (Base/Girder) | Cast Iron with Annealing Treatment |

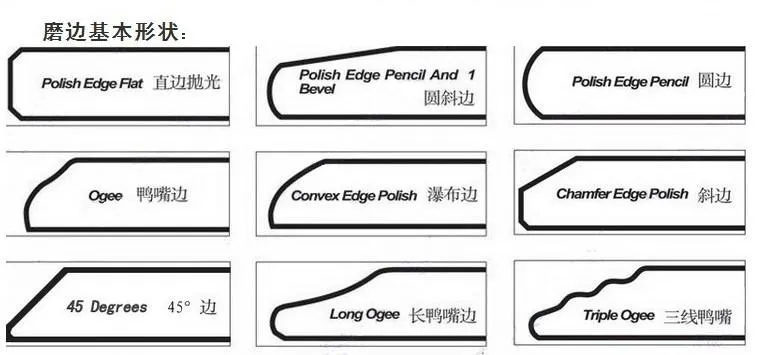

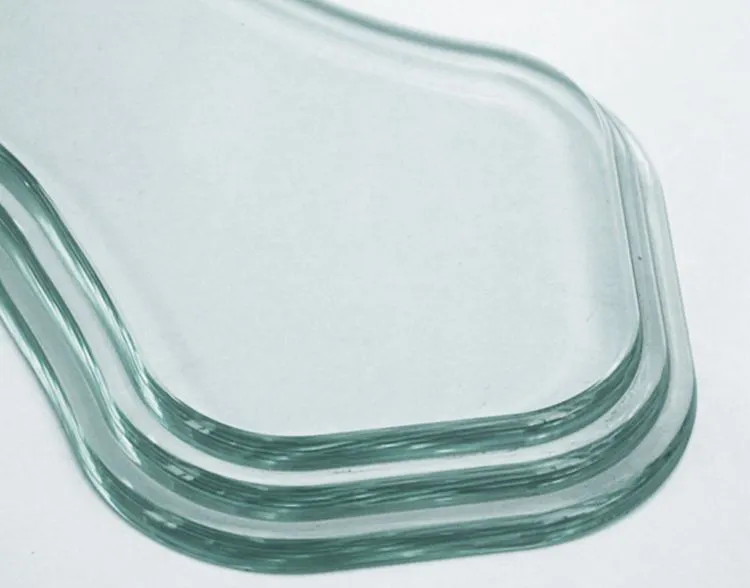

The following edge types can be machined according to different grinding wheels:

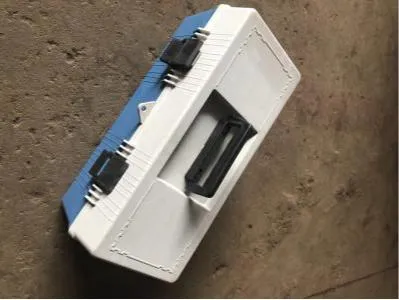

Standard Toolbox

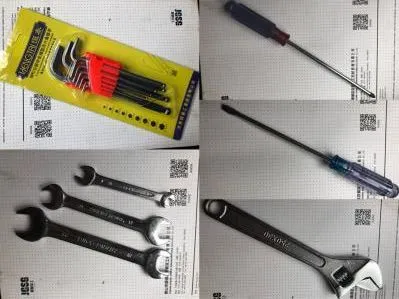

Hardware Tool Set
Universal Hose
