Flat and Bending Glass Tempering Furnace Making Machine Glass Edging Toughening Temped Glass Making Furnace Machine CNC Milling Engraving Machines Water Jetref

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control, Touch Screen Control

Send Inquiry

Product Description

Basic Specification

Glass Thickness Range

3 mm - 19 mm

Heating Method

Conduction, Convection, Radiant Heating

Maximum Glass Size

5000X2000MM

Warranty

12 Months

Max Loading Area

2600×3600mm

Min Loading Area

300×150mm

Heating Power

640kw

Practical Power

608kw

Ceramic Roller Diameter

Φ85 mm

Arch Deformation

≤0.05%

Flatness

≤0.2%

Production Capacity

500 Sets/Year

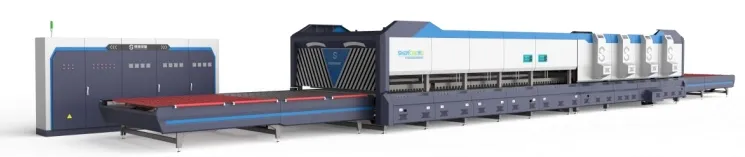

Product Overview

Suitable Glass Types

✓ Clear float glass

✓ Reflective glass

✓ Hard & Soft Low-E glass (E≥0.01)

✓ Patterned glass

✓ Body-tinted glass

✓ Silk screen printed glass

With force convection system, the Low-e glass could be processed, especially for soft (off-line) Low-e glass.

Machine Application

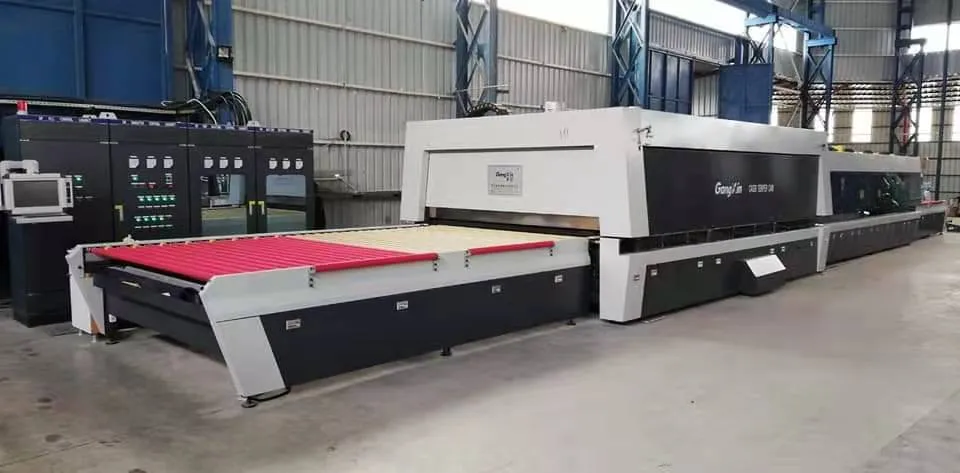

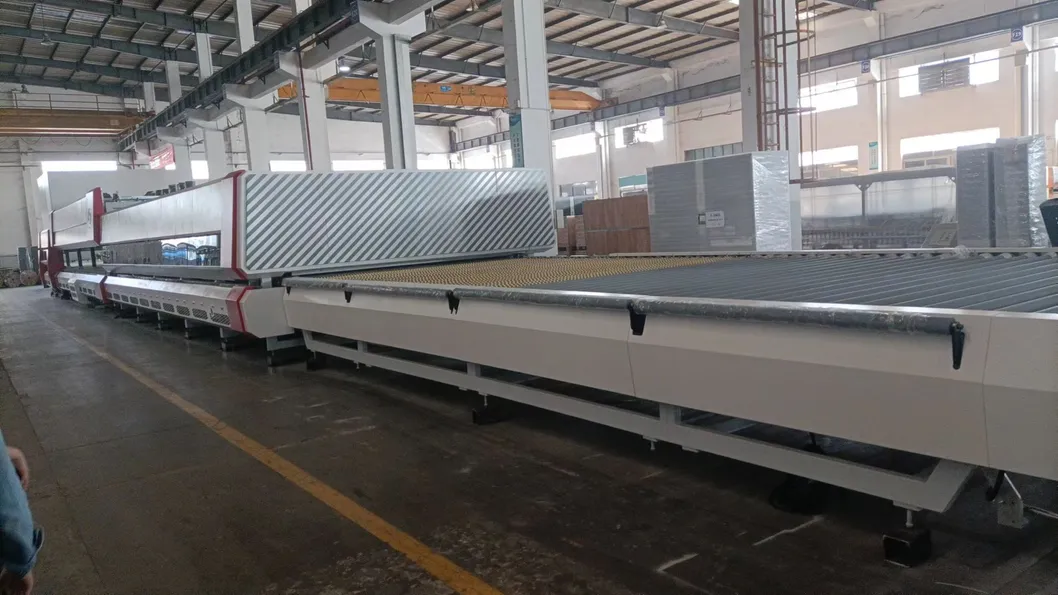

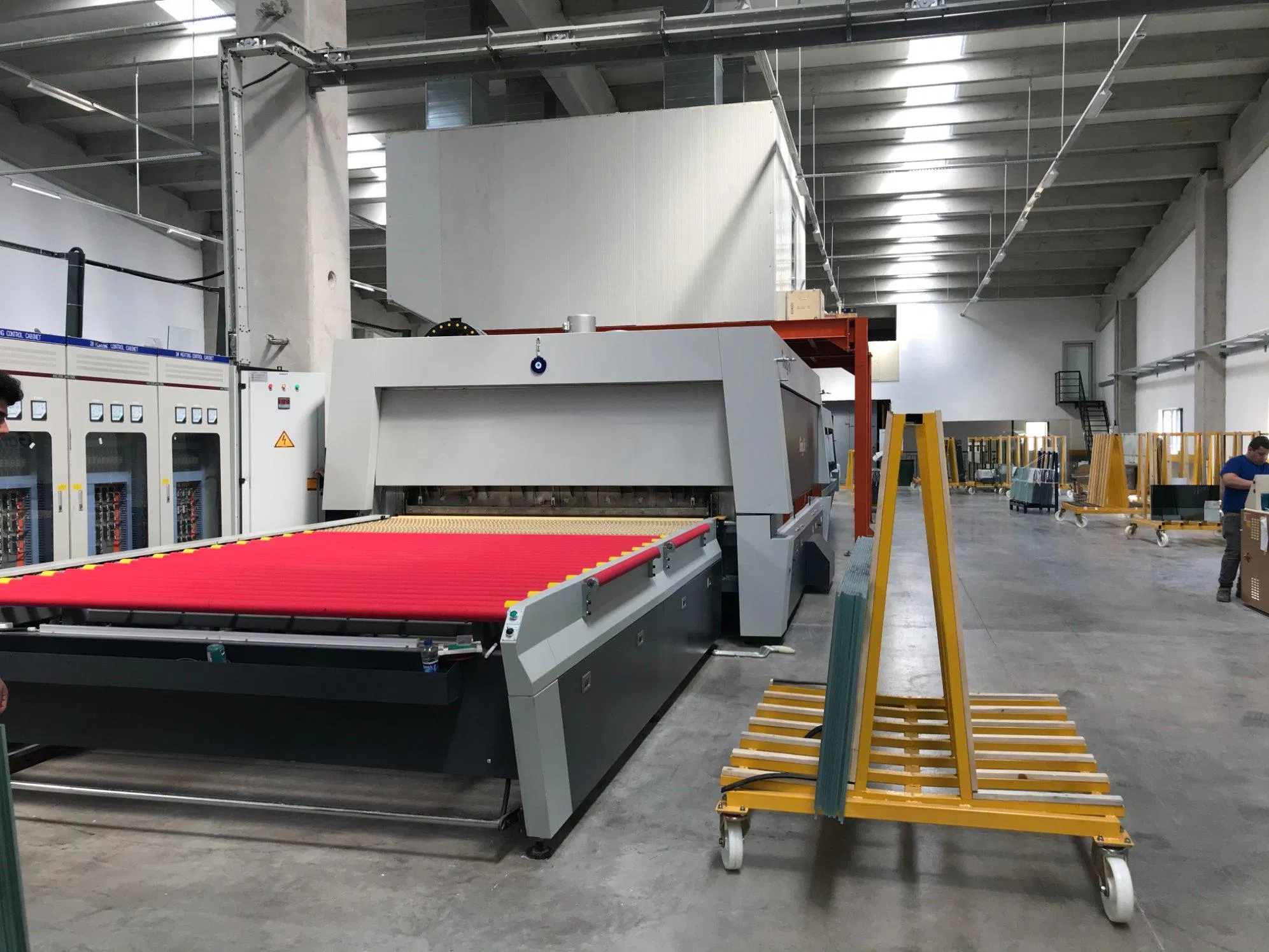

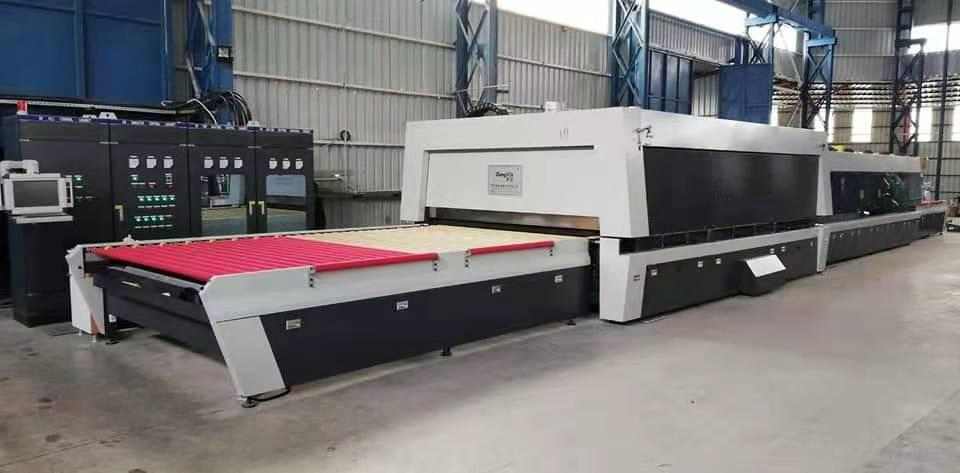

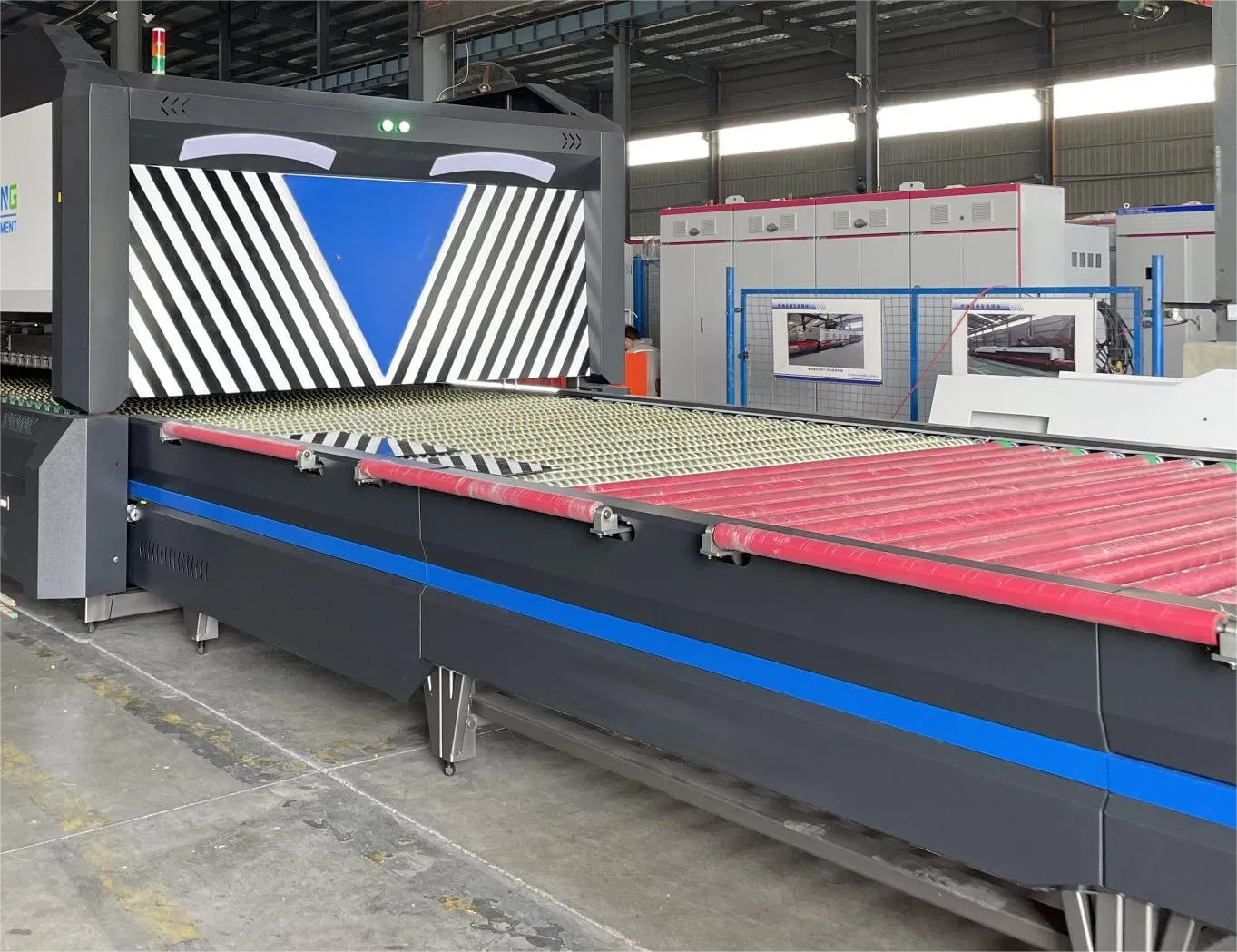

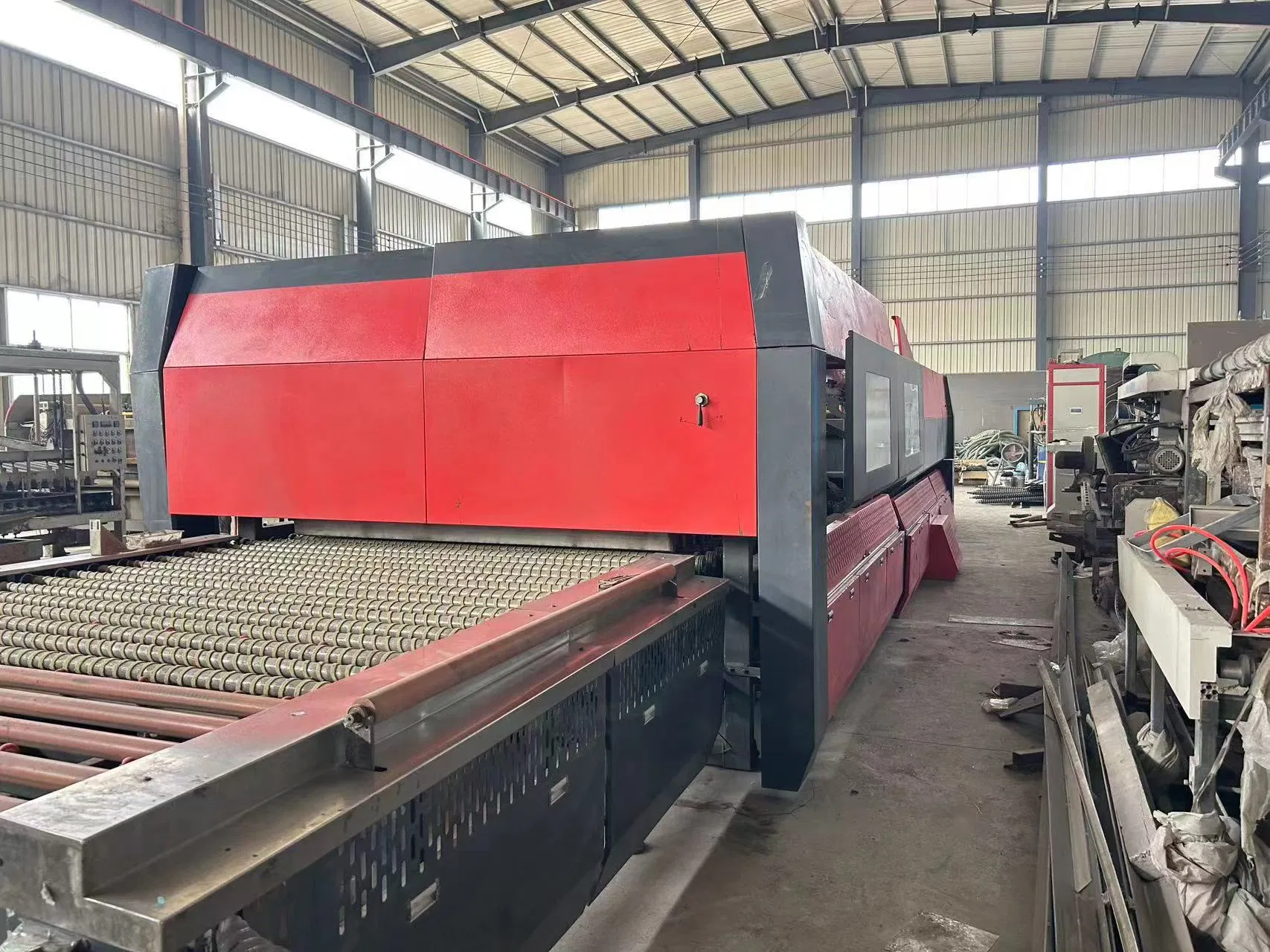

The flat glass tempering furnace is a special plant used to produce flat and bent tempered glass and thermal strengthened glass, mainly used in architecture (doors, windows), shower rooms, home appliances, garden fences, elevators, furniture, etc.

Technical Features

1 Ceramic plates at oven top for even heating and avoiding dregs.

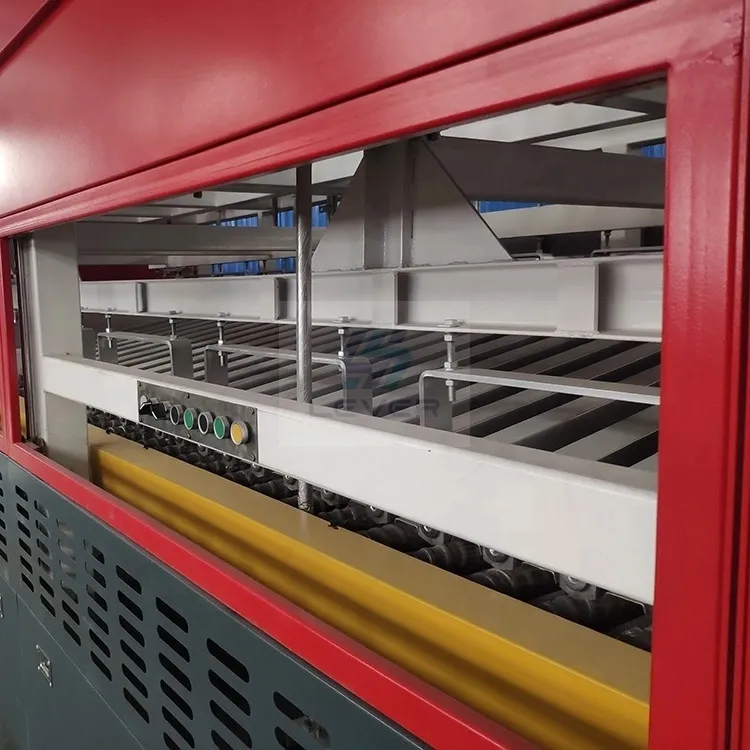

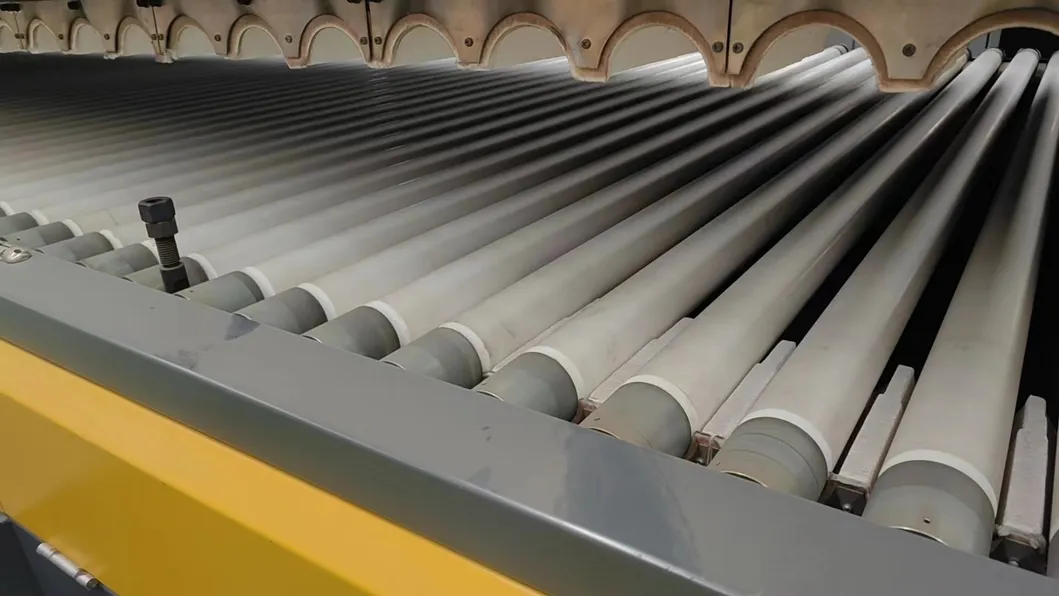

2 Triple belt driven ceramic rollers for stable running and scratch prevention.

3 Gapless parallelogram heating elements for superior product quality.

4 Separately movable upper/lower quenching to adjust glass flatness.

5 Intelligent glass positioning and crash avoidance in quenching/unloading sections.

Supply Scope

1. Loading table

2. Heating section (Vesuvius rollers)

3. Flat tempering & cooling section

4. Unloading table

5. Blower system (Siemens/Schneider)

6. Electrical control (Siemens PLC)

Model	Flat Tempered Glass (mm)
Model	Max. Size (mm)	Min. Size (mm)	Thickness (mm)	Capacity 5mm (Loads/Hr)
LV-TF1225	1200X2500	100x250	3-19	15-16
LV-TF1836	1800X3600	100x250	4-19	15-16
LV-TF2442	2440X4200	150x320	5-19	15-16
LV-TF2860	2800X6000	200x350	5-19	15-16
LV-TF33120	3300X12000	200x500	5-19	14-15

Frequently Asked Questions

? What is the range of glass thickness the machine can handle?

The machine is capable of processing glass with a thickness range from 3 mm up to 19 mm.

? Can this furnace process Low-E glass?

Yes, with its force convection heating system, it is specifically designed to handle both hard and soft (off-line) Low-E glass with E≥0.01.

? What heating methods are used in the furnace?

The system employs multiple heating methods including Conduction, Convection, and Radiant heating to ensure uniform results.

? What is the standard warranty for this equipment?

The equipment comes with a 12-month warranty covering essential components and performance standards.

? What are the primary applications for the tempered glass produced?

The produced glass is ideal for architectural use (windows, doors), shower rooms, home appliances, garden fencing, and furniture.

? What components are used in the electrical control system?

The system utilizes high-quality industrial components, including Siemens PLC and computer controls, alongside Schneider or Siemens inverters.
