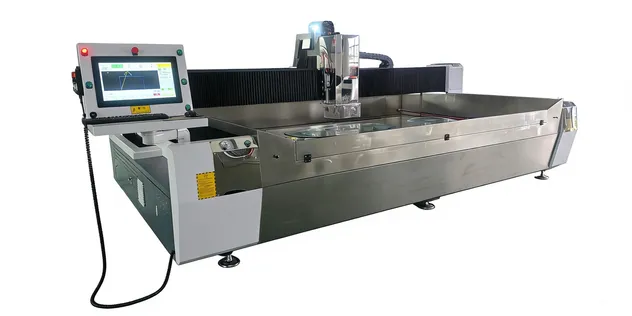

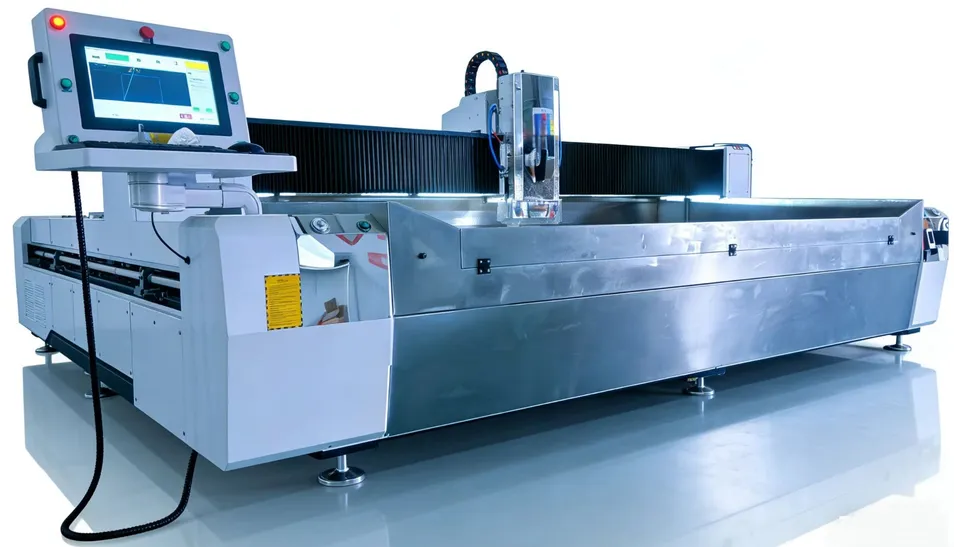

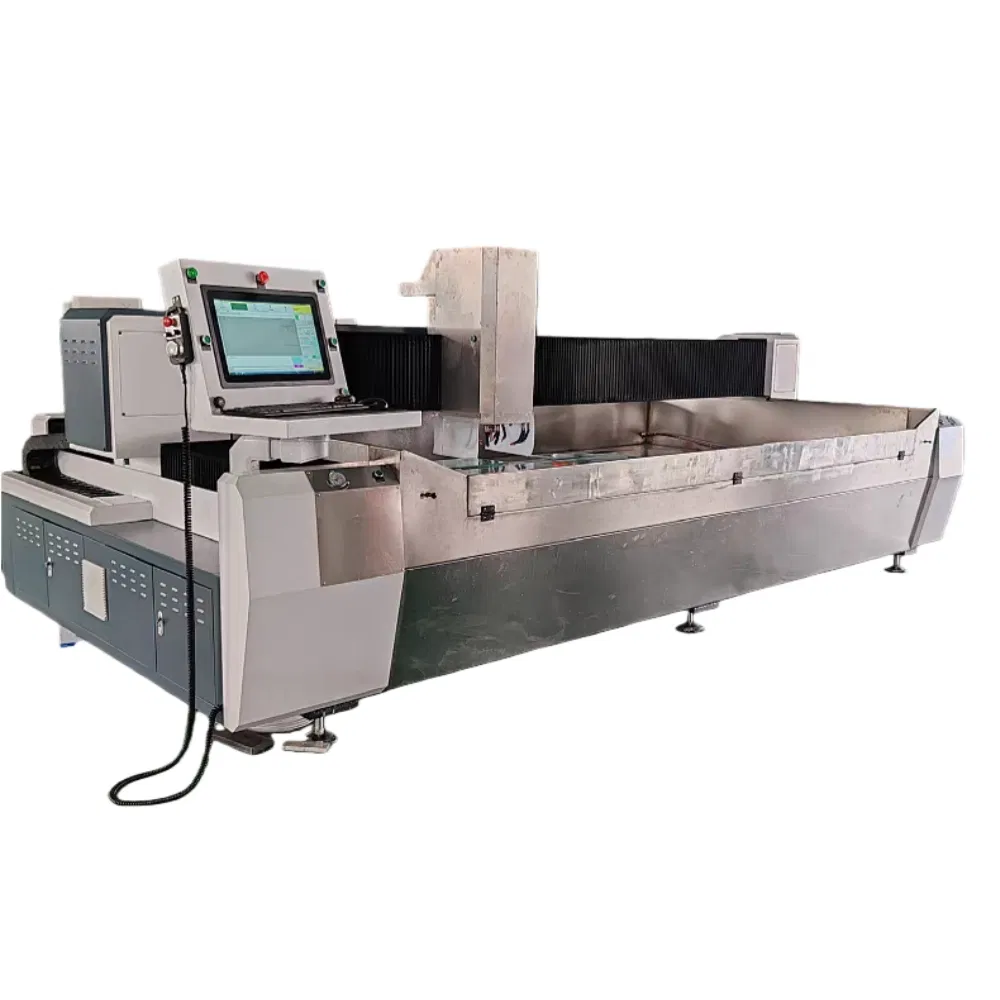

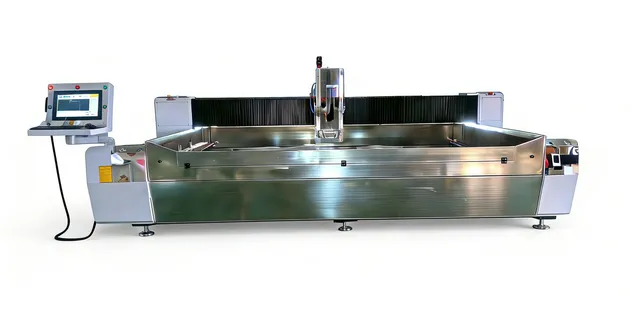

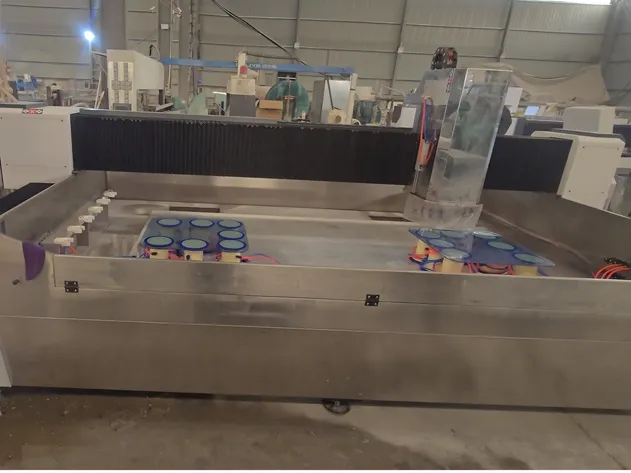

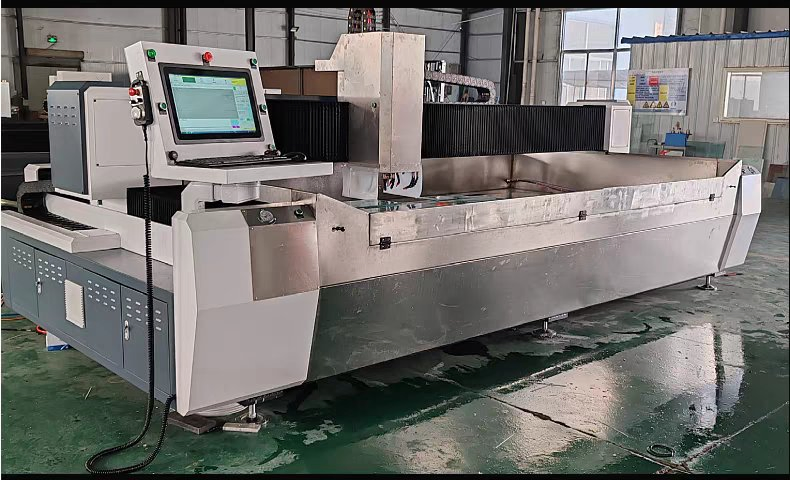

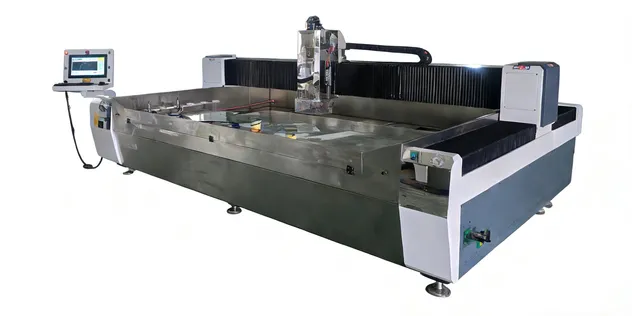

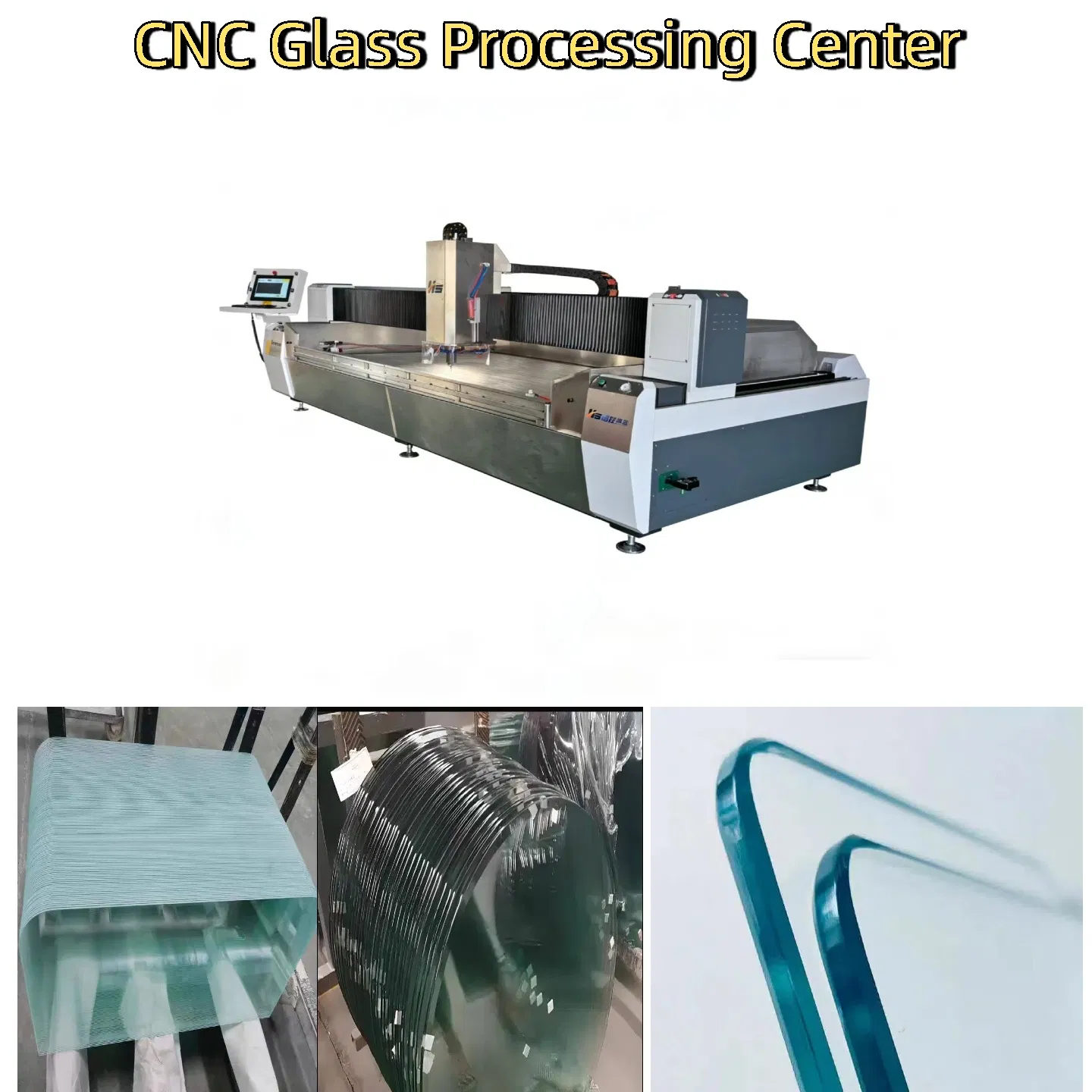

Mechanical Structure: Horizontal structure for easy loading. Constructed with thick-walled square tubes, processed on a five-axis machining center with high-temperature annealing for long-term stability.
High-Power Spindle: Ultra-high speed with stable output. Positioning accuracy reaches ±0.01mm, repeatability is ±0.005mm.
Motion System: High-precision servo motion system with high-speed, low-noise transmission components.

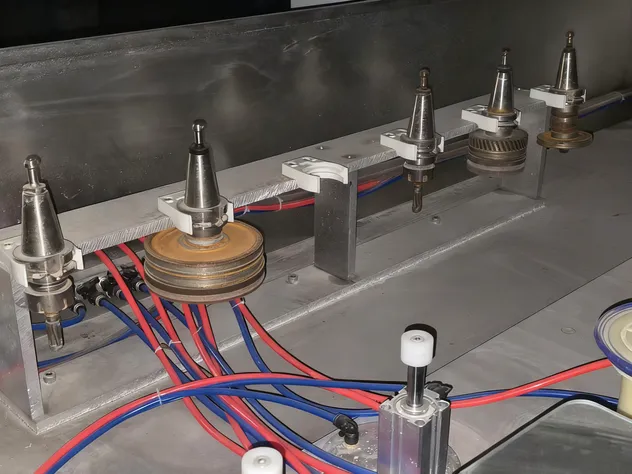

Automatic Tool Changer: Equipped with a 6-tool magazine to meet various glass processing techniques.
Custom configurations available upon request. Standard models (Size can be customized): HS-2010, HS-2515, HS-2025, HS-3015, HS-3020, HS-4020.
| Model | 2515 | 3015 | 3020 | |
| Spindle Travel | X Axis | 2500mm | 3000mm | 3000mm |
| Y Axis | 1500mm | 1500mm | 2000mm | |
| Z Axis | 350mm | 350mm | 350mm | |
| Working Table | Area | 2500*1500mm | 3000*1500mm | 3000*2000mm |
| Max Loading | 300KG | |||
| Spindle | Power | 15KW / 9000-12000 RPM | ||
| Precision | Positioning | ±0.05mm | ||
| Repeatability | ±0.03mm | |||
| Weight | Total | 4000KG | 4800KG | 5600KG |

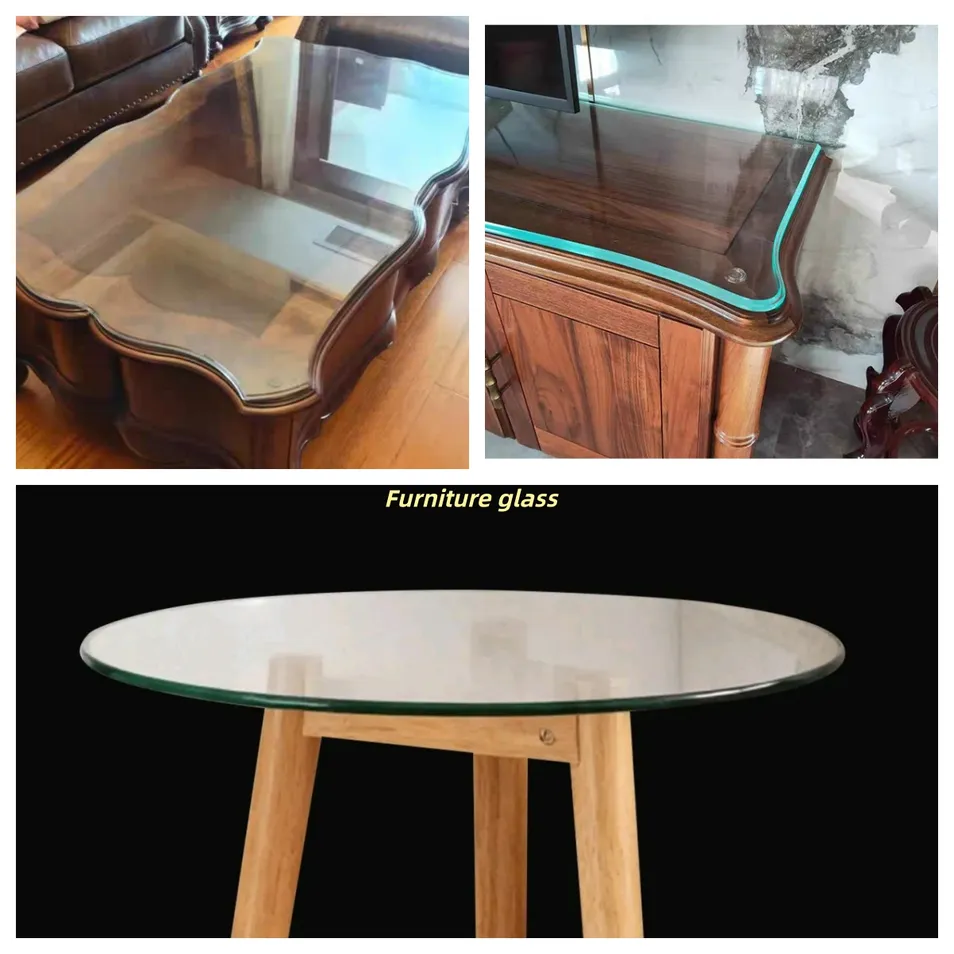

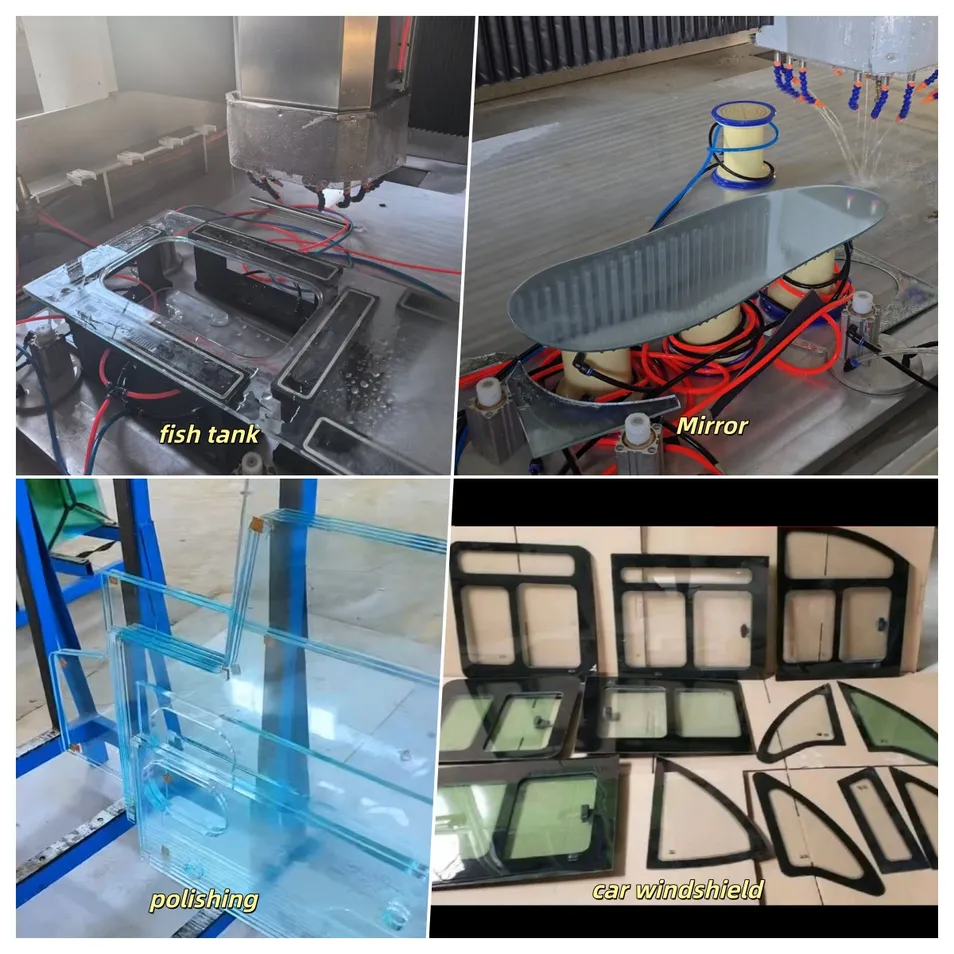

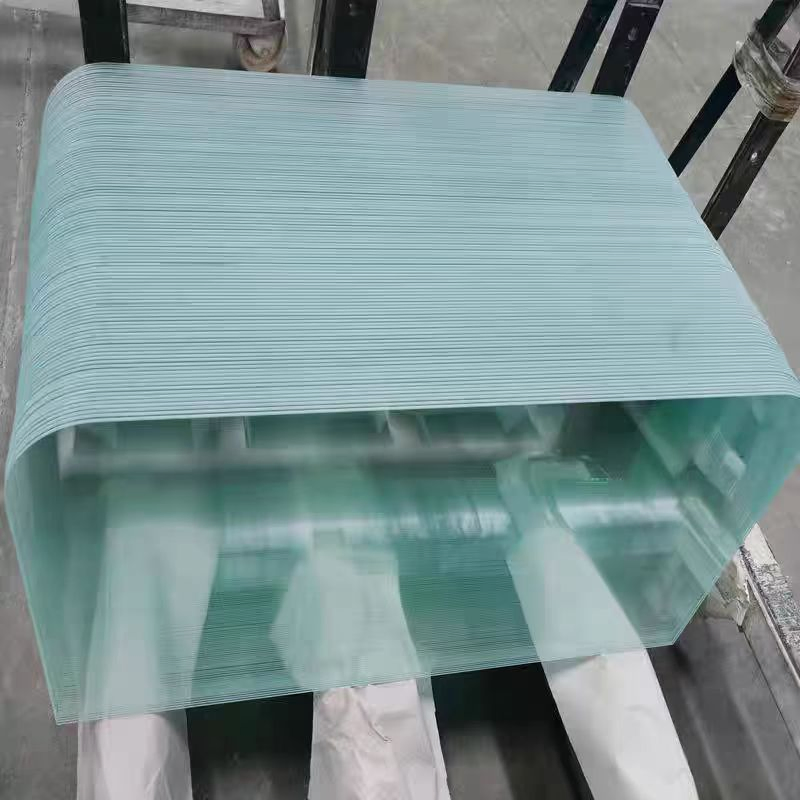

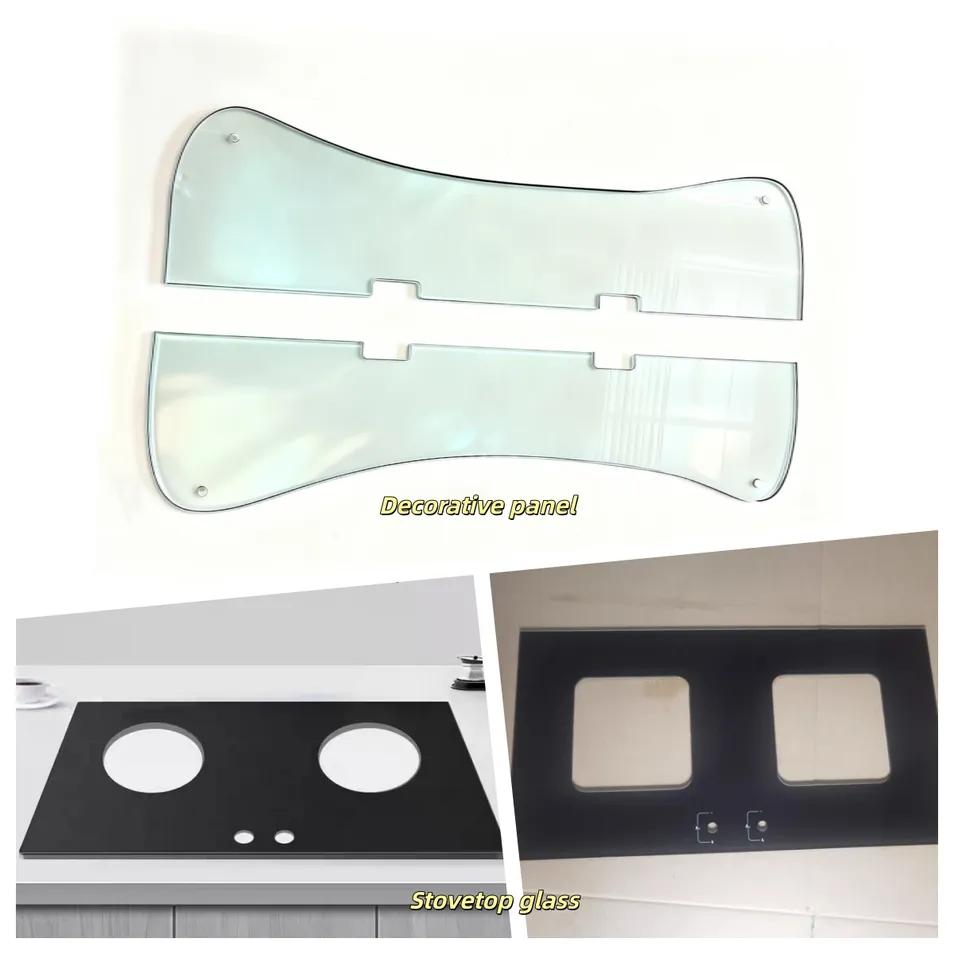

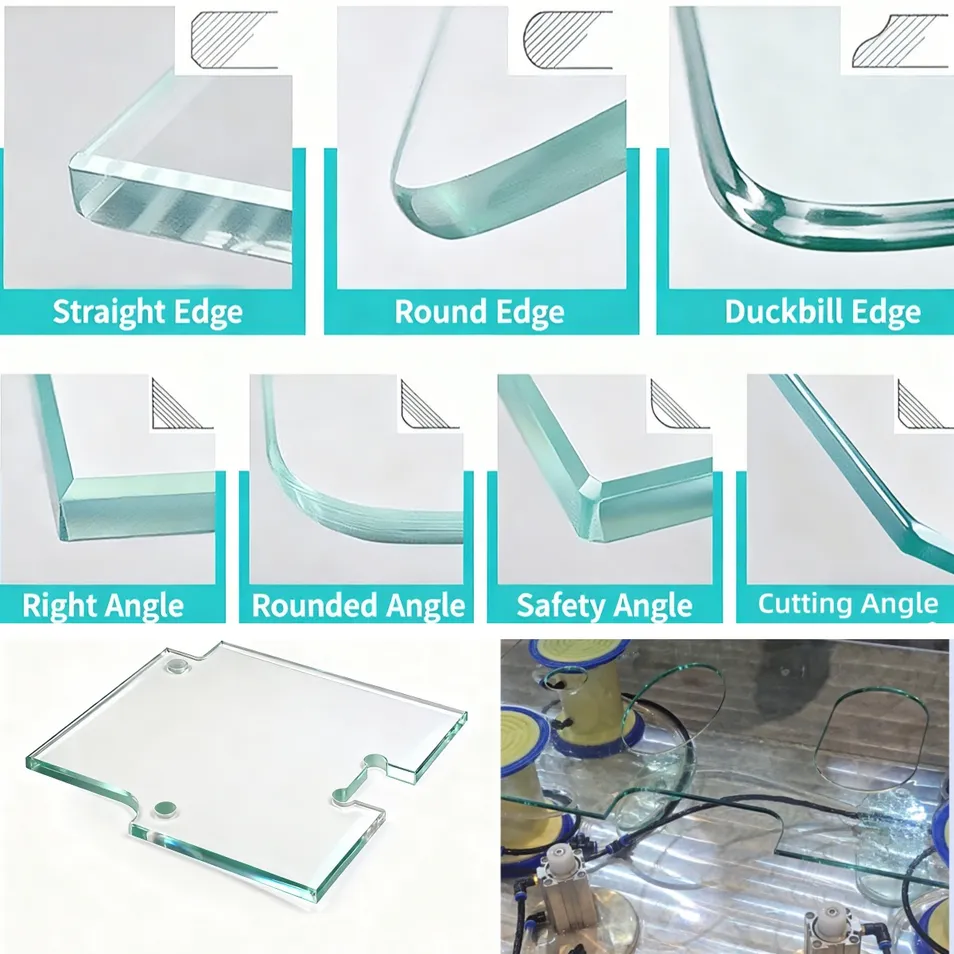

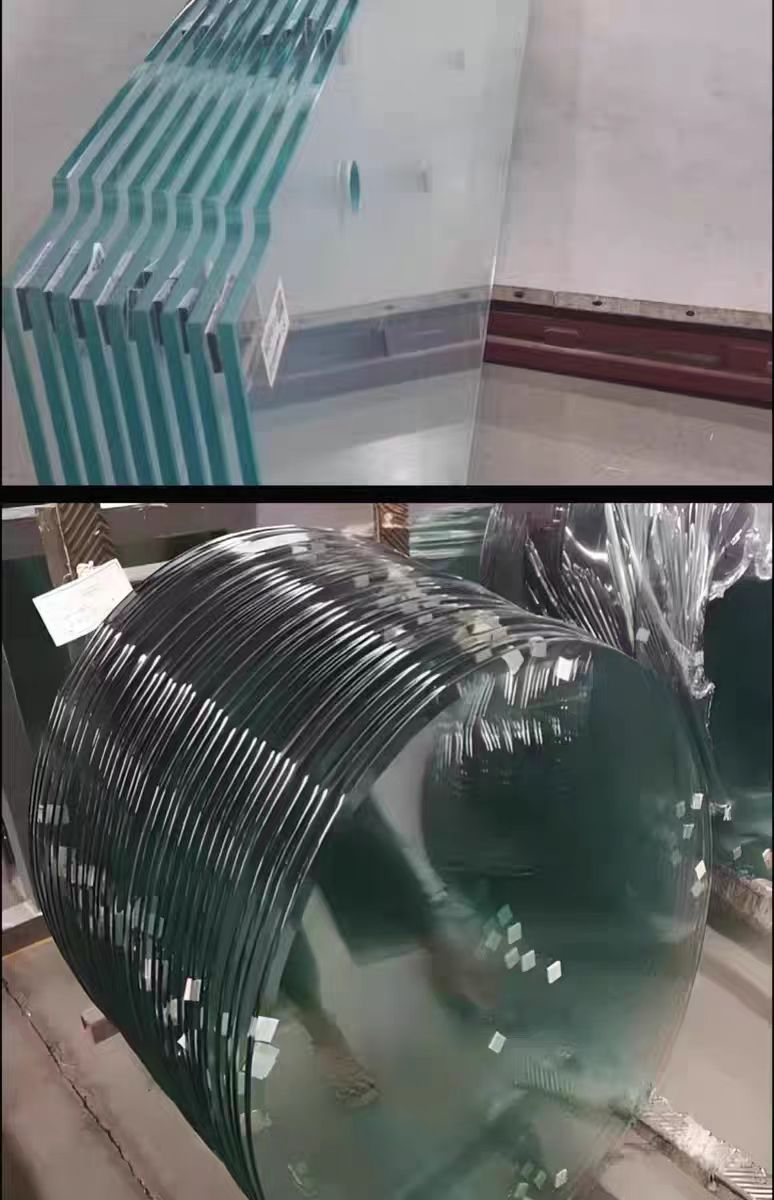

Suitable for furniture glass, appliance glass, mirrors, aquarium glass, automotive glass, and more.
