Home > Glass Drilling Machine > Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center
Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center
Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center
Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center
Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center
Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center
1 / 5
Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center
Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center
Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center
Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center
Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center

Glass&Stone Drilling, Milling and Grinding Machine Factory Direct Glass Processing Center

Customization: Available
Processing Services: Drilling
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
Glass Processing Center
Processing Layout
2000*1000mm---2000*4000mm
The Machine Model
Fx-2515
Processing Thickness
2-19mm
Type
Glass Edging Machine
Structure
Horizontal
Control System
PLC
Condition
New
Package
Wooden Box
Dimensions
4200*3000*19000
Product Description

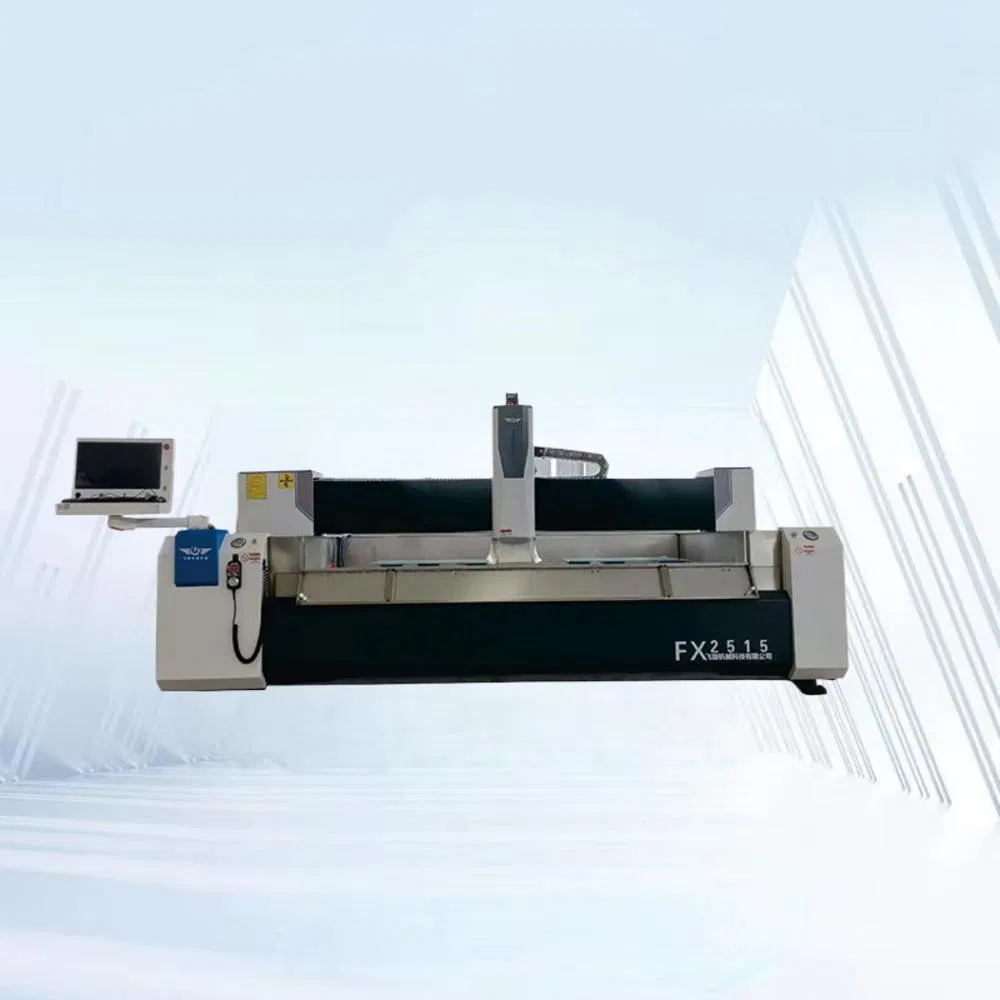

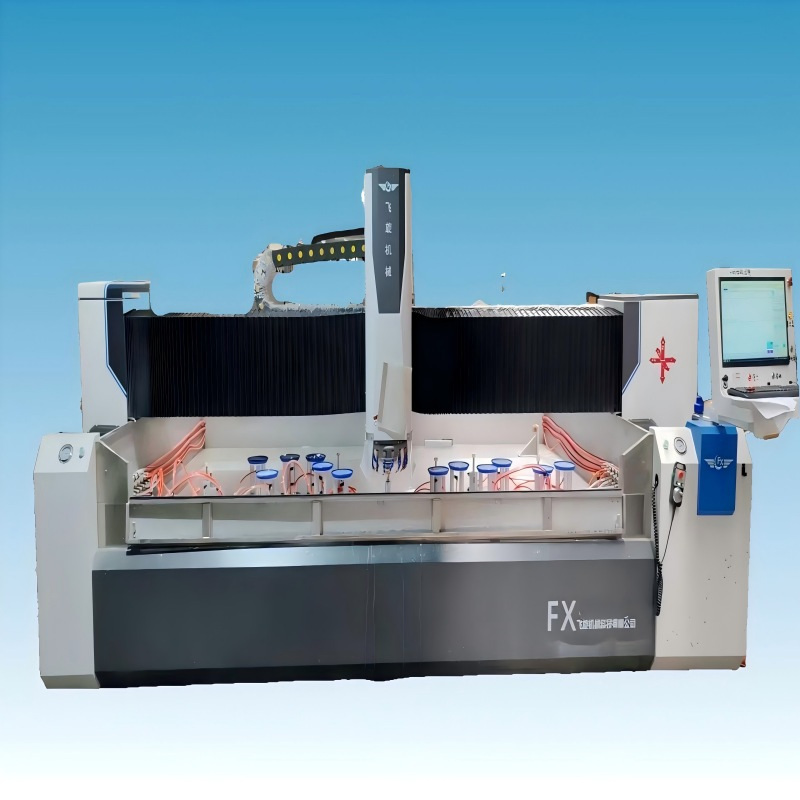

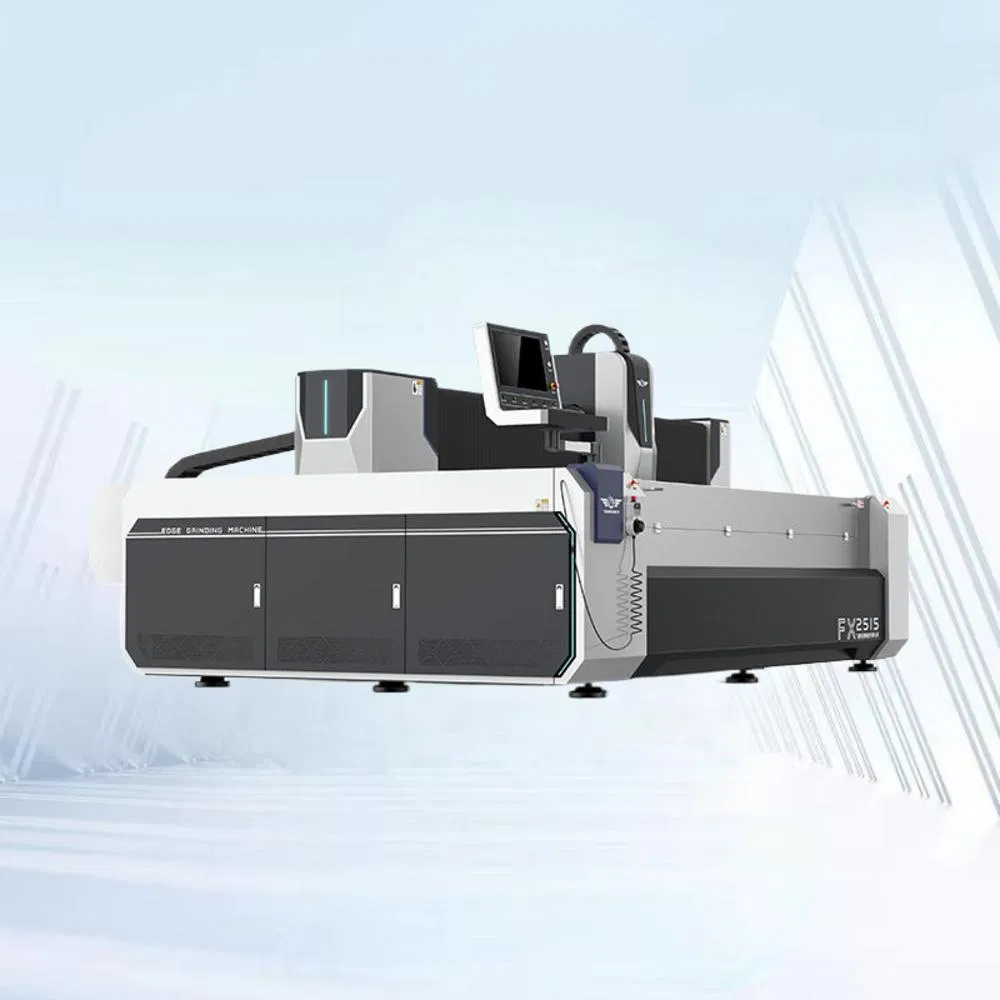

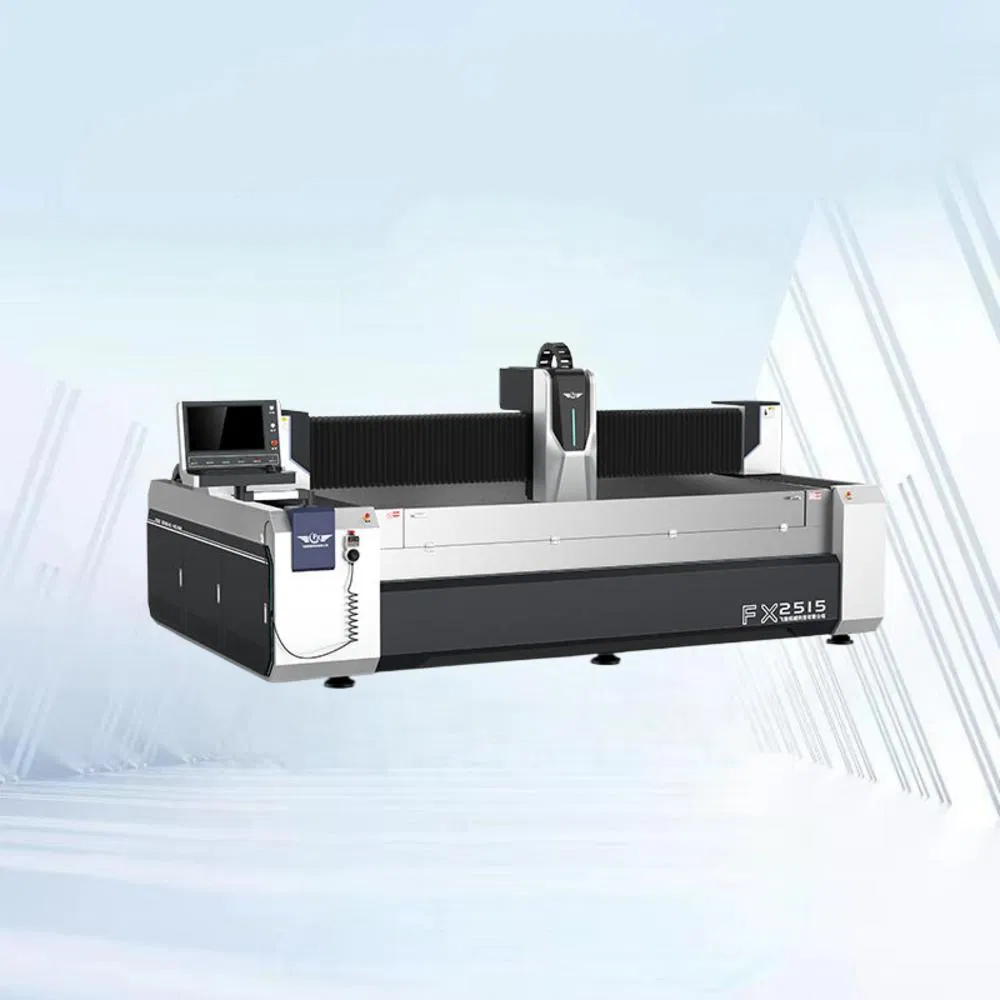

CNC Glass Processing Center

CNC glass machining center is a combination of glass edge grinding, chamfering, polishing, drilling, and milling. Specially designed for grinding from the inside or outside, the equipment features simple operation and applies to machining automotive glass, home appliance glass, furniture glass, shower room glass and mirrors of all descriptions. It is aimed at automating production and thus improving the competitiveness of enterprises.

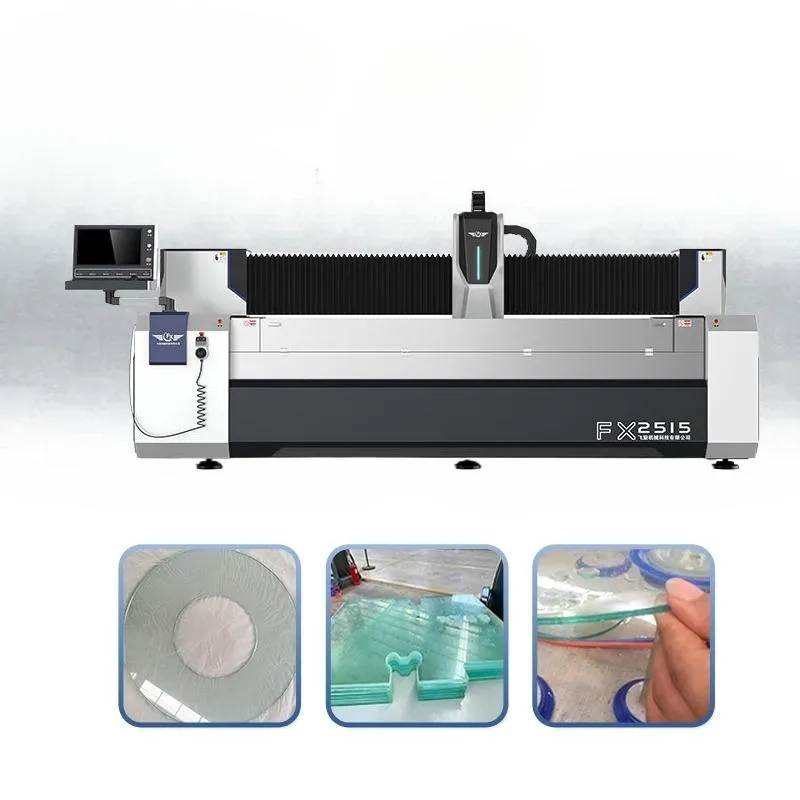

CNC Glass Processing Center Specification
Machine Tool Processing Range:
✔ Performs rough machining and finishing of hard and brittle materials.
✔ Suitable for automotive, machinery, glass, rock slabs, and ceramics high-precision processing.
✔ Adaptable for other materials by replacing cutting tools.
✔ Ideal for small to medium-sized batches of plate-shaped and special-shaped materials.
Product Parameters
Parameter Item Specifications
The Machine ModelFX2010, FX2515, FX3015, FX3020, FX4020
Processing Layout2000*1000mm to 2000*4000mm
Spindle Power11KW / 15KW / 18.5KW
Spindle Speed3000-12000rpm
Processing Speed6-15M/min
Processing Thickness2-19mm
Precision±0.2mm
Cover Area4000mm * 5000mm
Finished Glass Samples & Applications
✦Edging and polishing of electrical panel glass and induction cooker glass.
✦Electronic scale glass and furniture glass components.
✦All kinds of special-shaped glass edging, tea tables, and rock slabs.
✦Glass round table edging and cupboard door panels.
✦Automotive glass edging and polishing.
Glass Sample 1

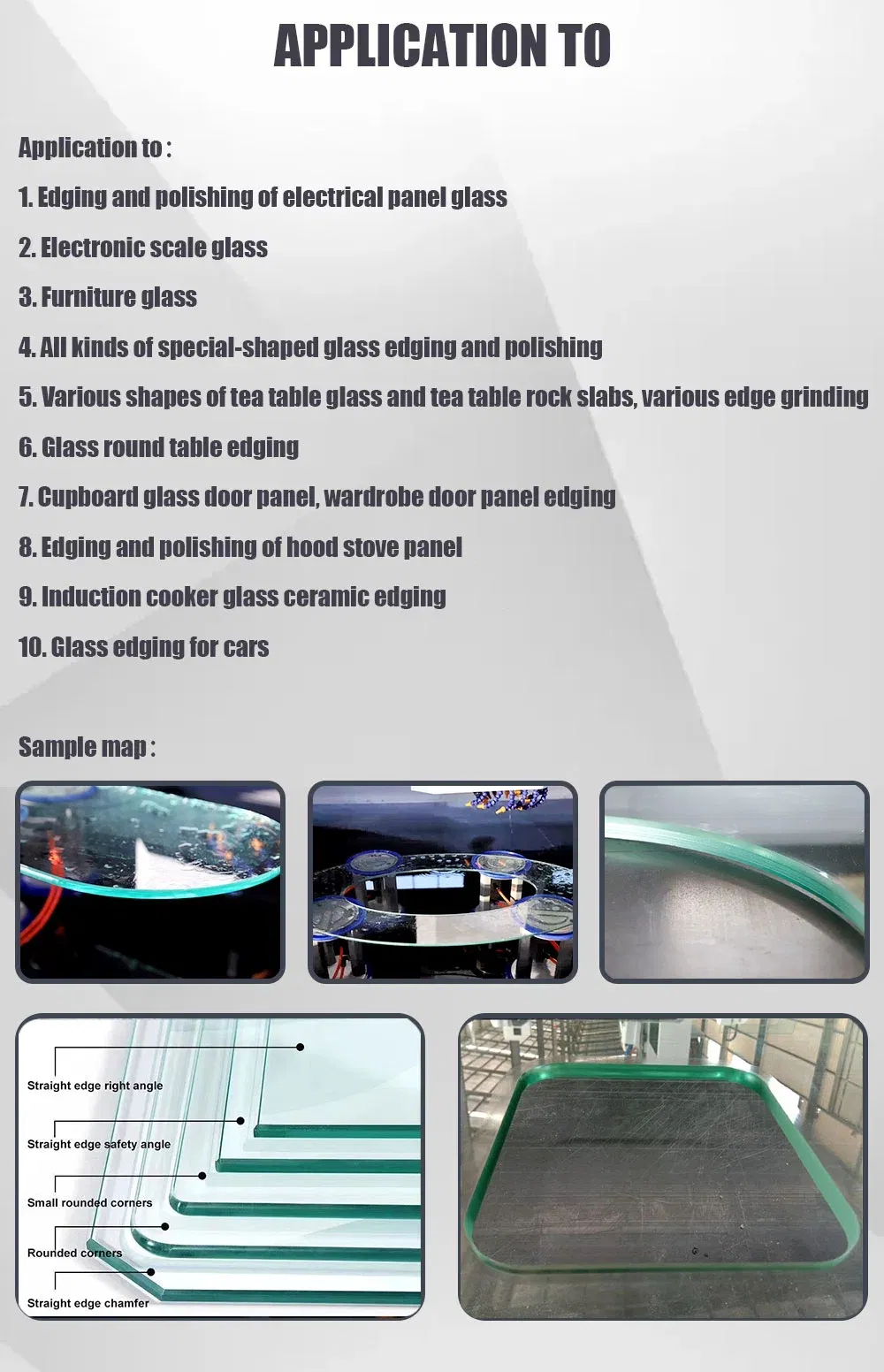

Glass Sample 2
Processing Sample A

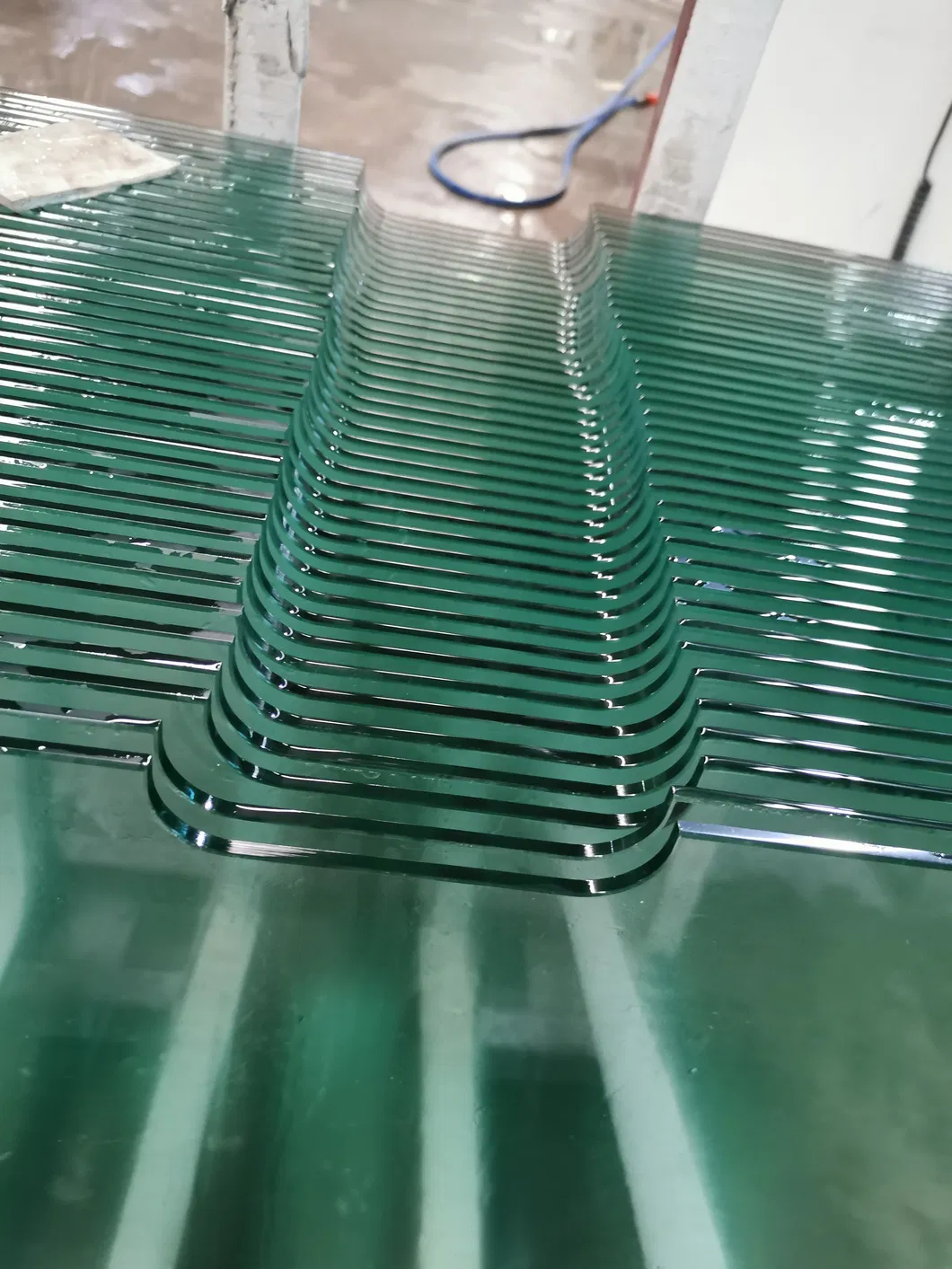

Processing Sample B

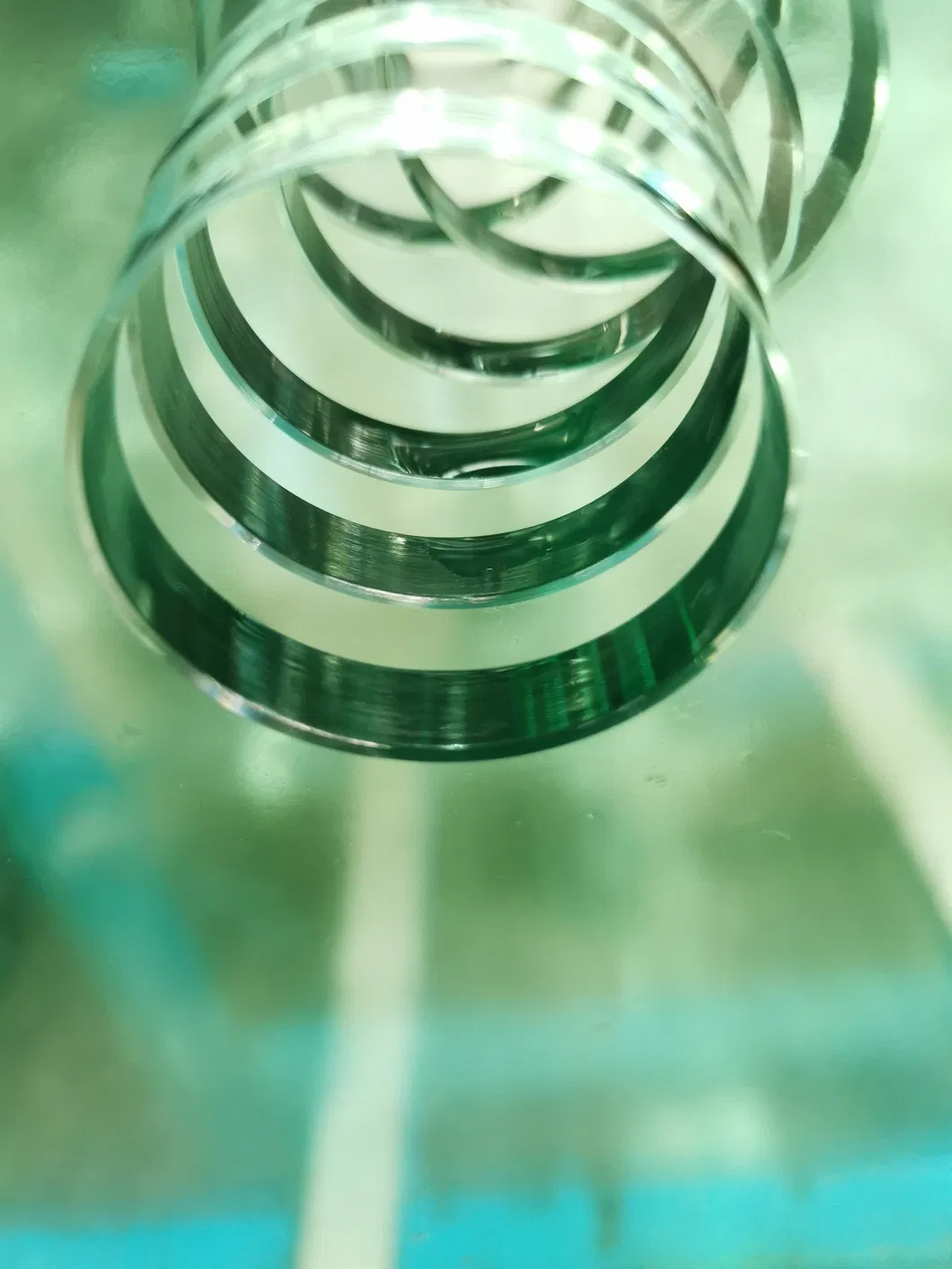

Processing Sample C

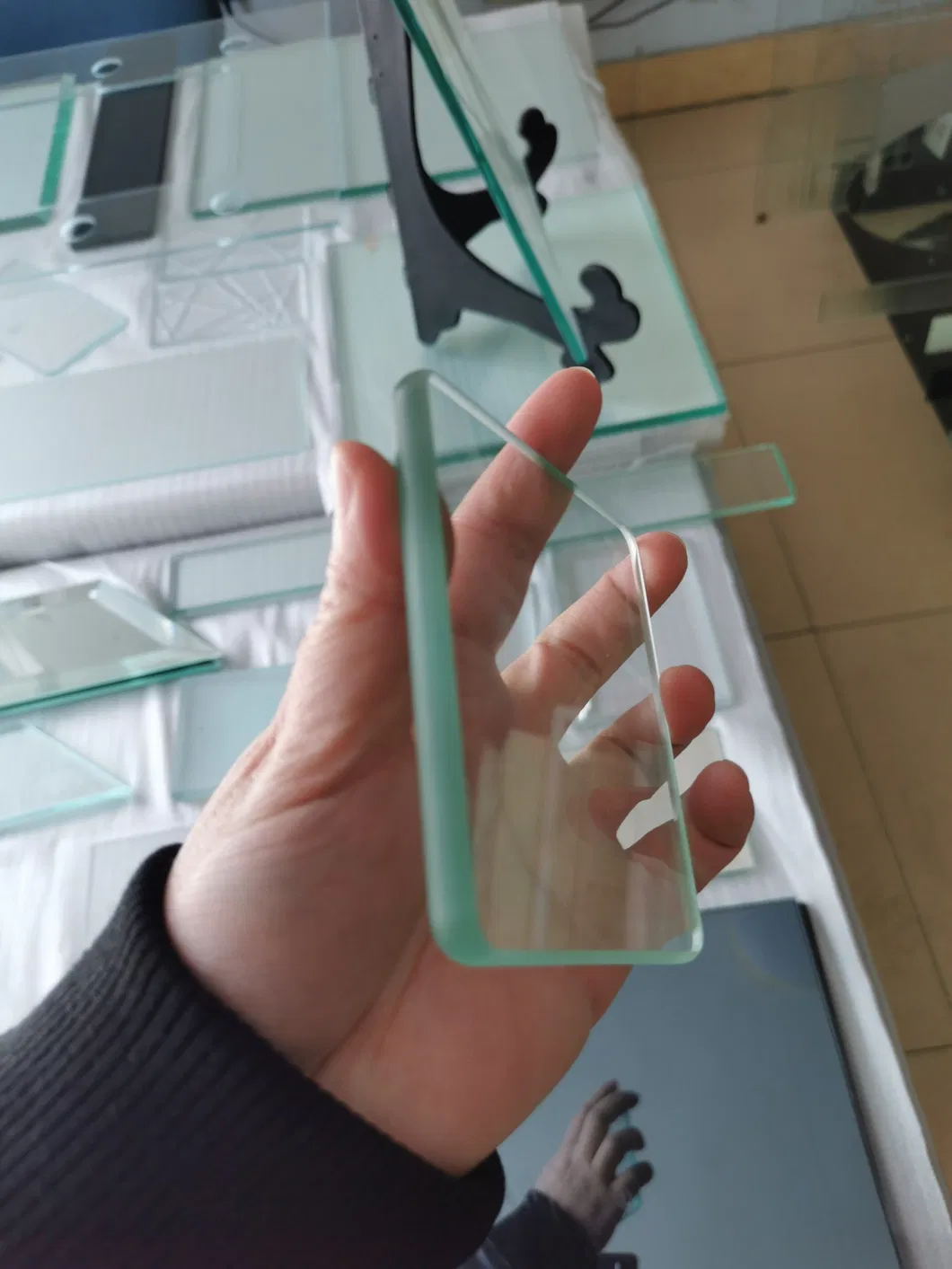

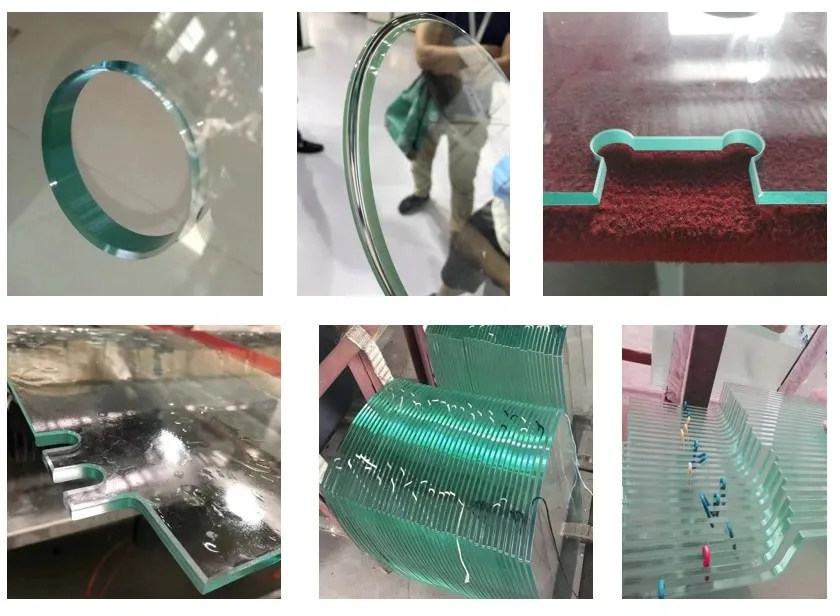

Detailed Sample 1
Detailed Sample 2
Production & Certifications

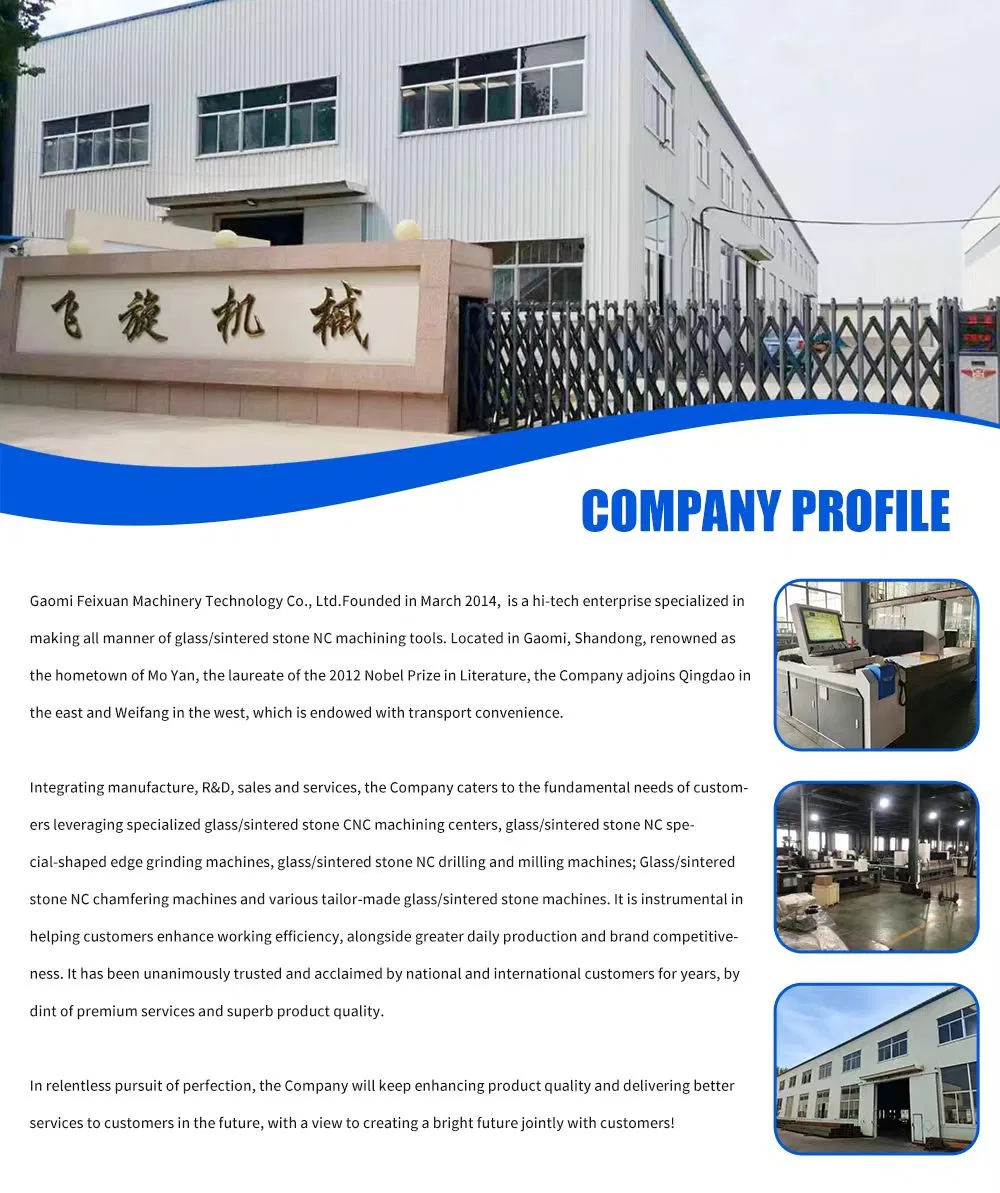

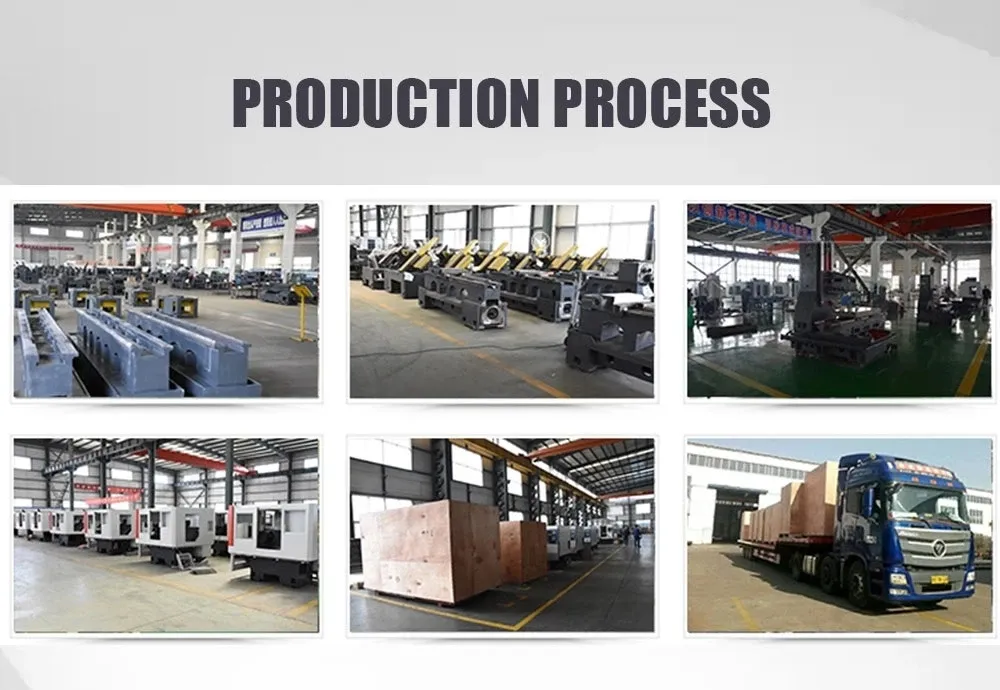

Production Facility

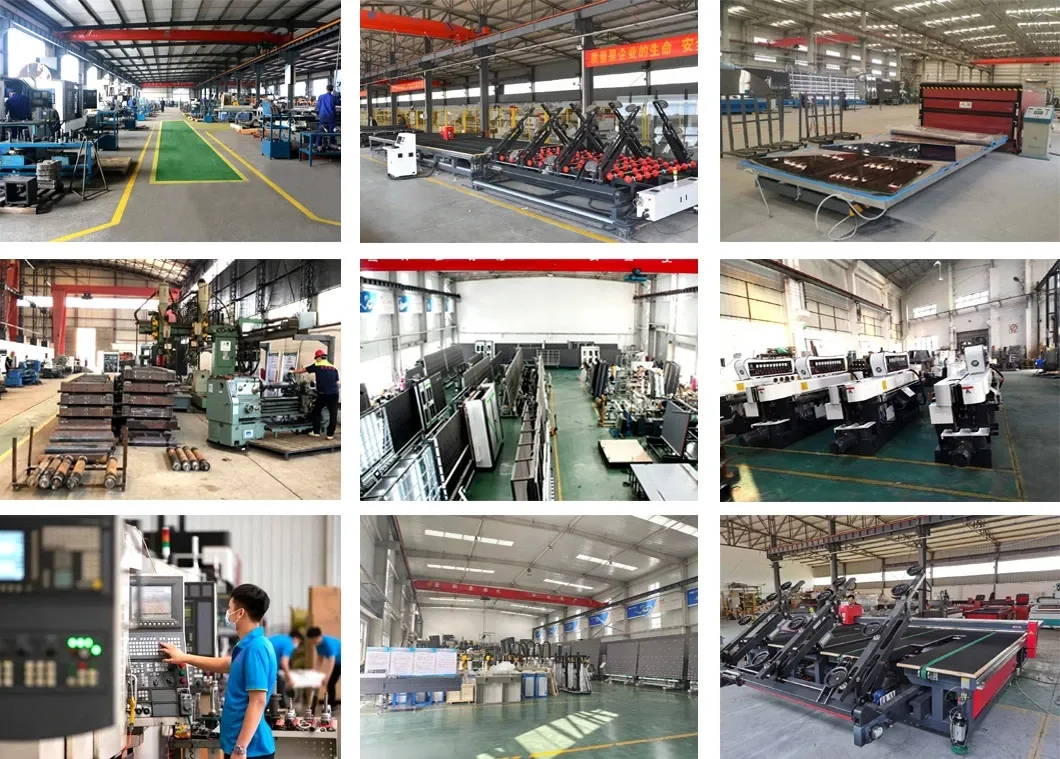

Equipment Showcase
Quality Standards
Certifications
Packaging & Shipping
Packaging Details
Frequently Asked Questions
What functions are integrated into this CNC glass processing center?
The machine combines several key processes including edge grinding, chamfering, polishing, drilling, and milling into a single automated station.
What is the thickness range of glass that can be processed?
The center is capable of processing glass and other hard brittle materials with a thickness ranging from 2mm to 19mm.
Can this machine handle materials other than glass?
Yes, in addition to automotive and furniture glass, it is highly efficient for large-scale processing of rock slabs and ceramics. It can also adapt to other materials by switching cutting tools.
What are the primary applications for the finished products?
The equipment is widely used for electrical panels, induction cookers, furniture components, special-shaped tea tables, and automotive glass.
What control system does the machine use?
The machine is equipped with a high-performance PLC control system for stable operation and high precision (±0.2mm).
Is the equipment suitable for custom or special-shaped glass?
Absolutely. It is specifically designed for high-precision processing of both standard plates and complex special-shaped materials, including round tables and wardrobe door panels.
