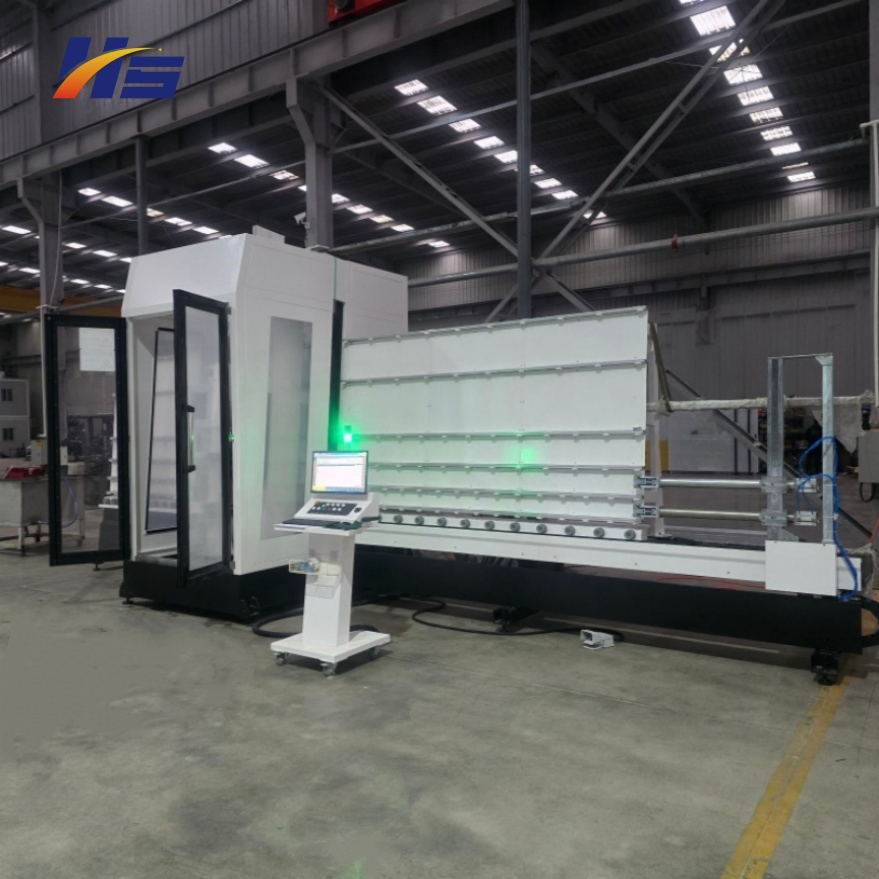

Glass Polishing Equipment Vertical CNC Curtain Decor Glass Cutting Drilling Chamfering

Certification:	CE, ISO
Glass Thickness:	3-19 mm
Processing Services:	Cutting, Drilling, Edging, Polishing

★

Professional CNC Glass Processing Solutions

Expert manufacturer specializing in vertical drilling and milling centers, providing high-precision equipment for the global glass industry.

i

Basic Specifications

Model NO.	2542
Warranty	1 Year
Specification	2542 Standard
Origin	China
HS Code	8464901900

⚙

Product Functions

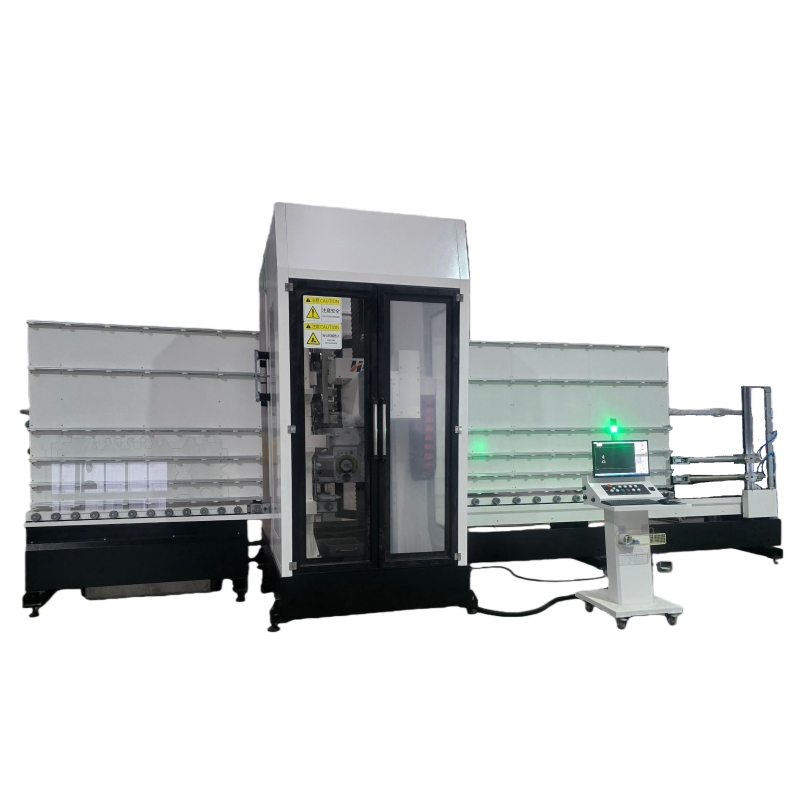

The vertical drilling and milling center is a multi-functional glass processing equipment designed to automate various techniques in a single cycle.

● Drilling

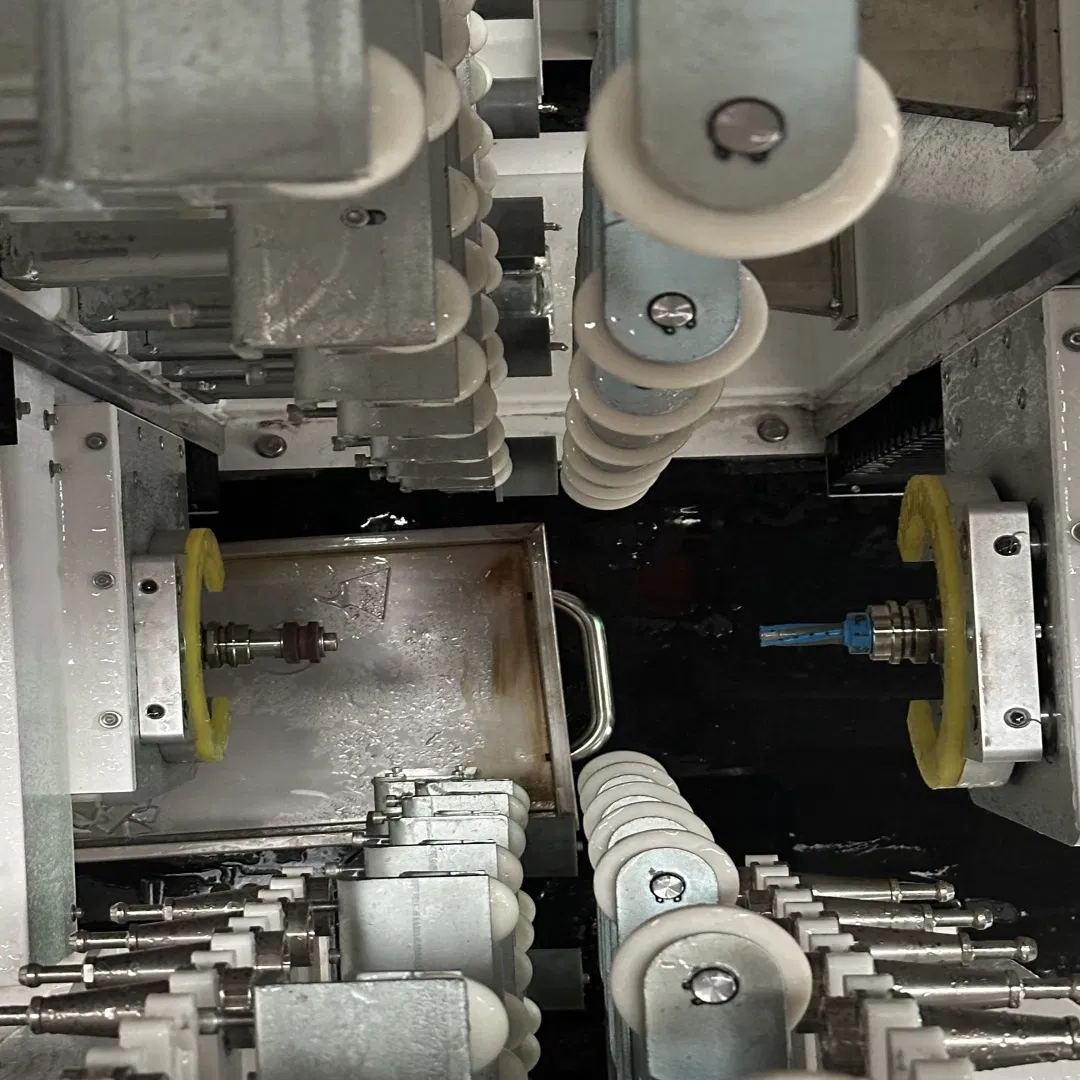

Front and rear spindle structure enables high-speed simultaneous drilling from both sides, ensuring precision and quality.

● Milling

Optimized for simple and fast operation; front and rear spindles mill and grind inner edges concurrently.

● Chamfering

Two methods available: direct chamfering wheel usage or installing a chamfering sleeve on the drill bit.

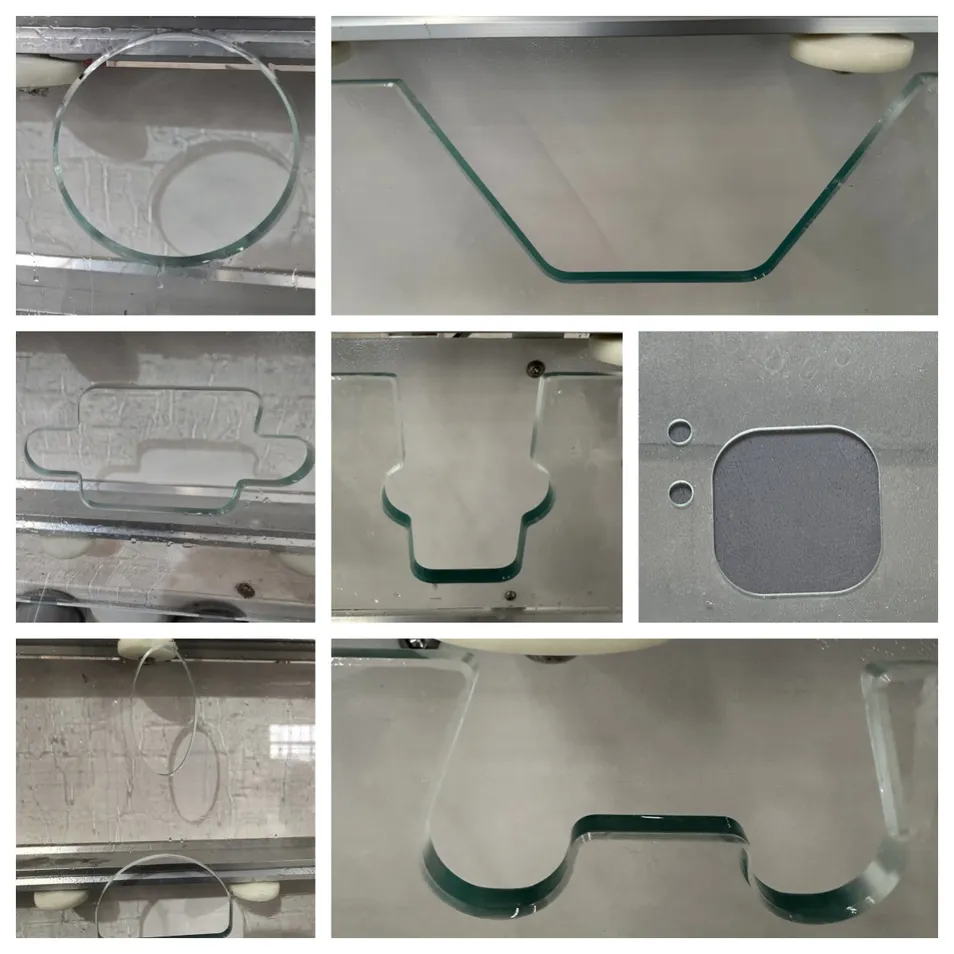

● Polishing

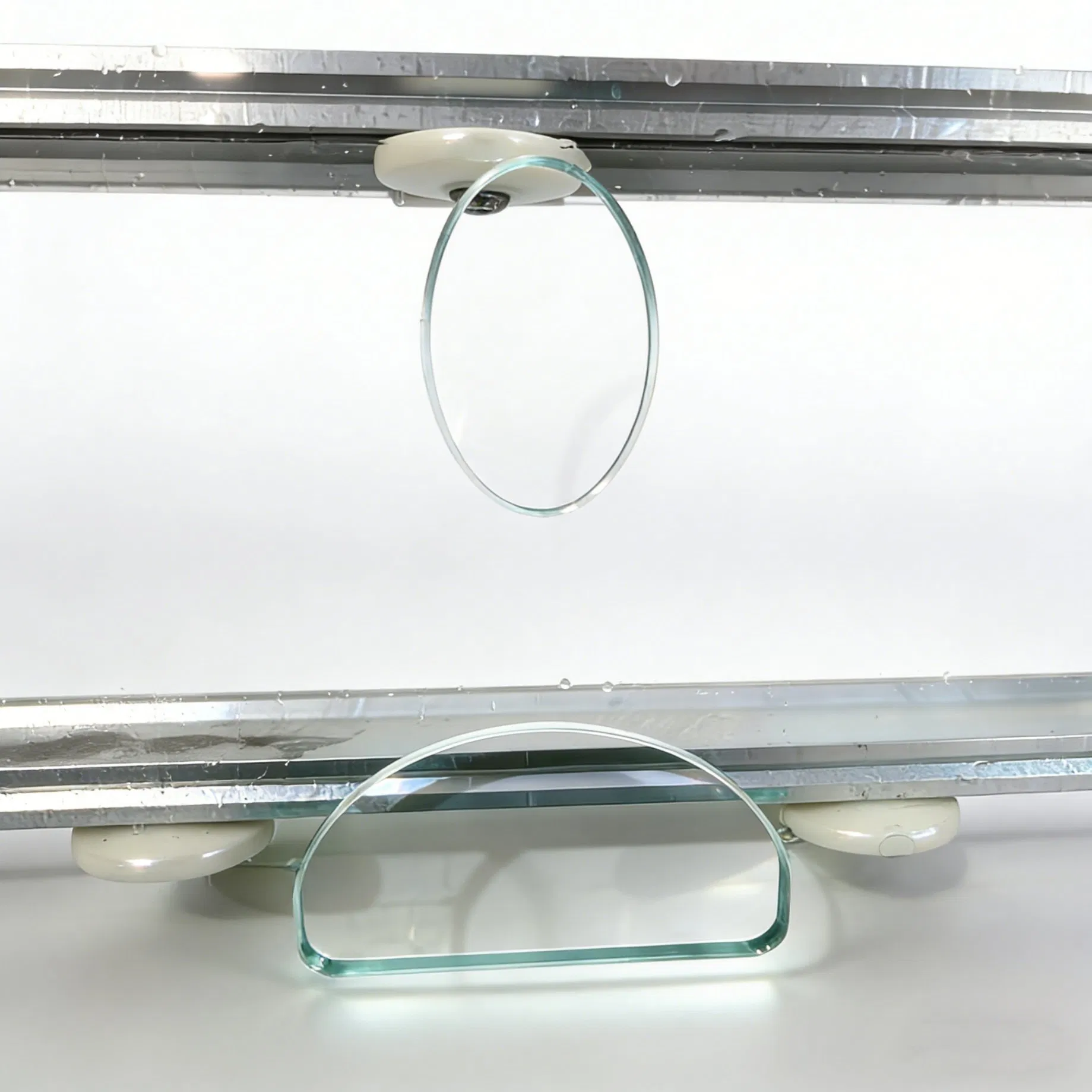

Capable of high-quality polishing for inner circular patterns and safety corners.

✔

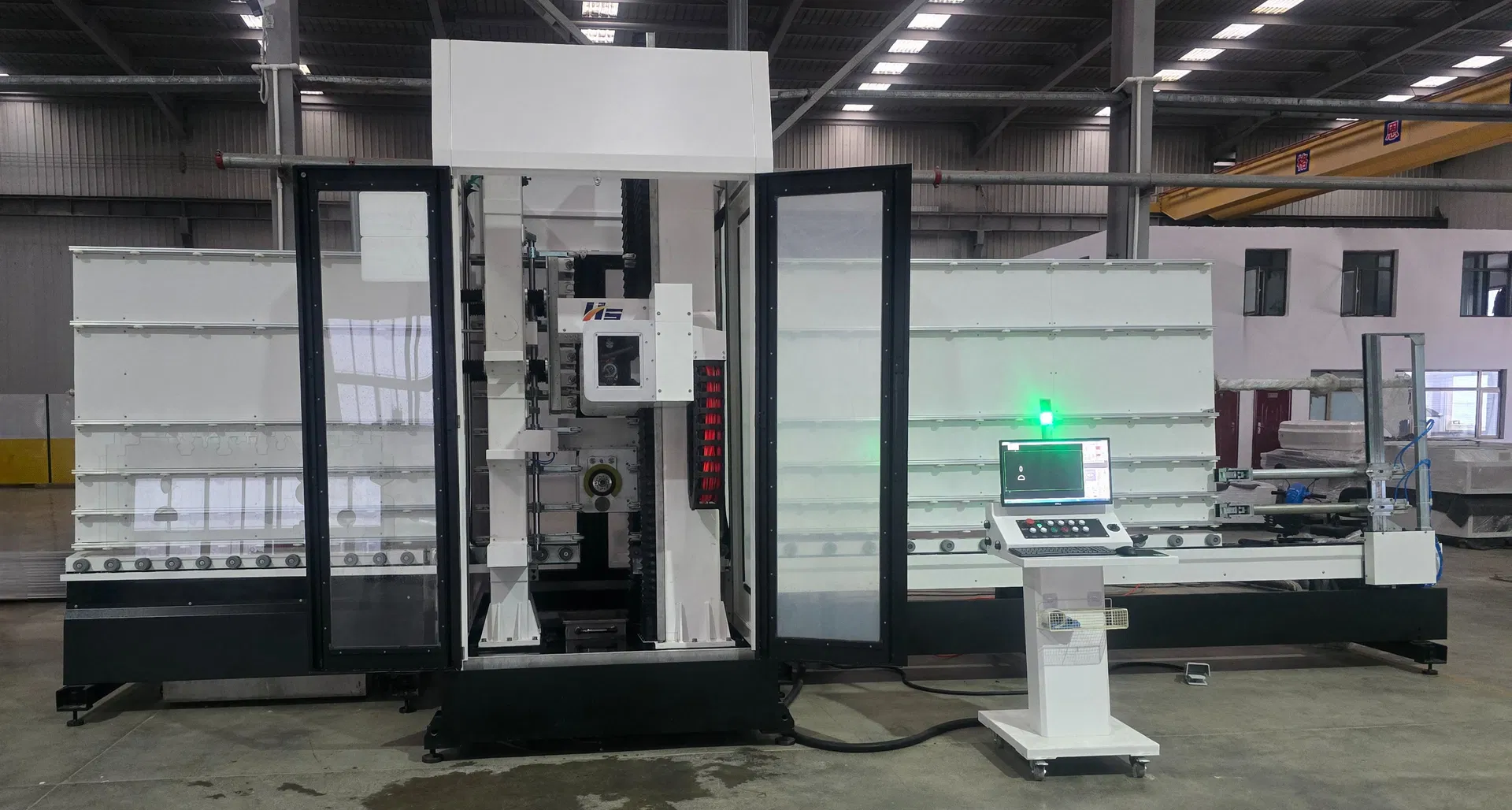

Key Configurations

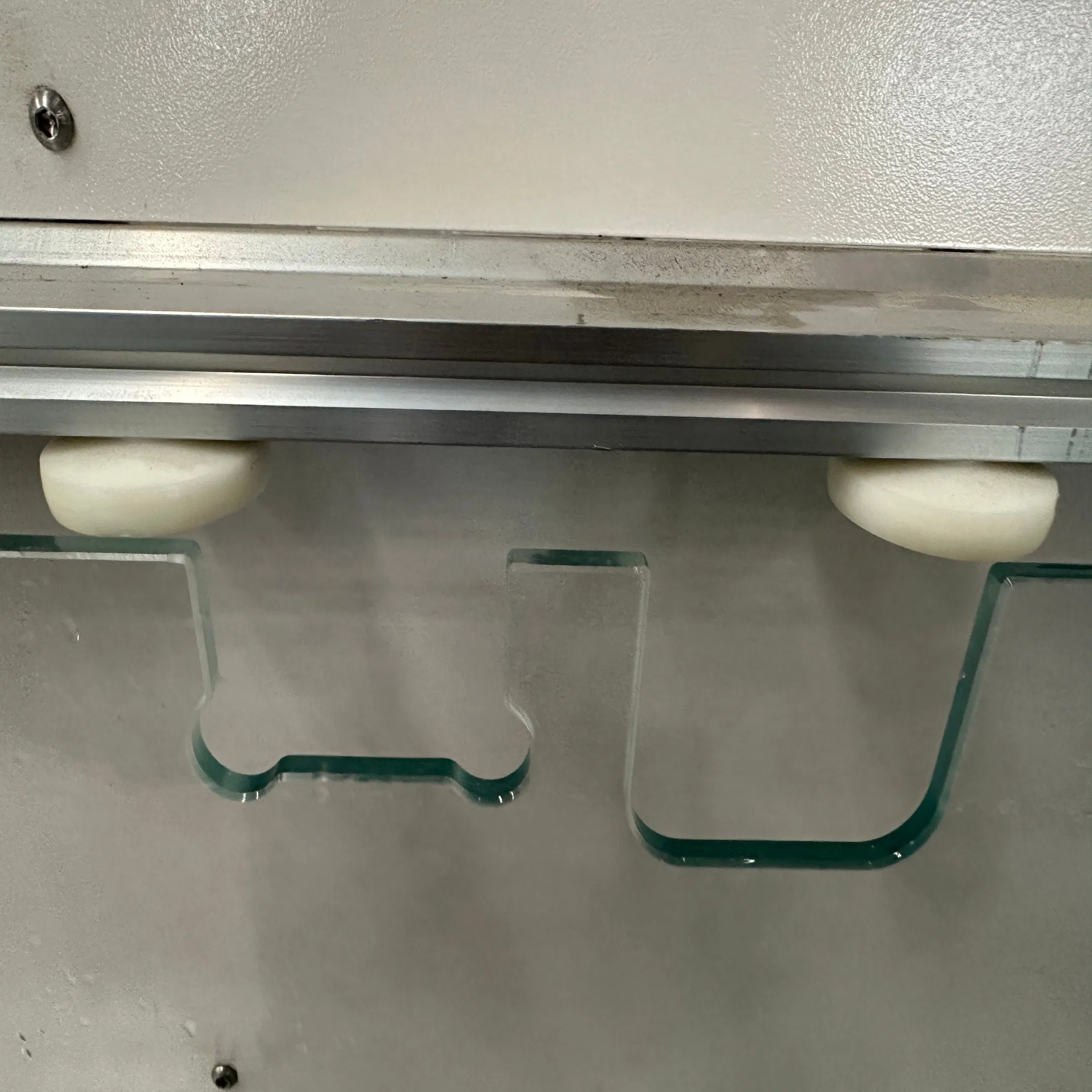

Clamping Device

Uses adjustable clamps to secure glass during processing, improving rigidity and distributing clamping force according to glass size.

Tool Magazine

Equipped with a multi-position vertical tool magazine for fast tool changes and versatile processing techniques.

Electric Spindle

High-performance spindle with internal coolant delivery and a constant temperature chiller to extend service life.

Advanced CNC System

Self-developed system with flexible operation, spindle synchronization, and real-time polishing compensation.

📋

Technical Specifications

Project Parameters	HS 2542 Details
Max glass size	2500x4200mm
Min glass size	500x300mm
Glass thickness	4~19mm
Max axis speed	45, 40, 15m/min
Electric spindle power	7.5 + 7.5kw
Max spindle speed	12000rpm
Tool magazine	7 + 4 Positions
Machining accuracy	±0.15mm/m
Center cooling	Supported

🖼

Advanced Features

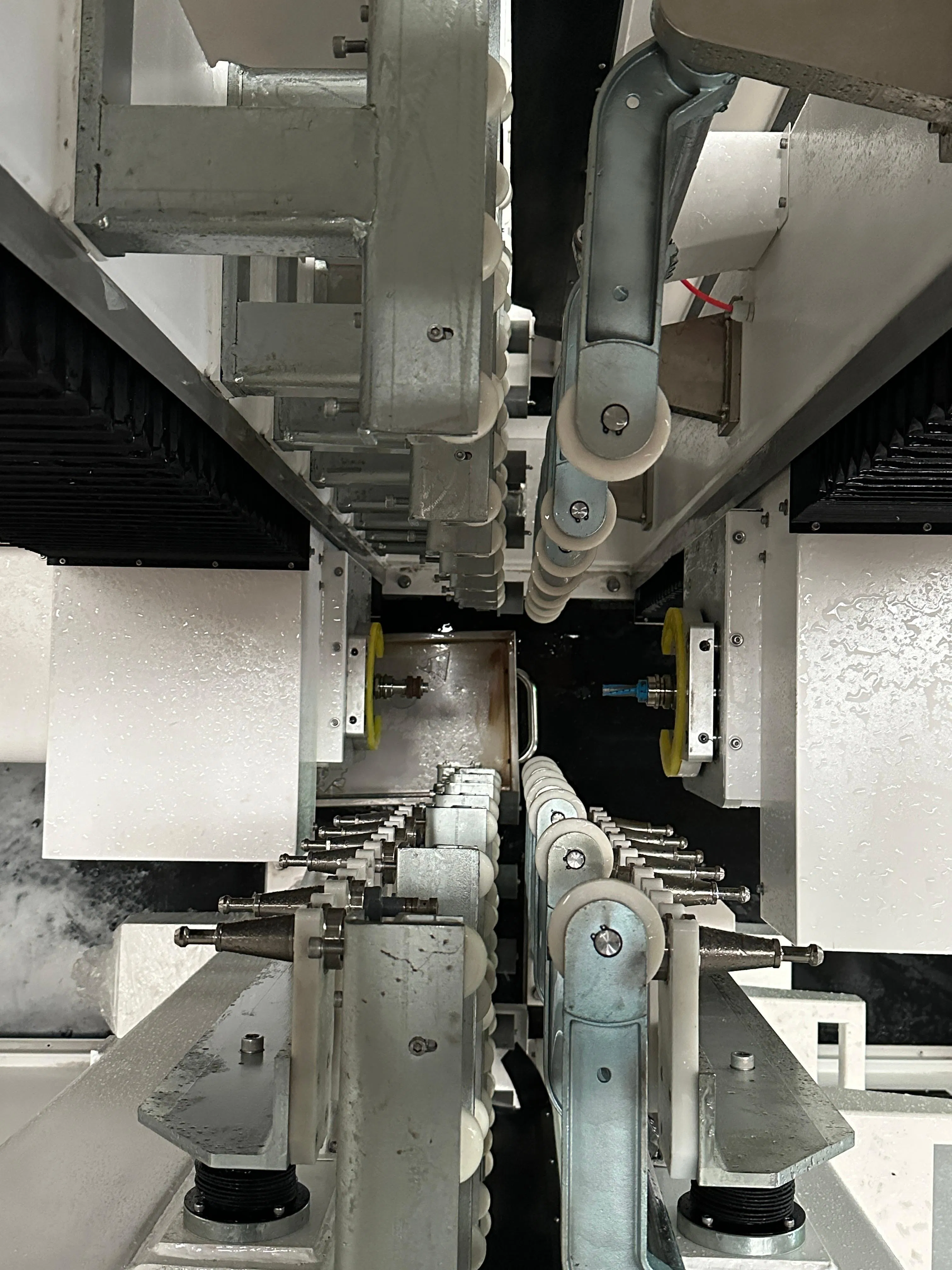

Double Drilling

Fast speed and precise positioning.

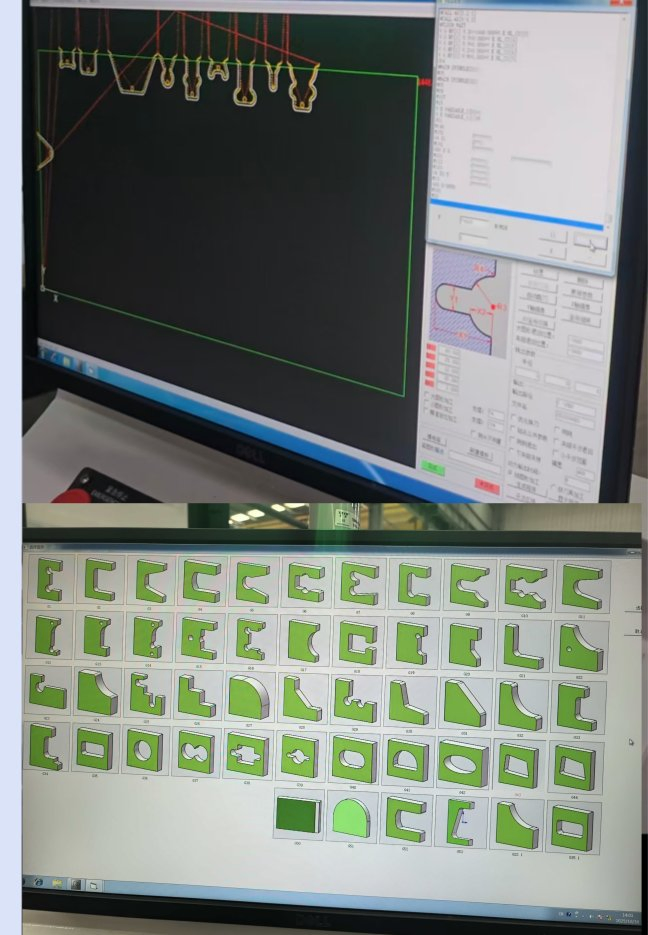

Smart System

Easy to learn and rich graphics library.

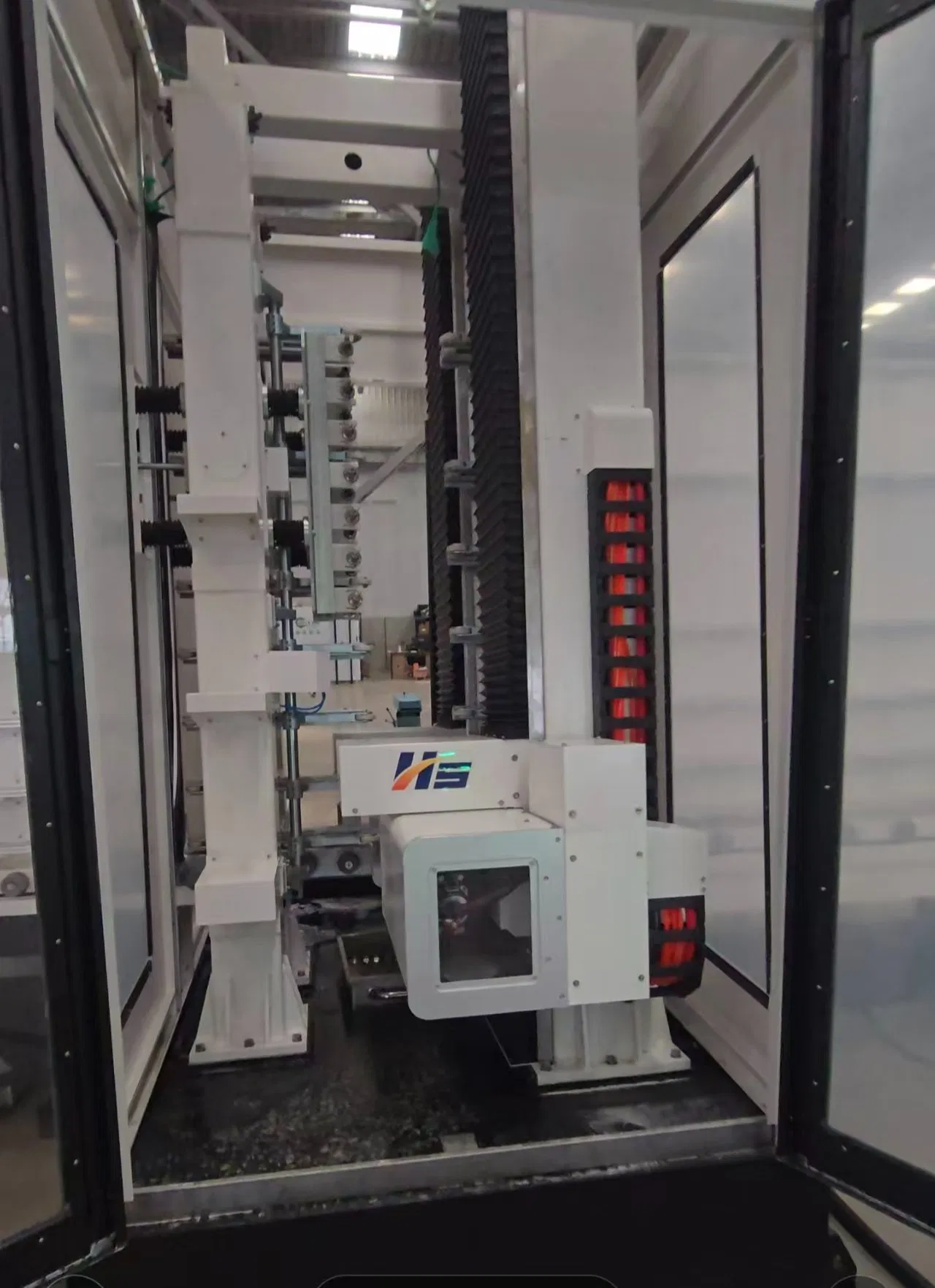

Tool Library

Automated changes for efficiency.

🏭

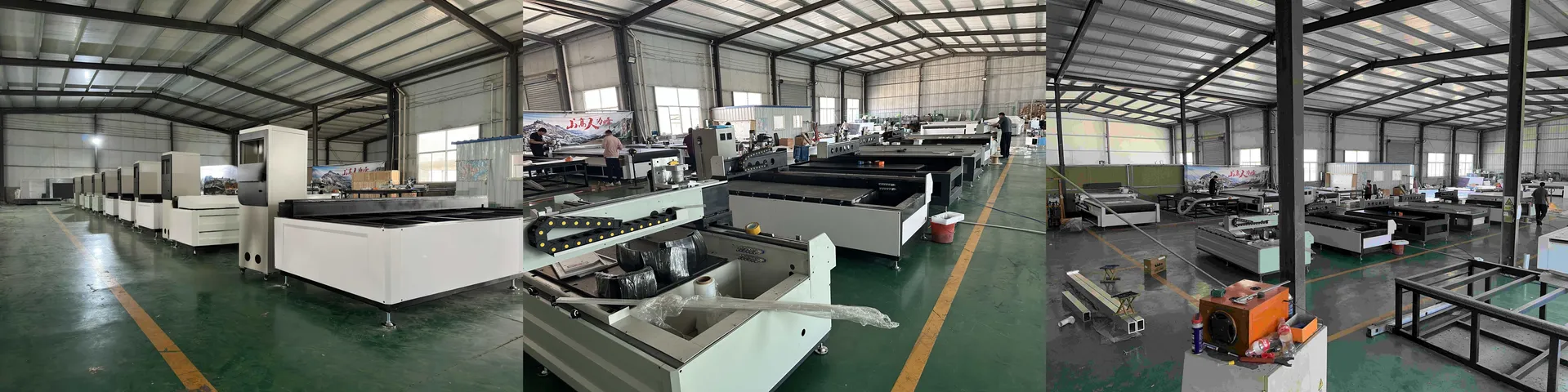

Workshop & Quality Control

Our manufacturing facility operates under a scientific quality management system with rich production experience and advanced equipment.

✉

After Sales Service

Comprehensive Support

Standard Warranty: 12 months.
Extended Warranty: Optional up to 36 months.
Global Support: 24/7 technical assistance and spare parts.
Training: On-site or remote operation and maintenance training.

?

Frequently Asked Questions

Are you a factory or a trading company?

We are a professional CNC machinery production factory. We focus on producing high-end quality CNC glass processing and cutting machines.

Can you customize the machine according to my needs?

Yes, we accept machine customization. Our experienced design team can provide professional suggestions and design a cost-effective solution based on your requirements.

What is the advantage of blade cutting over laser cutting?

Blade cutting uses vibrating blades which produce no pollution, creating a better working environment. It also ensures edges are smooth without burning the material.

What is the standard warranty policy?

The standard warranty is 36 months upon delivery. Main parts (excluding consumables) are free of charge if problems occur due to quality issues during this period.

Do you provide support after the warranty period?

Absolutely. We offer lifetime technical support. You can always count on our service team for maintenance and troubleshooting.

What service do you offer for new international buyers?

We provide DDU (Delivered Duty Unpaid) service for new buyers, which means we can manage the logistics to deliver the machine directly to your factory.
