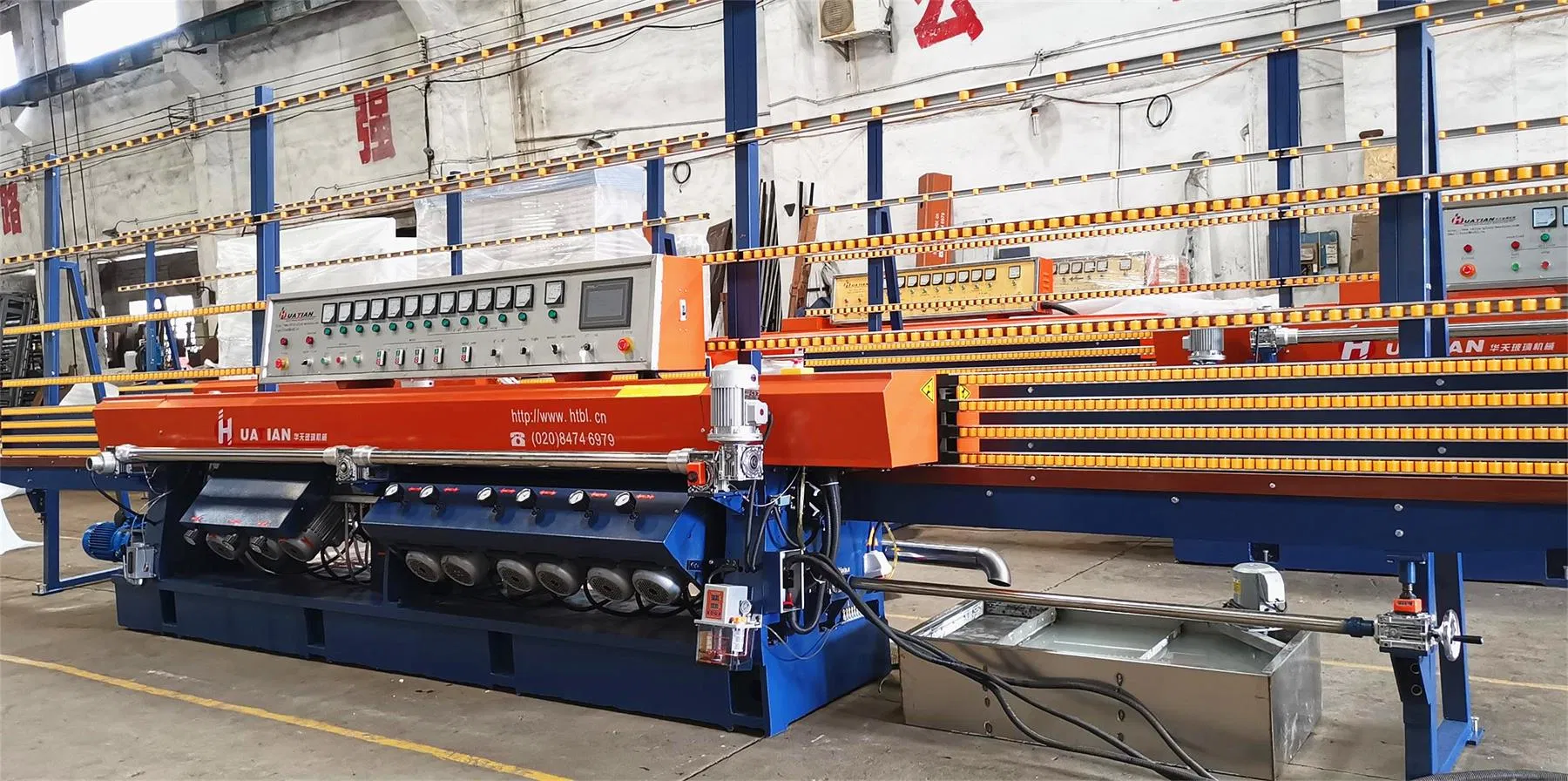

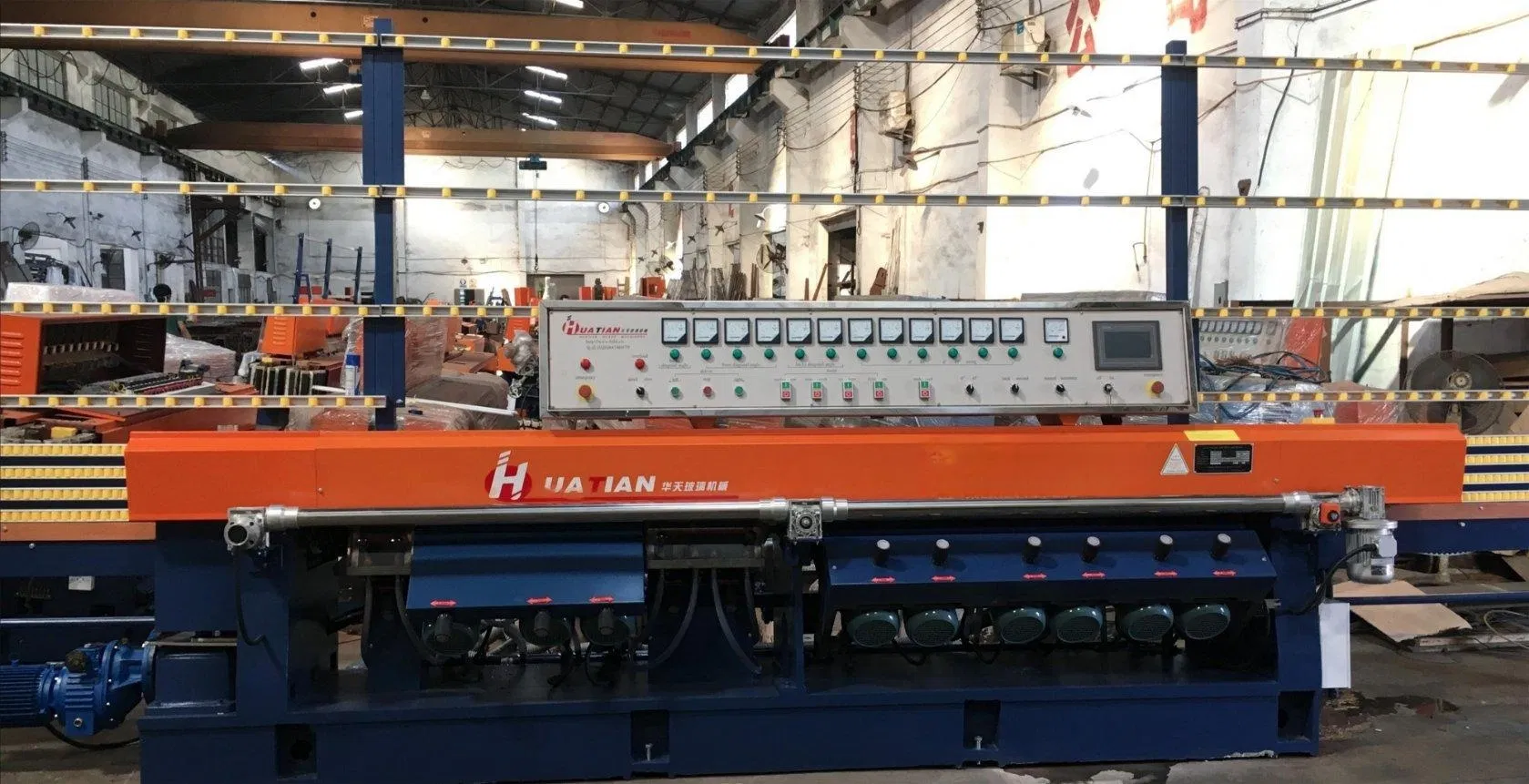

9 Spindles Motors Automatic Flat Glass Straight Line Polishing Edging Machine Manufacturer

1 / 5

9 Spindles Motors Automatic Flat Glass Straight Line Polishing Edging Machine Manufacturer

Customization:	Available
Color:	Blue and White
Deliver:	Belt

Send Inquiry

Product Description

📋

Basic Information

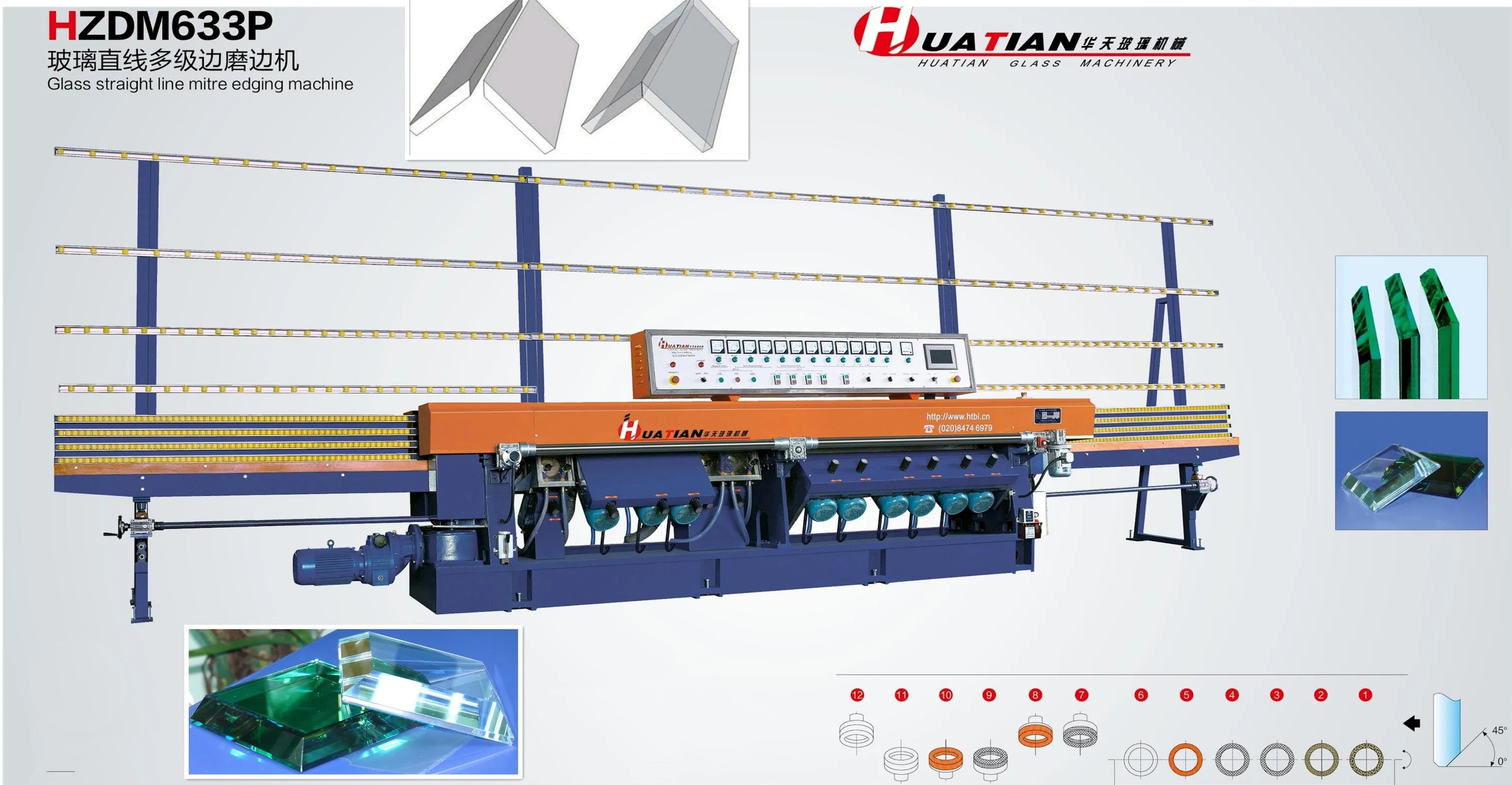

Model NO.

HZDM633

Tank

Stainless Steel

Wheel

Made in Italy

Transport Package

Standard Exporting Packing

Specification

Origin

China

HS Code

84642010

Production Capacity

100/Year

⚙️

Product Description

The base, beams, uprights and motor carriages are made of enhanced high-quality cast iron for rigid and reliable processing.

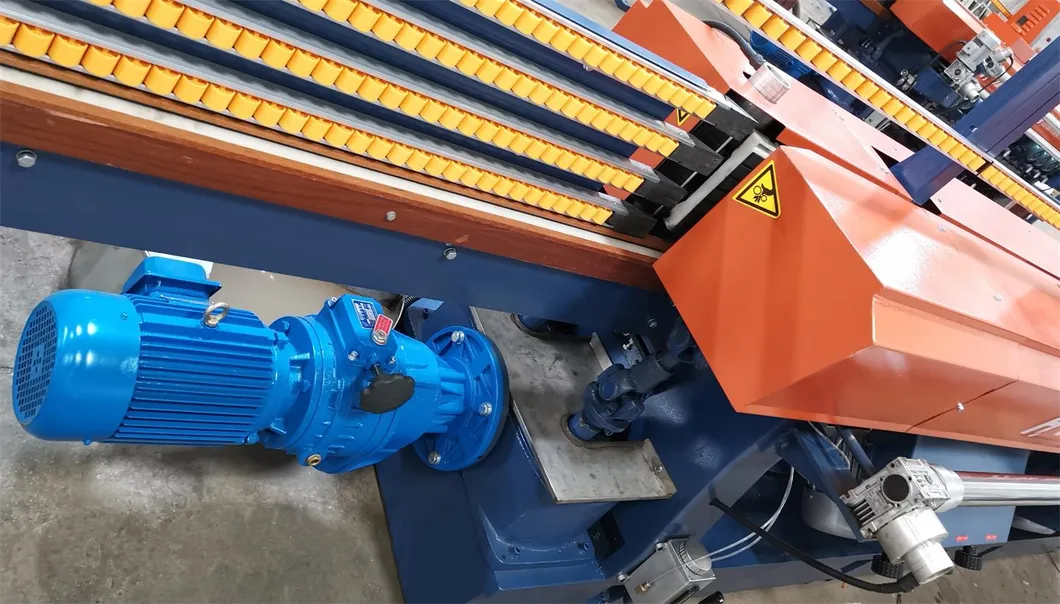

The transmission system utilizes a mechanical stepless reducer, double spiral speed reducer, and sleeve-type chain automatic gear.
Movement of the front beam and grinding spindles is driven by lead screws, with sliders for precise supporting and positioning.
Front and rear pressure pads use high-intensity plastic material.
The rack is constructed with durable aluminum spacers.
Inlet conveyor is equipped with an adjustable height device.

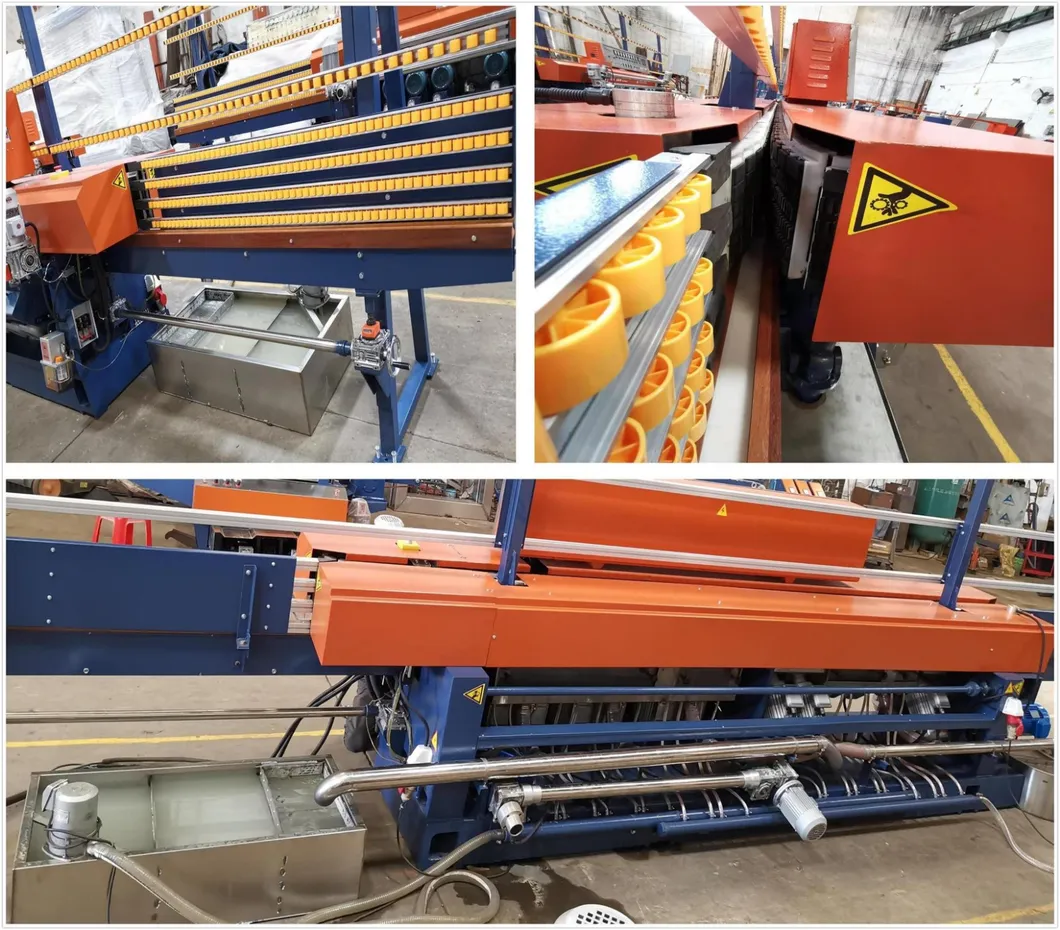

Input and output conveyors adopt timing belts to significantly improve transmission precision.
Features a stainless steel water tank and a stainless steel polishing tank with an electrical agitator.
Automatic lubricating oil pump ensures all parts in beams and sliders are properly maintained.

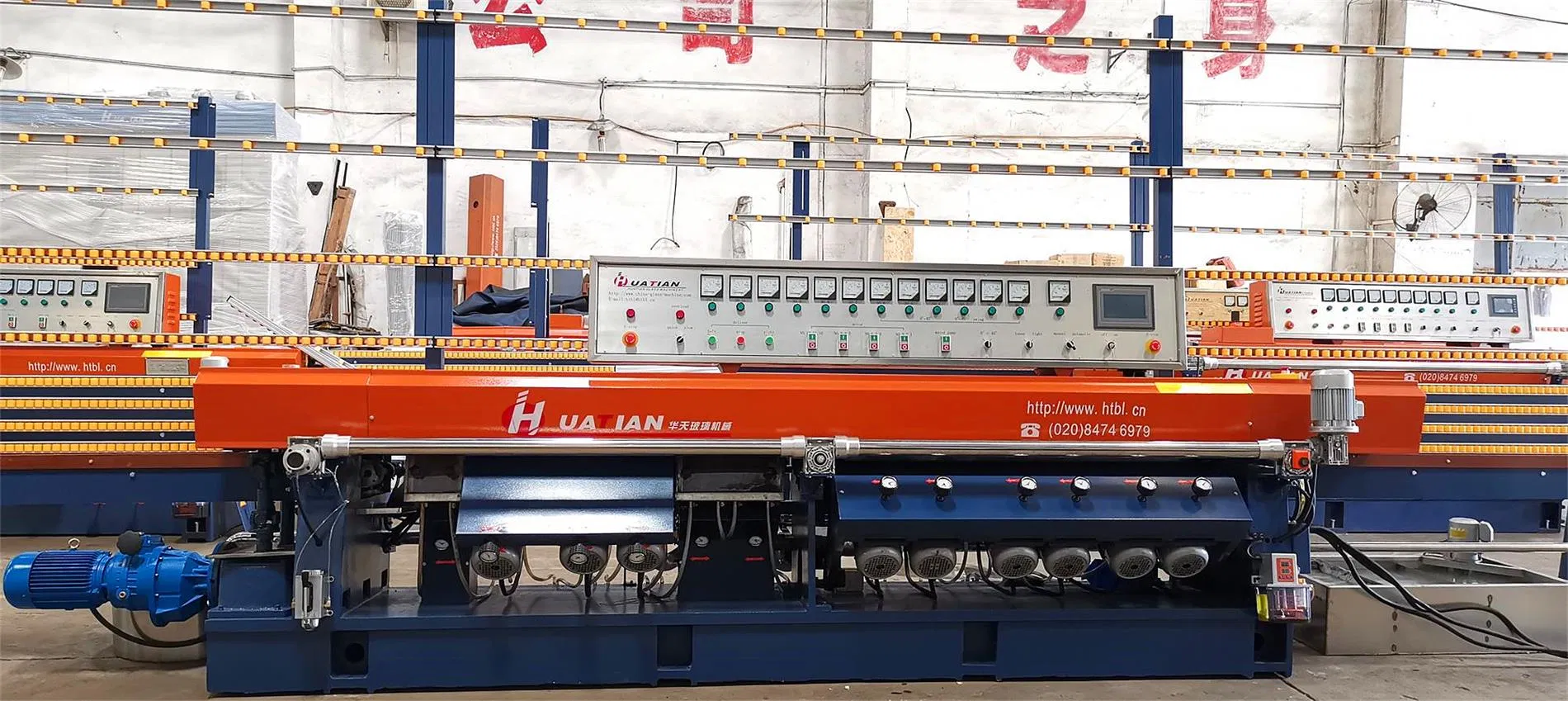

Automatic Flat Glass Straight Line Polishing Edging Machine

📊

Technical Specifications

Parameter	Value
Maximum grinding	3mm
Grinding speeding	500~2500m/min
Chamfer Angle	0° ~ 45°
Thickness of processed glass	3 ~ 25mm
Size of processed glass	Max: 3000 x 3000mm \| Min: 100 x 100mm
Total power	26KW
Weight	4000 KG
Machine dimension	7700(L) x 1200(W) x 2500(H)mm

💡

Core Features & Controls

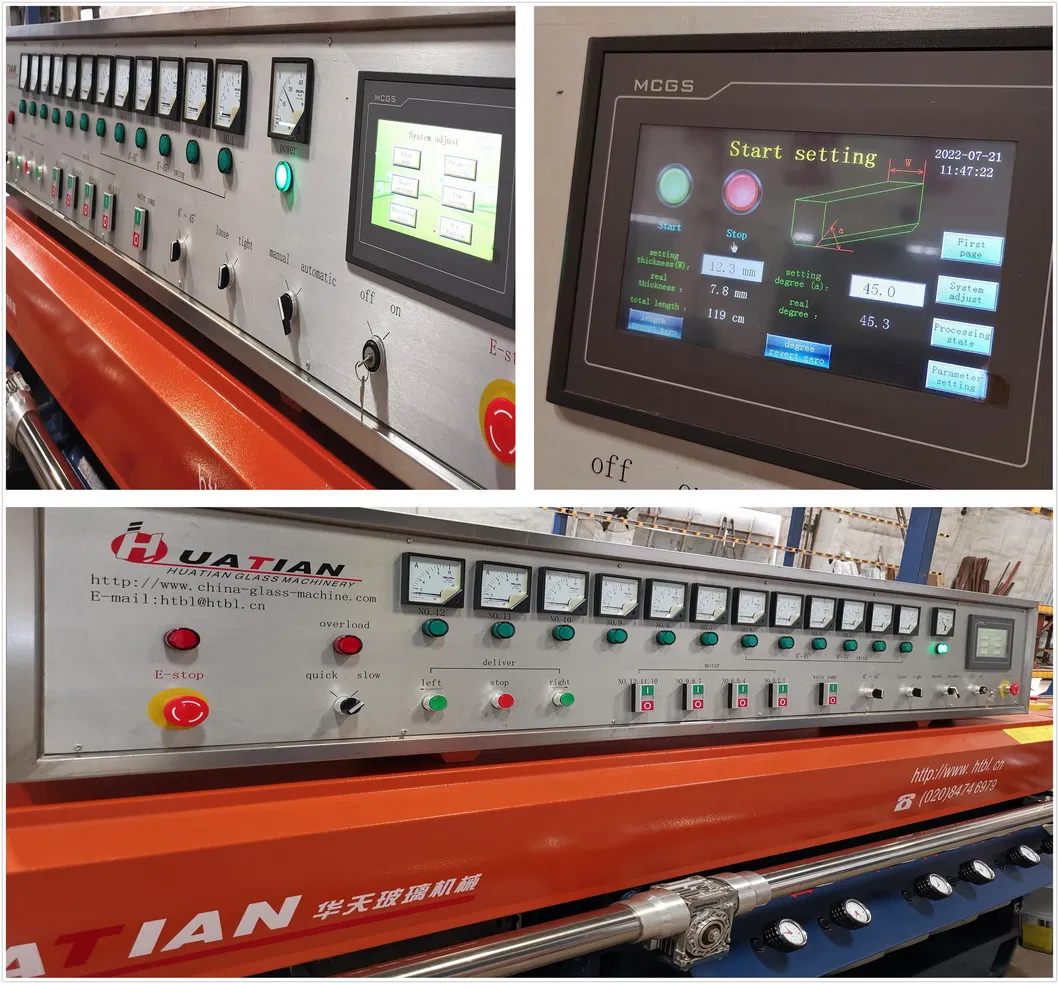

Delta PLC Control System: Includes a touch screen that displays glass thickness, length, angle, and other key parameters. Supports both manual and automatic modes.

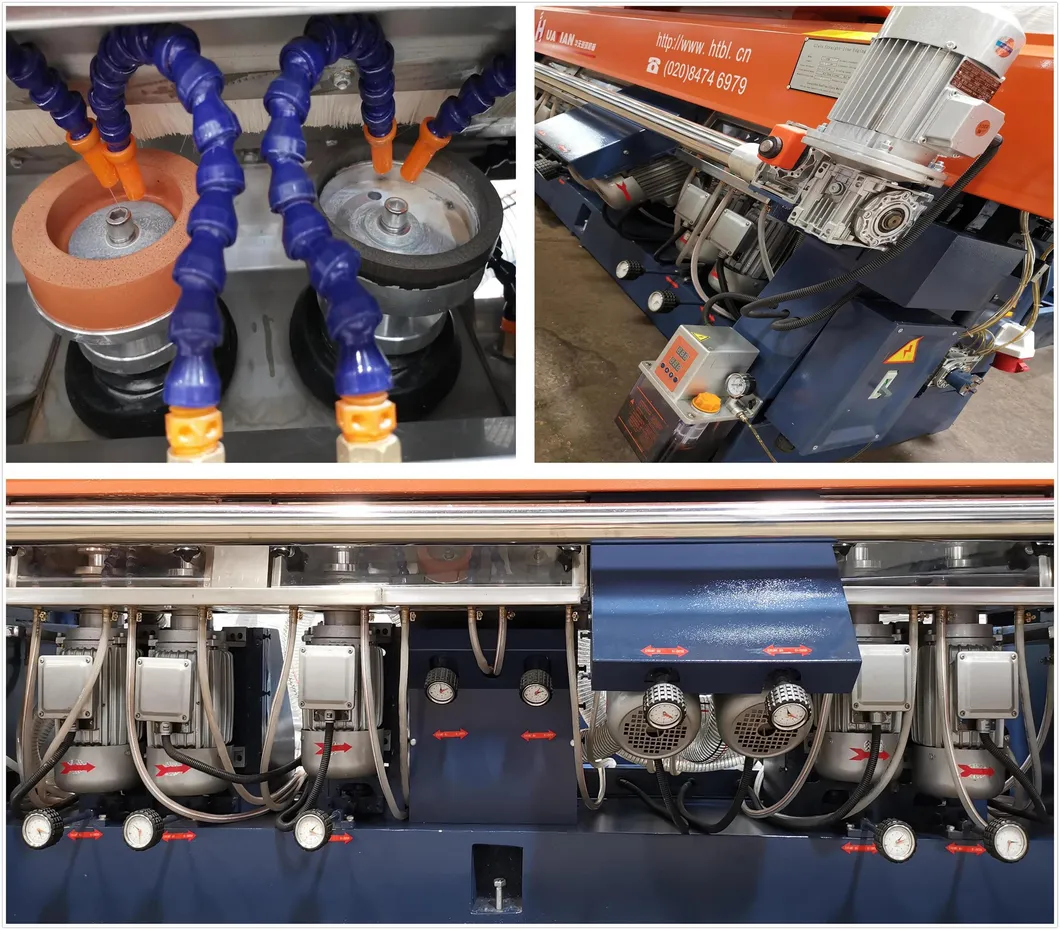

Precision Components: Equipped with Italian grinding wheels and high-precision, low-vibration motors for superior finish quality.

Certification: This equipment is CE certified, meeting international safety and quality standards.

🏭

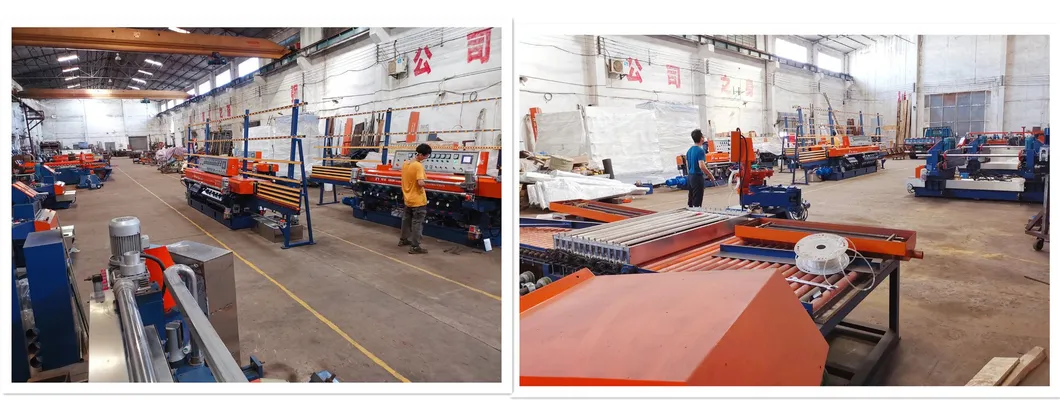

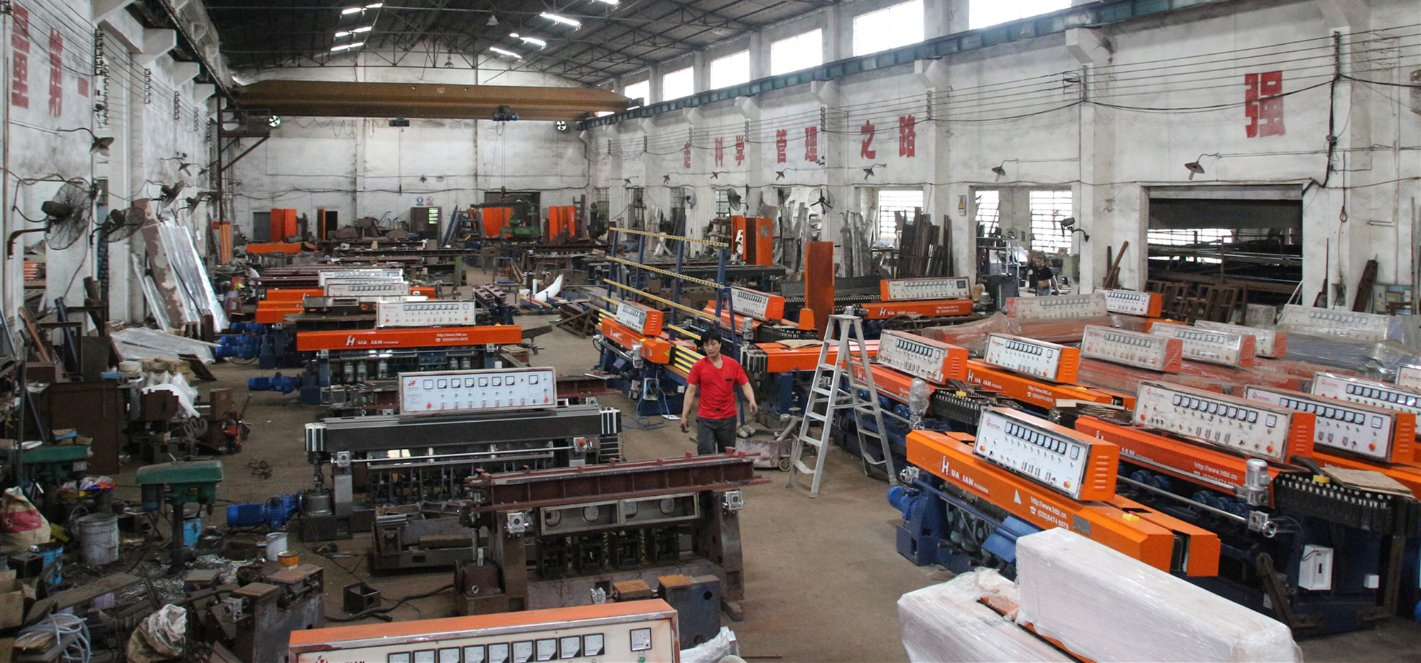

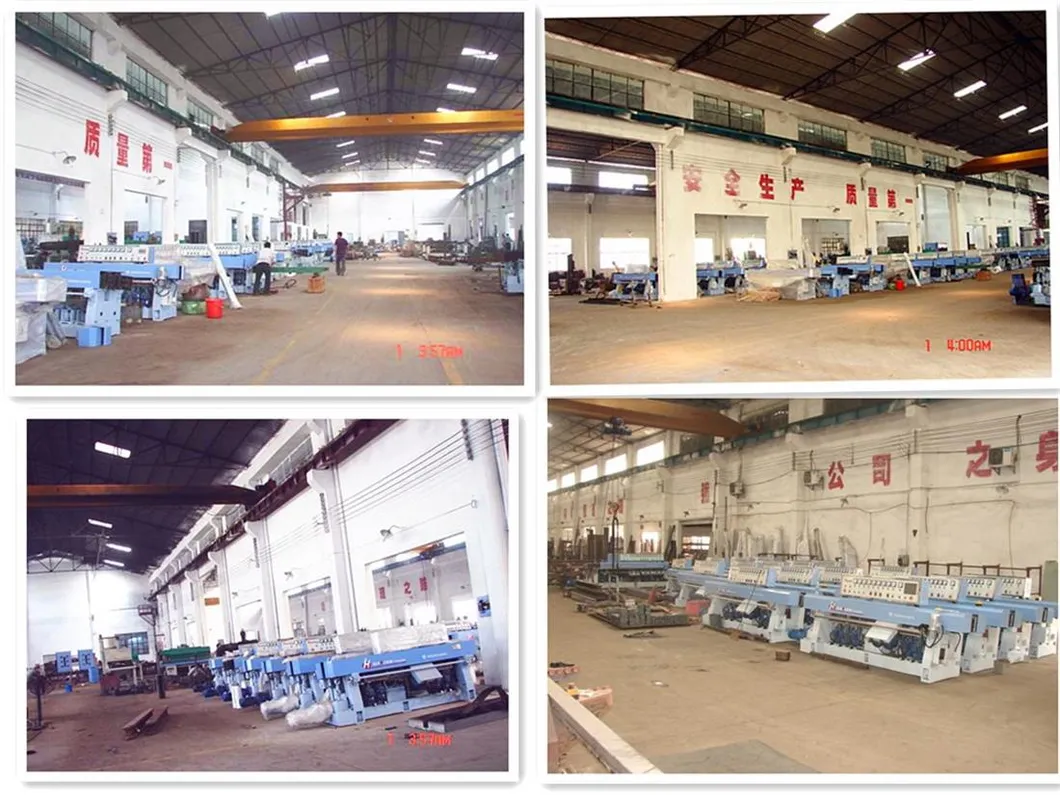

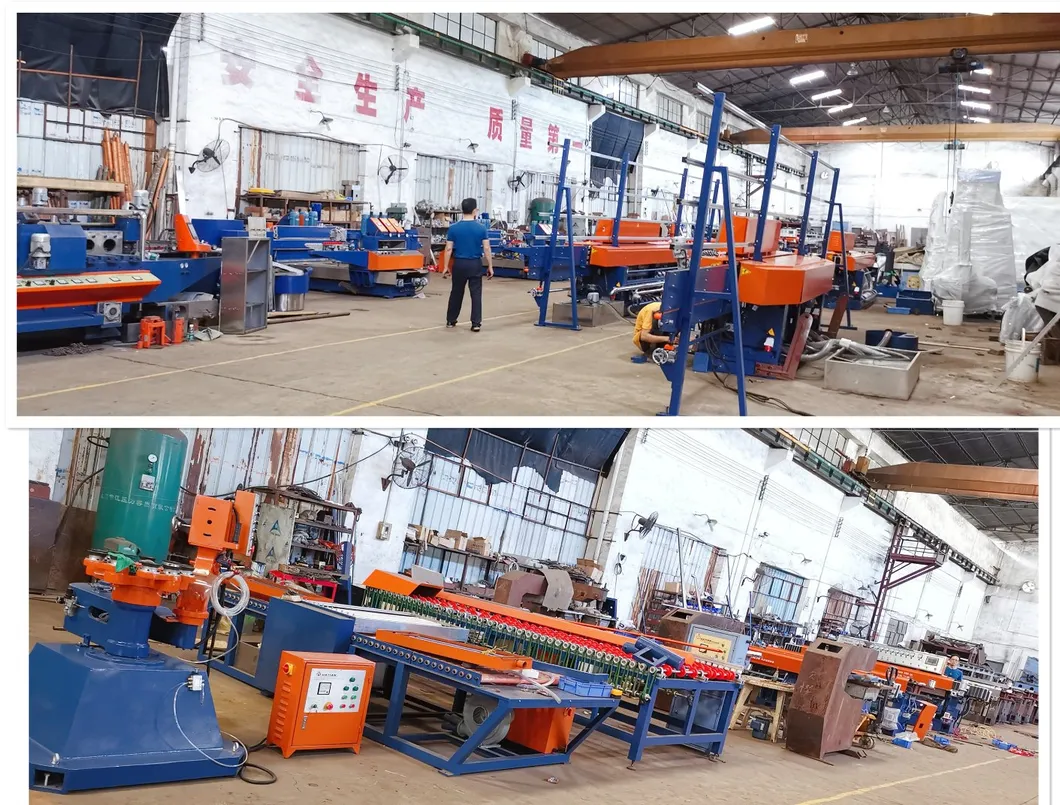

Exhibition & Workplace

❓

Frequently Asked Questions

Q1: What is the range of glass thickness this machine can process? A: This machine can process glass with a thickness ranging from 3mm to 25mm.

Q2: Can the machine handle different chamfer angles? A: Yes, it supports chamfer angle adjustments from 0° to 45°.

Q3: What type of control system is used for operation? A: The machine is equipped with a Delta PLC system featuring a touch screen for easy monitoring and adjustment of parameters.

Q4: How does the machine ensure transmission precision? A: Precision is achieved through the use of timing belts in the input and output conveyors, along with a mechanical stepless reducer system.

Q5: Does the machine require manual lubrication? A: No, it is equipped with an automatic lubricating oil pump that supplies oil to all necessary parts in the beams and sliders.

Q6: What is the maximum size of glass that can be processed? A: The maximum processing size for glass sheets is 3000 x 3000mm.
