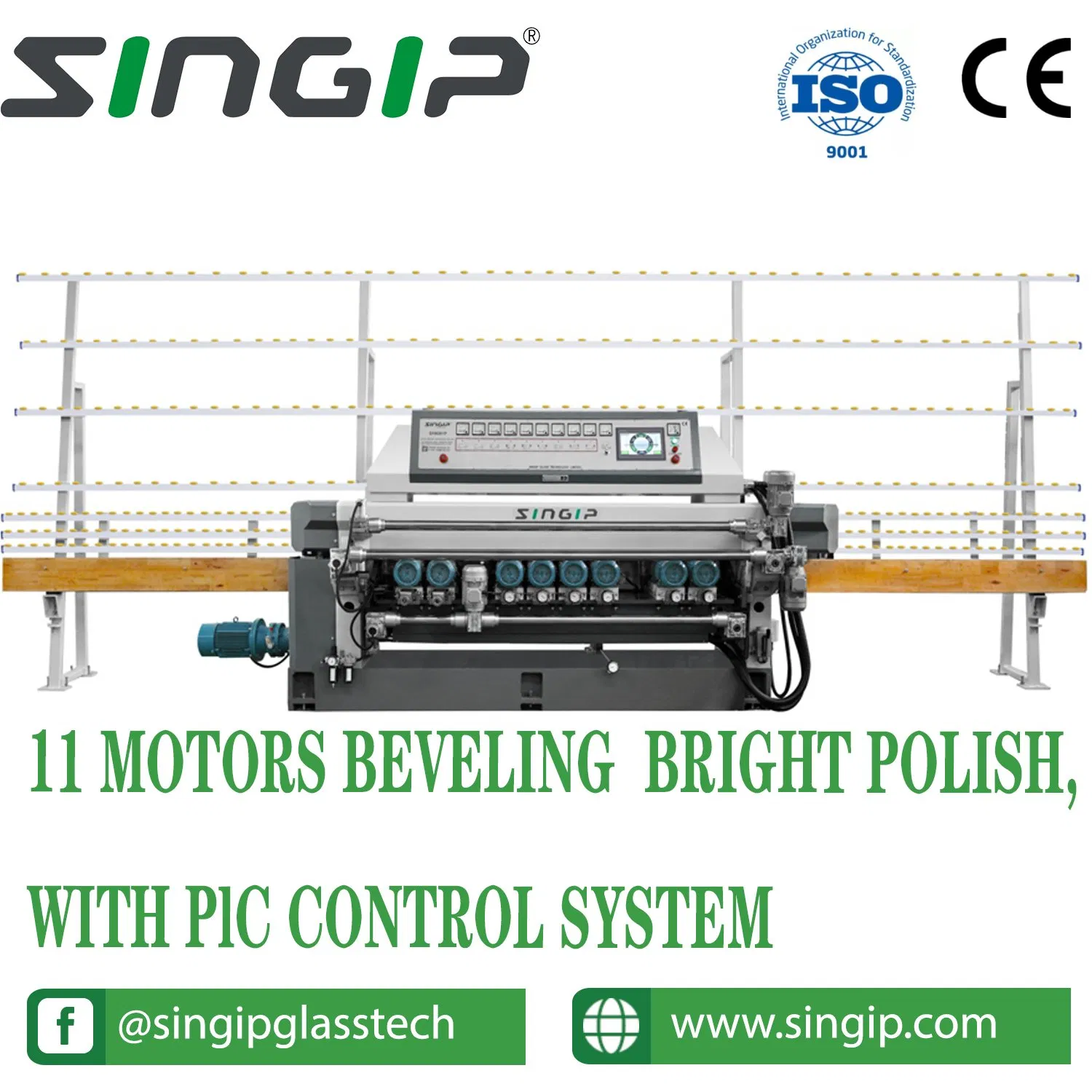

Flat Glass and Mirror Beveling Edging Polishing Machine with PLC

Customization:	Available
Application:	Building Material, furniture
Power Supply:	380V/50Hz

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

SXM371SP

Processing Thickness

3-12mm

Warranty

1 Year

Certificate

CE, ISO

Min Glass Size

100X100mm

Max Glass Size

2500X2500mm

Max Bevel Width

50mm

Type

Glass Beveling Machine

Structure

Vertical

Control System

PLC

Grinding Head Number

Production Capacity

20 Sets/Month

💎 Product Overview

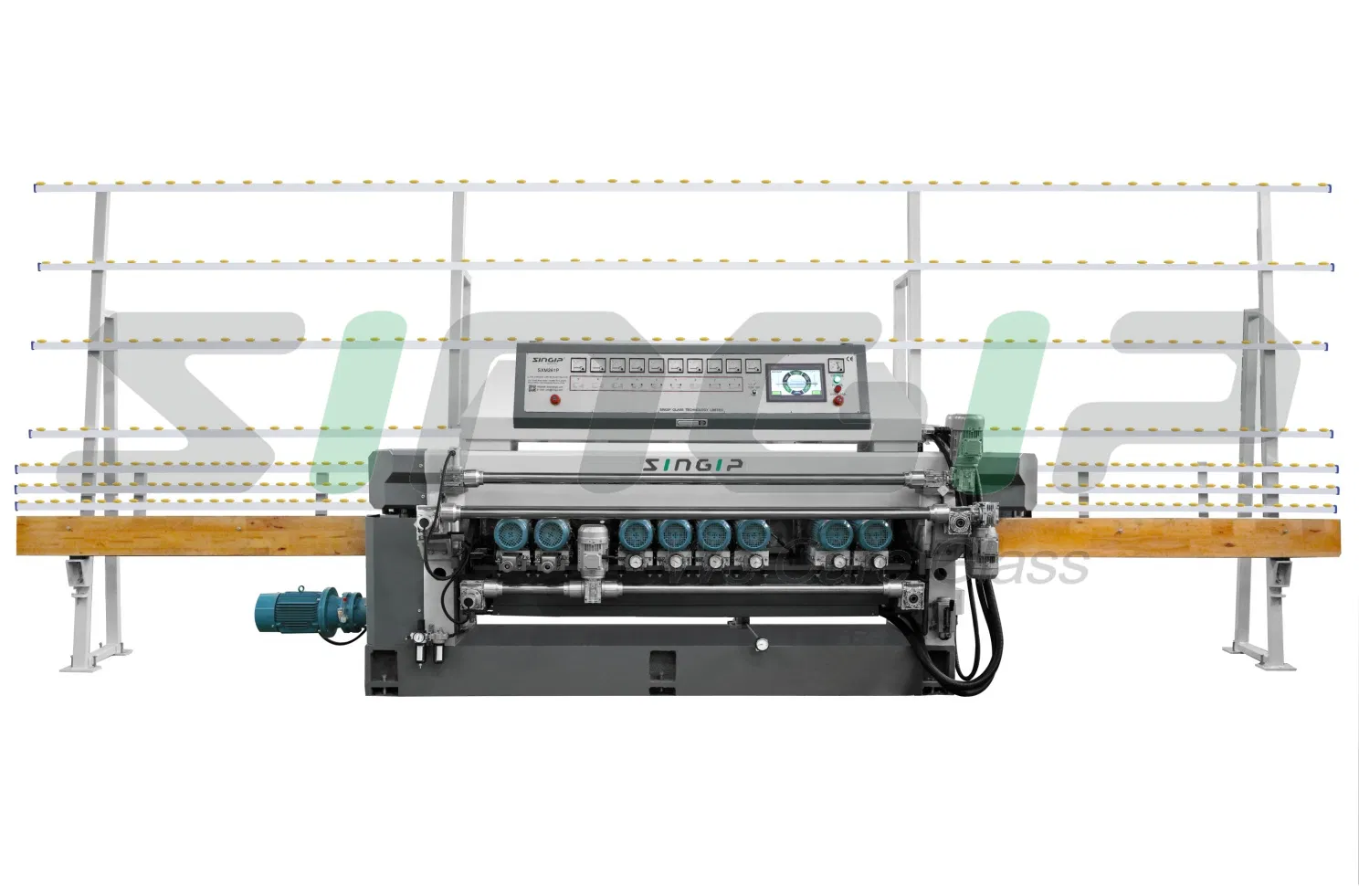

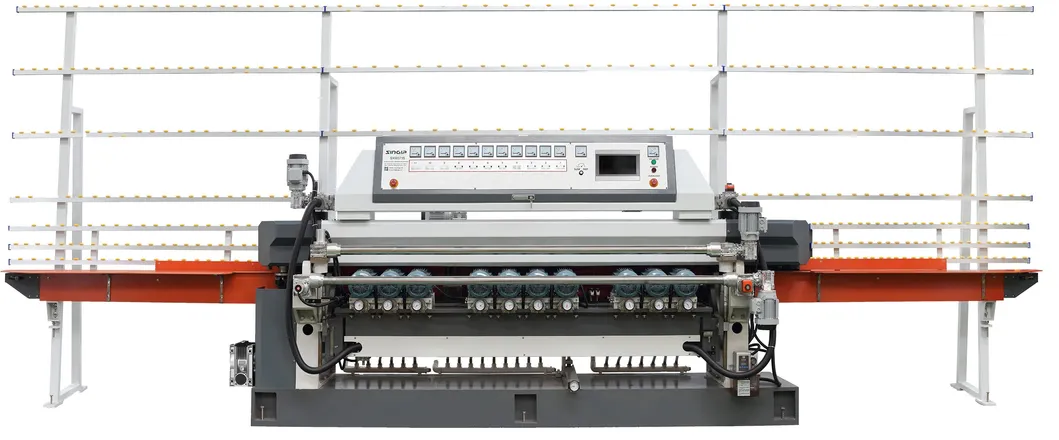

SXM BEVELLING MACHINE

🏆

EXCELLENCE IN THE MOST DEMANDING PROCESSING
Bevelling has always been considered as the most difficult type of processing. Bevelling machines have to be extremely precise to produce high-quality bevels, accuracy of processing, and dimensional tolerances. Our machines offer high productivity without compromising end-product quality.

🛡️

QUALITY FIRST

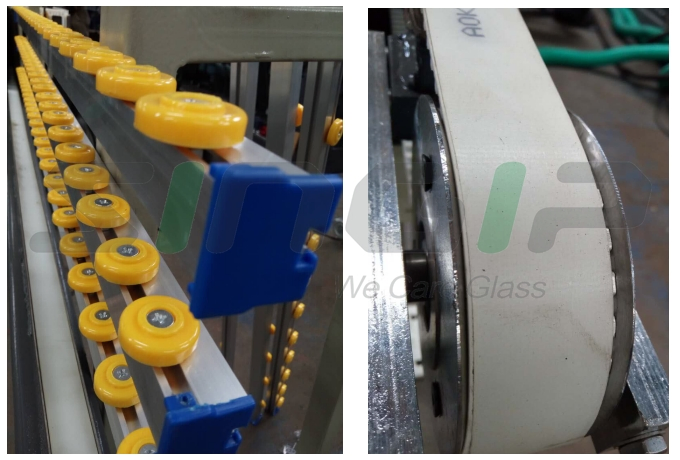

The conveyor is equipped with pads in 40cr steel without ball bearings. All pad surface error ranges are within 0.02mm, providing essential precision for bevel processing. Thick cast iron structures and high-precision guide rails eliminate vibrations.

🔧

MINIMIZED MAINTENANCE COSTS

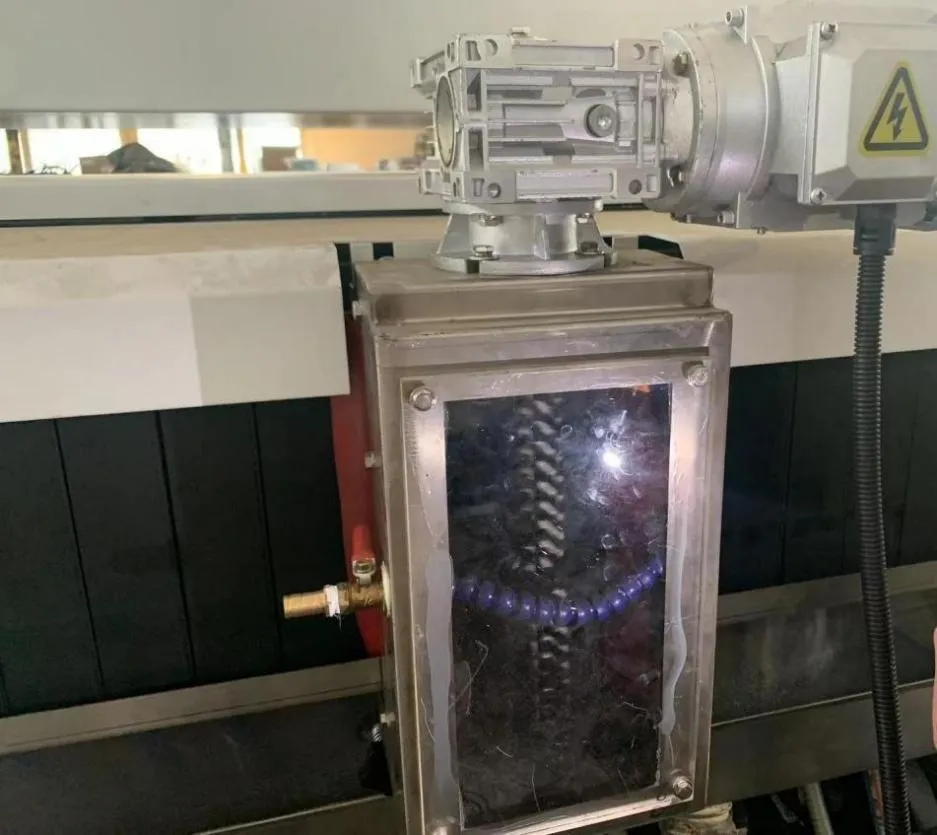

Recognized for reliability and longevity. Features include a maintenance-free conveyor, centralized lubrication system, and inlet/outlet arms equipped with synchronous belts that can be individually replaced.

💻

USER-FRIENDLINESS

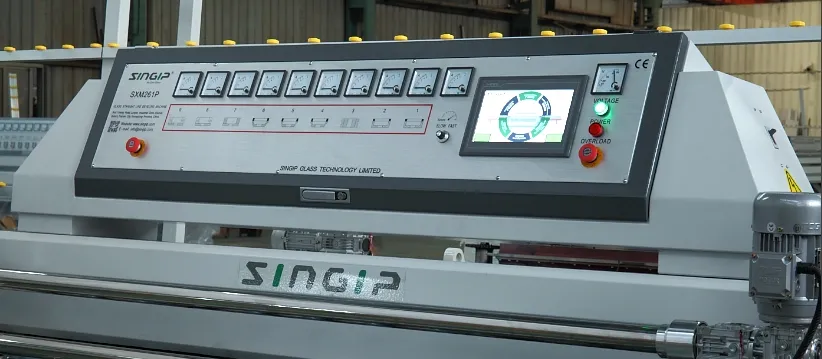

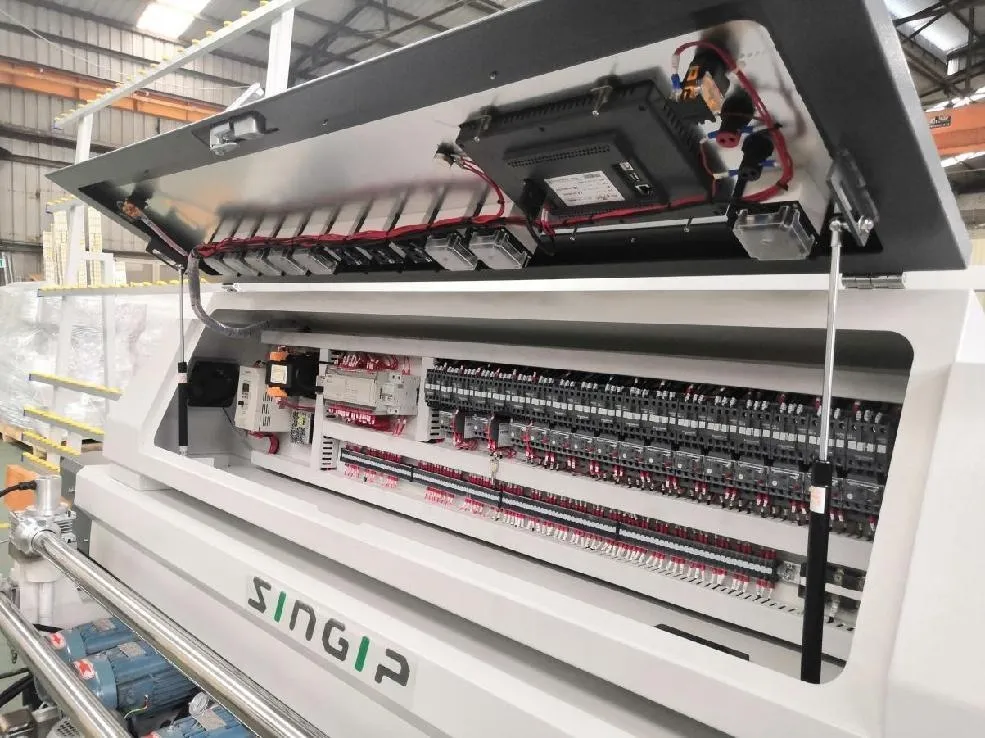

Touch screen control panels provide flexibility and functionality. Systems automatically perform calculations, report errors, and prevent operation with incorrect parameters. Advanced features provide production statistics.

📊 SXM371SP Wheel Placement

Grinding Head Info		1# Rough	2# Rough	3# Rough	4# Fine	5# Fine	6# Fine	7# Fine	8# Polish	9# Polish	10# Polish	11# Polish

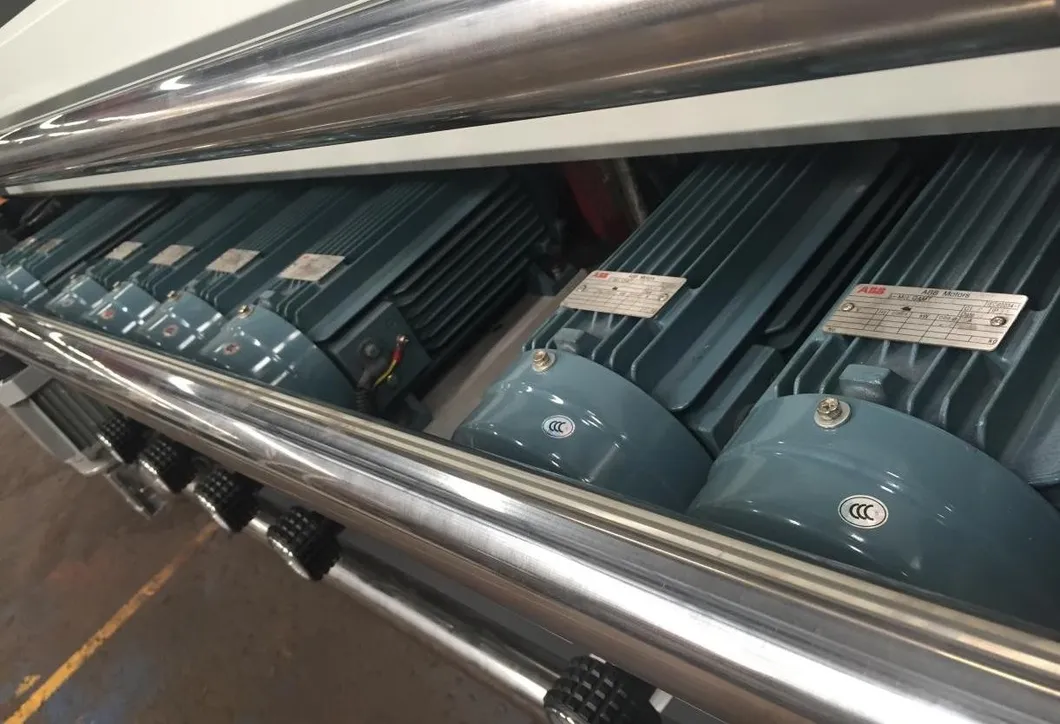

Motor	Power(KW)	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	1.5	1.5	1.5
Motor	Speed (RPM)	2800	2800	2800	2800	2800	2800	2800	2800	1400	1400	1400
Wheel Type		Diamond	Diamond	Diamond	PE Wheel	Resin	Resin	Resin	Resin	Felt	Felt	Felt
Origin		Domestic	Domestic	Domestic	Domestic	Domestic	Domestic	Domestic	Domestic	Italy	Italy	Italy

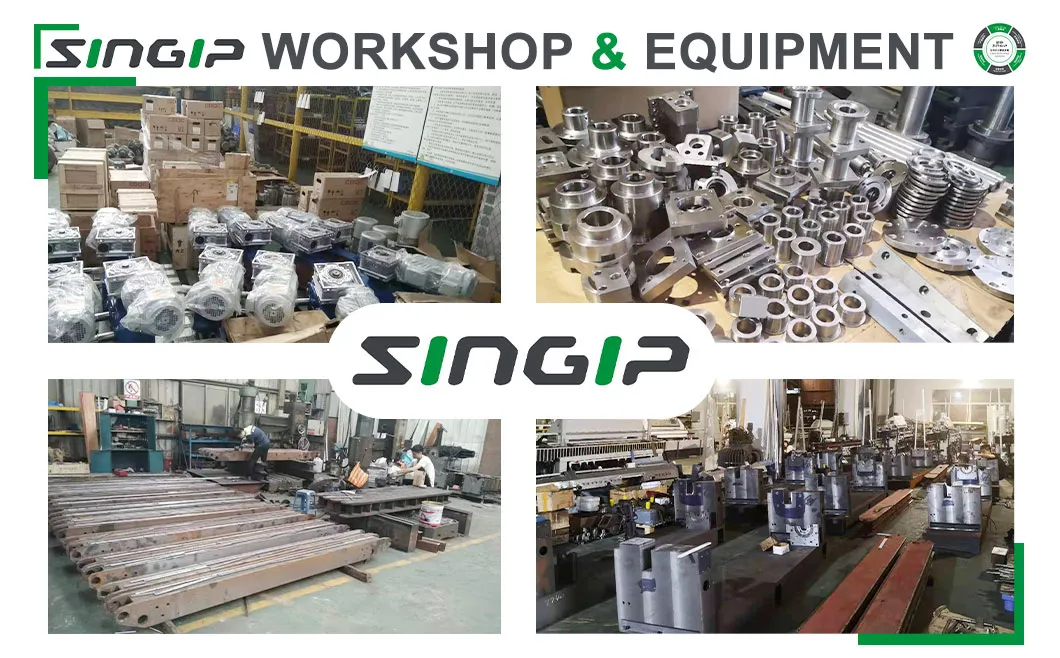

🏭 Manufacturing & Workshop

Specializing in a diverse range of industrial machinery, including various processing lines and single-unit machines designed for efficiency and precision. Our workshop is equipped with diverse machines and organized neatly, showcasing a focus on quality and efficient production.

📜 Certifications & Exhibitions

Machinery certificates ensure electromagnetic compatibility and low-voltage compliance, adhering to strict international standards.

Active participation in global exhibitions demonstrates strong interest from international customers in the glass processing industry.

📦 Packaging & Shipping

❓ Frequently Asked Questions

Q: Do you provide on-site installation and training?

A: Yes, we offer global installation services and operator training programs to ensure your team can operate the machinery efficiently.

Q: How are your glass machines packaged for shipping?

A: Machines are packed in containers suitable for long-distance ocean transportation. We use shock-absorbing materials like pearl cotton and film. Wooden box packaging is available as an upgrade option.

Q: How do you ensure the stability of long-term operation?

A: We conduct rigorous endurance tests on all machines before they leave the factory. We select high-quality components and durable materials for the entire production process.

Q: Can I place a custom order for specific machinery needs?

A: Yes, most of our machinery can be custom configured to match your specific production requirements and factory layout.

Q: Where can I obtain spare parts for the machinery?

A: We stock a full array of spare parts for all of our machinery models to ensure minimal downtime for our clients.

Q: How long is the standard warranty period?

A: The standard warranty period is 12 months (excluding wear and tear parts).
