Glass Laser Drilling Machine, Double Head Laser Precision Drilling and Cutting, Free Sampling
Glass Laser Drilling Machine, Double Head Laser Precision Drilling and Cutting, Free Sampling
Glass Laser Drilling Machine, Double Head Laser Precision Drilling and Cutting, Free Sampling
Glass Laser Drilling Machine, Double Head Laser Precision Drilling and Cutting, Free Sampling
Glass Laser Drilling Machine, Double Head Laser Precision Drilling and Cutting, Free Sampling
1 / 5
Glass Laser Drilling Machine, Double Head Laser Precision Drilling and Cutting, Free Sampling
Glass Laser Drilling Machine, Double Head Laser Precision Drilling and Cutting, Free Sampling
Glass Laser Drilling Machine, Double Head Laser Precision Drilling and Cutting, Free Sampling
Glass Laser Drilling Machine, Double Head Laser Precision Drilling and Cutting, Free Sampling
Glass Laser Drilling Machine, Double Head Laser Precision Drilling and Cutting, Free Sampling

Glass Laser Drilling Machine, Double Head Laser Precision Drilling and Cutting, Free Sampling

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LK-DR-100A
Laser Power
120W
Laser Lifetime
100000h
Product Name
Large Format Glass Laser Drilling Cutting Machine
Processing Materials
Glass
Preheating Time
Less Than One Minute
Max Speed
<8000mm/S
Max Thickness
20mm
Minimum Aperture
0.3mm
Control System
Industrial Computer
Product Description

The traditional mechanical glass punching method has a high damage rate, resulting in high costs and cannot meet the requirements of modern precision machining. Using laser to drill holes in glass, with software control, easy operation, non-contact processing, glass will not be damaged by external forces, and the processing effect of glass perfection and precision is good.

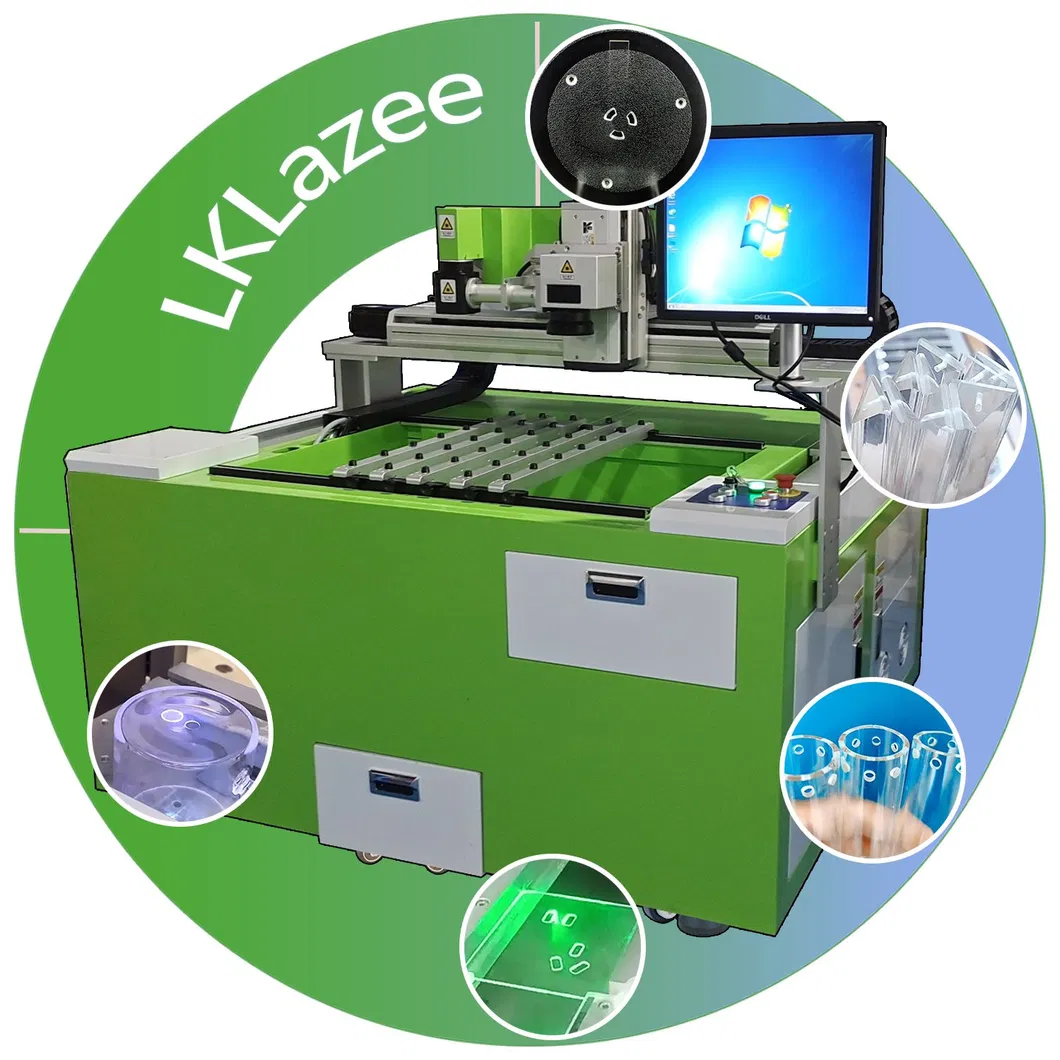

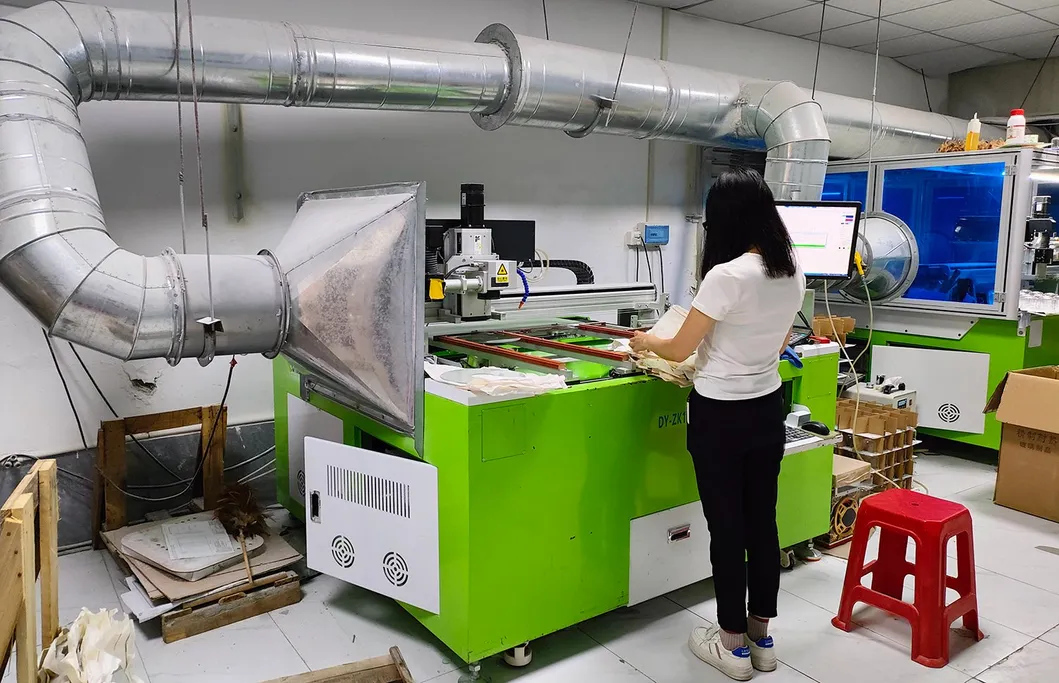

Glass Laser Drilling Machine Laser Drilling Detail

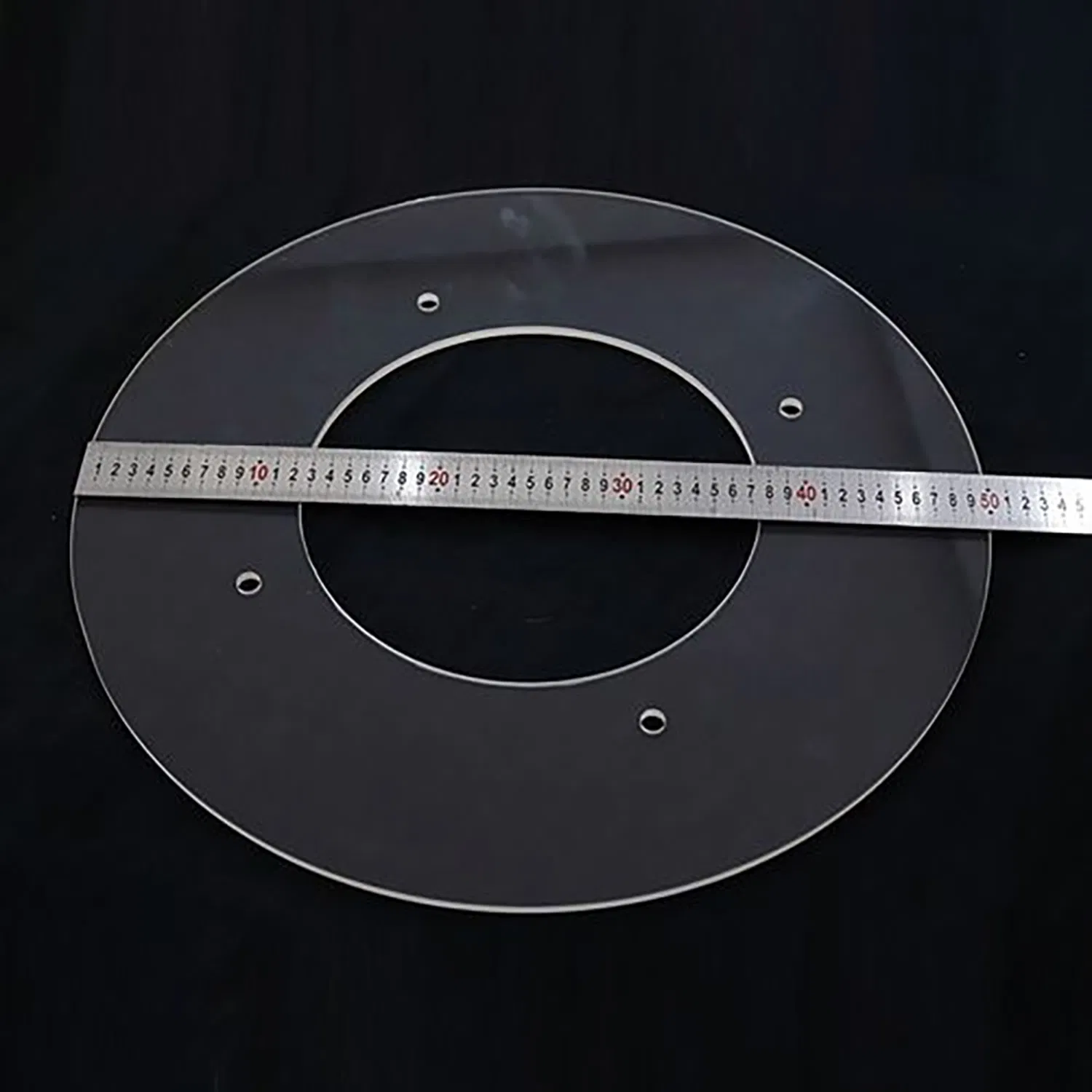

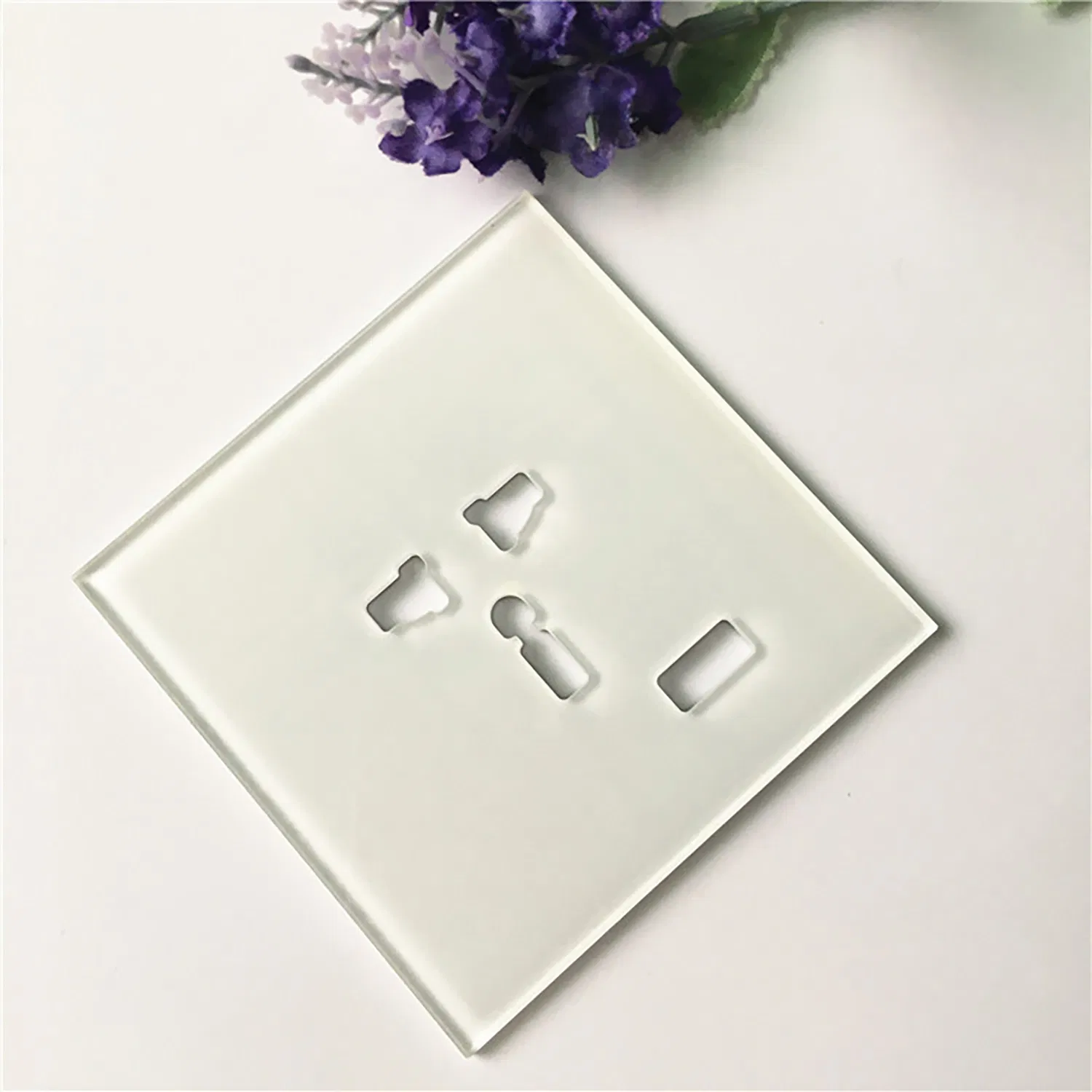

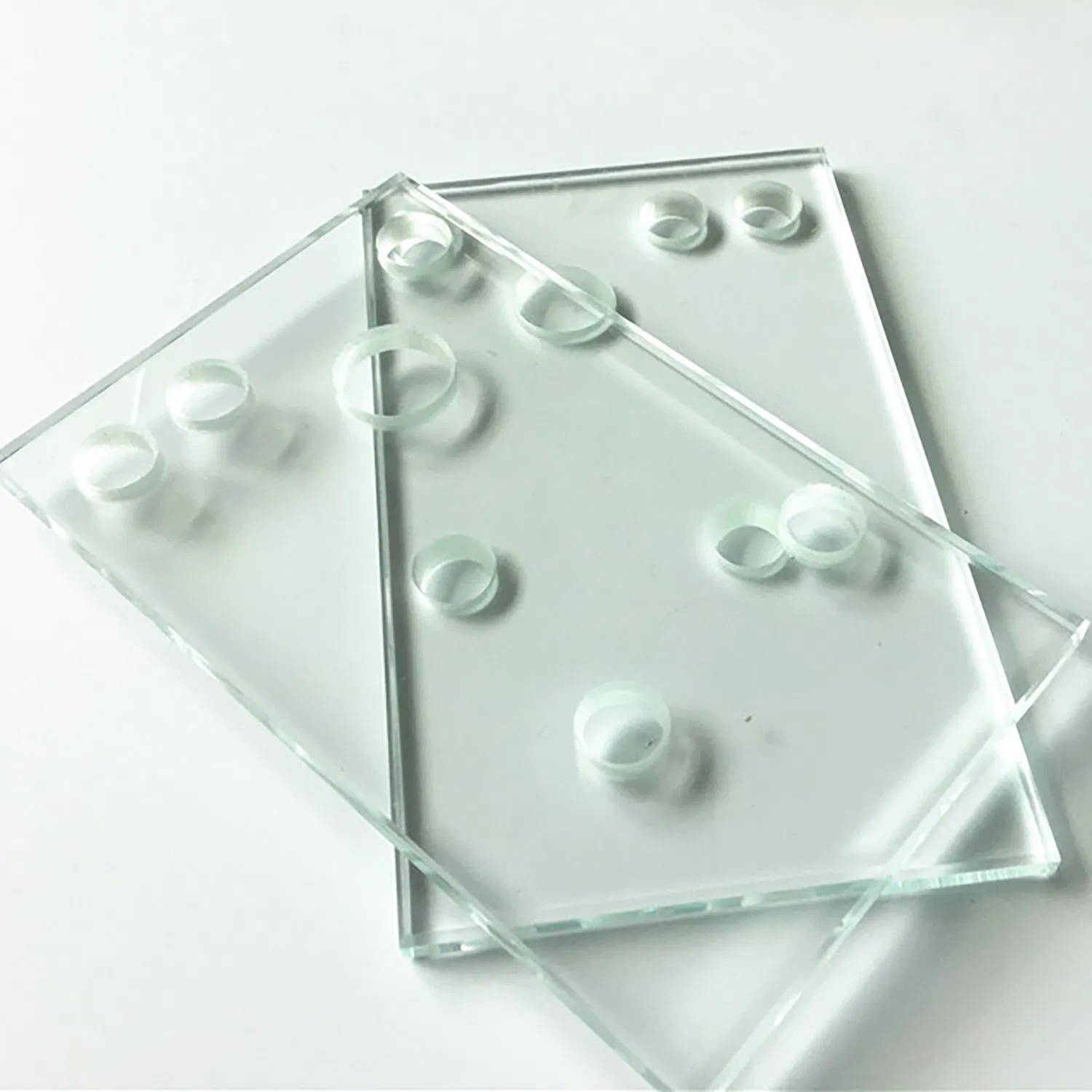

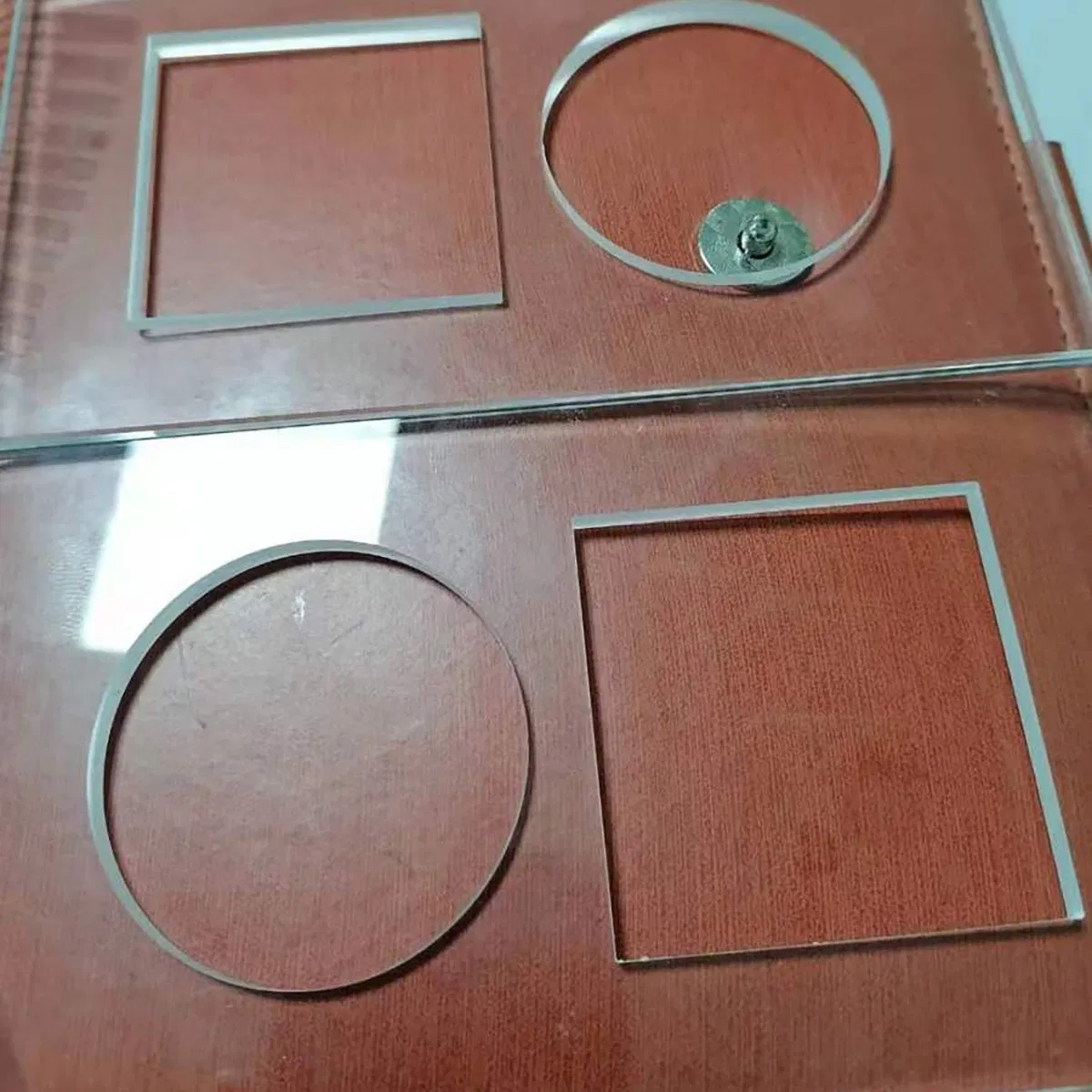

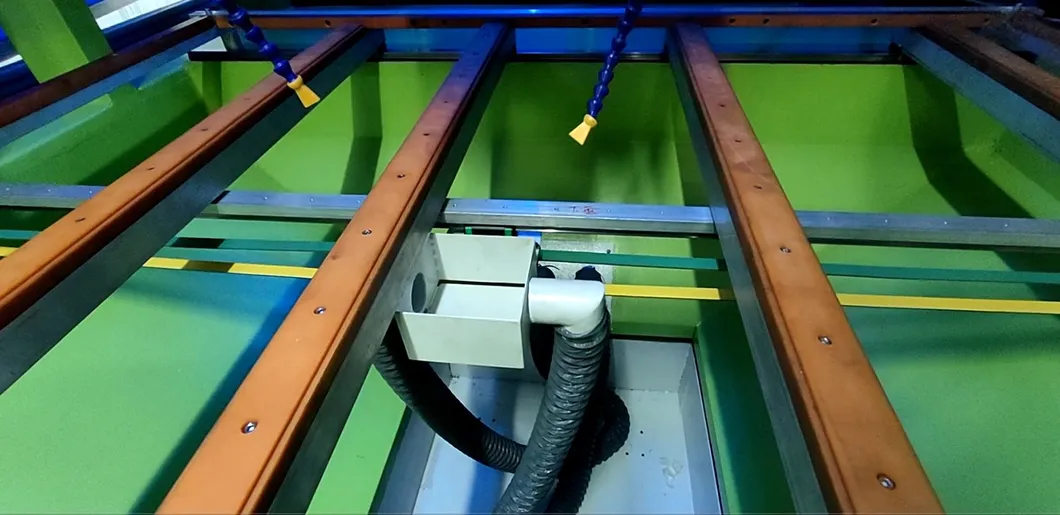

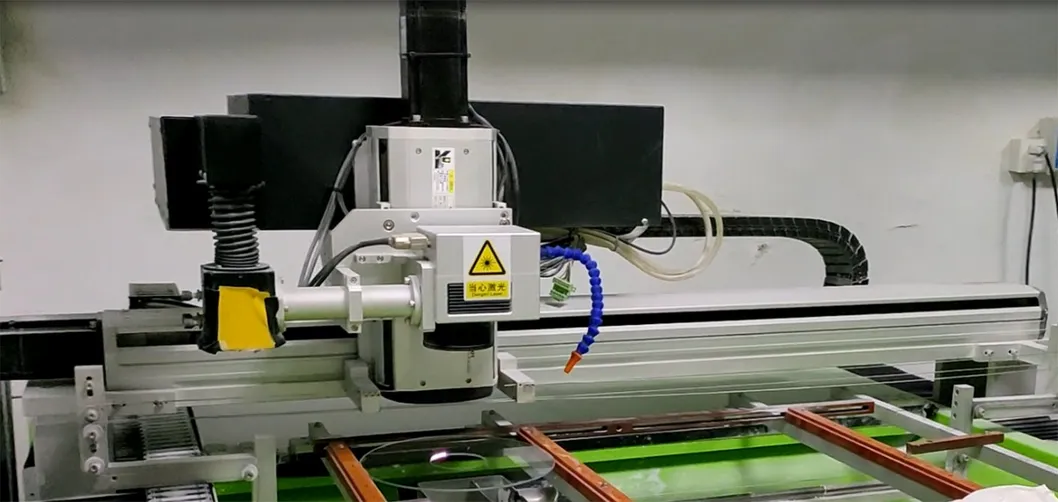

Drilling Performance Precision Cutting
Technical Specifications
Wavelength1070nm IR
Power Options70W, 120W
Spot ModeM²≤1.3
Pulse Width2-50ns
Repetitive Frequency10-200KHz
Marking Speed<6000mm/s
XY Working Stroke1500mm * 2500mm
Processing Speedø=20mm, ð=3mm/10S
Processing Depth≤50mm
Laser Drilling Accuracy±0.1mm
Dimension650mm * W3200mm * H3000mm
Applications

This equipment is widely used in various industries for processing electronic products, camera lenses, car glass, medical equipment, home appliances, kitchenware, glass containers, doors and windows, photovoltaic glass backplates, quartz glass, and more.

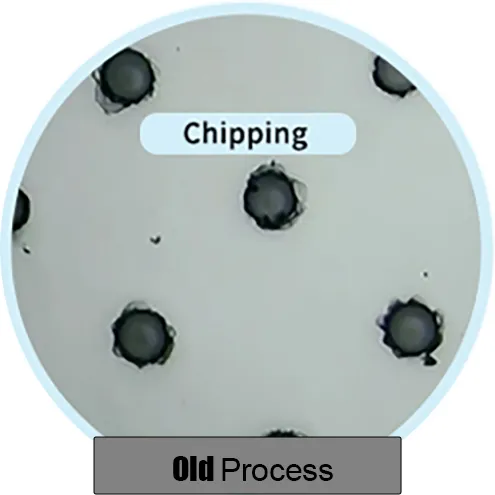

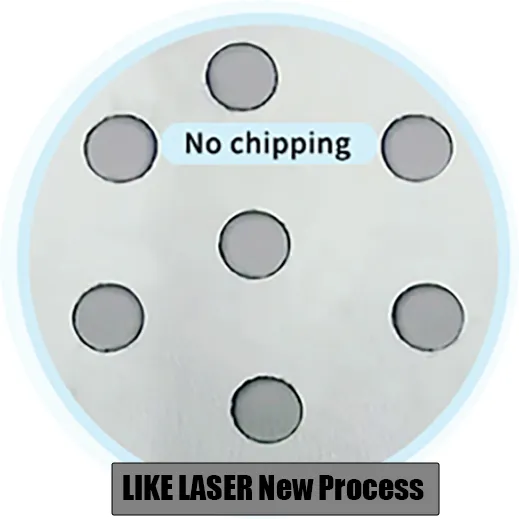

Application 1 Application 2

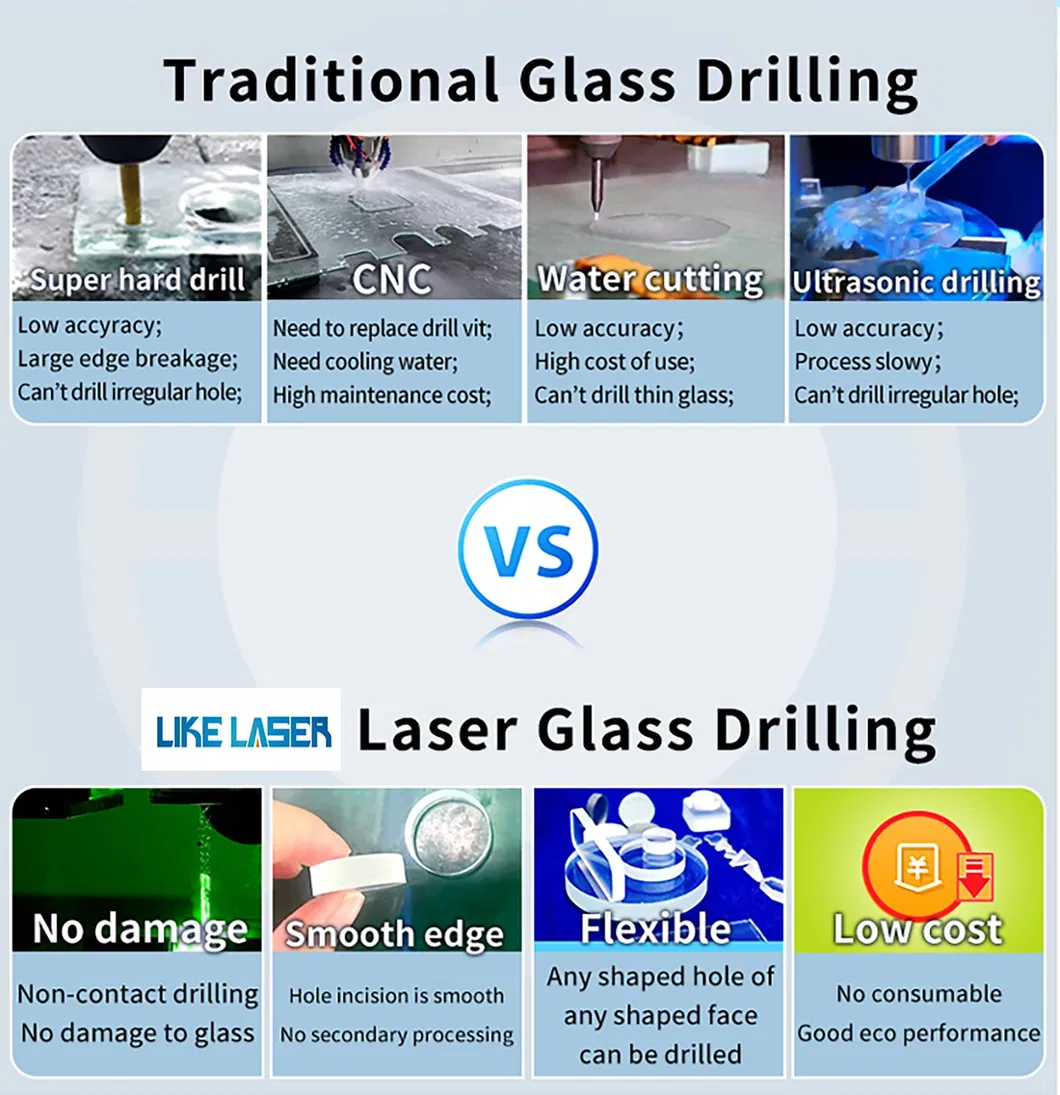

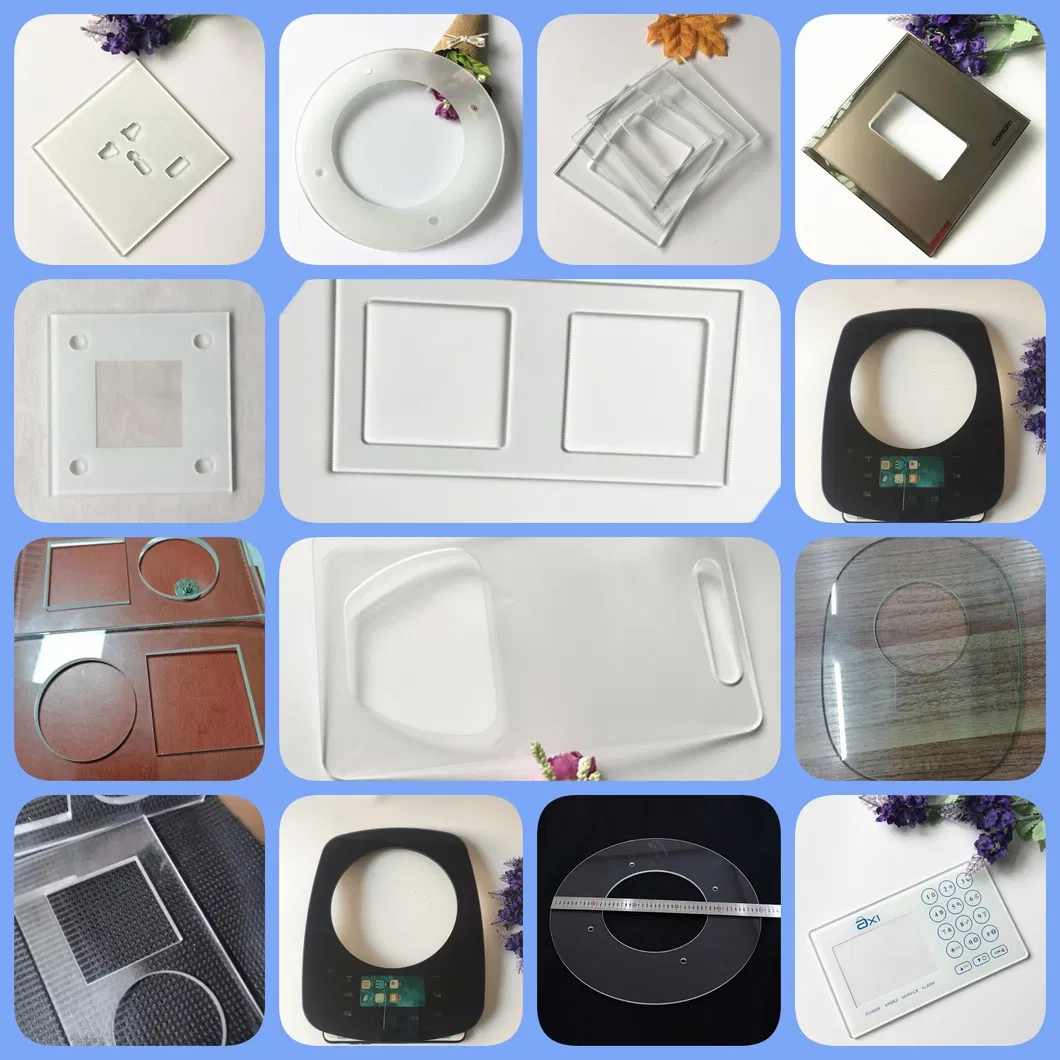

Application 3 Application 4
Packaging & Certificates
Shipping Package Factory Overview Certificates
Frequently Asked Questions
What is the advantage of laser drilling over mechanical methods?
Laser drilling offers non-contact processing, which means the glass is not subject to external mechanical force, significantly reducing the damage rate and increasing precision.
What materials can this machine process?
This machine is specifically designed for glass but can also handle various types including quartz glass, photovoltaic glass backplates, and AR LCD screens.
What is the maximum glass thickness it can handle?
The machine can process glass with a maximum thickness of up to 20mm, with a processing depth capability of ≤50mm.
What is the minimum aperture size achievable?
The minimum aperture size for drilling is 0.3mm with a high accuracy of ±0.1mm.
Does the machine require long preheating times?
No, the machine is highly efficient and requires less than one minute of preheating time before operation.
What industries typically use this laser equipment?
It is widely used in automotive glass, electronics (camera lenses), medical equipment, home appliances, and the semiconductor industry.
