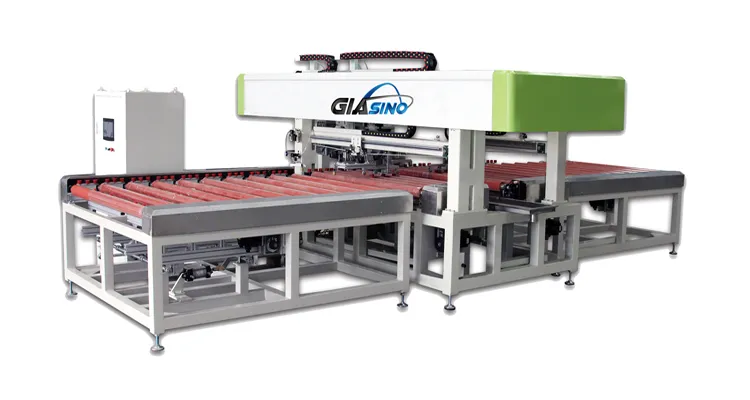

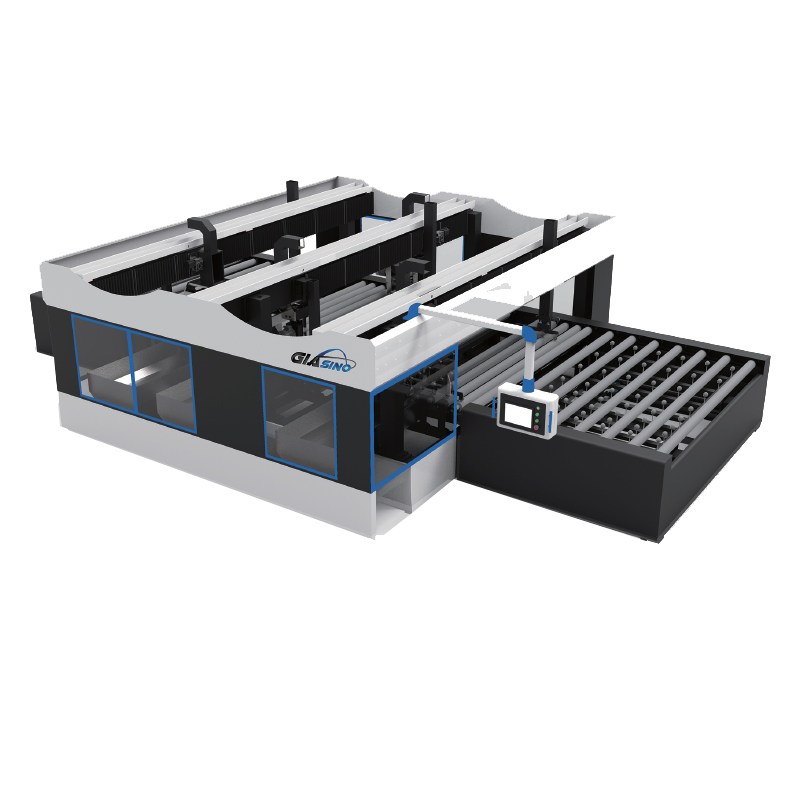

Glass Four Sides Fast Edging Machine

Customization:	Available
Certification:	CE, ISO
Processing Speed:	10-15 m/min

Send Inquiry

Product Description

Basic Specifications

Model NO.GS26D

Processing Thickness3-19 mm

Voltage380V

Warranty1 year

TypeGlass Edging Machine

StructureHorizontal

Control SystemPLC

Grinding Head Number4

ConditionNew

After-Sales Service1 year

Transport PackageSea Worthy Package

Specification3 Grinding wheels

Production Capacity30 sets/Month

Automatic Glass Seaming Machine

Key Characteristics

PLC control with easy operation interface
Advanced recycle water system
Automatic glass size identification
Precise glass automatic location
SUS304 high-quality stainless water tank
8 servo motor and 8 axis link work system
Built-in Self-diagnosis function
High work efficiency and precision

Main Component Brands

Part Name	Brand	Origin
PLC	Mitsubishi/Delta	Japan
Touch Screen	Wei Lun	Japan
Servo Motor	Delta/Estun	Taiwan
Linear Guides	PMI	Taiwan
Pneumatic Element	Airtac	Taiwan

Technical Parameters

Max Glass Length	Unlimited
Max Glass Width	2500mm
Min Glass Size	650*350mm
Glass Thickness	4-8mm
Edging Size	0.5-2mm
Edging Speed	0-25m/min
Grinding Quantity	2 Groups (2+2 wheels)
Dimension	7500x5000*1600mm
Power	12KW
Air Pressure	0.6-0.8Mp

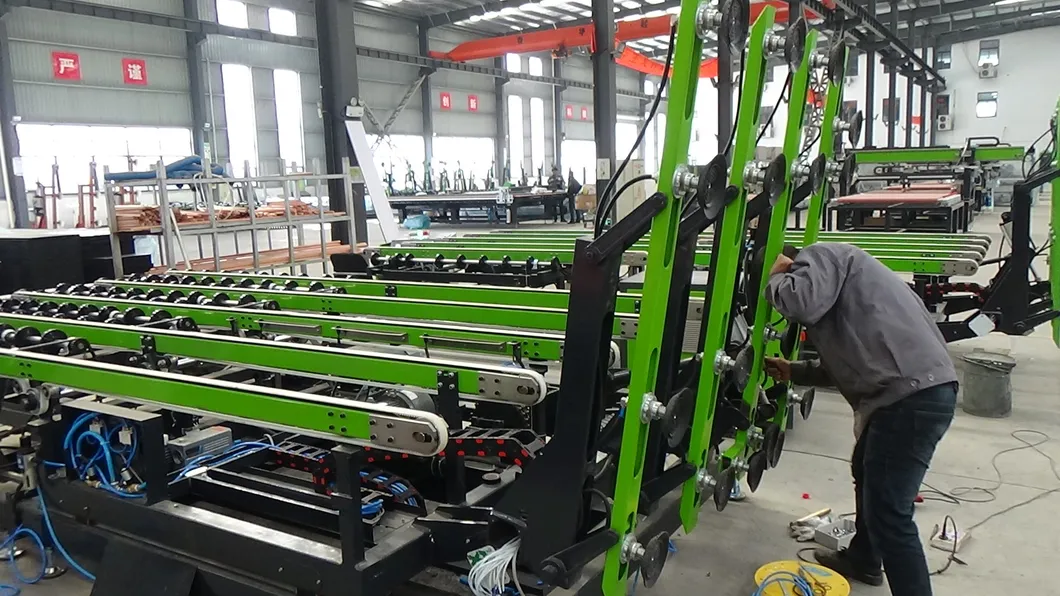

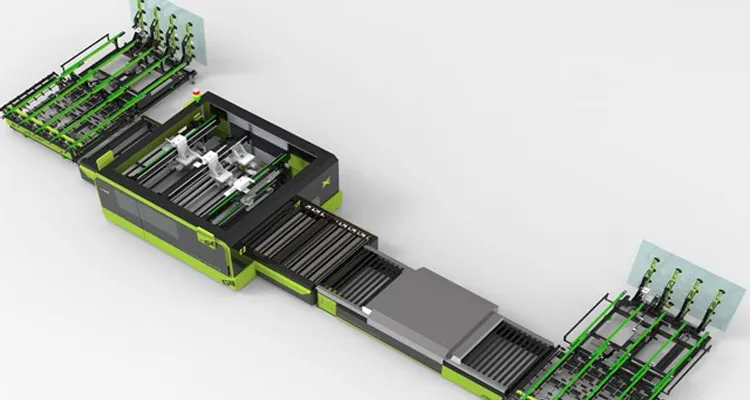

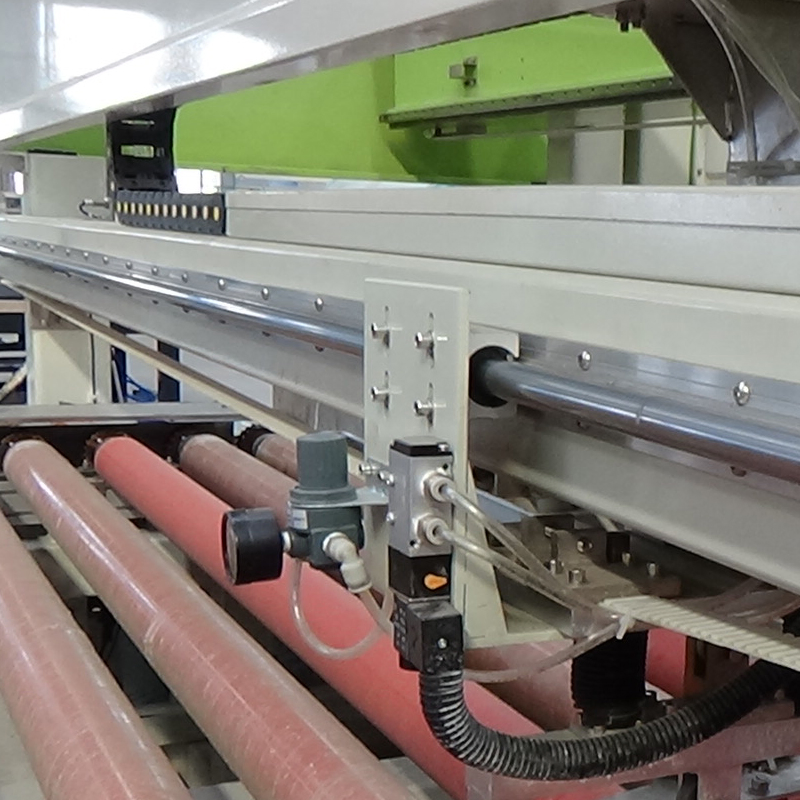

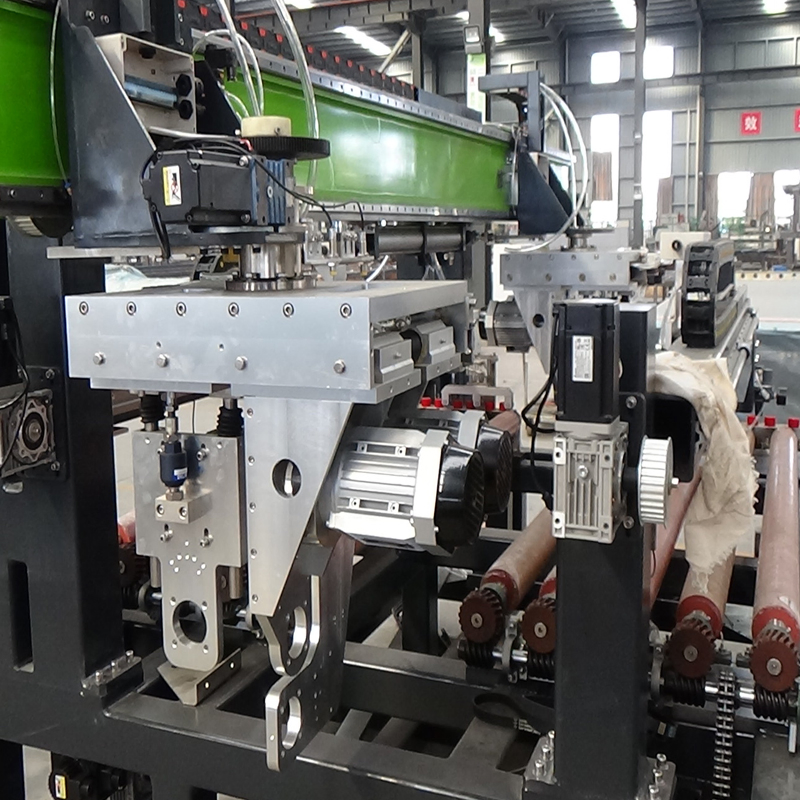

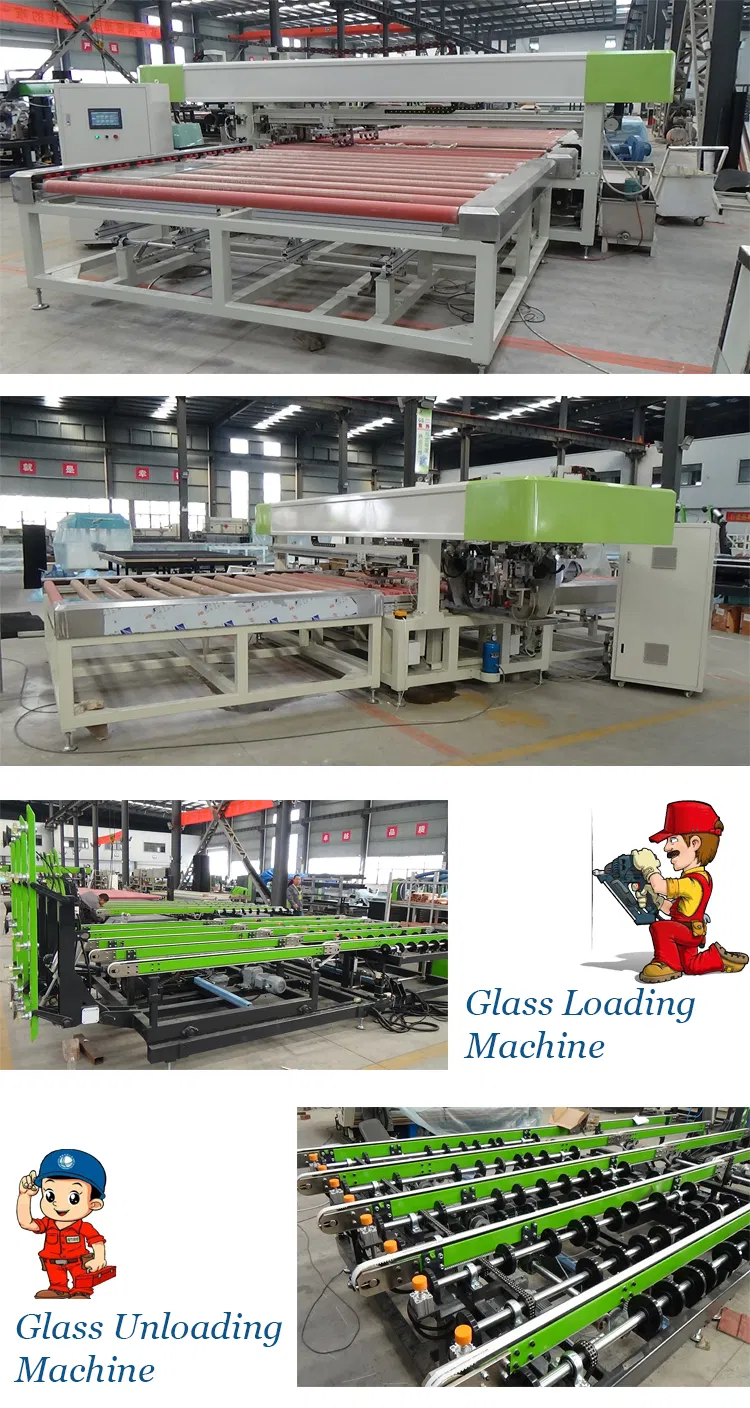

Product Gallery

Equipment Composition

The system is integrated with eight primary functional parts:

Frame mechanism
Overturn mechanism
Suction cup lifting mechanism
Y-axis walking mechanism

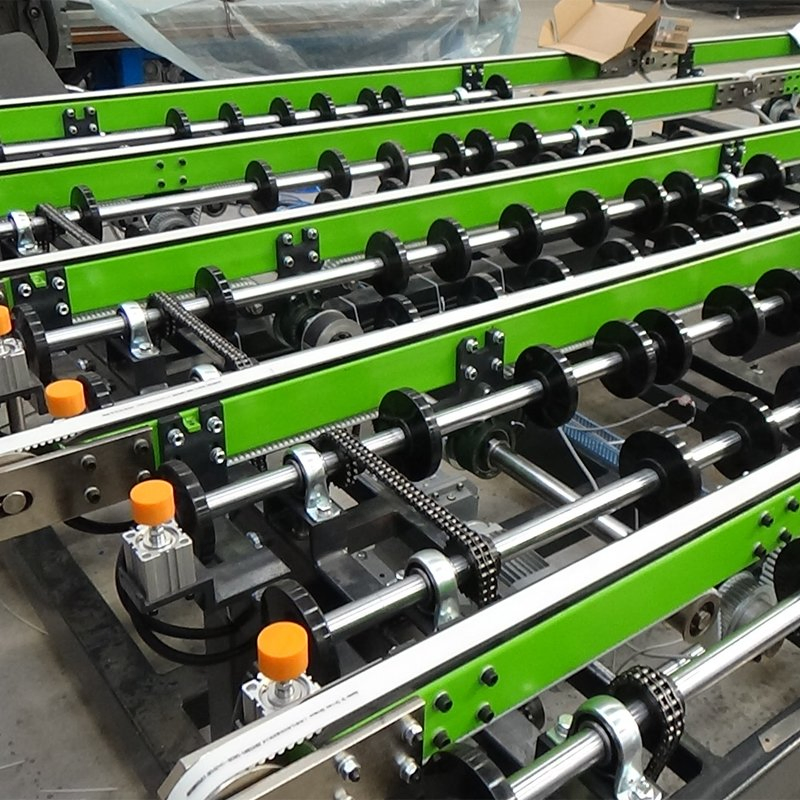

Conveying mechanism
Vacuum and pneumatic control system
Conveying correction mechanism
Electrical control system

Frequently Asked Questions

Q: What range of glass thickness can this machine process?

A: The machine is designed to handle glass thicknesses ranging from 3mm to 19mm for general edging, with a specific range of 4-8mm for standard seaming operations.

Q: Is the glass length limited during processing?

A: No, the maximum glass length is unlimited, while the maximum width supported is 2500mm.

Q: What type of control system does the machine use?

A: It utilizes a high-performance PLC control system with an 8-axis link work system and 8 servo motors for maximum precision.

Q: How does the machine handle different glass sizes automatically?

A: It features an automatic glass size identification and location system, allowing it to adapt to various dimensions without manual reconfiguration.

Q: What is the material used for the water tank?

A: The machine is equipped with a top-quality SUS304 stainless steel water tank integrated into a recycle water system.

Q: What is the maximum processing speed for edging?

A: The edging speed is adjustable and can reach up to 25 meters per minute (0-25m/min).
