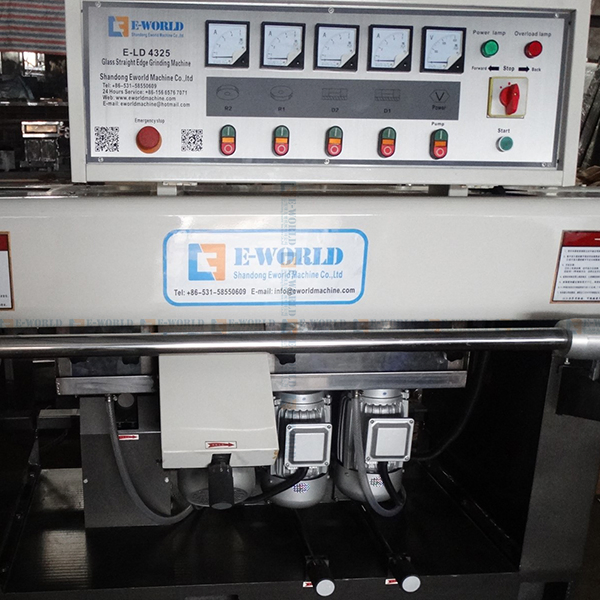

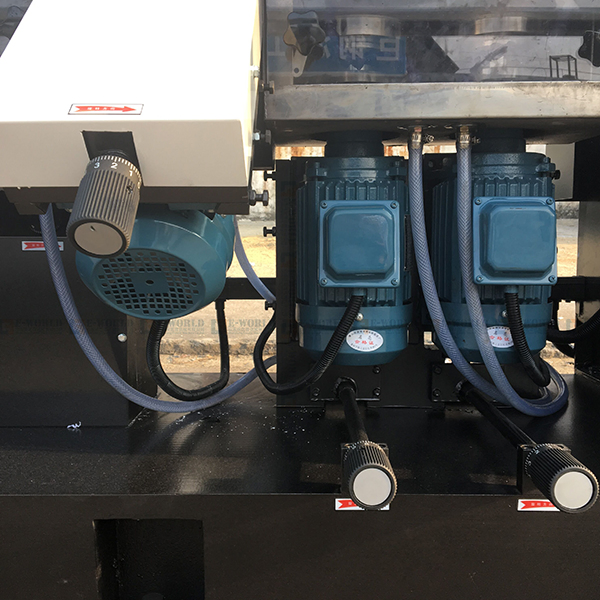

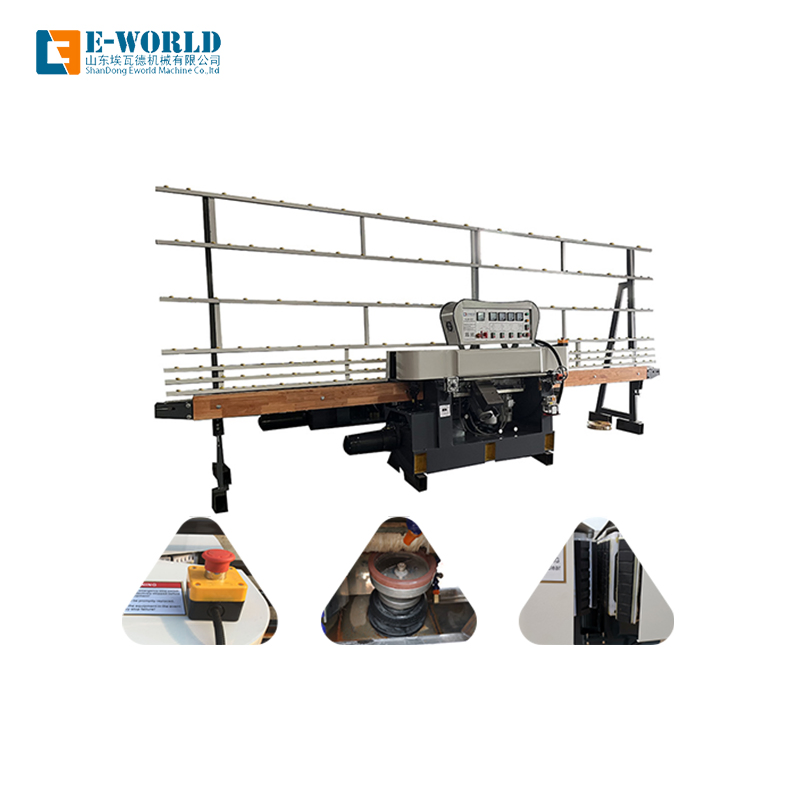

Glass Edging Machine Prices 4 Motors Bevelling and Polishing Machine

Customization: Available
Certification: CE, ISO
Processing Speed: 15-20 m/min

Product Description

📋

Basic Information

Model NO.E-LD4325
Processing Thickness3-19 mm
Voltage380V
WarrantyOne Year Warranty
Weight1800kg
Installed Power9.85kw
Max. Glass Size2440X3660mm
Min. Glass Size60X60mm
Working Speed0.7-7.0m/Min
Control SystemPLC / Electric
Grinding Head Number4
💎

4 Motors Straight Line Glass Edging

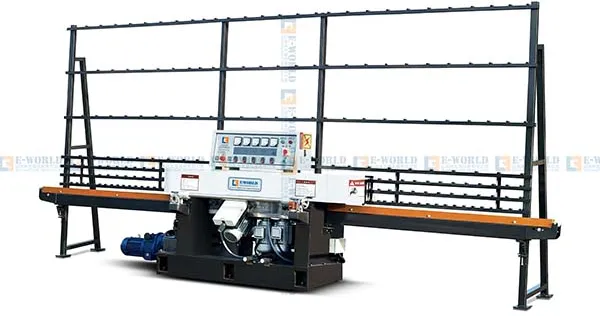

Glass Edging Machine
PackingPacked in Wooden Case, Seaworthy Package
HS Code8464201000
Production Capacity10 Sets/ Month
📊

Technical Parameters

Maximum flat edging level3mm
Maximum arrising width2.5mm
Arris angle45°
Worktable height750mm
Overall dimension6000x1000x2500mm
🚀

Functions & Main Parts

  • Processes rectilinear glass plates in various sizes and thicknesses.
  • Simultaneous grinding (roughing), finishing resin, and fillets.
  • Continuous processing for high-volume hardening and rolling production lines.
  • Machine basement made of high-quality cast steel.
  • High-speed motors for spindles (2840Rpm/min for diamond/resin wheels).
  • Stepless speed control system.

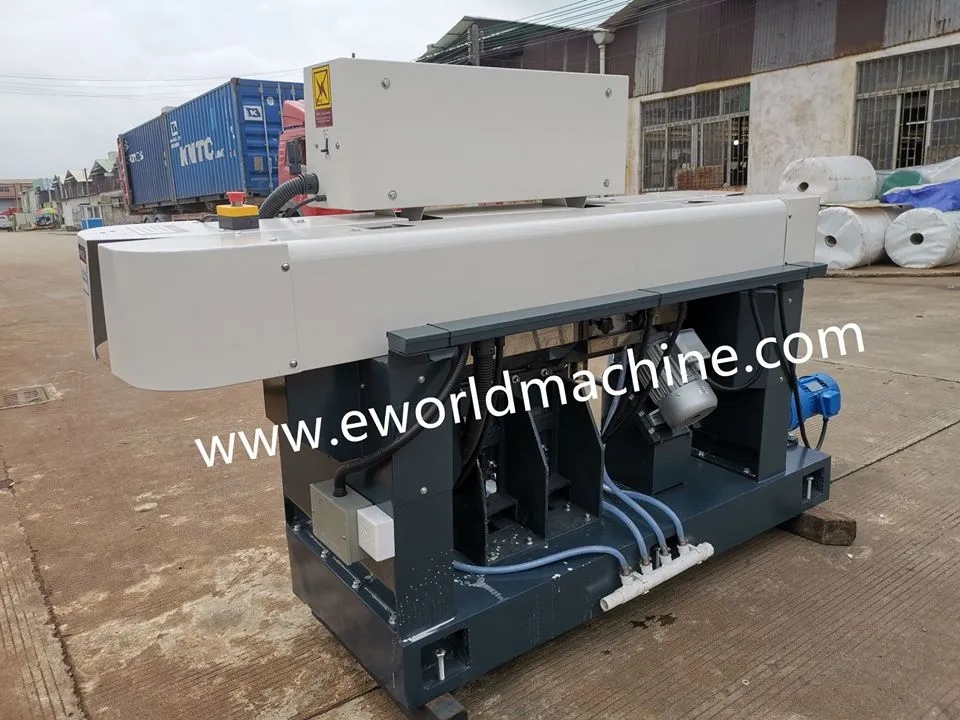

Processing Detail 1

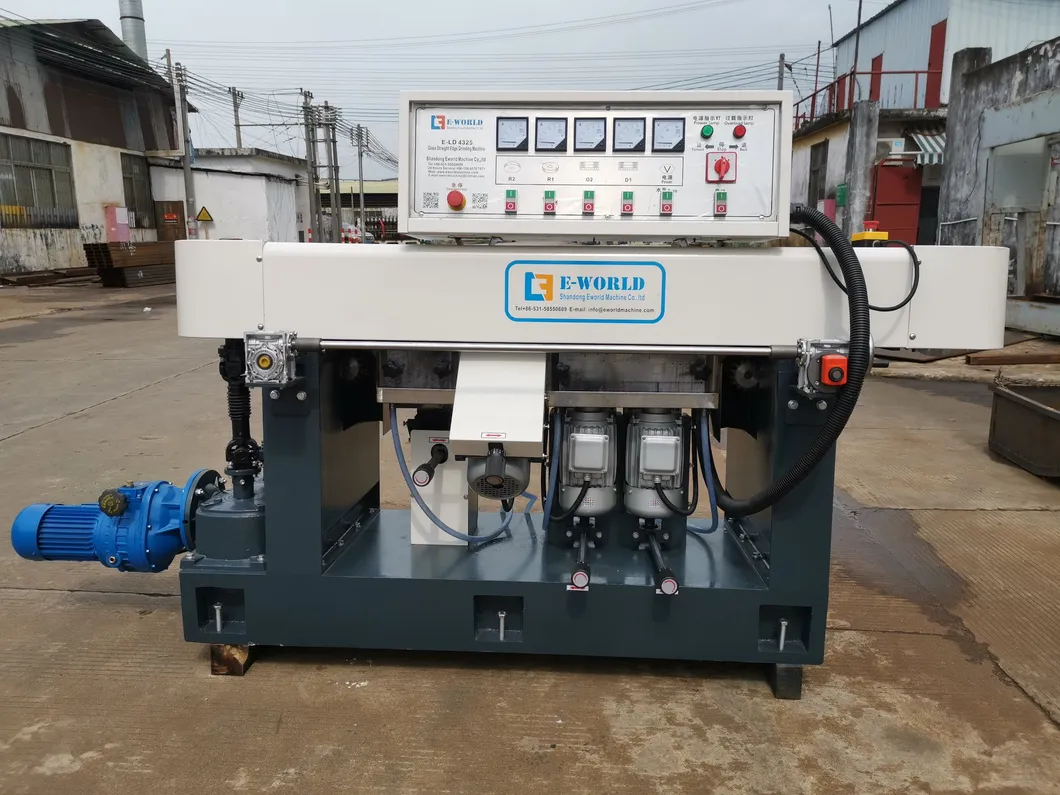

Processing Detail 2

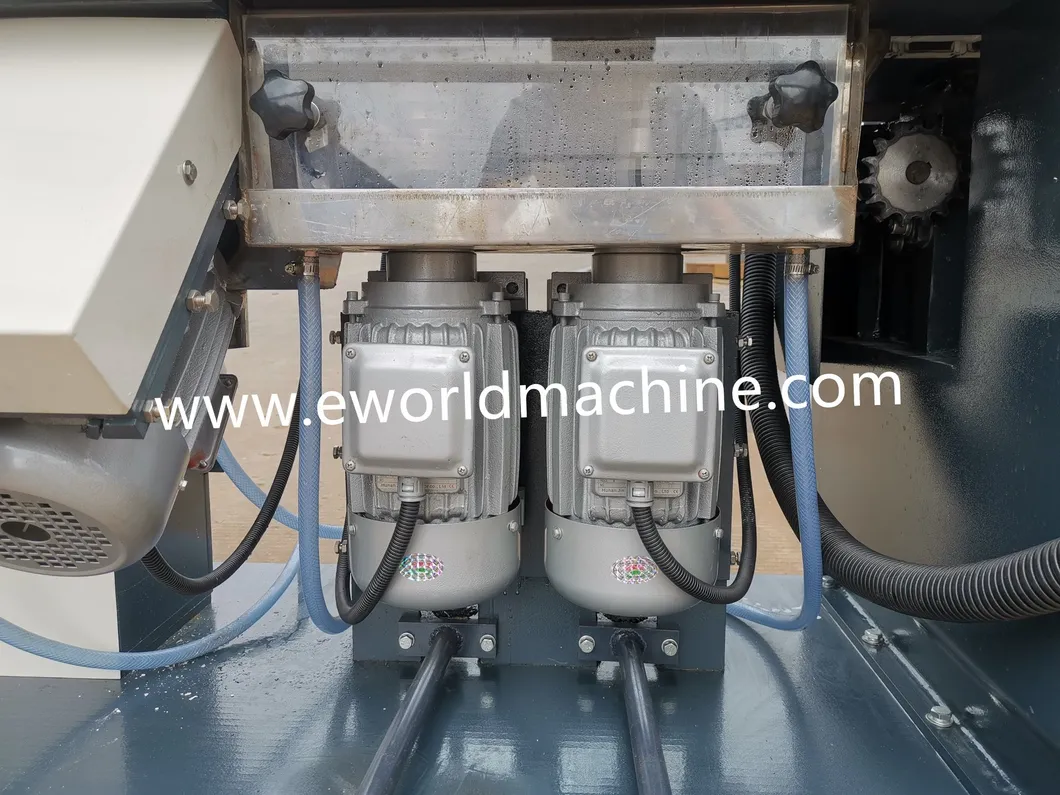

Machine Structure 1

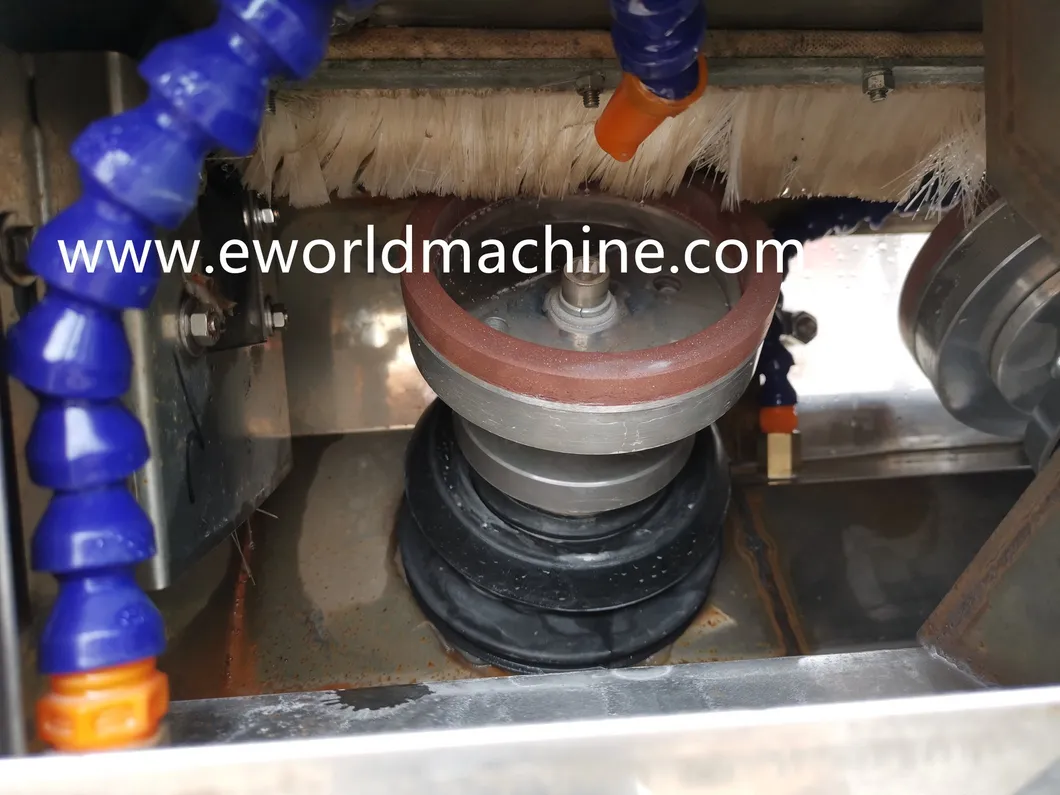

Machine Structure 2
Detailed View 1
Detailed View 2
Detailed View 3

Frequently Asked Questions

1. Are you a professional manufacturer? Yes, we are a professional manufacture with more than 5 specialized workshops.
2. What kind of after-sales service do you provide? We offer 24-hour after-sales service with over 12 years of experience in the field. Our communication is barrier-free in fluent English.
3. What is the guarantee period for the machine? The guarantee is 18 months, with a 2-year quality guaranty for the machine (excluding consumables). Technical support is available 24/7.
4. Do you provide operation training? Yes, we can send professional engineers to the working site for installation, adjustment, and comprehensive operation training.
5. How long is the typical delivery time? Standard machines take 3-15 days. Customized or non-standard machines take 15 to 30 days depending on specific requirements.
6. What payment methods are accepted? We support various payment methods including L/C, T/T, D/P, and Western Union.
