| Model NO. | JGZM | Processing Thickness | 5-25 mm |
|---|---|---|---|
| Voltage | 380V | Warranty | One Year |
| Power Supply | 380V/50Hz/3p | Power | 19.75kw |
| Min. Glass Size | 80*80mm | Process Speed | 0.7-7m/Min |
| Weight | 3000kg | Transmission | Stepless Speed Regulation |

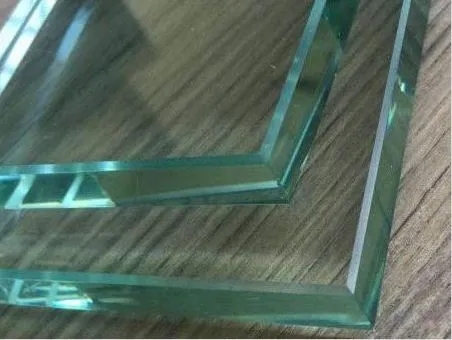

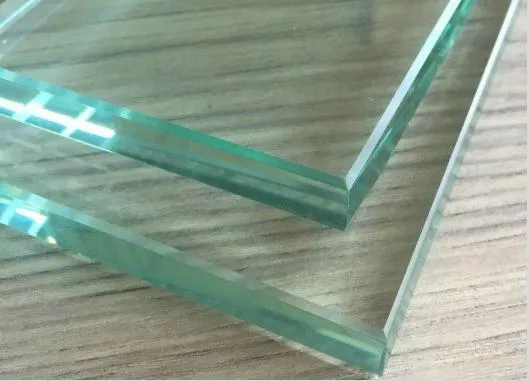

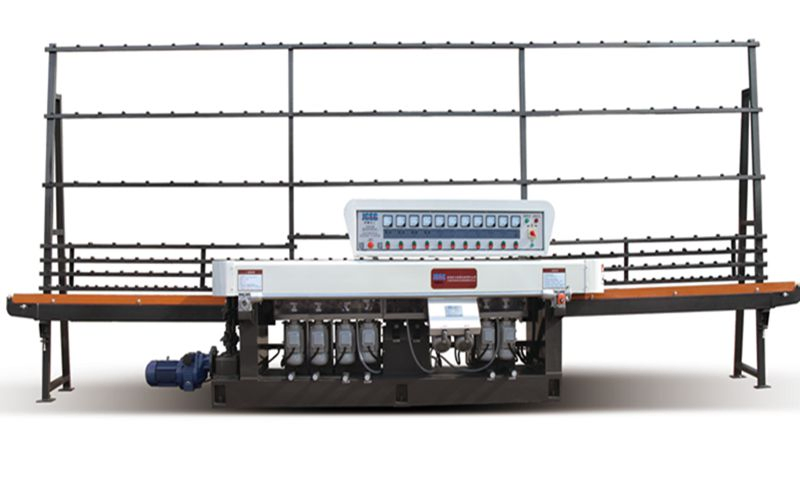

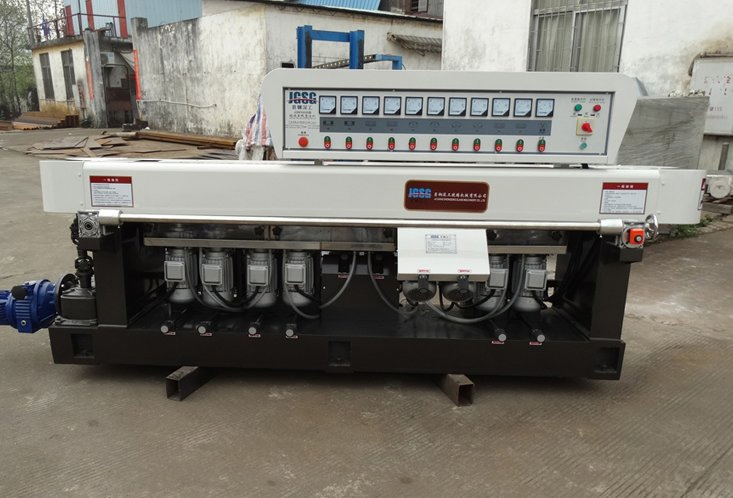

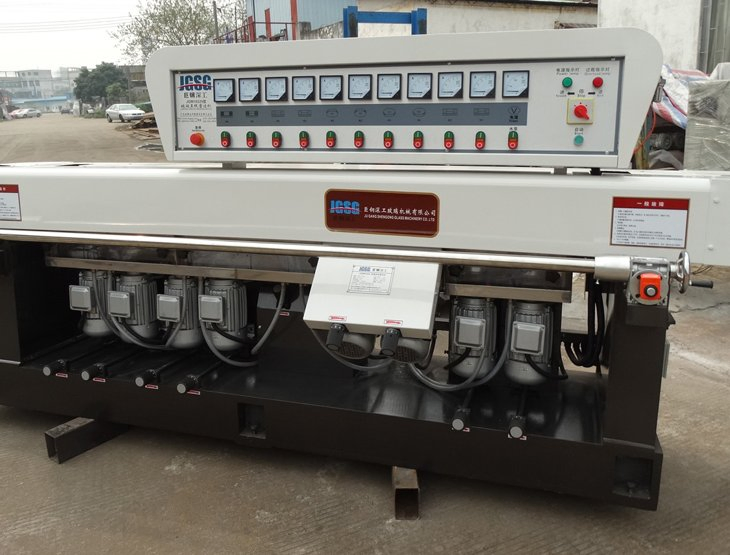

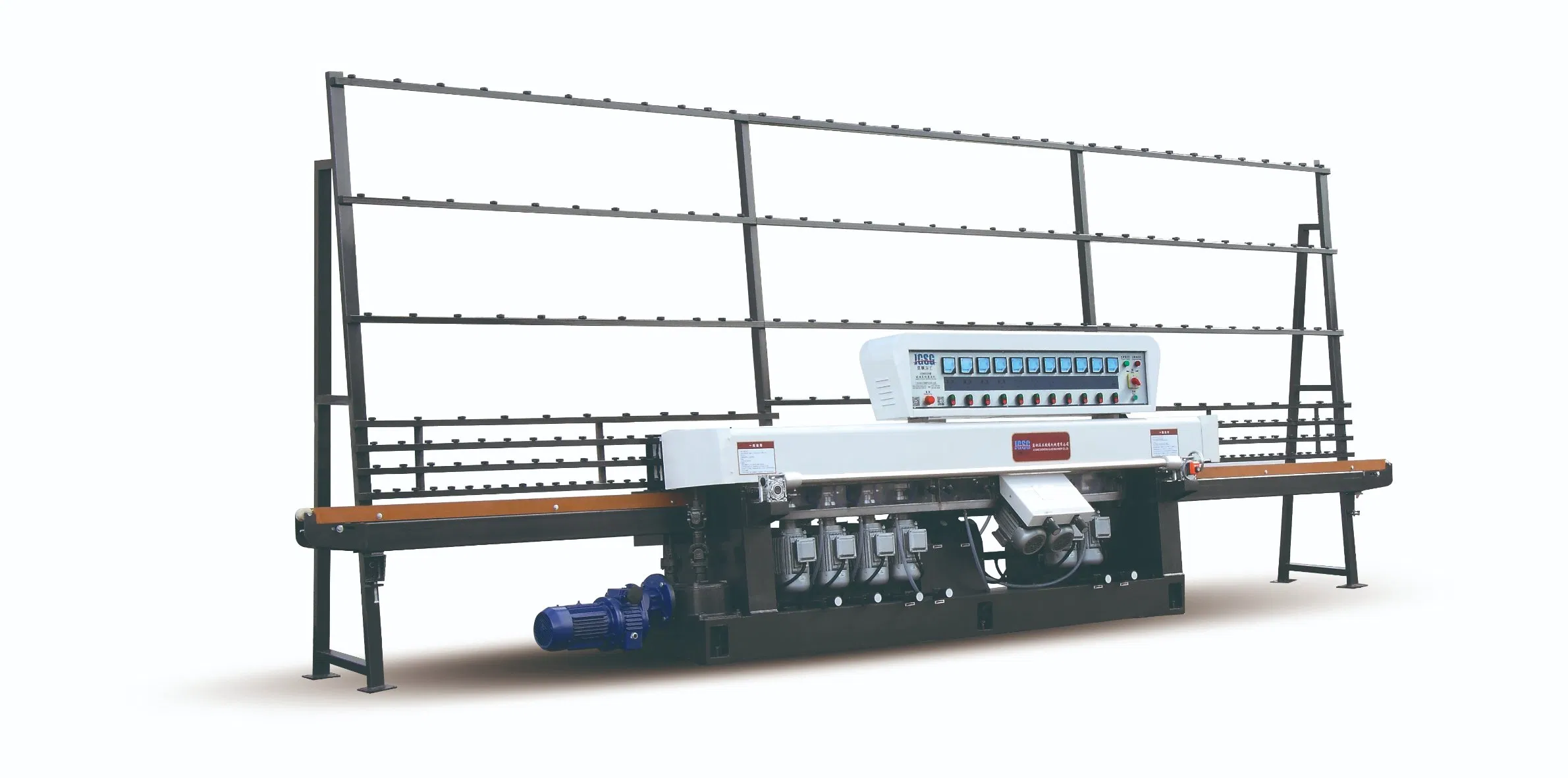

This machine is suitable for edge and corner grinding of plate glass of different size and thickness, finishing coarse grinding, fine grinding and polishing at one time. The flat surface after polishing is close to bright and clean degree of glass matrix. When adjusting different processing thickness, the former chamfering grinding head can move simultaneously along with the front-axle beam. It possesses the advantages of advanced structure, high working precision, easy operation and capacity of continuous processing for the same thickness.
| Model | JGZM10325 |
| Power Supply | 380V/50HZ/3P |
| Total Power | 19.75KW |
| Min. Glass Size | 80*80mm |
| Glass Thickness | 3-25mm |
| Process Speed | 0.7-7m/min |
| Machine Size | 7000*1200*2500mm |

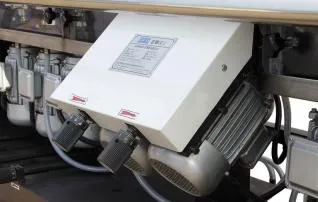

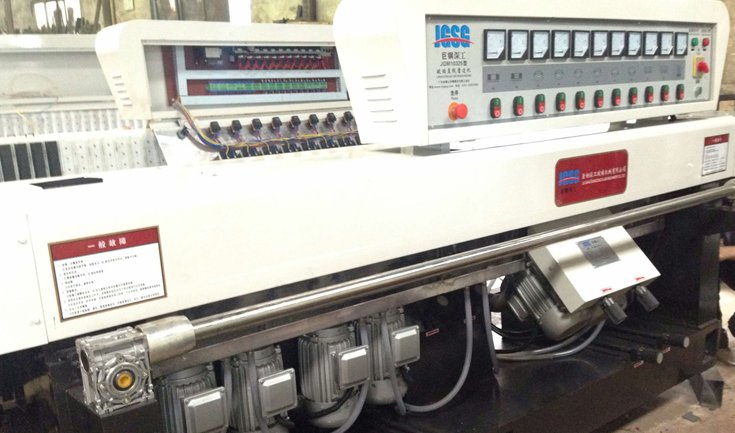

The front beam chamfering motor moves synchronously with the front beam. When the glass becomes thicker or thinner, there is no need to readjust the chamfer width.

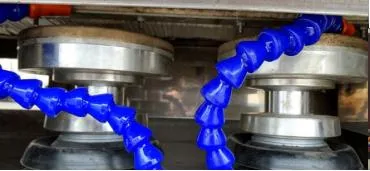

Grinding head water tank: Made of high-quality stainless steel, the edges are specially crafted for safety.
Platen: Special grinding machine technology ensures no chamfering or unevenness when processing long glass.
| Part Name | Supplier/Manufacturer | Specifications |
|---|---|---|
| Machine Motor | JinLong | 1.5kw - 2.2kw |
| Wheels | AnHua | High Quality |
| Conveyor Motor | GuangDong NanHua | 2.2KW Variable Frequency |
| Main Bearing | TaiWan ShangYin / NSK | High Precision |

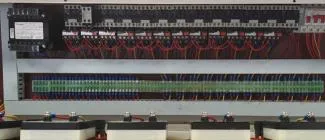

| Electric Appliance | ZhengTai / ShiNaiDe | Global Standard |
| Girder & Base | Cast Iron | Annealing Treatment |
We provide complete turnkey solutions for both new and existing glass processing facilities, including technical drawings and factory layout recommendations.
On-site and remote installation, commissioning, and training support are provided alongside a guaranteed supply of spare parts.
