Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging, Automatic Glass Edge/Edging Grinding and Polishing Processing Machine

Customization: Available
Certification: CE, ISO
Warranty: 1 Year

Product Description

📋

Basic Information

Model NO.
RSY-X-08
Type
Glass Edging Machine
Structure
Horizontal
Control System
Industrial Computer
Machine Type
Horizontal Glass Washing/Edging Machine
Condition
New
Grinding Head
1
After-Sales Service
1 Year
Package
Wooden Case
Specification
2800*1250*1270 mm
Origin
China
HS Code
8464201000
Capacity
10000 Pieces/Year
⚙️

Product Description

Professional manufacturer for glass machinery, such as grinding machine, vacuum lifter, storage shelves, laminated furnace and accessories.

This series machine is especially suitable for processing glass rounded corners and car windshields. Widely used for different glass specifications without manual adjustment repeatedly.

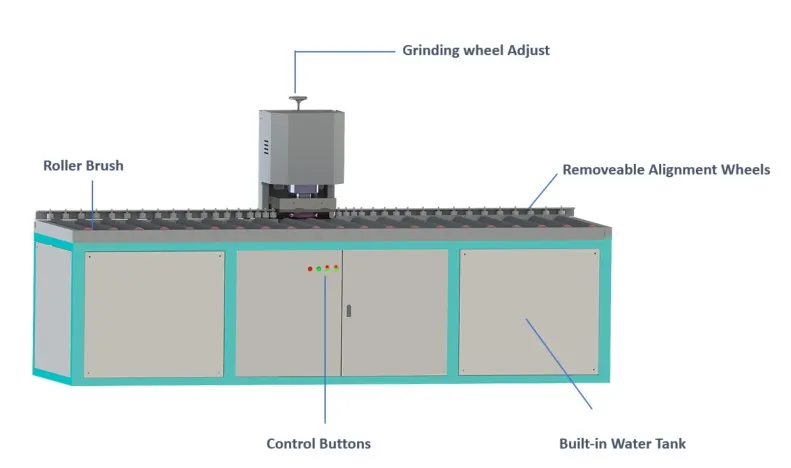

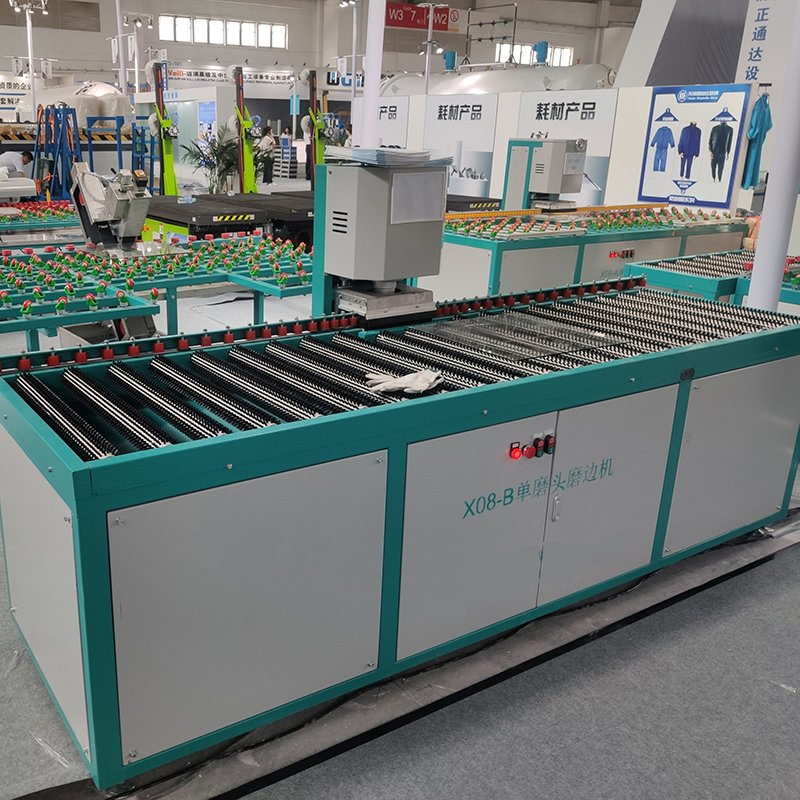

TYRSY-08A/08B Multifunctional Edge Grinder

This machine could be connected with the washing machine from its front or side position, therefore making the processing line more smoothly and result in manpower and time-saving. It has zero influence on the existing connected four-side grinding and other mechanical equipment. It effectively solves problems such as rough edges during glass processing, easy cracking in high-temperature furnaces, and secondary chipping.

🌟

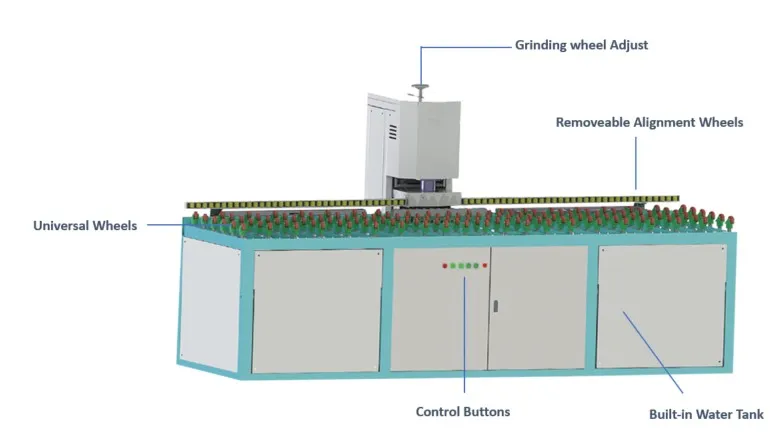

Key Features

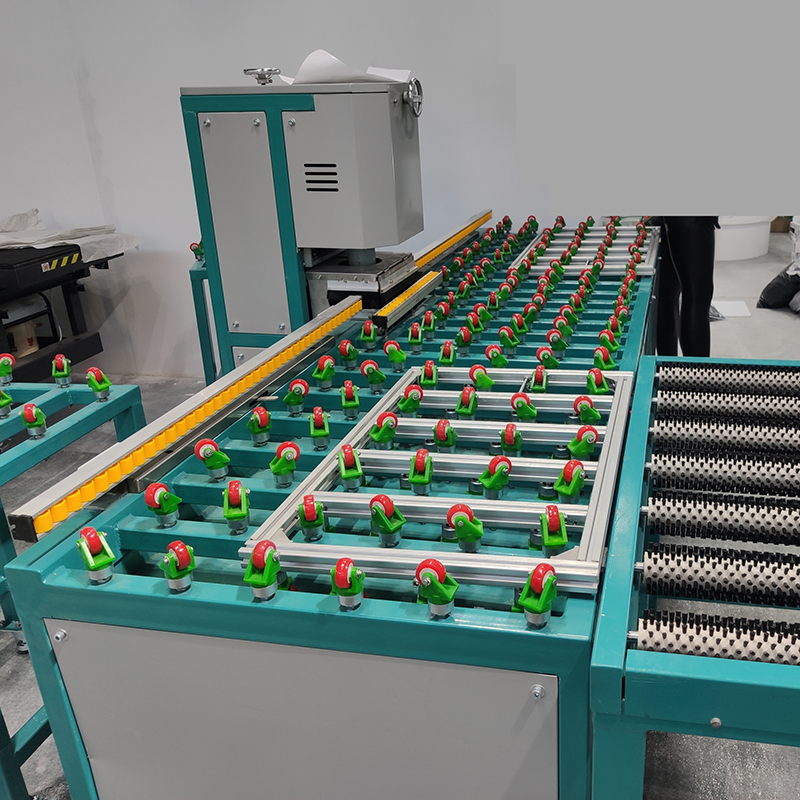

  • Universal wheels and roller brushes types to meet different business needs.
  • Easily attached to washing machines for integrated production.
  • Extensible platforms offer flexibility for various glass sizes.
  • Workable for special-shaped edging: straight, rounded, triangular, wavy, etc.
  • Adjustable grinding wheel and removable alignment wheels.
📊

Technical Specifications

Model RSY-08A RSY-08B
Power 2.3KW 2.3KW
Overall Size 2840*1250*850mm 2800*1250*850mm
Glass Thickness 3mm-12mm 3mm-12mm
Min Processing Size 280*280mm 300*300mm
Max Processing Size 2000*2000mm 2000*2000mm
🖼️

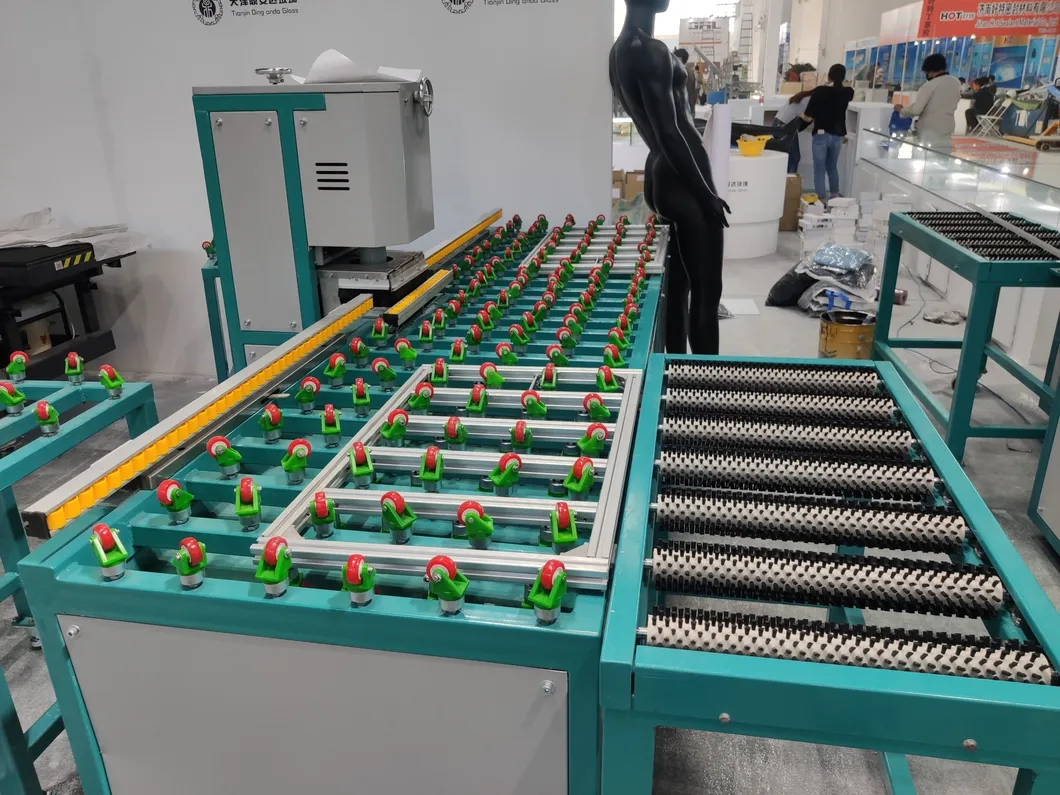

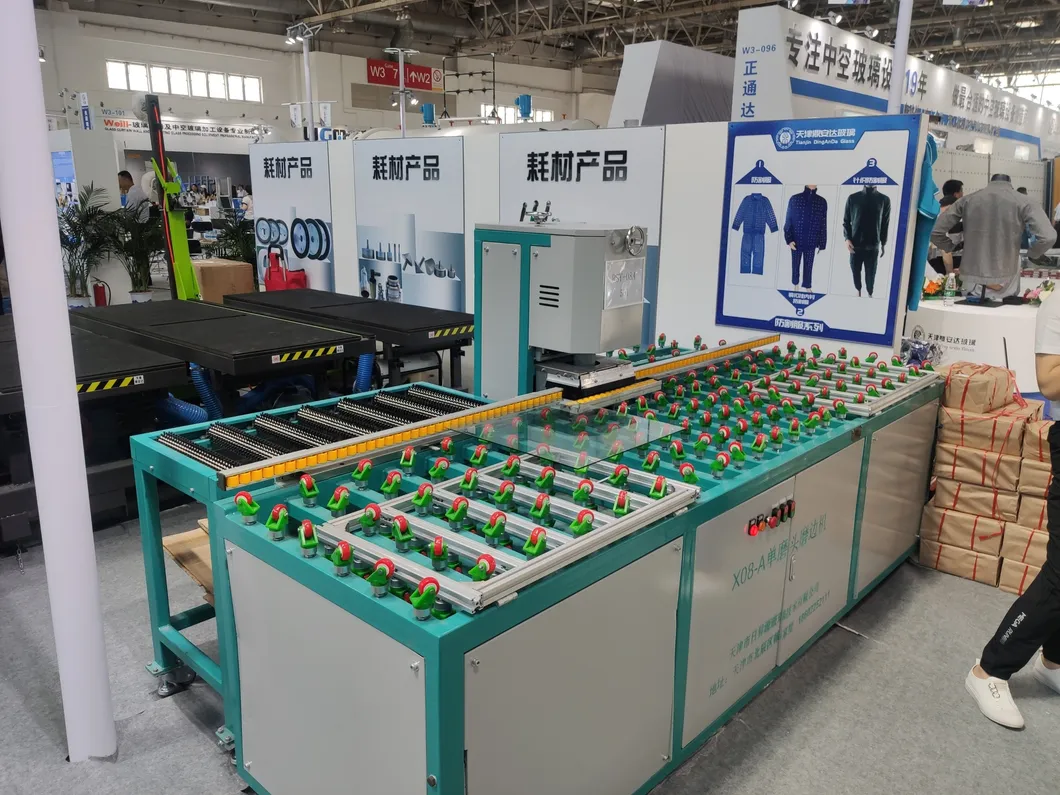

Gallery Showcase

Frequently Asked Questions

Q: Is this machine for rough grinding or polishing? A: Our edging machine is designed for rough grinding, ideal for chamfering before glass is tempered or insulated.
Q: Can it process irregular glass shapes? A: While this standard series focuses on straight and rounded corners, our DAD 2088 model is specifically built for irregular shapes like triangles, waves, and circles.
Q: What is the structure of the grinding wheel? A: It uses a structure similar to four-side grinding machines, featuring two diamond or resin wheels stacked to form an included angle that the glass passes through.
Q: How long do the grinding wheels last? A: Based on 8-hour daily shifts, resin wheels last over a month, while diamond wheels can be used for up to six months.
Q: Does the machine integrate with other equipment? A: Yes, it is designed to connect easily with glass washing machines and does not interfere with existing four-side grinding lines.
Q: What are the primary applications for this machine? A: It is widely used for processing car windshields and any glass requiring high-quality rounded corners.

Waiting for your inquiry.

Limited products with unlimited service!
