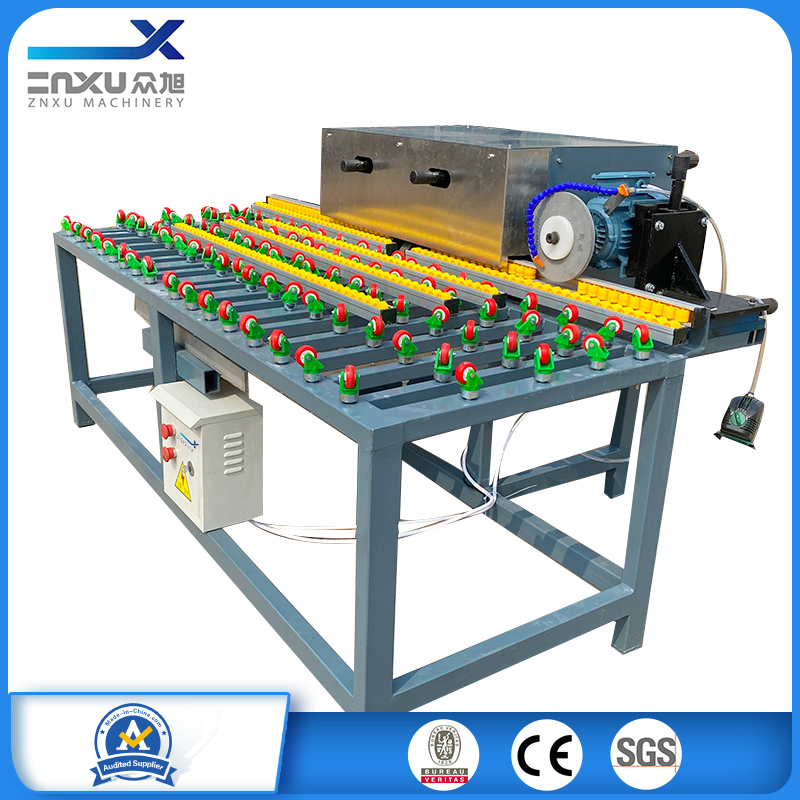

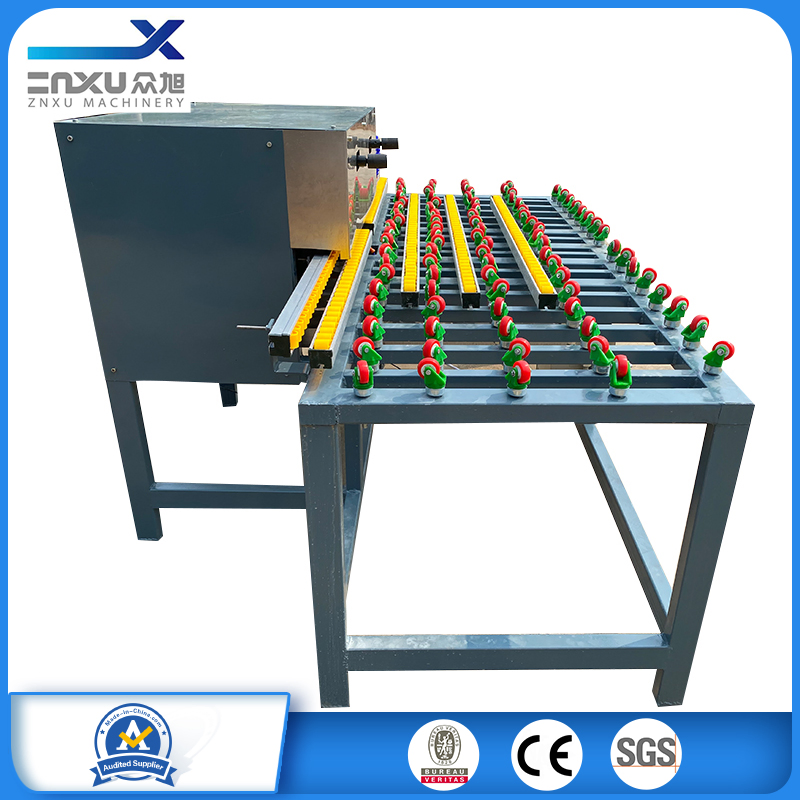

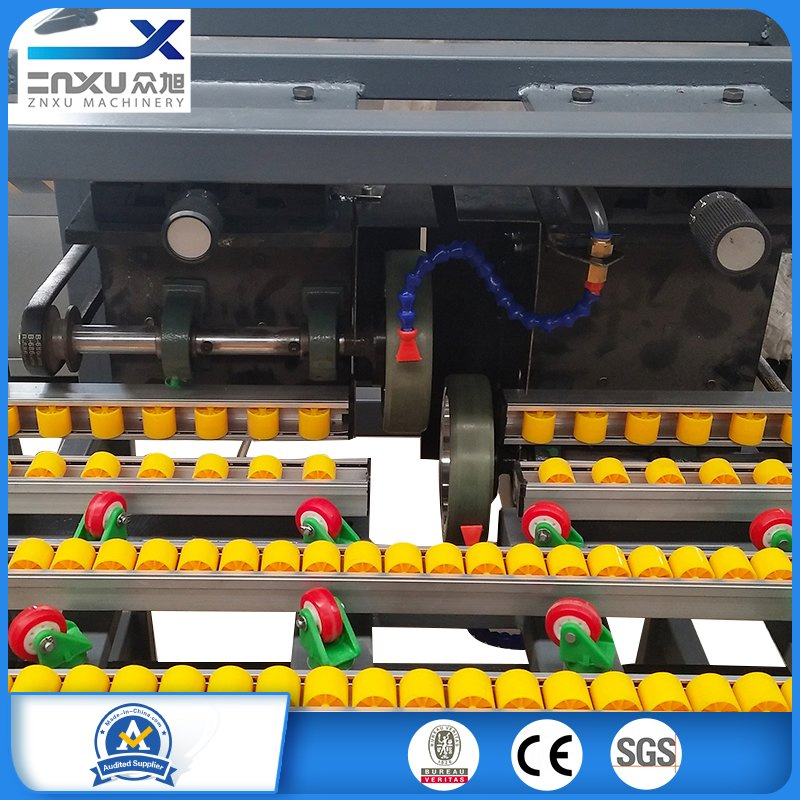

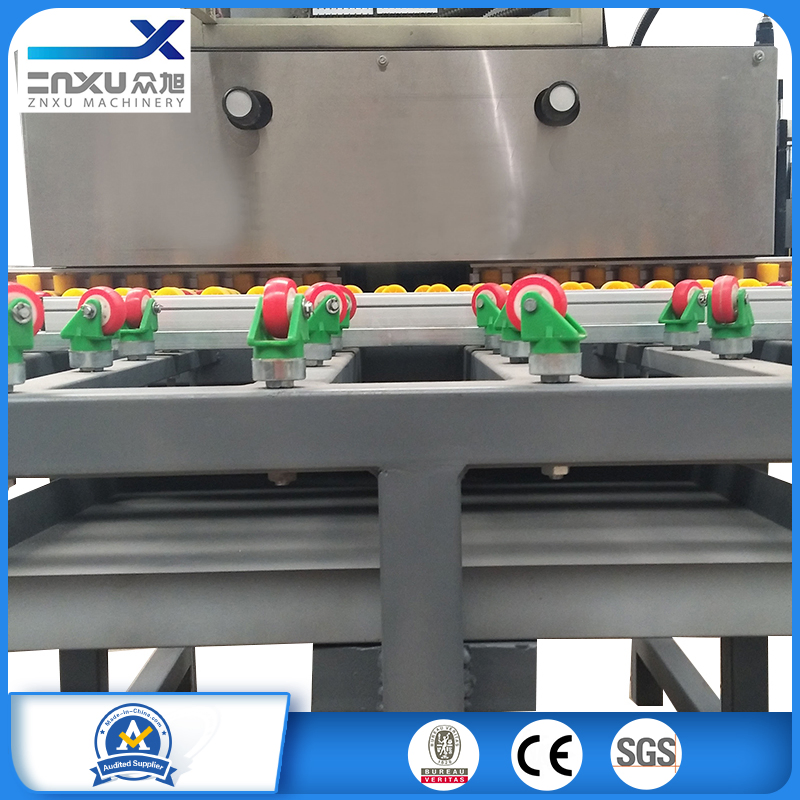

Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
1 / 5
Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275
Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275

Glass Edge Grinding Machine, Belt Grinding Machine, Belt Edging Machine Zxm-C0275

Customization: Available
Certification: CE
Product: Glass Tempering Machine Four Sides Edging Machine
Send Inquiry

Product Description

i

Basic Information

Model NO.
ZXM-C0275
Model
Zx-Bk1212
Mini Size
100*100mm
Max Size
2500*2500mm
Customized
Offered
Certificate
CE
Function
Grinder, Chamfer, Film-Removal
Wheels Number
1 or 2
Film-Removal
as Option
Operate
by Hand
Large Size
Add Table
Wheel #1
Copper Diamond Wheel
Wheel #2
Polish Wheel
Omini Wheel
Transfering Table
Product Name
Glass Edges Grinding
Type
Glass Edging Machine
Structure
Horizontal
Condition
New
Control System
Electric
Production Capacity
30 sets / Month
D

Product Description

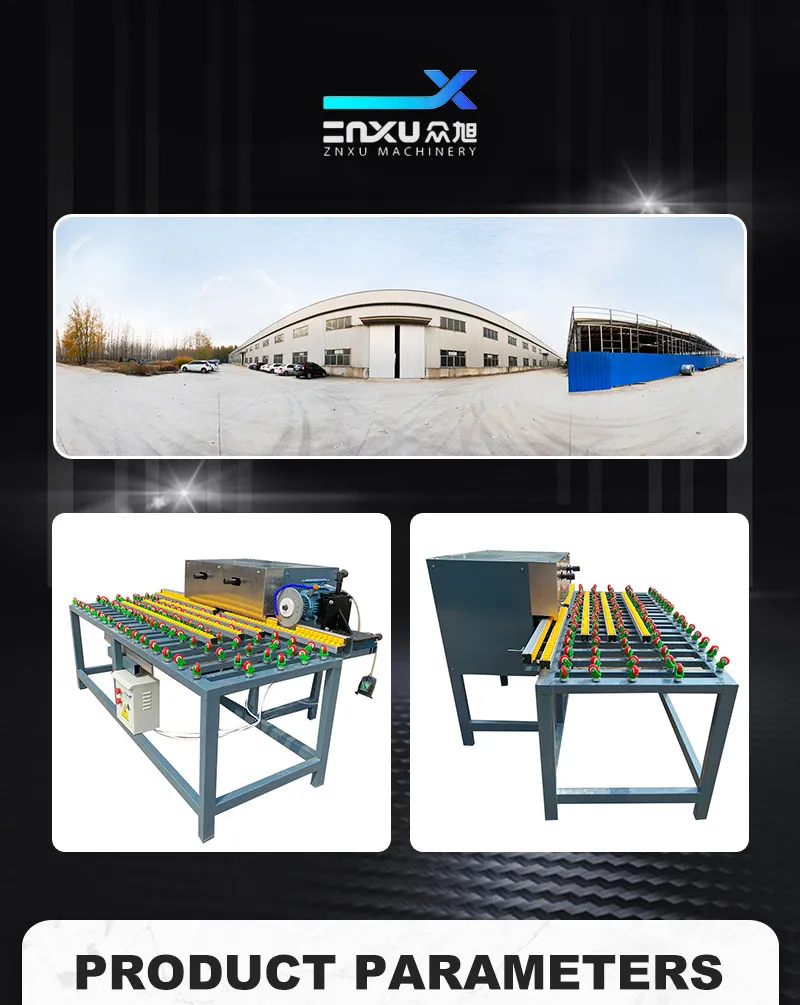

Glass Edge Grinding Machine ZXM-C0275
Model NoZXM-C0275
Wheels No2 PCS
Power1.75kw
Voltage380V/50HZ, 3 Phase (220V/60HZ, 440V/50HZ as per request)
Processing glass thickness3-19mm
Min processing glass size200x200mm
Max processing glass size1200x1500mm
Rotation rate2800r/min
Wheel sizeD=150mm, d=22mm

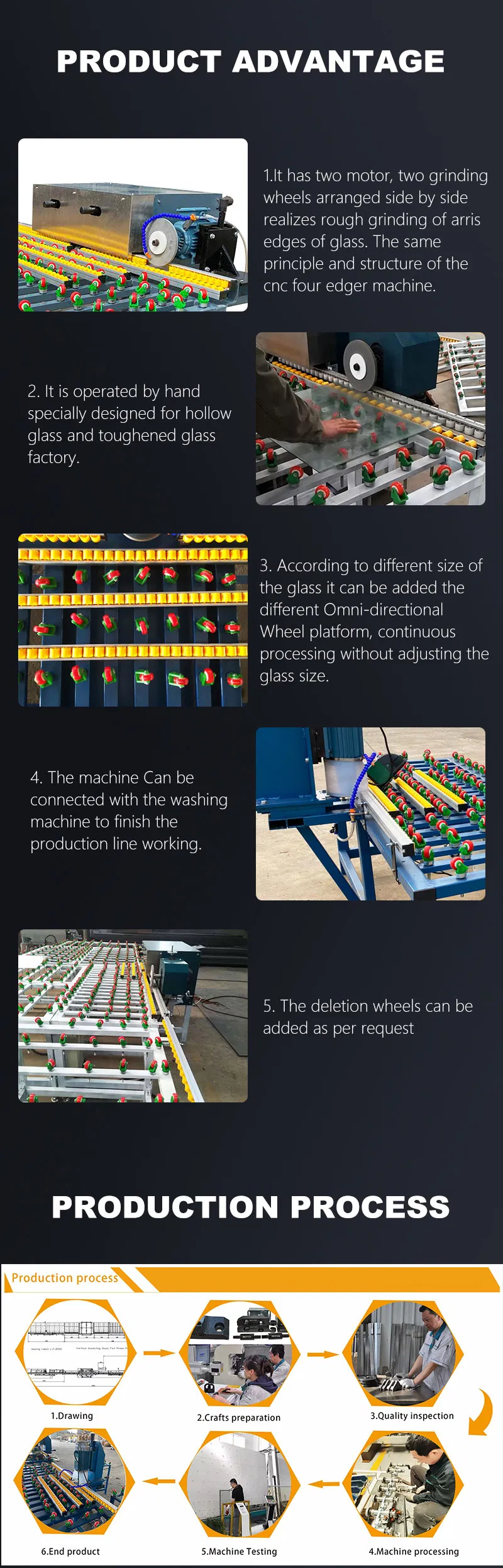

Glass Edging Detail 1
Glass Edging Detail 2
Glass Edging Detail 3
Glass Edging Detail 4
Glass Edging Detail 5
Glass Edging Detail 6

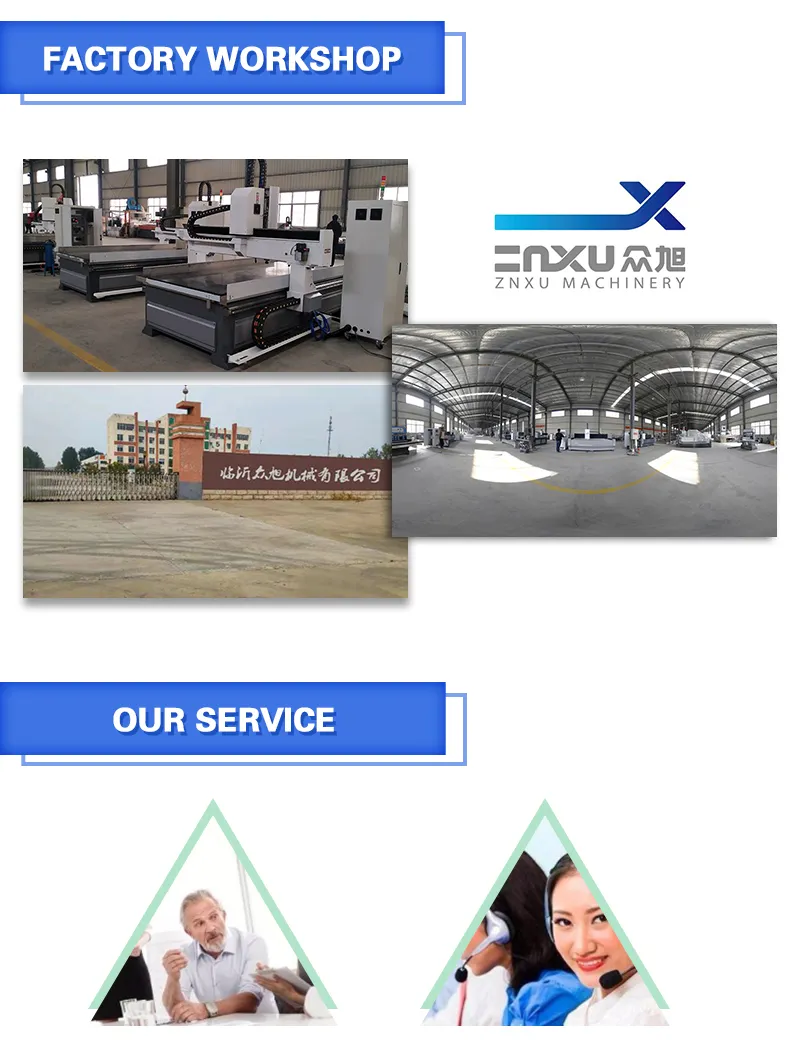

Glass Edging Machine Overview
?

Frequently Asked Questions

What is the range of glass thickness this machine can handle?
The ZXM-C0275 glass edging machine can process glass with a thickness ranging from 3mm to 19mm.
Does the machine support customized power requirements?
Yes, while the standard configuration is 380V/50HZ, we can provide 220V/60HZ or 440V/50HZ versions upon request.
What are the primary functions of this machine?
This versatile machine is designed for grinding, chamfering, and film-removal (optional) of glass edges.
What types of grinding wheels are included?
The machine typically uses a Copper Diamond wheel for primary grinding and a Polish wheel for finishing.
How is the glass transported during processing?

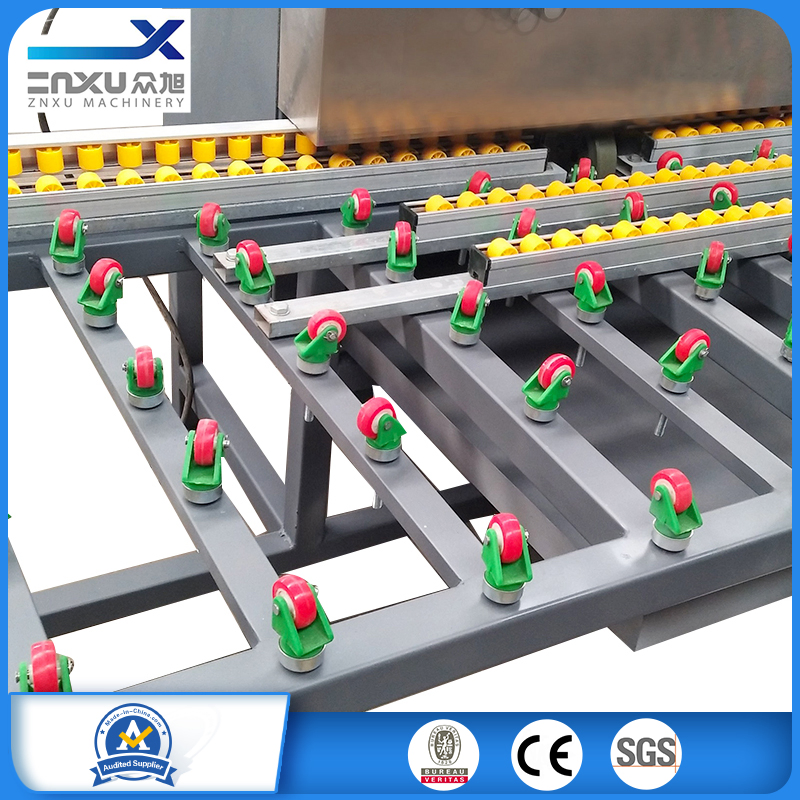

It features an Omini wheel transferring table to facilitate easy movement and handling of glass sheets during the edging process.
What is the minimum and maximum glass size for processing?
The minimum processing size is 200x200mm, and the maximum standard size is 1200x1500mm, though larger sizes can be accommodated with additional tables.
