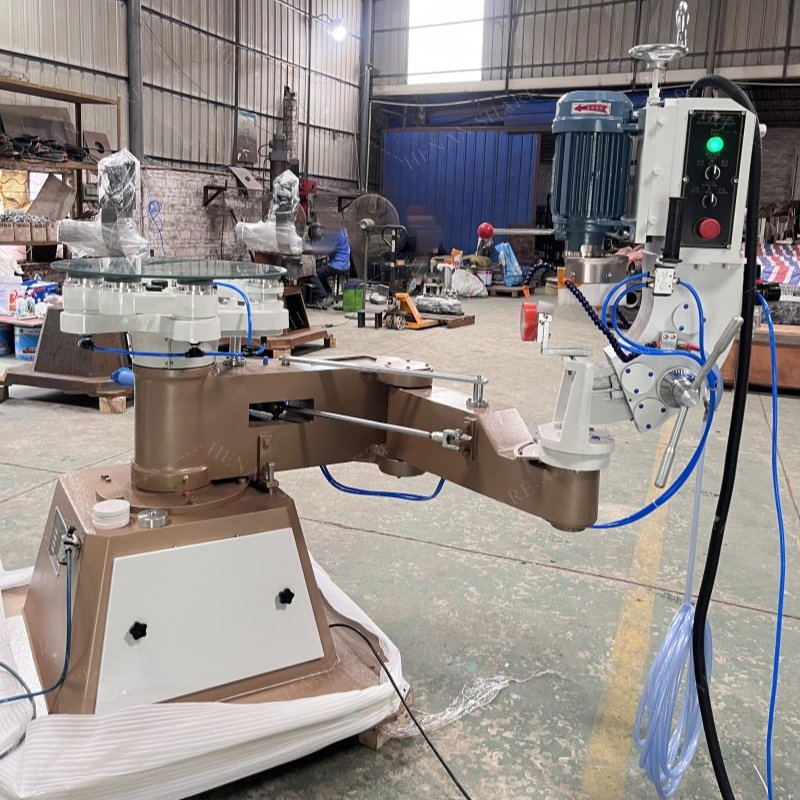

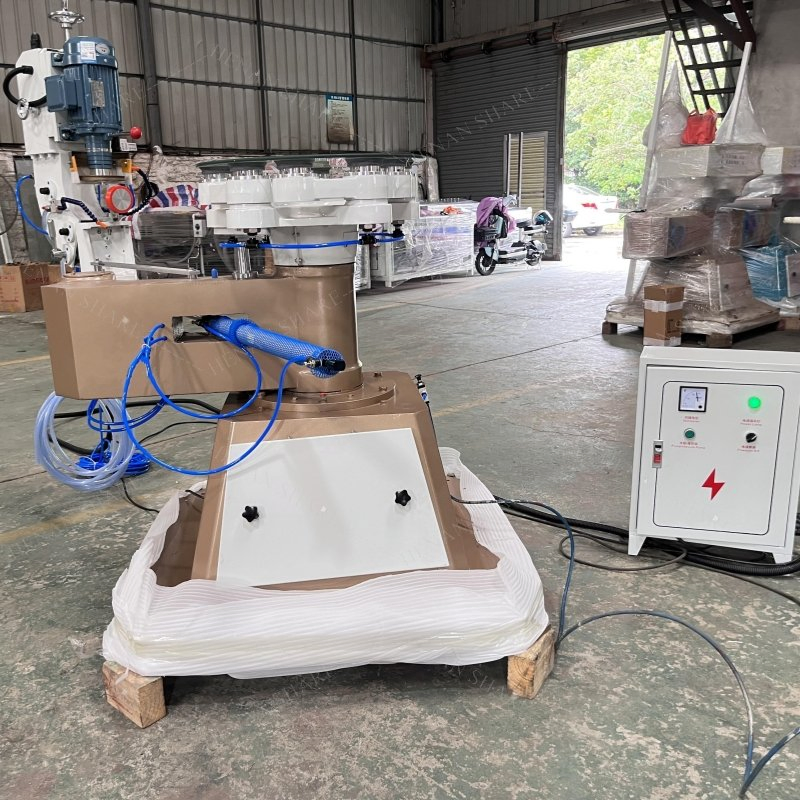

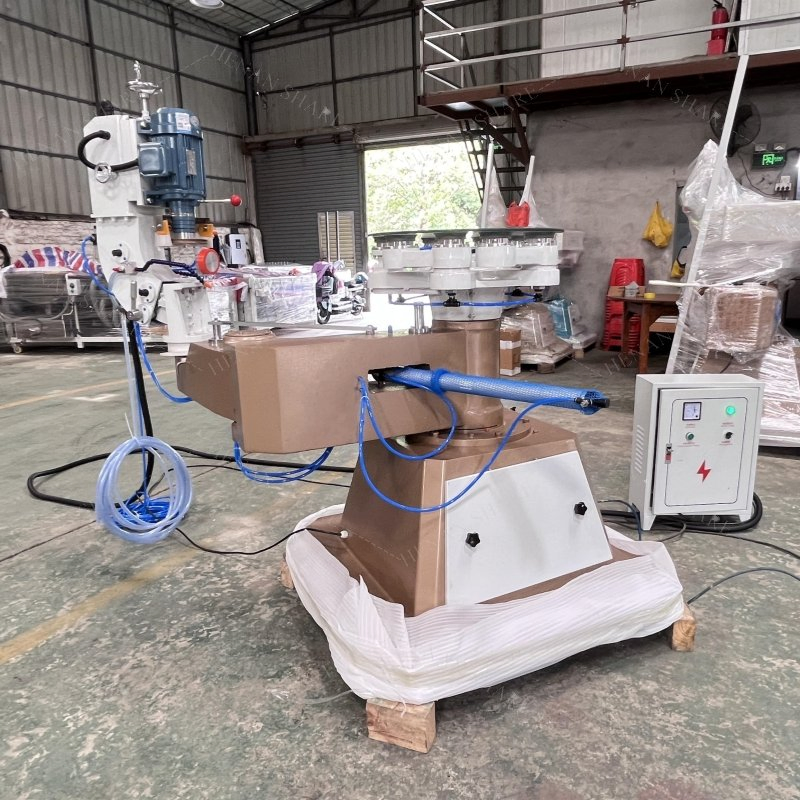

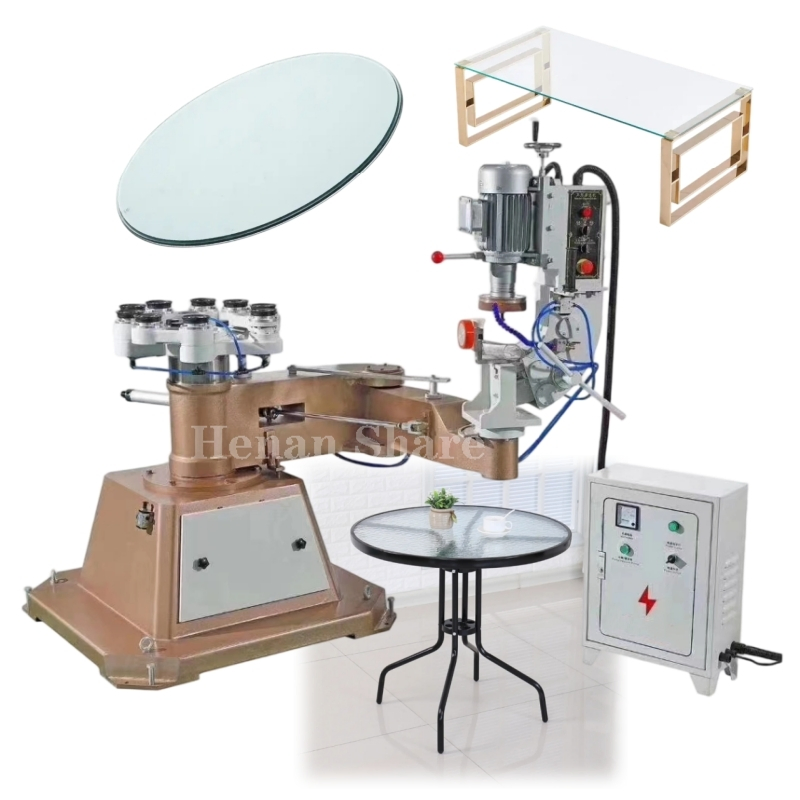

Glass Freeform Shape Edging Beveling Grinding Polishing Round Machine Edge Bevelling Corner

Customization: Available
After-sales Service: 24 Hours Online/Spare Parts
Warranty: 1 Year

Product Description

Basic Specifications

Model
SR-MBJ
Type
Glass Edging Machine
Control
Artificial
Automation
Semi-automatic
Precision
High Precision
Application
Glass Processing
Rotation Diameter
180-400mm
Bevel Angle
0-12°
Max Bevel Width
35mm
Power
2.57kw
Voltage
380V, 50Hz, 3 Phase
Dimensions
1240*1220*2040mm

Product Description

Glass Freeform Shape Edging Beveling Grinding Polishing Round Machine is specifically designed for high-precision processing of perimeters and bevels. It is ideal for various glass types including round, elliptical, and complex special-shaped glass.
Key Features:
  • Utilizes satellite turntable rotation for stable operation.
  • Turntable rotation speed is fully adjustable to meet different processing requirements.

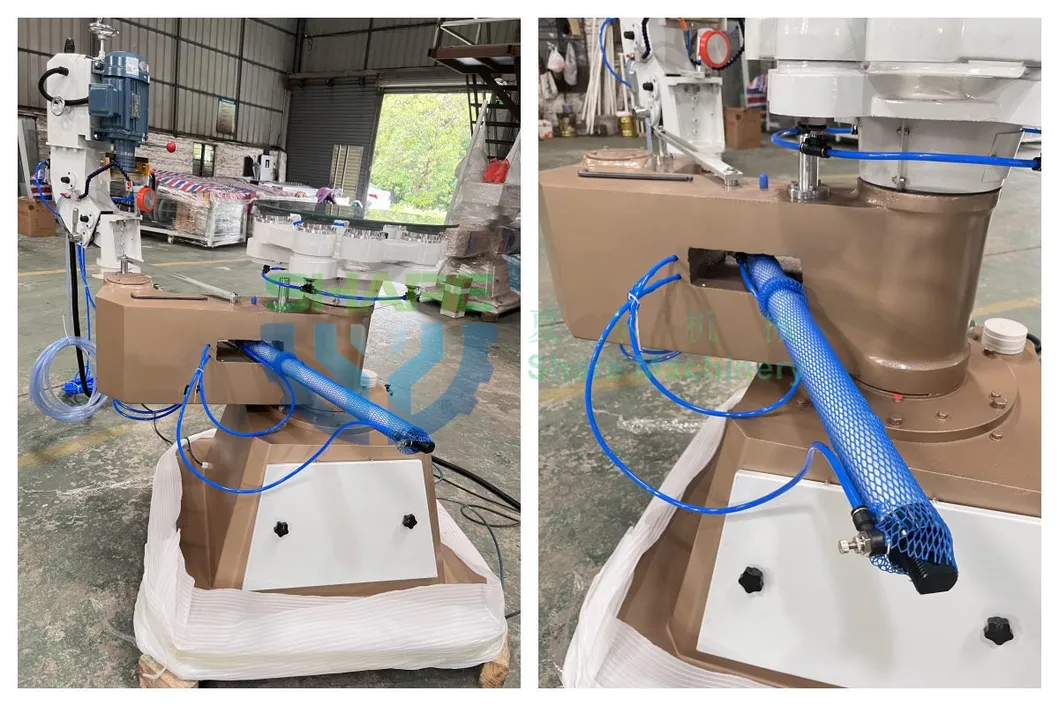

  • Equipped with cylinders for semi-automatic grinding of simple shaped glass.
  • Flexible beveling: By installing a bowl-shaped grinding wheel and adjusting the head tilt, the machine achieves precise beveling angles and end-face grinding.

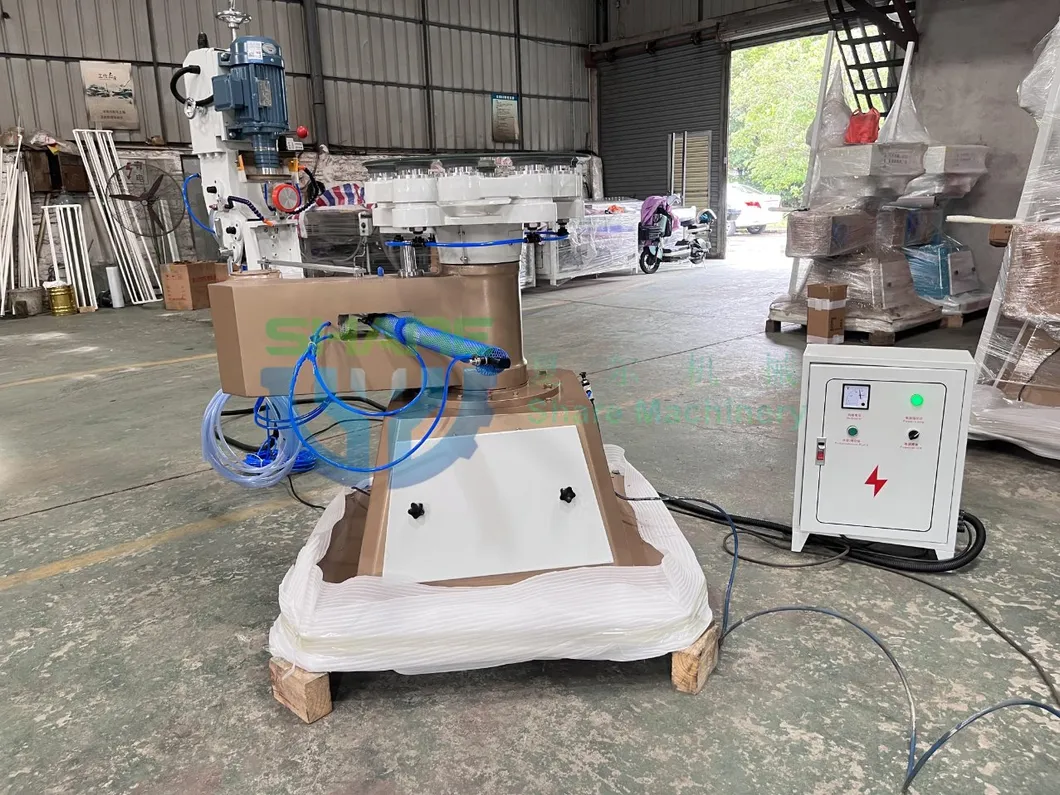

Glass Freeform Shape Edging Machine

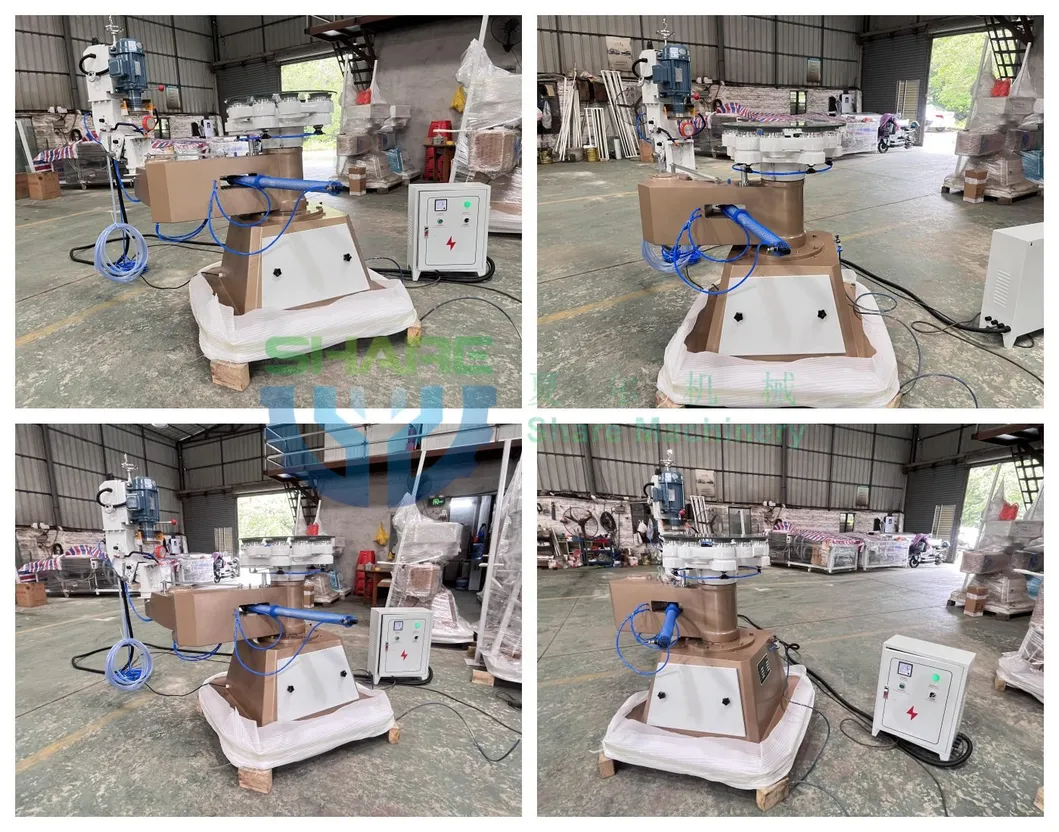

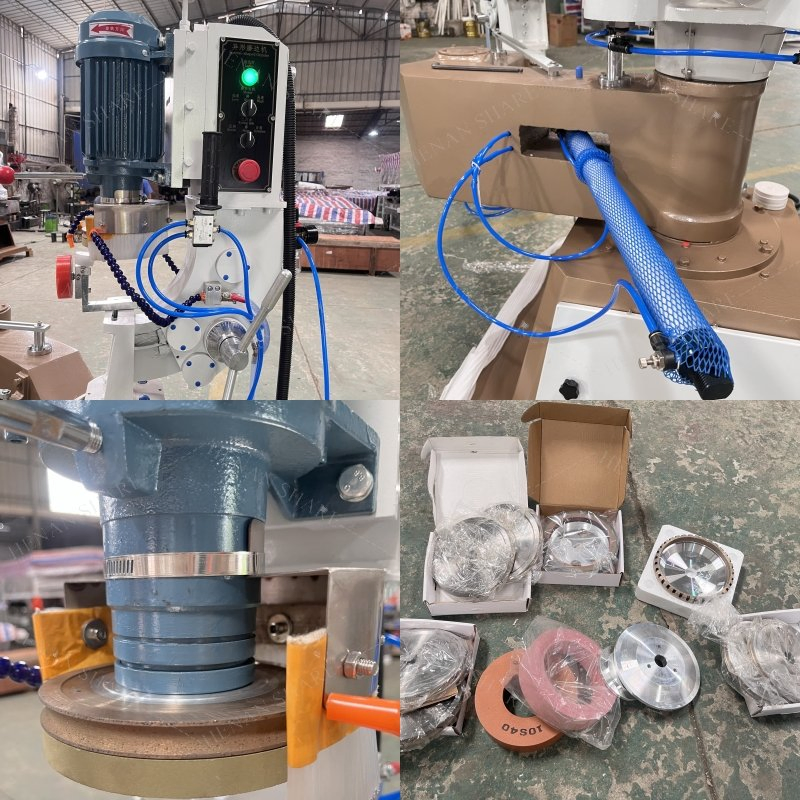

Detailed Performance & Views

Packaging & Delivery

Gross Weight
780.00kg
Package Size
124.00cm * 122.00cm * 204.00cm
Package Type
Standard Export Wooden Case

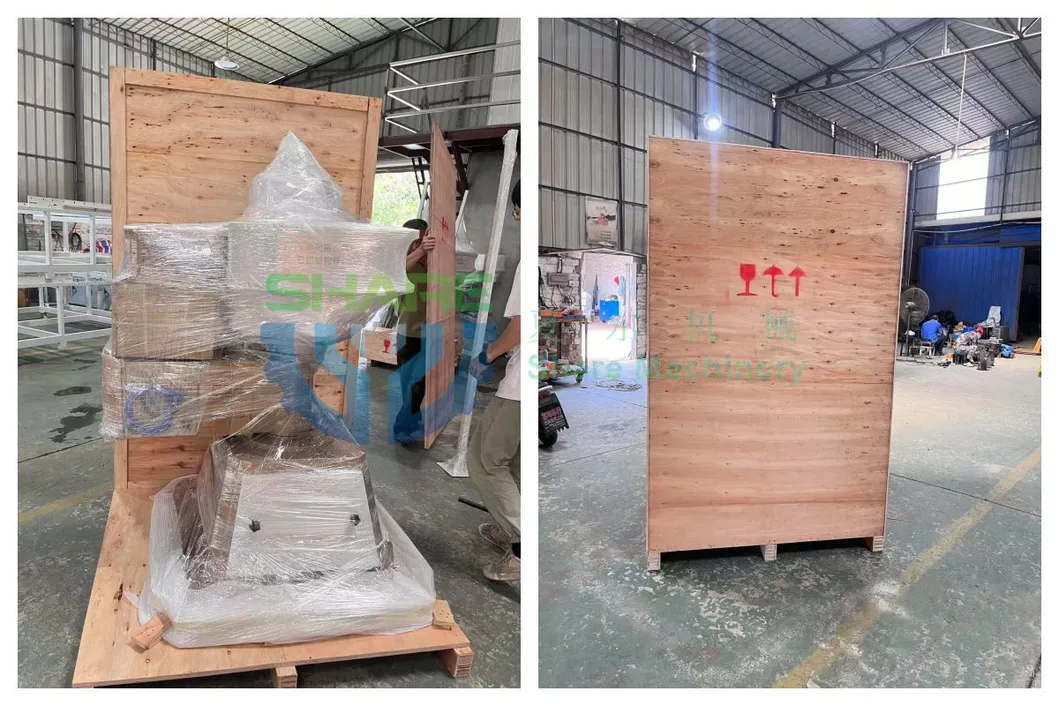

Packaging and Shipping
Technical Layout

Frequently Asked Questions

What types of glass shapes can this machine process?
The SR-MBJ is suitable for processing the perimeter and bevel of round, elliptical, and various special-shaped glass.
Is the rotation speed of the turntable adjustable?
Yes, the machine uses satellite turntable rotation, and the speed can be adjusted at will during operation to suit different glass sizes and shapes.
What is the maximum bevel width and angle?
The machine can achieve a maximum bevel width of 35mm with an adjustable bevel angle ranging from 0 to 12 degrees.
Can it perform semi-automatic grinding?
Yes, by utilizing the built-in cylinders, the machine can semi-automatically grind simple shaped and special-shaped glass.
What are the power and voltage requirements?
The machine operates on a 380V, 50Hz three-phase power supply with a total power consumption of 2.57kw.
How is the product packaged for international shipping?
We use a standard export wooden package to ensure the machine is protected during transport. The total package weight is approximately 780kg.
