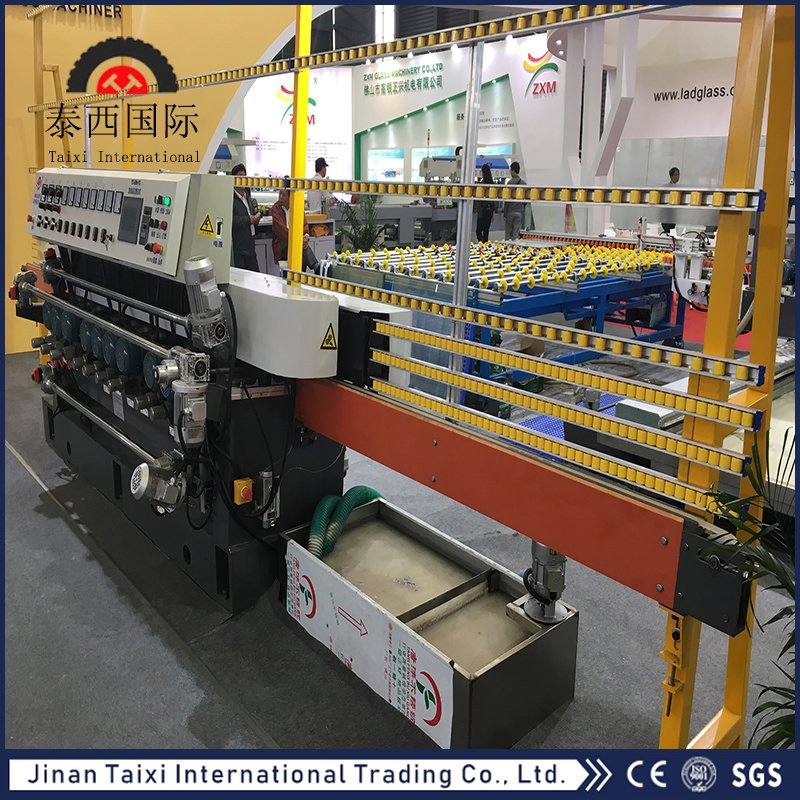

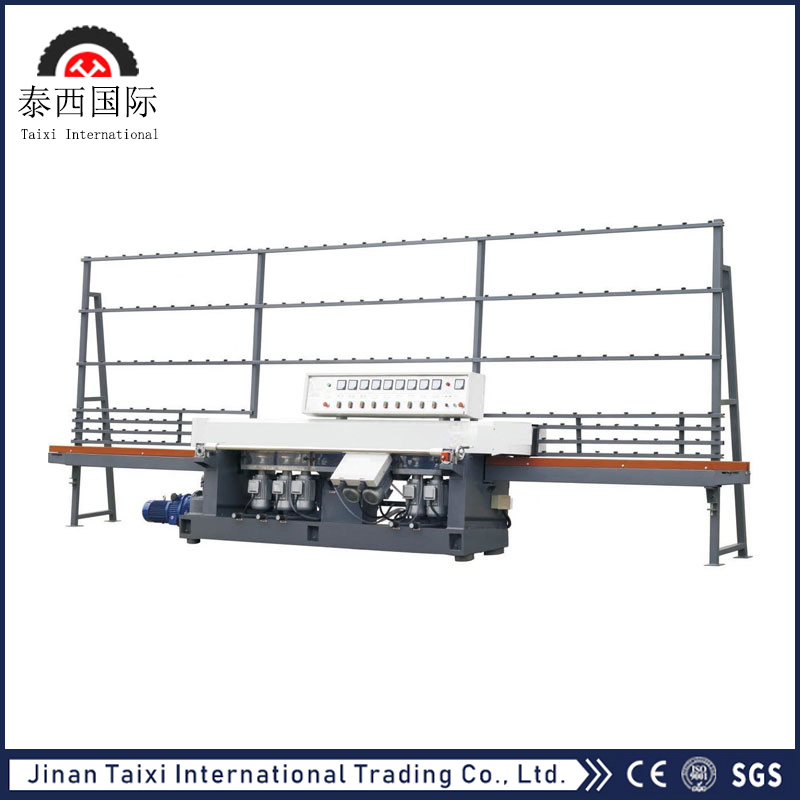

Glass Grinder Edge Dulling Machine Line Glass Double Edging Machine

Customization: Available
Certification: CE, ISO
Warranty: 1 Year

Product Description

iBasic Information
Model NO.
GM-02
Processing Size
1300*900mm
Laser Tube Power
60W-180W
Cutting Speed
Depends on Materials
Motor and Driver
Stepper Motor
Working Table
up-Down and Blade Bed
Guide Rail
Square and Belt Transmission
Whole Machine Power
<=1500W
Working Voltage
AC220V/110V 10% 50Hz/60Hz
Type
Glass Edging Machine
Structure
Horizontal

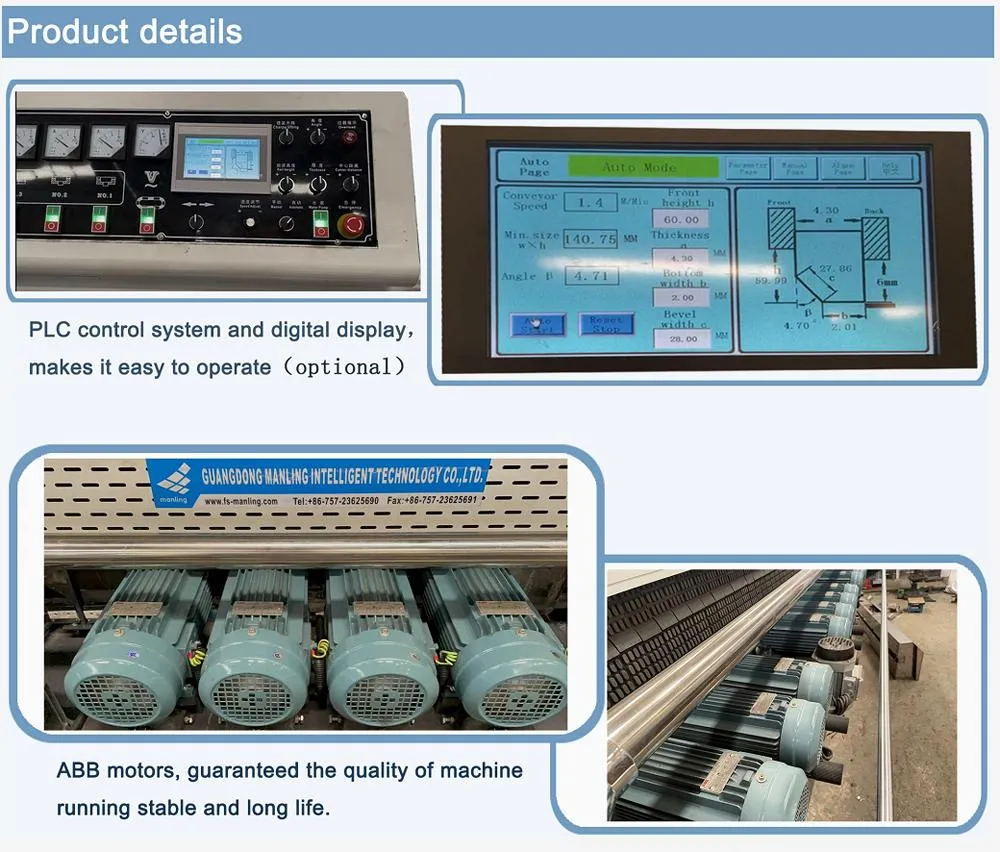

Control System
PLC
Grinding Head Number
11
Production Capacity
1500sets/Year
Product Description

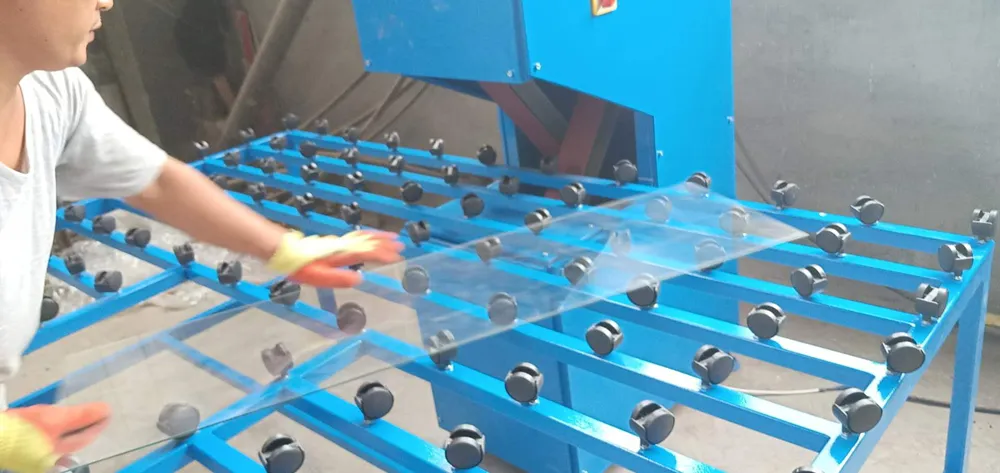

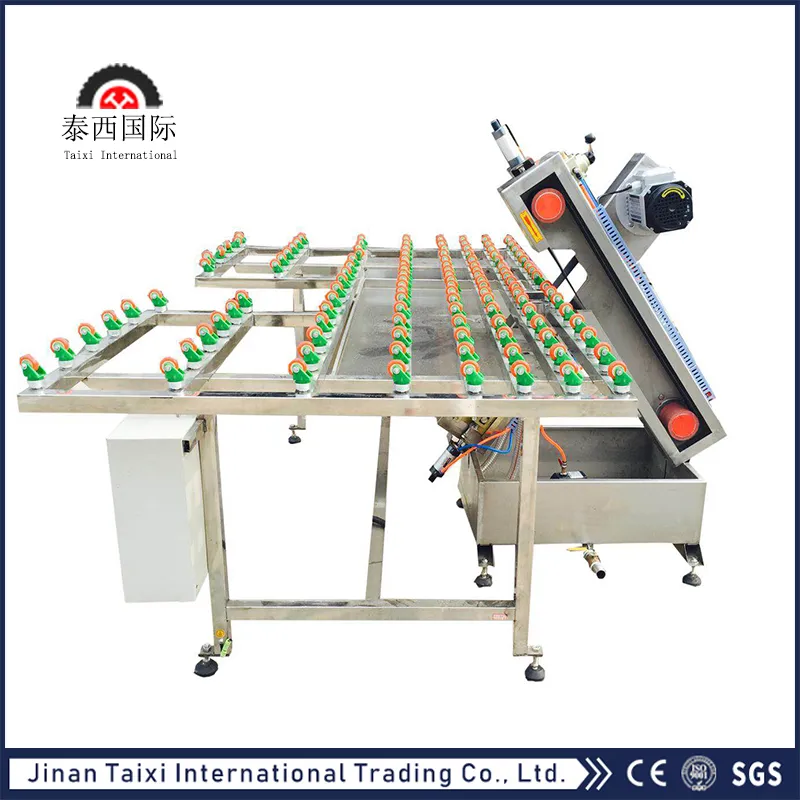

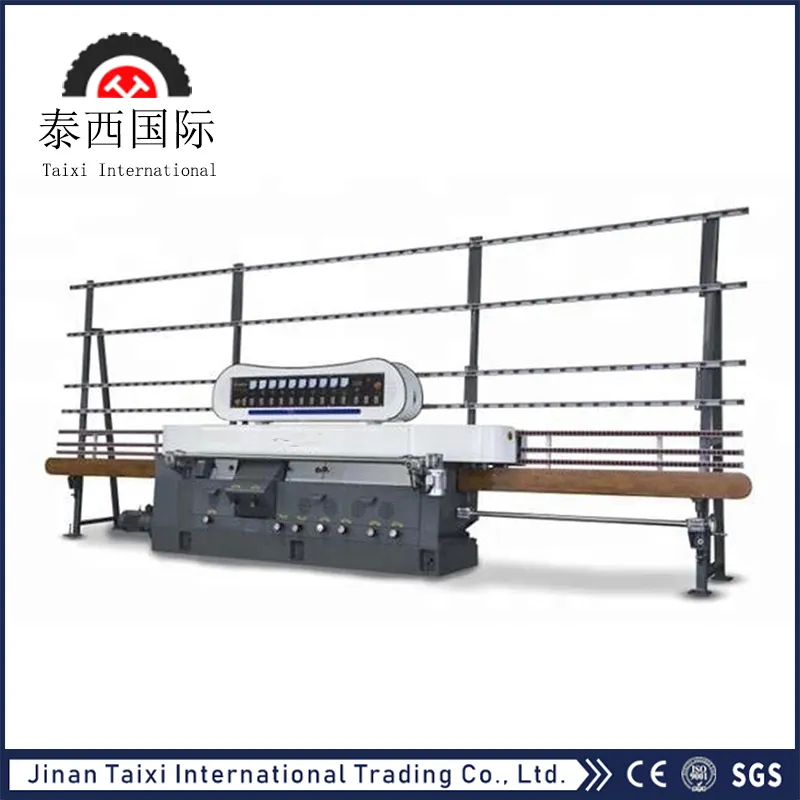

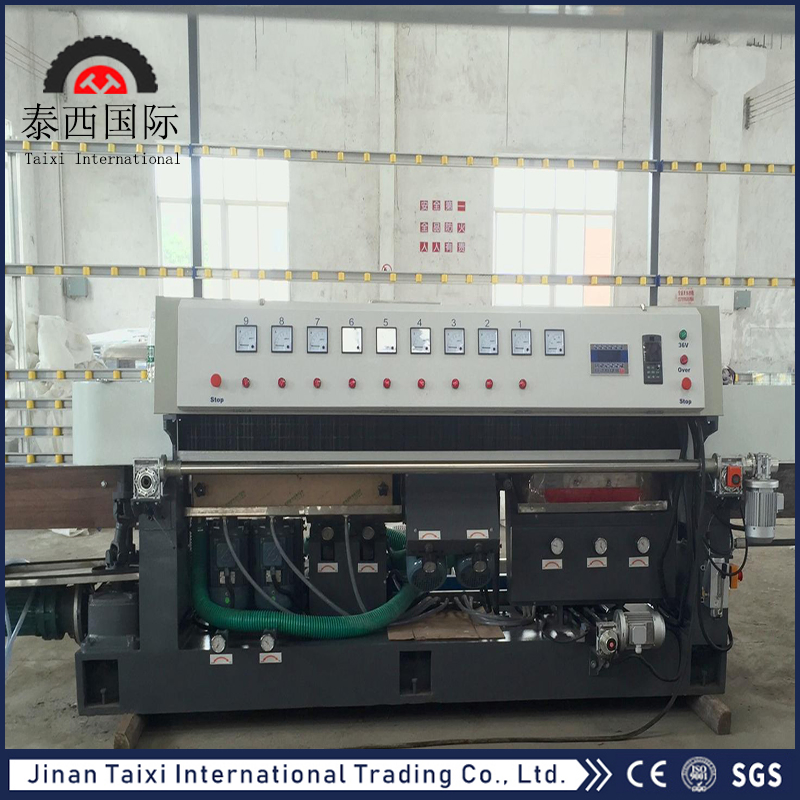

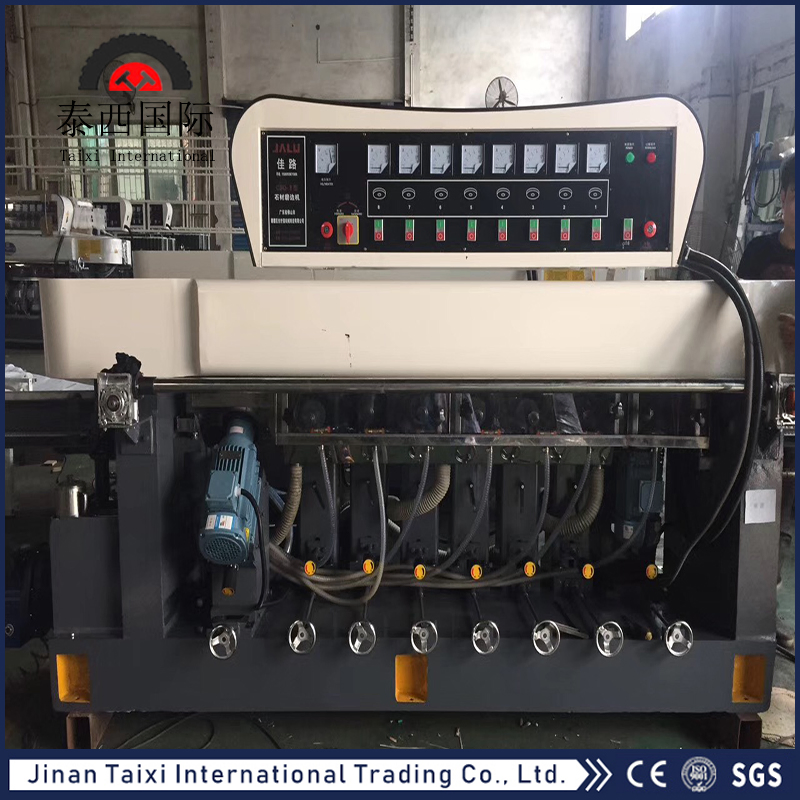

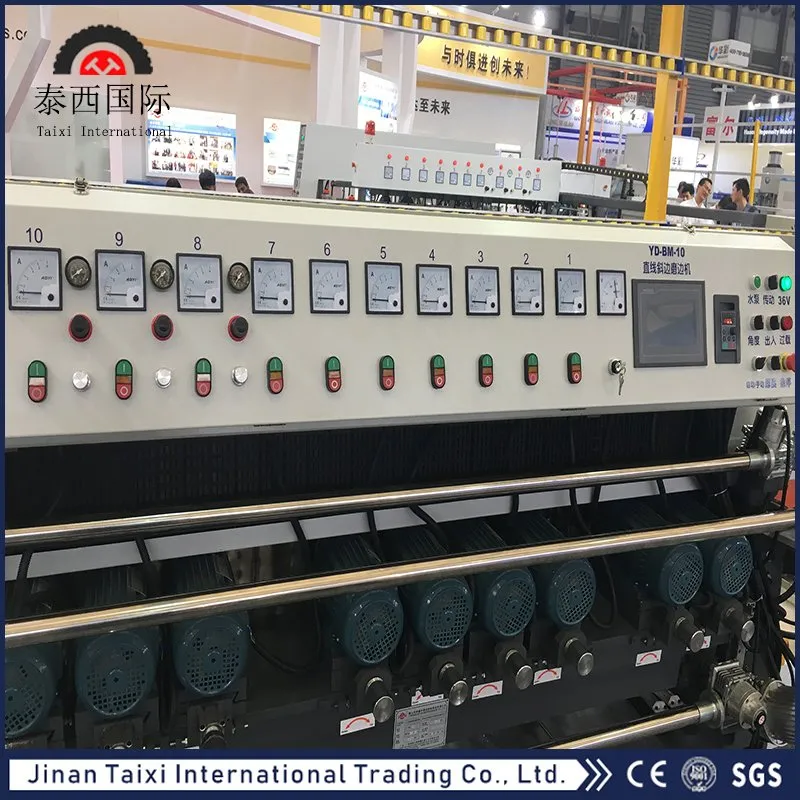

Glass edge finish machine is the special equipment mainly used to smooth the sharp edge after glass cutting. It is an ideal glass edge grinding machine with a wide using range and high efficiency.

The abrasive belt running at high speed can simultaneously grind and remove the sharp edges around the glass sheets to prevent machine damage or injury to workers. The glass edge finish machine also lengthens the service life of the equipment. Our machines are simple in operation and high in working efficiency.

Voltage380V 50 Hz
Power1.5 kW
Air Pressure0.5 to 0.8 Mpa
Glass DimensionMax.2000 mm × 2000 mm
Edge Polishing Speed150 to 300mm/s
Machine DimensionsMain Part: 800mm × 500mm × 1200mm; Arms: 2140mm × 1400mm × 700mm
CNC Glass Cutting Line

CNC automatic glass cutting table machine is composed of auto glass loading machine, CNC glass cutting machine and pneumatical glass separating table. The three machines are controlled by one central controller, forming an automatic glass cutting line in high efficiency and precision.

Model GSM16 GSM25
Max glass size3600x1600mm3600x2500mm
Min glass size350×650mm
Glass thickness4~12mm
Seaming speed0~25m/min
Power supply380V 50Hz 3P (or customized)
?Frequently Asked Questions
Q1. What are your terms of packing?
Generally, we pack our goods in neutral cartons and wooden cases. We can also customize the packaging according to your specific instructions, including outer packages and labels.
Q2. What is the typical delivery time?
Generally, it will take 5 to 7 working days after receiving your advance payment for standard items. For large-scale machinery orders, delivery is typically within 30 to 40 days.
Q3. What are your terms of payment?
We usually accept T/T, L/C, or Western Union. Our standard term is T/T 30% as a deposit and 70% before delivery. We provide photos of the products and packages before final payment.
Q4. Can you produce equipment based on samples?
Yes, we can produce machines according to your provided samples or detailed technical drawings to meet specific operational requirements.
Q5. Do you test all goods before delivery?
Yes, all equipment undergoes rigorous testing. You are also always welcome to visit our facility to inspect the goods in person before they are shipped.
Q6. What materials can the CNC glass cutting machine handle?
The machine is designed for various glass types including construction glass, auto glass, household appliance glass, hollow door/window glass, furniture glass, and solar glass.
