Straight Line Glass Cutting Bevelling Machine Small machine Pieces Glass Beveler Machine

Customization:	Available
Certification:	CE, ISO
Voltage:	380V 50Hz

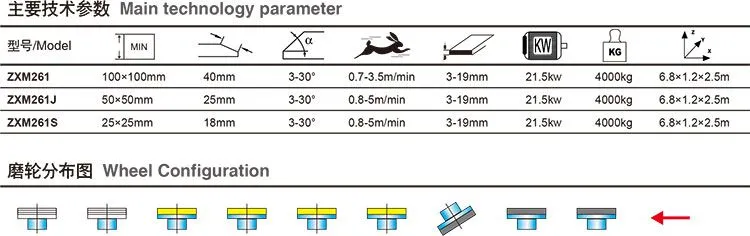

Basic Specifications

Product Name

Glass Cutting Bevelling Machine

Function

Glass Edge Beveling

Glass Thickness

3-25mm

Min Glass Size

100*100mm

Working Speed

0.5-4.5m/Min

Power

21kw

Grinding Heads

9

Warranty

1 Year

Dimension

6800*1200*2500mm

Weight

4000kgs

Structure

Vertical

Origin

China

Product Description

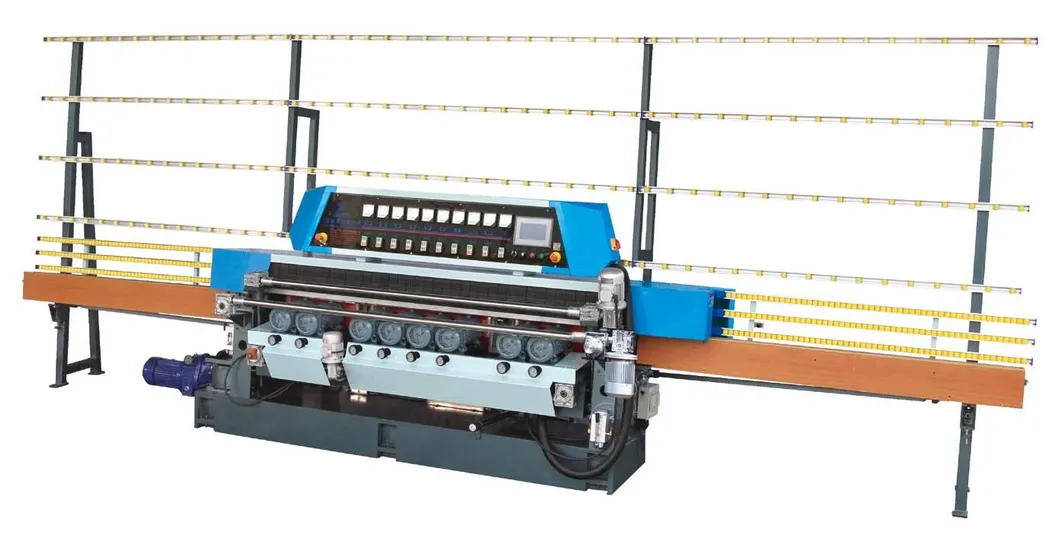

Straight Line Glass Cutting Bevelling Machine Small Pieces Glass Beveler

Key Characteristics

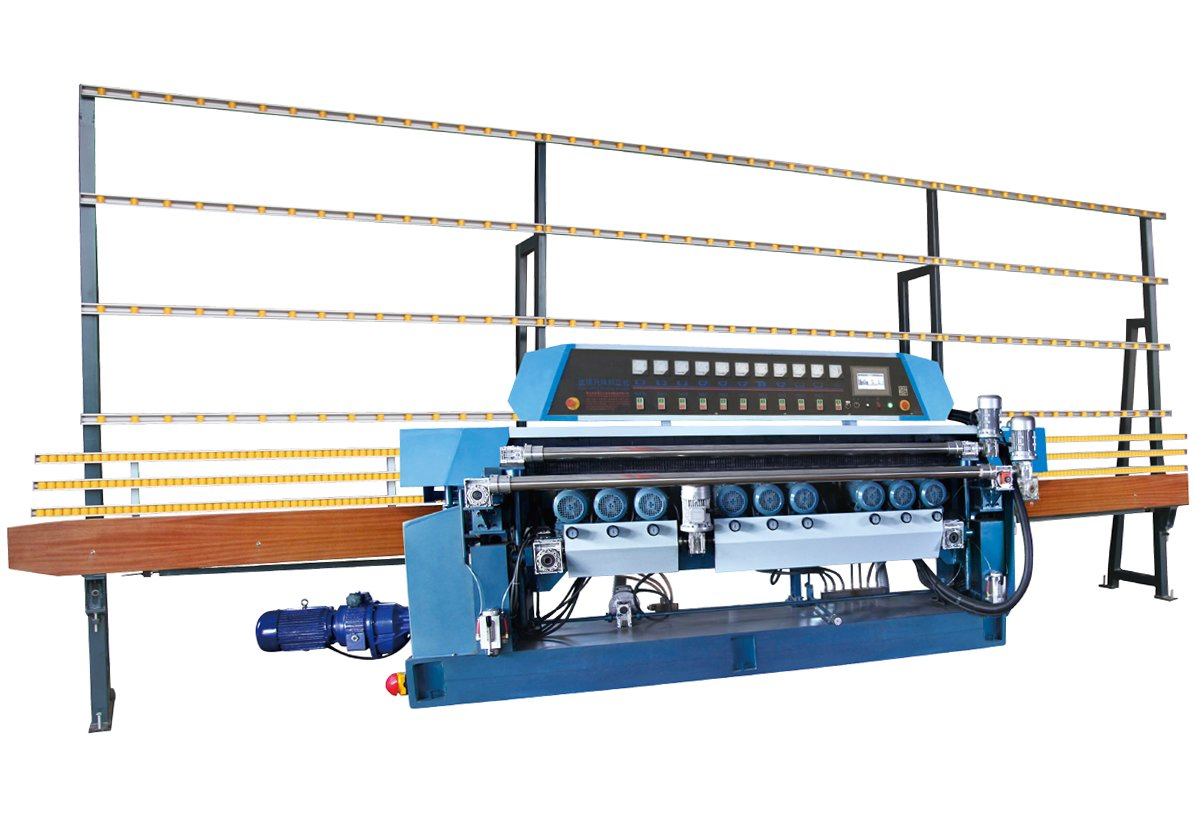

This glass beveling machine is a nine-head bevel and bottom grinding machine, it can complete rough grinding and fine grinding in one time. The polished effect is similar to a mirror surface, with accurate ground angles. Control system uses PLC control, with automatic and manual conversion. The man-machine interface clearly shows glass thickness, width, and angle of hypotenuse, as well as remaining glass thickness and various processing parameters.

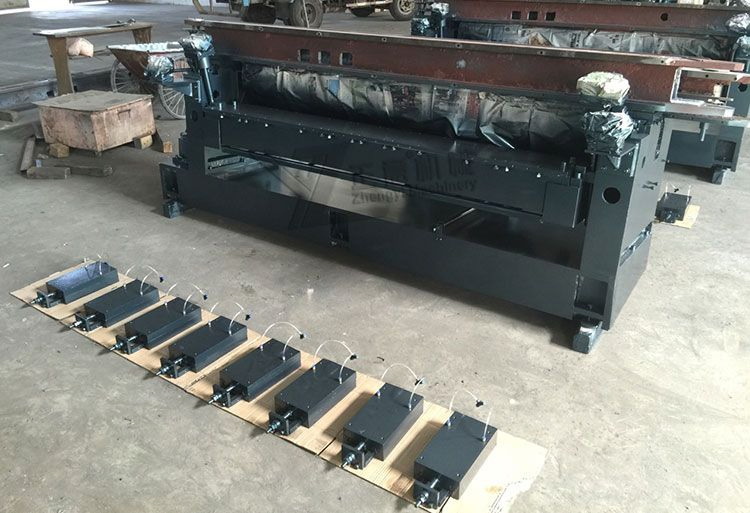

Chain plates are made of thicker steel plates and the slide gibs are processed with specialized techniques for superior abrasion resistance and stable operation. The motor features a solid body, high precision, and low-power consumption, ideal for large quantity processing.

Core Advantages

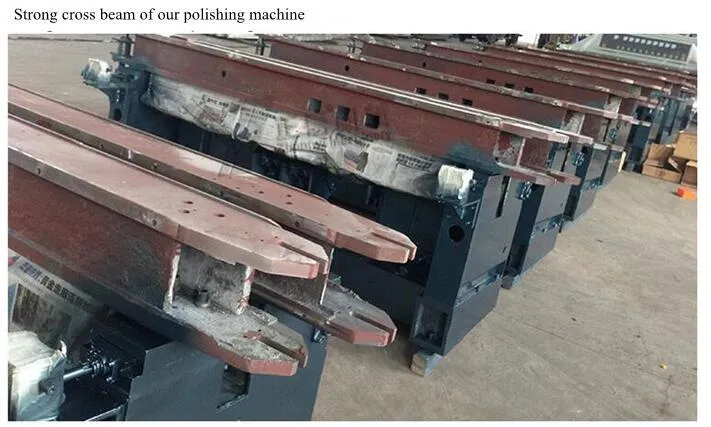

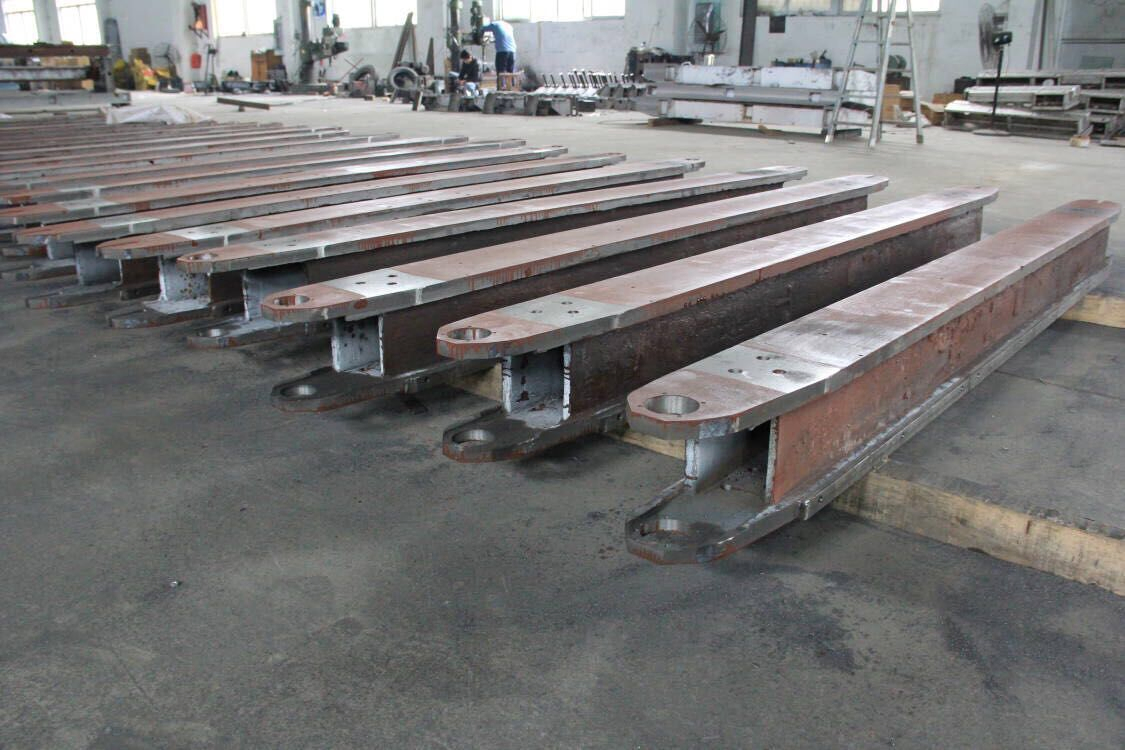

High-quality castings for base, beam, and swing frame ensuring a stable body.

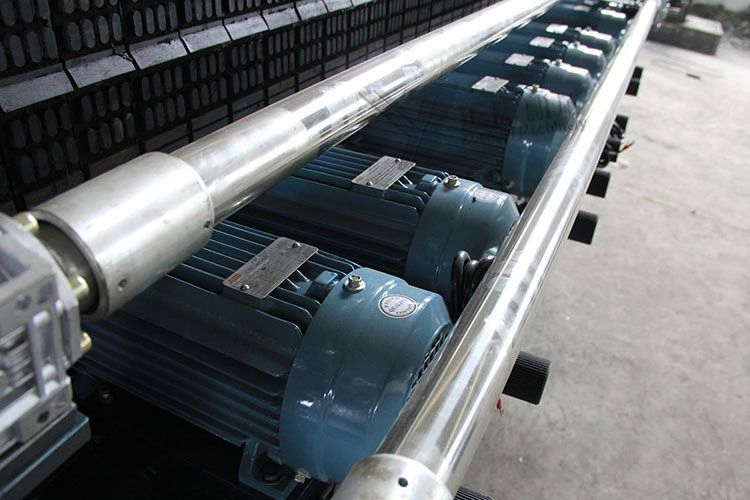

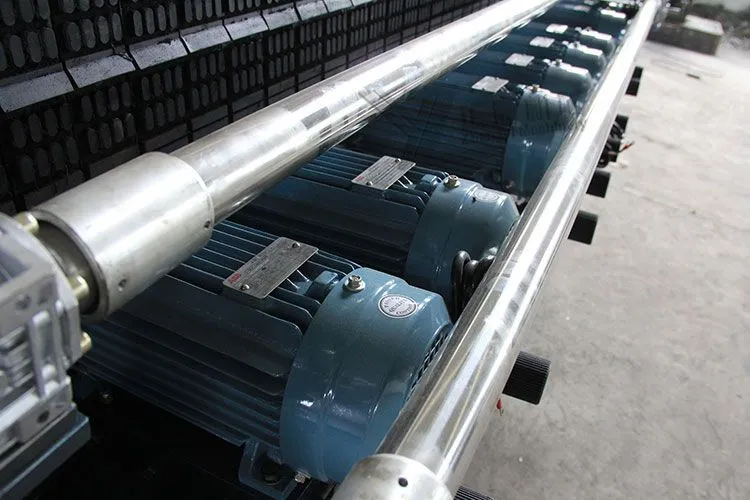

International brand grinding motors with variable frequency adjustment.
Front and rear delivery pads use 40cr steel with high-frequency hardening for durability.
Specialized design for small briquettes in front delivery pad to reduce maintenance costs.
Aluminum scaffolding and timing belt transmission for precision.
Stainless steel water tank with dual oil pumps for automated lubrication.
High-quality electrical components and premium grinding/polishing wheels.

Polishing Samples & Components

Professional Services

Pre-sales Service: Fast and professional responses to technical questions; expert suggestions based on your specific configuration needs; detailed factory tours and demonstrations.

In-sales Service: One-stop customized solutions for all glass processing needs; 24/7 online technical support for any immediate queries.

After-sales Service: Overseas installation and training by experienced engineers; steady supply of spare parts at competitive prices.

Frequently Asked Questions

1. What is the typical lead time for shipment?

Standard machines are usually shipped within 15 days after deposit. Customized configurations typically require 25 days or more depending on complexity.

2. How do you handle technical issues or machine breakdowns?

If the machine is under warranty, we provide free replacement components. Additionally, we can dispatch engineers to your site for repairs and technical troubleshooting.

3. Is on-site operation training provided?

Yes. We send professional engineers to the working site for installation, adjustment, and comprehensive operation training for your staff.

4. Why might your price differ from other suppliers?

Price differences often reflect the quality of internal electrical components and service guarantees. We use world-renowned brands for core electrical parts to ensure long-term reliability and minimize downtime.

5. What range of glass thickness can this machine process?

This bevelling machine is designed to handle glass thicknesses ranging from 3mm to 25mm, making it versatile for various industrial applications.

6. What type of control system is integrated into the machine?

The machine utilizes a PLC control system with a user-friendly man-machine interface, allowing for easy adjustment of thickness, width, and angle parameters.
