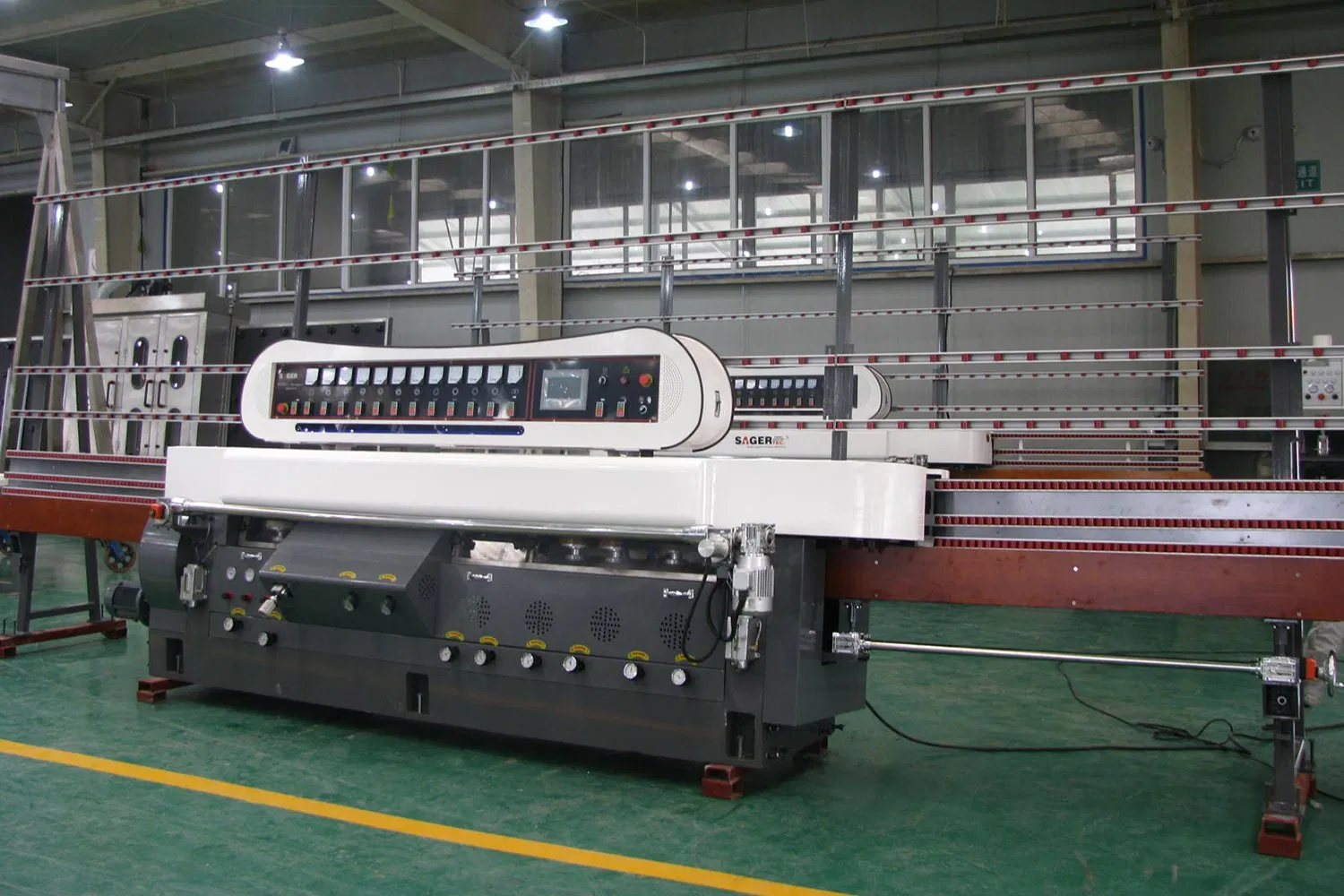

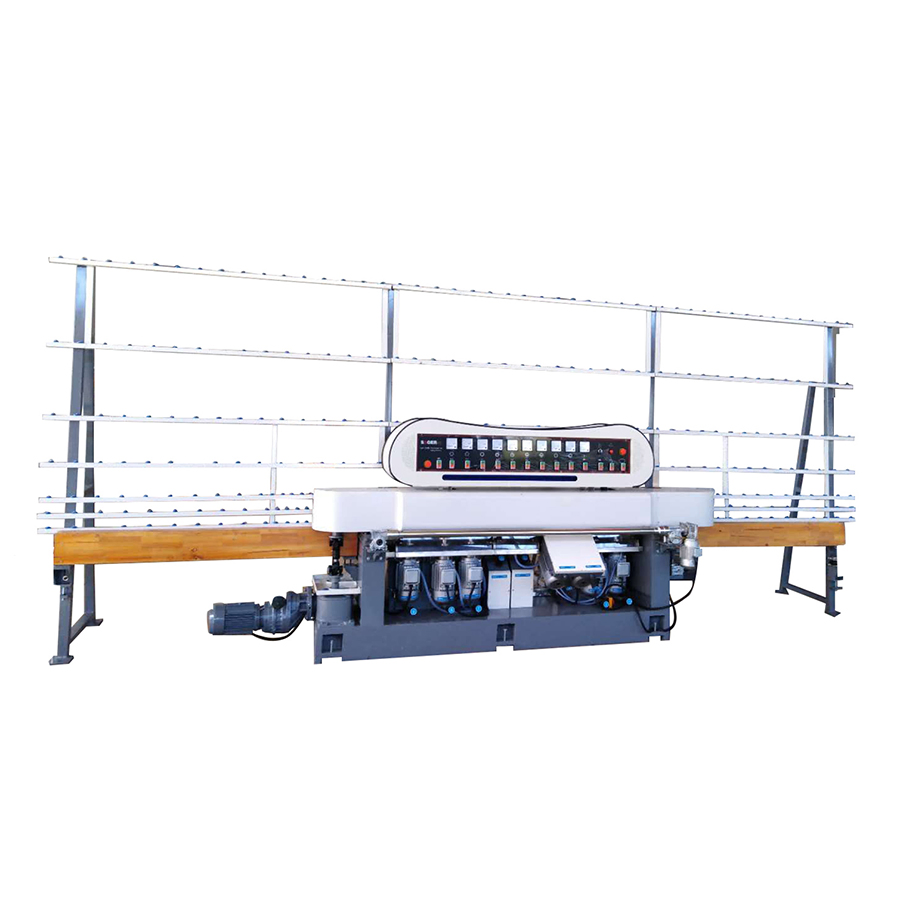

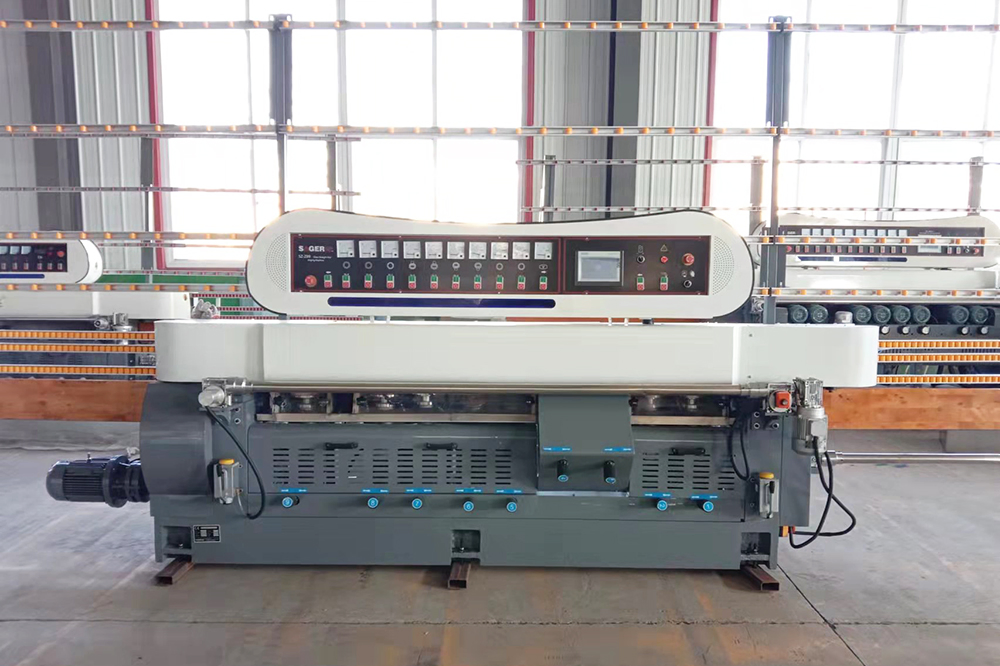

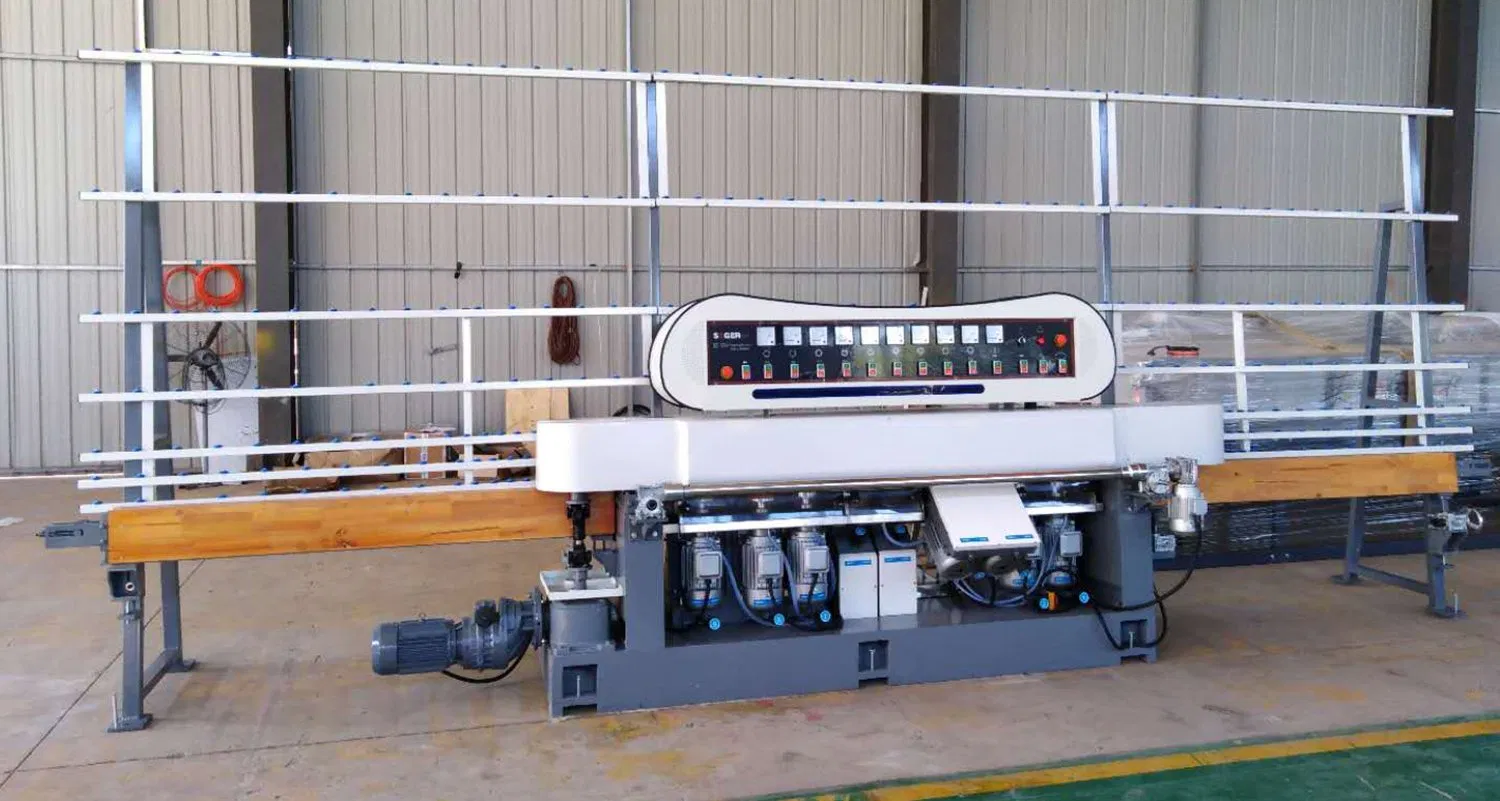

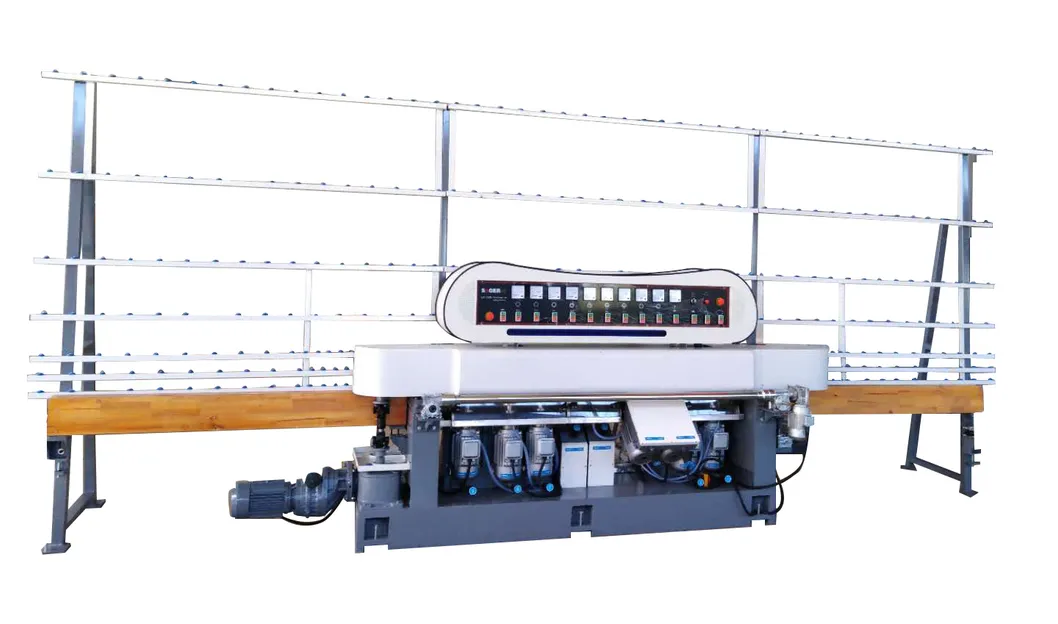

SZ-ZB9 CE certification glass edge polishing machine is designed for grinding the straight-line edges and 45 degree arrissing of flat glass sheet with different big size and more thickness. The rough grinding, fine grinding & polishing can be finished at one time. The machine also can be customized by specially glass thickness.

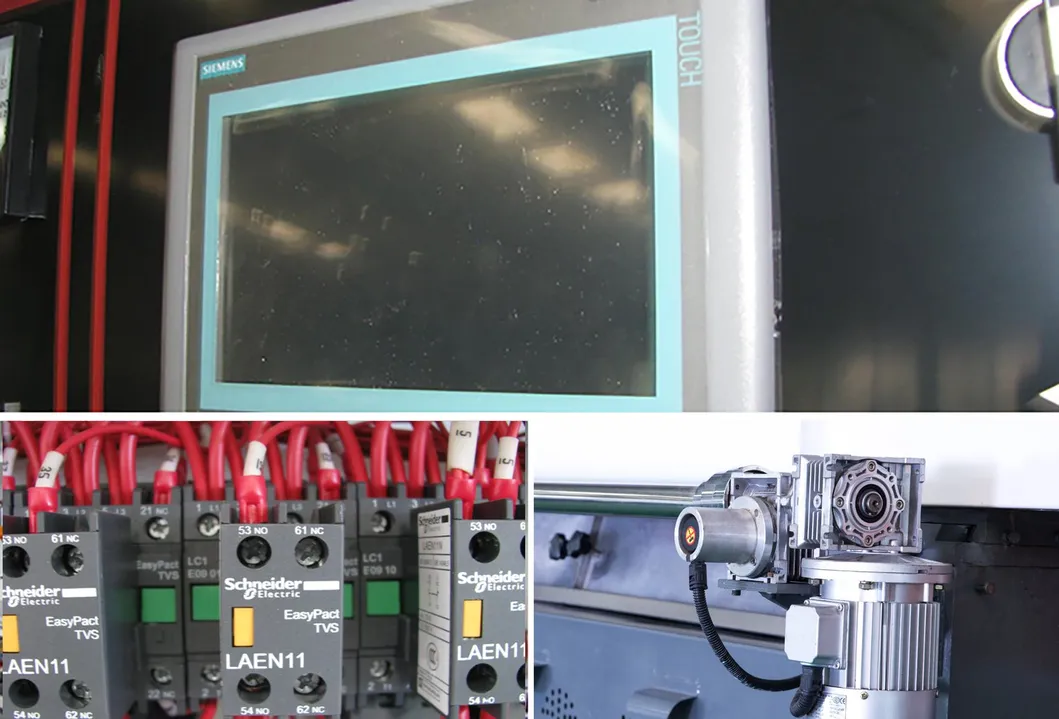

1. Motor-drive, PLC and Digital Display are optional.
2. Beam and base are made of cast iron; Timing belt transmission; Stainless steel water tank.

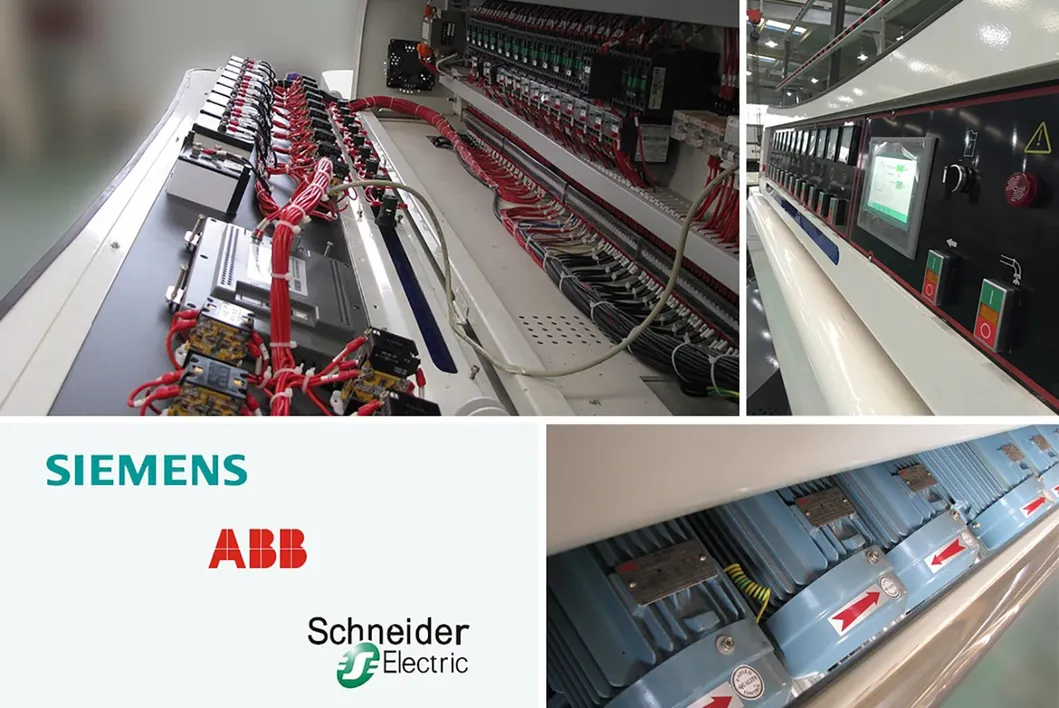

3. Siemens control system: Most electrics are International standard with CE certification for reliable connection.
| Min. Glass Size | 80*80mm |
| Glass Thickness | 3-19mm |
| Angle of Arrising | 45° |
| Processing Speed | 0.6-5.5m/min |
| No. of Spindles | 9 pcs |
| Installed Power | 19.8kw |
| Dimension | 7200*1000*2500mm |
