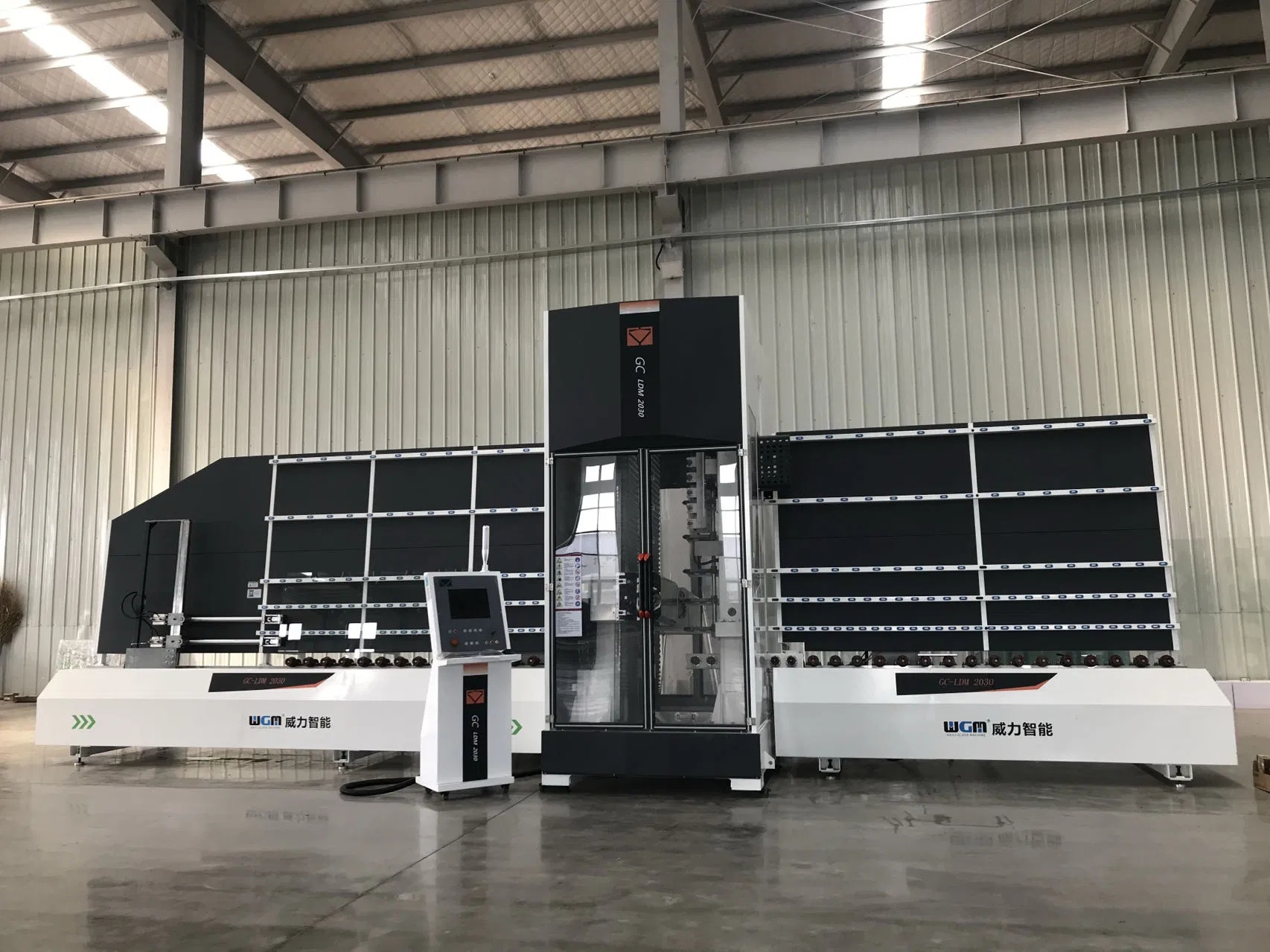

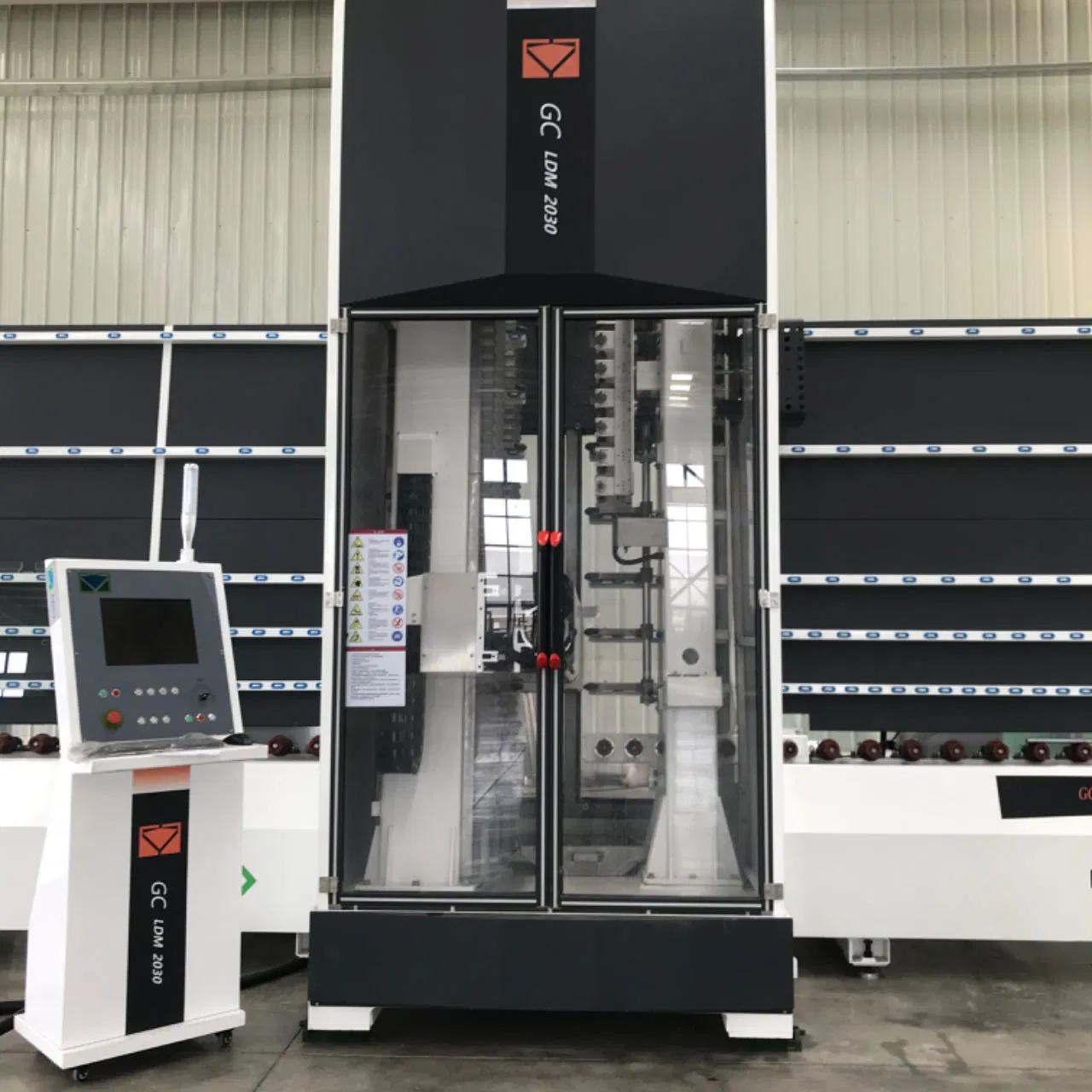

Glass Vertical CNC Drilling and Milling Center Size 2030

CNC Vertical Drilling and Milling Machine -- GC-LDM-III2030

1. Overview & Description

The GC-LDM-II is a high-tech vertical working center designed for the deep glass processing industry. It efficiently completes complex tasks in short timeframes, producing high-quality, high-precision glass. This system eliminates accuracy issues associated with manual drawing and cutting.

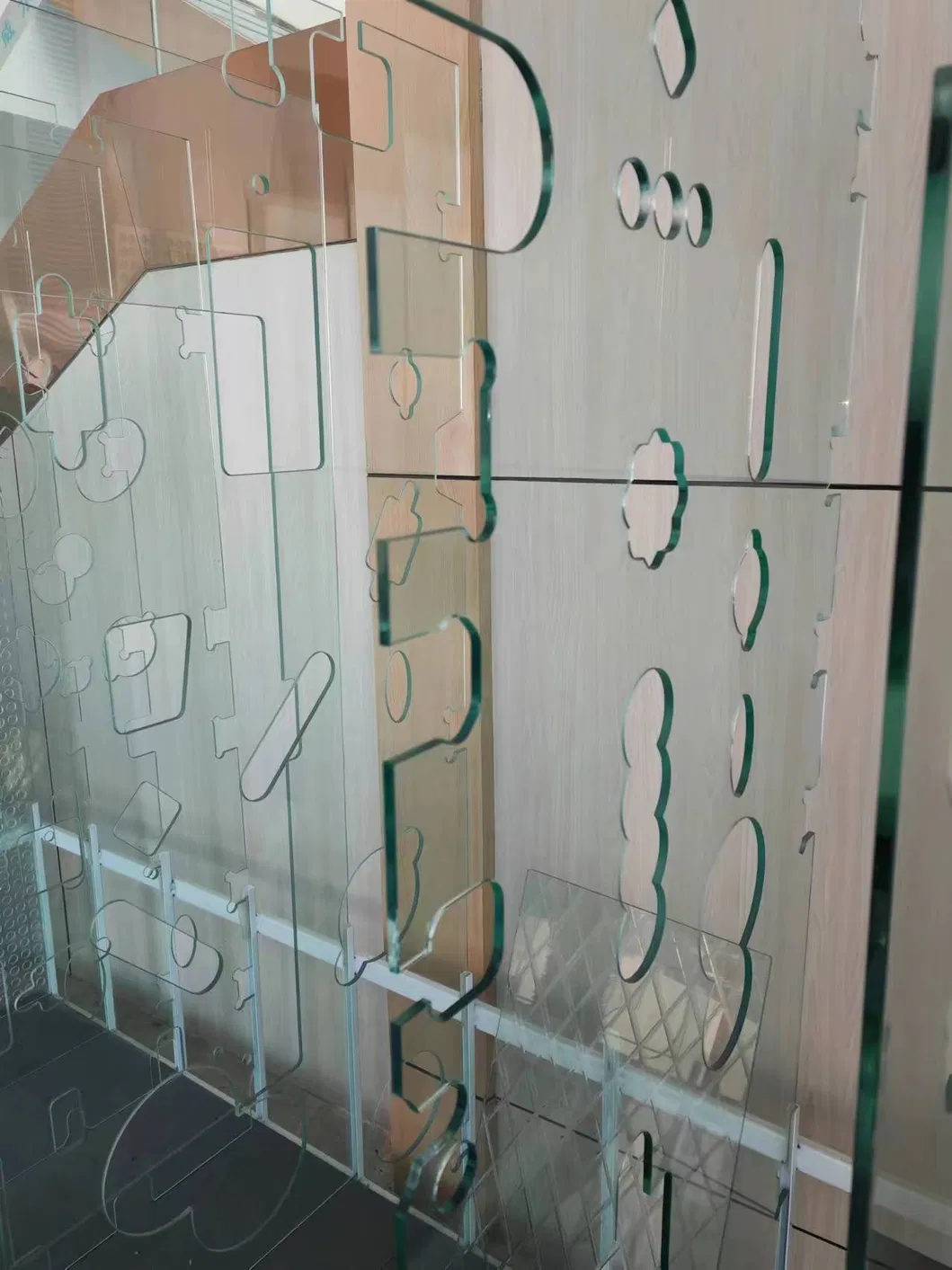

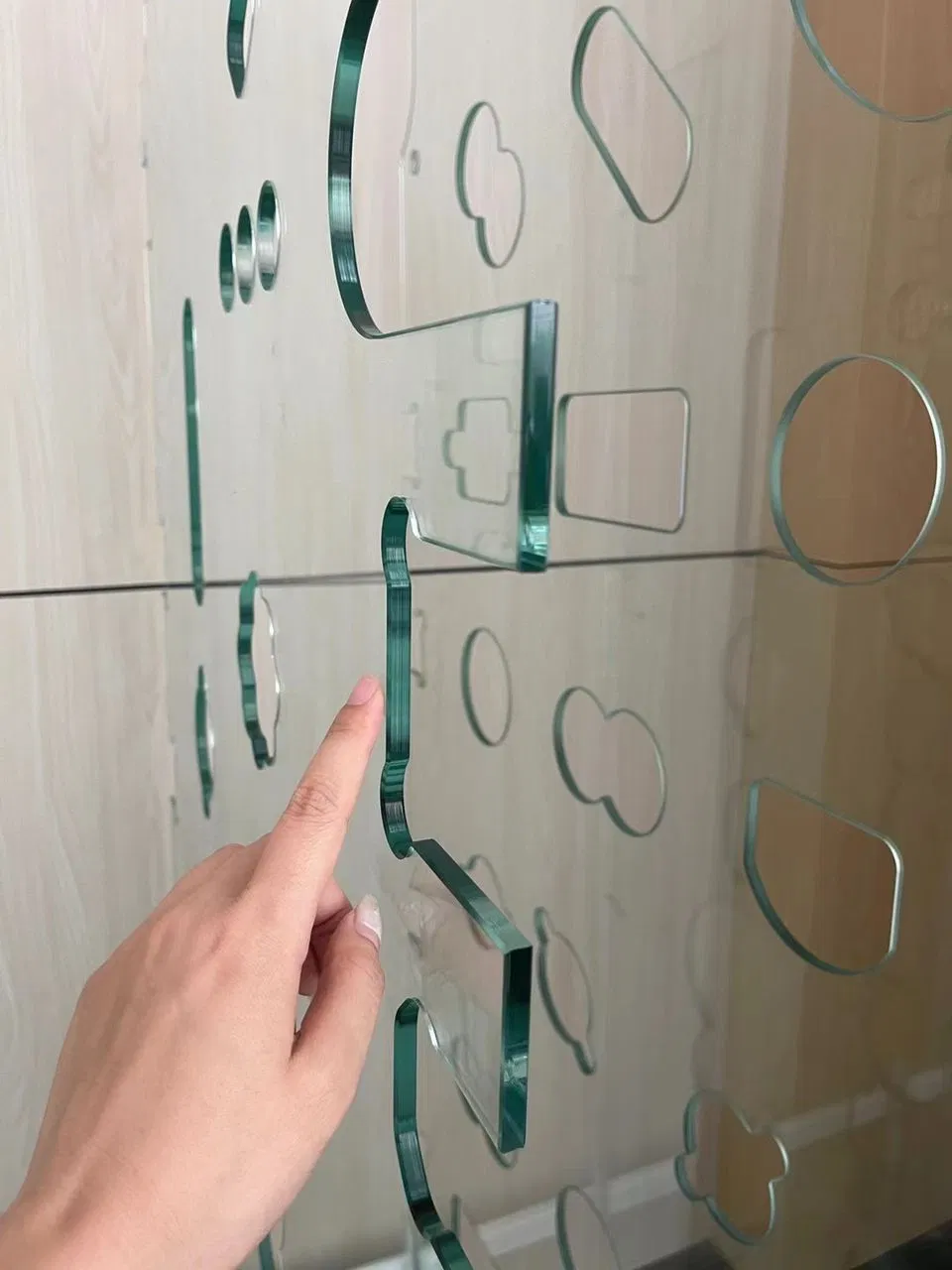

Utilizing international advanced numerical control systems, the machine realizes dynamic management of each axis and precise speed control. It is ideally suited for structural glass processing, including frameless doors and glass curtain walls.

Main Functions:

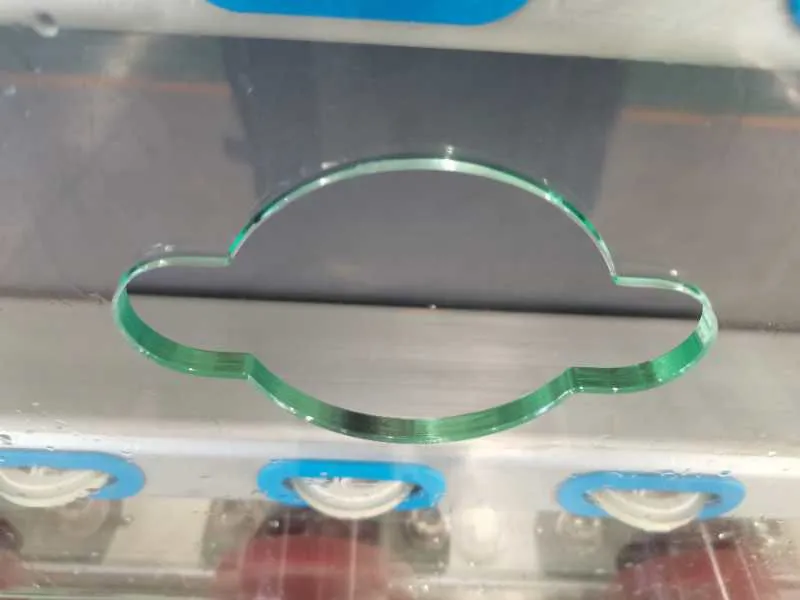

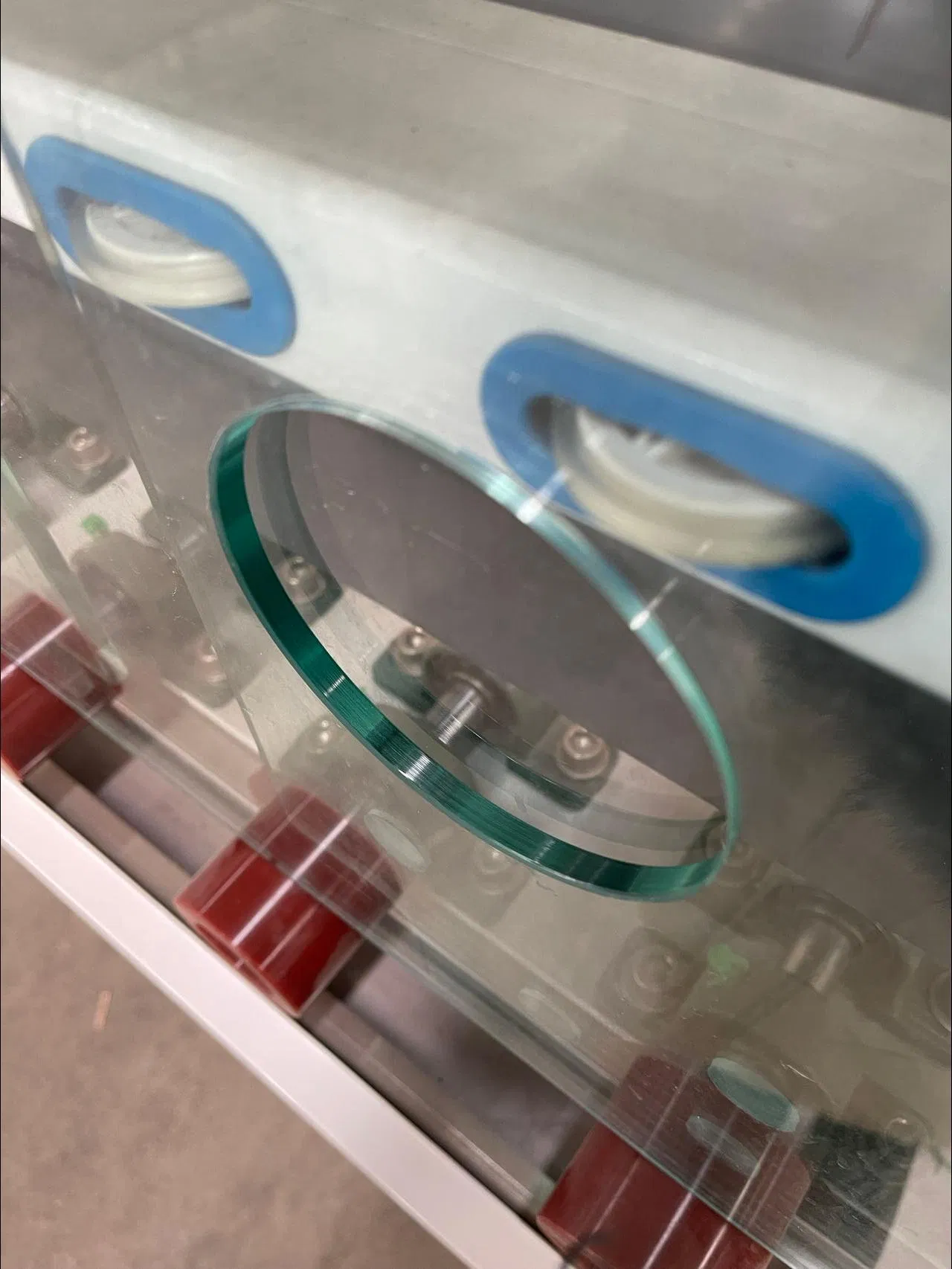

• Drilling by two opposite spindles

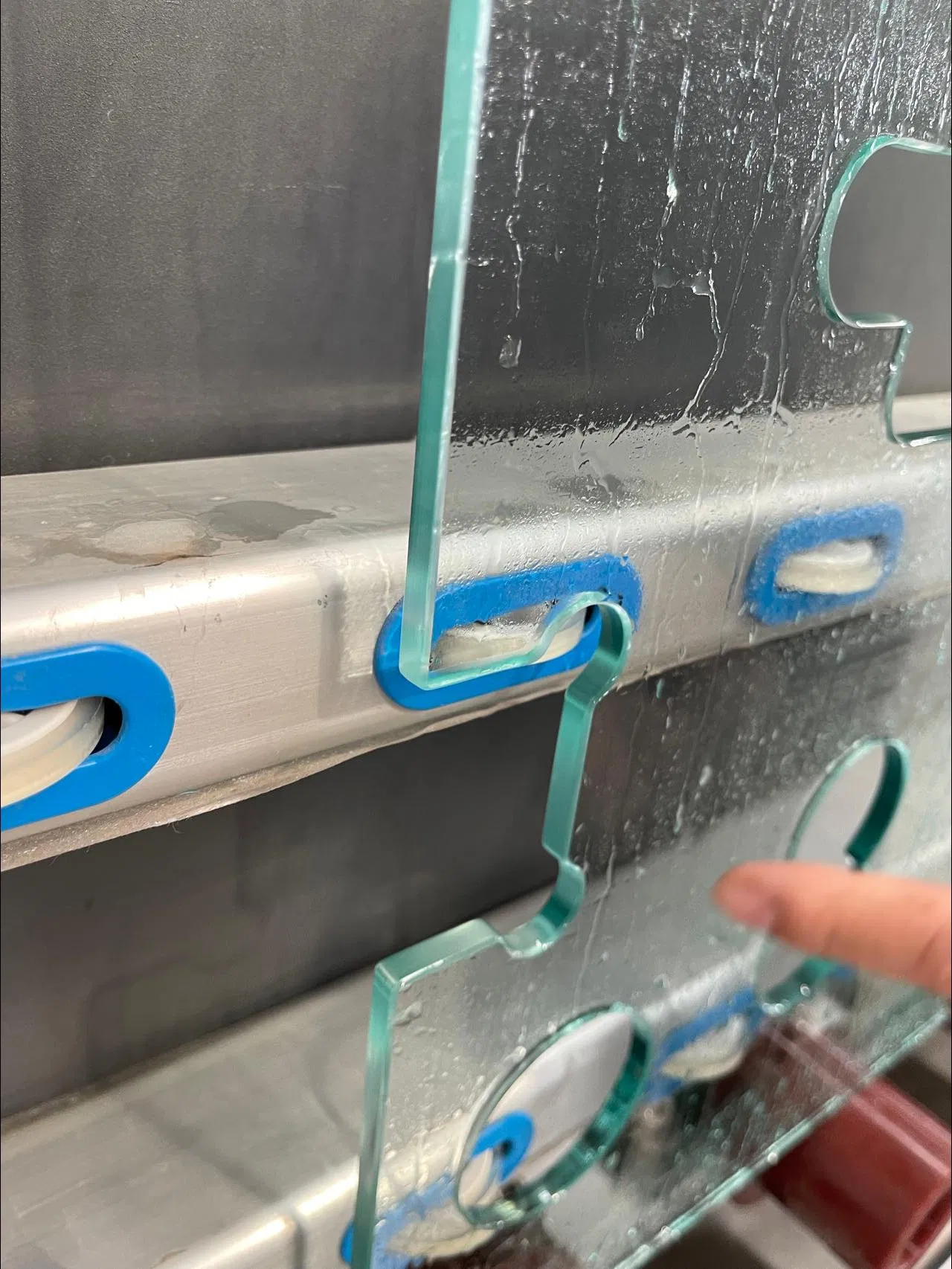

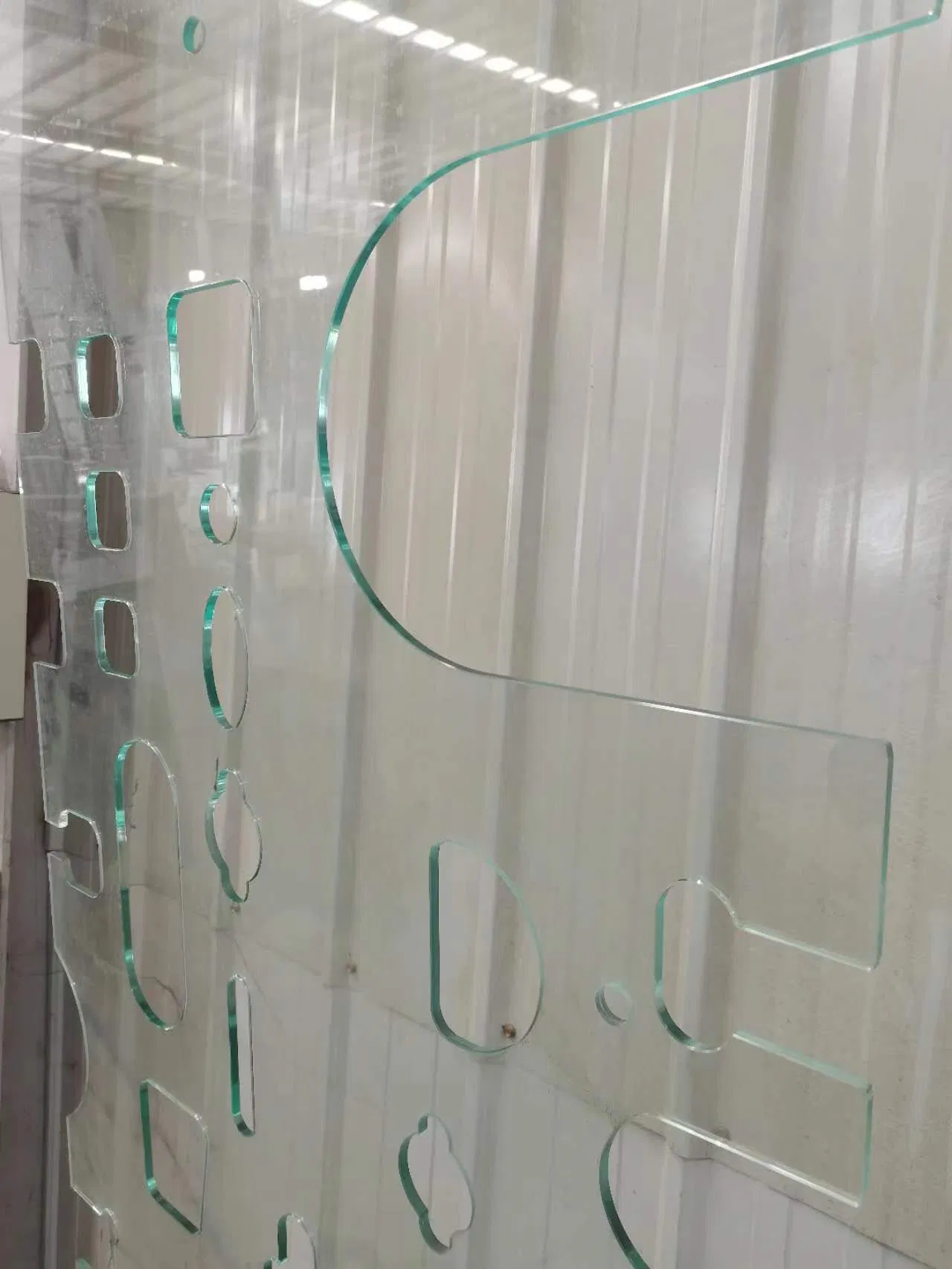

• Milling by single router
• Grinding and Arrising
• Polishing (Optional)

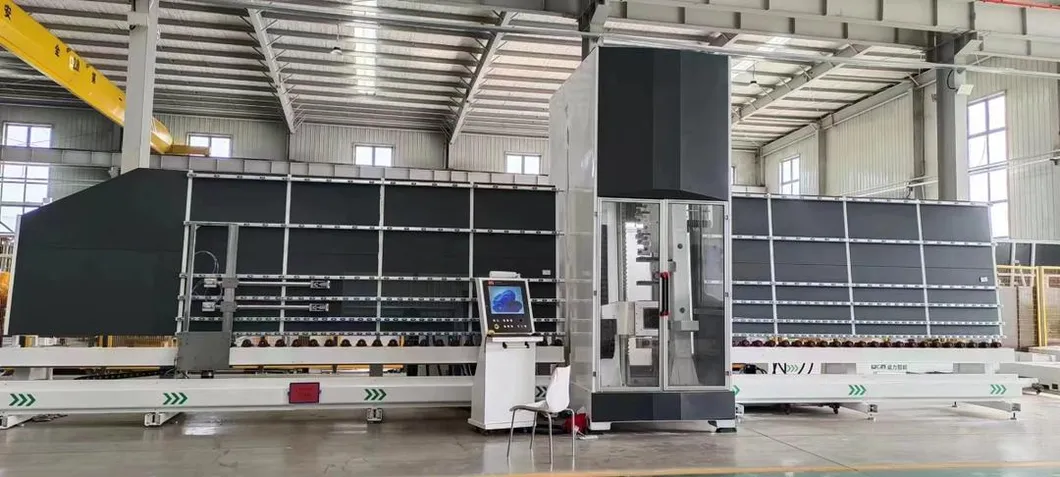

1.1 Machine Structure

The vertical design occupies less floor space and simplifies positioning. The main frame is constructed from welded structural steel with double vertical beams for the Y and V axes. X, Y, V, Z, and W linear axes are driven by high-precision ball screws on linear slide ways.

• High Precision: HIWIN (Taiwan) ball screws and guide rails.
• Durability: Maintains high precision over many years of use with low wear.
• Maintenance: Centralized oil supply system for lubrication.
• Protection: Main parts are covered in 201 stainless steel with observation doors.

1.2 Key Components

Electro-spindle: Features a constant torque output of 7.5KW. Even at 12000 RPM, it delivers 25Nm of torque, allowing for large-diameter grinding wheels. The spindle is water-cooled and allows water passage through the center for enhanced processing quality.

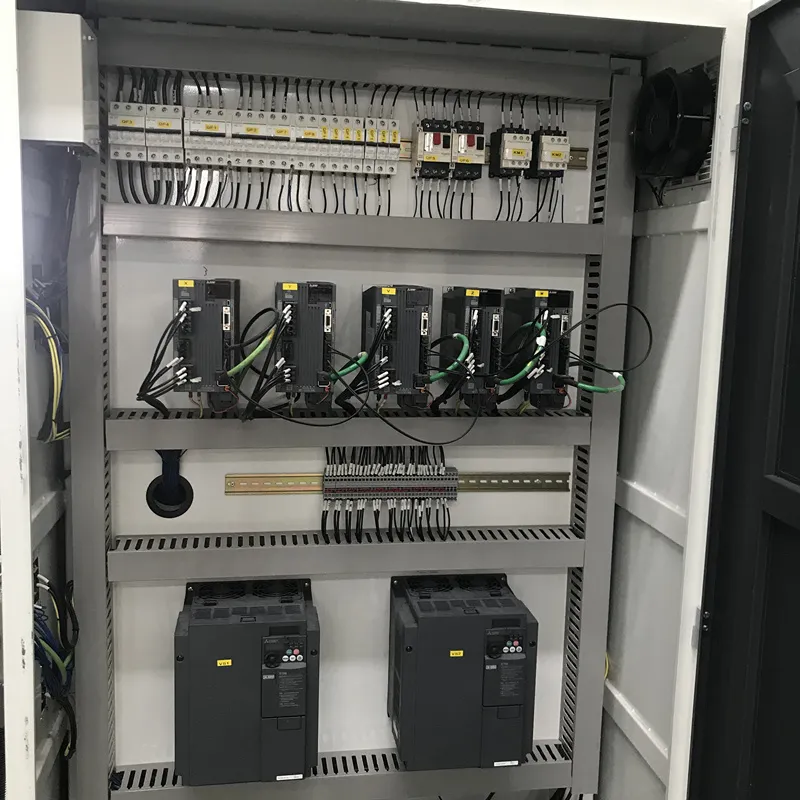

NC & CAM Software: Integrated professional numerical control system with a 19-inch color touch screen. The LEASY CAM software supports graphic libraries, DXF imports, and intelligent interference judgment.
