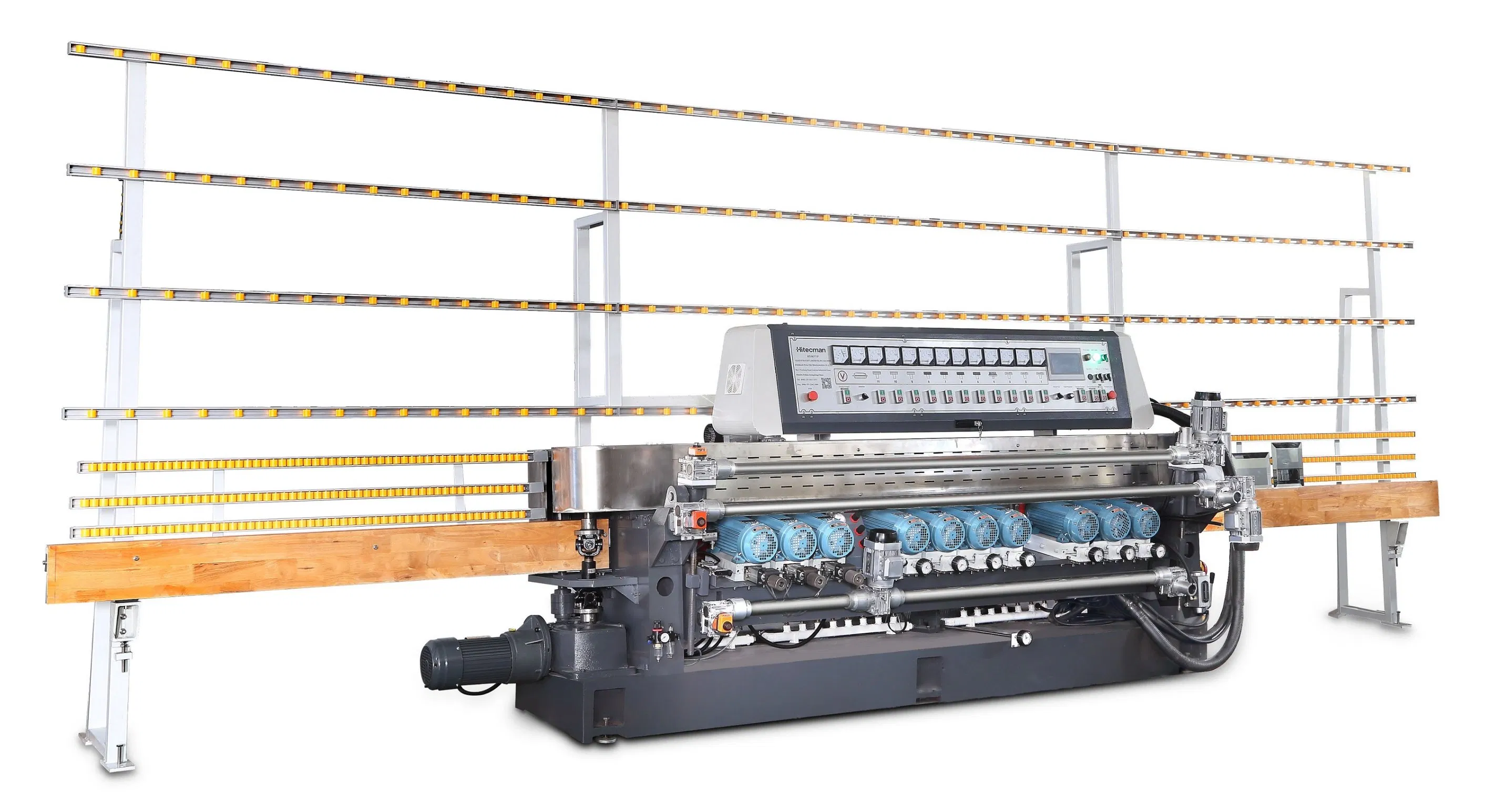

Glass Bevelling Machine

Warranty:	24 Months
Glass Thickness(mm):	3-12mm
Voltage:	Optional

Basic Information

Model NO.

HXM371

Feature

Strong & Smart

Transmission Speed

0.6-6.0m/Min

Colour

Golden+Blue

Type

Glass Beveling Machine

Certification

CE, ISO

Structure

Vertical

Control System

PLC

Grinding Heads

11

After-sales

Lifetime

Machine Features

1

PLC automatic control with manual operation mode. Equipped with remote control system for software updates and diagnostics.

2

Equipped with high-performance ABB brand grinding motors.

3

High-quality electronics sourced from Schneider brand.

4

Transmission box, foundation, and beams are made of annealed casting materials to prevent deformation.

5

Forward/backward grinding frame movement adopts ABBA Linear rail supporting.

6

Main transmission system utilizes frequency variators and flat timing belts.

7

Features stainless steel water tanks and coverings for durability.

Technical Specifications

No.	Parameter	HXM371P	HXM371PS
1	Min. glass size (mm)	100x100	25x25
2	Glass thickness (mm)	3~12	3~12
3	Bevel angle	3~30°	3~30°
4	Bevel width (mm)	50	50
5	Working speed (m/min)	0~5	0~5
6	Installed power (Kw)	24.5	24.5
7	Weight (Kgs)	4500	4500
8	Overall dimension (m)	7.5x1.5x2.5	7.5x1.5x2.5

Exhibition & Shipping

Frequently Asked Questions

Are you a professional manufacturer?

Yes, we are a professional glass processing machines manufacturer with a history dating back to 2006, providing industry-leading solutions for over 14 years.

What kind of after-sales service do you provide?

We offer 24-hour after-sales service with a dedicated technical team. Our communication is barrier-free in English, providing point-to-point solutions timely.

What is the warranty period for the machine?

Our standard guarantee is for 12 months. We also provide 18 hours of technical support via email, video, or call, along with English manuals and video tutorials.

Do you provide equipment operation training?

Yes. We can dispatch professional electrical and mechanical engineers to install, adjust the machines, and provide comprehensive training for your workers.

How does your equipment price compare to others?

As an innovative enterprise with a professional technical elite team, we offer machines with high-end components and functions at the most competitive price in the same brand level.

Can the software be diagnosed remotely?

Yes, our PLC is equipped with a remote control system, allowing our service team to update software or diagnose and remove problems from our center.
