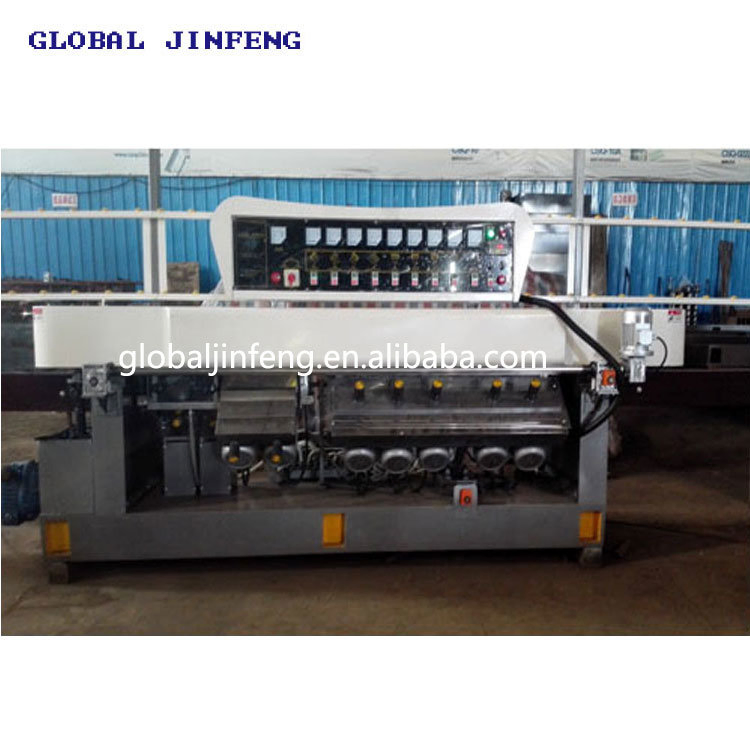

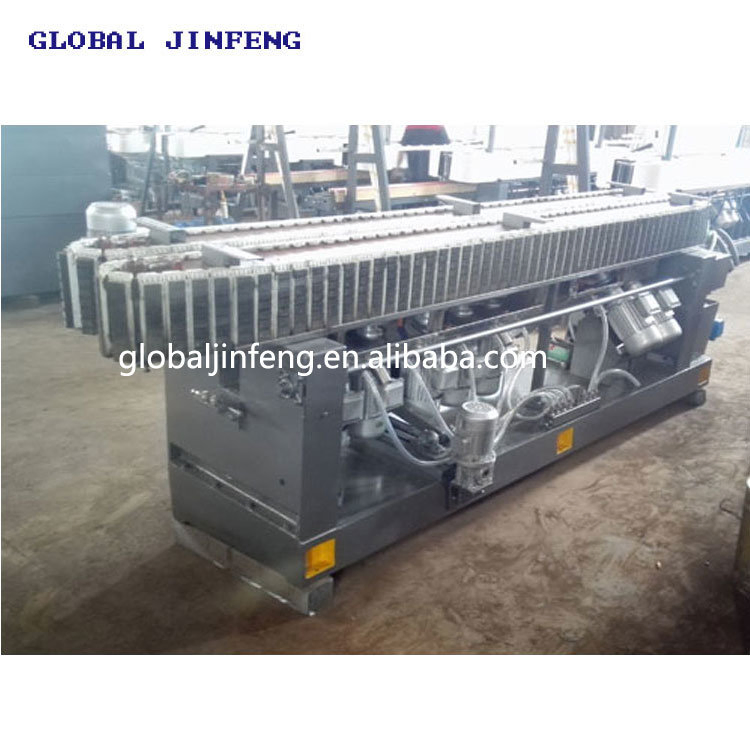

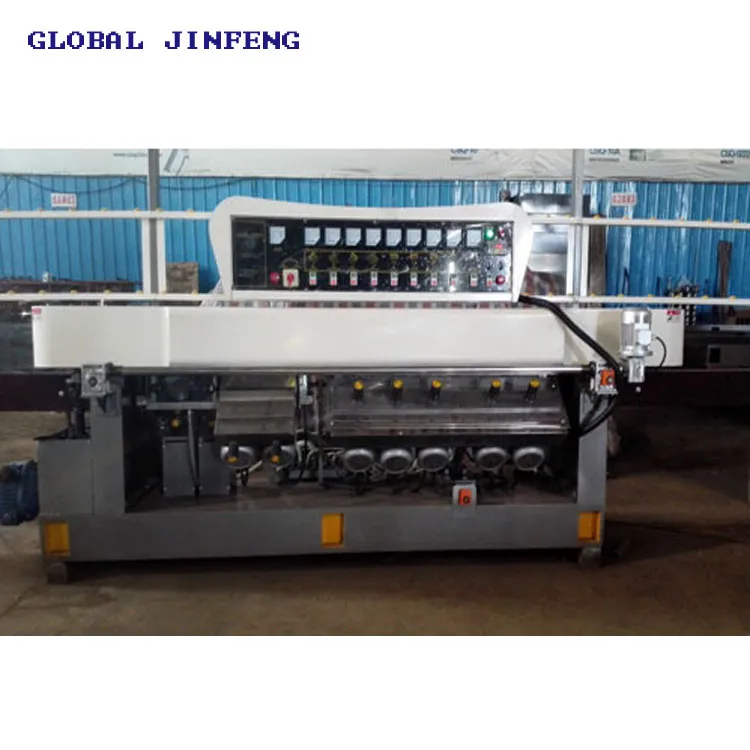

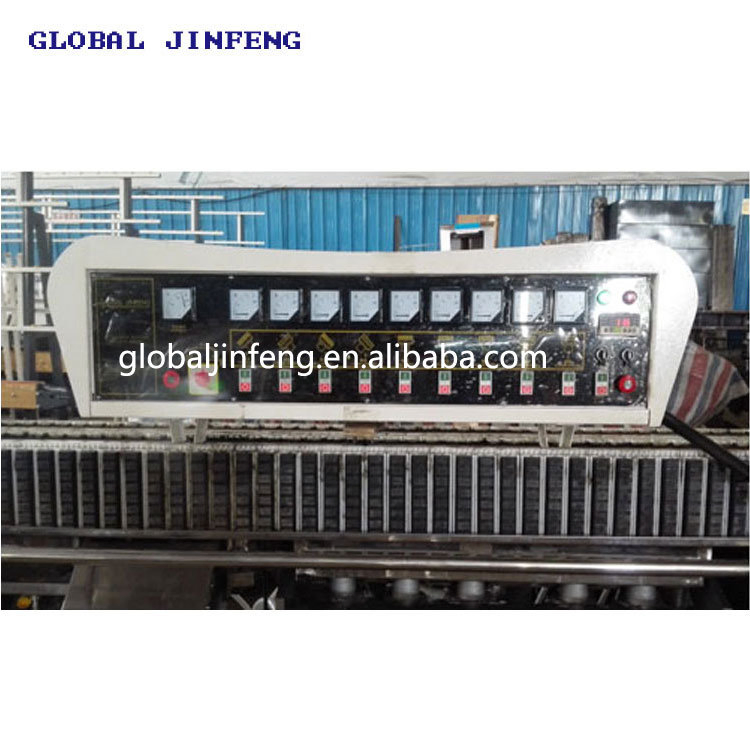

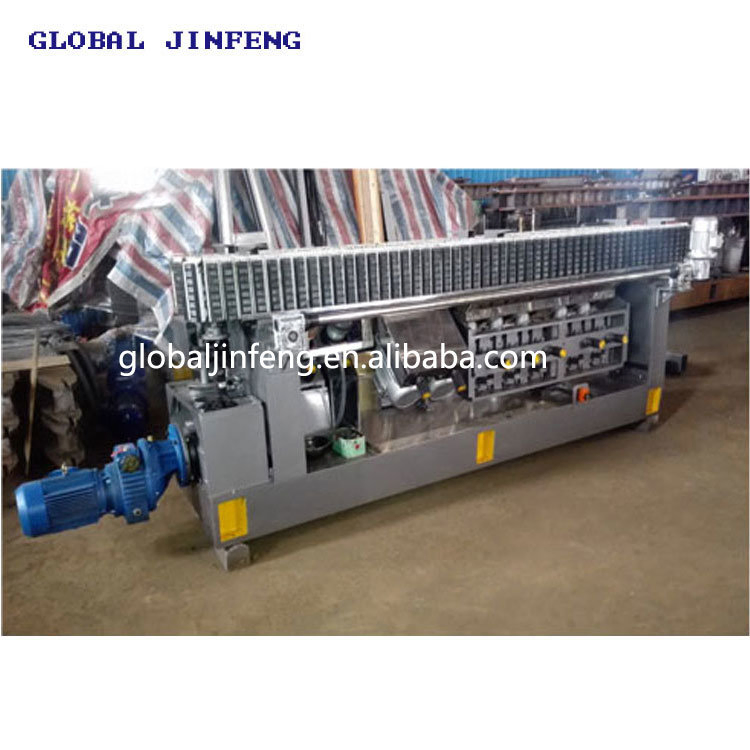

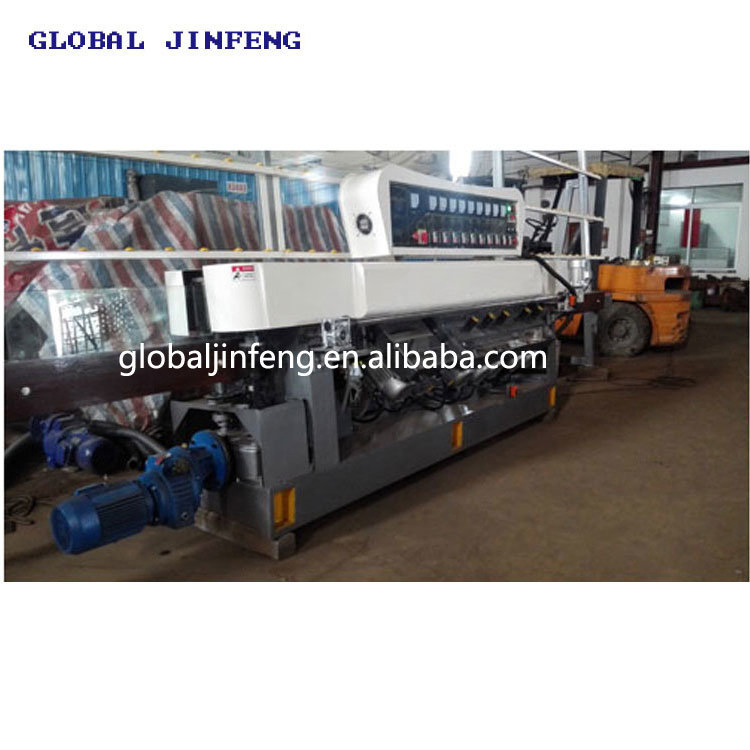

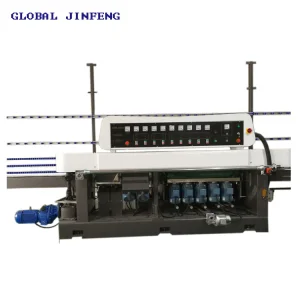

(Jfe-9540) Glass Straight Line Bevel Multilevel Edging Grinding Machine

1 / 5

(Jfe-9540) Glass Straight Line Bevel Multilevel Edging Grinding Machine

Customization:	Available
Warranty:	One Year
Max Glass Size:	2000mm

Send Inquiry

Product Description

📊

Basic Specifications

Min Glass Size

100X100mm

Thickness

3-25mm

Glass Drive Speed

0.5-5m/Min

Weight

3300kg

Angle Range

0-45 Degree

Machine Size

8000X1700X2200mm

Machine Type

Glass Straight Edging

Certification

Structure

Vertical

Grinding Heads

Control System

Manual

Production Capacity

30 sets / Month

⚙️

Product Description

(Jfe-9540) Glass Straight Line Bevel Multilevel Edging Grinding Machine

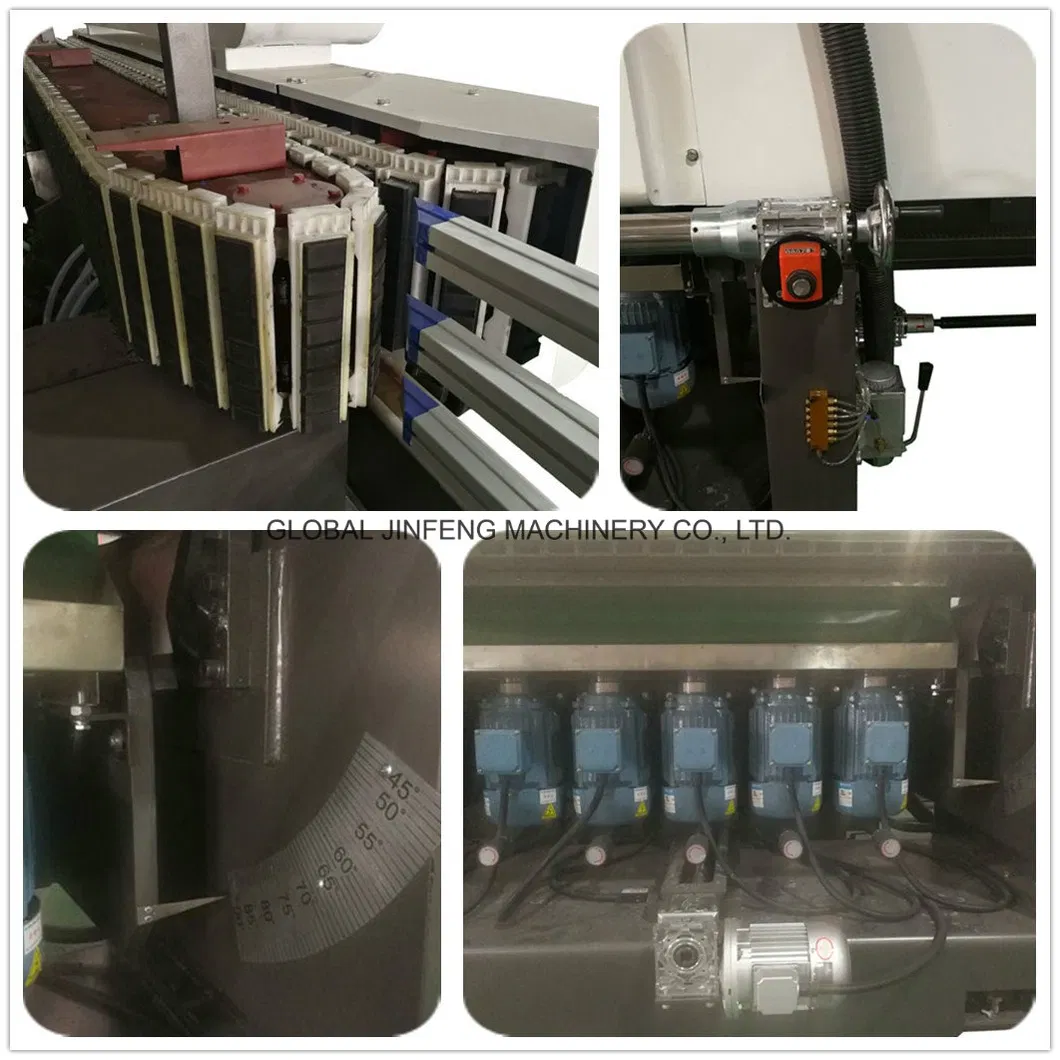

🔹 Suitable for processing different thickness and sizes for flat glass straight line and 45 degree line edging. The first five heads can be adjusted and rotate 0-45 degree, while the wheels can move forward and backward as a whole part.

🔹 Coarse grinding, fine grinding, polishing and chamfering can be completed in one time. It features 11 grinding heads with a powerful function to eliminate glass lines, significantly improving polishing brightness.

🔹 Constructed with casting materials for the base, beams, beds, and grinding heads (annealed to prevent deformation), ensuring stability under large loads.

🔹 Beams and grinding heads use 40 Cr forged materials, treated with high-frequency quenching and fine grinding for extreme durability.

🔹 High-quality components: Special head motor from "New east Asia", electrics from "Zhengtai", and brand chain from "Donghua".

🔹 Flexible operation and high efficiency, making it the preferred choice for the furniture and building industries.

Max glass size	2000mm
Min glass size	100x100mm
Thickness	3-25mm
Power	20kw
Weight	3300kg
Dimension	8000x1700x2200mm

❓

Frequently Asked Questions

What is the range of glass thickness this machine can process?

The Jfe-9540 machine is designed to handle flat glass with a thickness ranging from 3mm to 25mm.

Can this machine perform beveling at specific angles?

Yes, the machine is suitable for both straight line edging and 45-degree beveling. The first five grinding heads can be adjusted from 0 to 45 degrees.

What tasks can be completed in a single pass?

The machine can complete coarse grinding, fine grinding, polishing, and chamfering all in one single pass for high efficiency.

How many grinding heads does the Jfe-9540 model have?

The machine is equipped with 11 grinding heads (as per technical description) designed to eliminate lines and provide a high-brightness polish.

What materials are used in the machine's construction?

The base, beams, and beds are made of casting materials that have been annealed to prevent deformation. The beams and heads also feature 40 Cr forged materials with high-frequency quenching.

What industries benefit most from this machine?

It is ideal for high-precision glass processing in the furniture manufacturing and building construction industries.

(Jfe-9540) Glass Straight Line Bevel Multilevel Edging Grinding Machine

Product Description

Basic Specifications

Product Description

Frequently Asked Questions

Related Products

(Jfe-9540) Glass Straight Line Bevel Multilevel Edging Grinding Machine

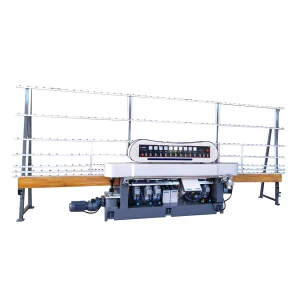

High Speed Low Price Glass Straight-Line Flat Bevel Multilevel Processing Edger Edging Polishing Grinding Machine

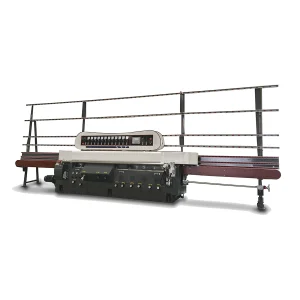

CE Siemens PLC Computer Glass Straight-Line Bevel Multilevel Processing Polisher Edger Edging Polishing Grinding Machine

Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine

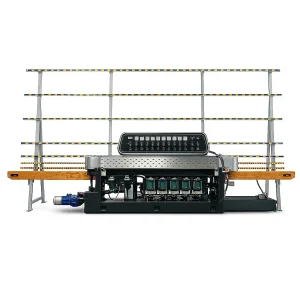

Sanken Multi-Level Glass Polishing Machine with 9 Powerful Motors

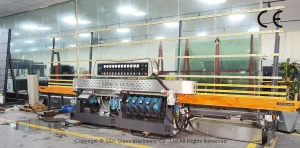

Sanken 11-Spindle Toughened Glass Furniture Multilevel 45 Degrees Glass Facet Machine

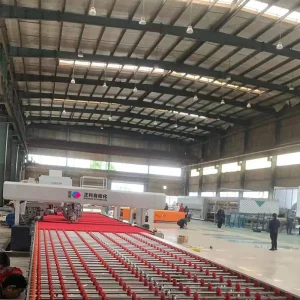

High Speed Glass Seaming Machine for Tempered Glass Machine

Glass Straight Line Edging Machine

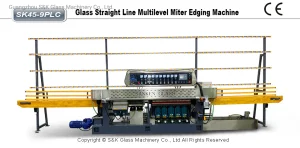

Sanken 9-Spindle Bathroom Glass Door Facet Polishing Machine Glass Multilevel Single Edger

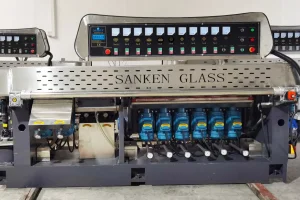

Sanken Toughened Glass Plant Glass Multilevel Facet Machine Glass Straight-Line Polishing Machine
