| Model NO. | GSZM4 |
| Processing Thickness | 3-19 mm |
| Voltage | 380V |
| Warranty | 1 Year |
| Type | Glass Edging Machine |
| Structure | Horizontal |
| Control System | PLC |
| Condition | New |
| Production Capacity | 20 Sets |

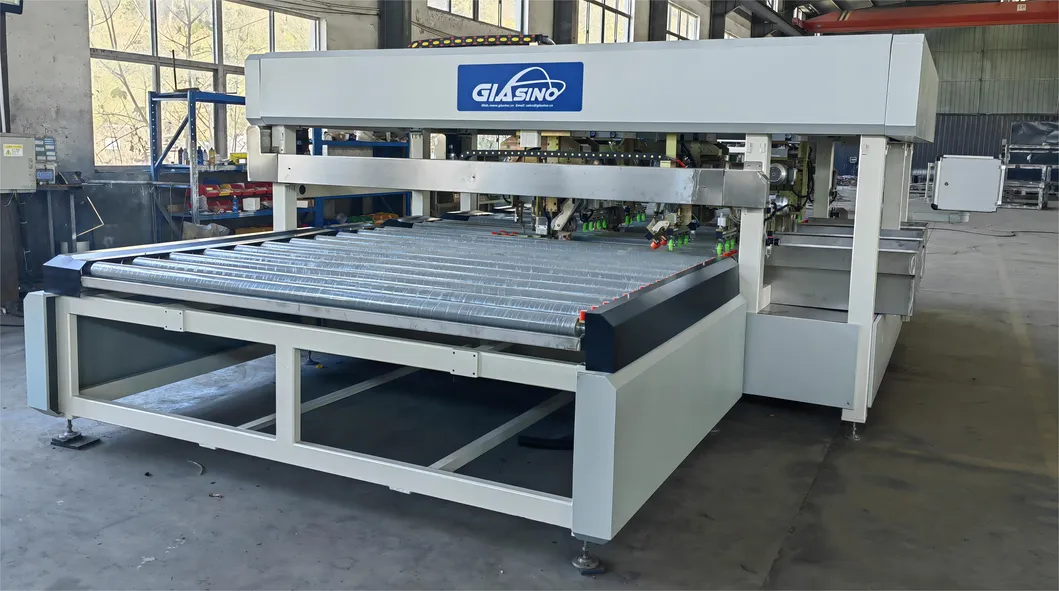

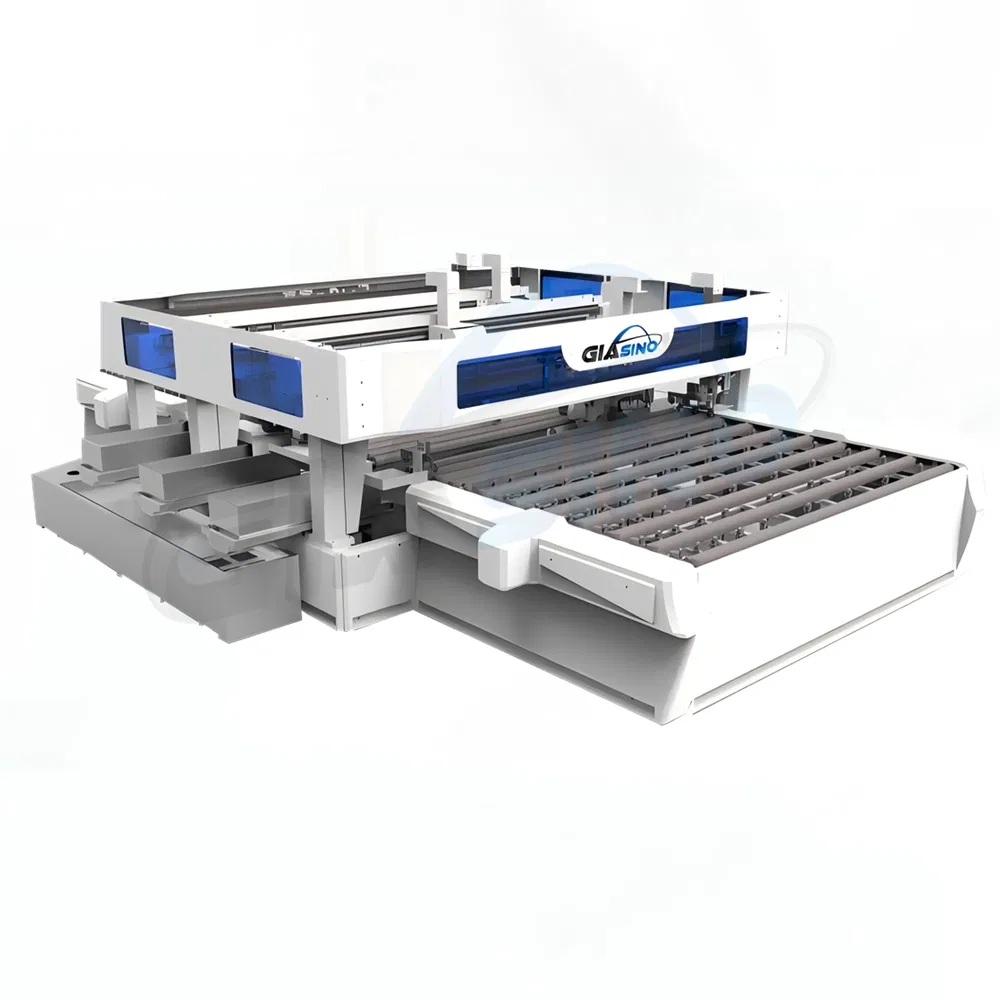

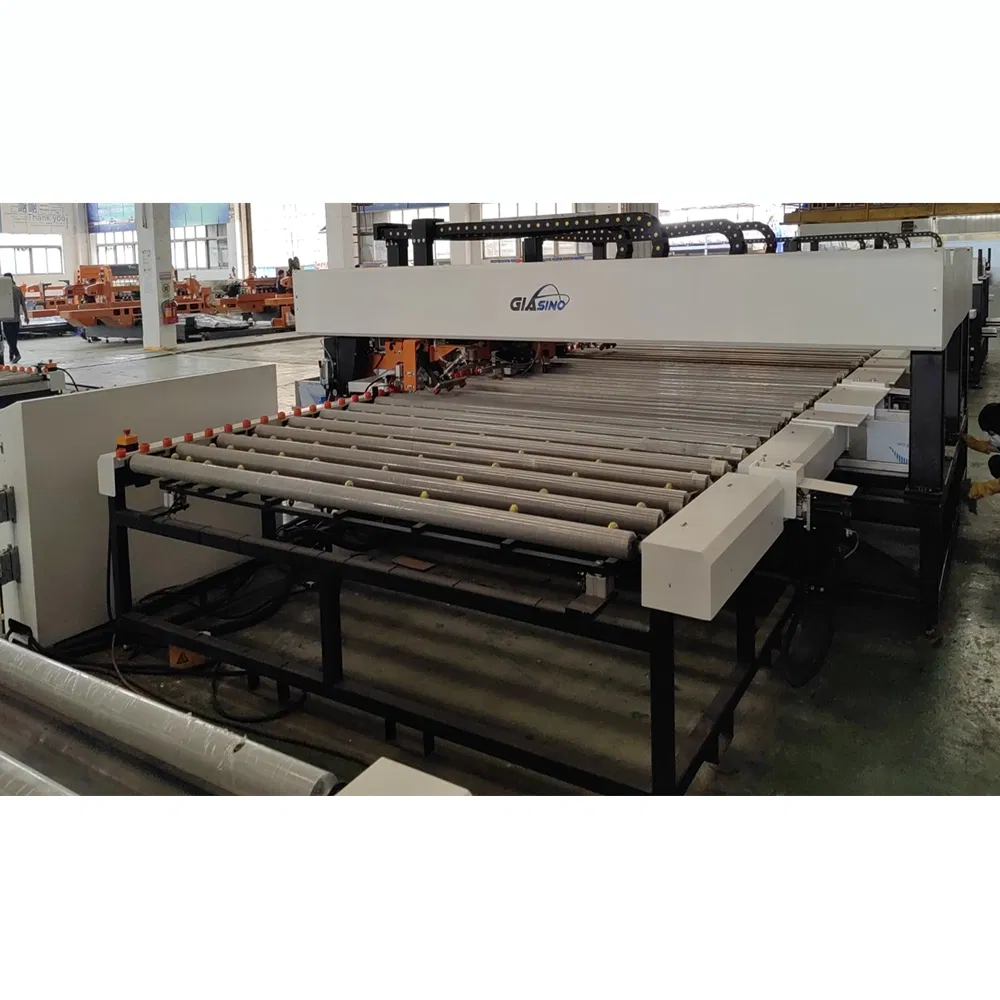

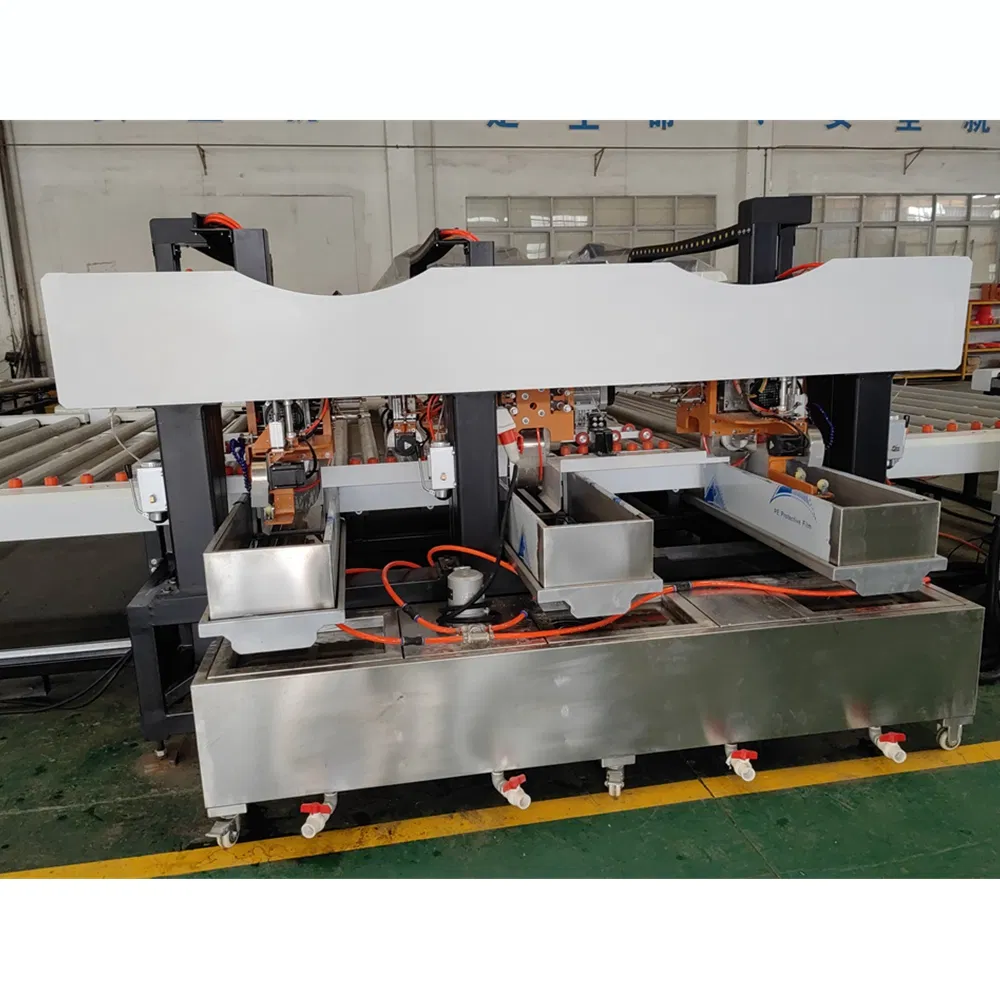

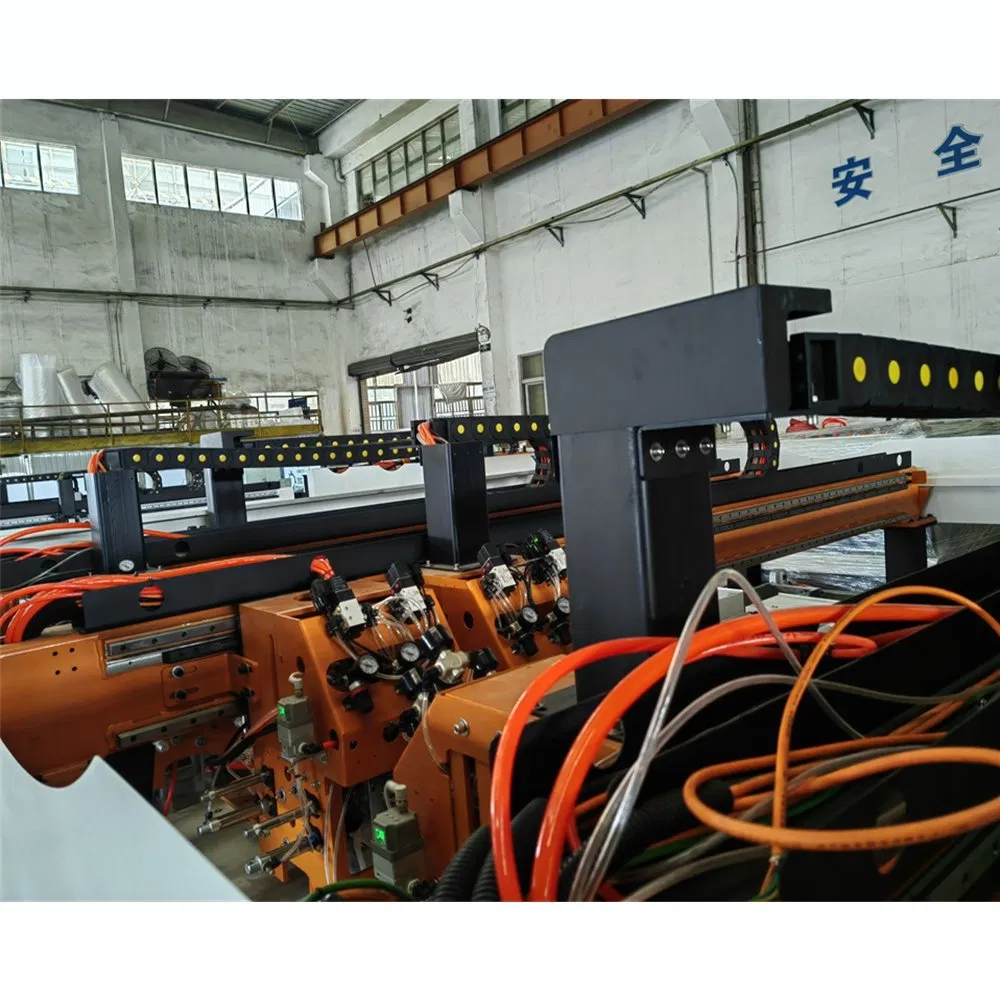

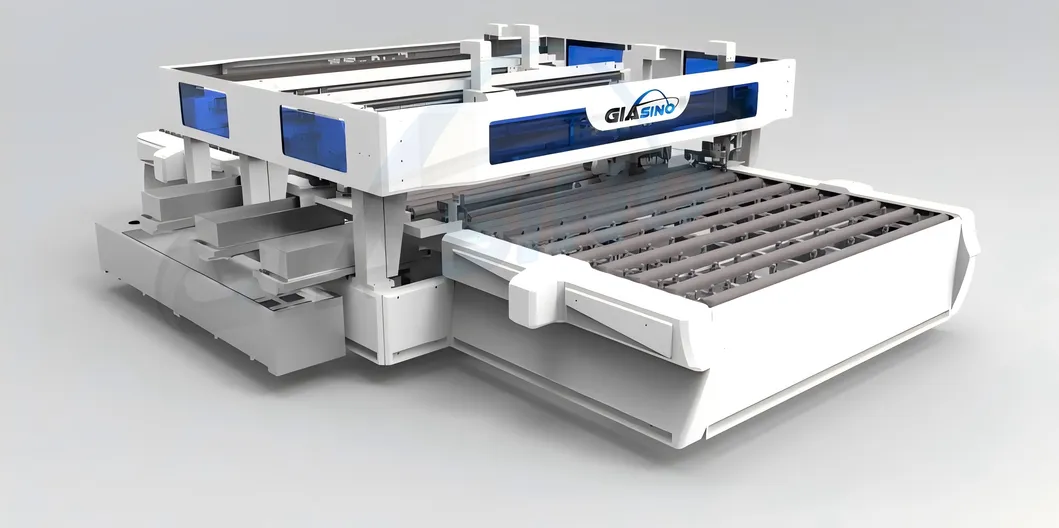

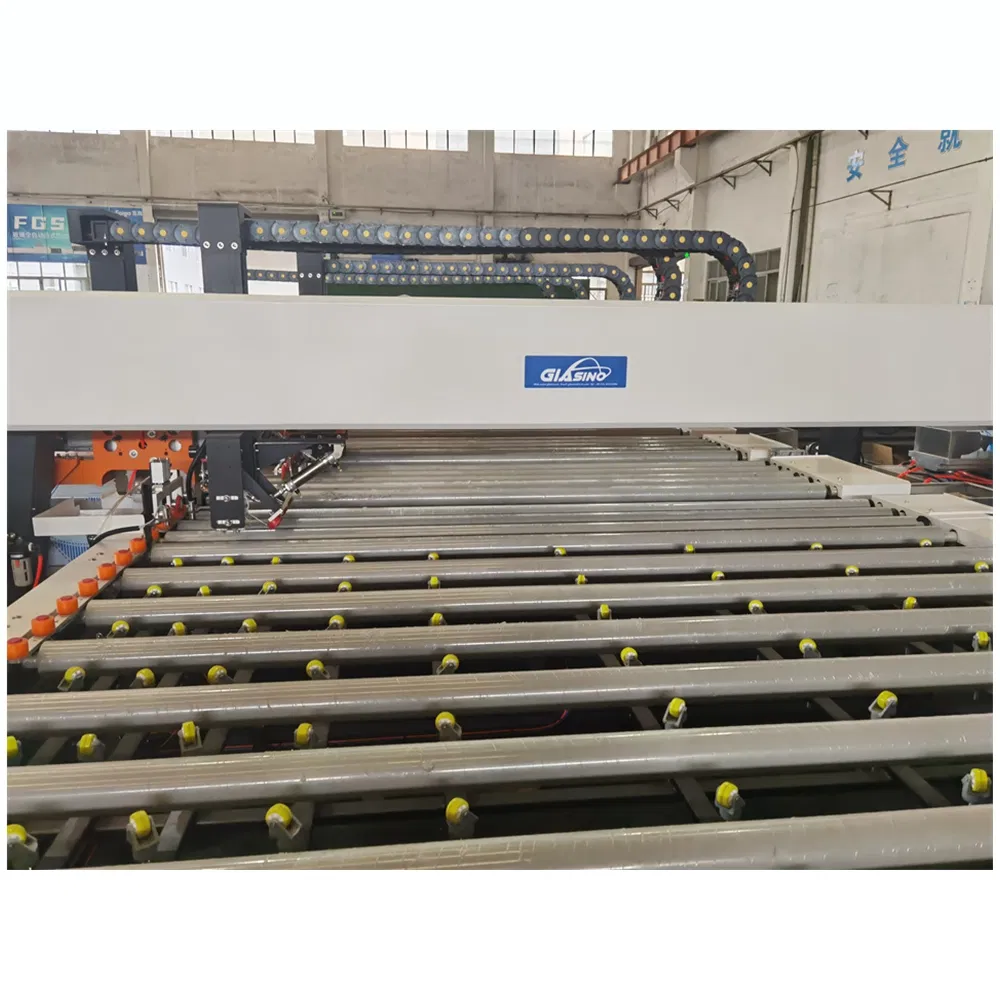

Four Sides Glass Seaming Machine with Low E Edging Grinding Machine
Product Features:
The glass horizontal four-side edger is professional equipment for roughing rectangular original glass. It features economic efficiency, high performance, energy saving, and automatic identification of glass width and thickness. It is especially suitable for processing large quantities of building glass, doors, windows, and hollow glass of different specifications. By composing a production line with an automatic loading table and high-speed washing machine, it achieves full automation, increasing processing speed while reducing labor costs.

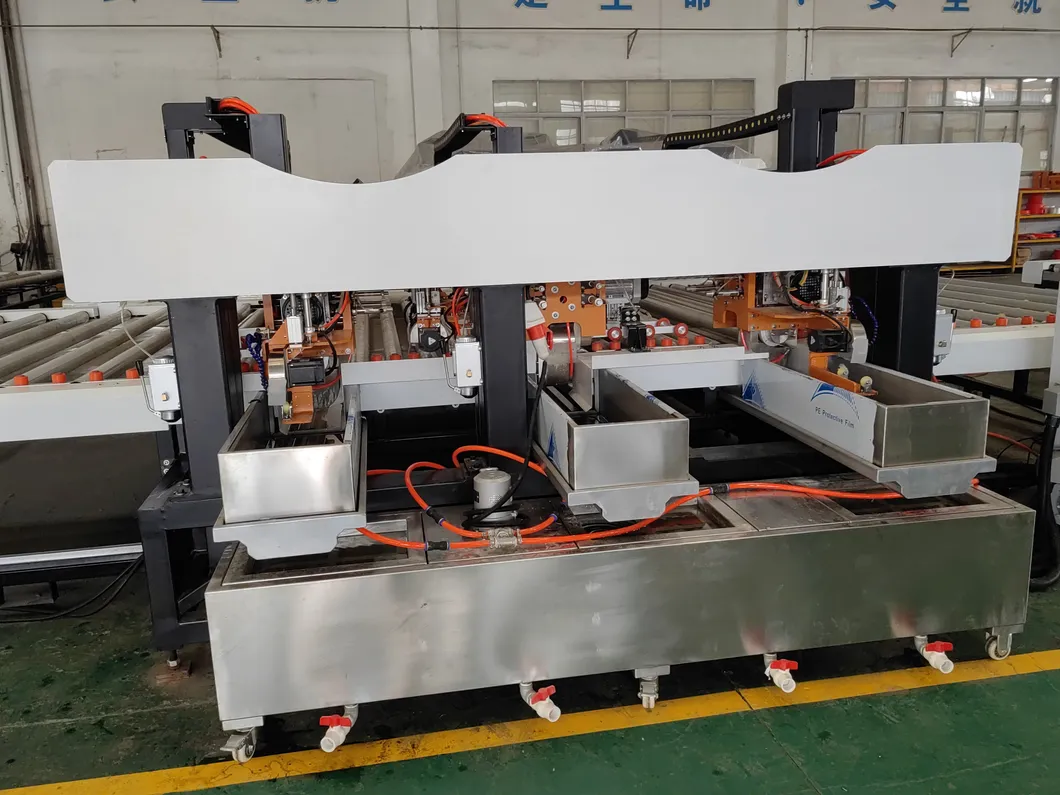

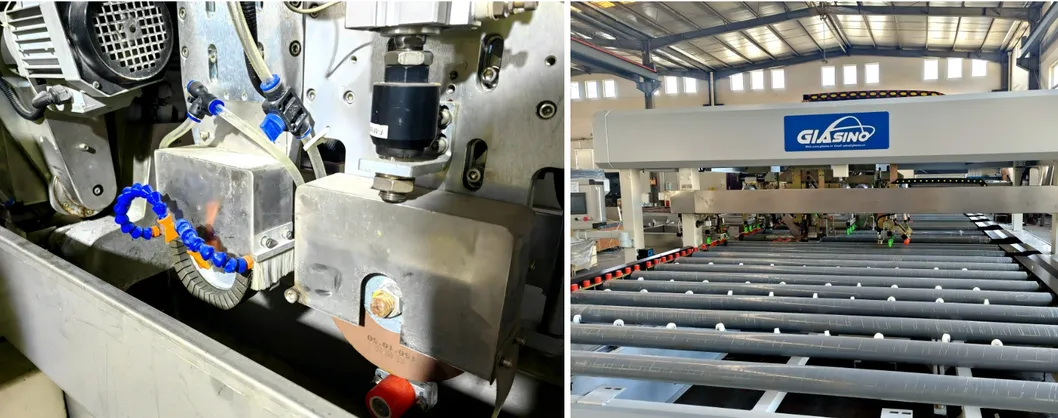

3 bridges and 4 sets wheel structure.

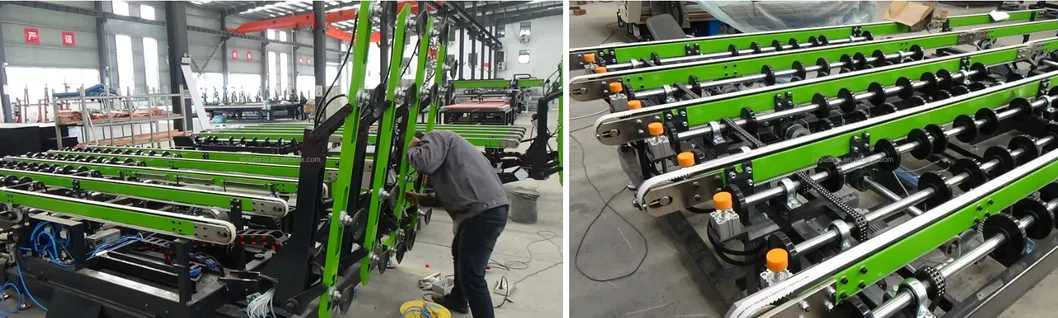

Can be equipped with automatic loading and unloading tables.

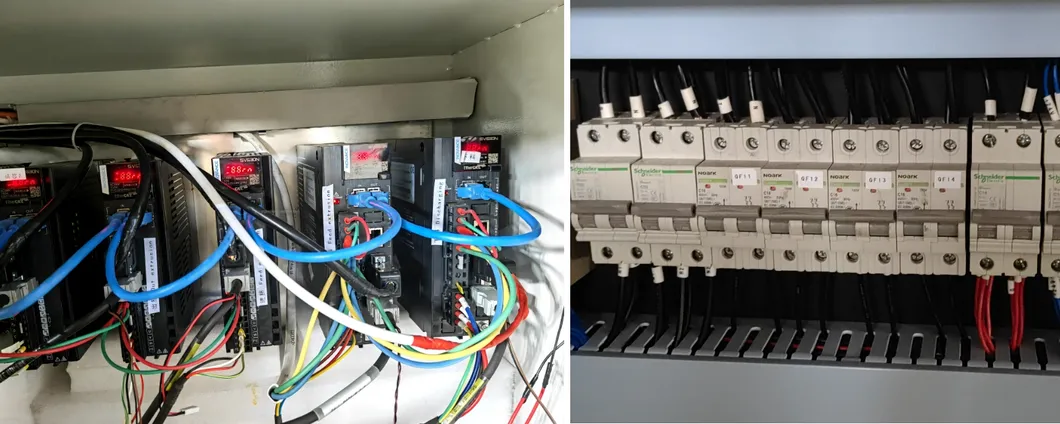

High-precision Servo drives and Schneider Electric Components.
| Spindles Qty | 16 |
| Processing Speed | Bottom edge + Low-E + Arris: 1-35m/min | Arris: 1-40m/min |
| Conveying Speed | 1-40m/min |
| Thickness | 3-12mm |
| Max Processing Size | 3000mm × 2500mm |
| Max Bottom Margin | 0.1-0.5mm |
| Arris Chamfer Width | 0.25-1mm |
| Power | 23kw |
| Machine Specification | 6900mm × 4700mm |
| Total Weight | 5300kg |
Production is arranged immediately upon order receipt, followed by professional sea-worthy packaging to ensure equipment safety during transit.
We are a high-tech enterprise specializing in the production of glass tempering furnaces, CNC glass cutting machines, insulating glass machines, and curtain wall glass machines. Our product range includes Laminated glass cutting machines, Automatic glass cutting lines, CNC sealing machines, and full sets of processing machines for insulating glass. We hold European CE certification, Switzerland SGS certification, and ISO 9001:2008 quality control status. Our focus remains on outstanding quality, satisfying service, and perpetual innovation to meet evolving market needs.
We actively participate in international exhibitions worldwide, building strong relationships with global partners and customers.
