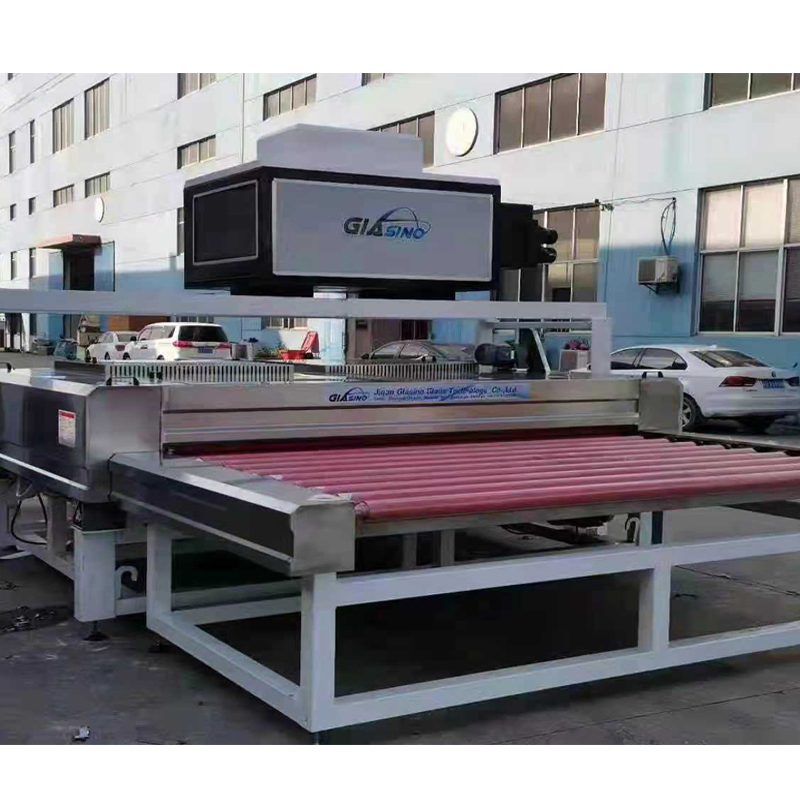

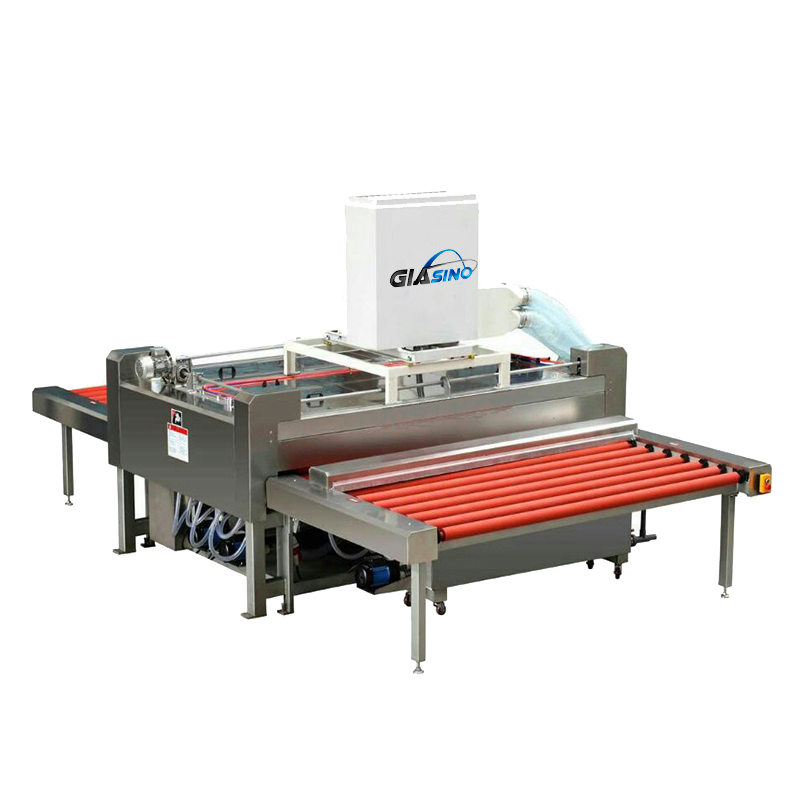

Glasino Big Size Automatic Horizontal Flat Cleaning and Drying Glass Washer Washing Machine

1 / 5

Glasino Big Size Automatic Horizontal Flat Cleaning and Drying Glass Washer Washing Machine

Customization:	Available
Certification:	CE
Product Name:	Horizontal Flat Cleaning and Drying Glass Washing

Send Inquiry

Product Description

Basic Information

Model NO.WH-2500

TypeGlass Washing and Drying Machine

StructureVertical

Control SystemPLC

Washing TypeHorizontal

Grinding Heads9

ConditionNew

Warranty1 Year

Capacity60 Sets/Month

Specification2500x3500mm

Product Description

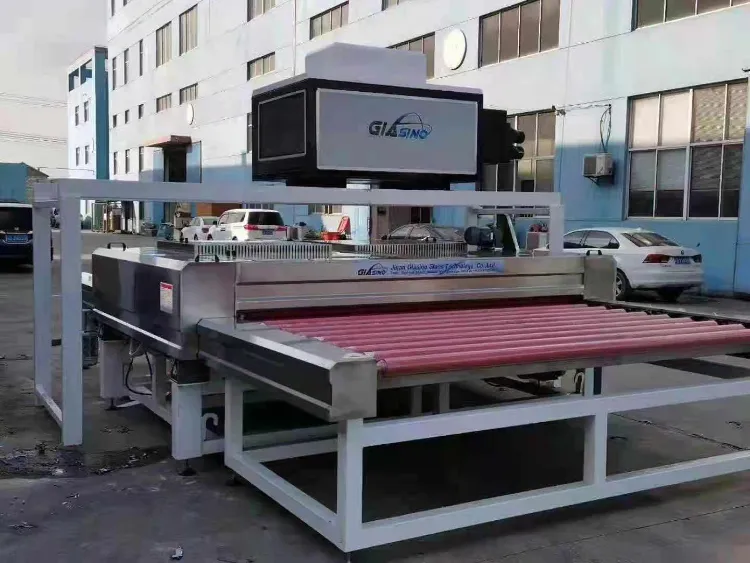

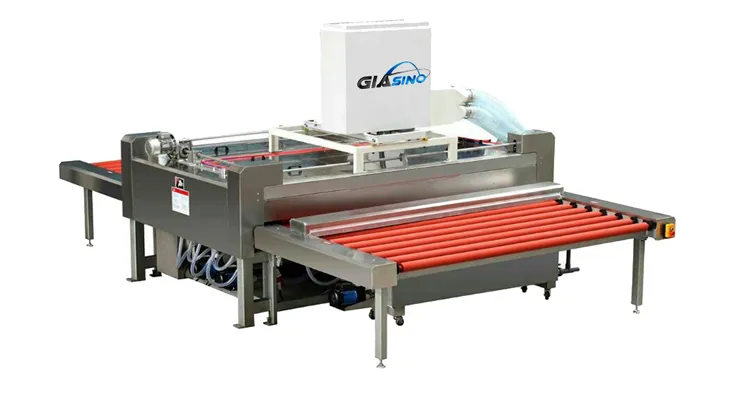

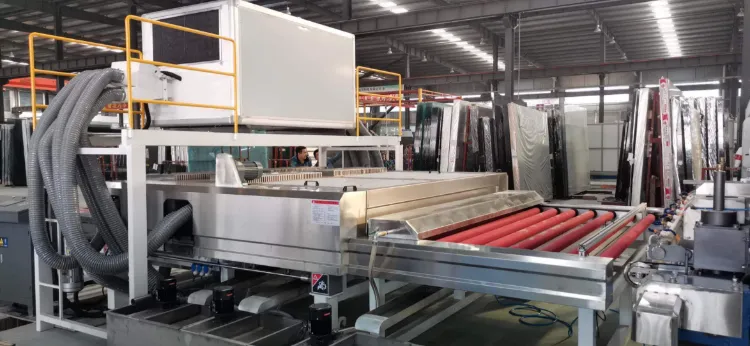

Big Size Automatic Horizontal Flat Cleaning and Drying Glass Washer

Equipment Features:

Large size economical horizontal glass washing and drying solution.

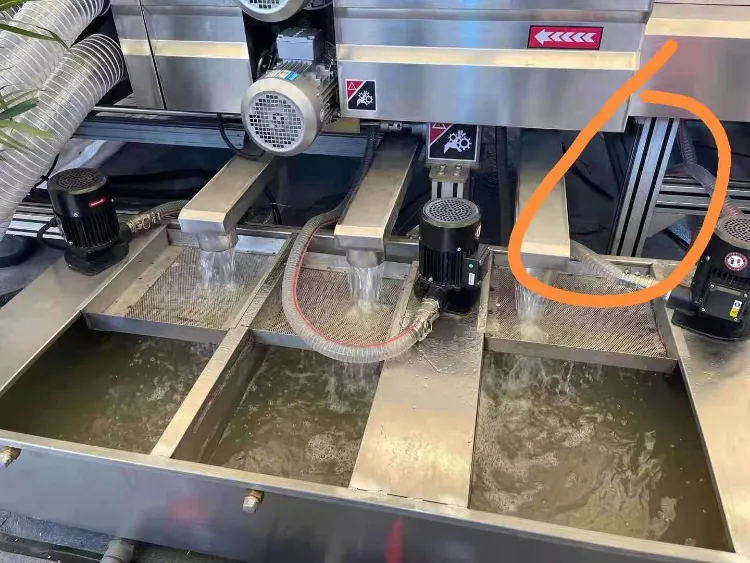

All stainless steel washing room, drying room, water tanks, and covers.
Strong aluminum profile frame joint for enhanced stability.
High-speed operation up to 9m/min with superior cleaning results.

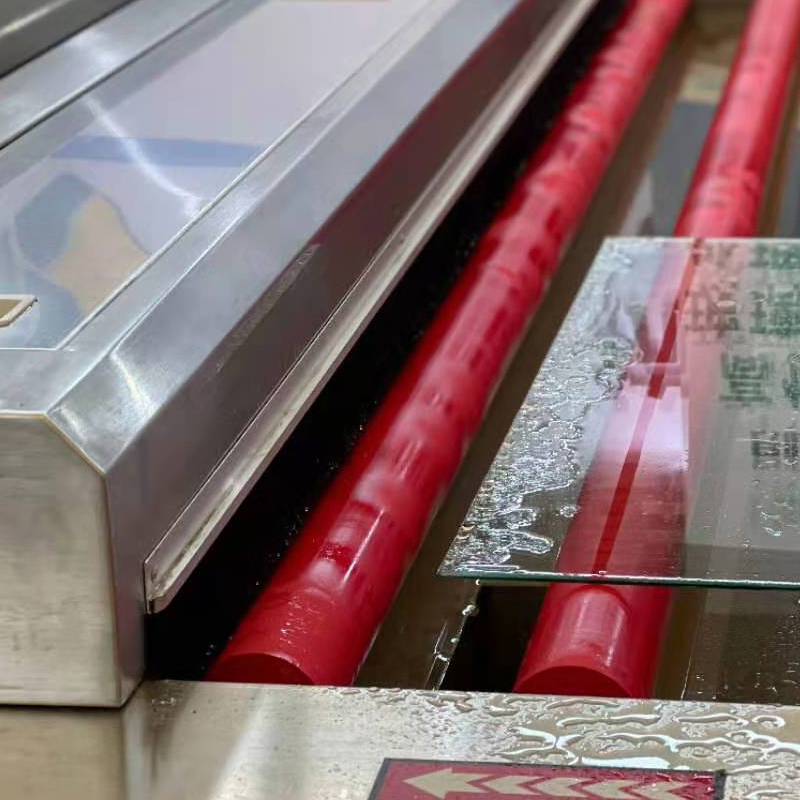

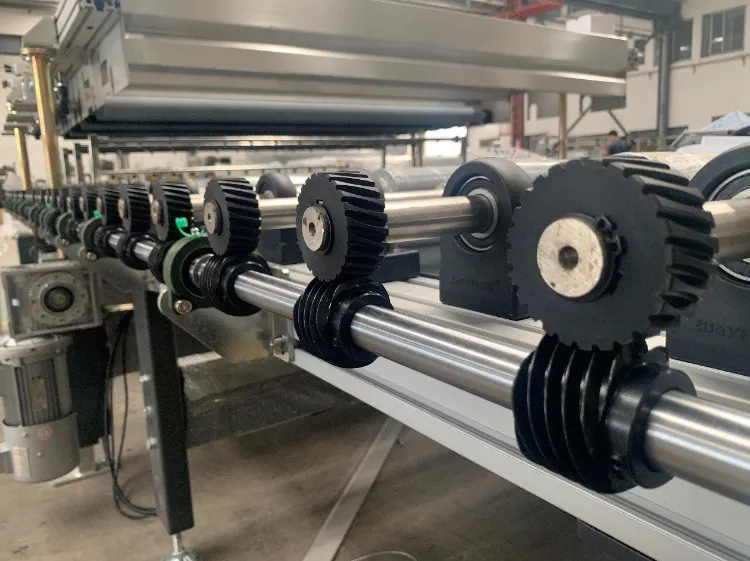

Loading section with self-cleaning feeding rollers soaked in water.
Pre-washing system with specialized press water spray.

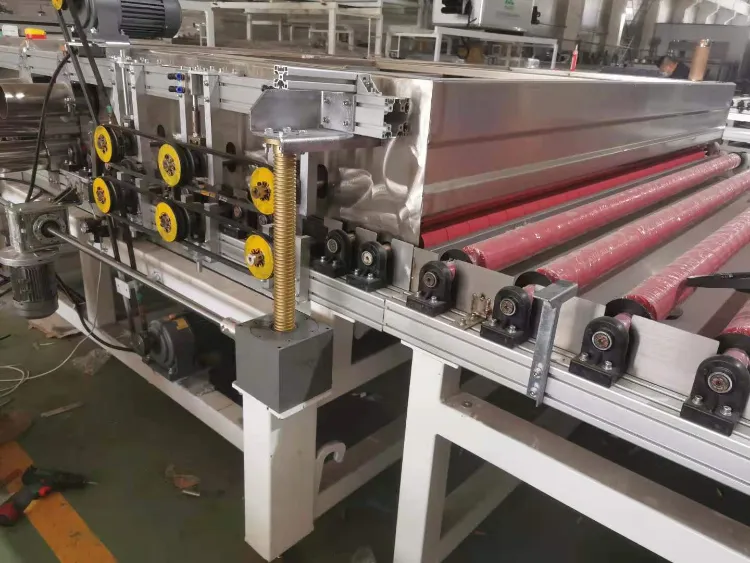

Three pairs of high-quality brushes (φ160mm) with SS304 shafts.
Optional functionality for LOW-E, ordinary coated, and solar coated glass.

Premium Components:

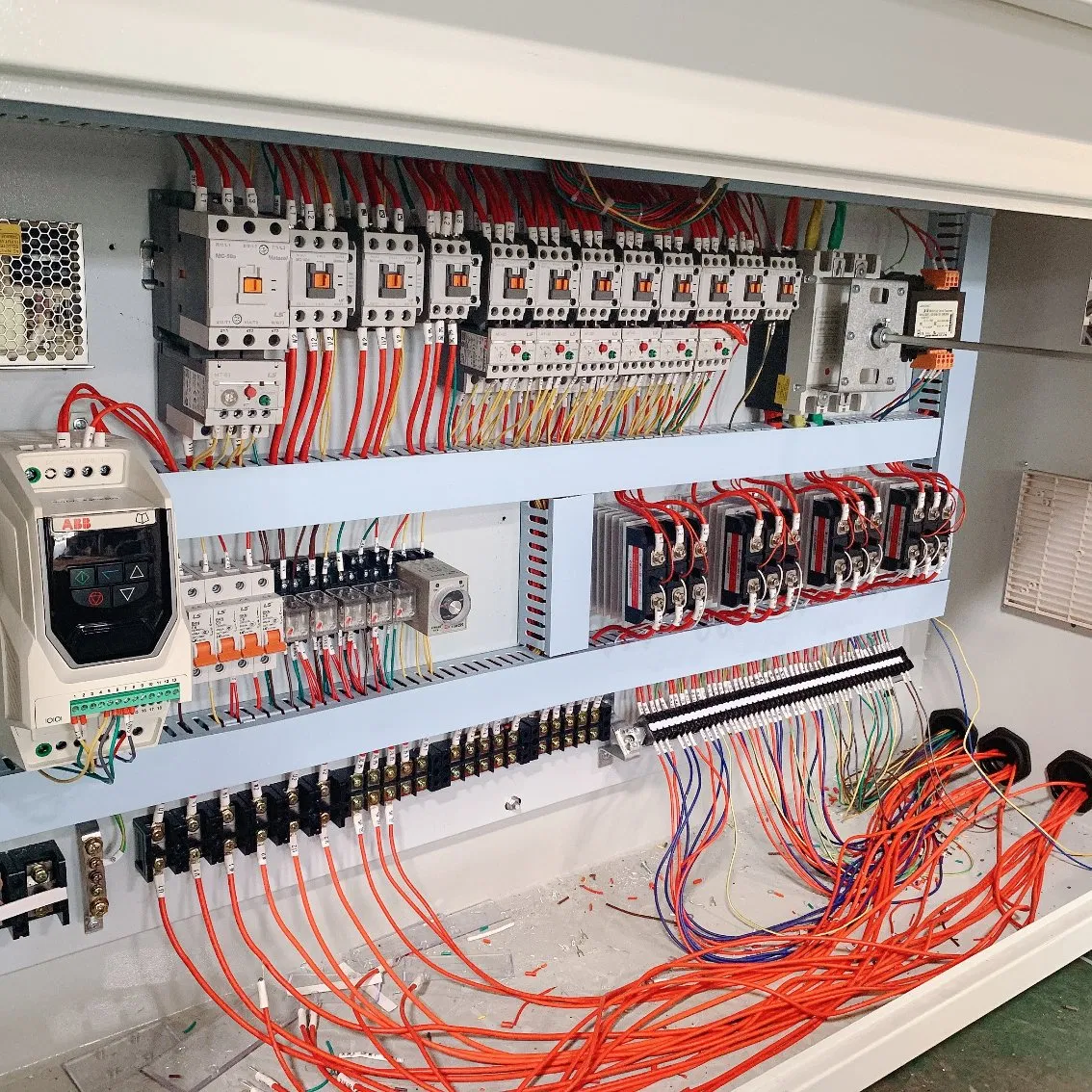

Famous brand electrical components for stable performance.

Product Parameters

Parameter	WH-1600	WH-1800	WH-2200	WH-2500
Washing Speed	1-9m/min	1-9m/min	1-9m/min	1-9m/min
Max. Size (mm)	1600×2500	1800×2500	2200×3660	2500×3660
Min. Size (mm)	200×400	200×400	200×400	200×400
Air Blower	7.5kw	11kw	15kw	18.5kw
Weight	1800kg	2000kg	2600kg	3000kg
Work Height	900±20mm	900±20mm	900±20mm	900±20mm

Packaging & Company Profile

Our company is a high-tech enterprise specializing in the production of professional glass processing machinery, including tempering furnaces, CNC cutting machines, insulating glass lines, and window making machinery. Outstanding quality and satisfying service are our brand's foundation. We continuously improve production management and develop advanced technology to meet global market needs.

Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized manufacturing factory focusing on glass processing machinery.

What is the warranty period for the equipment?

We provide a comprehensive one-year warranty on all our glass washing and drying machines.

How do you provide after-sales service?

We provide on-site installation, commissioning, and training. Within the first year, accessories are free. We also offer remote service and video guidance for troubleshooting.

What is the typical delivery time?

The delivery time is usually 20-30 days after the receipt of the deposit.

Can the machine wash Low-E glass?

Yes, the machine features a washing LOW-E function option, which can wash LOW-E, ordinary coated, and solar coated glass without scratching the surface.

What materials are used for the washing and drying rooms?

All washing rooms, drying rooms, water tanks, and covers are constructed from high-grade stainless steel for durability and corrosion resistance.
