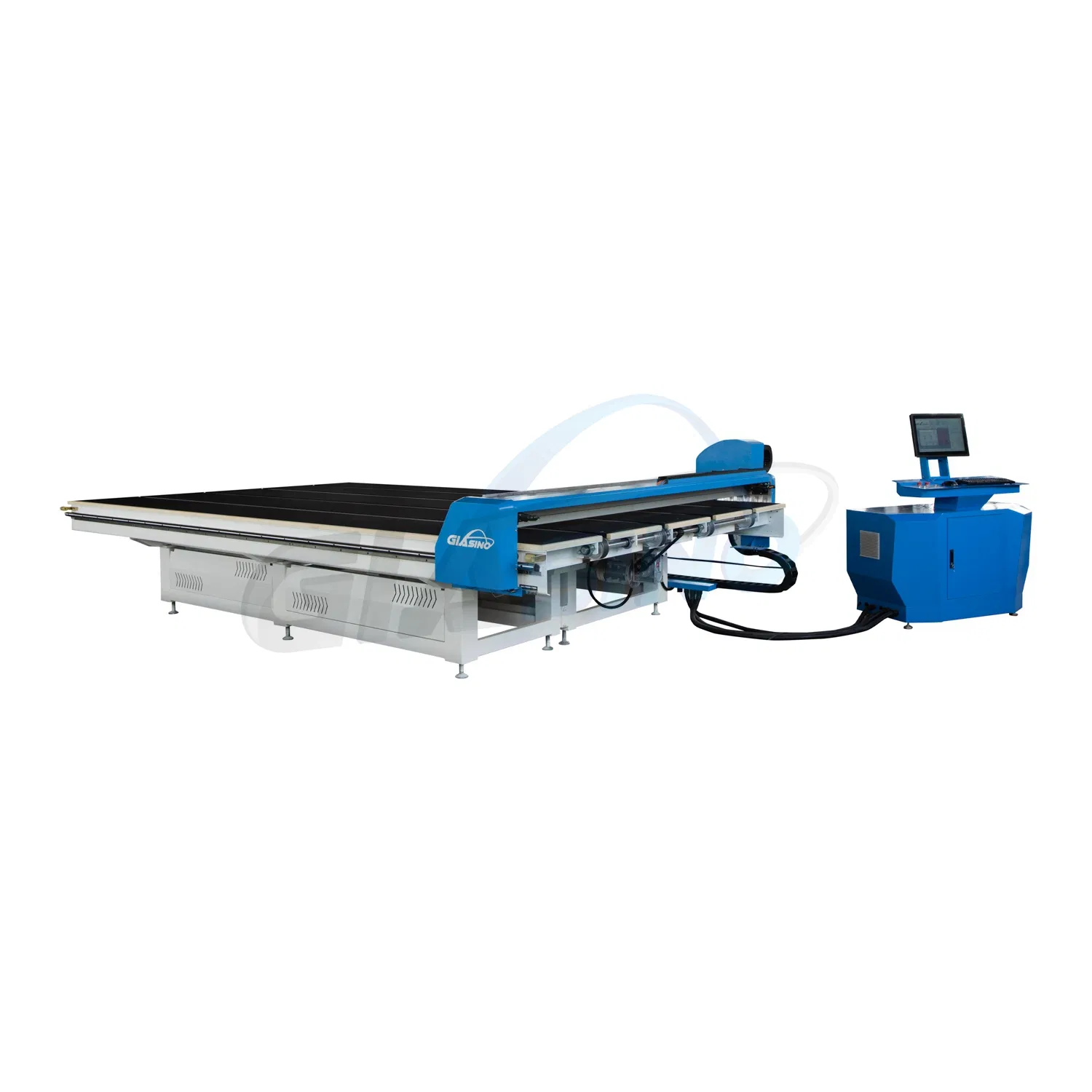

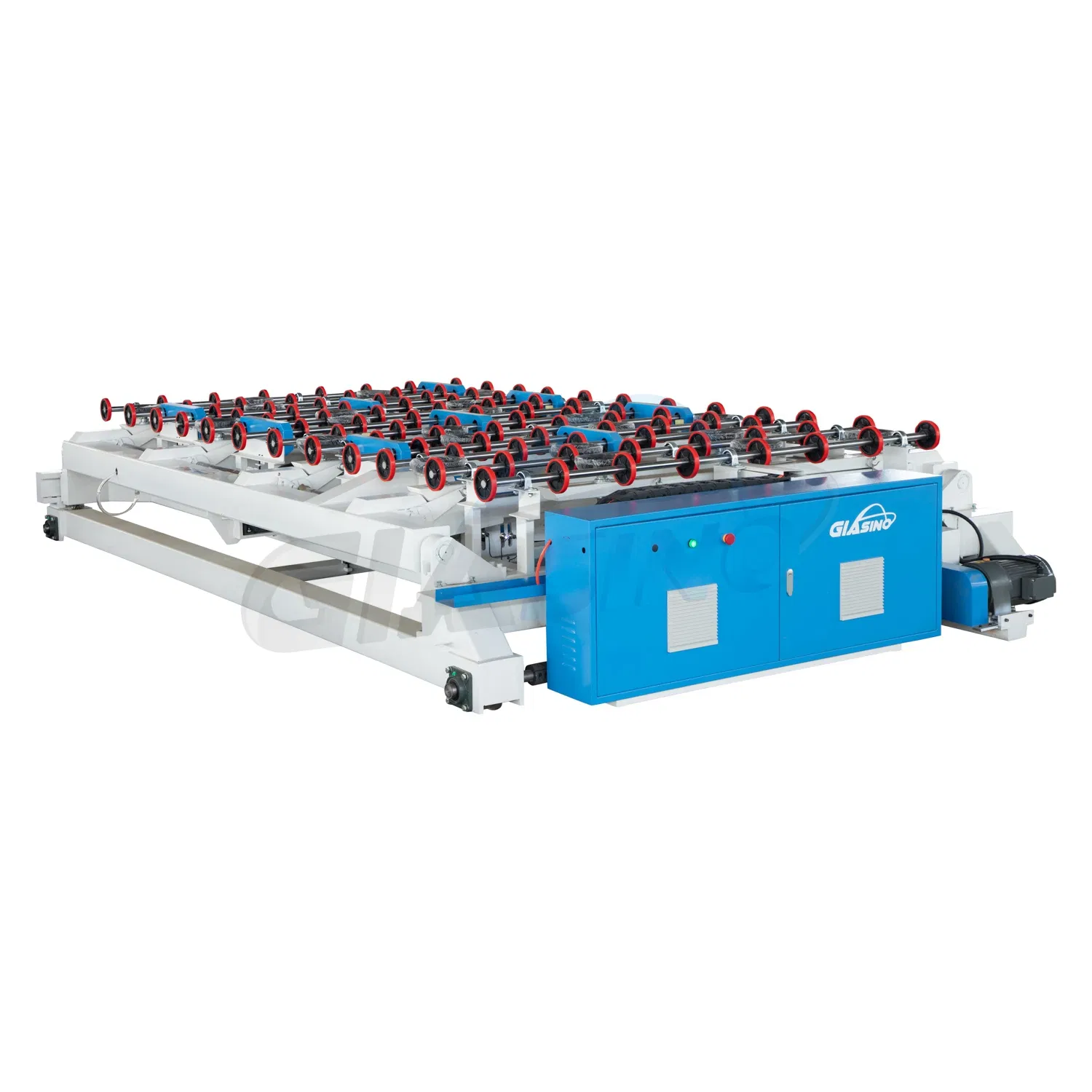

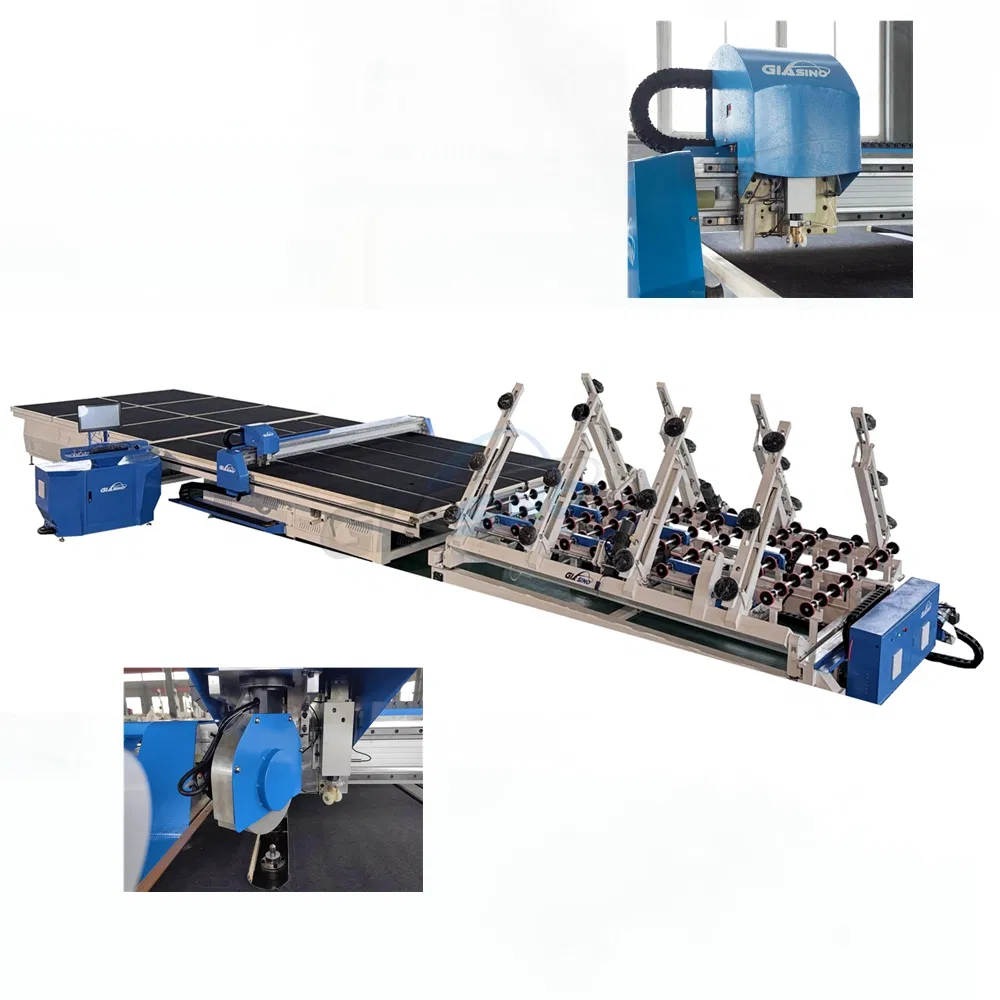

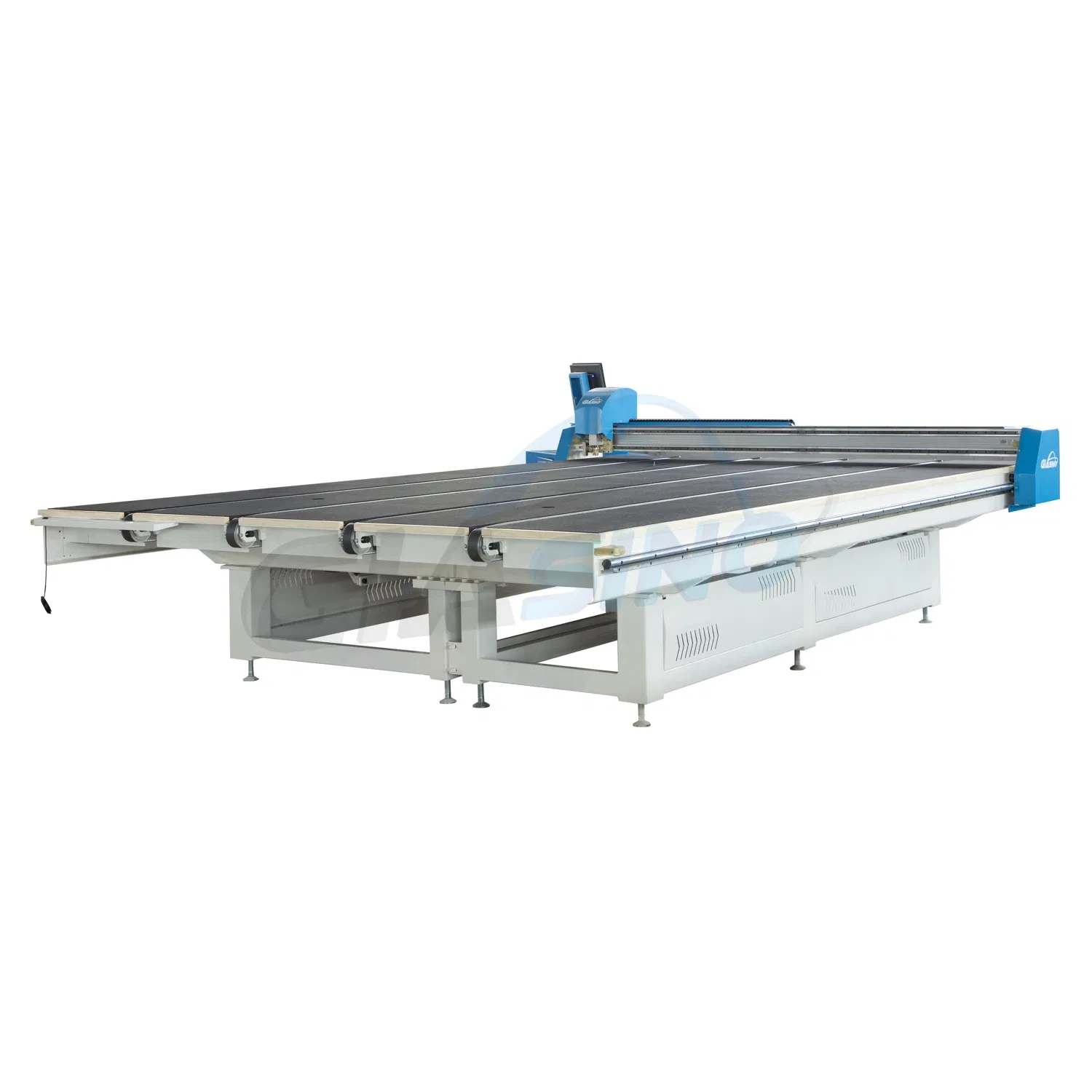

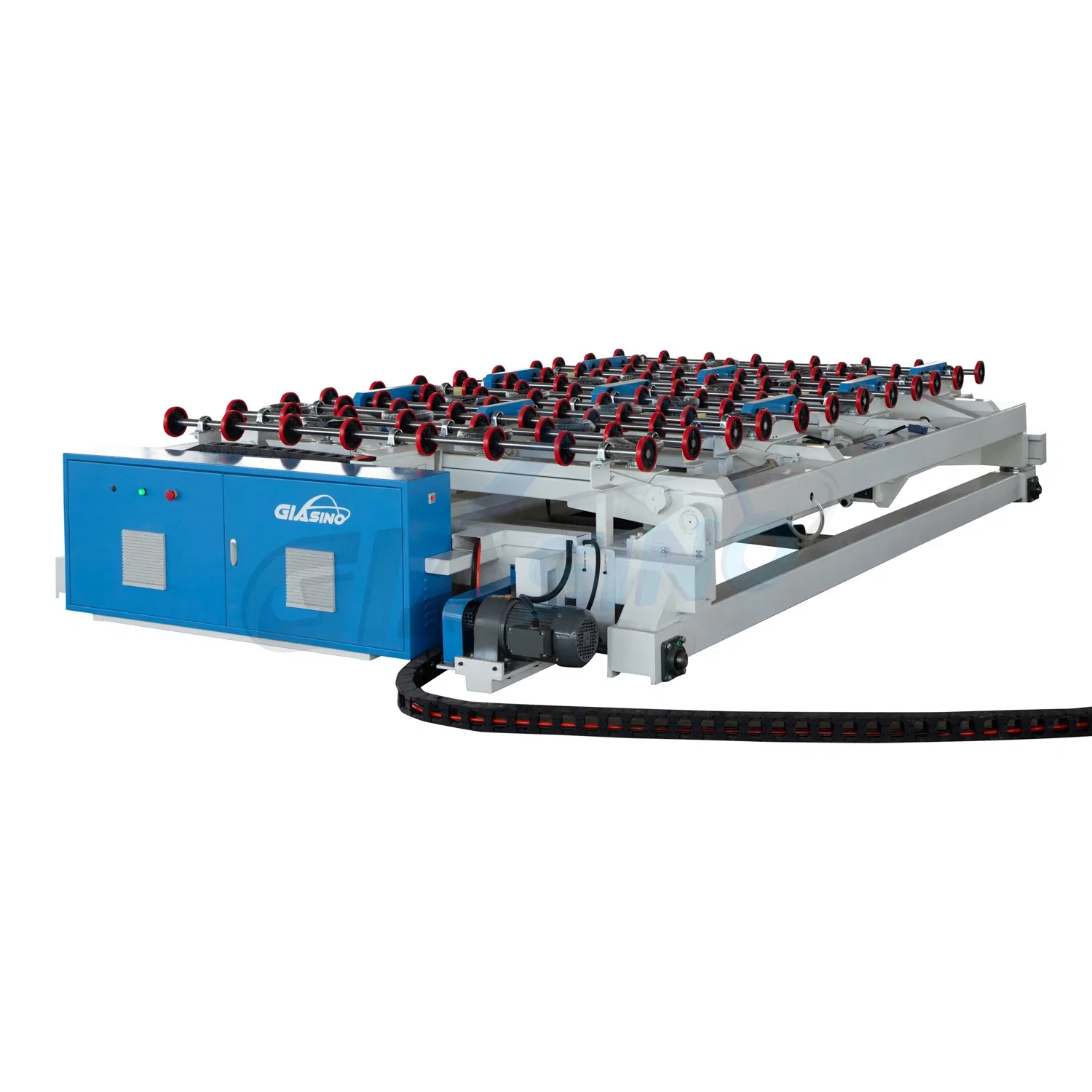

The CNC automatic glass cutting line is a comprehensive system composed of an auto glass loading machine, CNC glass cutting machine, and air float glass breaking table. This integrated solution realizes seamless glass automatic loading, transmission, positioning, optimization, cutting, and breaking functions.
Managed by a central controller, these three components compose an automatic glass cutting line characterized by high efficiency and precision.

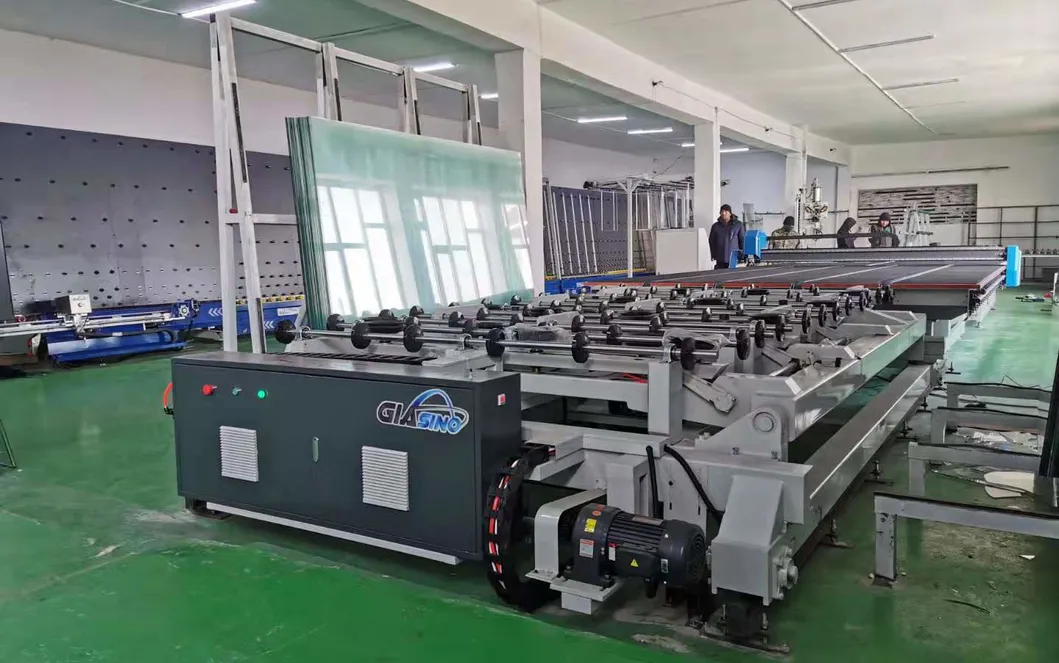

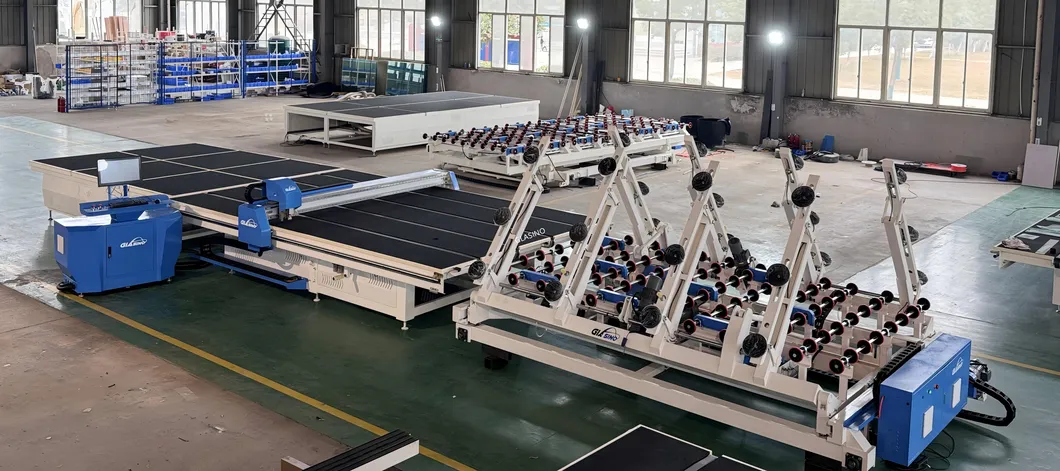

Machine in customer's workshop abroad

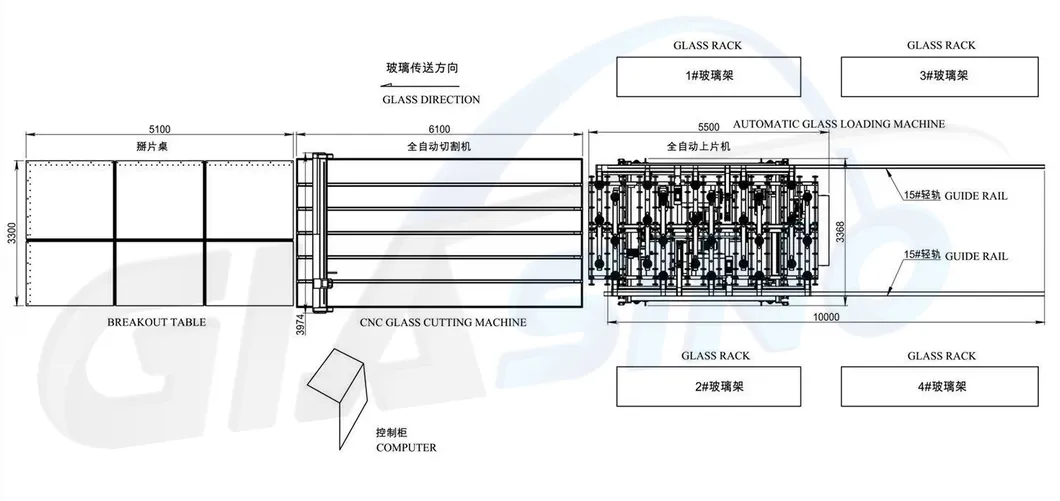

Model Layout Reference
| Model | Max. Glass Size | Thickness | Dimensions (L*W*H) | Max. Speed | Air Pressure |
|---|---|---|---|---|---|
| CNC-2620 | 2600*2000mm | 2~19mm | 11000*3000*1300mm | 150m/min | 0.6~0.8MPa |
| CNC-4228 | 4200*2800mm | 3~19mm | 14500*3600*1300mm | 180m/min | 0.6~0.8MPa |
| CNC-5133 | 5100*3300mm | 3~19mm | 17000*4212*1300mm | 180m/min | 0.6~0.8MPa |
| CNC-6133 | 6100*3300mm | 3~19mm | 19980*4212*1300mm | 180m/min | 0.6~0.8MPa |
| CNC-8533 | 8500*3300mm | 3~19mm | 27000*4200*900mm | 180m/min | 0.6~0.8MPa |
| CNC-10033 | 10000*3300mm | 3~19mm | 32000*4200*900mm | 180m/min | 0.6~0.8MPa |
As a high-tech enterprise specializing in glass processing machinery, we focus on producing glass tempering furnaces, CNC cutting machines, and insulating glass equipment. We continuously improve production management and research advanced technologies to meet global market needs.
