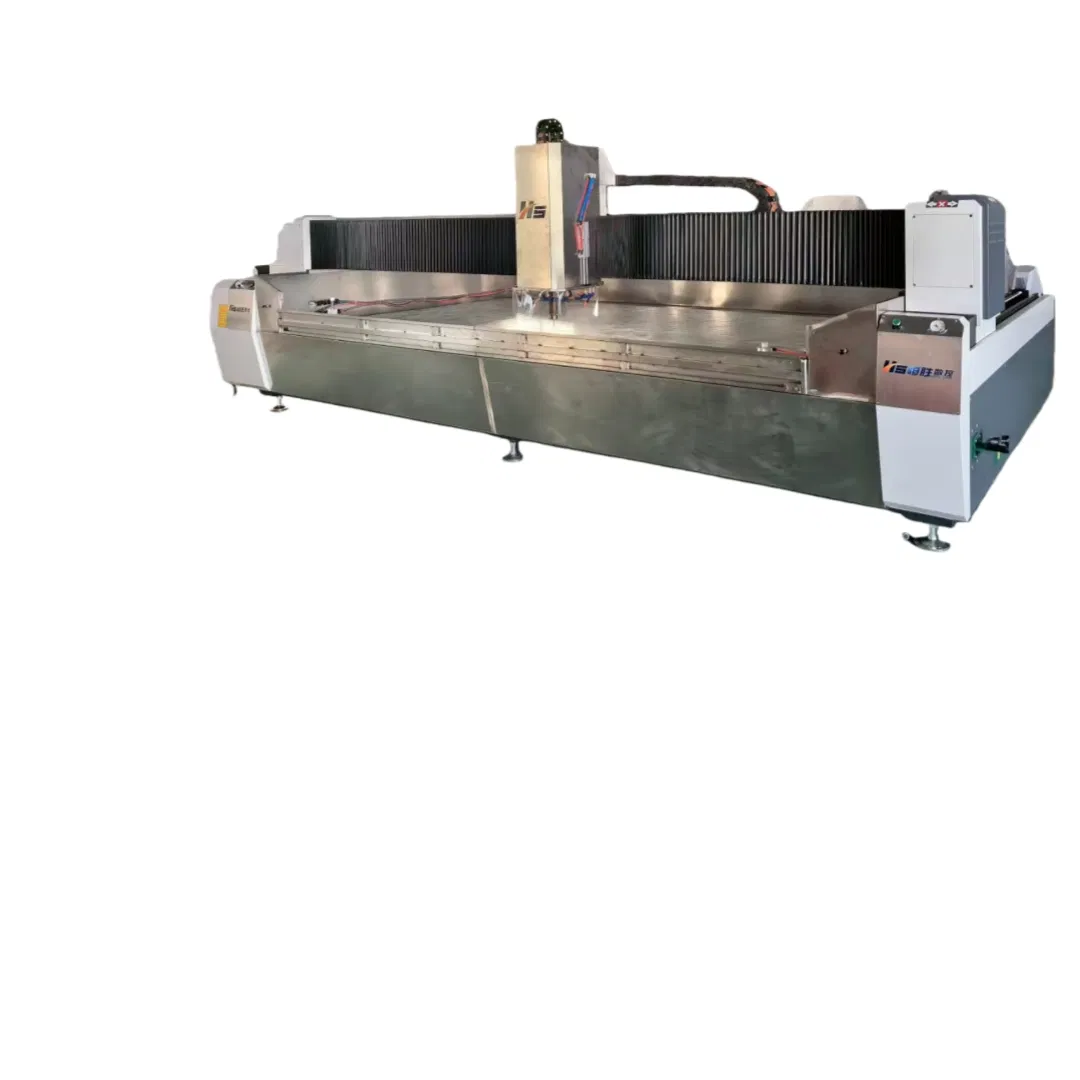

Fully Automatic CNC Glass Processing Center Drilling, Engraving, Polishing, Drilling

1 / 5

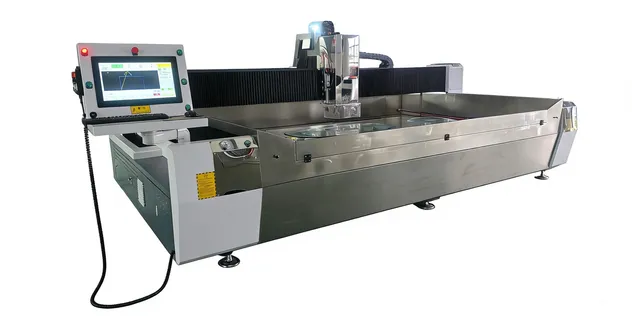

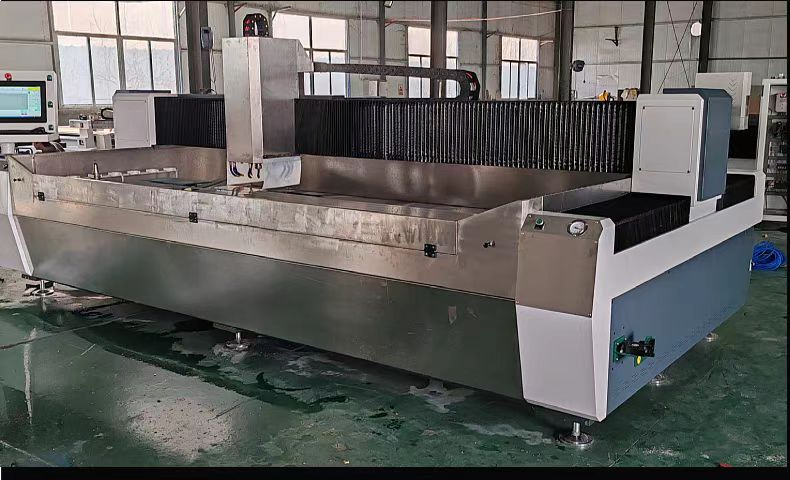

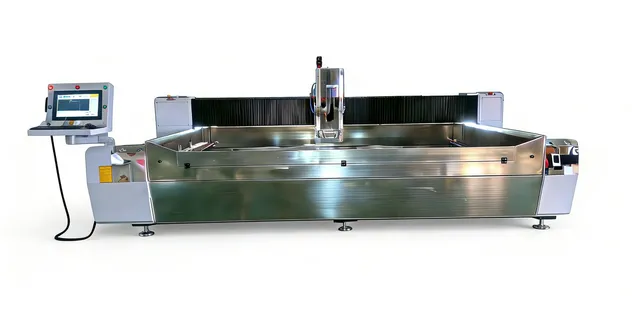

Fully Automatic CNC Glass Processing Center Drilling, Engraving, Polishing, Drilling

Certification:	CE, ISO
Glass Thickness:	2-19mm
Voltage:	380V

Send Inquiry

Product Description

📊 Overview & Basic Info

Warranty:1 year

Working Area:3000*1500mm

Equipment Size:5200*2250*1800mm

Cooling System:Water Cooling

Transport Package:Wooden Crate or Wrapping Film

Origin:China

HS Code:8464201000

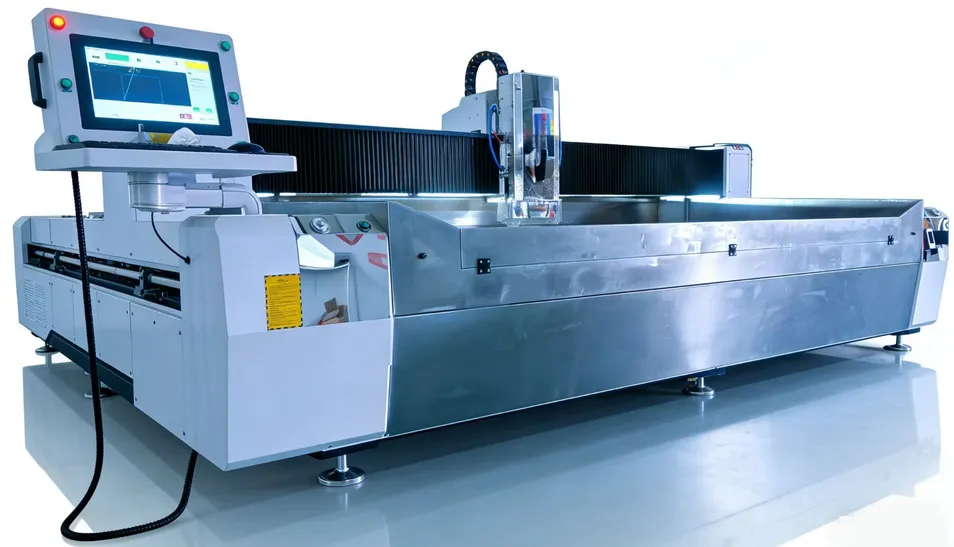

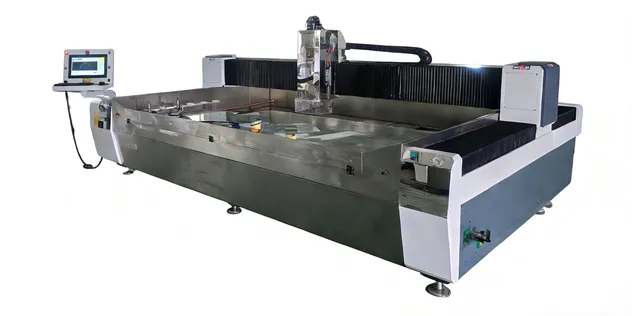

Fully Automatic CNC Glass Processing Center designed for high-precision drilling, engraving, polishing, and milling. Ideal for high-end decorative glass and appliance glass manufacturing.

🚀 Product Advantages

⚙️ Mechanical Structure: Horizontal machine structure for easy loading/unloading. Constructed with thick-walled square tubes, five-axis machining processed, and high-temperature annealed to ensure long-term stability and minimal deformation.

⚡ High-Power Spindle: Ultra-high speed with stable output. Positioning accuracy reaches ±0.01mm, and repeatability is ±0.005mm.

🛠️ Automatic Tool Changer: Equipped with a 6-tool magazine for automatic switching, meeting various complex processing techniques.

🛡️ Corrosion Resistance: All parts in contact with water are made of stainless steel to increase machine service life.

🔧 Core Functions

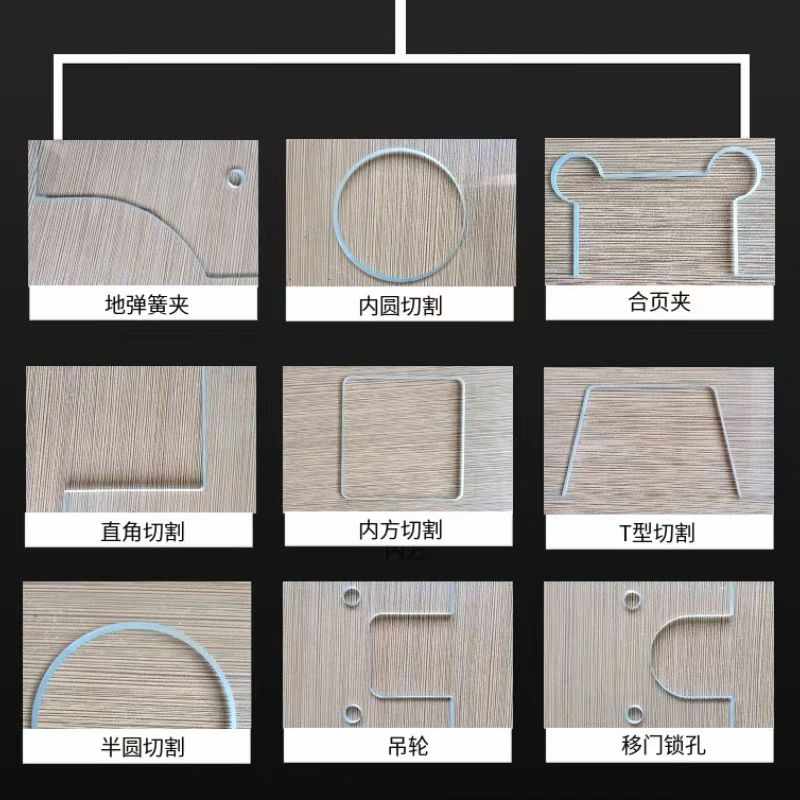

Drilling: Circular or oval holes for hinges, handles, and hardware.
Grooving: Creating slots for glass splicing or inlaying.

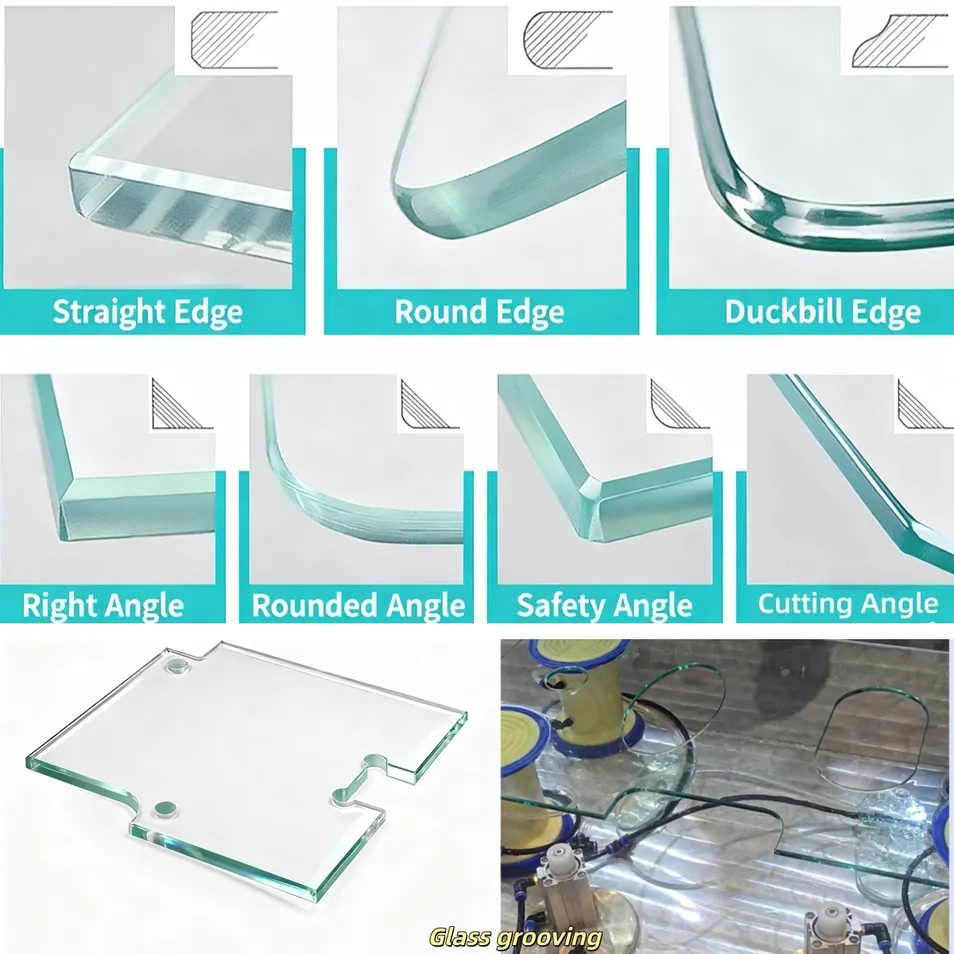

Edge Grinding: Supports straight, round, bevel, and duckbill edges.
Polishing: High-gloss mirror-like finish using specialized wheels.
Chamfering: Corner rounding to prevent scratches and meet fitting requirements.

📋 Technical Specifications

Model	2515	3015	3020
X Axis Travel	2500mm	3000mm	3000mm
Y Axis Travel	1500mm	1500mm	2000mm
Z Axis Travel	350mm	350mm	350mm
Spindle Motor	15KW
Rotate Speed	9000-12000 RPM
Glass Thickness	2-19mm
Positioning Precision	±0.05mm

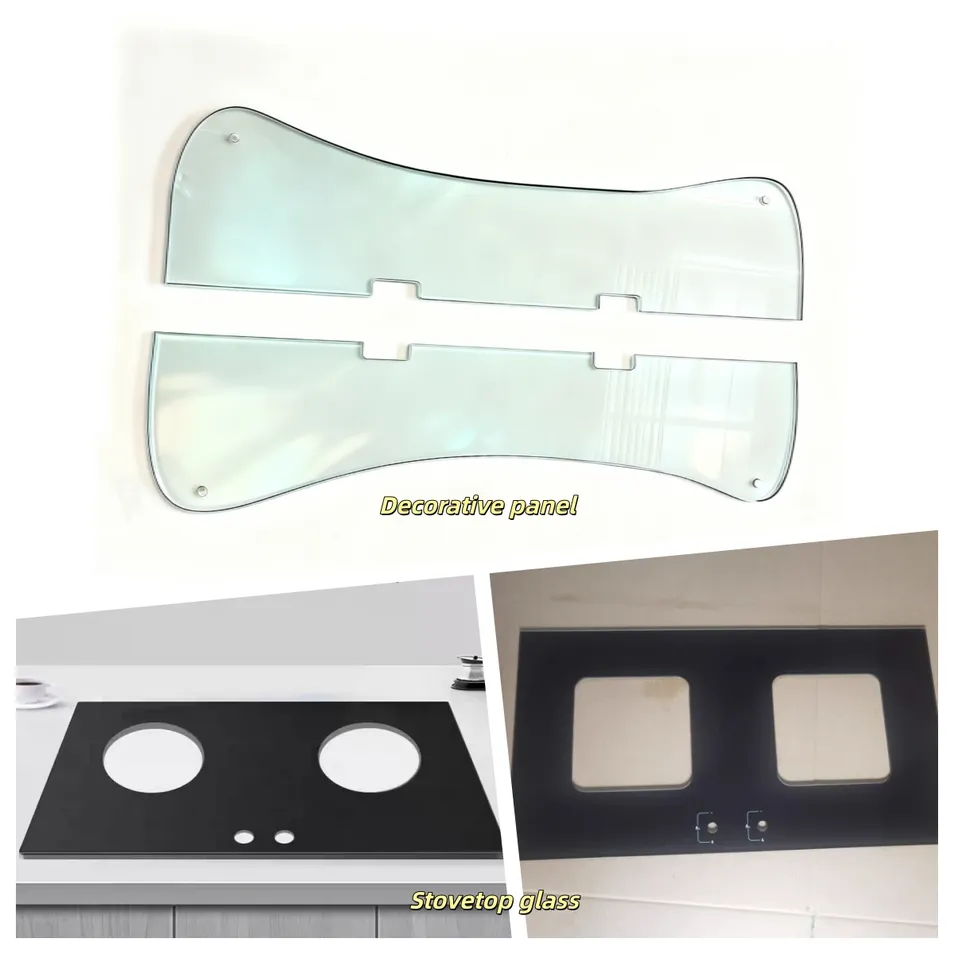

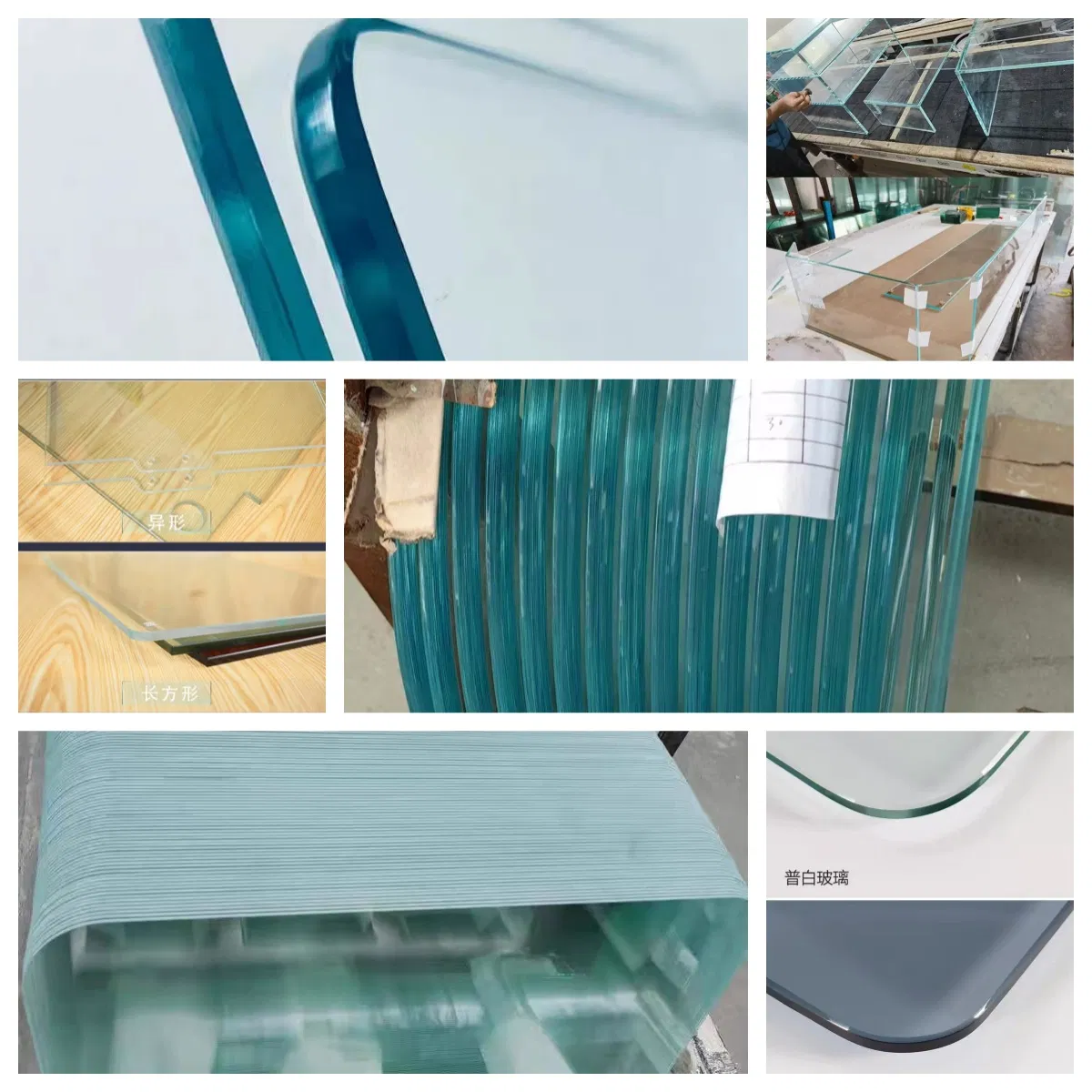

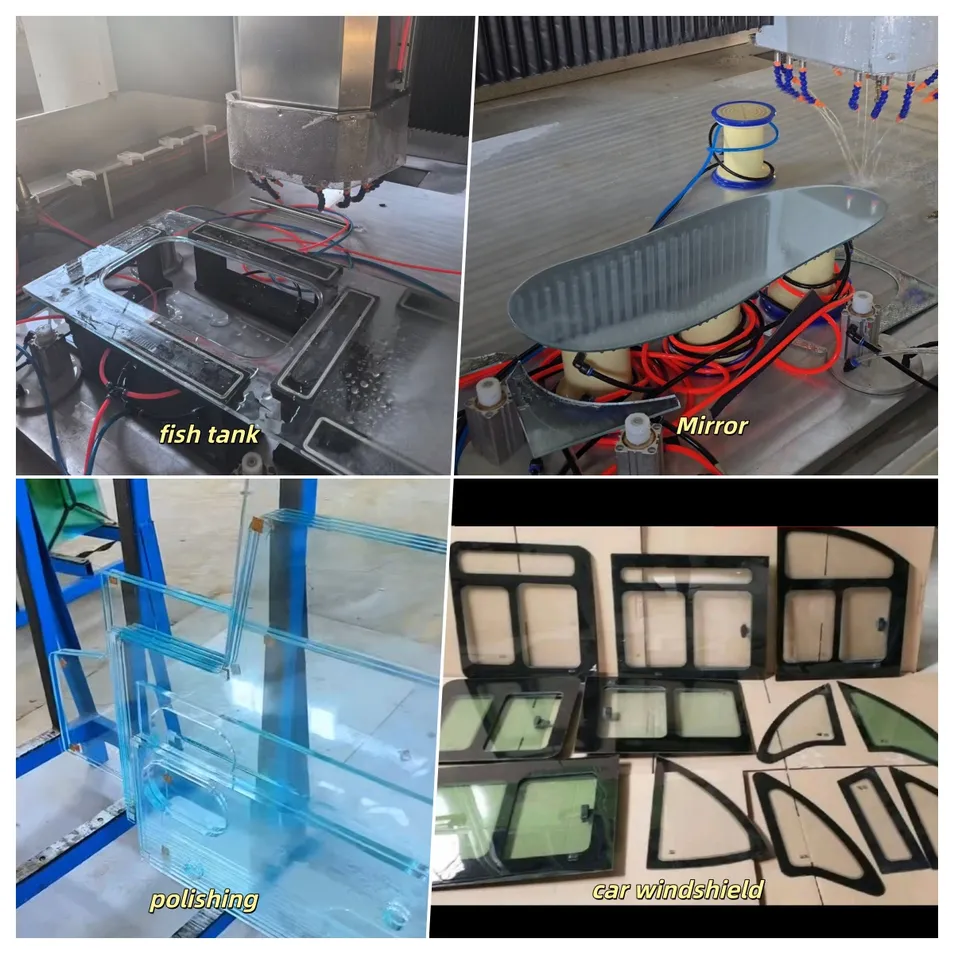

💎 Work Samples

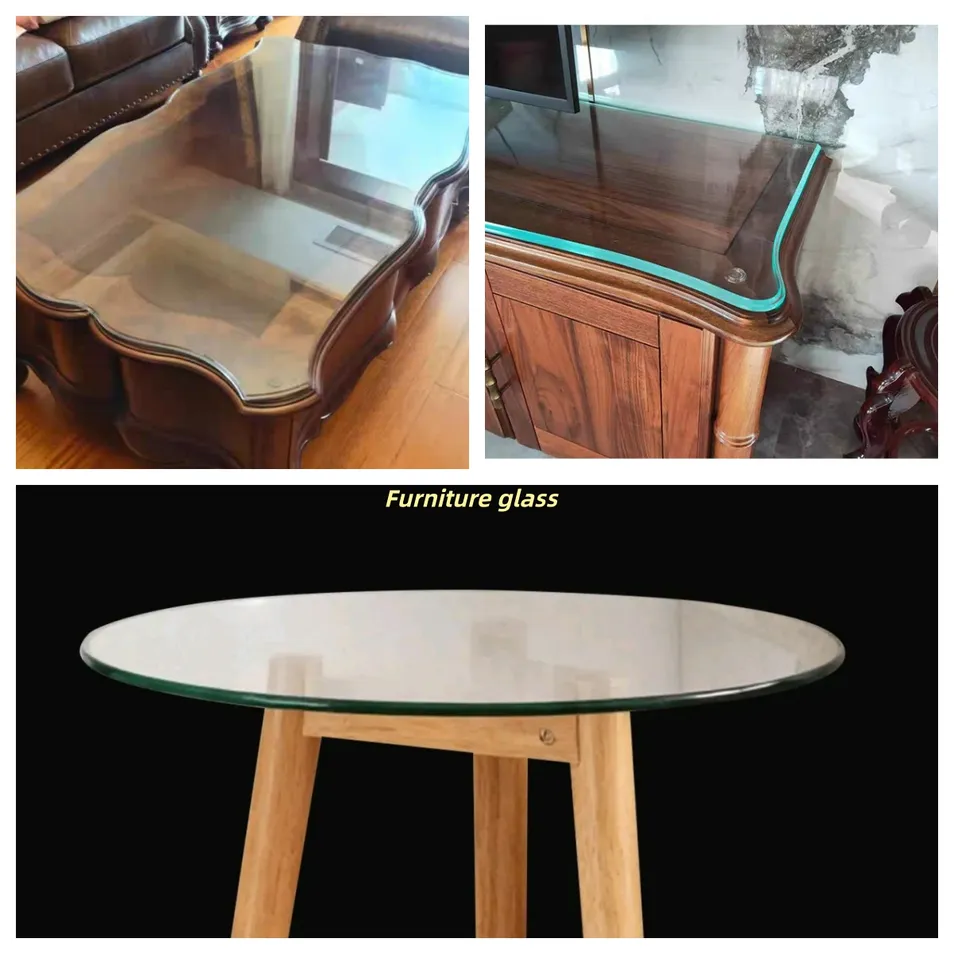

Our processing center is suitable for furniture glass, appliance glass, glass doors, mirrors, aquarium glass, and automotive glass.

📜 Certifications & Support

Standard Warranty: 12 months (Extended coverage up to 36 months available).
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training provided.

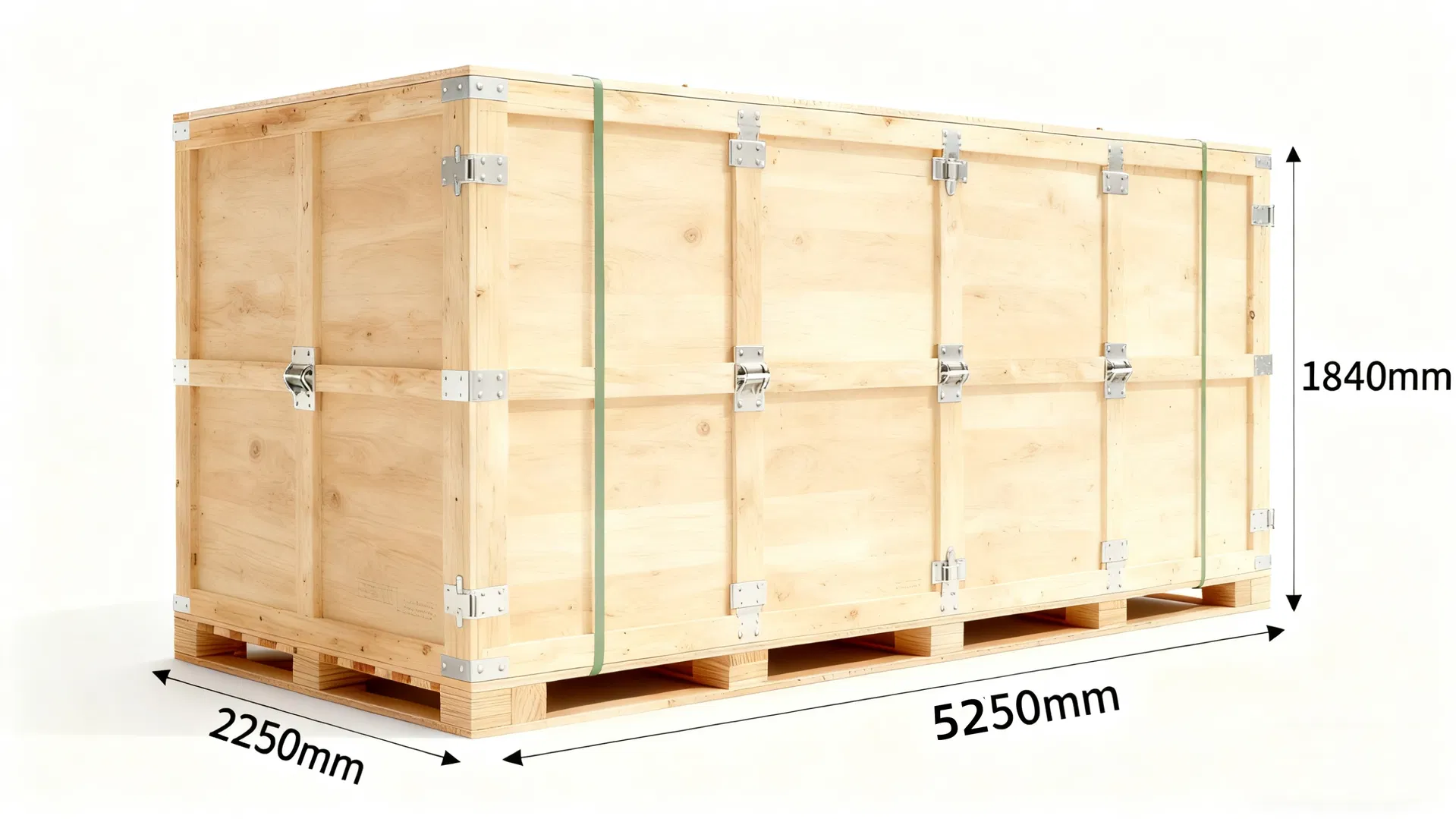

📦 Packaging & Shipping

Standard machine width is maintained at 2200mm for seamless container loading. Modular designs are available for larger customized equipment to ensure safe and efficient international export.

❓ Frequently Asked Questions

1. What is the standard lead time for orders?

Standard models typically ship within 15–30 days. For customized units or specific configurations, the lead time is approximately 30–45 days.

2. Do you provide after-sales service for international customers?

Yes, we provide 24/7 technical assistance and have partnered service centers in key regions to ensure global support and spare parts supply.

3. Can the machine dimensions be customized for specific factory layouts?

Absolutely. We offer customized services where we can adjust the machine size and design it with a modular layout to fit your space and container loading requirements.

4. Are you the direct manufacturer of this CNC equipment?

Yes, we are a professional manufacturer specializing in CNC glass equipment with strong R&D capabilities and established industry-university research partnerships.

5. What thickness of glass can this processing center handle?

The equipment is designed to process glass with a thickness range of 2mm to 19mm, covering most furniture and architectural needs.

6. What is the precision level of the drilling and milling functions?

The positioning accuracy reaches ±0.01mm, with a repeatability of ±0.005mm, ensuring high-quality results for high-end decorative and appliance glass.
