Fragile Quartz Glass: Vibration-Damped Drilling and Boring Machine

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

📋

Basic Information

Model NO.

TK2125

Structure

Horizontal Drilling Machine

Controlling Mode

CNC

Hole Diameter

50-100mm

Precision

High Precision

Certification

CE, ISO 9001

Product Name

Deep Hole Drilling and Boring Machine

Trademark

Guanghe

⚙️

Product Overview

TGK2225 CNC skiving roller burnishing machine features a smart and simple CNC system, high efficiency, and stable performance. With a uniform, artistic design and anti-oil splash/leakage measures, it fixes the workpiece while rotating the tool. Using combined skiving and roller burnishing technology, it solves deviations in hot-rolled steel tube rough processing and straightness issues in cold-drawn steel tube finishing. Ideal for hydraulic cylinder part boring and roller burnishing, it achieves IT7-8 hole tolerance and Ra0.2-0.4μm surface roughness, 10x faster than traditional boring and 20x than ordinary honing machines.

📊

Technical Specifications

*(Custom configurations available upon request.)

Bore diameter range (mm)	35~250
Maximum depth of boring hole (mm)	500~2000
Machine tool guide rail width (mm)	600
Range of feed rate (mm/min)	10-3500 (Stepless)
Main motor of boring bar box (kW)	N=60 CTB communication spindle motor
Range and stages of drill rod spindle speed (r/min)	60-1200 Two speed stepless
Workpiece clamping range (mm)	100-350
Control System	SIEMENS 808D
Cooling system flow rate (l/min)	100-800

🔍

Key Component Details

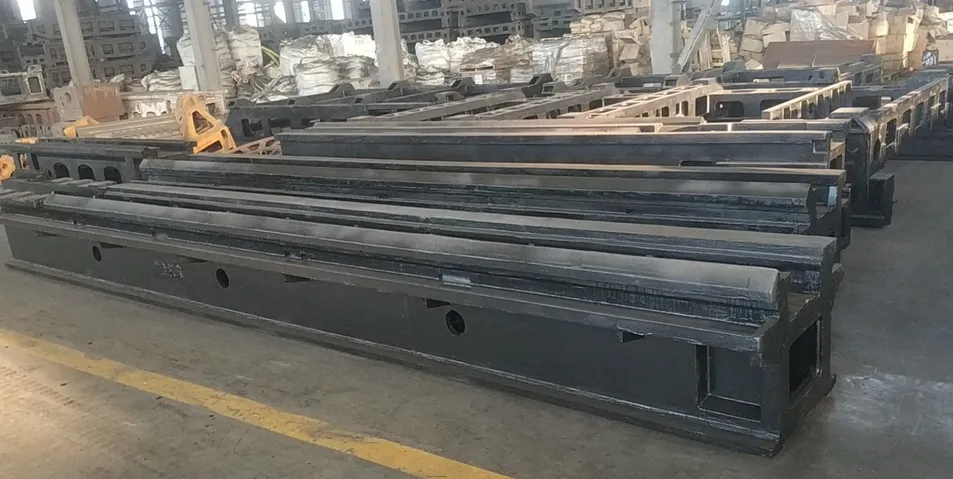

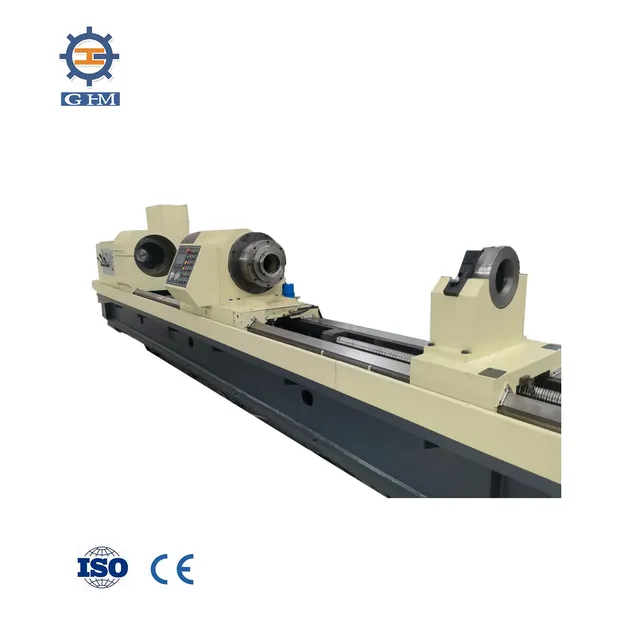

Machine Tool Bed: Made of high strength cast iron with reasonable internal reinforced plate design, ensuring high rigidity and strength.

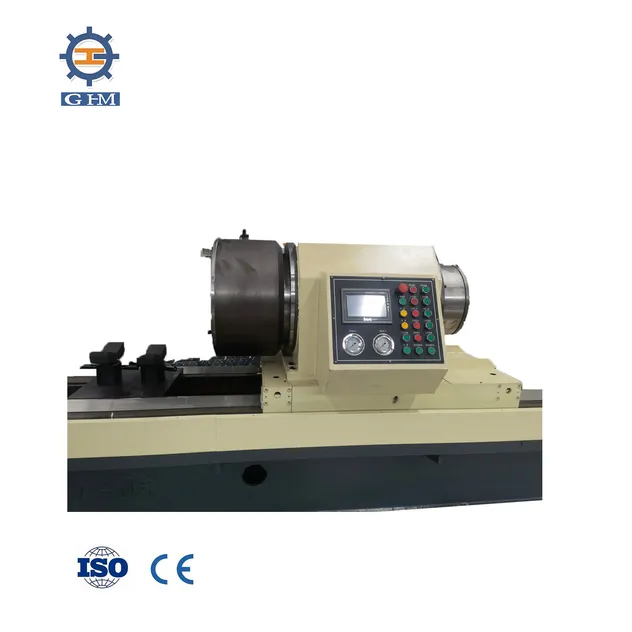

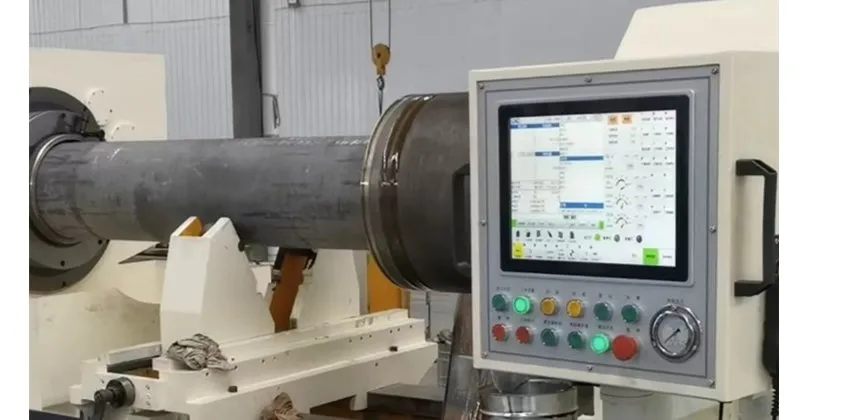

Control System: Adopting well-known Siemens control system for excellent stability and precision.

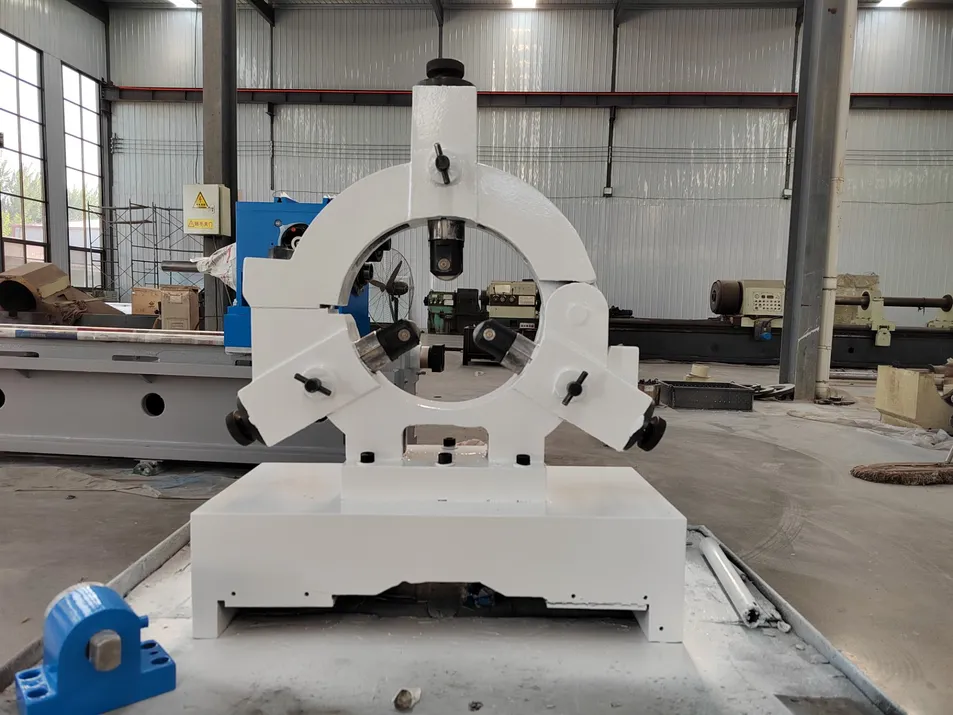

Work Support: Three-jaw chuck system firmly grasps the workpiece for high stability during operation.

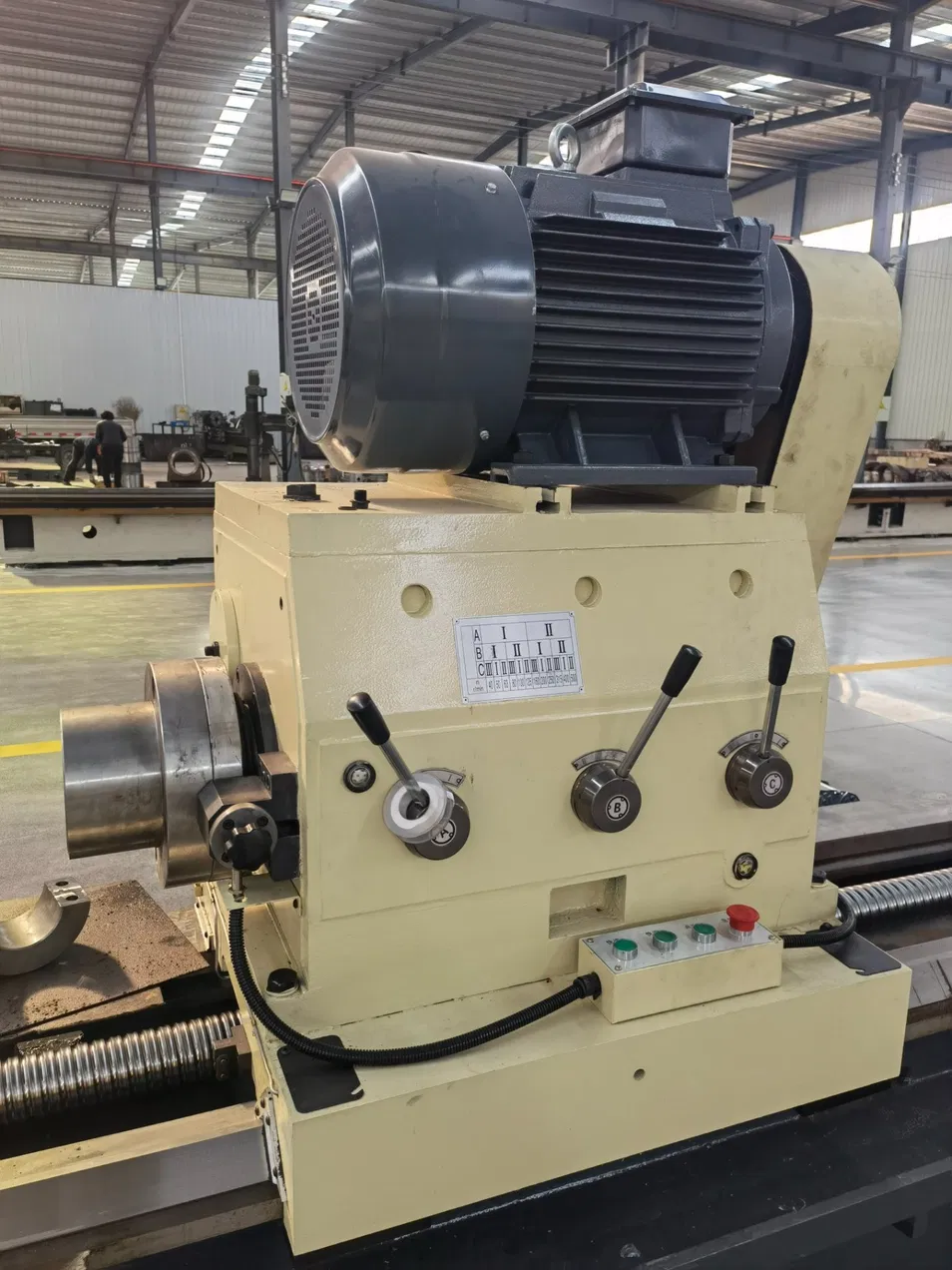

Servo Motor: Equipped with high-performance Siemens brand servo motors for reliable power delivery.

🏢

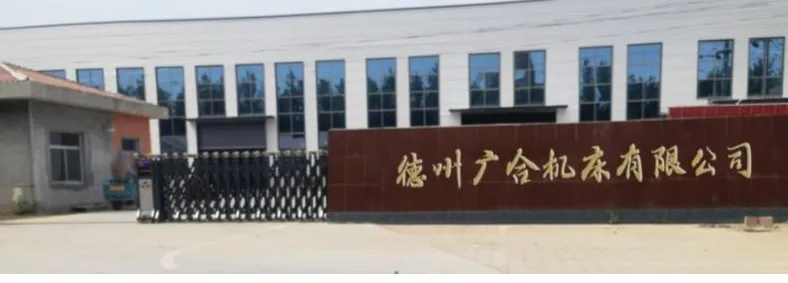

Professional Manufacturer

Our company is a leading specialist in R&D, production, and sales of high-precision deep-hole machine tools. Our core portfolio includes deep-hole boring machines, drilling and boring machines, scraping/rolling tools, and honing equipment. With 17 years of industry experience since 2007, we operate with a professional team of over 300 members, including 50+ R&D specialists and 20+ service centers.

We hold numerous certifications including ISO9001 and CE, reflecting our commitment to quality. Our technical foundation is built on dozens of patented technologies, ensuring we provide cutting-edge solutions for global customers.

🛠️

Service & Support

Free technical training at our facilities.
Engineers available for overseas machinery service.
Comprehensive quality testing before packaging.
One-year warranty and lifetime maintenance support.

❓

Frequently Asked Questions

How about the after-sales service and training?

We provide free training at our company. Additionally, if required, our engineers are available to service machinery overseas to ensure smooth operation.

What is the warranty period for the machine?

The complete machine comes with a one-year warranty and we provide lifetime maintenance support.

How do you ensure the quality of the equipment?

Before packing, every machine undergoes rigorous testing. We use international well-known brand spare parts and test every stage from R&D to production to ensure zero omissions.

What is the typical lead time for an order?

Lead time depends on order quantity. Usually, small quantities can be shipped within 7-15 days, while larger orders take approximately 30 days.

Can I request a custom configuration?

Yes, we specialize in R&D and can customize deep-hole equipment according to the specific technical needs of our customers.

Why should we choose your machinery?

We offer quality assurance through branded components, significant company strength with a massive R&D team, and 24/7 online intimate after-sales service.
