Product Description
CNC Integrated Glass Cutting Machine
Complete system with loading, cutting, and break-off capabilities.
| The cutting thickness | 2-30mm |
| The cutting accuracy | Parallelism: ≤±0.15mm/m |
| The cutting speed | 180m/minute (adjustable) |
| The outline size | 4300*3600*900mm |
| The max cutting size | 3660*2840mm |
| Transmission system | X, Y, Z Axis equipped with reliable motors |
| The cutter block | Pneumatic and spring system; 360° rotation for any shape cutting. |
| Oiling supply | AUTO oiling |
| Transportation device | Flotation device for convenient sheet movement |

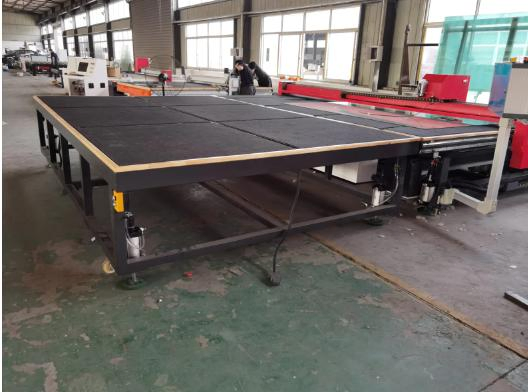

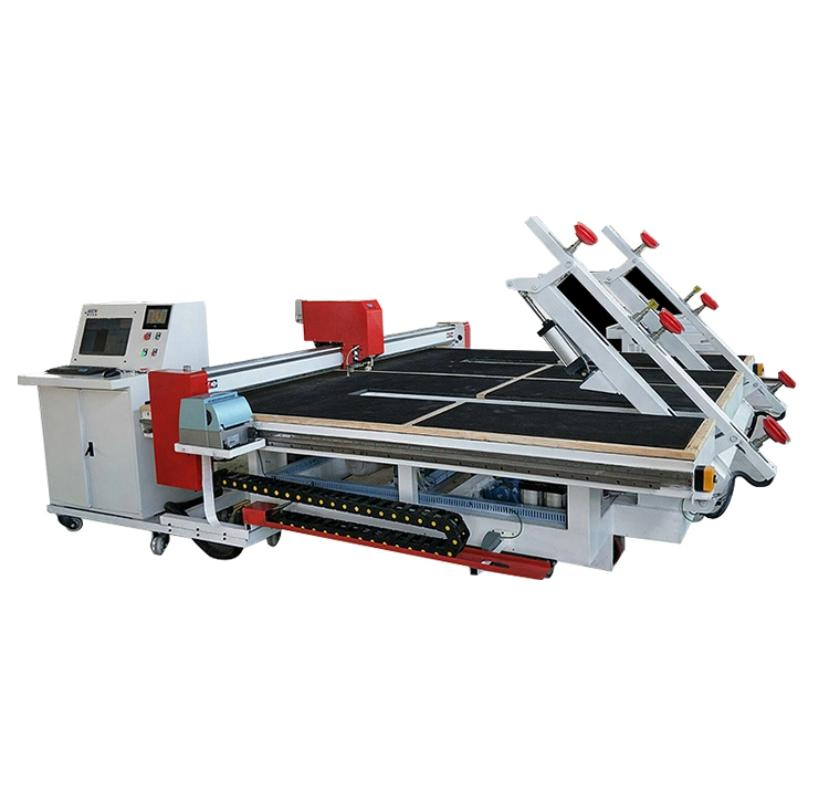

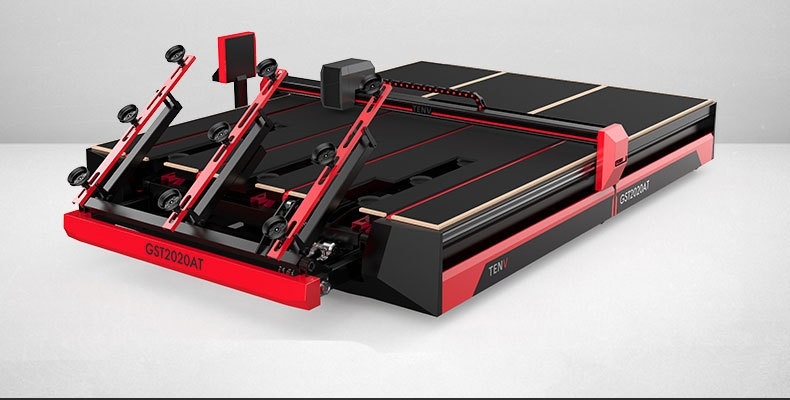

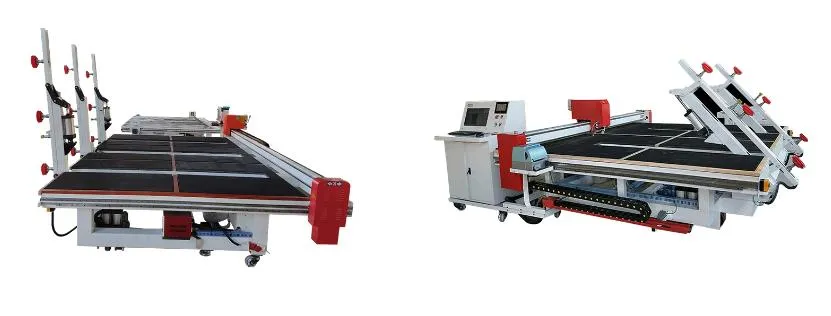

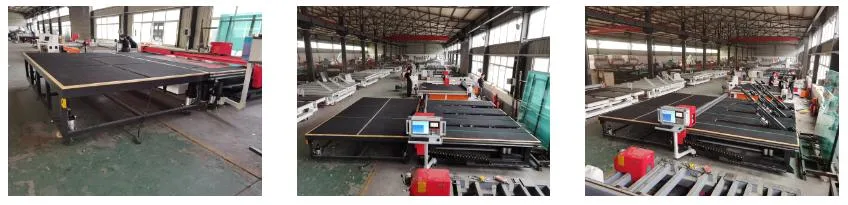

CNC integrated cutting machine for flat float glass is an automatic, self-loading table designed for straight and shaped cutting. It features a fixed working table, loading arms, and breakout bars. The bridge is equipped with suction cups for automatic transfer to the breakout section.
Key Features & Application
The loading arms utilize double suction cups powered by a vacuum pump, ensuring maximum safety when handling glass sheets. Sheets are picked up directly from a rack and positioned automatically with electronic squaring.
- User-friendly interface for easy control and management of functions
- Rotary tool changer "Click & Cut" for rapid tool selection
- Automatic reading of templates and detection of internal holes
- Optional "Maclabeling" system for printing and applying labels
- Advanced programme for cutting paper and vinyl for artistic stencils
- Electric motor-powered grinding wheel for edge deletion of Low-E glass
Comprehensive Solutions
As a leading provider of flat glass processing machinery, we focus on innovative and reliable equipment for fabricating, handling, and processing. Each specialized piece of equipment is characterized by long-lasting durability and high reliability.
Production Planning & Support:
- Turnkey solutions for new and existing facilities
- Customized manufacturing packages and factory layout recommendations
- On-site/remote installation, commissioning, and training support
- Guaranteed supply of spare parts and personal service management
Frequently Asked Questions
What range of glass thickness can this machine cut?
The CNC integrated glass cutting machine is capable of processing glass with a thickness ranging from 2mm to 30mm.
What is the cutting accuracy and maximum speed?
The machine offers high precision with a parallelism accuracy of ≤±0.15mm/m and can reach cutting speeds up to 180 meters per minute (adjustable).
Can the machine handle shaped cutting for non-rectangular designs?
Yes, the cutter holder can rotate 360 degrees, allowing it to cut any shape, including straight lines and complex patterns.
Does this machine support Low-E glass processing?
Yes, the machine can be equipped with a grinding wheel powered by an electric motor specifically for the edge deletion of Low-E glass.
How does the automatic loading system ensure safety?
The loading arms are equipped with double suction cups powered by a specialized vacuum pump to ensure maximum safety and stability while picking up glass sheets.
What kind of after-sales service is provided?
Technical support includes on-site or remote installation, commissioning, and operator training, along with a guaranteed supply of spare parts.
