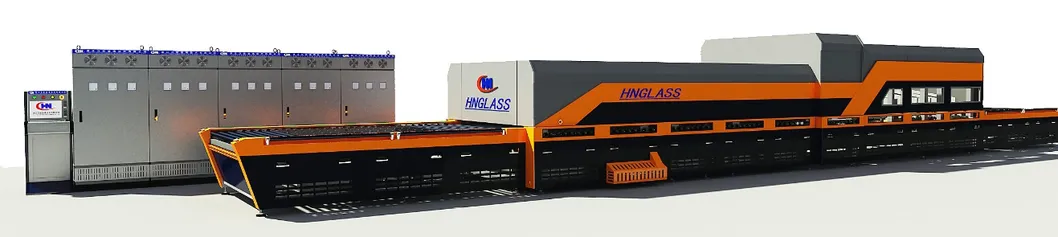

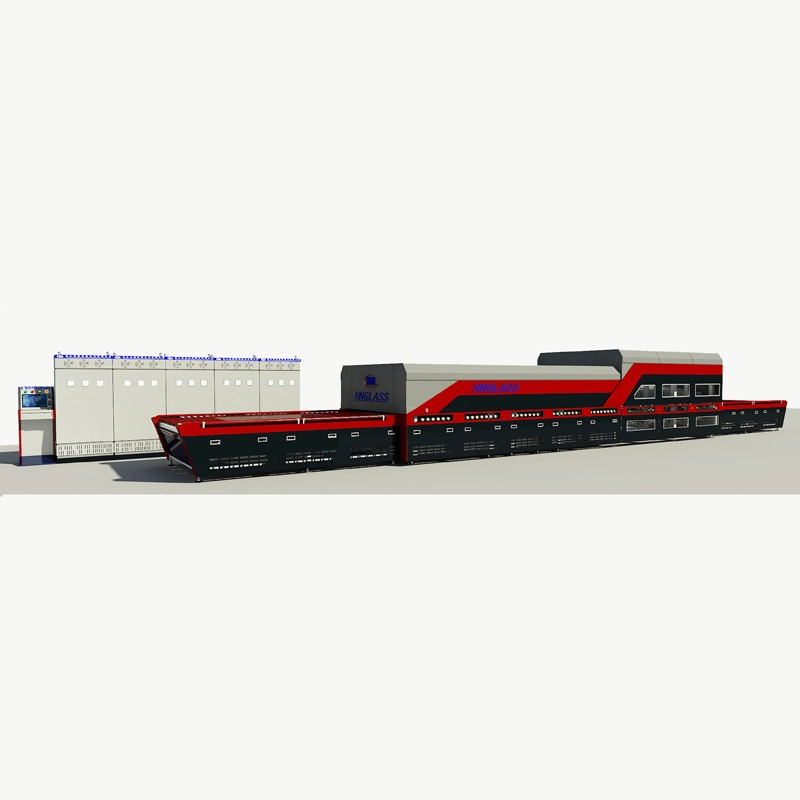

Flat Glass Tempering Furnce, Tempered Glass Tempering Machine

1 / 5

Flat Glass Tempering Furnce, Tempered Glass Tempering Machine

Customization:	Available
Certification:	CE, ISO
Control System:	PLC+Industrial Computer

Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.

HNT-A2436Q

Warranty

2 Years

Convection

Turbo Blower

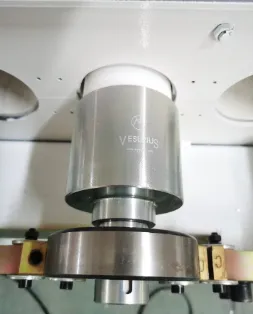

Ceramic Roller

Vesuvius

Inverter

Germany

Heating Wires

Ni-Cr Type

Productivity

18-20 batch/Hour

Glass Thickness

4-19mm

Structure

Horizontal

Condition

New

🛠️

Product Description

🔍Glass Can Be Tempered:

Float Clear Glass

Low-E Glass

Screen Printing Glass

Tinted Glass

Patented Glass

🏢Applications:

Building Glass

Furniture Glass

Insulation Glass

Laminated Glass

Model	Max Glass Size (mm)	Mini Glass Size (mm)	Glass Thickness (mm)	Productivity (m²/h)	Power (KVA)
HNT-A0510	500x1000	50x80	2.5-12	9.2	100
HNT-A1020	1000x2000	50x150	3-12	36.8	120
HNT-A1225	1250x2500	100x250	4-19	50	150
HNT-A1630	1600x3000	100x250	4-19	76.8	250
HNT-A2030	2000x3000	100x250	4-19	96	350
HNT-A2436	2440x3660	100x300	4-19	142	500
HNT-A2442	2440x4200	100x300	4-19	164	630
HNT-A2450	2440x5000	200x300	4-19	195	800
HNT-A3380	3300x8000	200x500	5-19	380	1500

⚙️

System Components & Features

📦Scope of Supply:

Loading table

Heating section

Flat tempering & cooling

Bent tempering section

Unloading table

Blower system with Inverter

Siemens PLC Control System

Technical documents

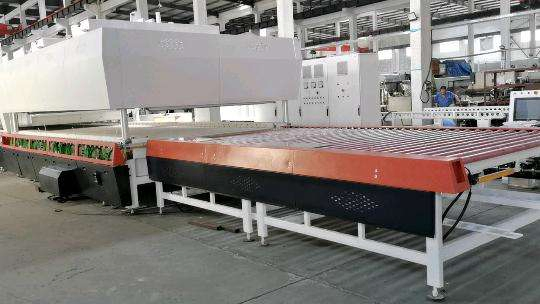

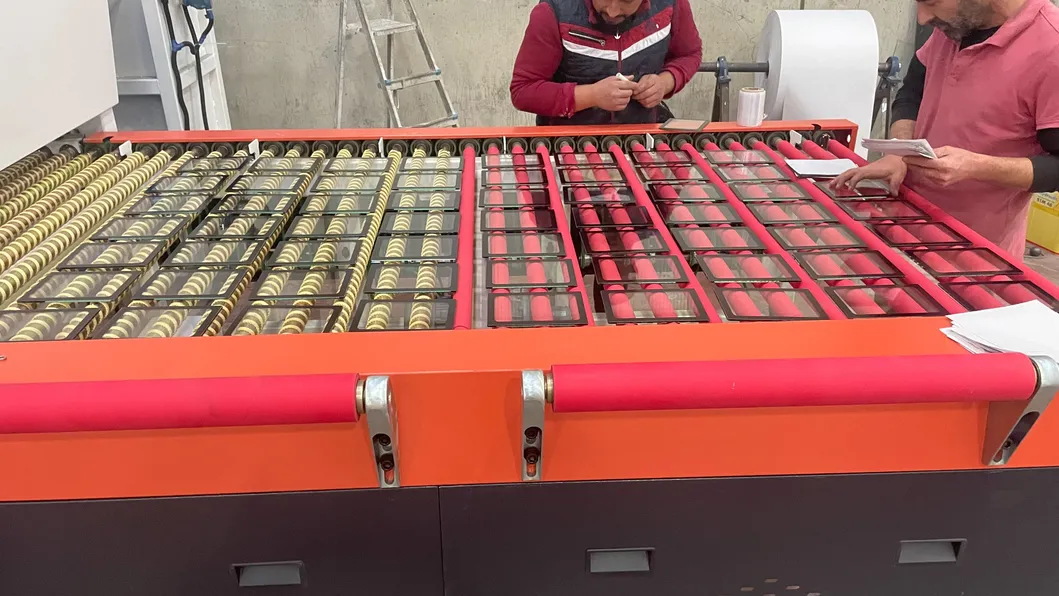

1. Loading Table

• Automatic Sensing: Convenient loading system using automatic sensors.

• High Quality: PTFE straight handle universal wheels for high strength durability.

• Automatic Lift/Lower: Unloading table lowers automatically to prevent glass from smashing.

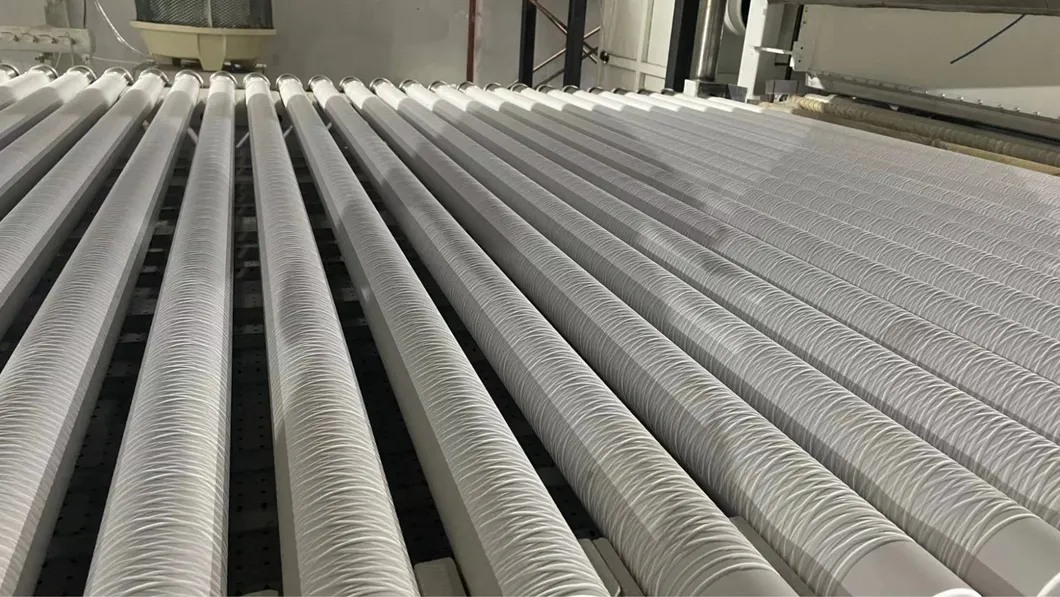

2. Heating Section

3. Turbo Blower Convection

Realize partial area convection for precise control.

Energy saving: Turbo blower can be stopped when processing common clear glass.

Compact design with excellent heat preservation effect on the furnace body.

Outside installation for easy and convenient maintenance.

Inverter-controlled for easy adjustment and low installation power requirements.

❓

Frequently Asked Questions

What types of glass can be processed with this tempering furnace?

The furnace is capable of tempering a wide variety of glass types, including Float Clear Glass, Low-E Glass, Screen Printing Glass, Tinted Glass, and Patented Glass.

What range of glass thickness does the machine support?

Depending on the specific model, the furnace supports glass thicknesses ranging from 2.5mm up to 19mm.

How does the Turbo Blower convection system contribute to energy efficiency?

The Turbo Blower system allows for partial area convection. When processing standard clear glass, the blower can be completely stopped to significantly reduce energy consumption.

What control system is used for the operation?

The furnace is equipped with a high-end electrical and control system featuring a Siemens PLC and a computer interface for precise and reliable operation.

What are the safety features of the loading and unloading tables?

The system includes automatic sensing steps for convenient loading and an automatic lift/lower function on the unloading table to prevent glass from smashing as it exits the cooling section.

What kind of productivity can I expect?

The standard productivity for the HNT-A2436Q model is approximately 18-20 batches per hour, with specific m² per hour capacity varying by model (up to 380 m²/h for larger models).
