Honghe Machinery
Honghe Machinery
As a leading provider of high-quality flat glass processing machinery, we focus on delivering innovative and reliable equipment for fabricating, handling, and processing flat glass. Each machine is characterized by advanced features, long-lasting durability, and high reliability, ensuring optimal performance for glass deep processing requirements.

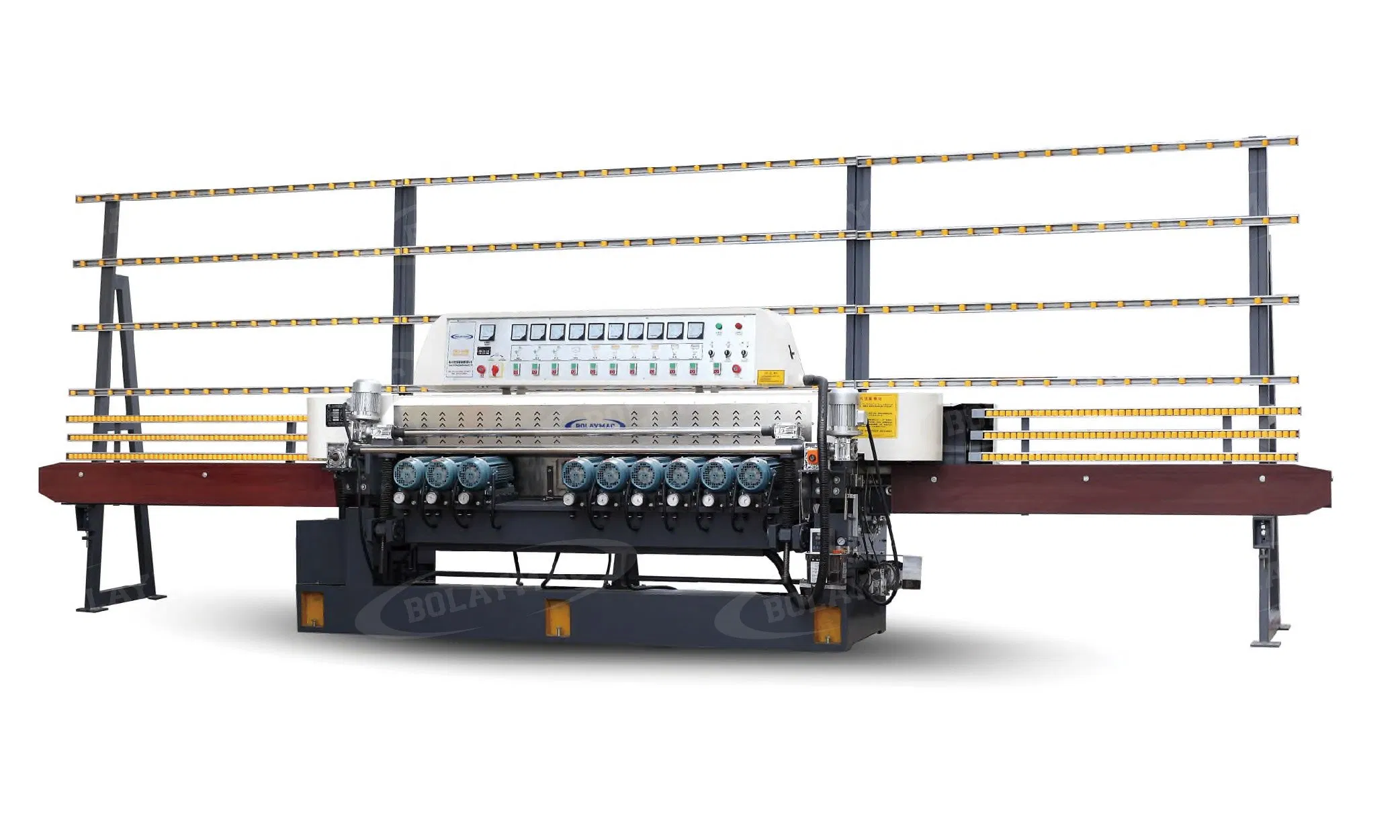

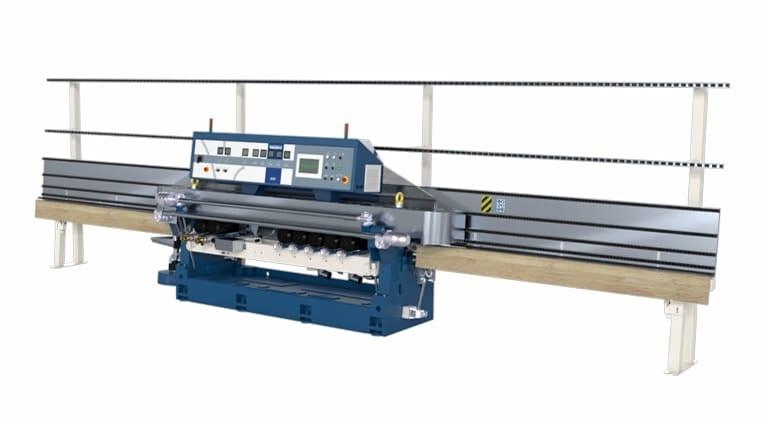

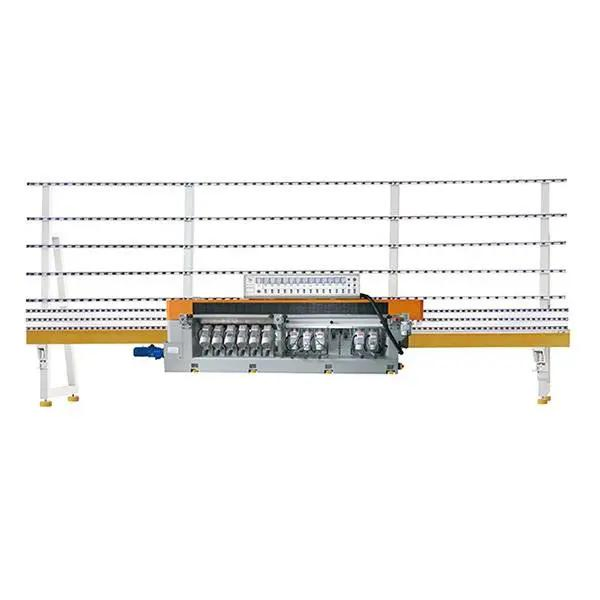

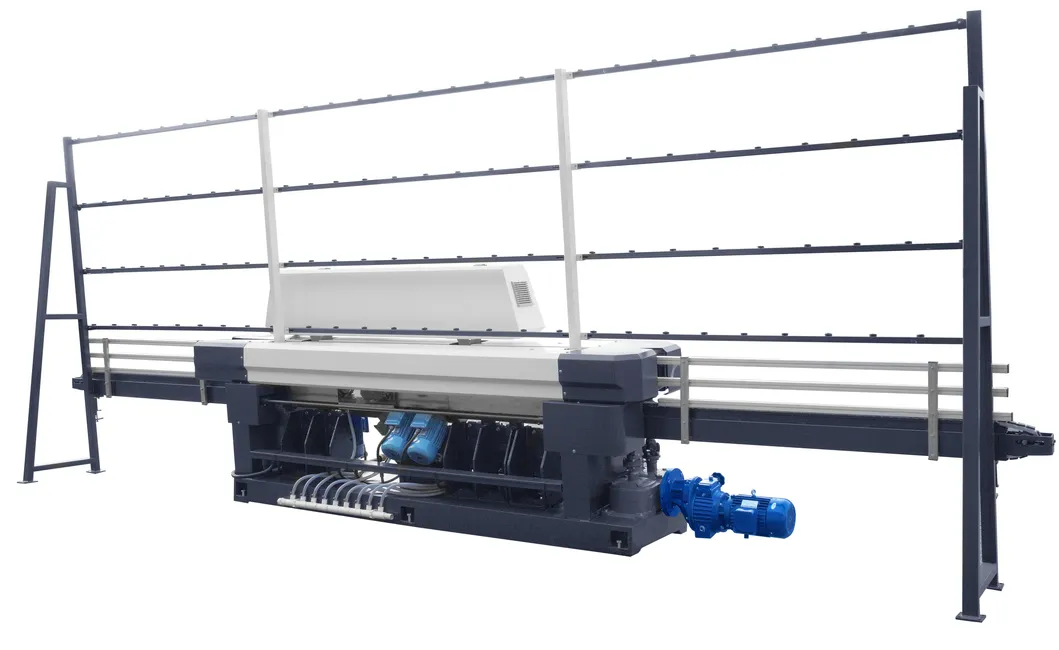

Glass Edging and Polishing Machine JGZM9325
This machine is suitable for edge and corner grinding of plate glass of different sizes and thicknesses, finishing coarse grinding, fine grinding, and polishing at one time. The flat surface after polishing achieves a high degree of clarity and cleanliness, comparable to the glass matrix itself.

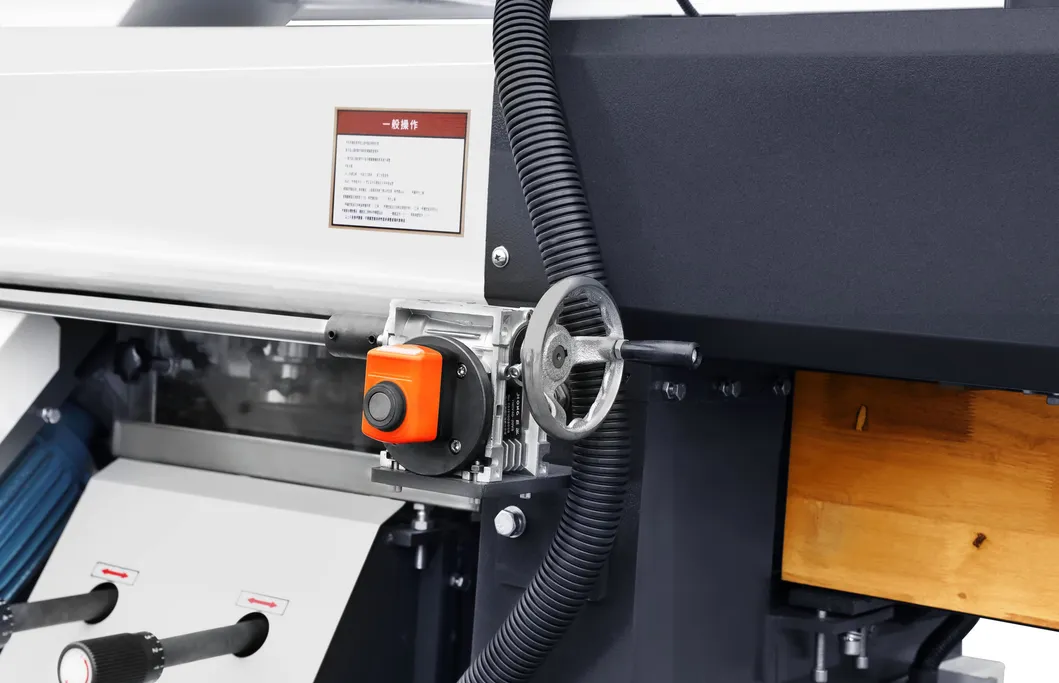

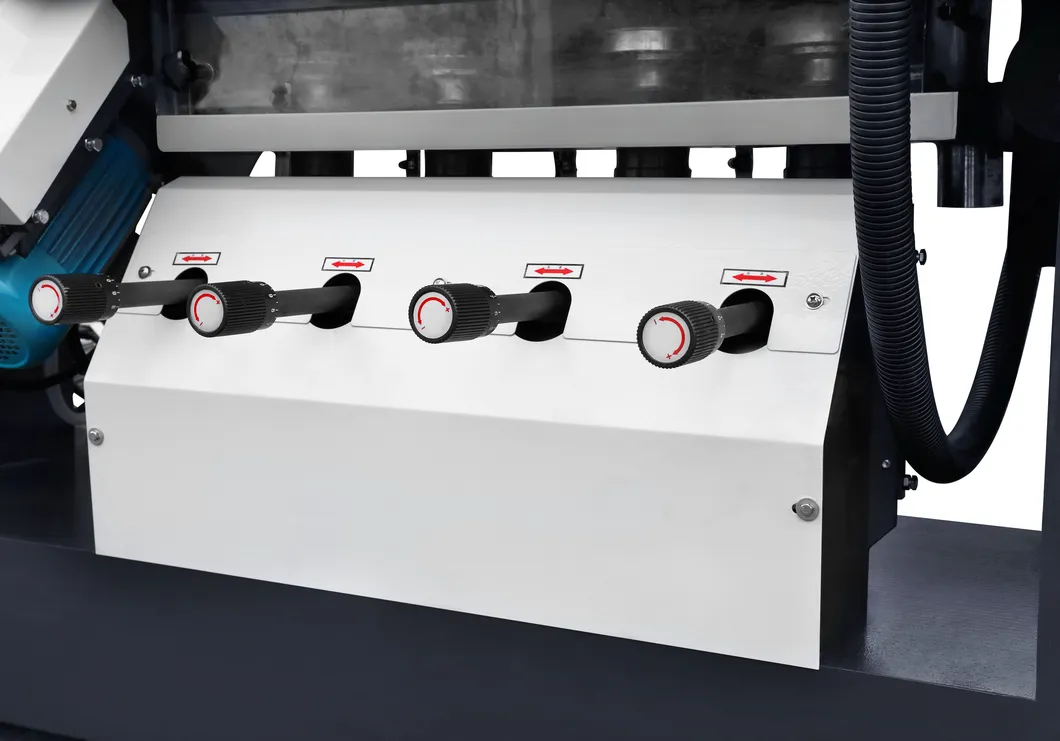

Equipped with advanced structural advantages, the former chamfering grinding head can move simultaneously with the front-axle beam when adjusting for different processing thicknesses. It is an essential equipment for high-precision, continuous glass processing.

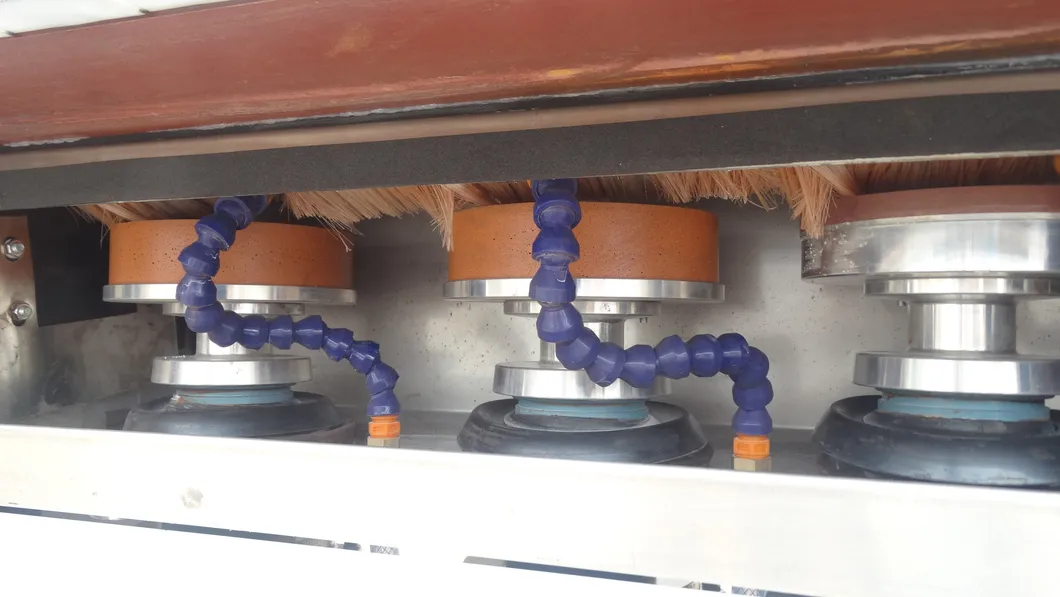

| Head No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| Spec | Φ150 | Φ150 | Φ130 | S40 | Φ130 | S40 | Φ150 | S40 | S40 |
| Type | Diamond | Diamond | Resin | Polishing | Resin | Polishing | Resin | Polishing | Polishing |
| Part Name | Attribute | Specifications / Supplier |
|---|---|---|

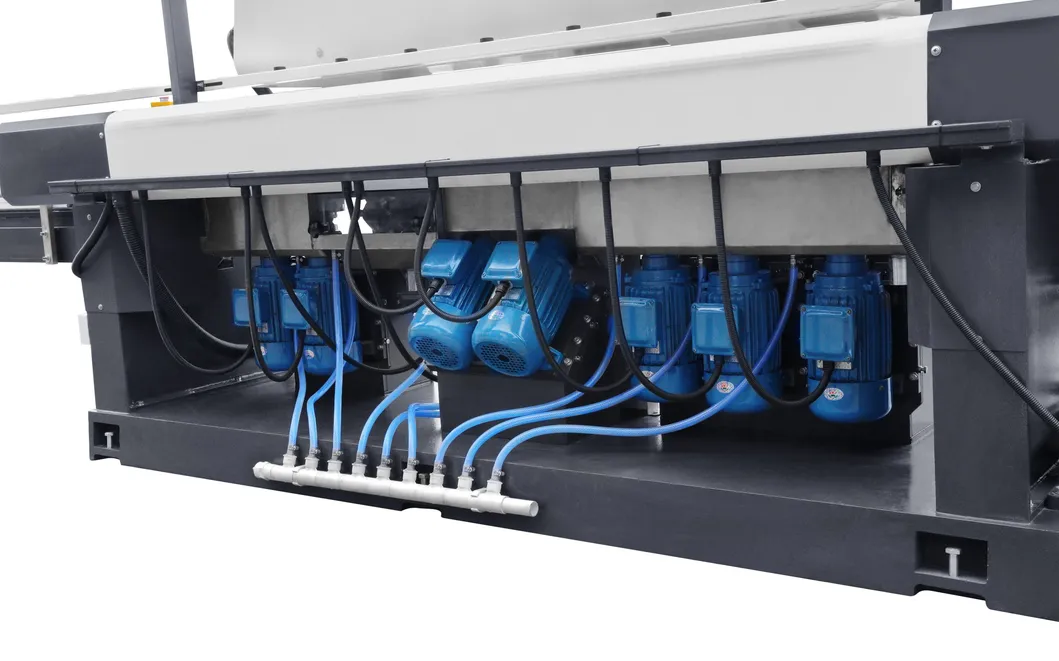

| Machine Motor | Supplier | JinLong |
| Voltage | 380V/50Hz | |
| Power | 1.5kw ~ 2.2kw | |
| Wheels | Supplier | AnHua |

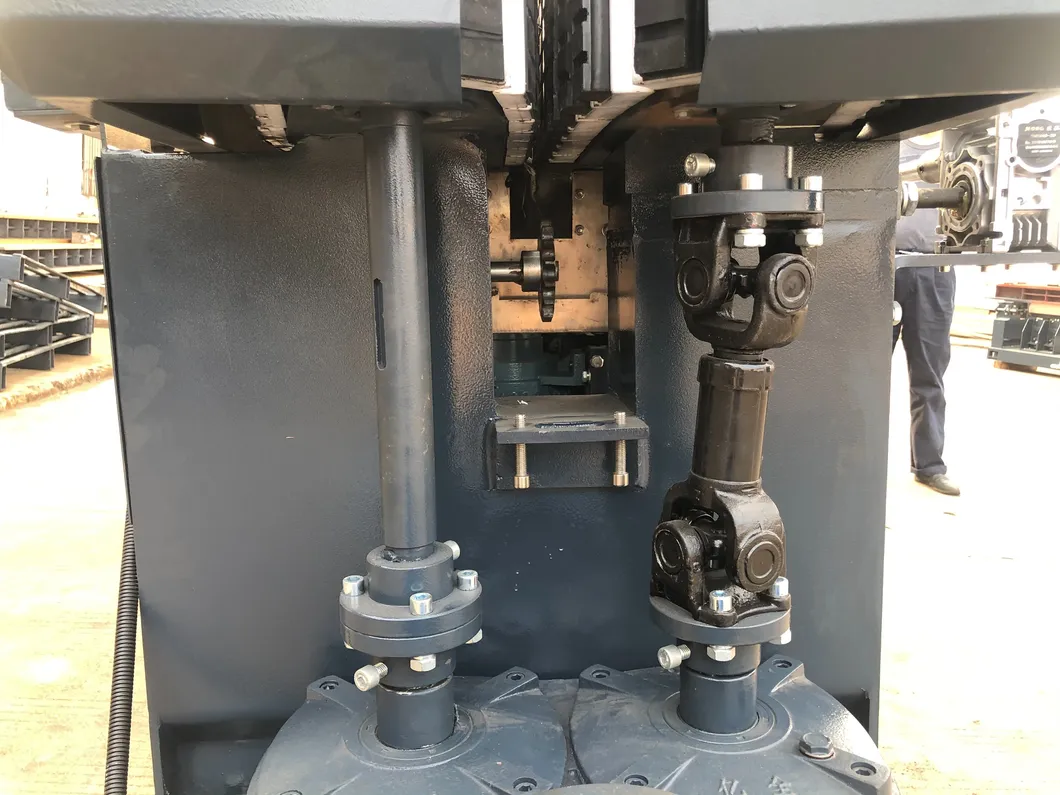

| Conveyor Drive | Supplier | NanHua |
| Specification | 2.2KW Variable Frequency | |
| Main Bearing | Manufacturer | ShangYin / NSK / HaErBin |
| Type | High Precision | |
| Pressing Plate | Material | Cast Iron with Annealing |
| Motor Tank | Material | Stainless Steel |
| Girder & Base | Technology | Annealing Treatment |
