| Name | Double Edging Machine Production Line | Function | Egding Glass Side |
|---|---|---|---|
| Type | Glass Edging Machine | Structure | Horizontal |
| Control System | PLC | Grinding Head | 9 |
| Condition | New | Production Capacity | 30 Sets/Month |

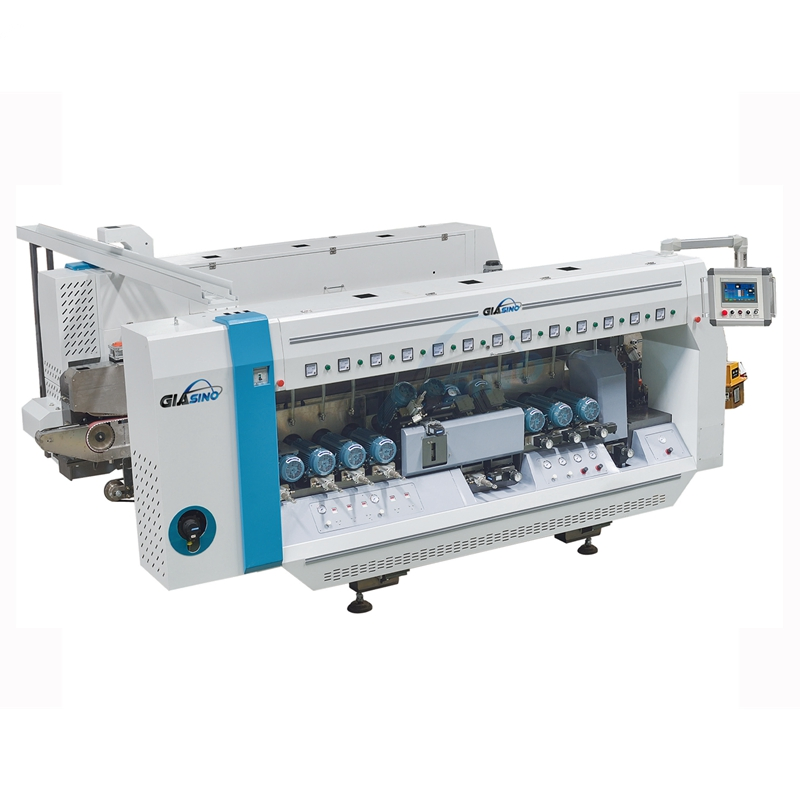

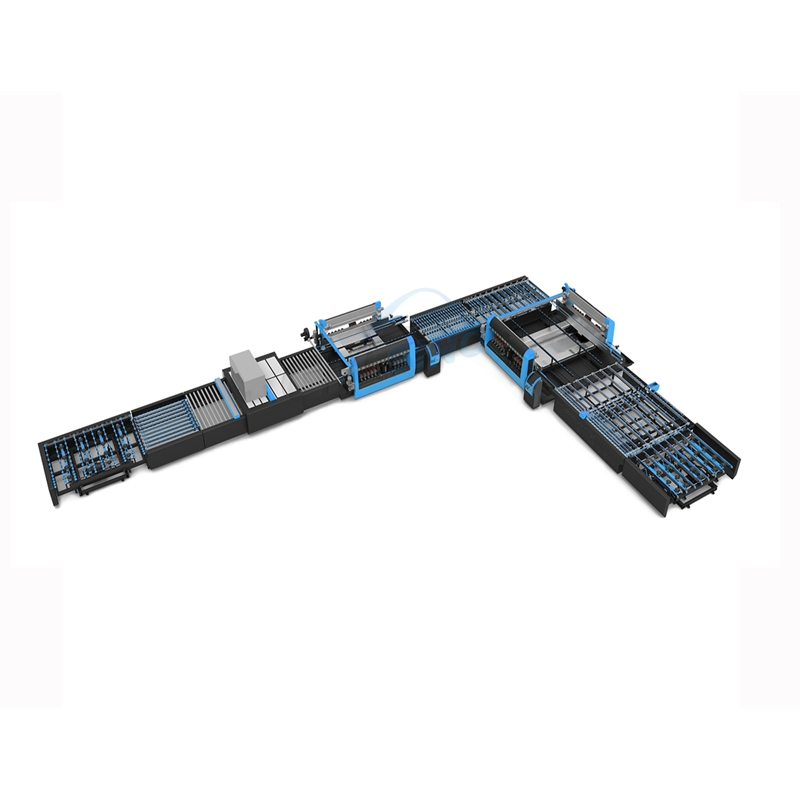

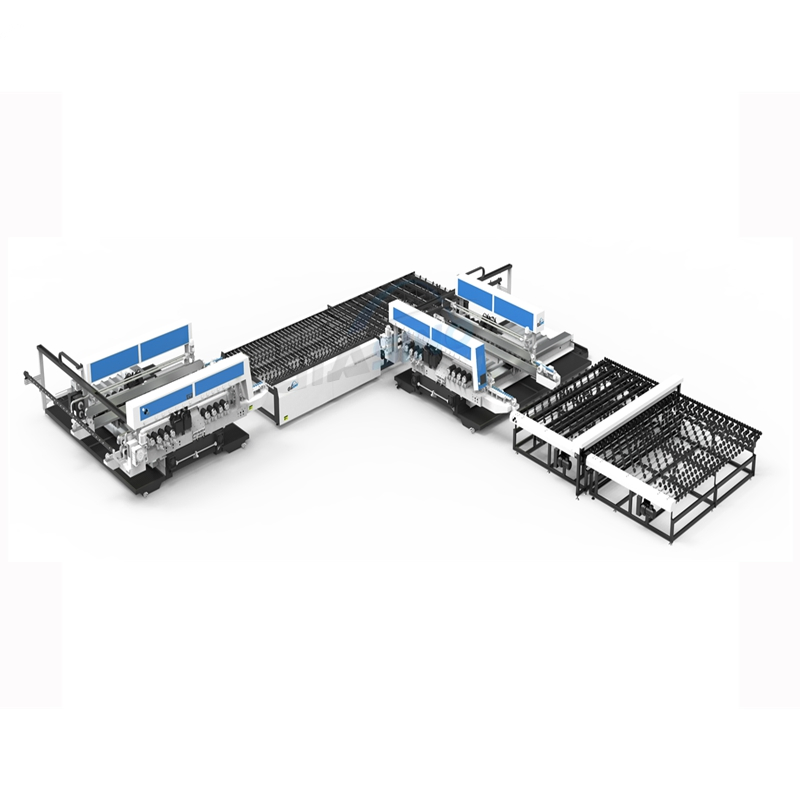

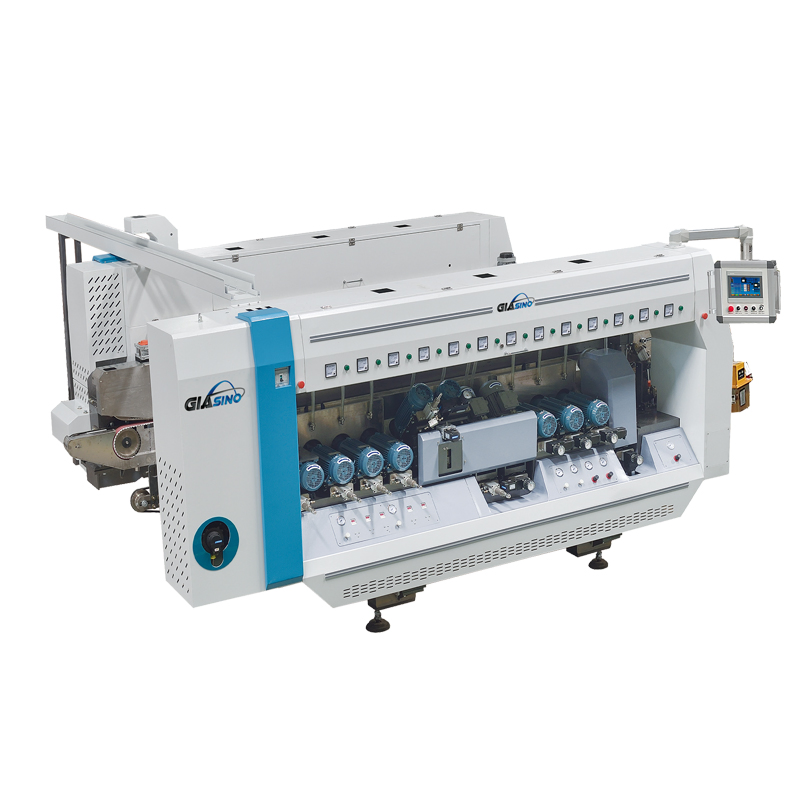

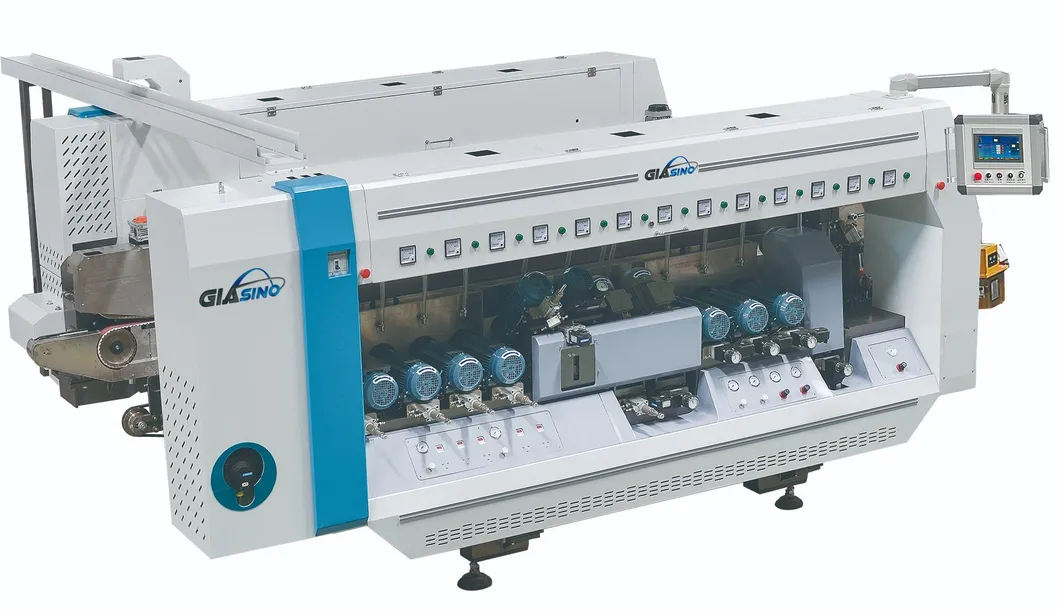

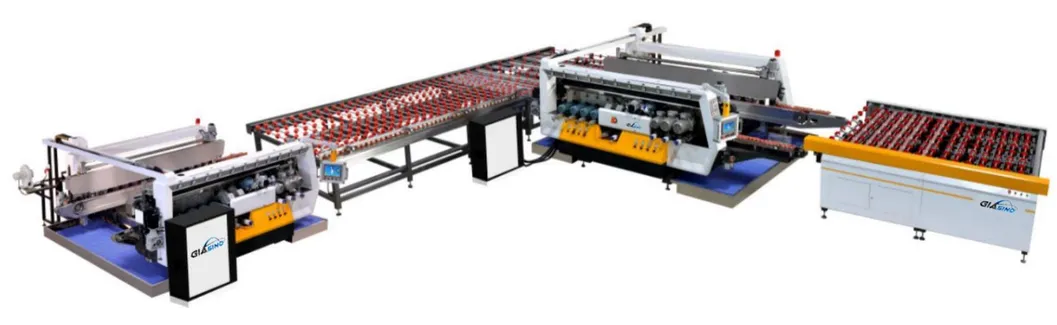

High Speed Double Edging Machine Production Line
This Glass Straight Line Double Edging Machine production line is an economic, high efficiency, high precise, and reliable product designed for all sizes of flat glass, laminated glass, and Low-E glass in mass production.

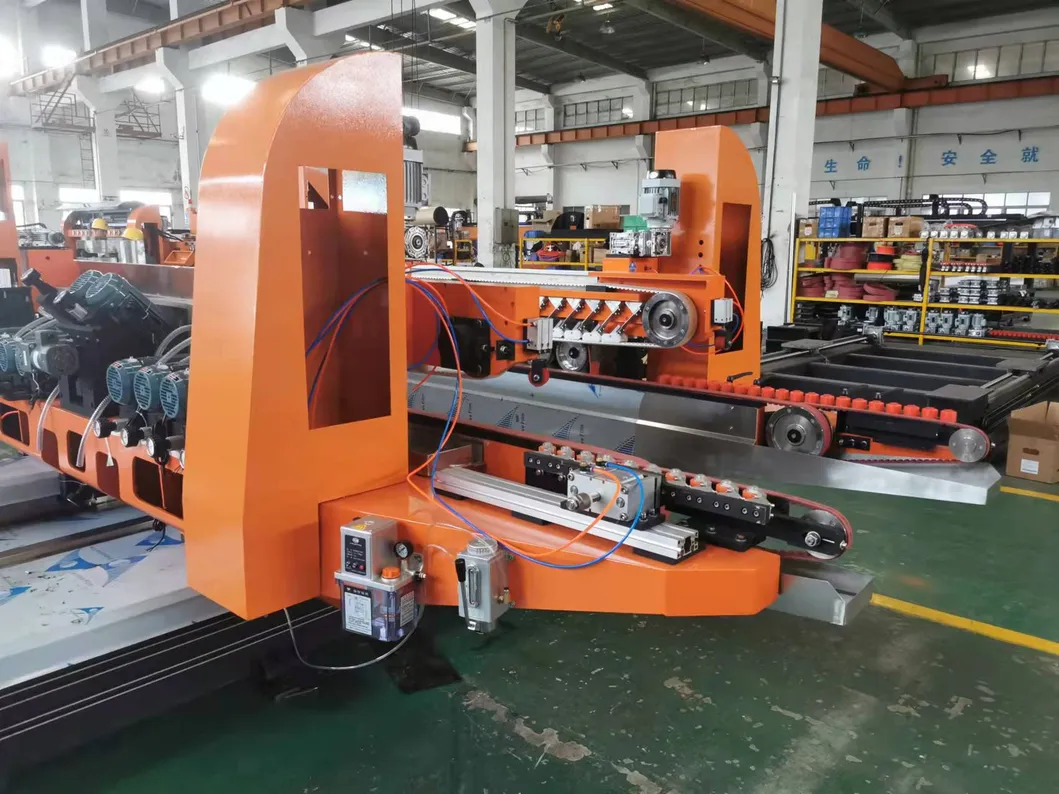

1. Opening and closing of structure adopt ball screw and straight line lead rail.

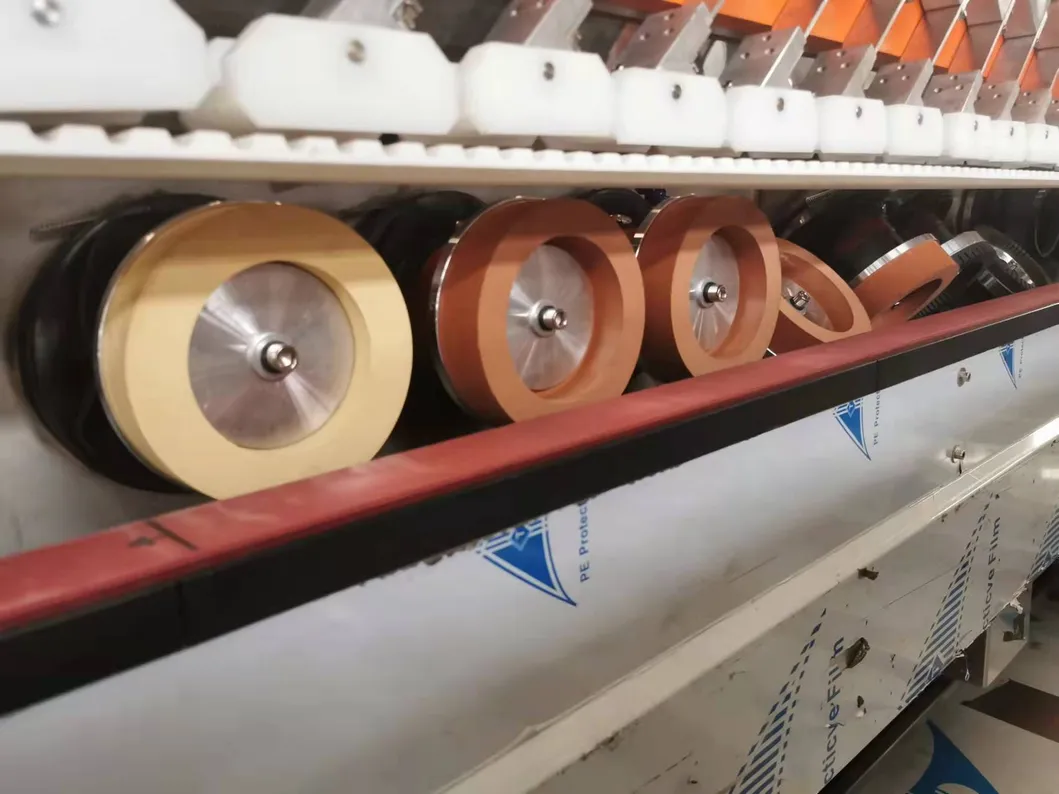

2. Grinding wheel adopts double V type guide rail with high precision and small vibration.
3. Semi-automatic for polishing.
4. Upper angle chamfer adopts ball screw and linear guide for precise orientation.
5. Automatically lifted for cleating bracket (up to 120mm).
6. Main transmission drive adopts mechanical frequency conversion to adjust speed.
7. Adopt annular synchronous belt and pneumatic positioning device for smooth conveying.
| Technical Parameters Summary | |||
|---|---|---|---|
| Voltage (V/Hz) | 380/50 | Installed Power (KW) | 81.2 |
| Compressed Air (kg/cm²) | 6 | Processing Glass Width (mm) | 350-4500 / 350-2500 |
| Glass Conveying Speed (m/min) | 0.5-15 | Glass Thickness (mm) | 3-25 |
| Parallel Difference (mm) | ≤0.2 | Diagonal Difference (mm/mm) | ≤0.5/1000 |
| Height of Working Surface (mm) | 920±20 | Total Weight (kg) | 4800 |
• Immediate response via online tools; email replies within 12 hours.
• Efficient delivery within 15 days.
• 24-hour after-sales service support.
• Over 12 years of experience in the glass machinery field.
• Fluent English communication for seamless cooperation.
• Comprehensive 18-month guarantee.
• 24/7 technical support by email or call.
• Detailed English manuals and video tutorials provided.
• 2-year quality assurance for the machine (excluding consumables).
• Consumable parts provided at agency prices.
"Only quality processes market, and improvement gets progress."
