| Model Number | YD-EM-8 | YD-EM-9 | YD-EM-9-45 | YD-EM-10 | YD-EM-10 (Bearing) |
|---|---|---|---|---|---|
| Total nr. of spindle | 8 | 9 | 9 | 10 | 10 |

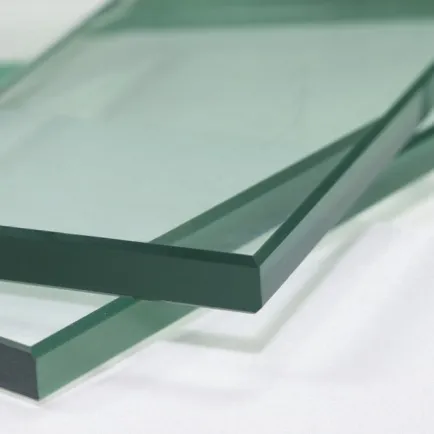

| Profile | Flat/Arris | Flat/Arris | Flat/Arris | Flat/Arris | Flat/Arris |
| Glass thickness (mm) | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 |
| Min. size (mm) | 100×100 | 100×100 | 100×100 | 100×100 | 50×50 |
| Glass speed (m/min) | 0.8~3.5 | 0.8~3.5 | 0.8~3.5 | 0.8~3.5 | 0.8~5 |
| Power (kw) | 15.5 | 18 | 18 | 20 | 20 |
| Dimension (m) | 6.5×1.0×2.6 | 6.8×1.0×2.6 | 6.8×1.0×2.6 | 6.8×1.0×2.6 | 7.5×1.0×2.6 |
| Weight (kg) | 2600 | 3000 | 3000 | 3500 | 4500 |
| No. | Wheel Type | Specification | Quantity |
|---|---|---|---|
| 1 | 1# Diamond Wheel | 100# | 1 |
| 2 | 2# Diamond Wheel | 180# | 1 |
| 3 | 3# Resin Wheel | 130-240# | 1 |
| 4 | 4# Mud wheel | BD | 1 |
| 5 | 5# Resin Wheel | 130-240# | 1 |
| 6 | 6# Mud wheel | BD | 1 |
| 7 | 7# Resin Wheel | 150-240# | 1 |
| 8 | 8# Yew wheel | 10S40 | 1 |
| 9 | 9# Yew wheel | 10S460 | 1 |
