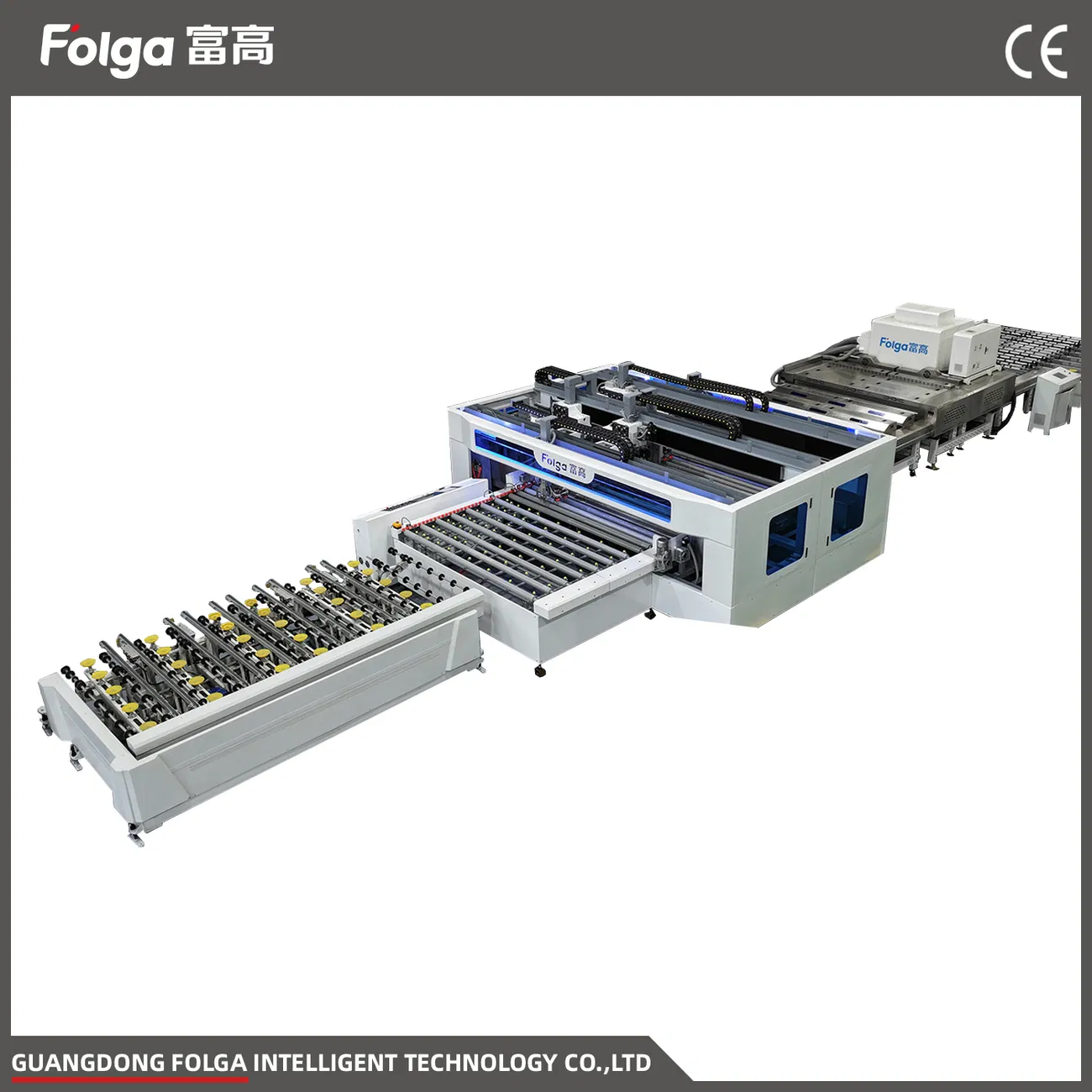

Top Configuration Flat Glass Four Side Edging Machine with Polishing Function

1 / 5

Top Configuration Flat Glass Four Side Edging Machine with Polishing Function

Customization:	Available
Certification:	CE, FDA, ISO, PCI, PDA, UR
Processing Speed:	25-30 m/min

Send Inquiry

Product Description

Basic Info

Model NO.

FGS1625DDP

Processing Thickness

5-25 mm

Voltage

380V

Product Name

Glass Four-Side Edging Machine

Keywords

Seaming Machine

Glass Thickness

3-12mm

Working Speed

1-40m /Min

Air Pressure

≥0.6MPa

Single Machine Power

32kw(28motors)

Production Capacity

500 Sets/Year

Product Description

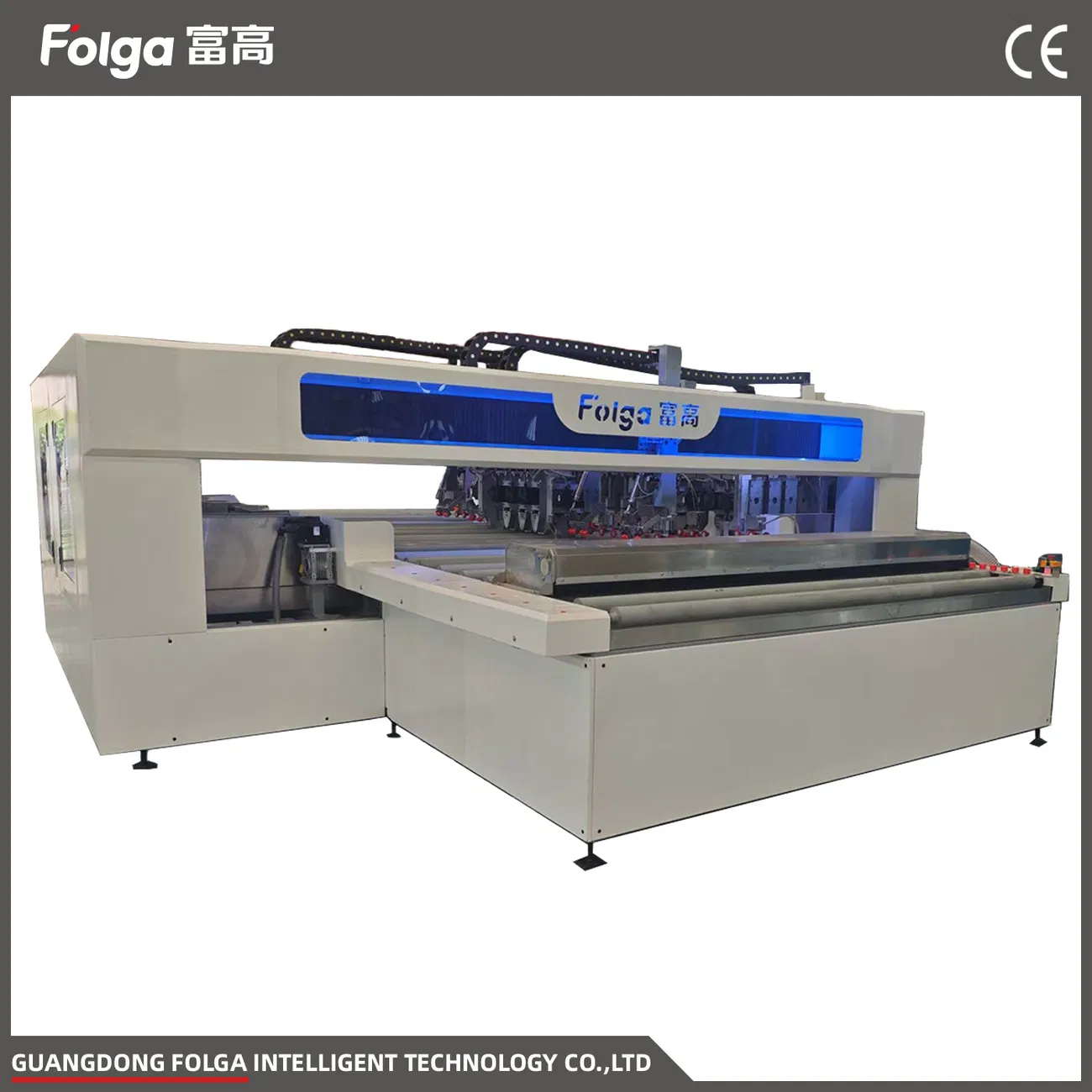

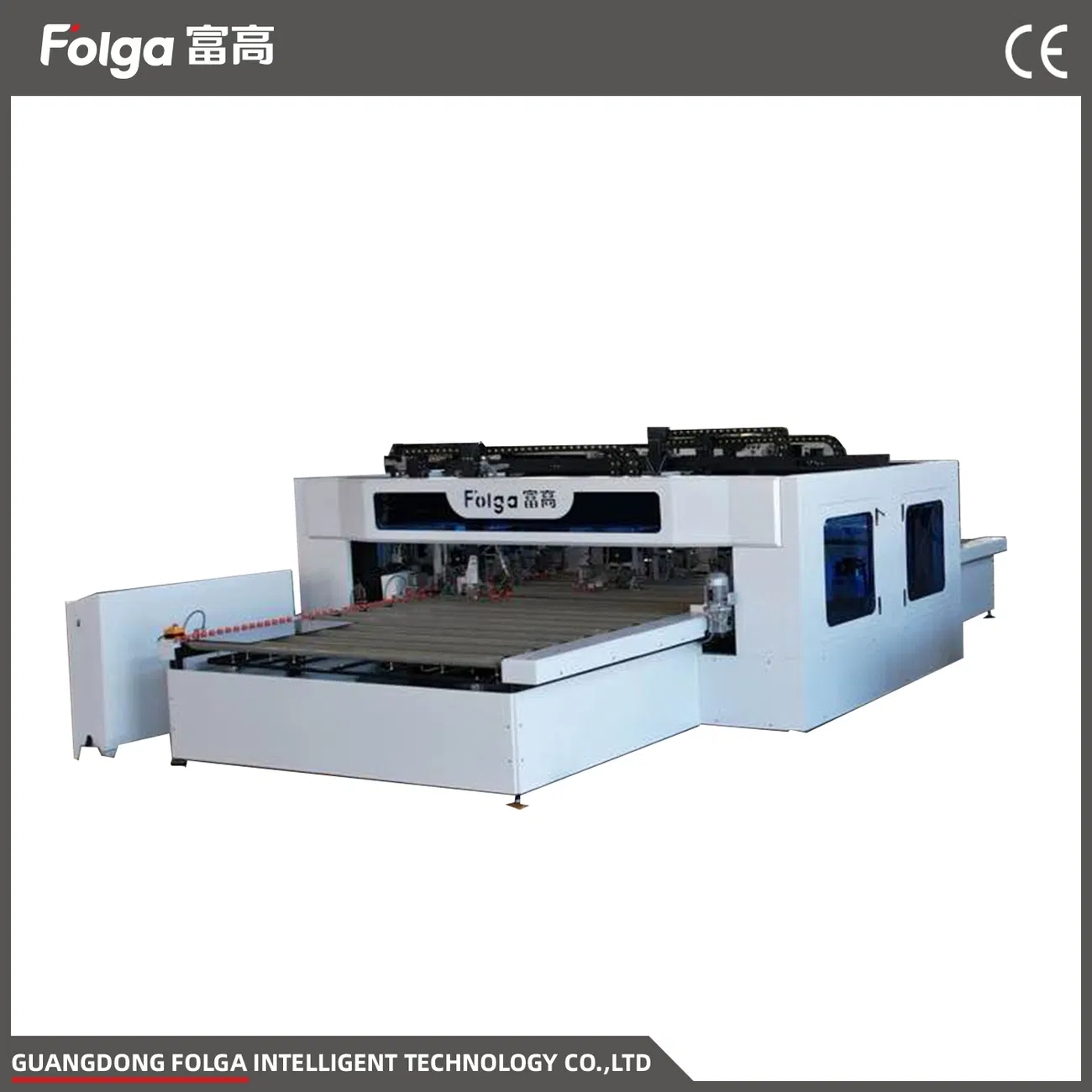

GLASS SEAMING MACHINE

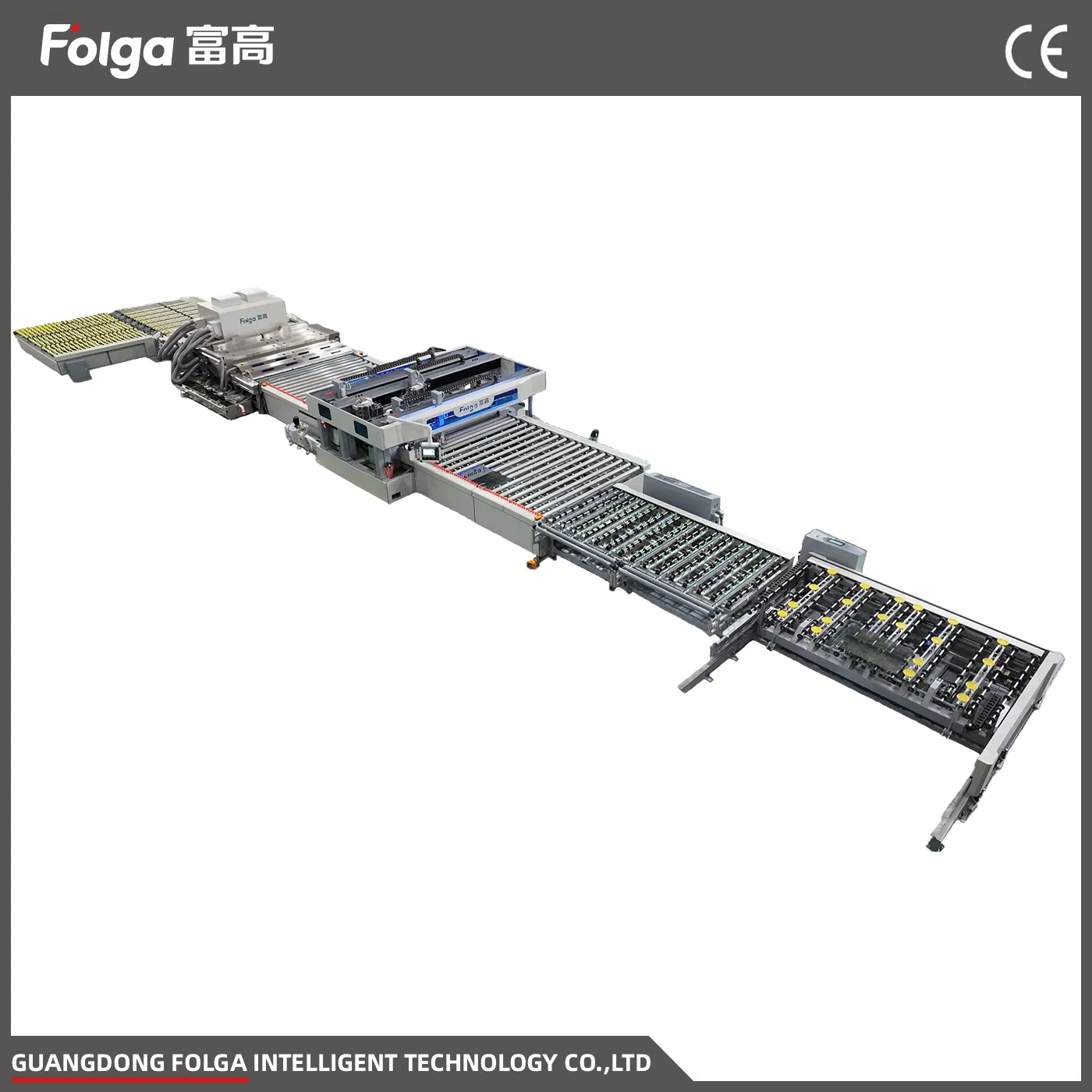

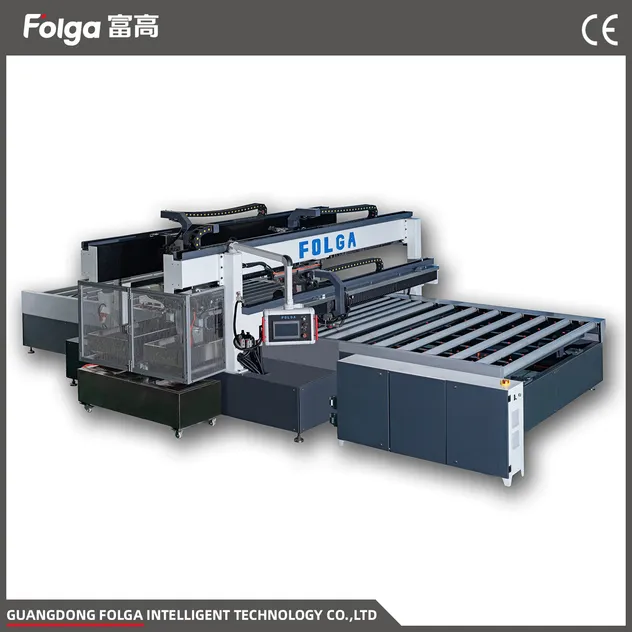

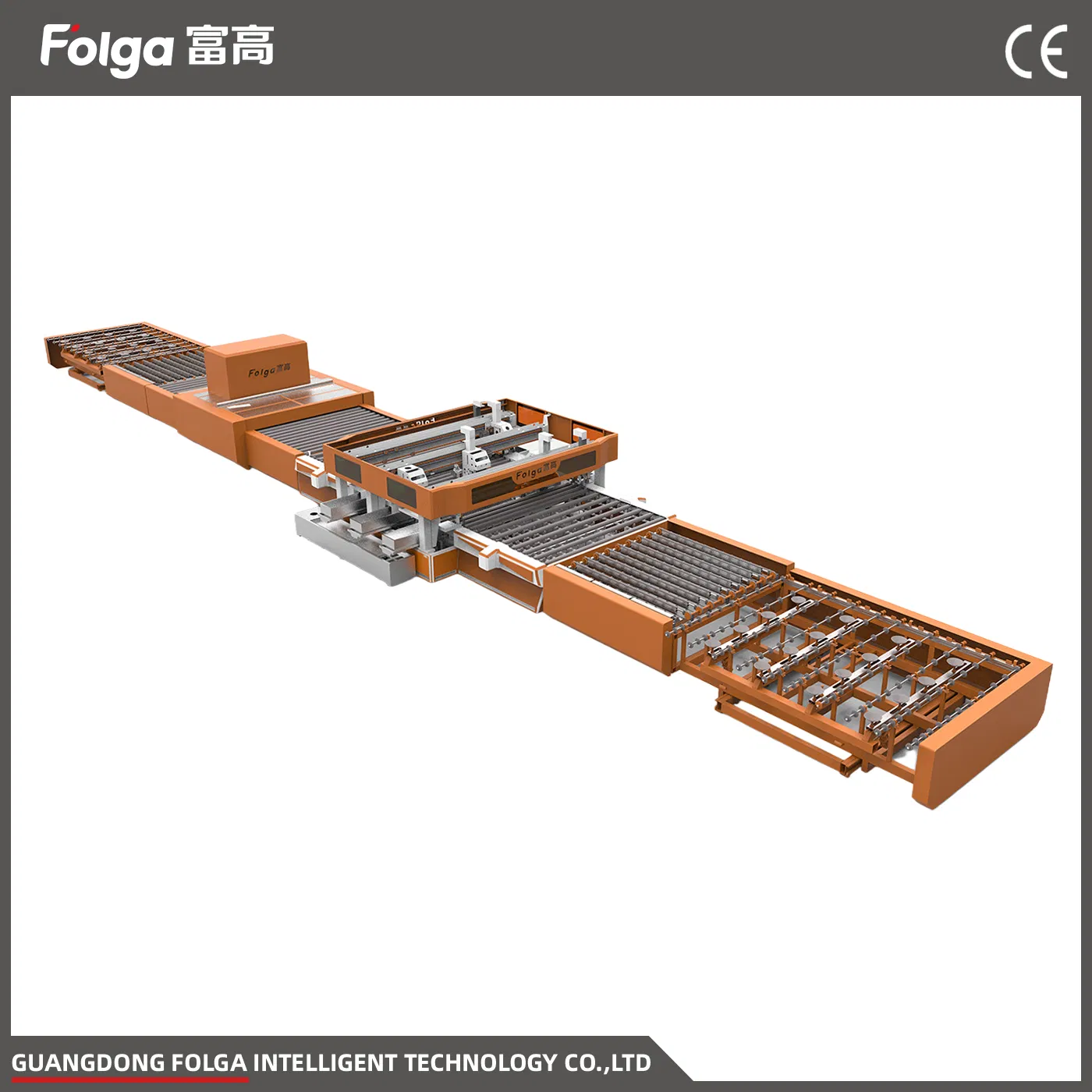

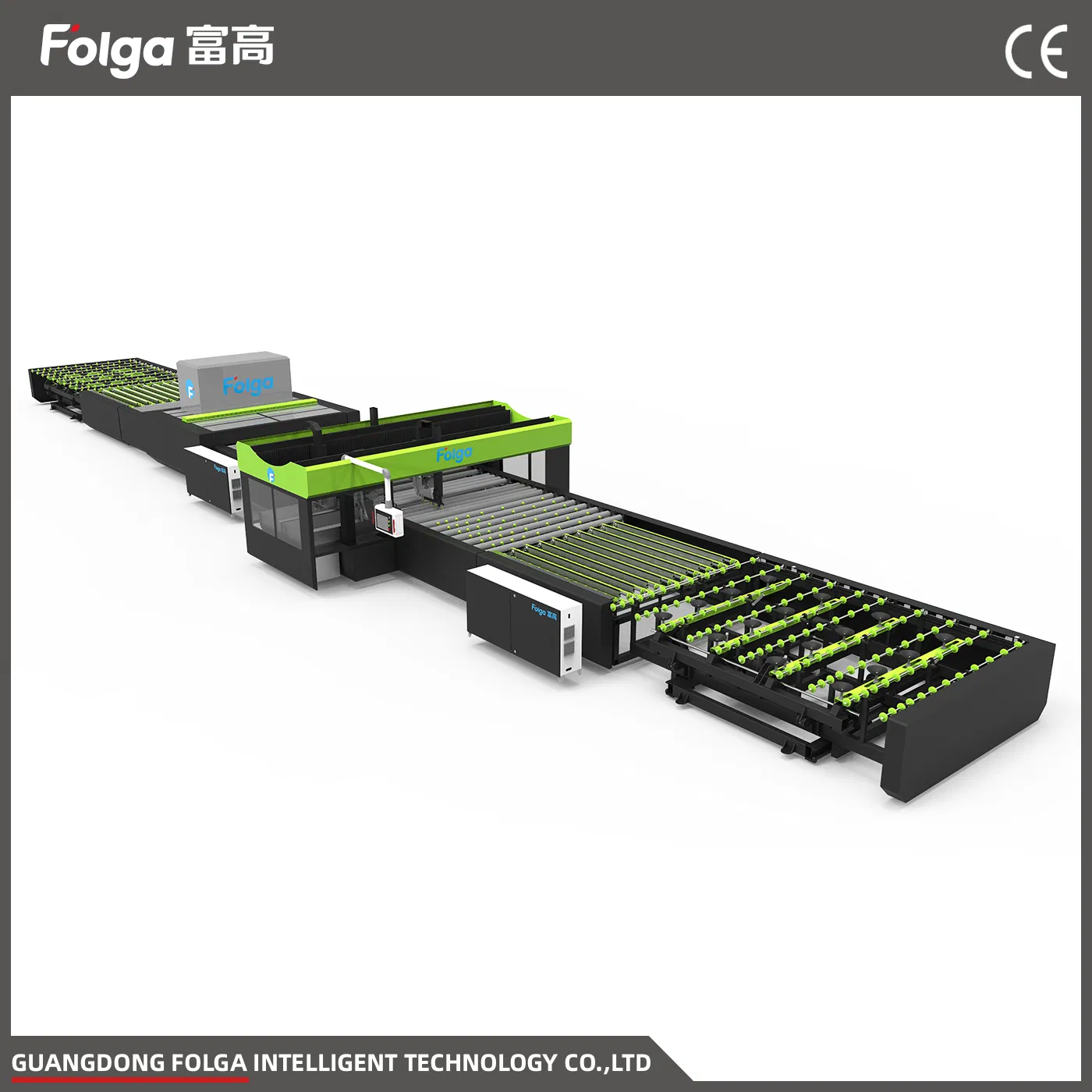

The Glass Seaming Machine (also known as Glass Four Side Edger) is a state-of-the-art automatic glass edging machine designed for high-efficiency processing of rectangular and square flat glass sheets.

This horizontal glass seamer features advanced four-side simultaneous grinding technology, capable of completing chamfering, bottom edge grinding, and Low-E coating removal in a single pass at speeds up to 40m/min. Equipped with a BUS PLC controlling system and full servo motors, this machine delivers exceptional precision and energy efficiency.

Four-Side Simultaneous Processing

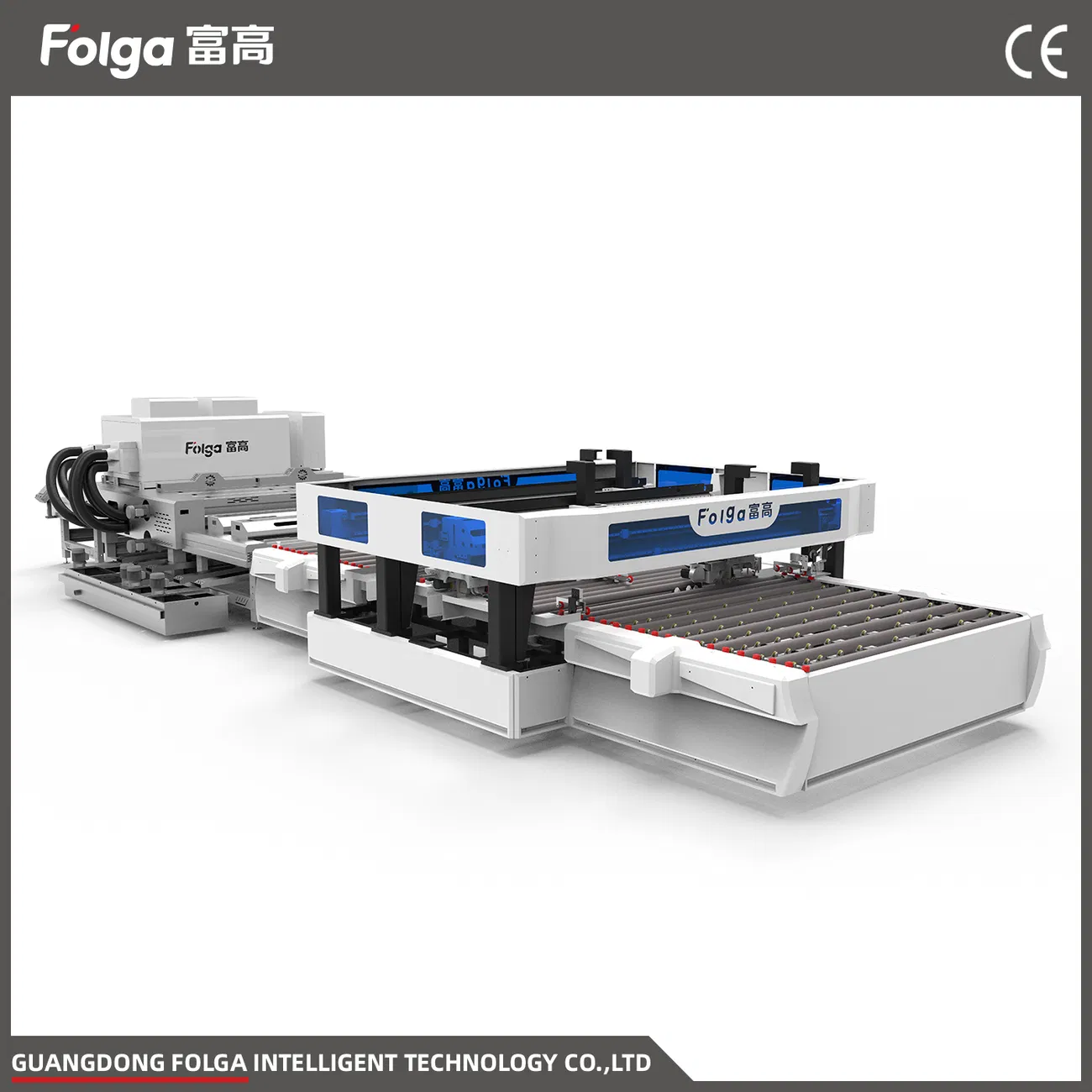

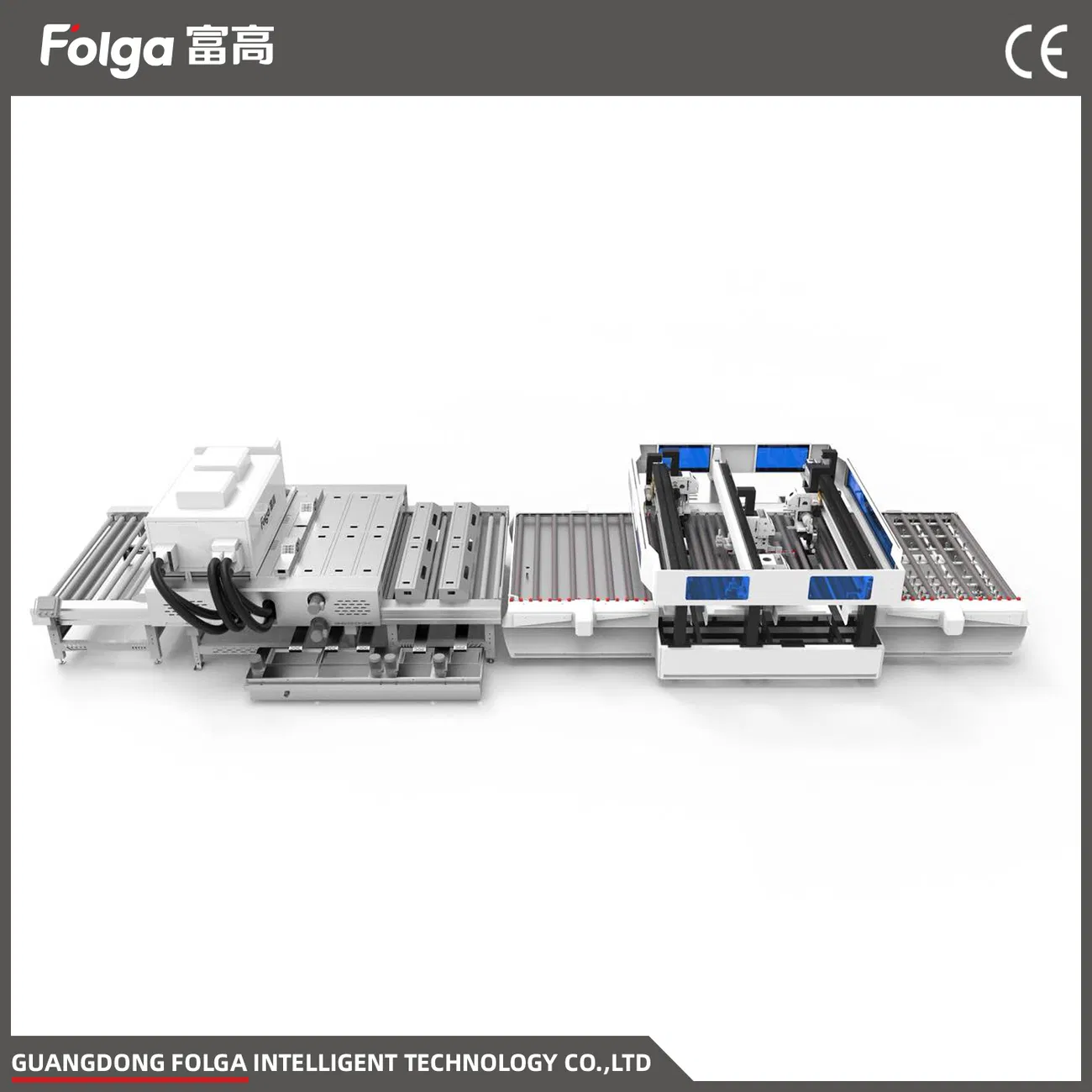

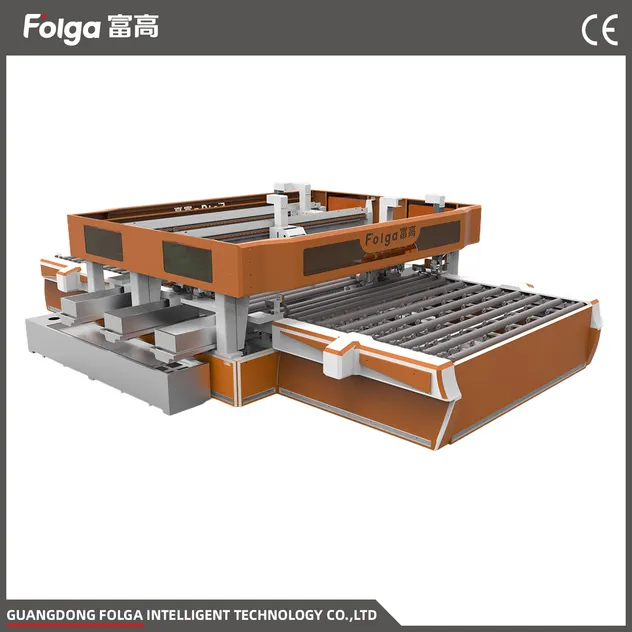

Innovative "three bridges" structure with 4 sets of grinding head mechanisms enables simultaneous up & down chamfering, bottom edge grinding, and Low-E coating removal.

High-Precision Positioning System

Exclusive cylinder-probe positioning design prevents direct contact with glass surfaces, eliminating scratches while ensuring easy operation.

Superior Edge Quality

Bottom edge grinding wheels feature a specialized "double edger bowl" structure that delivers flawless edge finishes.

Technical Parameters

Machine Specification Details
Product Name	Straight Line Edging Machine
Glass Thickness	3-25mm
Max. Edge Grinding	5mm
Max. Chamfer Grinding	2mm
Working Speed	1-30m /min
Size Changing Speed	1-18m /min
Parallel Error	≤0.2mm /m
Diagonal Error	≤0.5mm /m
Air Pressure	≥0.6Mpa
Single Machine Power	42kw (12 motors)

Detailed Highlights

Full Servo & BUS PLC Control

An Integrated BUS PLC controlling system with full servo motors provides exceptional stability and real-time production monitoring.

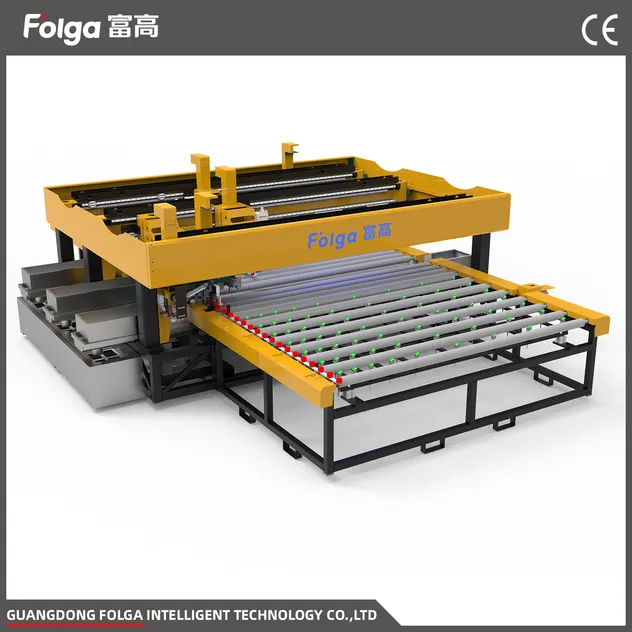

Precision Transmission

Movement powered by gear racks and servo motors with linear guide transmission ensures exceptional positioning accuracy.

Frequently Asked Questions

What are your main products?

We mainly produce glass single edging machines, glass double edging machines, and glass seaming machines. We also offer glass washing machines, loading/unloading systems, and drilling machines.

How many years of experience do you have in manufacturing?

We have 21 years of history (since 2004) in manufacturing glass machinery, ensuring stable technology and reliable after-sales service.

Are you available to dispatch engineers for on-site installation?

Yes, global installation and training services are available for our customers worldwide.

Can you customize the machine size for JUMBO glass?

Yes, we can customize the glass machine dimensions based on your specific production requirements.

What kind of glass do your machines process?

Our machines process all kinds of flat glass, providing either shiny polishing or matte grinding finishes depending on your needs.

What is your support process if a machine has a problem?

We respond within 8 hours. Within 24 hours, our engineers provide troubleshooting steps. If needed, we dispatch spare parts via express courier (DHL) immediately.
