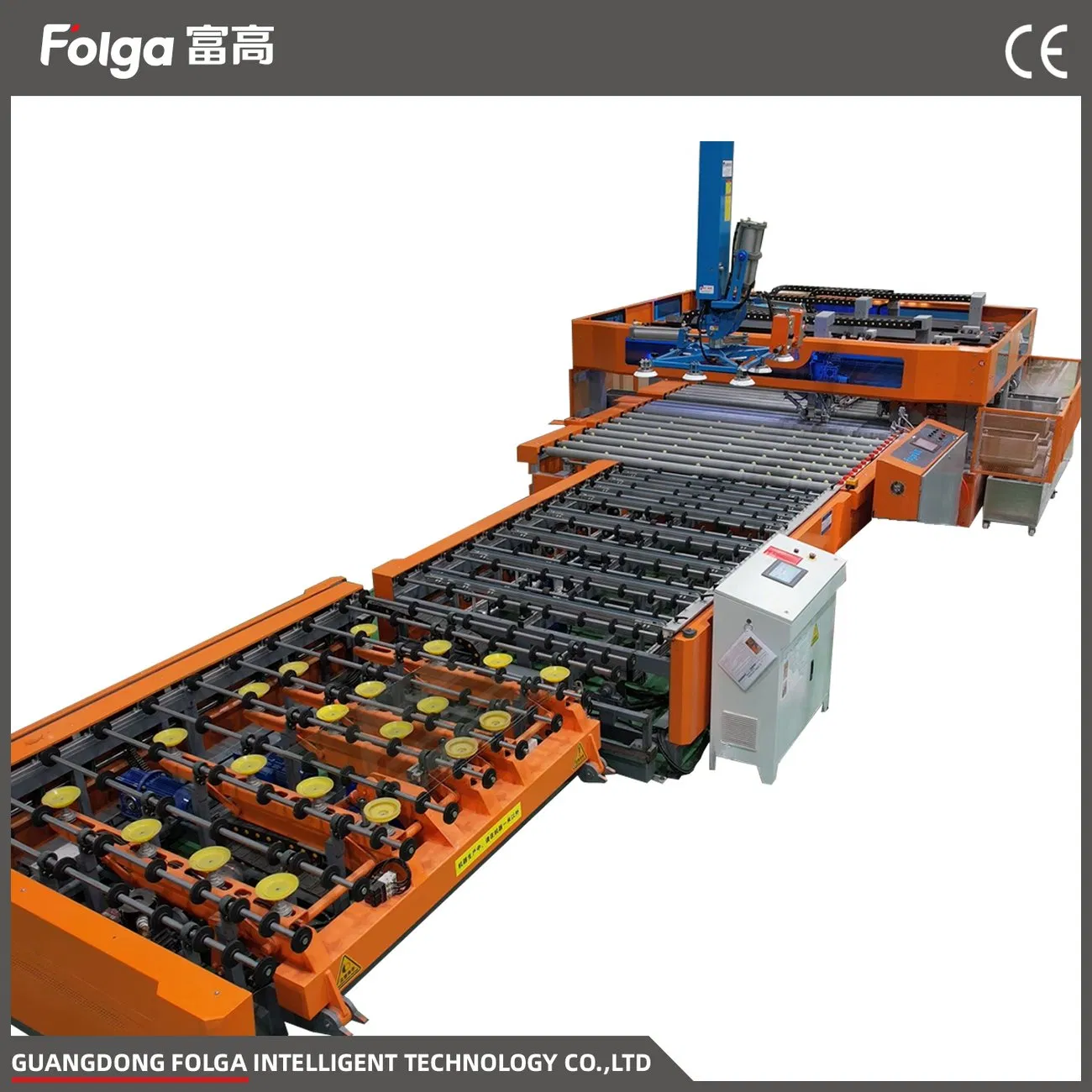

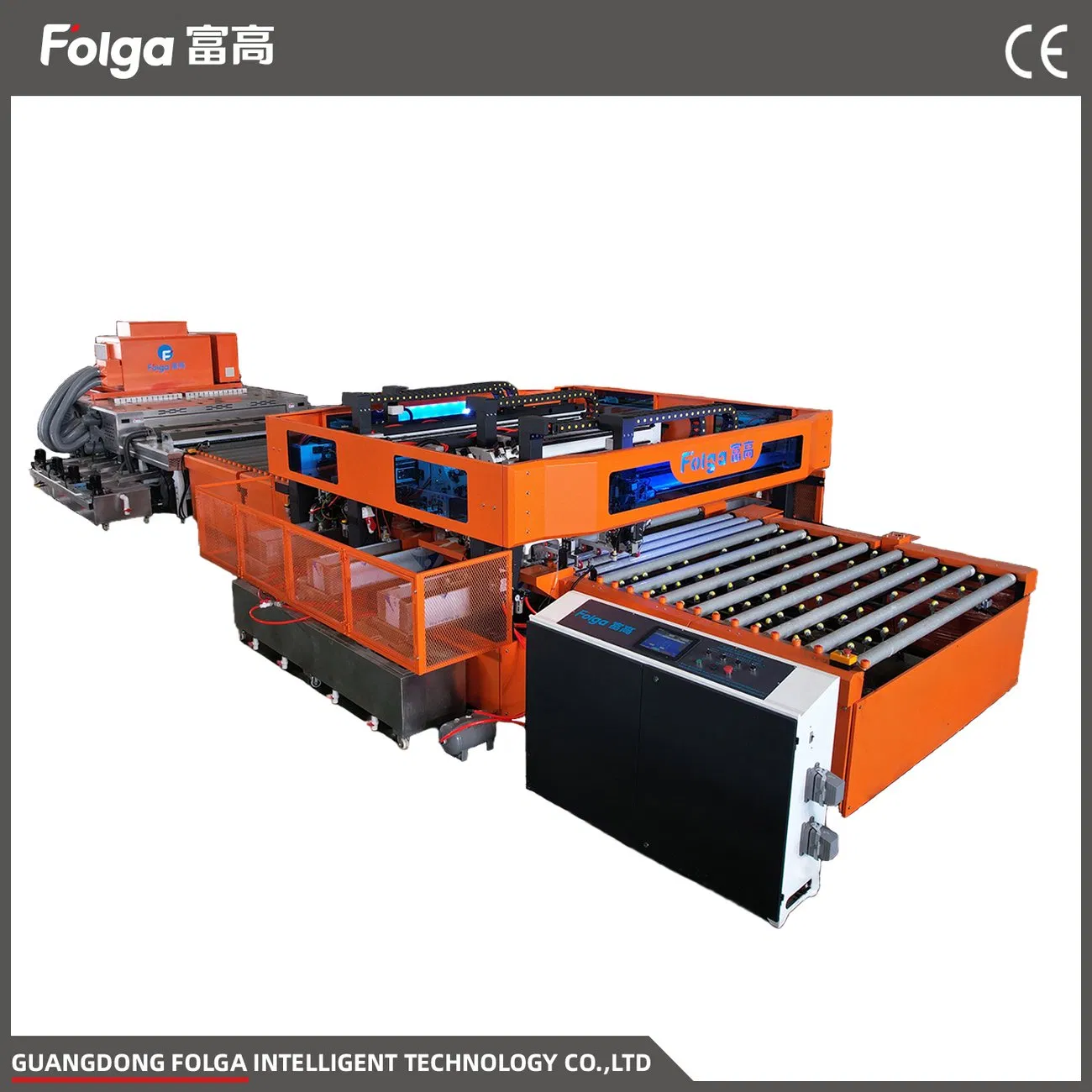

Hot Selling Flat Glass Four-Side Edging Machine Processing Line

1 / 5

Hot Selling Flat Glass Four-Side Edging Machine Processing Line

Customization:	Available
Certification:	CE, FDA, ISO, PCI, PDA, UR
Processing Speed:	25-30 m/min

Send Inquiry

Product Description

🔹 Basic Information Overview

Model NO.

FGS0820DL

Product Name

Glass Seaming Machine

Processing Thickness

3-12mm

Working Speed

1-40m /Min

Voltage

380V

Max. Edge Grinding

2mm

Air Pressure

≥0.6MPa

Single Machine Power

28kw

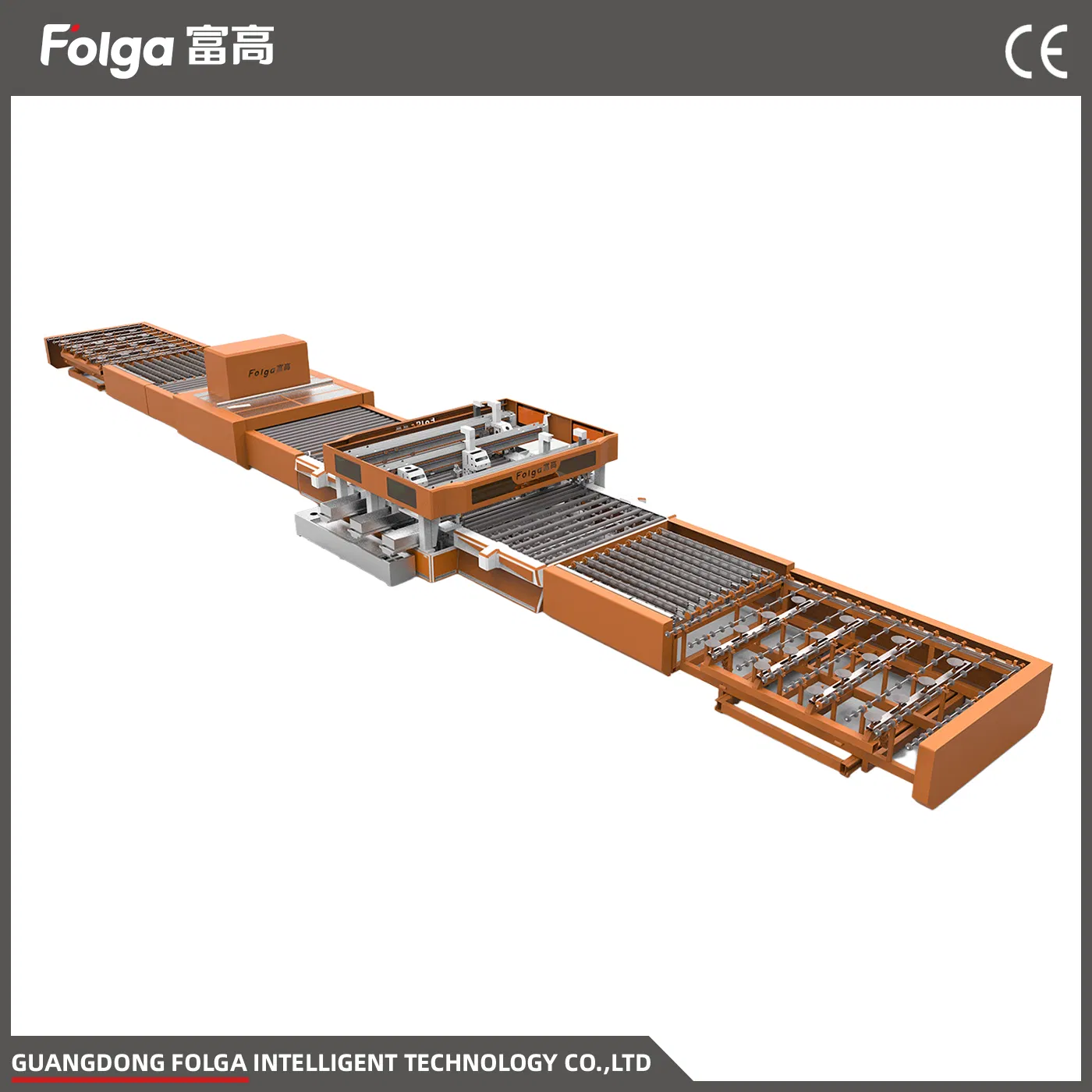

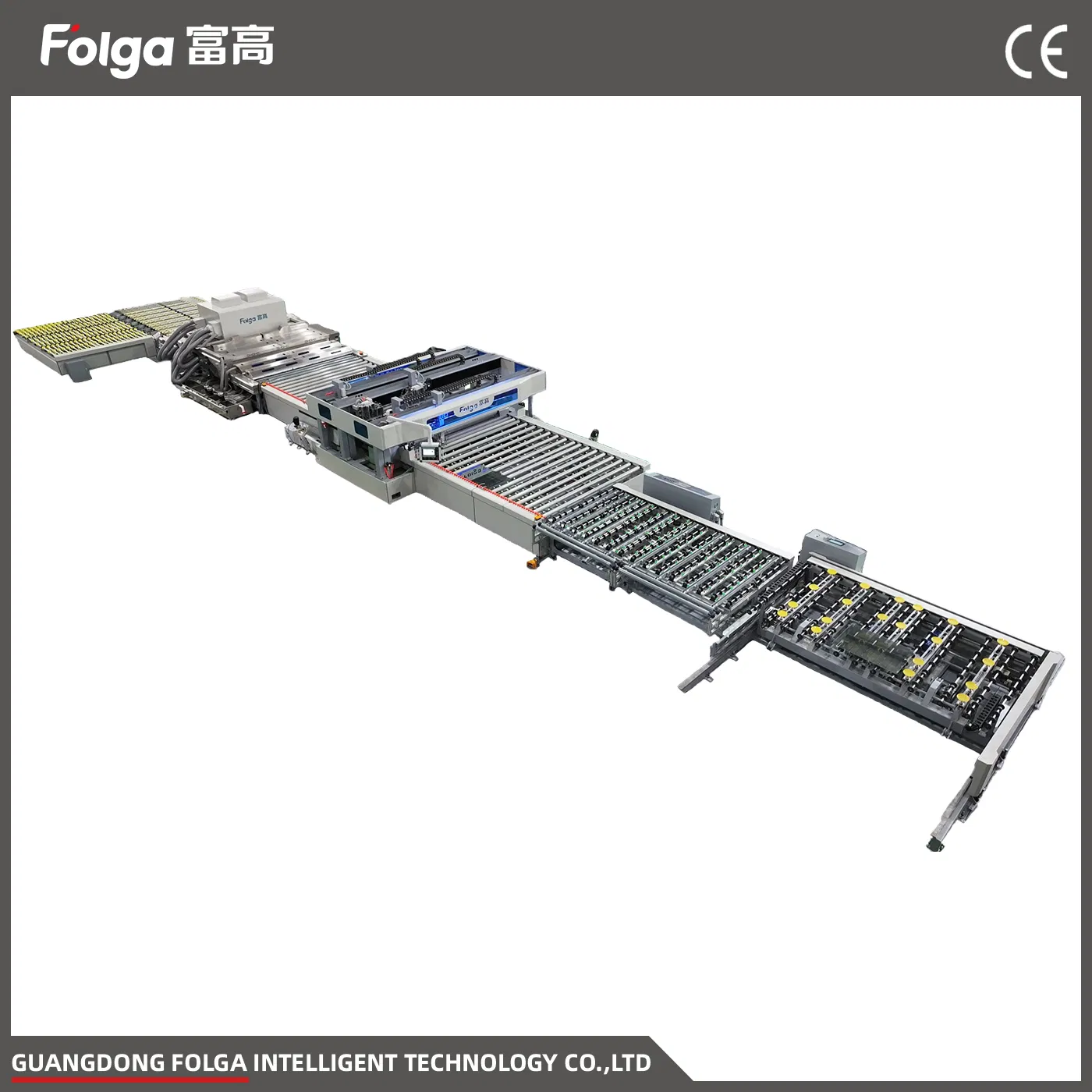

Glass Four-Side Edging Machine Processing Line

⚙️ Product Description

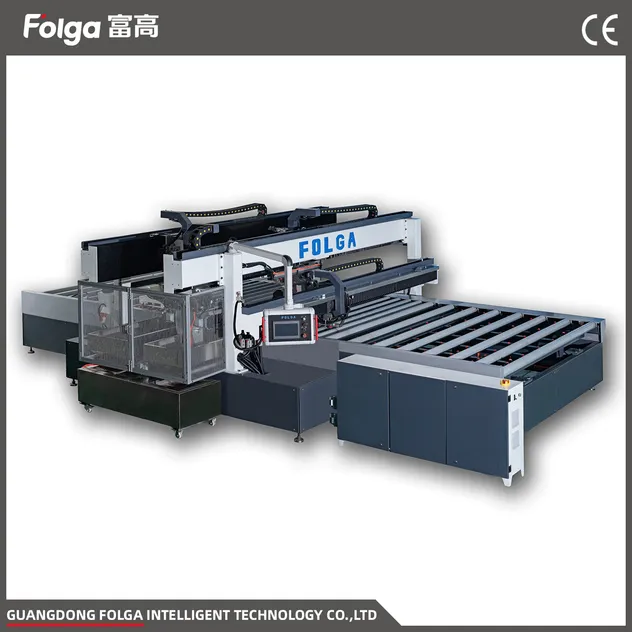

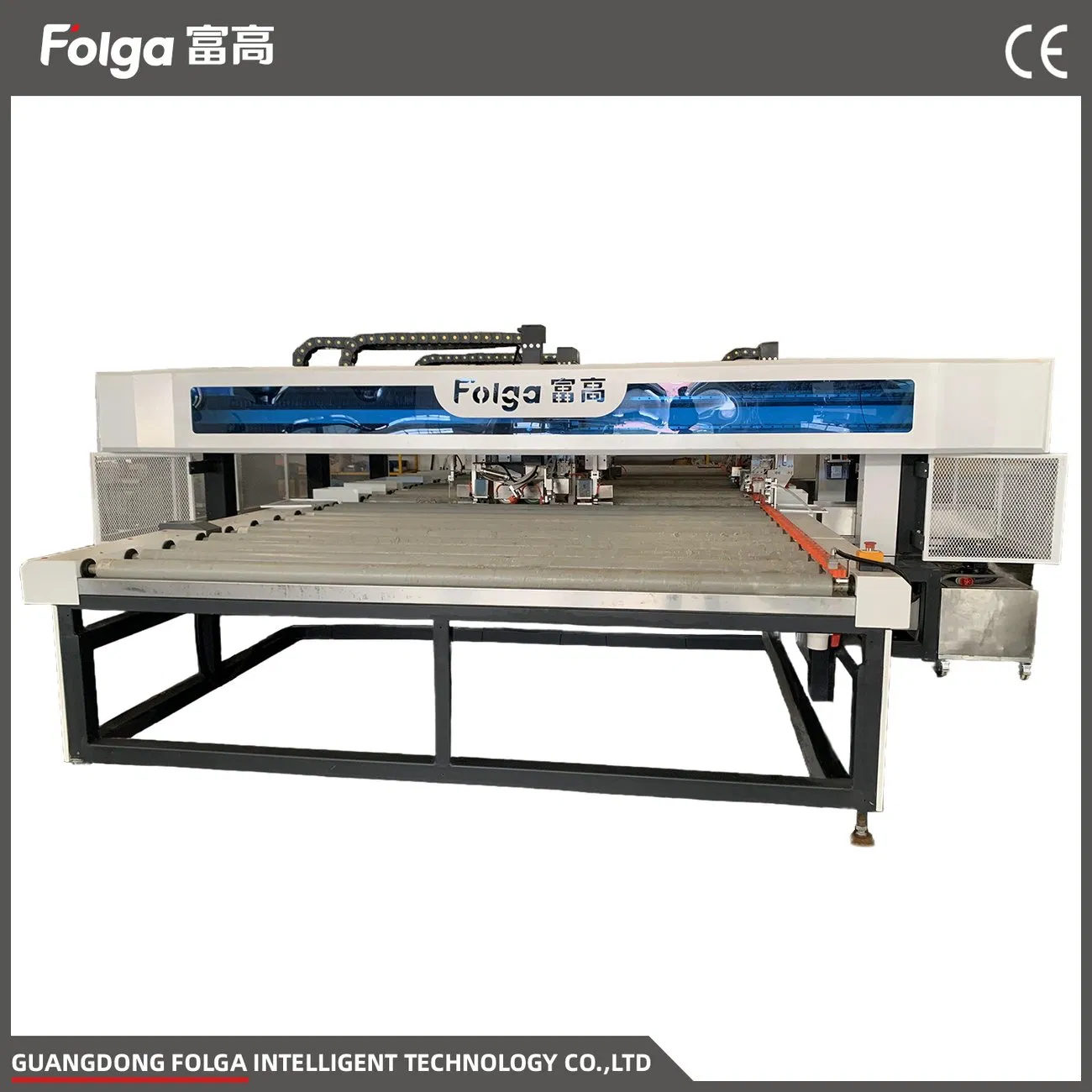

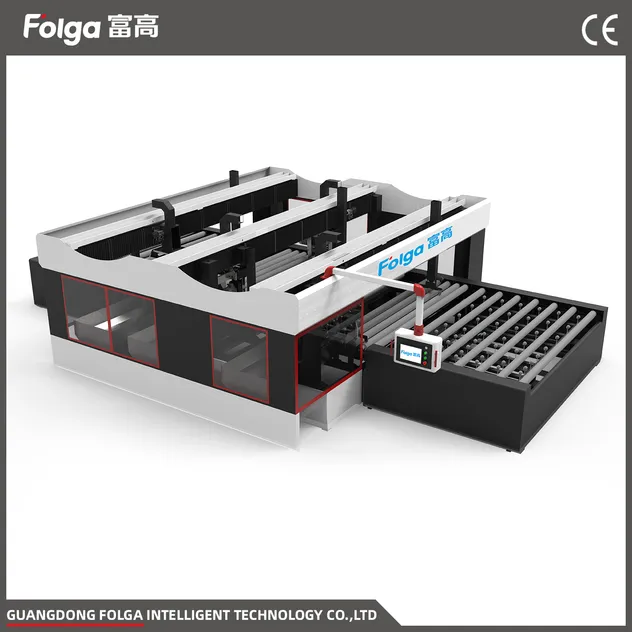

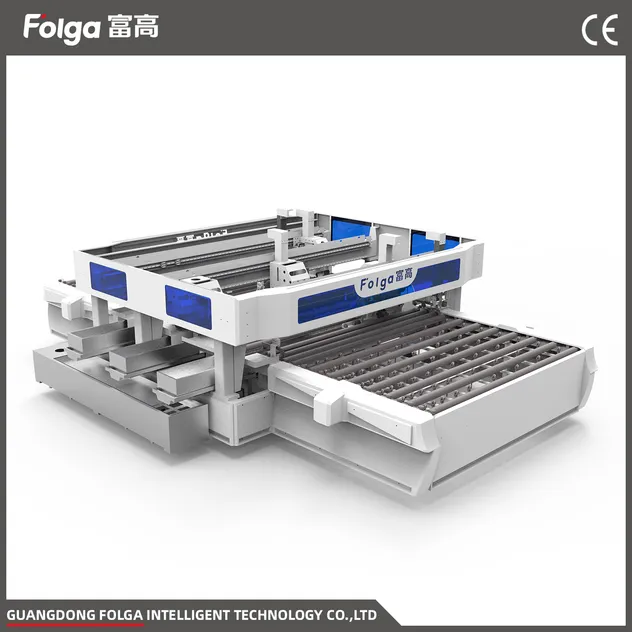

The Glass Seaming Machine (also known as Glass Four Side Edger) is a state-of-the-art automatic glass edging machine designed for high-efficiency processing of rectangular and square flat glass sheets.

This horizontal glass seamer features advanced four-side simultaneous grinding technology, capable of completing chamfering, bottom edge grinding, and Low-E coating removal in a single pass at speeds up to 40m/min. Equipped with a BUS PLC controlling system and full servo motors, this machine delivers exceptional precision and energy efficiency.

🚀

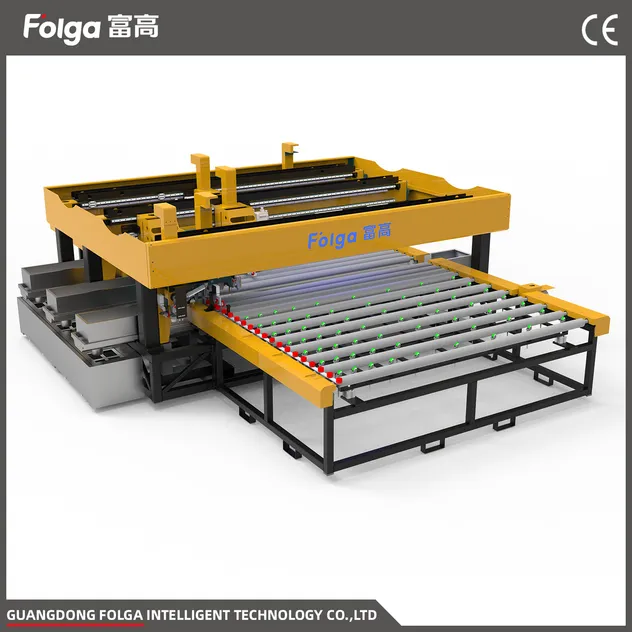

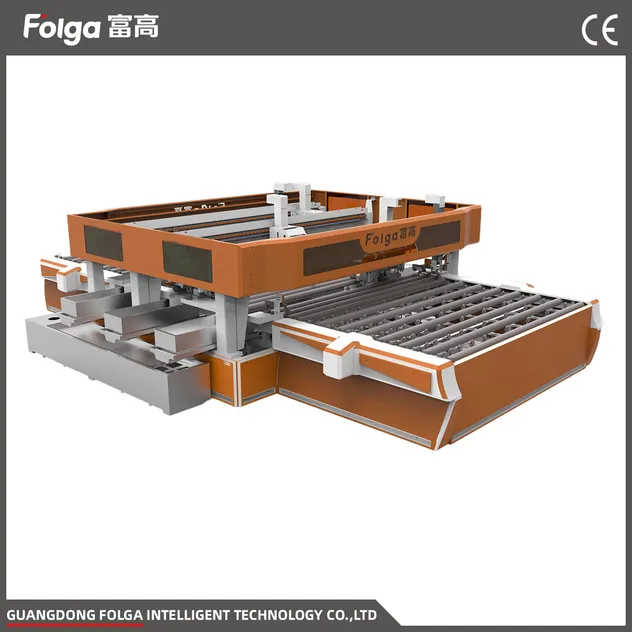

Four-Side Simultaneous Processing: Innovative "three bridges" structure with 4 sets of grinding heads enables simultaneous up & down chamfering and grinding for maximum throughput.

🎯

High-Precision Positioning: Exclusive cylinder-probe positioning design prevents direct contact with glass surfaces, eliminating scratches and breakage risks.

💎

Superior Edge Quality: Features a specialized "double edger bowl" structure that delivers flawless edge finishes for premium glass products.

📋 Technical Parameters

Machine Specification Details
Glass Thickness	3-25mm
Max. Edge Grinding	5mm
Max. Chamfer Grinding	2mm
Working Speed	1-30m /min
Size Changing Speed	1-18m /min
Parallel Error	≤0.2mm /m
Diagonal Error	≤0.5mm /m
Single Machine Power	42kw (12 motors)

💡 Technical Highlights

FULL SERVO & BUS PLC CONTROL: Integrated controlling system provides exceptional stability and real-time production monitoring.

PRECISION TRANSMISSION: Movement powered by gear racks, reducers, and servo motors ensures 40m/min speeds with high accuracy.

INTEGRATED CLEANING: Equipped with spray nozzles and air blowers for high-end household glass applications.

SMART FACTORY READY: Compatible with MES and ERP software integration for data tracking and quality control.

❓ Frequently Asked Questions

Q1: What are your main products?

A: We mainly produce glass single edging machines, glass double edging machines, and glass seaming machines. We also offer auxiliary equipment such as washing machines, loading/unloading systems, and drilling machines.

Q2: How much experience do you have in manufacturing?

A: We have a history dating back to 2004, providing over 21 years of expertise in ensuring stable technology, high quality, and professional after-sales service.

Q3: Do you provide on-site installation and training?

A: Yes, we offer global installation services and can dispatch engineers to your site for setup and operator training.

Q4: Can you customize machine sizes for JUMBO glass?

A: Yes, we are capable of customizing machine specifications and sizes based on your specific production requirements.

Q5: What kind of glass can these machines process?

A: Our machines are suitable for processing all types of glass, providing options for both shiny polishing or matte grinding finishes.

Q6: What is your response procedure for technical issues?

A: We respond within 8 hours. Within 24 hours, our engineers provide step-by-step troubleshooting. If necessary, spare parts are dispatched immediately via express couriers like DHL.
