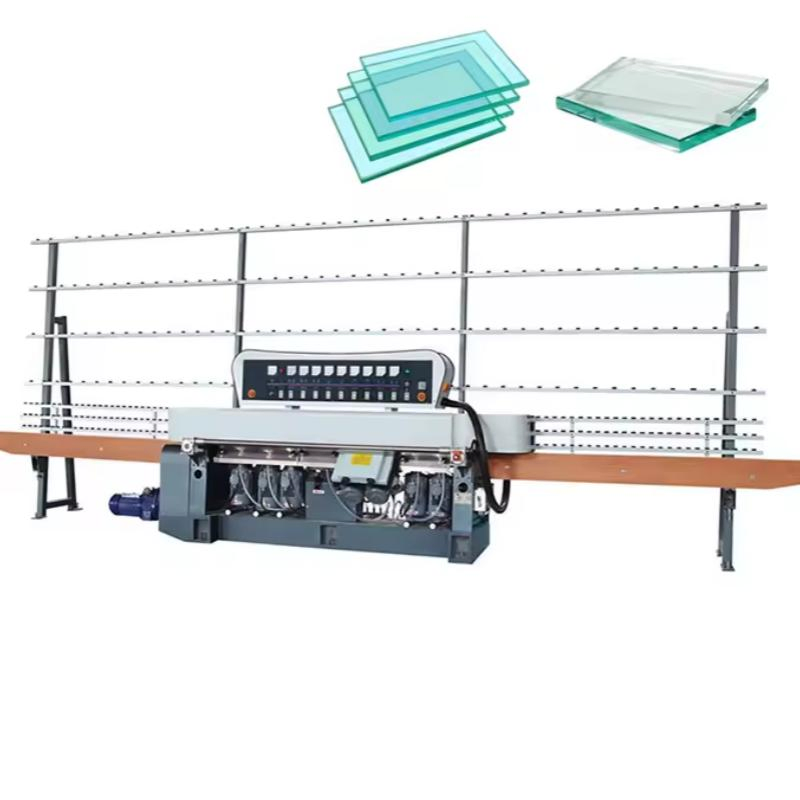

Glass Processing Necessary Tool Flat Glass Straight Edging Machine

Customization:	Available
Certification:	CE, ISO
Processing Speed:	20-25 m/min

Send Inquiry

Product Description

📊

Basic Specifications

Model	TOJG
Processing Thickness	3-19 mm
Max Glass Size	2500 * 2500 mm
Min Glass Size	80 * 80 mm
Transmission Speed	0.5-6 m/min
Power	19.5 kW
Weight	3000 kg
Grinding Head Number	9 Heads
Structure	Vertical Flat Glass Edging
Control System	Industrial Computer / Omron Digital Display

⚙️

Product Description & Configuration

This high-precision glass straight-line edging machine is designed for professional glass processing. It features a robust cast iron frame and high-quality components for long-term stability.

🛠️ Mechanical Parts

Machine Frame: HT250 Cast Iron with annealing treatment for durability.

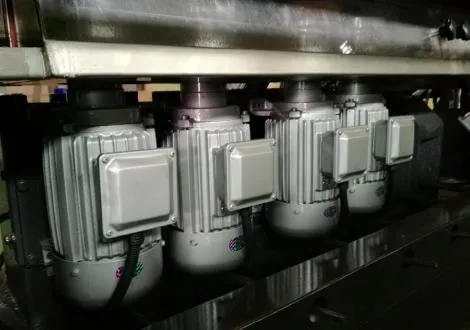

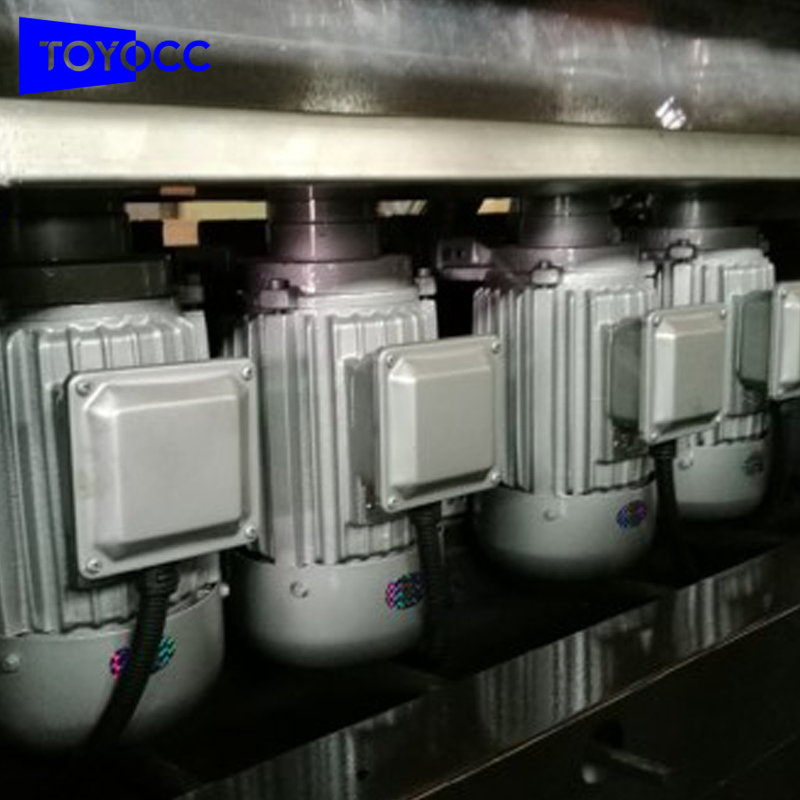

Grinding Motors: High-reliability Huashun motors (2.2kw/1.5kw).

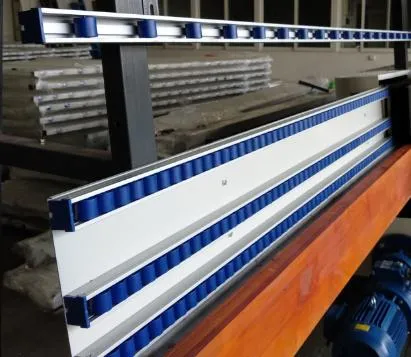

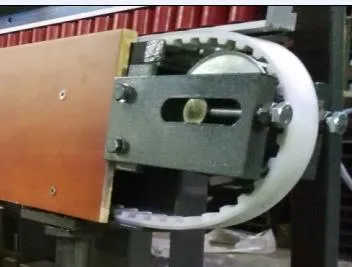

Transmission: Italy brand timing belts and aluminum fluency strips for stable glass conveying.

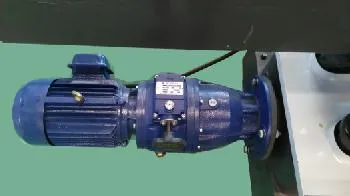

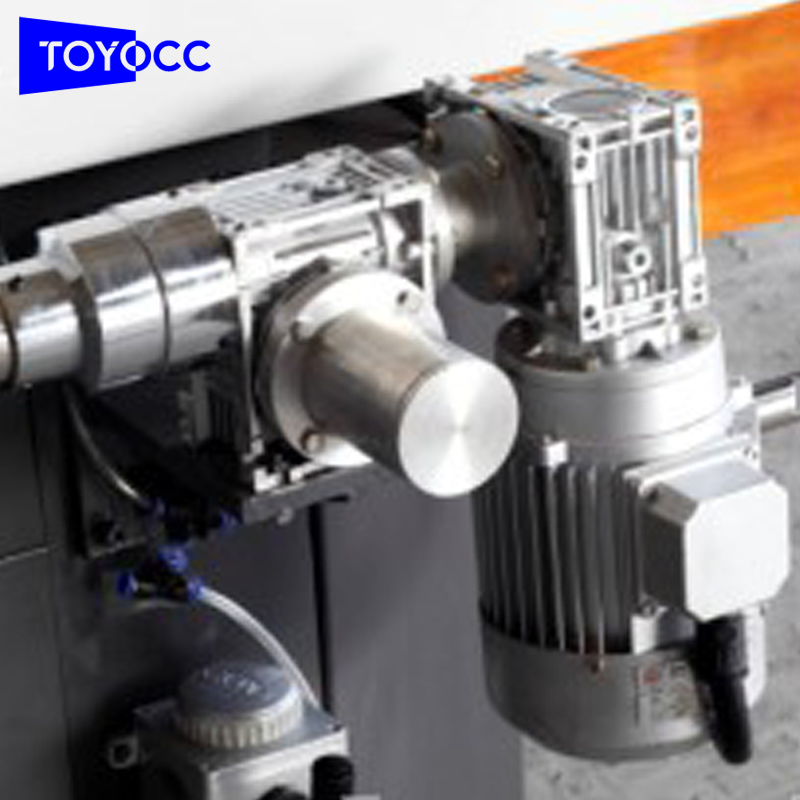

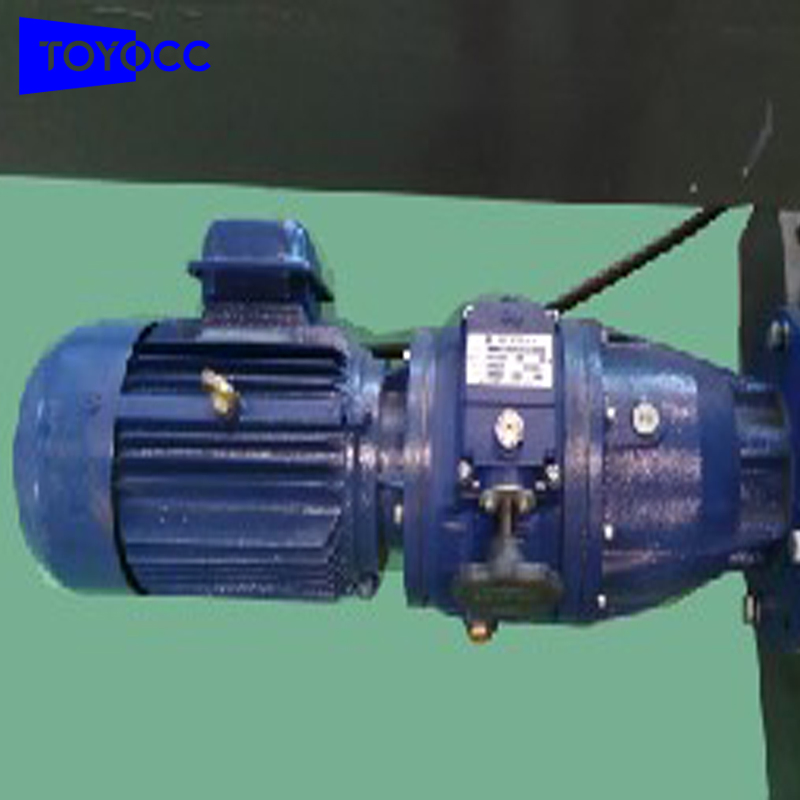

Speed Control: Step-less reducer for heavy-load processing.

⚡ Electric Components

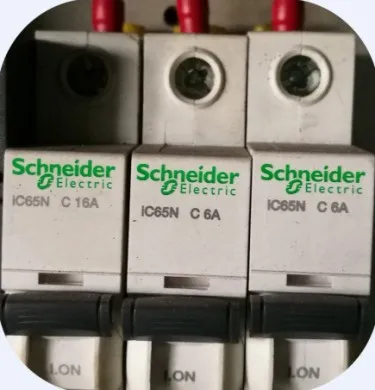

AC Contactor: Schneider Electric
Overload Relay: Schneider Electric
Circuit Breaker: Schneider Electric
Display: OMRON digital display for thickness and speed.

🔍

Key Component Details

💎

Grinding Head Configuration

Head No.	Function	Wheel Type	Power
1# - 2#	Rough Grinding	Diamond Wheel	2.2 KW
3# & 5#	Chamfer Angle	Resin Wheel	1.5 KW
4# & 6#	Angle Polishing	10S40 Wheel	1.5 KW
7#	Rough Grinding	Resin Wheel	2.2 KW
8#	Polishing	10S40 Wheel	2.2 KW
9#	Fine Polishing	Felt Wheel	1.5 KW

🌟

Our Advantages

Precision Manufacturing: Robotic welding and 15-point quality inspections.
Global Standards: CE and ISO 9001 certified for international markets.
Customized Solutions: OEM/ODM flexibility for diverse glass processing needs.
Cost Efficiency: Direct factory standards ensuring maximum value.

❓

Frequently Asked Questions

Q1: What is the maximum glass thickness this machine can handle?

A: The machine is designed to process glass thicknesses ranging from 3mm to 19mm (expandable up to 25mm depending on configuration).

Q2: How do you ensure the precision and quality of the edging?

A: We use a 15-point quality control process, including robotic welding for the frame and dual inspections before shipping. Major electrical components are from world-class brands like Schneider and Omron.

Q3: What kind of after-sales technical support do you provide?

A: We provide a 1-year comprehensive warranty, 24/7 remote technical assistance, and detailed video instructions for maintenance and repairs.

Q4: Can the machine speed be adjusted for different glass types?

A: Yes, it features a power capacity step-less reducer that allows transmission speeds from 0.5 to 6 meters per minute, ensuring stability even for heavy or oversized glass.

Q5: Is customization available for specific production lines?

A: Absolutely. We offer full OEM/ODM services to tailor the machine's dimensions, head configuration, and voltage to your specific requirements.

Q6: What materials are used in the machine's main structure?

A: The pedestal and crossbeams are made of HT250 cast iron with annealing treatment, providing a rigid foundation that eliminates vibration during grinding.
