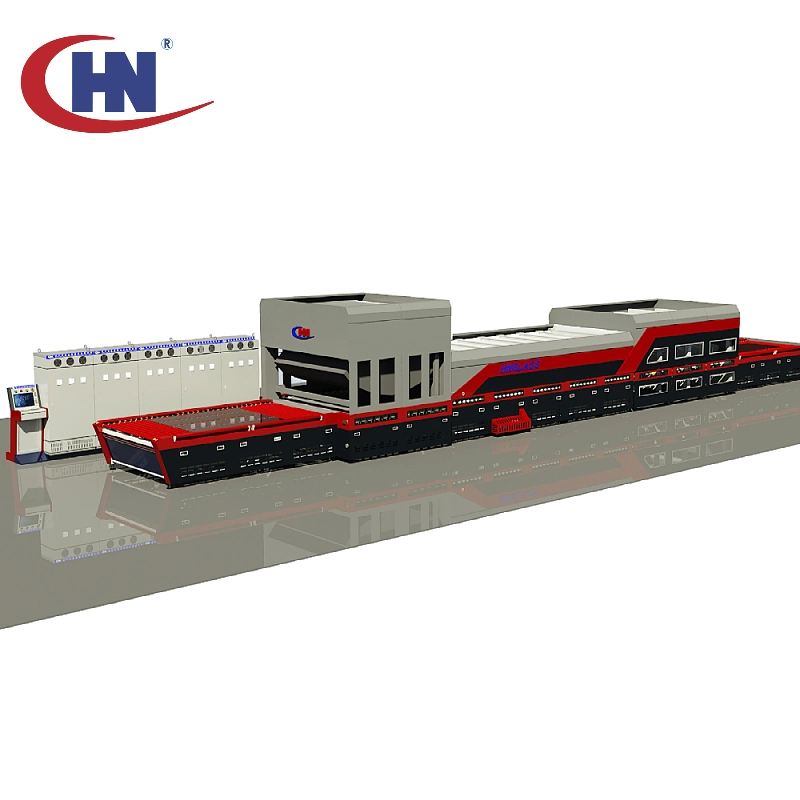

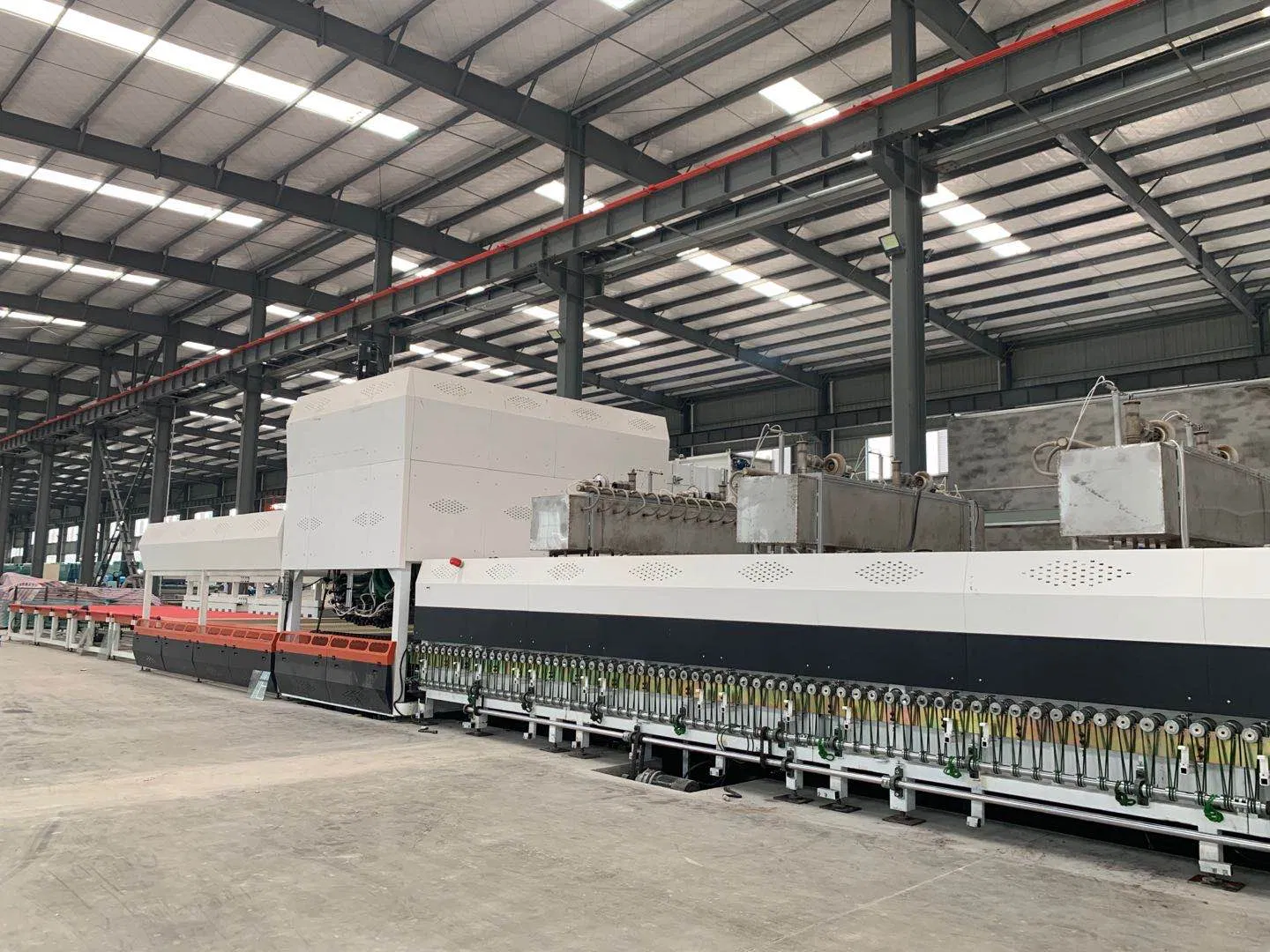

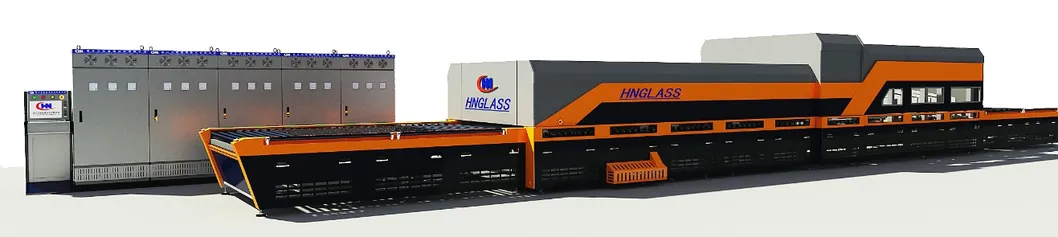

Flat and Bent Glass Tempering Furnace

Customization:	Available
Certification:	CE, ISO
Control System:	PLC+Industrial Computer

Send Inquiry

Product Description

Basic Specifications

Model NO.

HNT-AB243617

Warranty

2 Year

Convection

Turbo Blower

Ceramic Roller

Vesuvius

Inverter

Germany

Heating Wires

Ni-Cr Type

Transformer

500kVA

Productivity

18-20batch/Hour

Glass Thickness

4-19mm

Bent Glass Size

2440*1700mm

Structure

Horizontal

Installation

Free Installation Commissioning and Training

Product Description

Glass Can Be Tempered:

Float Clear Glass

Low-E Glass

Screen Printing Glass

Tinted Glass

Patented Glass

Application:

Building Glass

Furniture Glass

Insulation Glass

Laminated Glass

Model	Max Glass Size (mm)	Mini Glass Size (mm)	Glass Thickness (mm)	Productivity (m²/hour)	Power (KVA)
HNT-A0510Q	500x1000	50x80	2.5-12	9.2	100
HNT-A1020Q	1000x2000	50x150	3-12	36.8	120
HNT-A1225Q	1250x2500	100x250	4-19	50	150
HNT-A1630Q	1600x3000	100x250	4-19	76.8	250
HNT-A2030Q	2000x3000	100x250	4-19	96	350
HNT-A2436Q	2440x3660	100x300	4-19	142	500
HNT-A2442Q	2440x4200	100x300	4-19	164	630
HNT-A2450Q	2440x5000	200x300	4-19	195	800
HNT-A2460Q	2440x6000	200x350	4-19	234	900
HNT-A2850Q	2850x5000	200x300	4-19	224	900
HNT-A2860Q	2850x6000	200x350	4-19	268	1000
HNT-A3380Q	3300x8000	200x500	5-19	380	1500
HNT-A3680Q	3600x8000	200x500	6-19	320	1800

Scope of Supply

Loading table
Heating section
Flat tempering & cooling section
Bent tempering section
Unloading table
Blower system with Inverter
Electrical & control system (Siemens PLC, Computer, etc)
Technical documents

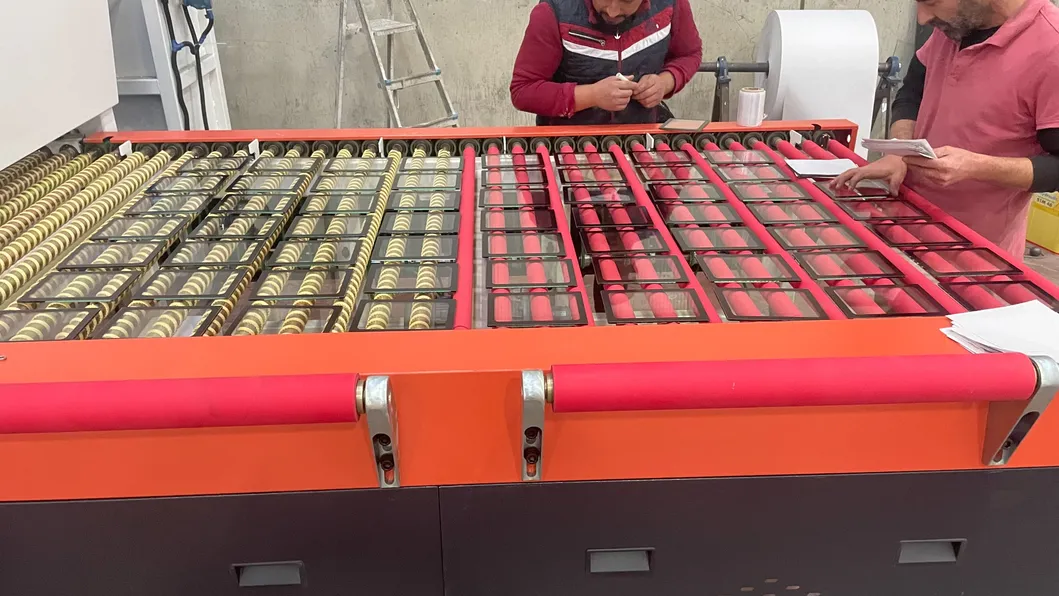

1. LOADING TABLE

• Automatic sensing step instead of foot switch - convenient loading.

• The PTFE straight handle universal wheel - High strength quality.

• Automatic lift/Lower function for unloading table to prevent glass smashing.

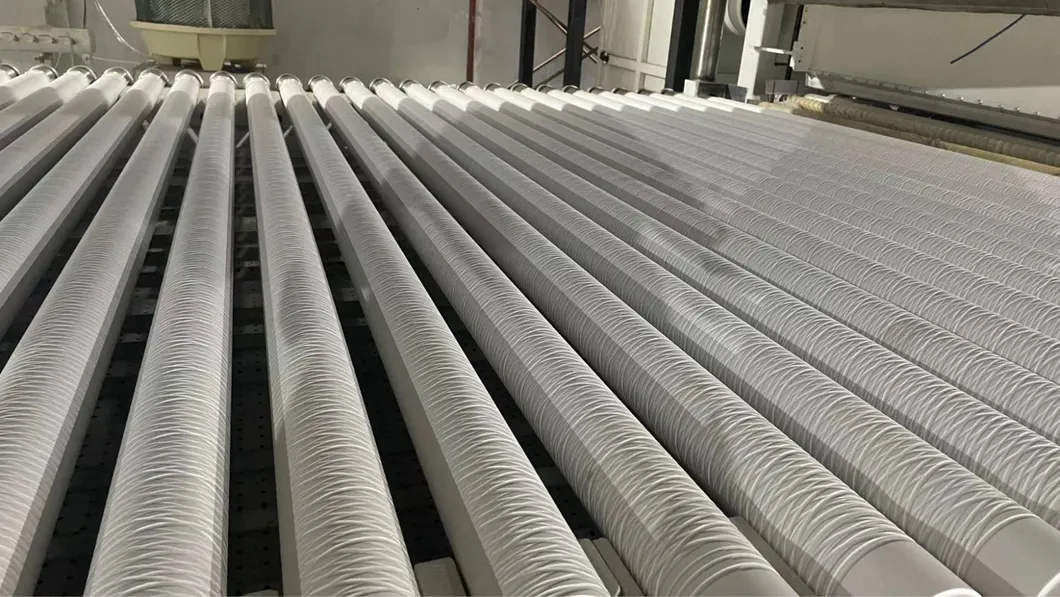

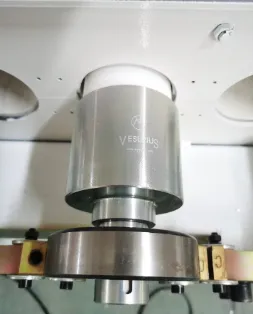

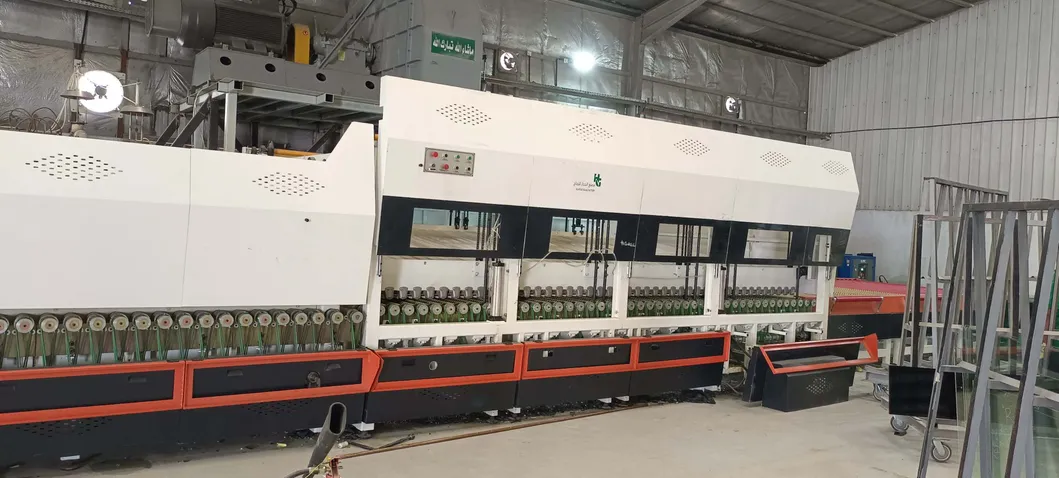

2. HEATING SECTION

3. TURBO BLOWER CONVECTION

Realize partial area convection.
Energy saving: Turbo blower can be stopped when processing common clear glass.
Small installation size with excellent furnace body heat preservation.
Outside installation for convenient maintenance.
Inverter-controlled for easy adjustment.

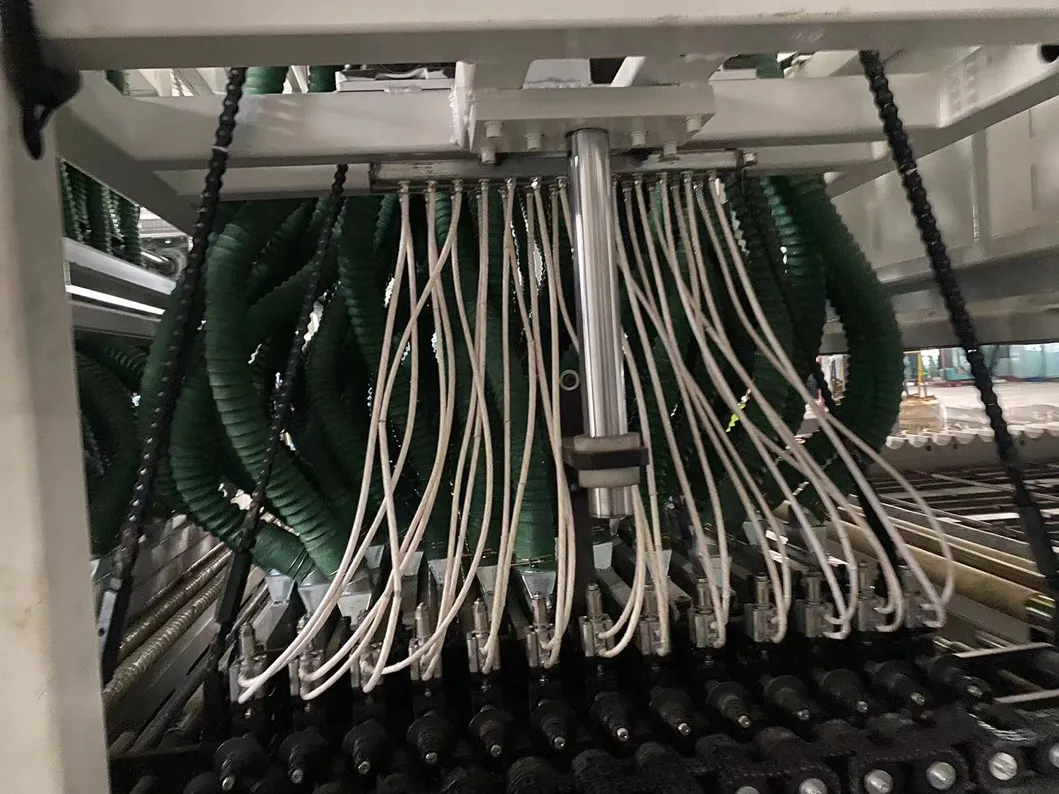

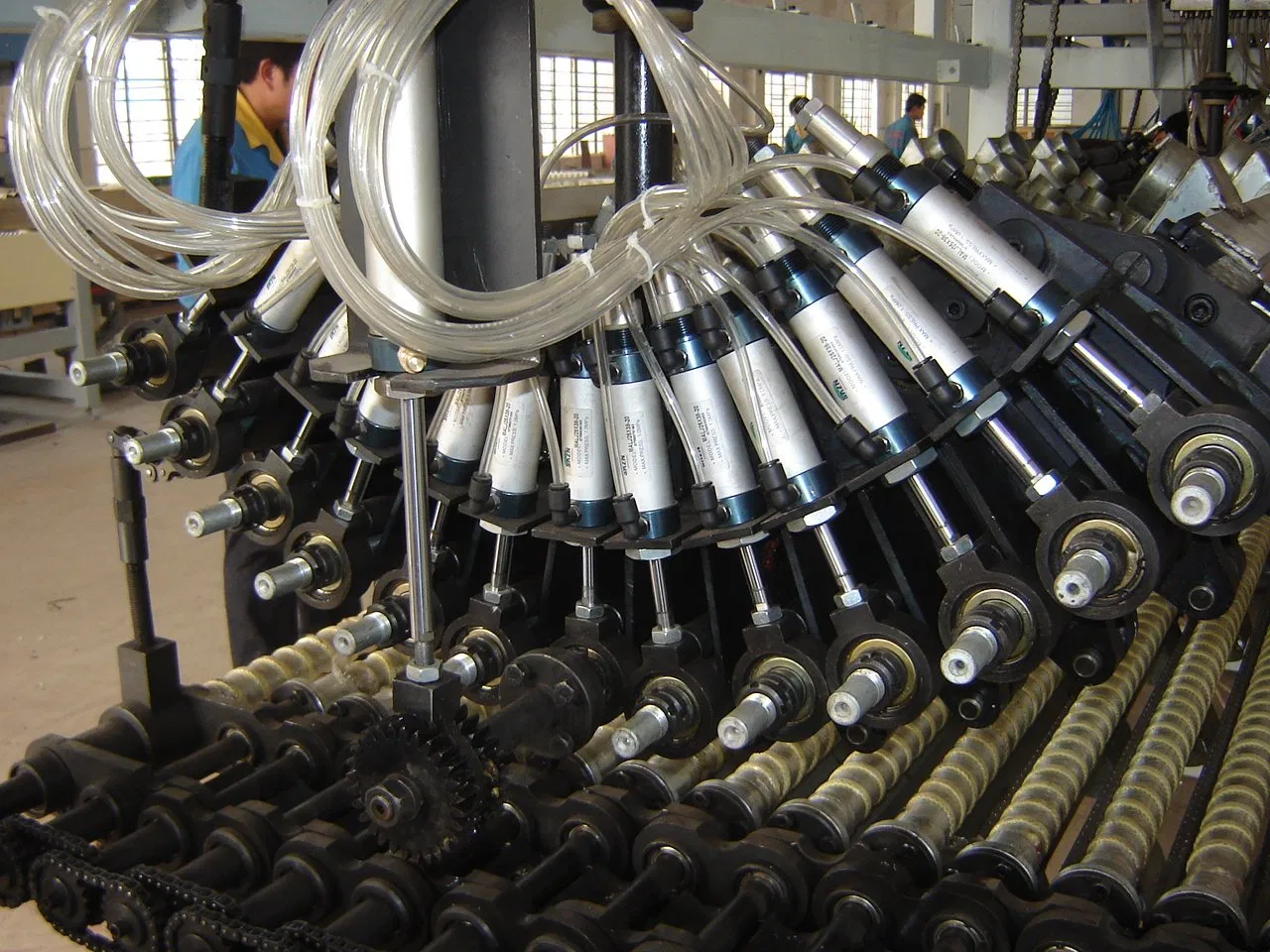

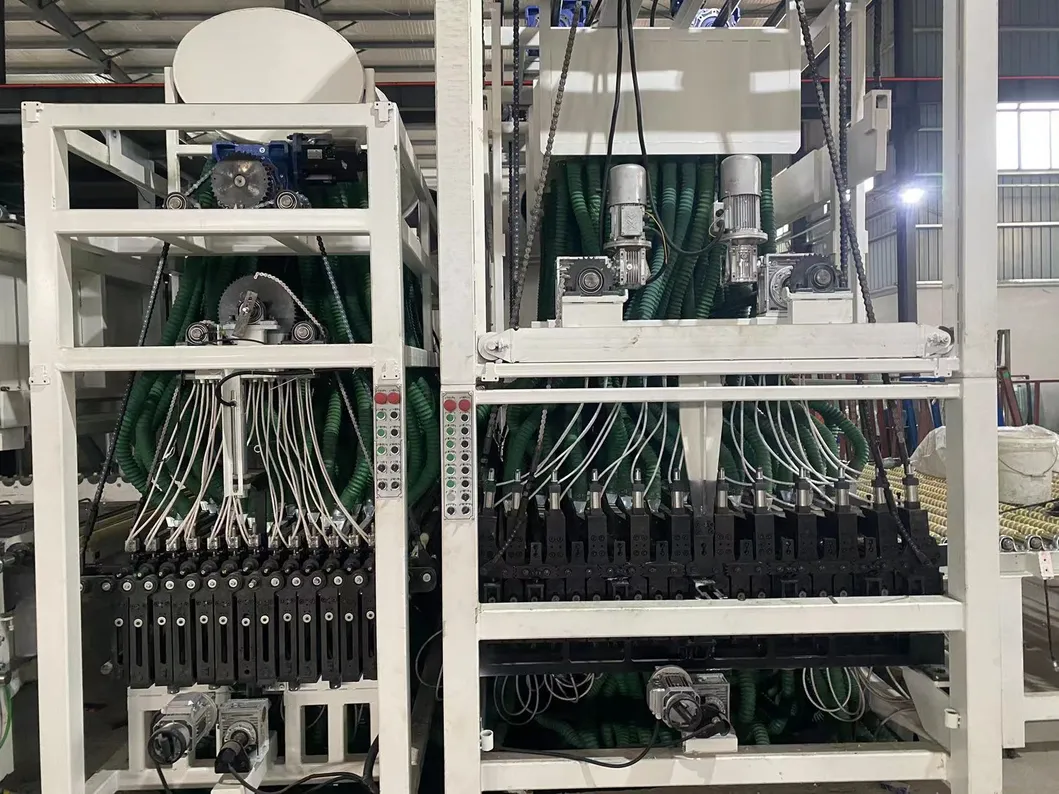

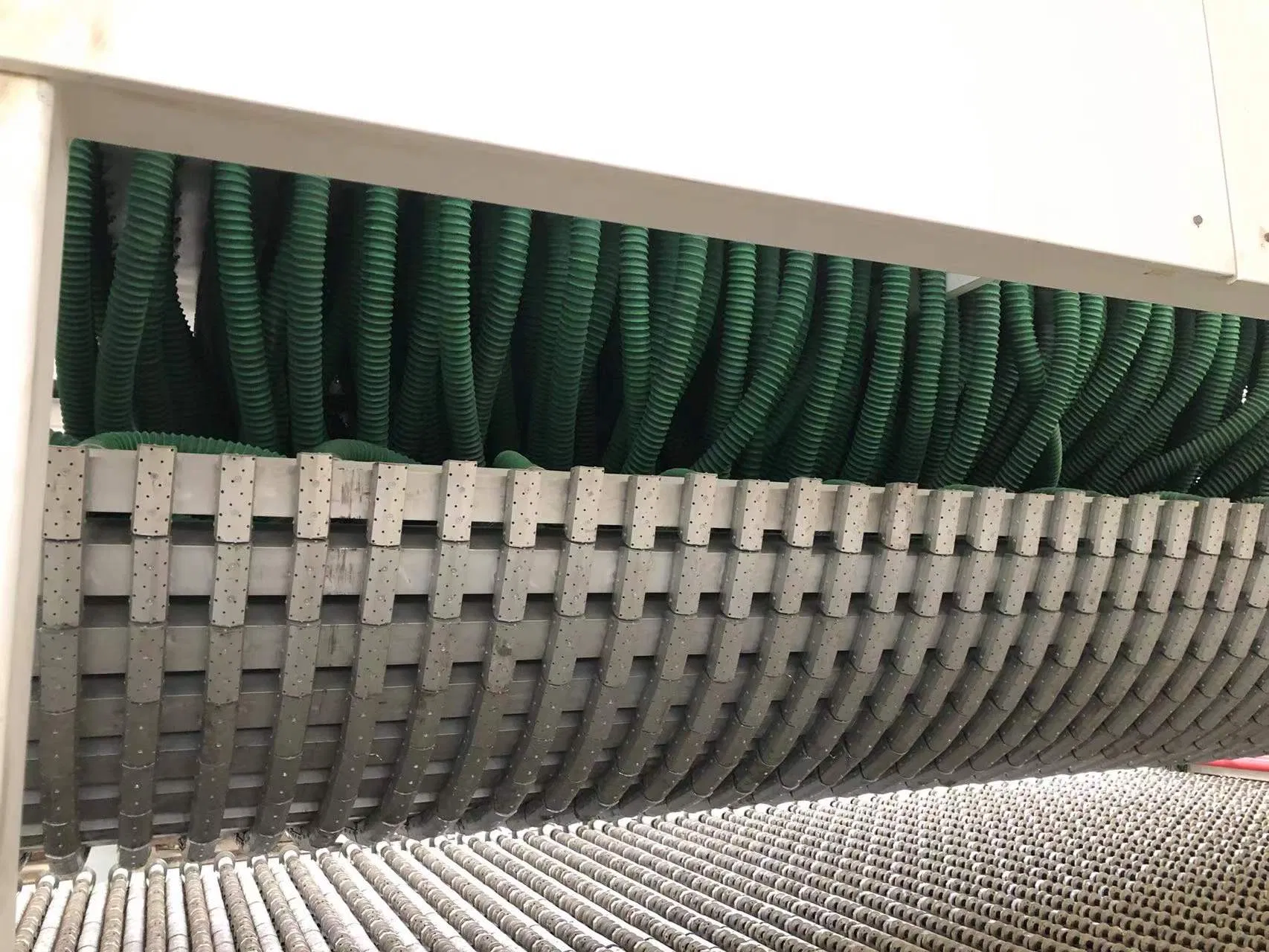

4. BENT GLASS SECTION

Pressing Rollers on the top quench.
Automatic Radius Changing.

Frequently Asked Questions

What is the range of glass thickness this furnace can process?

The furnace can process glass thickness ranging from 4mm up to 19mm, with specialized models capable of handling 2.5mm to 12mm.

Can this machine process Low-E glass?

Yes, the system is designed to temper various glass types including Low-E glass, clear float glass, tinted glass, and screen printing glass.

How does the turbo blower system help in energy saving?

When processing common clear glass, the Turbo Blower can be completely stopped to reduce power consumption while maintaining efficiency.

What kind of control system is used in the furnace?

The machine utilizes a high-reliability electrical control system featuring Siemens PLC and industrial computer interfaces.

Does the installation include operator training?

Yes, the service includes free installation, equipment commissioning, and comprehensive technical training for your operators.

Can it produce both flat and bent tempered glass?

Absolutely. The configuration includes both flat tempering/cooling sections and a dedicated bent tempering section with automatic radius changing.
