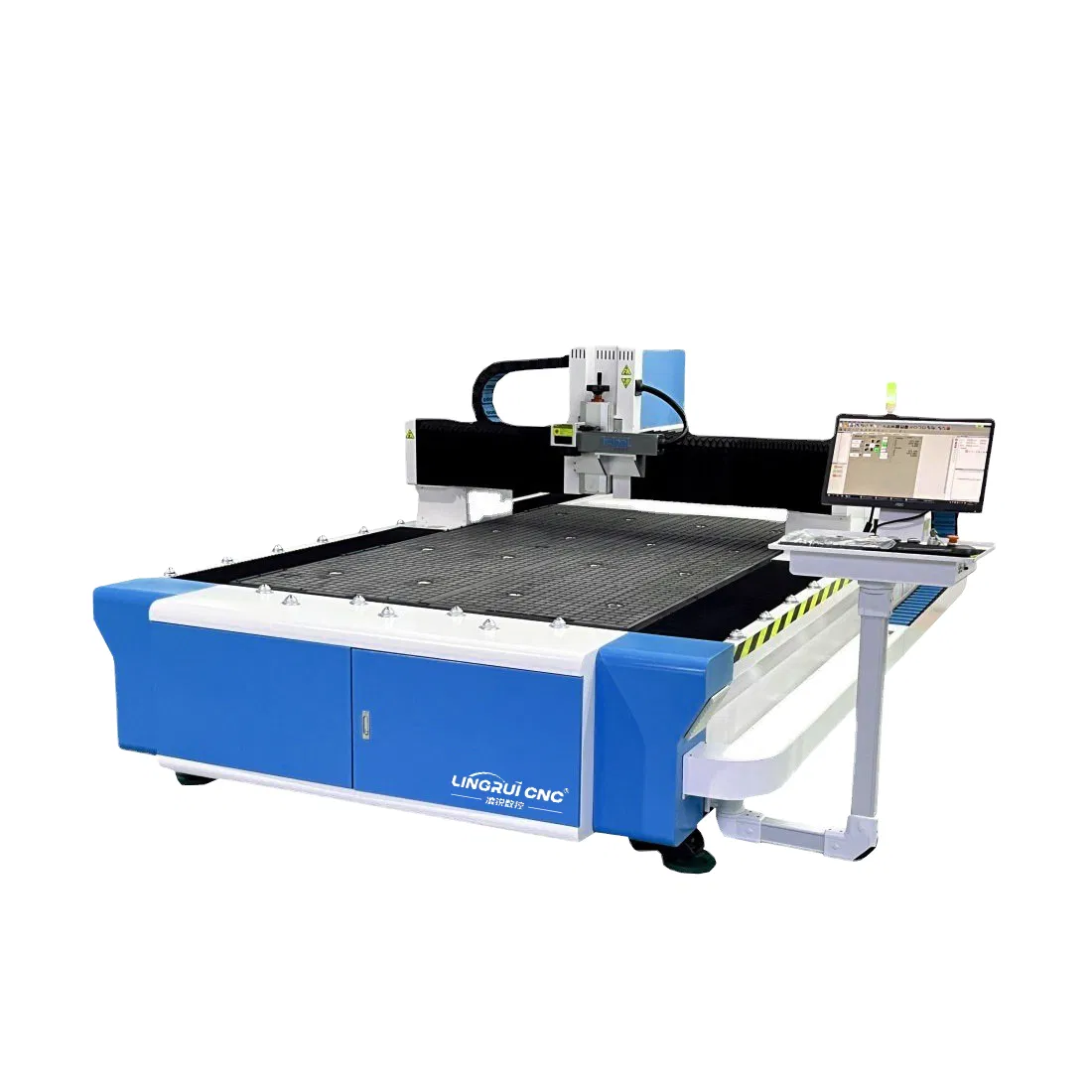

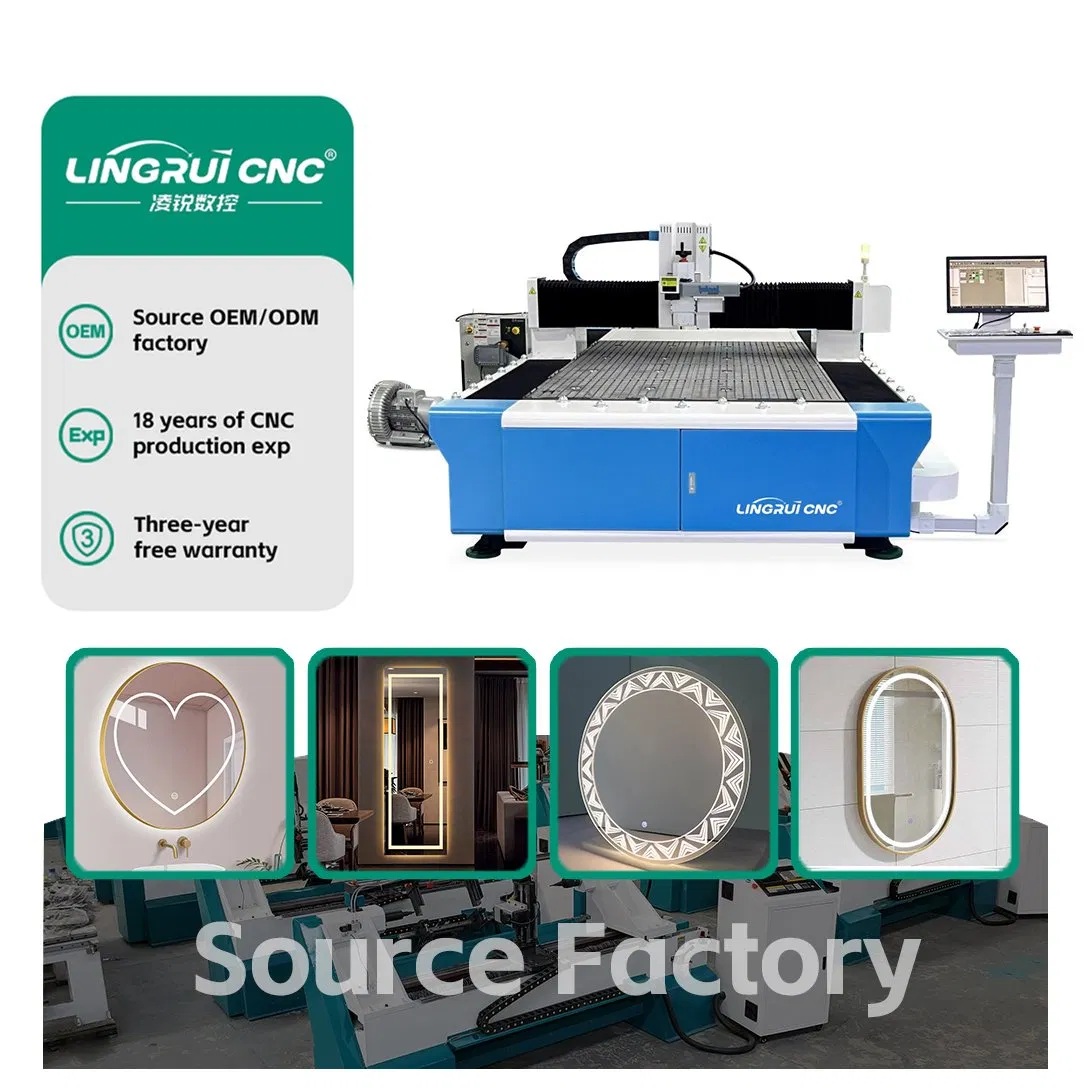

Large Area 1325 1530 Removing Mirror Coat Fiber Laser Marking Glass Frosting Laser Sandblasting Cosmetic Mirror Laser Drilling Machine

Customization:	Available
Laser Visibility:	Invisible
Applicable Material:	Metal

Send Inquiry

Product Description

📊

Basic Information

Model NO.LR-1530-FM

Cooling SystemWater Cooling

Technical ClassContinuous Wave Laser

Laser WavelengthFiber Laser

Laser ClassificationSolid Laser

TypeOptical Fiber Laser Marking Machine

Marking MethodArray Type Marking

Specification1300mm*2500mm

OriginChina

Production Capacity50pieces/Month

🚀

Product Description

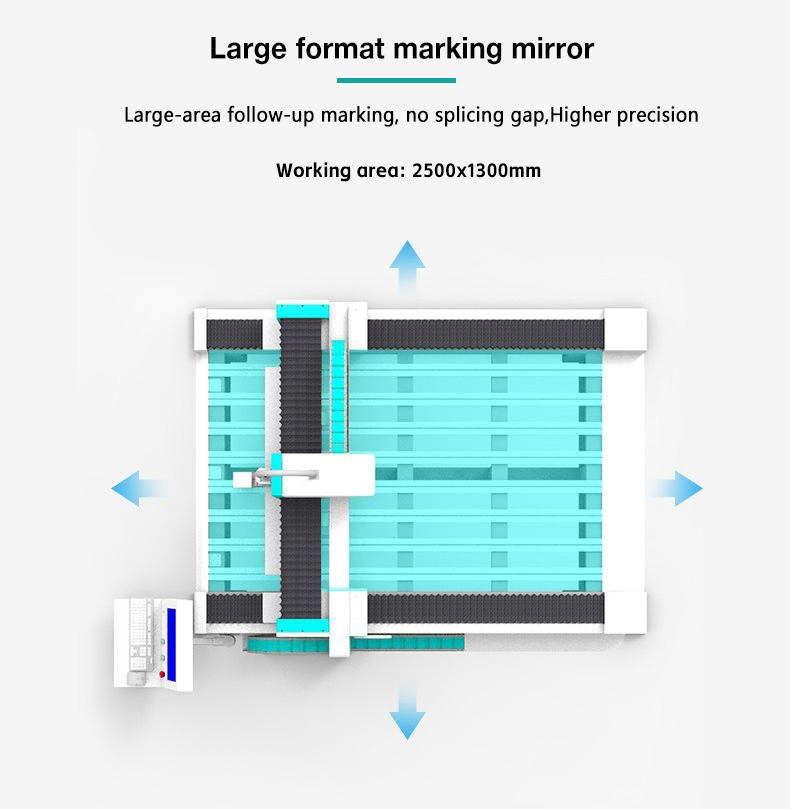

Advantages of New High-Precision Large Format Mirror Marking Machine:

Multifunctional: Removes paint, sands, and punches holes on mirrors. Suitable for metals, glass, mirrors, and plastics.
Comprehensive Support: Single line, filling engraving, bitmap engraving, number skipping, and coding.
Stable Gantry Structure: Rigid and stable design avoids vibration and improves processing accuracy.
Mobile Guide System: Simple and compact structure with high stability for wide-range marking.
Eco-Friendly: Equipped with an automatic smoke removal device.

📸

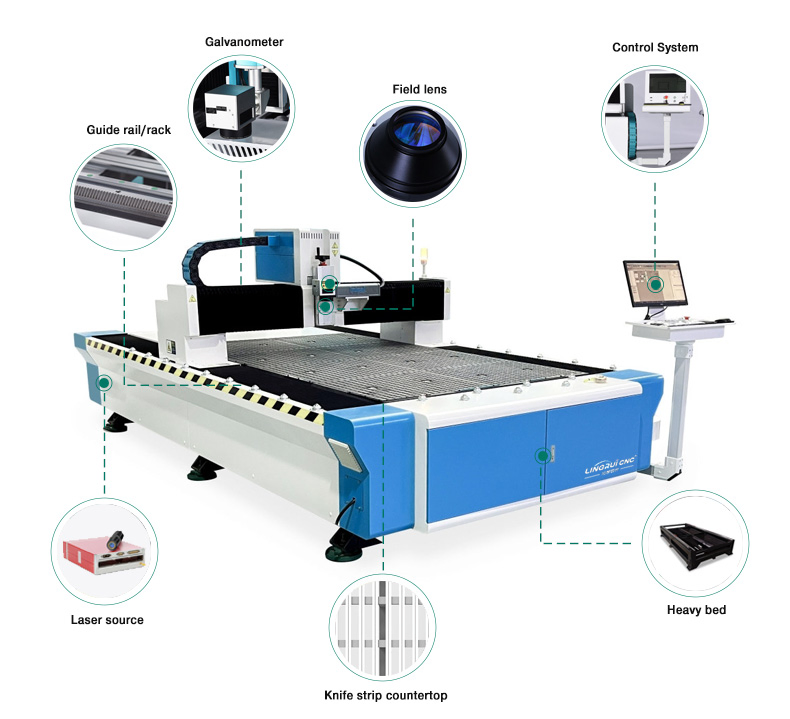

Detailed Components

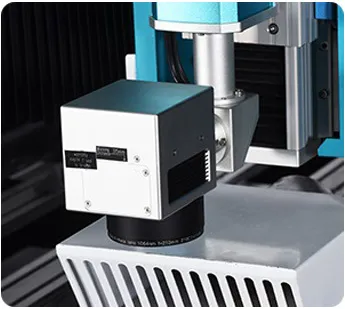

High-speed galvanometer: Supports assembly line marking speed up to 10000mm/min.

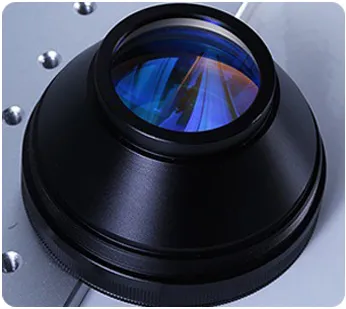

Scanning Lens: Quartz material with 5+ years lifespan for uniform light spots.

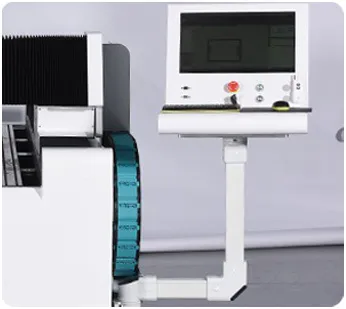

Computer & Bracket: Win 10 system with 180° rotatable ergonomic bracket.

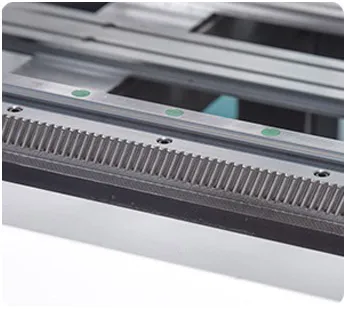

Grinding Level Guide Rail: 0.02 mm running accuracy, dustproof and rust-proof.

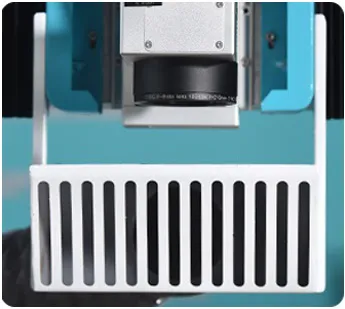

Smoke Exhaust: Easy exhaust of marking process gases.

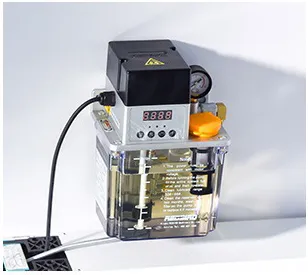

Automatic oiler: Fixed time and quantity oil supply for high efficiency.

⚙️

Product Parameters

Parameter	Specification
Model Name	LR-1325/1530FM Fiber Laser Marking Machine

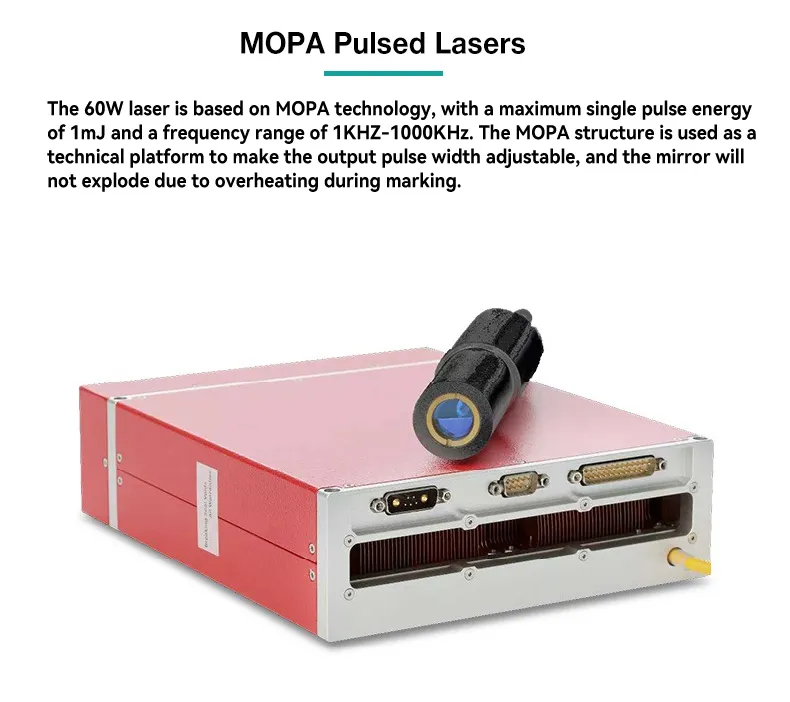

Laser light source	MOPA Pulsed Laser
Laser power	60W, 100W, 200W
Wavelength	1064nm
Standard marking area	13002500mm / 15003000mm
Marking speed	600-1000 characters/second
Repeat positioning accuracy	±0.01mm
Cooling system	Water Cooling
Power consumption	< 1kw
Applicable Materials	Metals, high-hardness alloys, oxides, coatings, ABS glass, mirrors, etc.

🛠️

Service & Warranty

3-Year Warranty: Maintenance policy for the entire machine. Free replacement for parts damaged due to machine reasons.
Lifetime Support: Free maintenance and software updates for life. Technical on-site support available if needed.
24/7 Response: Respond within 10 minutes through online chat or email; faults diagnosed within 60 minutes.
Training: Comprehensive instructional videos and manuals provided before shipping.

📜

Certifications

❓

Frequently Asked Questions

Are you a factory or a trading company?

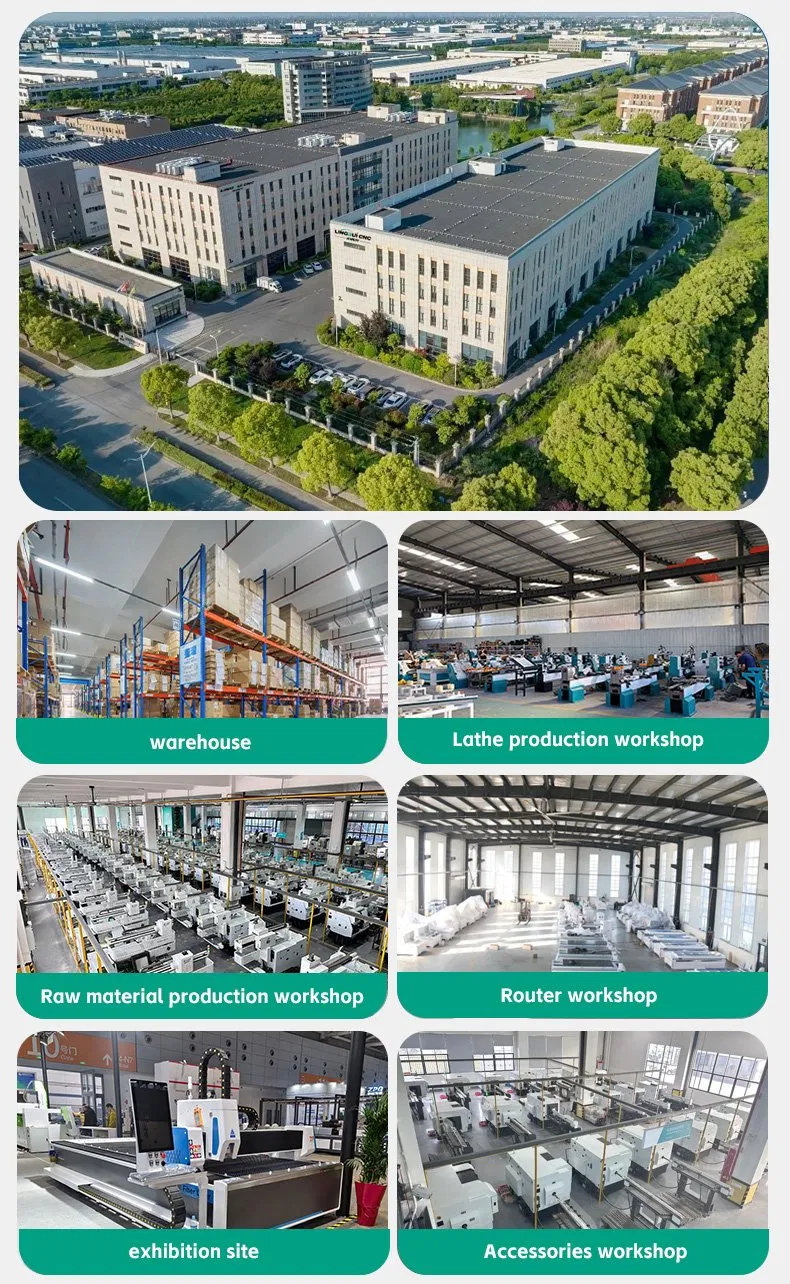

We are a factory with an export license and over 17 years of experience in the industry.

What is your after-sales service policy?

We provide a 3-year warranty and respond to inquiries within 10 minutes. Technical support is available via phone, email, and video chat.

How do I choose the appropriate machine?

Simply provide us with your material type, size, and functional requirements, and our team will recommend the most suitable model.

Do you provide installation and debugging services?

Yes. Machines are pre-installed and debugged before leaving the factory. We also offer on-site installation by our technical personnel.

Can the machine be customized?

Yes, full customization is possible to satisfy specific customer requirements and production goals.

Can I see a sample processing video?

Absolutely. Send us your drawings or photos, and we will provide free processing samples and recorded videos.
