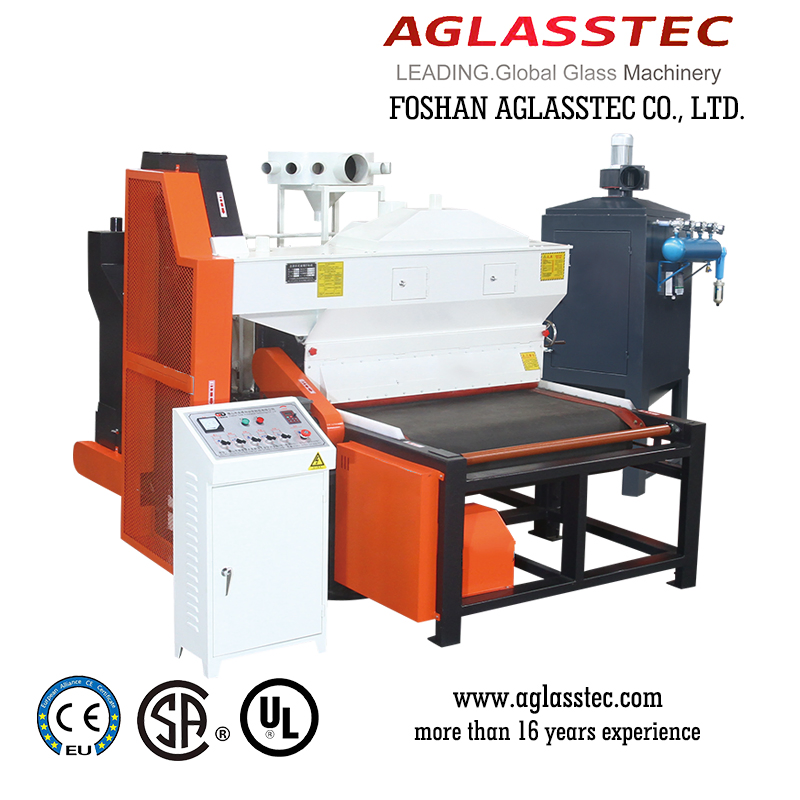

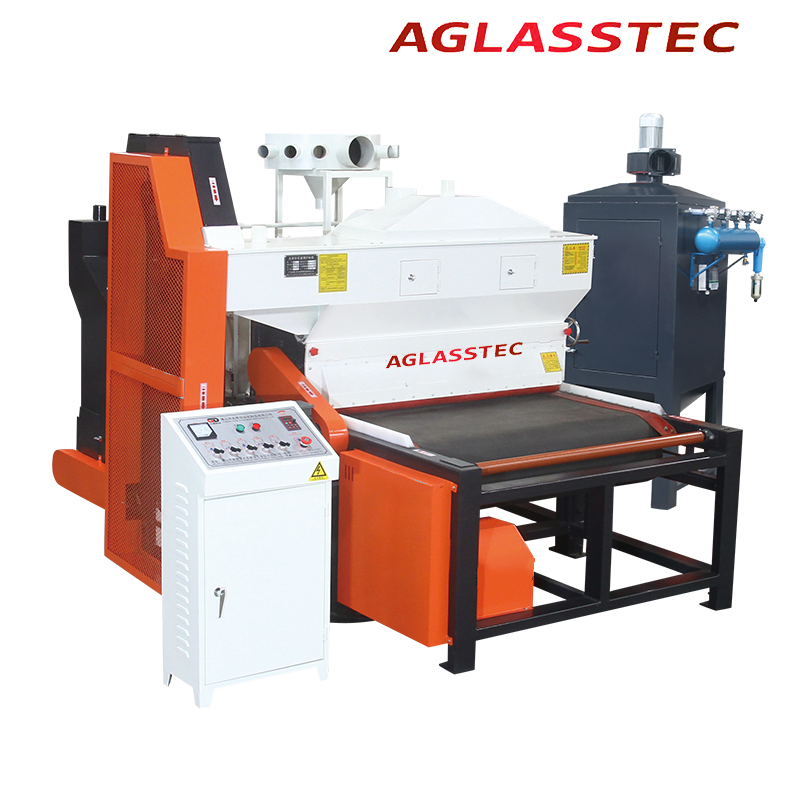

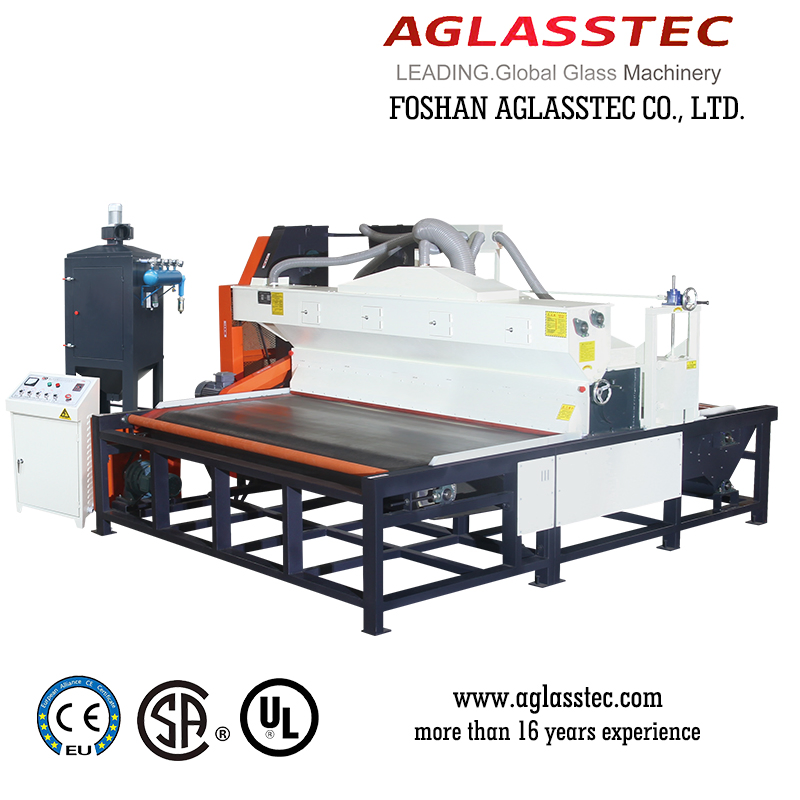

Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R
Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R
Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R
Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R
Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R
1 / 5
Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R
Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R
Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R
Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R
Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R

Fgs-HS2100 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust R

Customization: Available
Control System: Button Switch
Min.Glass Size: 200*200mm
Send Inquiry

Product Description

Basic Specifications
Model NO.
FGS-HS2100
Blades
8 PCS Frosting/Sandblasting
Voltage
220V-600V (Customizable)
Application
Large Scale Sand Blasted Glass
Type
Glass Sandblasting Machine
Certification
CE, CCC
Structure
Horizontal
Capacity
900 Set/Year
Max Width
2100mm
Origin
China
Key Features & Design
Independent Control System: The electric box and machine body are separate, effectively protecting electrical components and allowing for a more convenient operation interface with a fingerprint-free aluminum panel.
Robust Main Shaft: Utilizes solid 40Cr steel with diameters ranging from 70mm to 110mm, processed via heat treatment, straightening, and dynamic balance for ultimate precision.
Durable Conveyor: Features a screw conveyor with 3.5mm professional mine wear-resistant materials, extending service life to 5-8 years.
Advanced Sanding System: Equipped with 8+5m super thick round acrylate for stronger rigidity and special durable belt brushes.
Dust Protection: Double lifting sand tower with three-layer protection prevents bearing burnout and maintains a clean working environment.
Technical Parameters
No. Item Unit Parameter (FGS-HS2100)
1Thickness to be processedmm2-21
2Max width of glassmm2000
3Side column spacingmm2100
4Loading speed frequencyMm/min200-1200
5Sand rotating bladesPc8
6Height of working platformmm800
7Power of main motorKW7.1
8Overall dimension (L×W×H)mm3700*3000*2000
9Machine weightkg2500
10Max processing speedM²/hUp to 180 (Theoretical)
Product Gallery
High Speed Glass Sandblasting Machine 1
High Speed Glass Sandblasting Machine 2

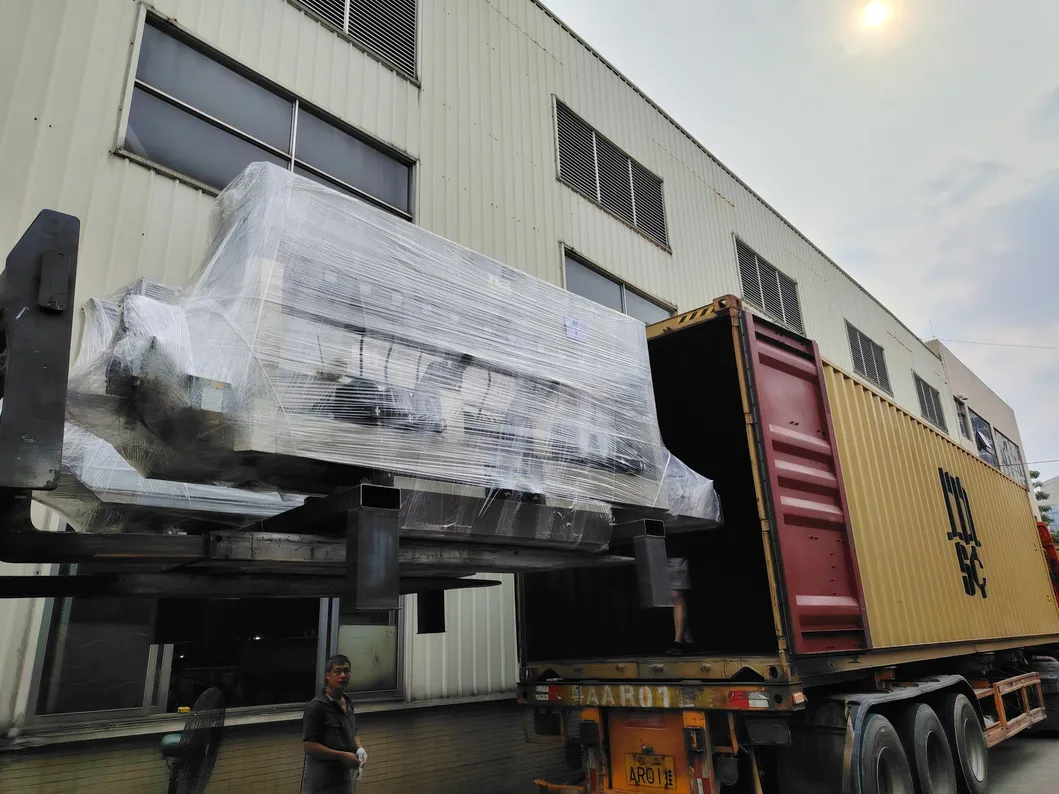

Machine Detail View

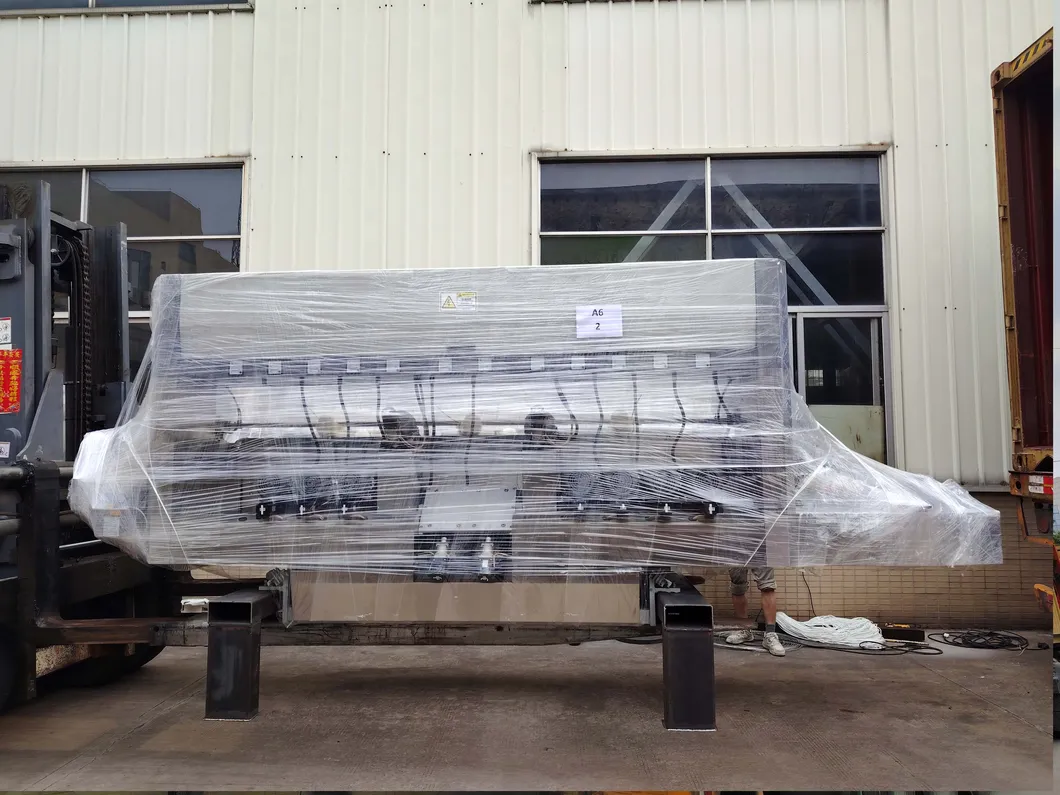

Processing View
Frequently Asked Questions
Q: What is the maximum glass width this machine can handle? A: The FGS-HS2100 is designed to process glass with a maximum width of 2100mm and a thickness between 2mm and 21mm.
Q: What kind of motors and electrical components are used? A: The machine is equipped with Siemens main motors and reliable Delixi electrical elements for long-term stability.

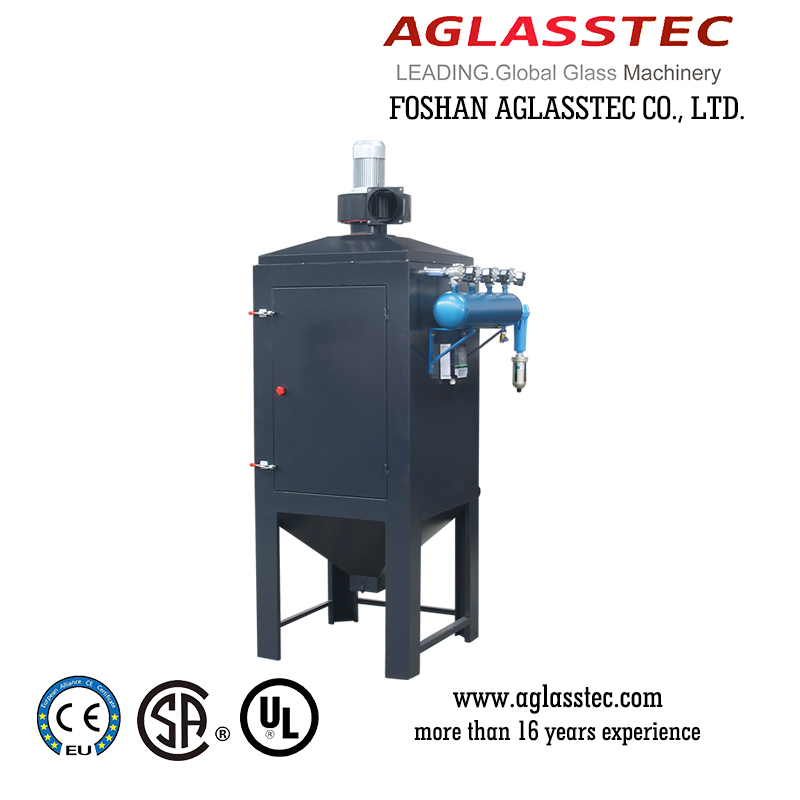

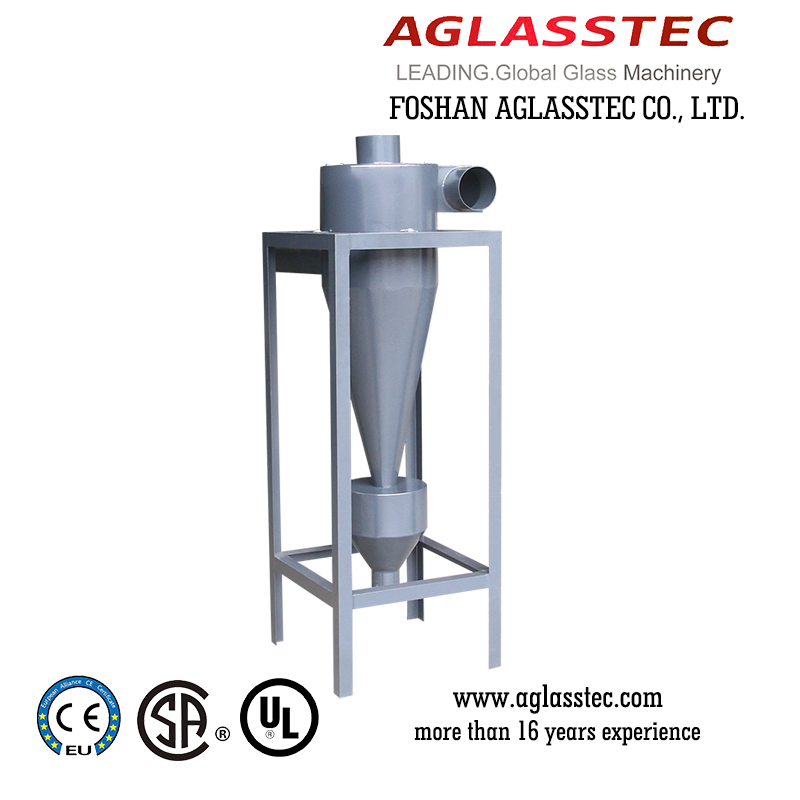

Q: How does the dust removal system work? A: It features a specialized vacuum cleaner (800*800*2200) and a sand lifting system with double towers to ensure a clean operation environment.
Q: Is the voltage compatible with my country's standards? A: Yes, the voltage is customizable and can be configured for 220V, 380V, 415V, 440V, 480V, or 600V as per your requirement.
Q: What is the expected lifespan of the wear-resistant parts? A: The screw conveyor is made from professional mine-grade wear-resistant materials, typically lasting between 5 to 8 years.
Q: How do you ensure the precision of the sanding spindle? A: Every spindle undergoes a strict process of rough turning, heat treatment, hardening, straightening, and final dynamic balancing using modern professional equipment.
