Honghe Machinery
Honghe Machinery

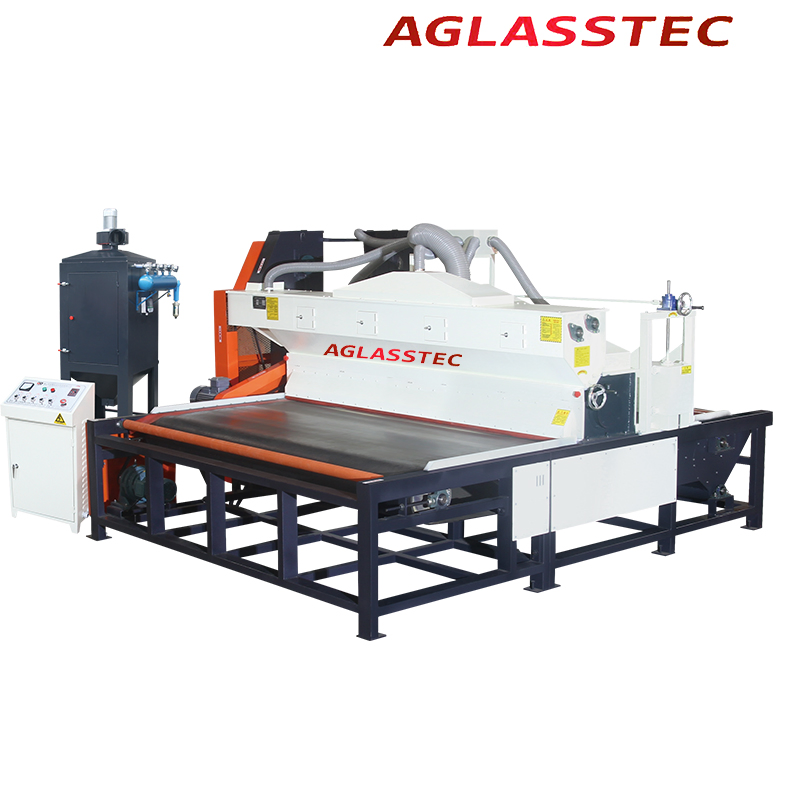

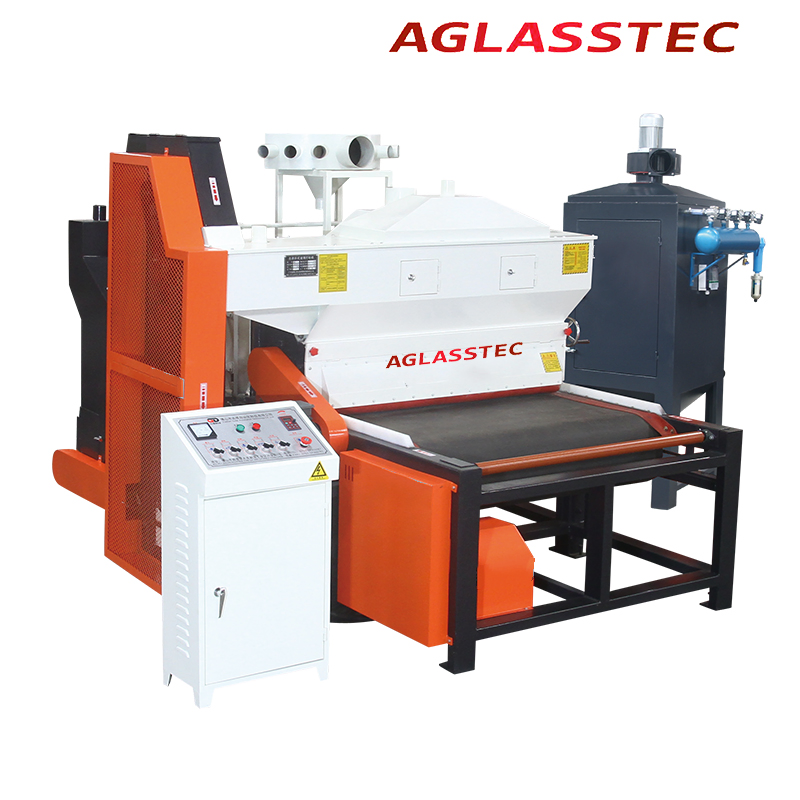

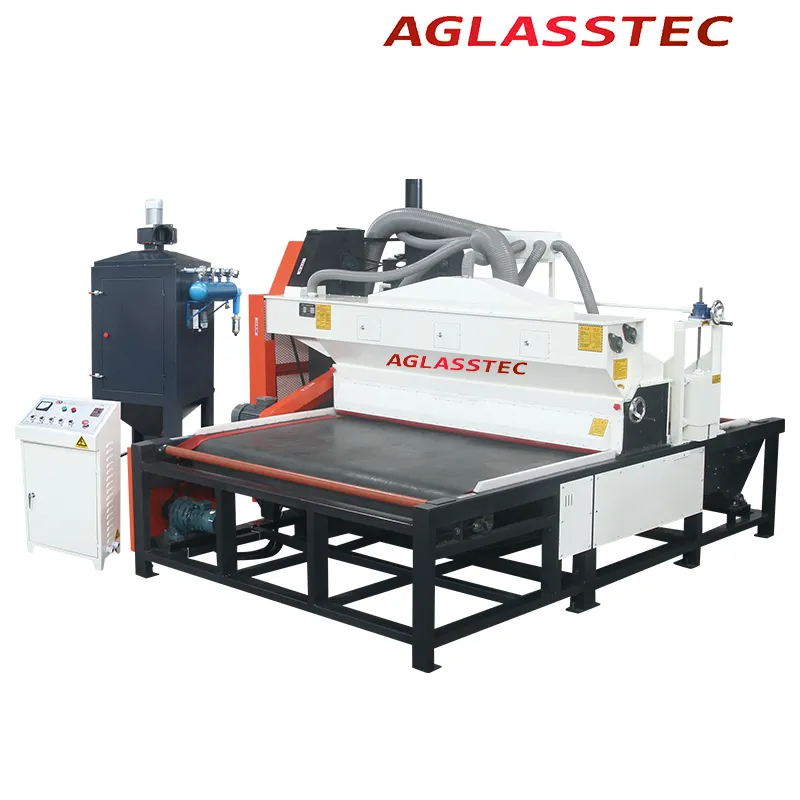

The electric box and machine body are separate. The independent electric box effectively protects electrical components and is convenient to place. It features a larger working face and is more convenient to operate. The machine is finished with a fingerprint-free aluminum panel, which is both beautiful and generous. Internal electrical components feature a reasonable layout, clear lines for easy installation and maintenance, using reliable components for long service life.
High quality TWB bearings; 40Cr material spindle grinding machine; 8+5m super thick round acrylate for strong rigidity.
Main body constructed with 3mm plate; All casting pulleys; Durable special belt brushes.
Double lifting sand tower; Dustproof structure with rubber cushions and covers to prevent bearing burnout; 3M full welded sand bucket.
| Item Description | Unit | Parameter (FGS-HS1600) |
|---|---|---|
| Processing Thickness | mm | 2-21 |
| Max Width of Glass | mm | 1500 |
| Side Column Spacing | mm | 1600 |
| Loading Speed Frequency | mm/min | 200-1200 |
| Sand Rotating Blades | Pc | 8 |
| Height of Working Platform | mm | 800 |
| Power of Main Motor | KW | 4.8 |
| Overall Dimension (L×W×H) | mm | 3100*2500*2000 |
| Machine Weight | kg | 1760 |
| Max Processing Speed | M²/h | 180 (Theoretical) / 54 (Max Size) |
