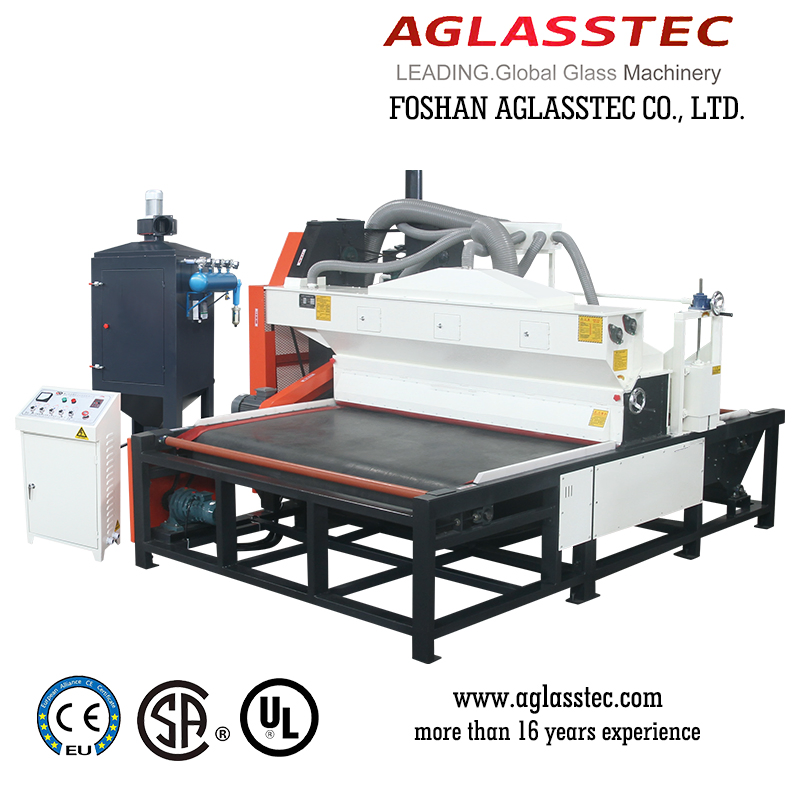

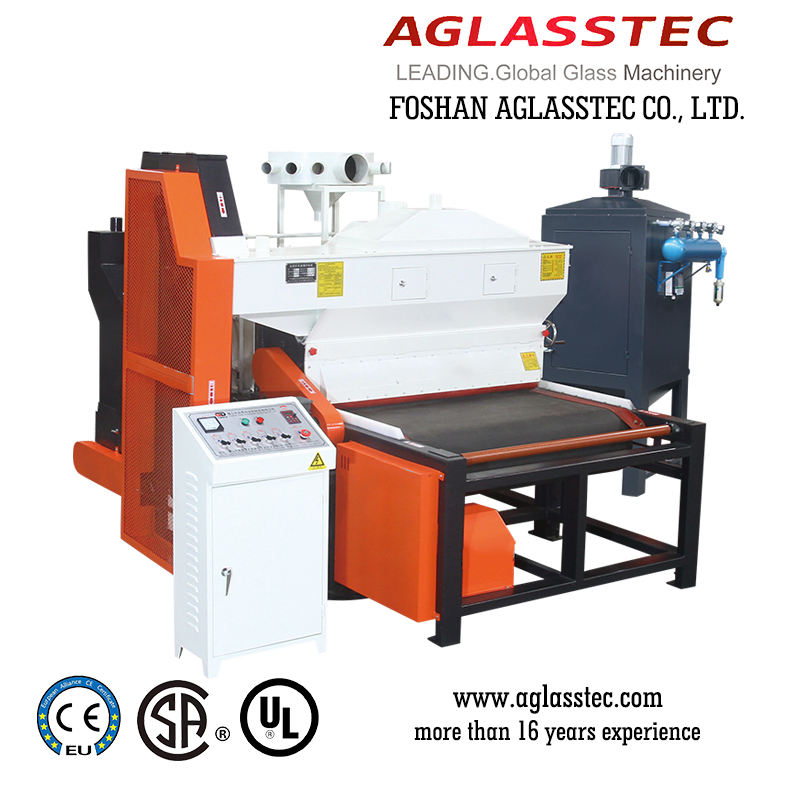

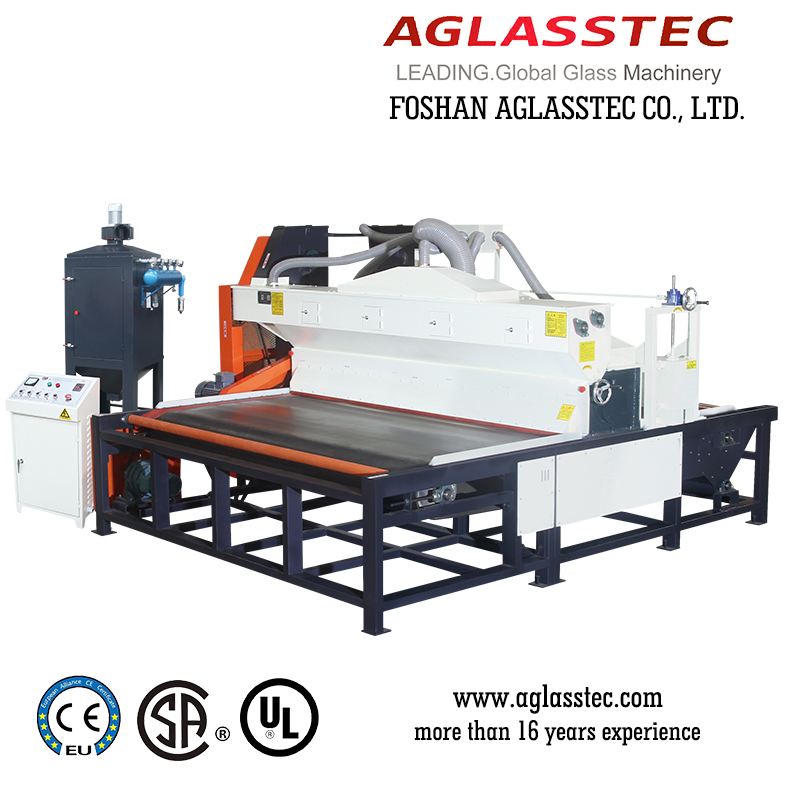

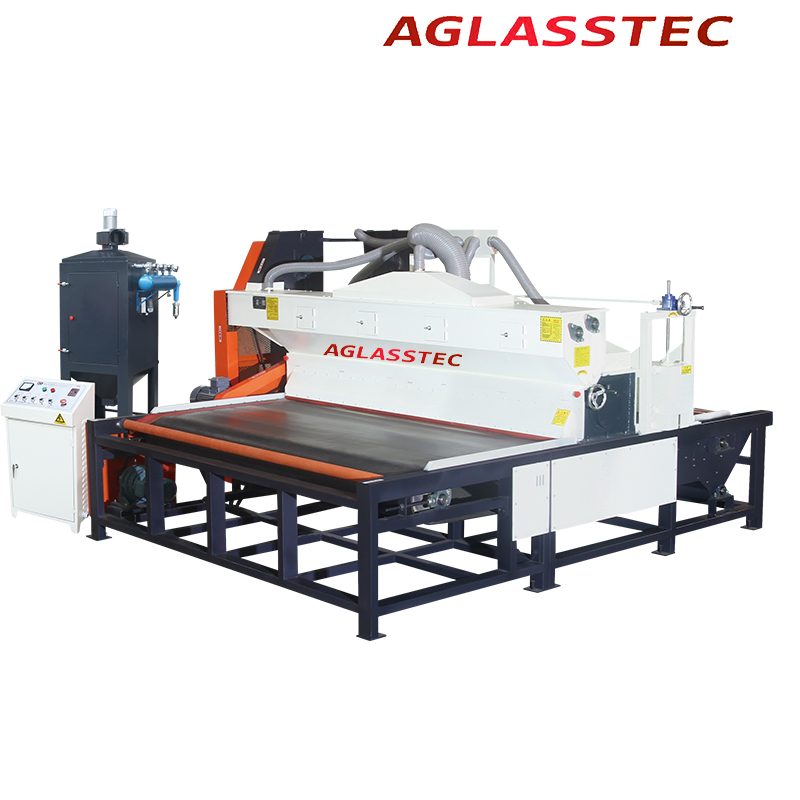

Fgs-HS1300 High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function

Customization: Available
Control System: Button Switch
Min.Glass Size: 200*200mm

Product Description

📋 Basic Info
Model NO.
FGS-HS1300
Blades
8PCS
Production Time
30 Days or Negotiable
Voltage
220V/380V/440V/480V/600V (Customizable)
Application
Large Scale Glass Sandblasting
Type
Glass Sandblasting Machine
Certification
CE, CCC
Structure
Horizontal
Warranty
1 Year
Condition
New
⚙️ Product Description

The electric box and machine body are separate; this independent design effectively protects electrical components and allows for flexible placement. The working face is constructed with a fingerprint-free aluminum panel, ensuring a professional and durable finish. Internal electrical components (Delixi) are logically laid out for convenient installation and maintenance, adhering to rigorous safety standards.

  • Three-face accessibility on the upper side allows for easy workpiece handling.
  • The main shaft is crafted from solid 40Cr with heat treatment, hardening, and dynamic balance processing.
  • Screw conveyor uses 3.5mm professional mine wear-resistant materials with a lifespan of 5-8 years.

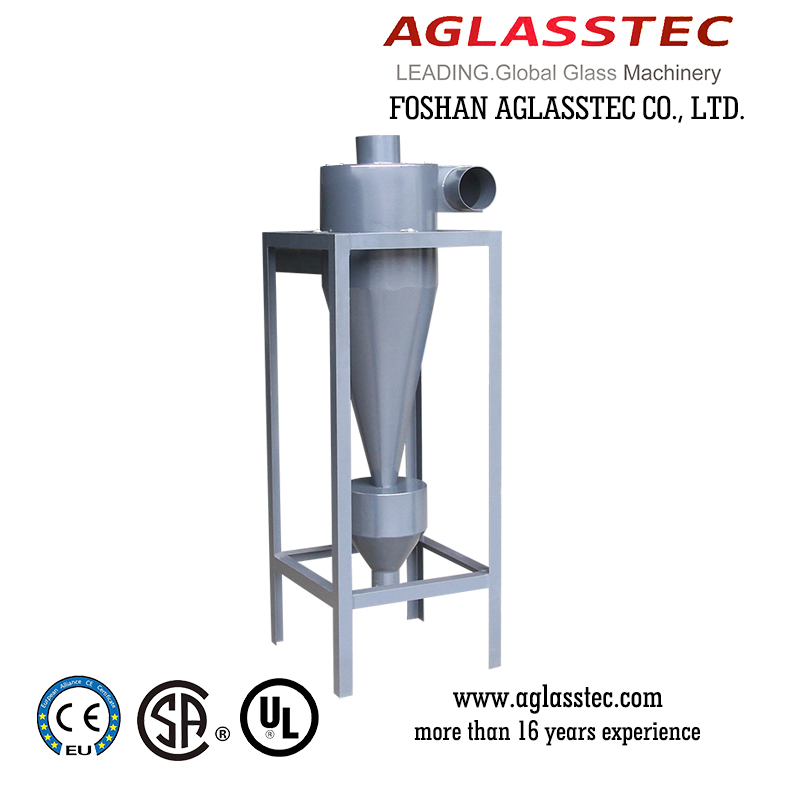

  • Integrated vacuum cleaner (800*800*2200) for efficient dust management.
  • Spindle assembly undergoes professional dynamic balancing for stable performance.
🛠️ Technical Configuration
Main Motor
Siemens
Bearings
TWB High Quality
Electrical Element
Delixi
Blower
First-class Domestic Brand
Brushes
Specially Made Durable Belt Brush
📊 Main Parameters
Item Description Unit FGS-HS1300 Value
Thickness to be processedmm2-21
Max width of glassmm1200
Side column spacingmm1300
Loading speed frequencyMm/min200-1200
Sand rotating bladesPc8
Power of main motorKW4.8
Overall dimension (L×W×H)mm3100*2200*2000
Machine weightkg1650
Max processing speed (Theoretical)M²/h180
📷 Product Gallery
Frequently Asked Questions
What is the range of glass thickness this machine can process?
The FGS-HS1300 can process glass thicknesses ranging from 2mm to 21mm.
What are the main electronic components used?
The machine utilizes high-quality Siemens main motors and Delixi electrical components for reliable performance.
What is the warranty period for the machine?
We provide a 1-year warranty for the machine, covering major components.
Is the voltage customizable for different countries?
Yes, the machine supports multiple voltages including 220V, 380V, 440V, 480V, and 600V, customizable to your requirements.
How long does the screw conveyor last?
The screw conveyor is made of professional mine wear-resistant materials and typically lasts 5 to 8 years.
What is the maximum glass width supported?
The maximum glass width for the FGS-HS1300 is 1200mm.
